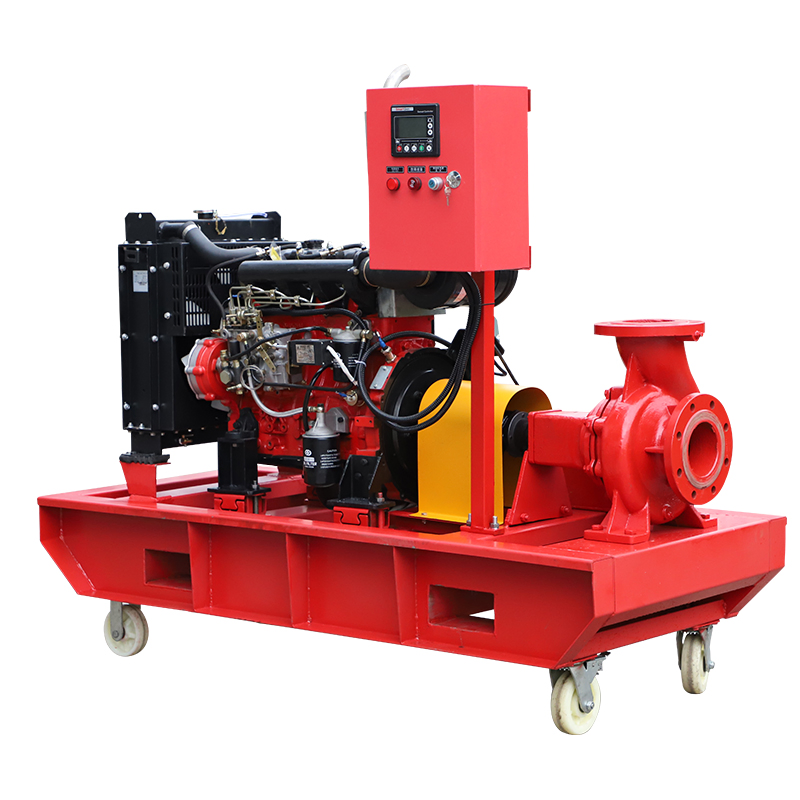

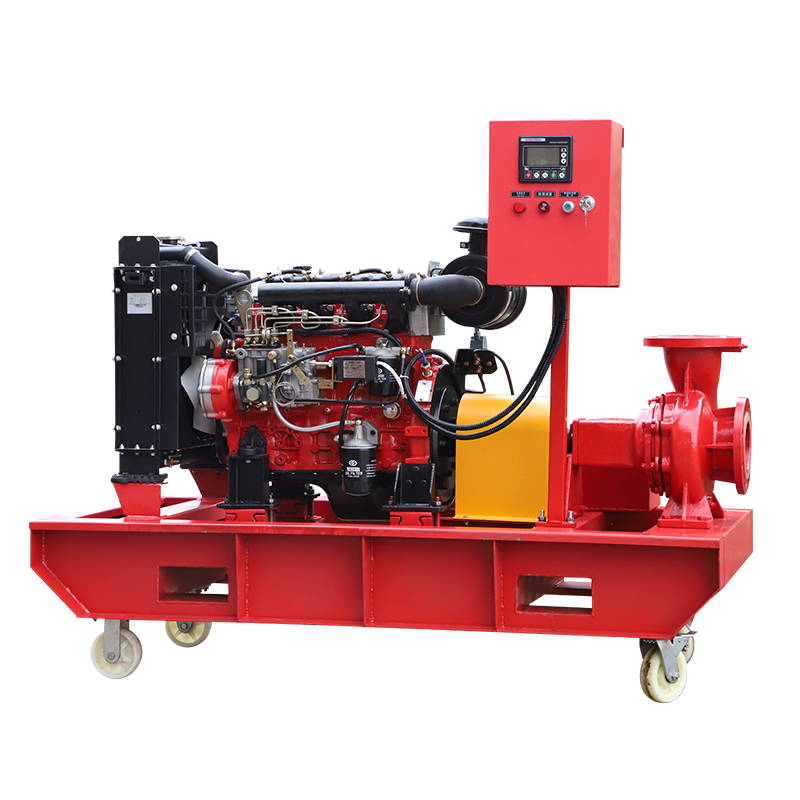

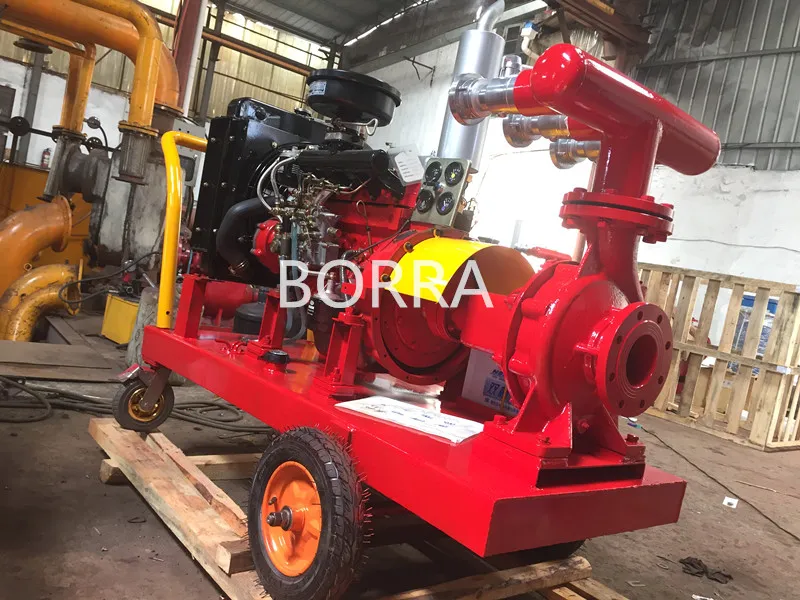

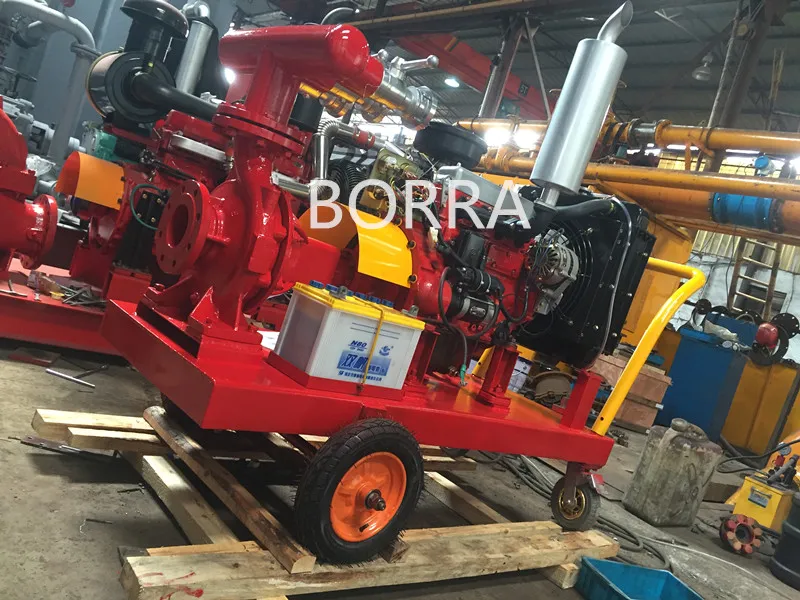

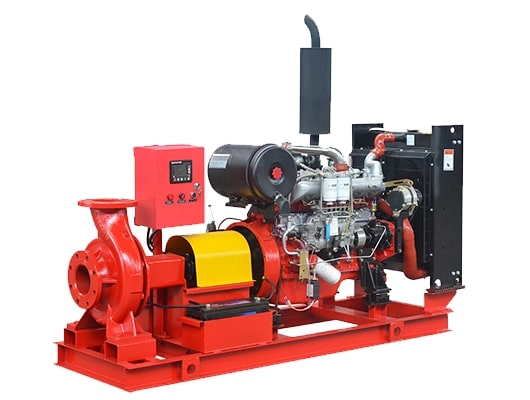

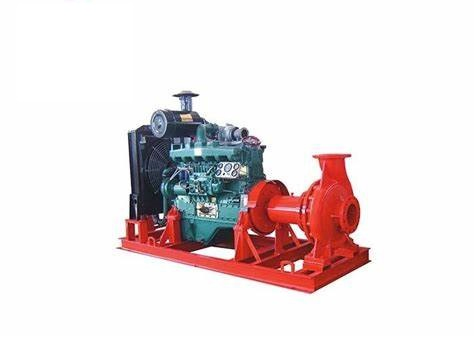

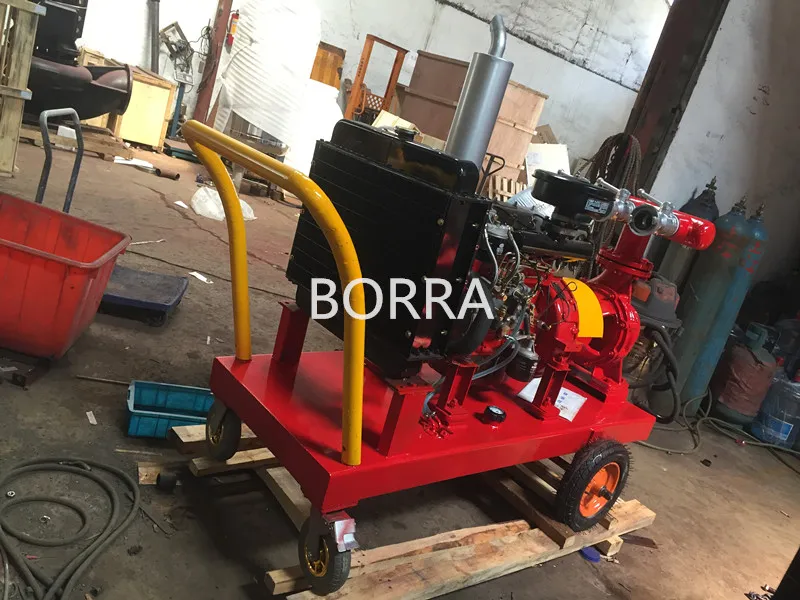

The XBC series diesel engine fire pump set is developed in accordance with national standards for fire pump performance and test methods, as well as the American Fire Protection Association standard NFPA20 for centrifugal fire pump installation. Designed for emergency safety, this system ensures that when building power fails, the diesel emergency pump automatically takes over to safeguard life and property.
These engines feature excellent starting characteristics, strong overload capacity, compact structure, and high automation, making them reliable equipment for critical fire-fighting scenarios.
Ideal for emergency water supply in field drainage, high-rise buildings, water companies, steel plants, chemical facilities, hotels, and hospitals.
| Diesel Engine Pump | Rate Flow (m3/h) | Rate Head (m) | Speed (r/min) | Pump Type |
|---|---|---|---|---|
| XBC8.0/13.9 | 30-50-60 | 84-80-75 | 2900 | IS80-50-250 |
| XBC7.0/13.0 | 47 | 70 | 2900 | IS80-50-250A |
| XBC6.0/12.2 | 44 | 60 | 2900 | IS80-50-250B |
| XBC12.5/13.9 | 30-50-60 | 128-125-123 | 2900 | IS80-50-315 |
| XBC8.0/27.8 | 60-100-120 | 87-80-75 | 2900 | IS100-65-250 |
| XBC5.0/55.6 | 120-200-240 | 58-50-45 | 2900 | IS125-100-200 |
| Fault | Cause | Solution |
|---|---|---|
| No water suction / Vibration | Insufficient water pouring; Pipe leak; Suction too high | Check bottom valve; Tighten parts; Reduce suction height |
| High vacuum / No suction | Bottom valve jammed; High resistance; Filter jammed | Check valve; Replace pipe; Clean filter |
| Low Flow Outcome | Air sucked; Water level drops; Impeller jammed | Clear leak; Increase submerged depth; Clean impeller |
• Pump Options: IS (single-stage), S/SOW (dual-suction), TSWA/D (multi-stage).
• Engines: Available in 1 to 12 cylinder configurations.
• Accessories: Filter, fuel tank, storage battery, charger, and preheat system (AC220V).
• Control: Microcomputer/PLC automatic control cabinets.
