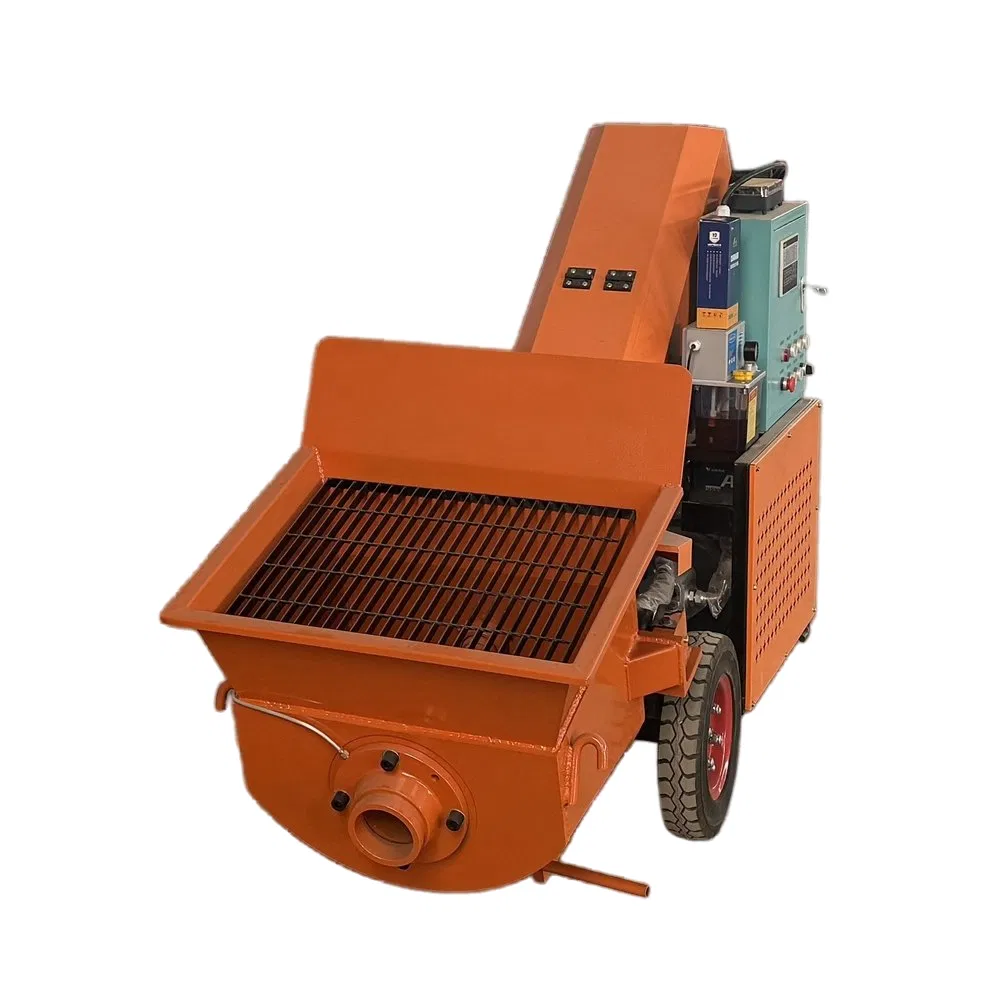

CONCRETE MIXER PUMP This product is used in high-rise building mortar and fine stone
concrete transportation, secondary structural column grouting, various pressure grouting in reservoirs, hydropower stations, ports, docks, foundation treatment, soft foundation, reinforcement grouting, tunnel, subway, mine construction, backfill grouting anchor support.
This product adopts hydraulic slurry delivery, vibration net filtration, and double-cylinder reciprocating operation, which can fully transport various mortars, fine stone concrete, etc, in construction applications.
This product has the characteristics of large displacement, high pressure, labor and material saving, flexible movement, etc. It is an ideal mortar transportation equipment. The Concrete Pump ensures precise and efficient concrete placement, significantly reducing manual labor and increasing productivity on construction sites.
Its advanced pumping technology delivers smooth, uninterrupted concrete flow, even over long distances or challenging terrains. Built for durability and ease of operation, it offers reliable performance and minimal downtime for maximum project efficiency. TYPE 20 FINE STONE CONCRETE PUMP
| MODEL | UNIT | SPECIFICATION |
| Motor Power | Kw | 30 |
| Power Supply | V | 380 |
| Dimensions | mm | 4000*1500*1500 |
| Weight | Kg | 1500 |
| Vertical Height | m | 100 |
| Horizontal Conveying Distance | m | 180 |
| Transport Capacity | h | 5³-7³ |
| Maximum Particle Diameter | cm | ≤1.5 |
| Discharge Port Diameter | mm | 125-64 |
| Cylinder Stroke | mm | 1000 |
| Cylinder Diameter | mm | 140 |
| Delivery Pipe Diameter | mm | 64 |
TYPE 25 LARGE PARTICLE DELIVERY PUMP
| MODEL | UNIT | SPECIFICATION |
| Motor Power | Kw | 30 |
| Power Supply | V | 380 |
| Dimensions | mm | 3500*1600*1600 |
| Weight | Kg | 1200 |
| Vertical Height | m | 70 |
| Horizontal Conveying Distance | m | 150 |
| Transport Capacity | h | 15³ |
| Maximum Particle Diameter | cm | ≤3 |
| Discharge Port Diameter | mm | 125 |
| Cylinder Stroke | mm | 750 |
| Cylinder Diameter | mm | 140 |
| Delivery Pipe Diameter | mm | 80-125 |
TYPE 30 FINE STONE CONCRETE PUMP
| MODEL | UNIT | SPECIFICATION |
| Motor Power | Kw | 37 |
| Power Supply | V | 380 |
| Dimensions | mm | 3800*1600*1600 |
| Weight | Kg | 1600 |
| Vertical Height | m | 80 |
| Horizontal Conveying Distance | m | 200 |
| Transport Capacity | h | 18-22 |
| Maximum Particle Diameter | cm | ≤2 |
| Discharge Port Diameter | mm | 140 |
| Cylinder Stroke | mm | 1000 |
| Cylinder Diameter | mm | 140 |
| Delivery Pipe Diameter | mm | 80-100 |
1. The advanced $.tube valve reversing is adopted to meet the transportation of fine stone concrete.
2. The eyeglass plate and cutting ring are made of high-hardness wear-resistant alloy materials with longer service life.
3. The imported main oil pump has high outlet pressure and can meet the transportation requirements of high-rise buildings and long-distance construction.
4. The hydraulic oil cooling adopts an air cooling system with a good cooling effect and easy use.
5. It has a reverse pump function to minimize pipeline blockage when the concrete collapse is not good.
6. lt is equipped with a centralized lubrication system, and the lubricating oil is distributed to various parts to ensure the service life of the rotating parts.
7. The electrical box adopts Mitsubishi electrical components and is equipped with a wireless remote control handle, which is stable and easy to operate.
