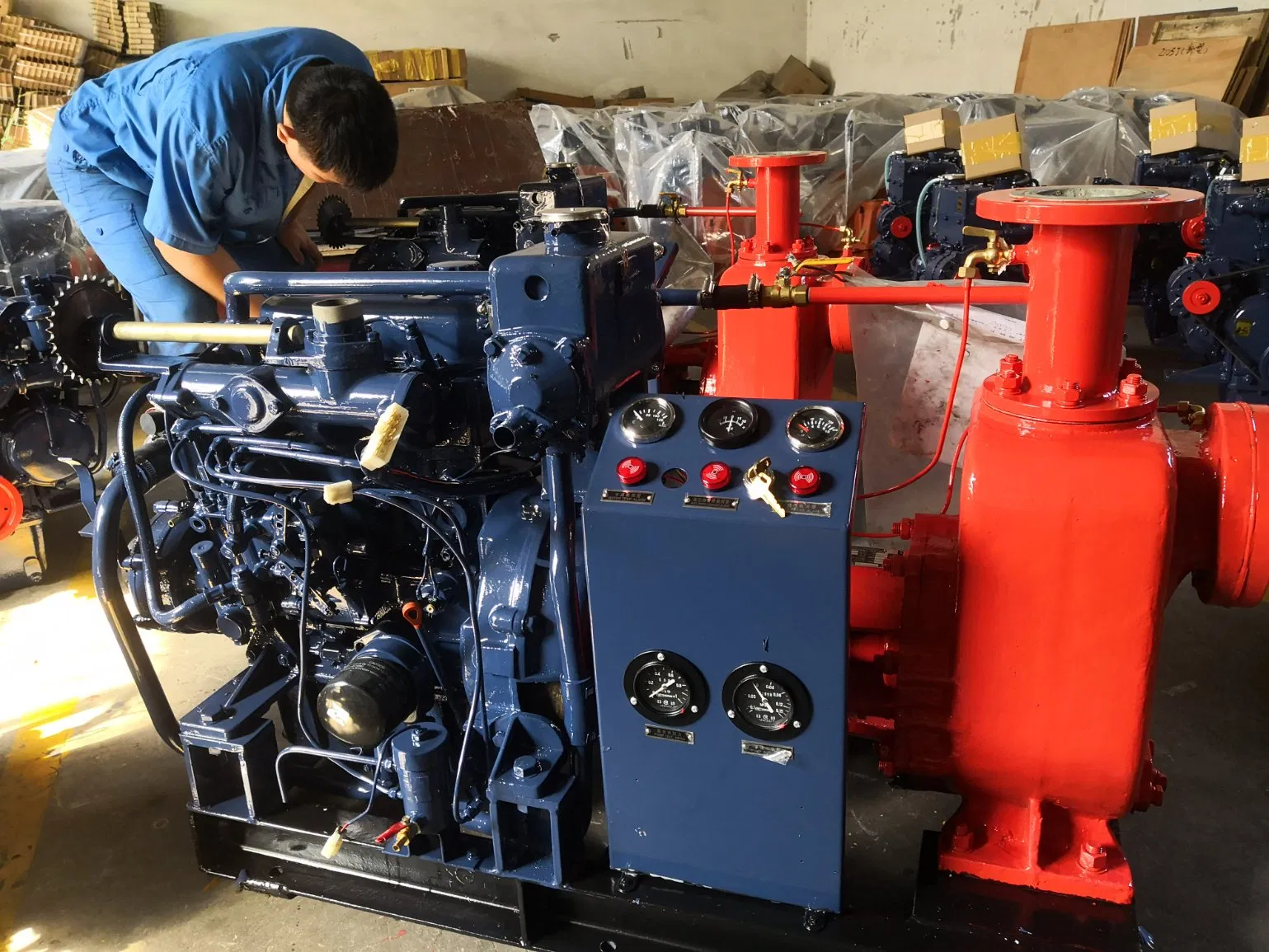

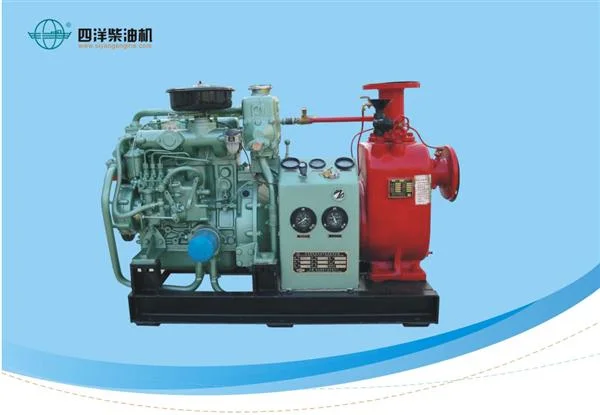

The type CCY-80 BZ marine diesel emergency firefighting pump set is manufactured in accordance with the "Rules and Regulations for the Construction and Classification of Sea Going Steel Ships" 2012, "Guidance note of ship firefighting" 1999, and IMO SOLAS 2013 Resolution including the latest amendments.
| Parameter | Model Details / Specifications |
|---|---|
| Diesel engine model | 380C |
| Pump model | 80CYZ-55 / 80CYZ-70 |
| Starting method | Electric motor & manual starting |
| Cooling method | Closed cooling circulation |
| Delivery lift (m) | 50~55 / 60~70 |
| Flow (m³/h) | 60~45 |
| Suction height (m) | 4~6 |
| Rated speed (r/min) | 2900 |
| Overall dimension (L×W×H) (mm) | 1250×560×850 / 1300×560×850 |
| Net weight (kg) | 385 / 440 |
| Model Series | Application Description |
|---|---|
| D | Clear water without solid particles (0°C~80°C). Horizontal inlet. |
| DM | Liquid with few solid particles (0°C~+80°C). Horizontal inlet. |
| DG | Clear water or physically similar liquids (-20°C~+150°C). Perpendicular inlet. |
| DY | Oil products or similar liquids (-20°C~+400°C). Horizontal inlet. |
| DF | Corrosive liquids without solids (-20°C~+150°C). Horizontal inlet. |
