Manufacturer Electric Fire Fighting Equipment System Diesel Engine Solar Pressure Boosting Water Pump Irrigation/Well Submersible Diesel Pump

1 / 6

Manufacturer Electric Fire Fighting Equipment System Diesel Engine Solar Pressure Boosting Water Pump Irrigation/Well Submersible Diesel Pump

Customization:	Available
Max.Head:	Varies by Model
Max.Capacity:	Varies by Model

Product Description

Overview
Product Description
Product Parameters
Detailed Photos
FAQ

Basic Info.

Model NO.

ISW Centrifugal Pump

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

Middle Pressure Pump

Influent Type of Impeller

Single Suction Pump

Position of Pump Shaft

Horizontal Pump

Pump Casing Combined

Horizontal Split Pumps

Mounting Height

Since Irrigation Centrifugal Pumps

Impeller

Open

Usage

Pump

Product Name

Isw Centrifugal Pump

Keywords

Centrifugal Pump

Function & Purpose

Used for Fluid Circulation, Supply, Boosting

Dimensions

Varies Significantly Depending on The Model

Customized Support

OEM, ODM

Color

Orange

Protection Class

IP54

Transport

Carton

Transport Package

Standard Packaging or Customized

Specification

Standard Specifications or Customized

Trademark

TS PUMP

Origin

Zhejiang, China

Production Capacity

50000sets/Year

Packaging & Delivery

Package Size

1000.00cm * 650.00cm * 860.00cm

Package Gross Weight

340.000kg

Lead Time

5 days (1 - 3 Pieces)
To be negotiated ( > 3 Pieces)

Product Description

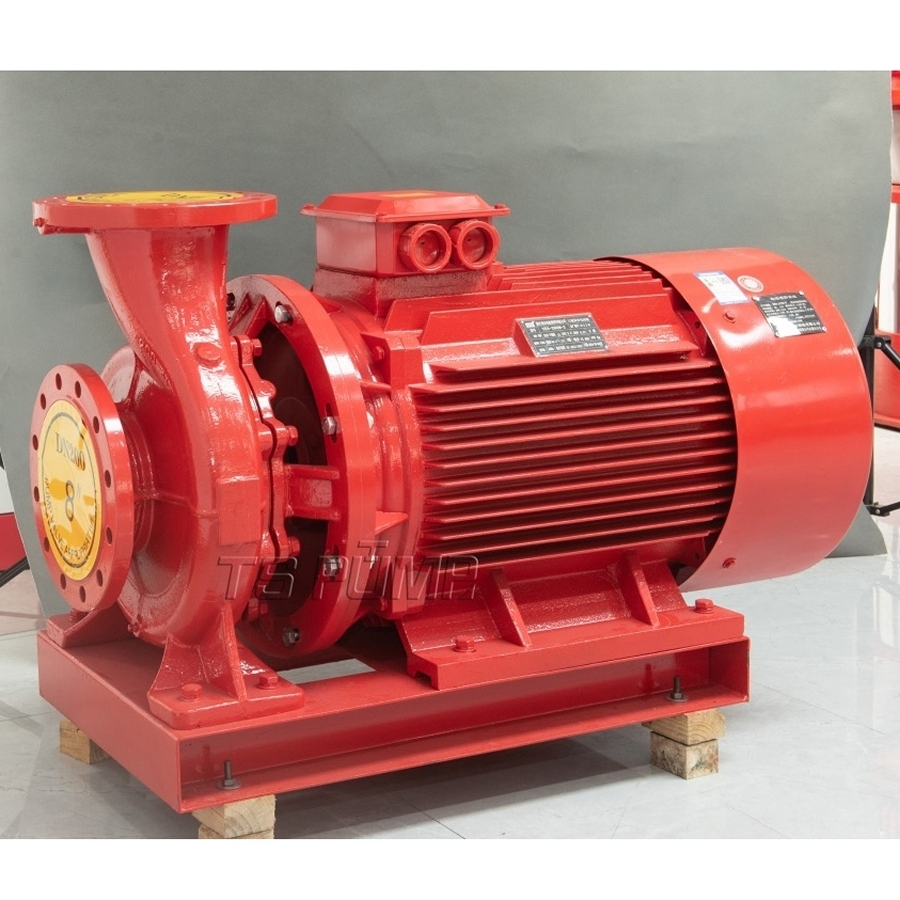

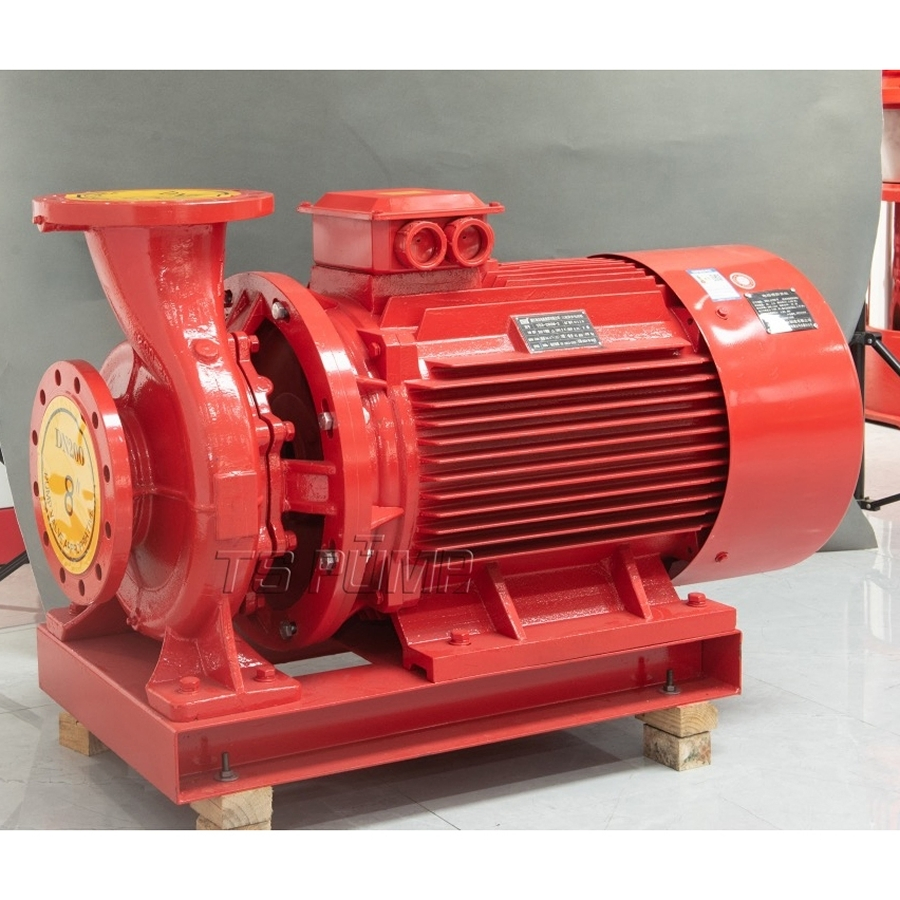

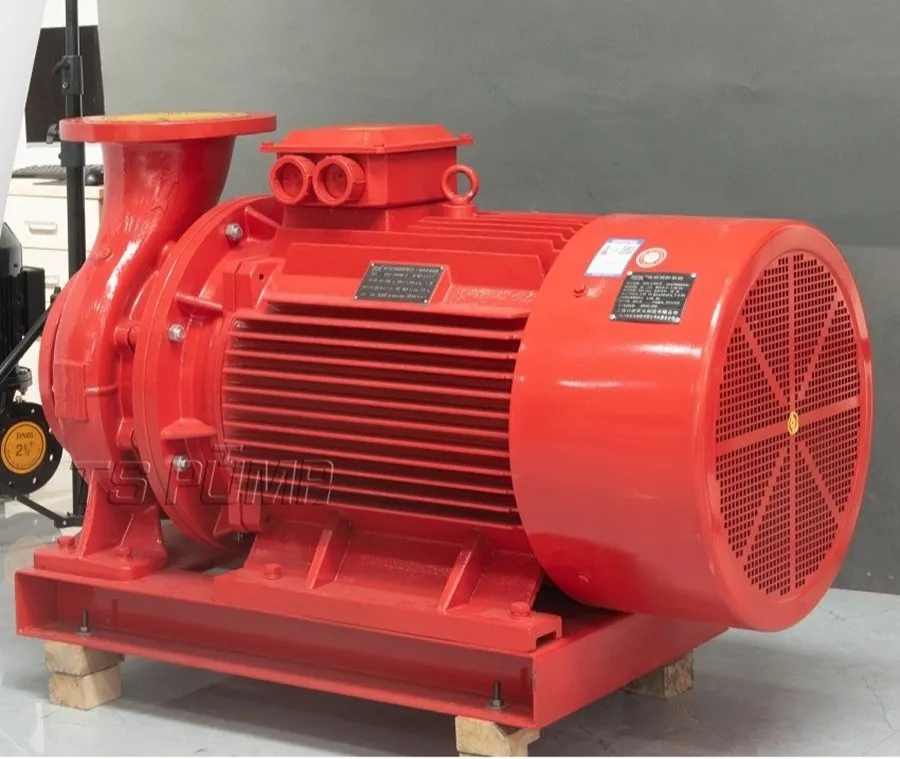

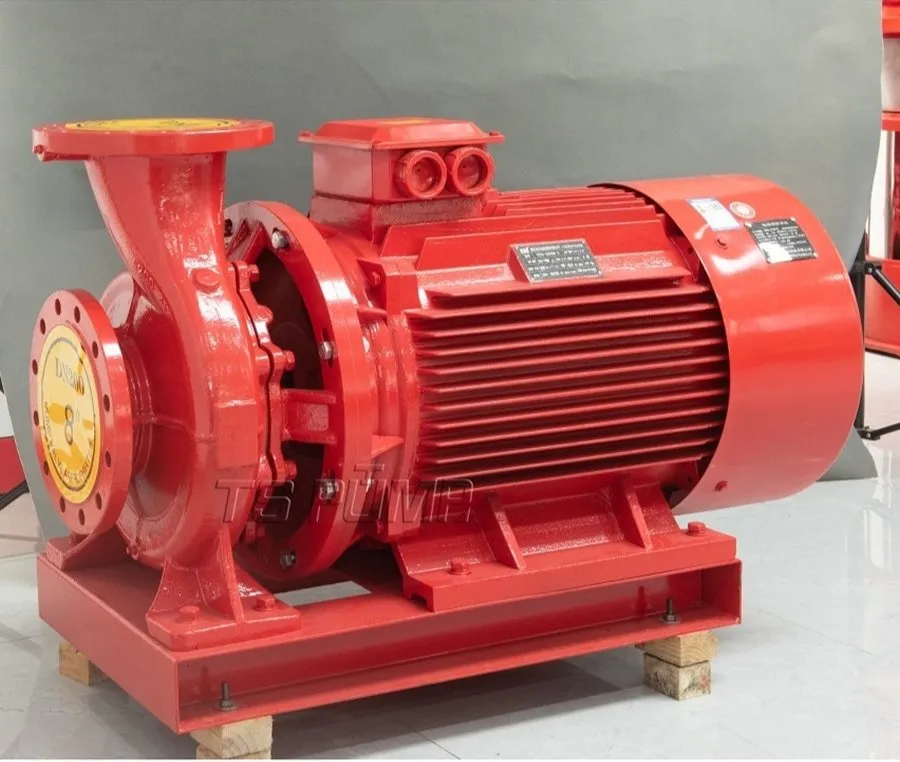

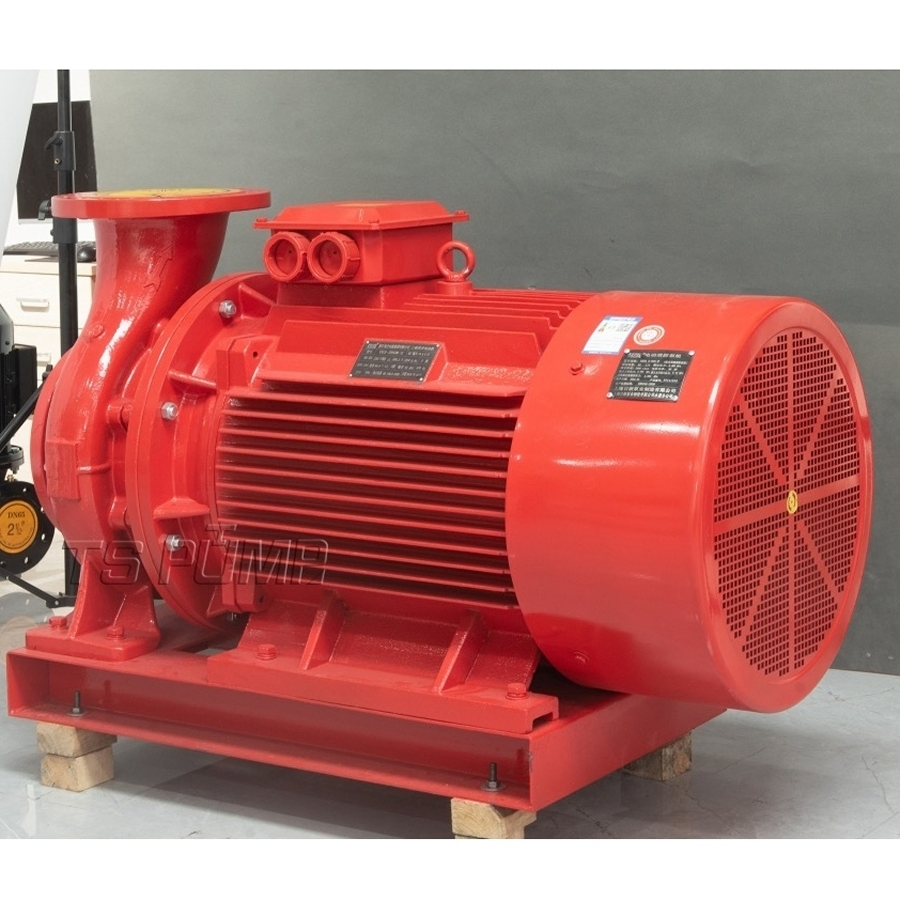

ISW CENTRIFUGAL PUMPS

ISW centrifugal pump is a highly efficient and versatile mechanical device widely used to transport. The core component of a centrifugal pump is the impeller, a rotating disk with curved vanes, which accelerates the liquid outward from the center of rotation through centrifugal force.

This action increases the fluid's velocity and pressure, enabling it to be effectively transferred through piping systems for various applications.

Engineered for excellence, our industrial and commercial centrifugal pumps provide a powerful, efficient, and reliable solution for your fluid transfer needs.

Designed to handle a wide range of applications, these pumps are the top choice for systems requiring high-efficiency water movement and consistent performance.

HIGH EFFICIENCY

WIDE APPLICATION RANGE

LOW NOISE & VIBRATION

Centrifugal pumps use advanced hydraulics and impeller design to maximize flow with minimal energy consumption, ensuring cost-effective operation.

Ideal for water supply, industrial processing, irrigation, and fire protection, suitable for multiple commercial and industrial sectors.

Precision engineering of the impeller and housing ensures smooth, quiet operation, perfect for indoor and residential applications.

Product Parameters

Serial Number	Model	Flow Rate		Lift	Power
Serial Number	Model	M3/H	L/S	M	KW
1	ISW50-200	12.5	3.5	50	5.5
2	ISW50-250	10.8	3	60	7.5
3	ISW50-250	11.7	3.3	70	11
4	ISW50-250	12.5	3.5	80	11
5	ISW65-200	25	6.9	50	7.5
6	ISW65-250	21.6	6	60	11
7	ISW65-250	23.4	6.5	70	11
8	ISW65-250	25	6.9	80	15
9	ISW65-315	21.6	6	90	22
10	ISW65-315	23.4	6.5	100	22
11	ISW65-315	23.4	6.5	110	30
12	ISW80-200	50	13.9	50	15
13	ISW80-250	43	11.9	60	15
14	ISW80-250	46.8	13	70	18.5
15	ISW80-250	50	13.9	80	22
16	ISW80-315	43	11.9	90	22
17	ISW80-315	45.8	12.7	100	30
18	ISW80-315	50	13.9	110	27
19	ISW100-200	100	27.8	50	22
20	ISW100-250	86.4	24	60	22
21	ISW100-250	93.5	26	70	30
22	ISW100-250	100	27.8	80	37
23	ISW100-315	86.4	24	93	45
24	ISW100-315	93.5	26	110	55
25	ISW100-315	100	27.8	125	75
26	ISW125-200	160	44.4	50	37
27	ISW125-250	138	38.3	60	37
28	ISW125-250	150	41.7	70	45
29	ISW125-250	160	44.4	80	55
30	ISW125-315	134	37.2	88	75
31	ISW125-315	143	39.7	100	90
32	ISW125-315	150	41.7	110	90
33	ISW125-315	160	44.4	125	110

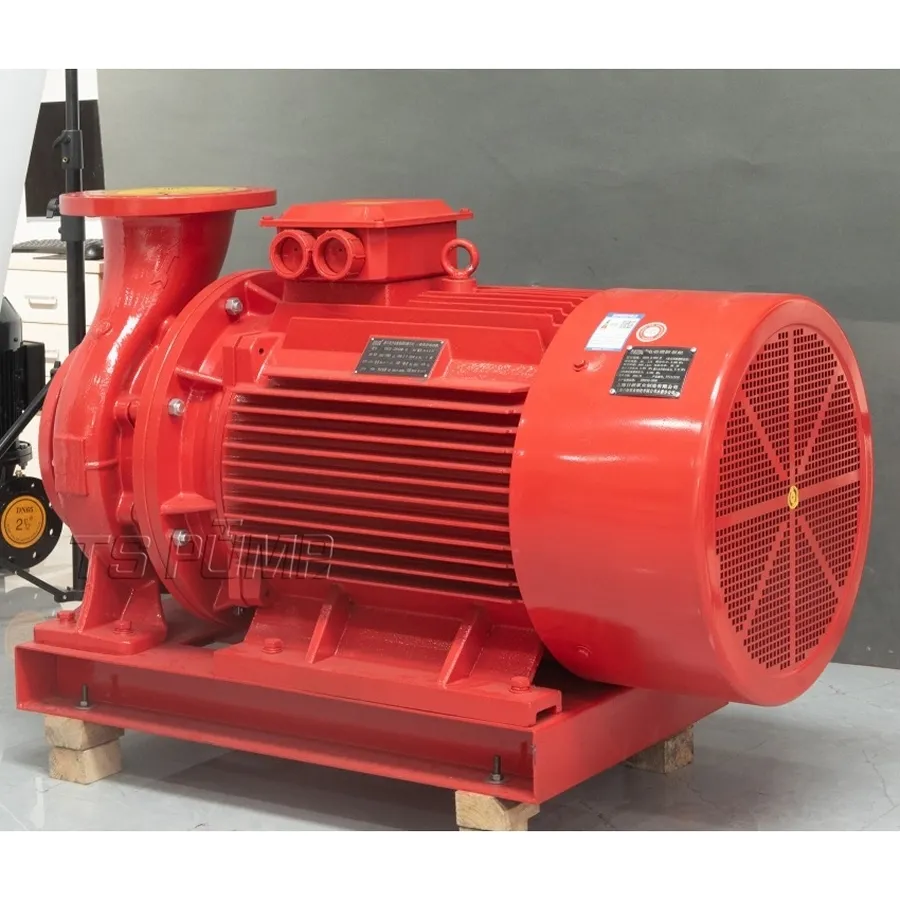

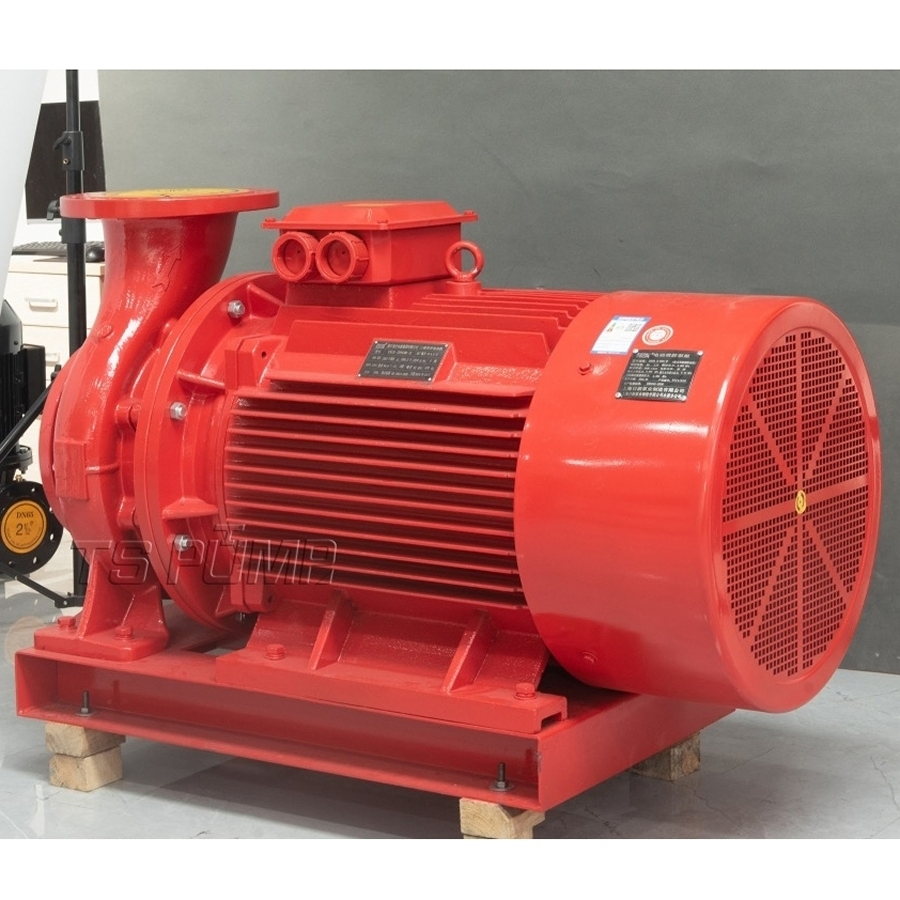

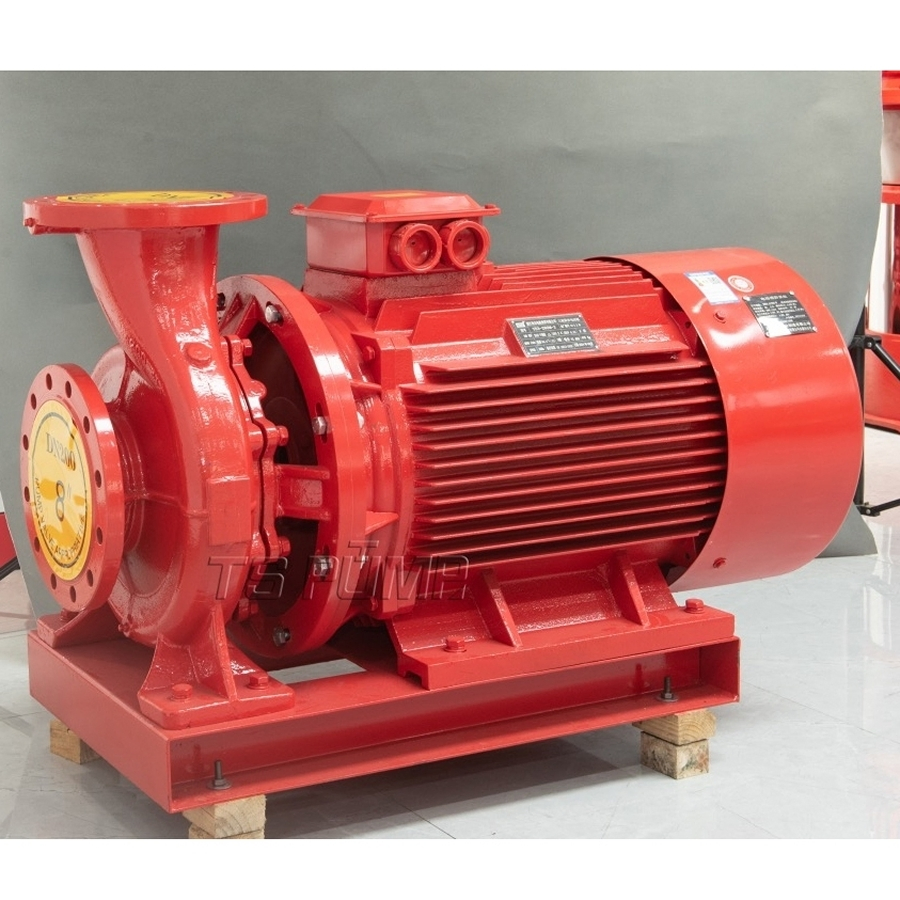

Detailed Photos

EASY INSTALLATION
Designed with standardized connections and compact dimensions for simplified and flexible installation in new or existing systems.

LOW MAINTENANCE REQUIREMENTS
Few moving parts and a simple design reduce the need for frequent servicing, resulting in lower lifetime maintenance costs.

CONSISTENT PERFORMANCE
Delivers steady flow rates and pressure, making it reliable for critical systems such as water supply and fire safety.

ENERGY SAVING OPERATION
Optimized motor and hydraulic systems reduce electricity usage, leading to lower operational expenditures over time.

FAQ

Q1: Are you a factory or a trader?
A: We are a manufacturer integrating industry and trade. Welcome to visit our company.

Q2: Can I add my logo to the product?
A: We support on-demand customization, including logo customization, color customization, appearance size customization, etc.

Q3: What payment methods do you support?
A: We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.

Q4: What are your modes of transportation?
A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.

Q5: How can I get an accurate quotation?
A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.
