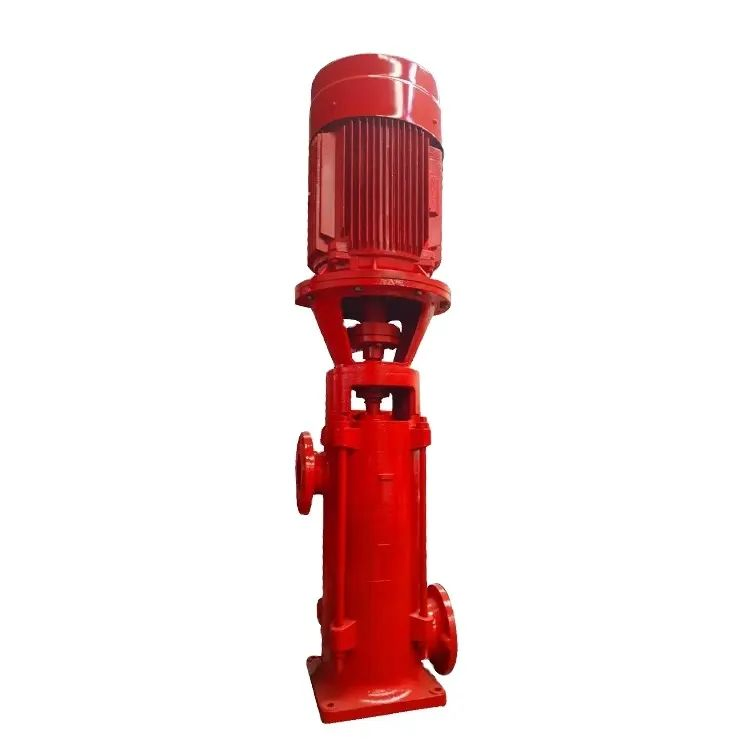

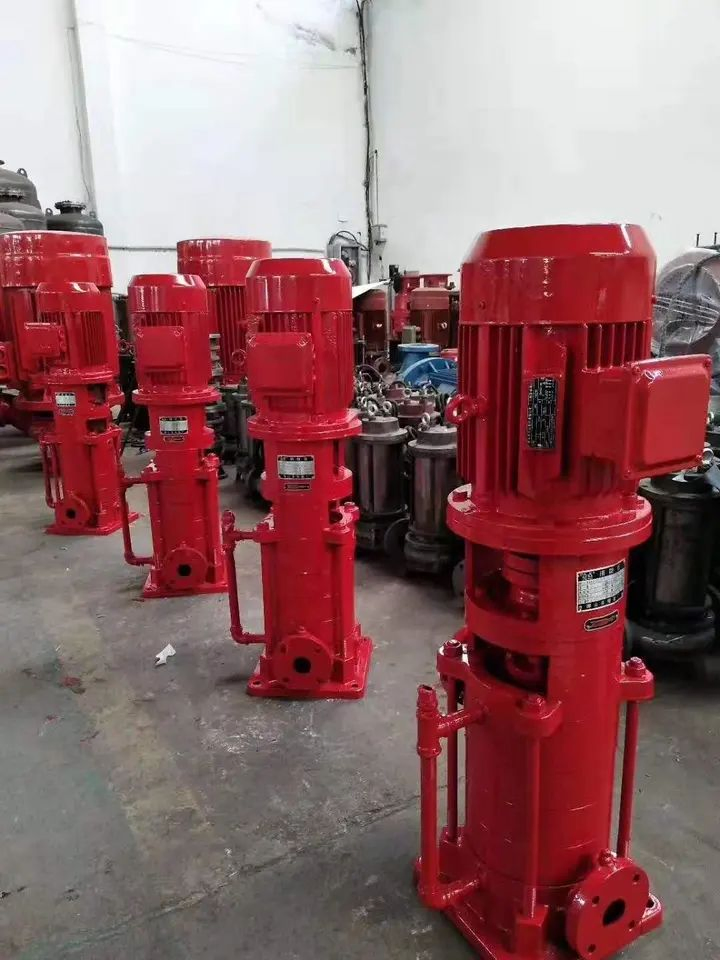

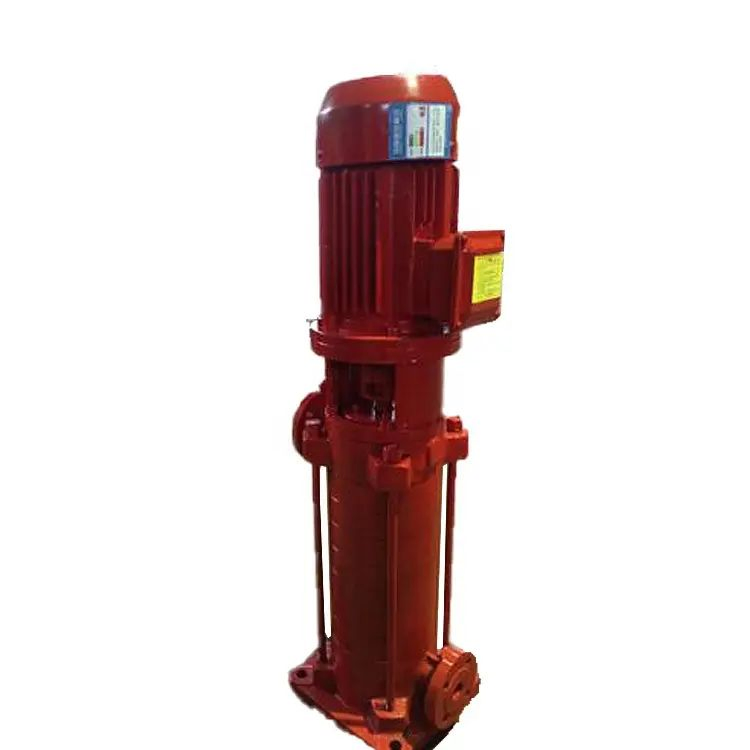

Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
1 / 5
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE
Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE

Kangqiao Fire Vertical Multistage Single Suction Non-Seal Centrifugal Chemical Axial Flow Pump for Chloride Evaporation Forced Circulating with ISO/CE

Customization: Available
After-sales Service: Help Check
Warranty: 1 Year
Send Inquiry

Product Description

📊 Basic Specifications
Model NO.
XFL
Max. Head
239m
Max. Capacity
200m³/H
Driving Type
Motor
Impeller Number
Multistage Pump
Working Pressure
Low Pressure Pump
Influent Type
Double-Suction Pump
Pump Shaft Position
Horizontal Pump
Casing Combined
Horizontal Split Pumps
Impeller Type
Closed
Standard
GB6245
Temperature
<80~120℃
⚙️ Product Overview

Vertical Multistage Single Suction Non-seal Fire Centrifugal Chemical Axial Flow Pump

Designed for Chloride Evaporation Forced Circulating, meeting ISO/CE standards.

Product Standard
GB6245
Patent Number
ZL03259646·4
  • Flow range: 4.9~200m³/h
  • Lift range: 21.6~239m
  • Temperature: <80~120ºC

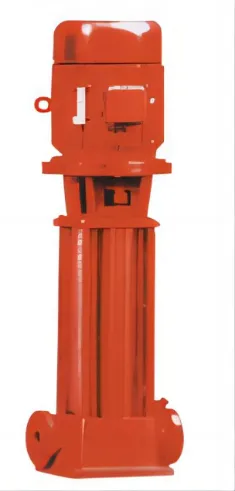

Vertical Multistage Pump
Product Series
🚀 Product Features & Applications
Feature 1
Feature 2
Application Range

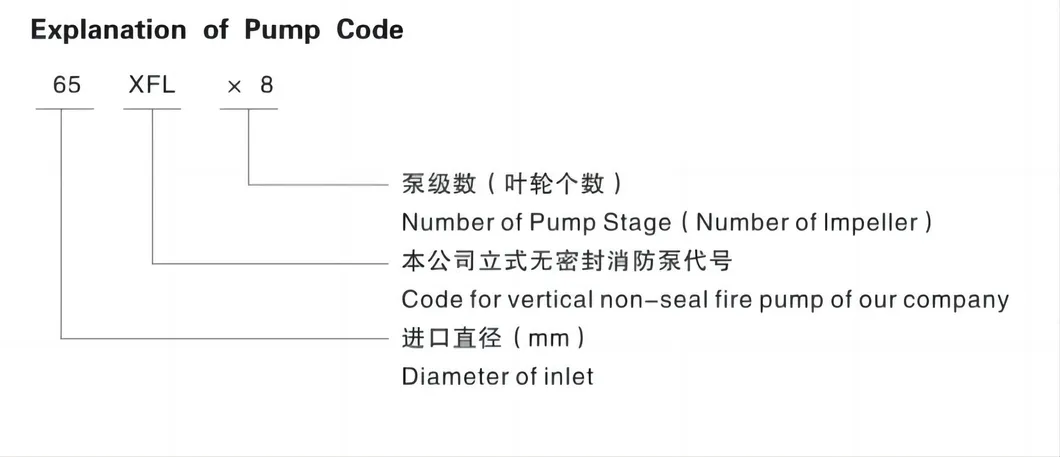

System Diagram
📋 Performance Parameters

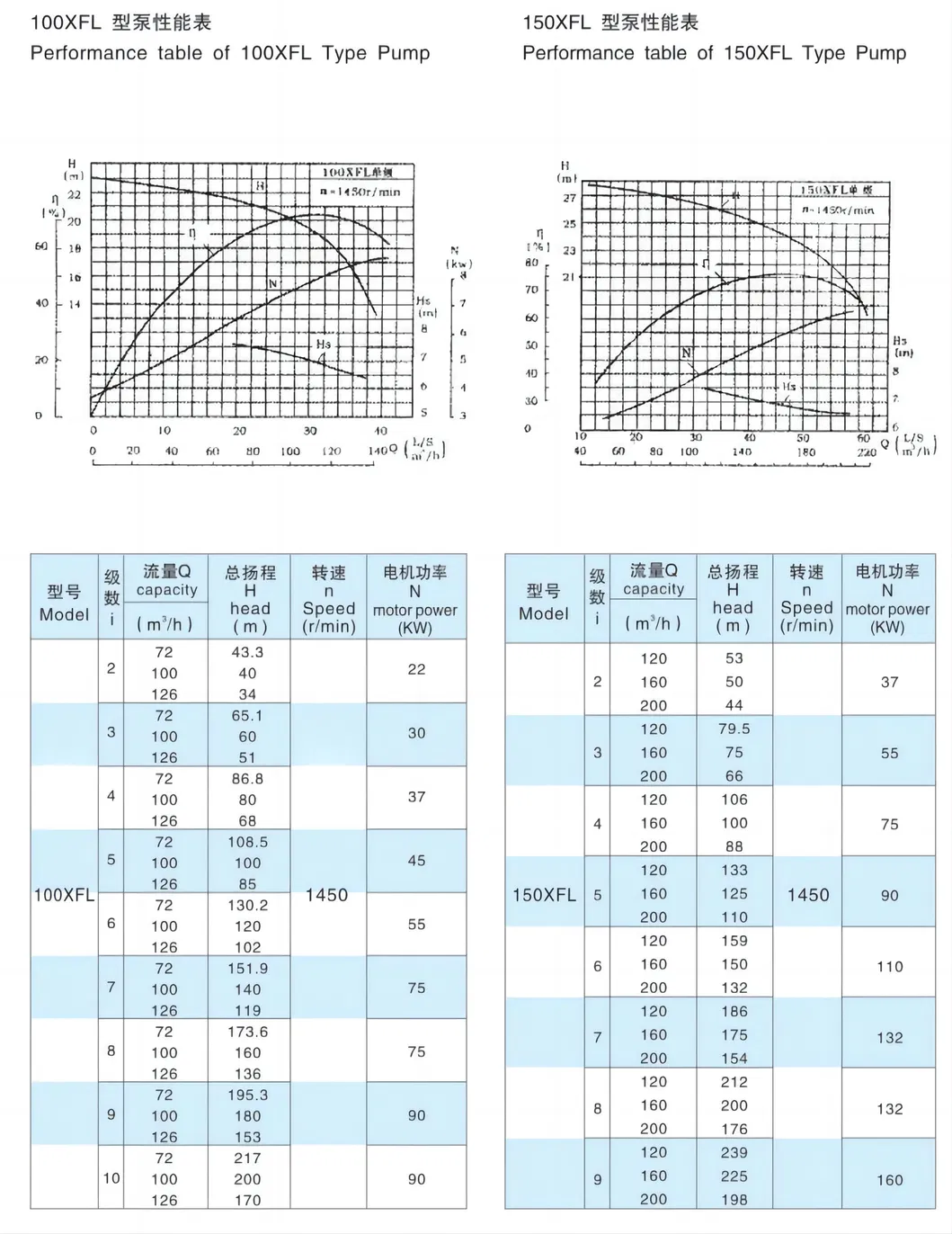

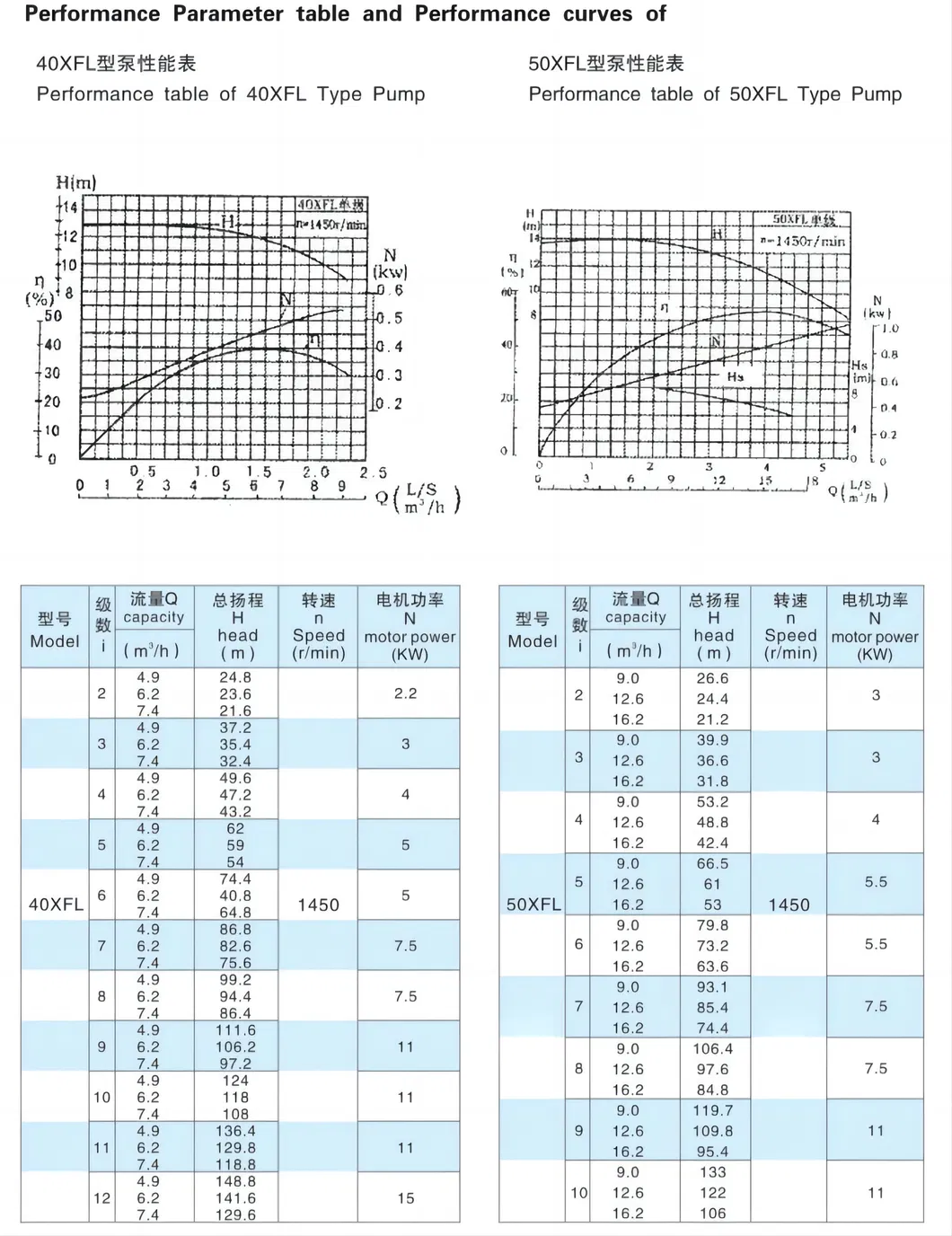

Data Table 1 Data Table 2 Data Table 3
💎 Why Choose Our Pumps
  • Excellent quality with competitive pricing.
  • Prompt delivery and professional on-time service.
  • Full technical support before and after the sale.
  • Certified by ISO, API, and CE standards.
  • Effective quality assurance system following ISO9000 standards.
💳 Payment & Logistics
Term Type Method Condition
EXW / FOB T/T 50% advance, balance before dispatch
CIF / CFR T/T 50% advance, balance against B/L copy
Large Orders L/C Irrevocable L/C at sight (>US $50,000)
Lead Time 30-45 days after receiving advanced payment
❓ Frequently Asked Questions
When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. For urgent requests, please highlight your priority in the email.
Can you provide customized designs?
Yes. Our professional team has rich experience in design and manufacturing. Send us your technical requirements and we will help carry out your ideas.
What is the typical lead time for mass production?
It typically ranges from 30 to 45 days. We suggest starting inquiries at least two months before you need the product in your country.
What are your terms of delivery?
We accept EXW, FOB, C&F, and CIF. You can choose the one which is most convenient or cost-effective for your logistics setup.
What is the warranty period for these pumps?
The warranty period is 18 months from shipment or 12 months after operation. During this period, manufacturing quality issues are handled with free parts replacement.
What standards do your products comply with?
Our products strictly adhere to GB6245 standards and are produced under an ISO9000:2000 quality management system, ensuring HSE compliance.
