Kaiyuan Xbc Diesel Engine Fire Pump From China Pump Supplier

Customization:	Available
Max.Head:	>150m
Max.Capacity:	>400 L/min

Send Inquiry

Product Description

Technical Specifications

Model NO.

XBC8.0

Driving Type

Diesel Engine

Material

Cast Iron, Stainless Steel

Structure

Single-stage Pump

Assembly

Fire Pump

Power

Electric, Diesel Engine

Start Up

Electric Pump, Engine Pump, Control Panel

Application

Clarified Water Pump, Fire Pump

Media

Clean Water, Sea Water

Theory

Centrifugal Pump

Capacity Range

10L/S-200L/S

Pressure Range

0.3MPa-2.5MPa

Power Range

7.5kw-360kw

Efficiency

63%-83%

Approval

GB6245-2006, ISO9001:2000, CE

HS Code

8413709990

Product Overview

The XBC diesel engine fire-fighting pump group series is a late-model fire-fighting equipment developed strictly complying with national standard GB6245-2006 "Performance requirement and testing method of fire fighting pumps" and NFPA20 "Installation of centrifugal fire-fighting pumps".

The equipment is classified into three sub-categories based on fitted components: XBC-IS, XBC-S, and XBC-D. These units are widely utilized across various industries requiring robust fire security.

Equipped with high-quality diesel engines, these pumps feature stable starting, high capacity, compact structure, and high automation, ensuring dependable performance in emergency fire protection scenarios.

Structure & Functions

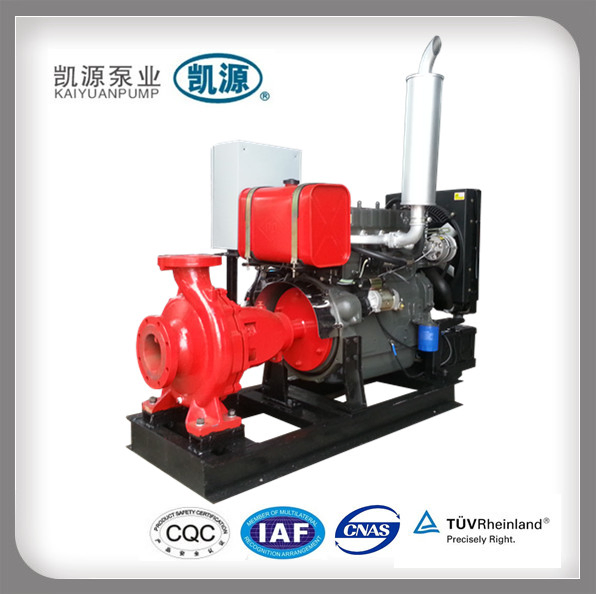

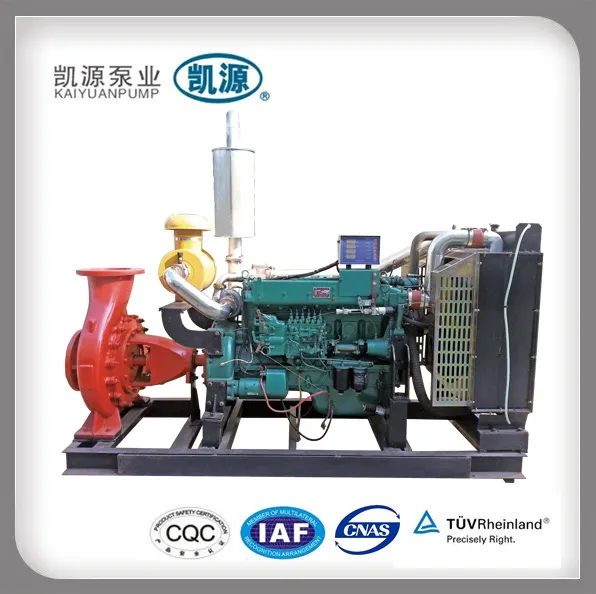

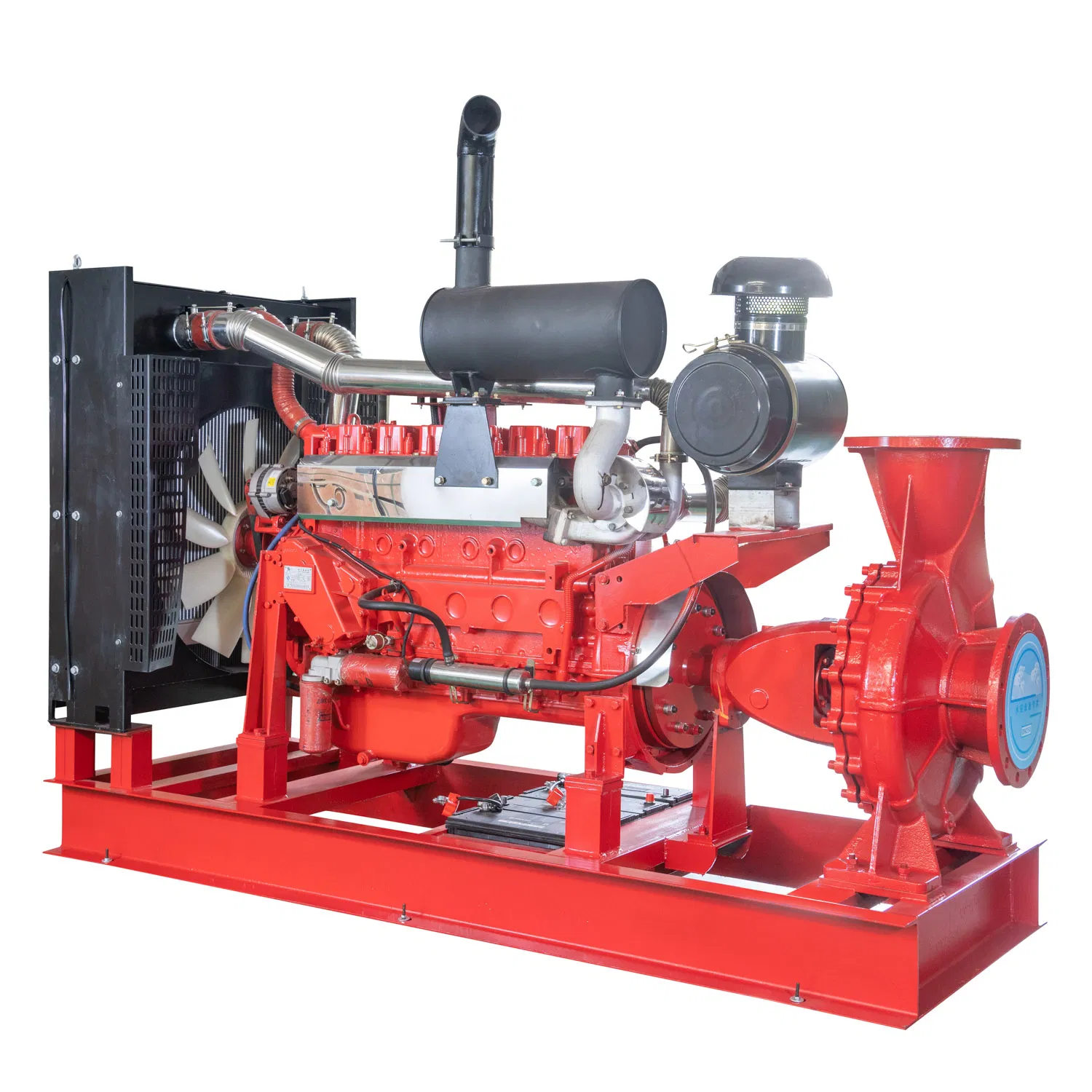

The unit consists of diesel engines (such as X6135, 12V135, 4102, 4105 series) connected to the fire pump via high elastic clutches. Key components include a diesel tank, radiation water tank, blower, and an automated control screen.

✓ Auto-Control System: Programmable cabinet handles automatic starting, performance monitoring, and unit switching.
✓ Auto-Protection: Integrated warnings for over-speed, low oil pressure, high water temperature, and starting failures.
✓ Remote Monitoring: Can be connected to fire fighting centers or auto-warning devices.
✓ Low Temp Ready: Can be fitted with an AC220V water-cooling pre-heater for operation below 5°C.

Scope of Supply & Model Meaning

Standard Scope: Includes diesel engine (with oil tank and accumulator), fire-fighting pump, high elastic clutch, pedestal, and electric control cabinet.

Model Identifiers:
XB: Fire pump mark for engineering-oriented applications
C: Fire pump mark for diesel-driven engine

XBC Model Technical Data

Model	Speed (r/min)	Capacity (L/S)	Pressure (Mpa)	Effi. (%)	NPSH (m)	Shaft Power (KW)	Diesel Power (KW)	Inlet/Outlet (mm)	Weight (Kg)
3/10	2000	10	0.3	71	2.5	5.5	7.5	100/65	91
3/20	2000	20	0.3	71	3	9.5	13.8	100/65	91
3/30	2000	30	0.3	69	3.8	16.8	20.6	125/100	129
4/10	2000	10	0.4	71	2.5	7.4	13.8	100/65	91
5/50	1500	50	0.5	75	2.8	36.3	58	150/125	212
5/100	1500	100	0.5	81	3.8	67.2	105	200/150	245
8/30	1500	30	0.8	75.5	4.1	31.2	34.3	125	640
12/80	1500	80	1.2	77	4.7	127.7	160	200	787
25/80	1500	80	2.5	77	4.7	255.5	279	200	1147

Frequently Asked Questions

What standards do the XBC series pumps comply with?

They are designed strictly according to the national GB6245-2006 standard and the international NFPA20 standard for centrifugal fire-fighting pumps.

Can the pump start automatically during an emergency?

Yes, the unit features a programmable auto-control cabinet that handles automatic starting, performance monitoring, and switching between pump units.

What kind of protection does the diesel engine have?

The system includes auto-protection for over-speed, low oil pressure, high water temperature, and low accumulator voltage, including automatic stopping and warnings.

Is there a solution for cold weather operation?

For environments below 5°C, the unit can be equipped with an AC220V water-cooling pre-heater to ensure reliable starting and operation.

What are the available water inlet options?

There are two ways: self-pouring and suction-up. Self-pouring is the standard preference; however, automatic vacuum water leading devices can be supplied for suction-up requirements.

What media can this pump handle?

The XBC series is designed primarily for clean water and sea water applications across various industrial fire security systems.
