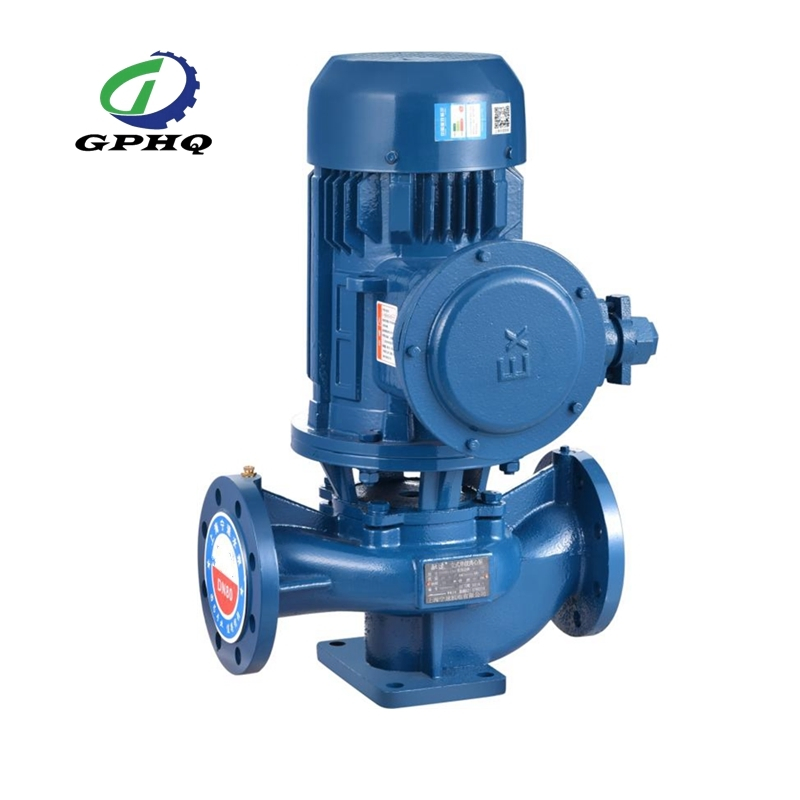

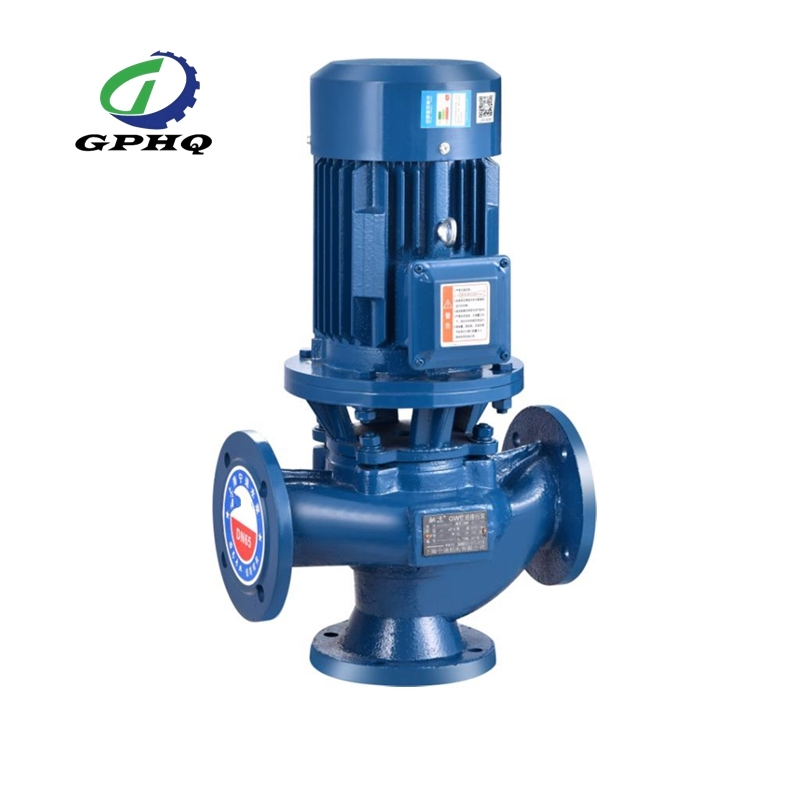

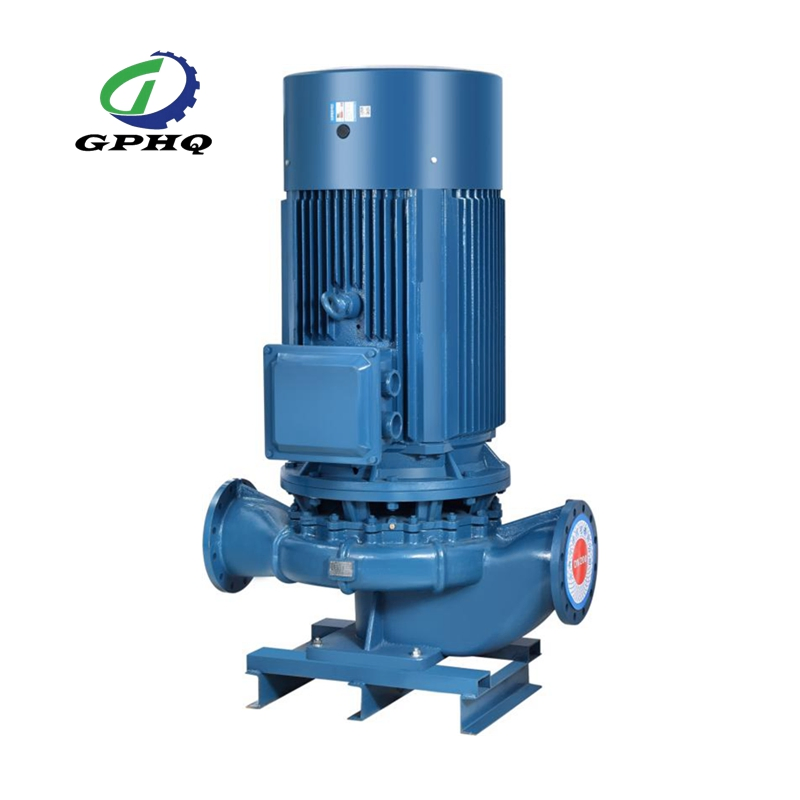

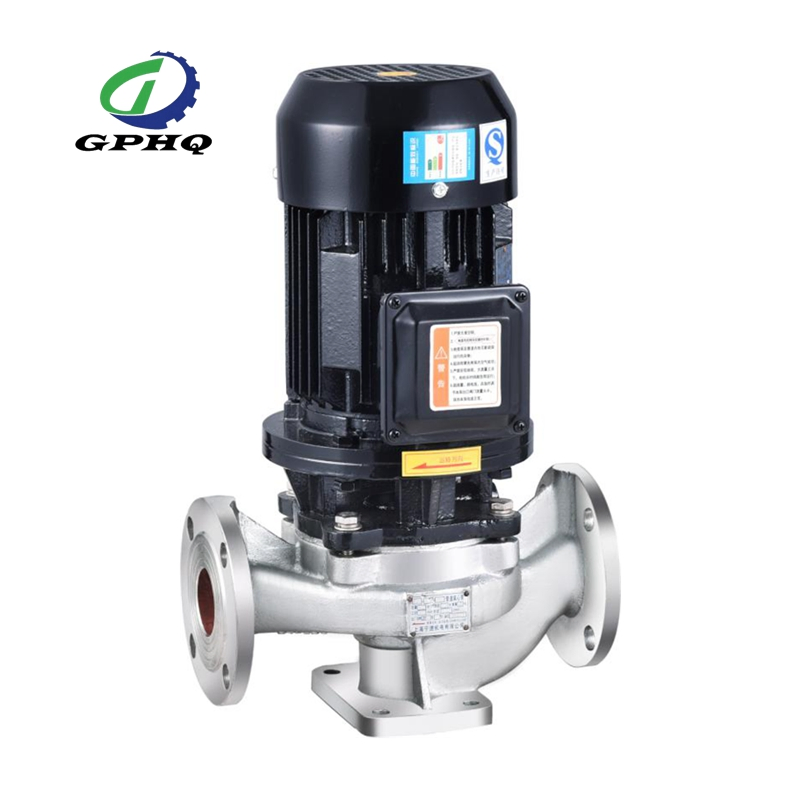

Isg Fire Fighting Centrifugal Pipeline Vertical Inline Jockey Pump

ISW, ISWH, IWG Series Single Stage Single Suction Horizontal Centrifugal Pump is developed by scientific technicians and water pump experts. It is shaped based on excellent hydraulic models and applies performance parameters of centrifugal pumps built into a horizontal configuration. This series is also a new generation of ISC type, versatile for hot water, high temperature, and corrosive chemical applications depending on materials and mediums.

Featuring high energy saving, low noise, and reliable performance, these pumps are engineered for efficiency.

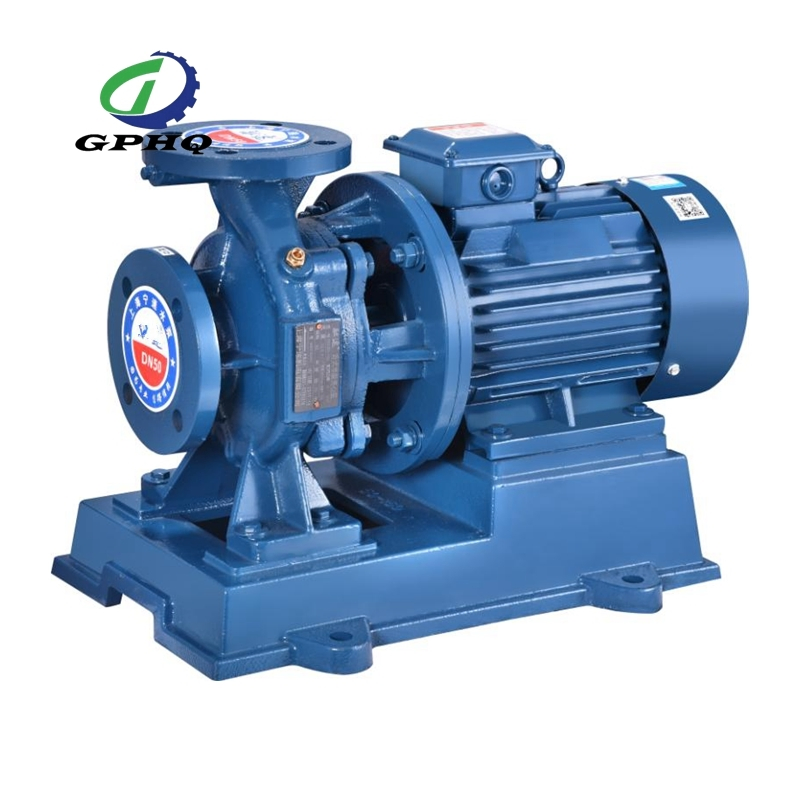

This pump comprises an electric motor and pump assembly including the pump body, impeller, pump cover, and mechanical seal. It is a single-stage, single-suction horizontal type with inlet and outlet on the same horizontal line and diameter. This design allows for easy mounting on any pipeline at any location, occupying minimal space.

• Compact horizontal structure with inline ports.
• Impellers installed directly on the extended motor shaft for reduced axial size.
• Balanced radial and axial loads for stable running with low vibration.
• Titanium alloy mechanical seals for high temperature resistance and durability.

Designed for pumping clean liquids without solid matter or frictional content, low viscosity, non-corrosive, and chemically neutral close to water.

• Tank filling and water transfer
• Domestic water supply
• Pressure boosting for industrial systems
• Agricultural irrigation
• Fire water supply and air conditioning systems

1. Maximum system working pressure is 1.6MPa (Inlet pressure + Pump head). Standard working pressure is 2.5MPa, with inlet pressure not exceeding 0.3MPa.

2. Suitable liquid: Solid particles should not exceed 0.1% of total volume (size < 0.2mm). For liquids with small particles, durable mechanical seals are required.

3. Environmental temperature: < 40°C. Relative moisture: < 95%.
