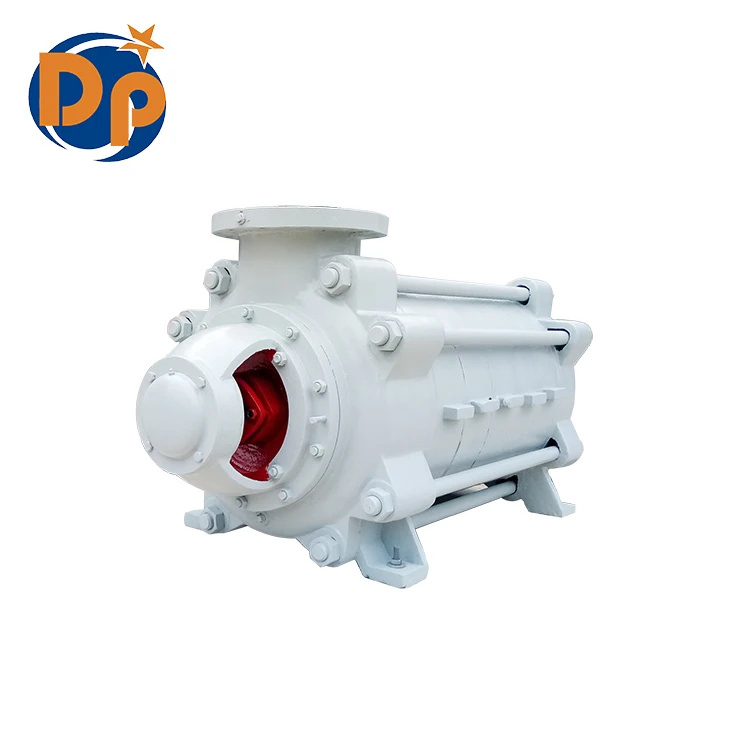

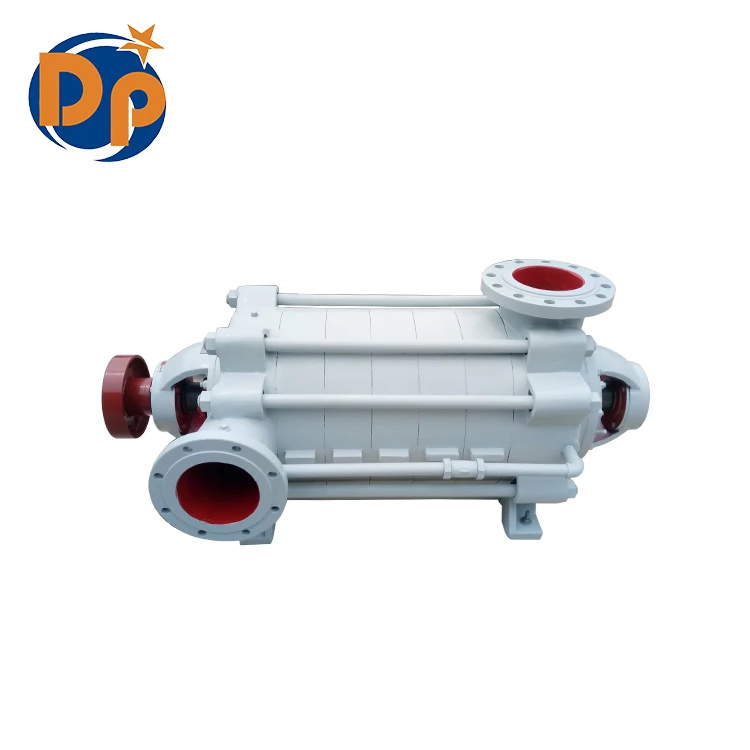

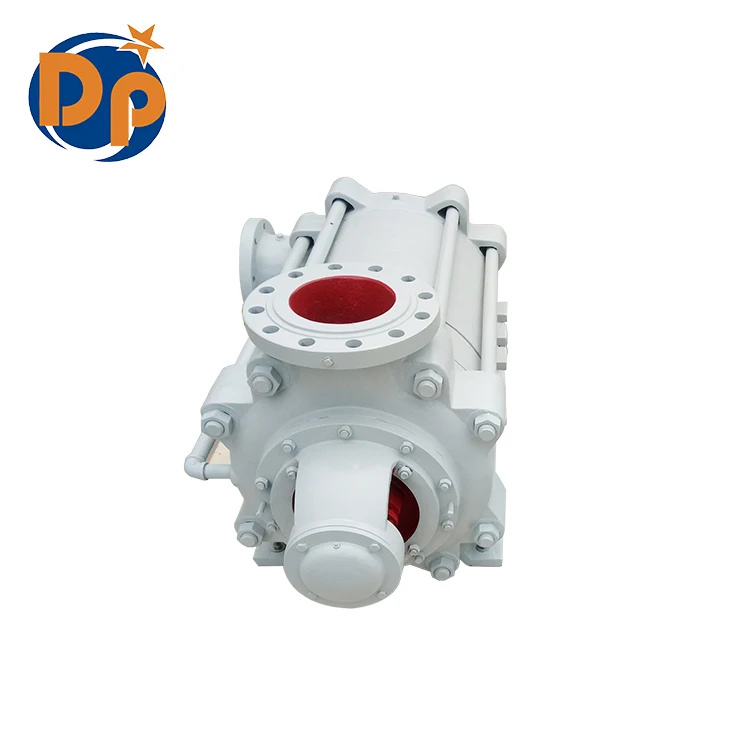

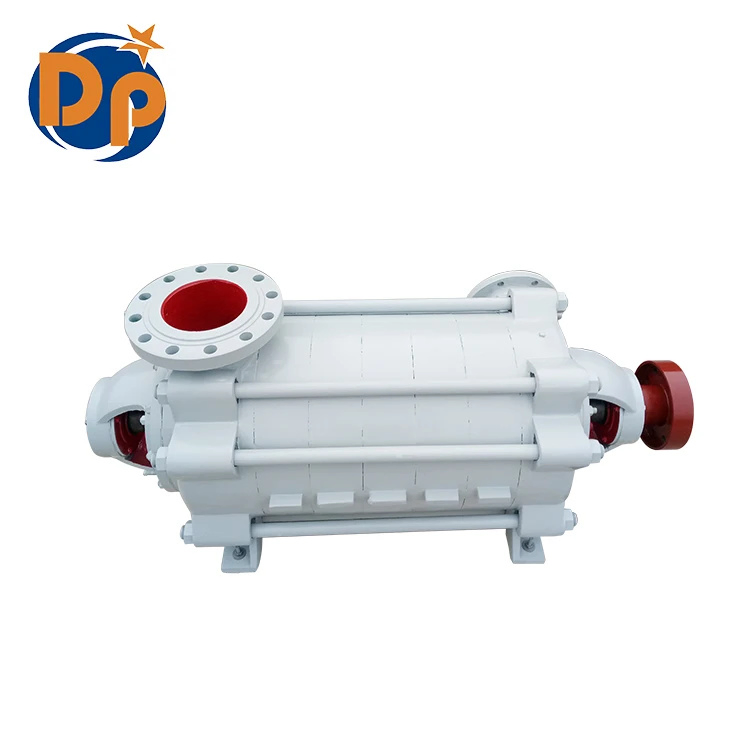

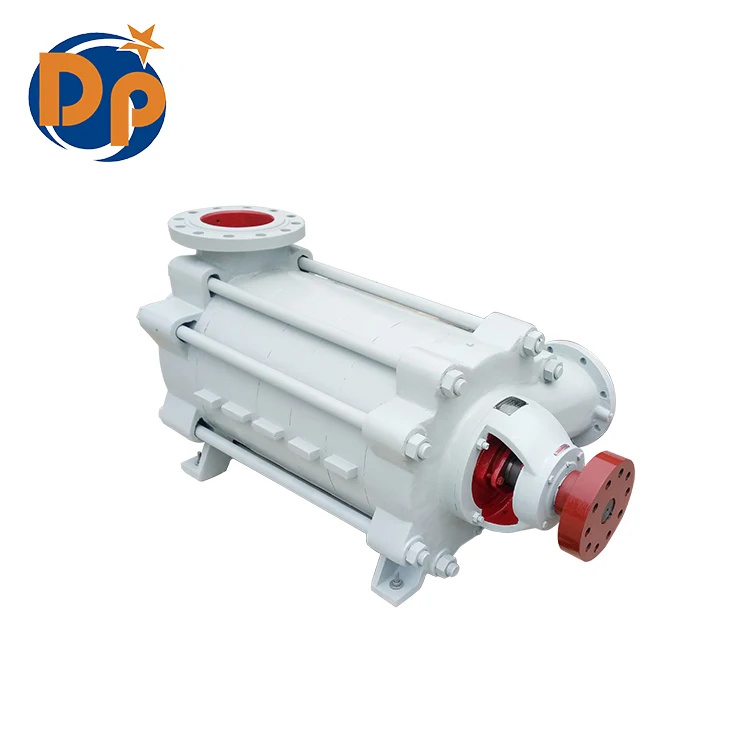

Electric Pump Centrifugal Pump Booster Water Pump

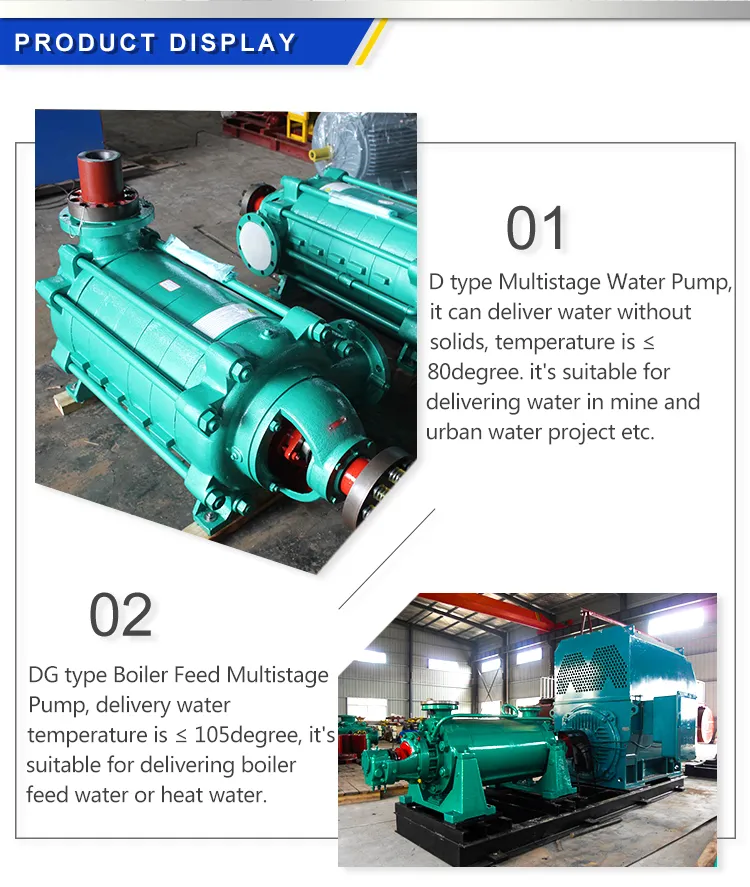

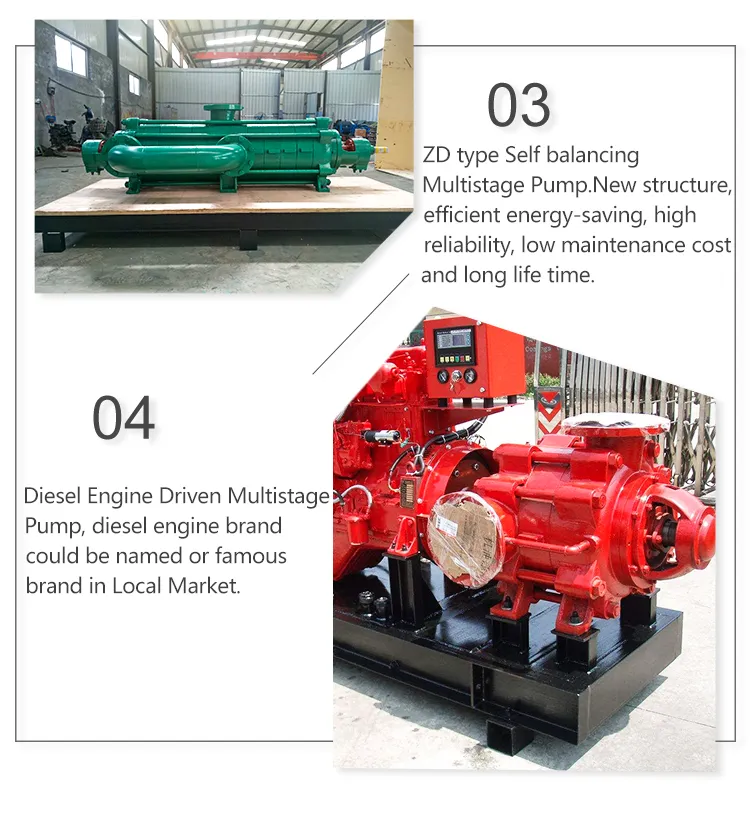

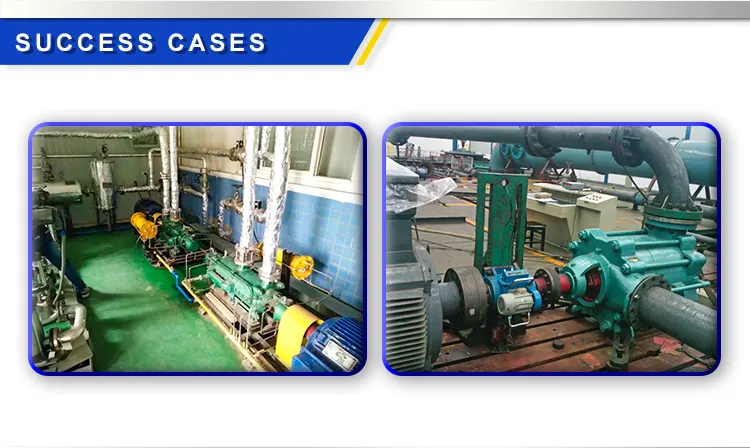

Multistage water pump is a widely used system of high-pressure pump, run hot and cold water as a booster pumps in parallel water supply of the high-rise building, fire, boiler feed water and cooling water systems and a variety of irrigation fluid conveying.

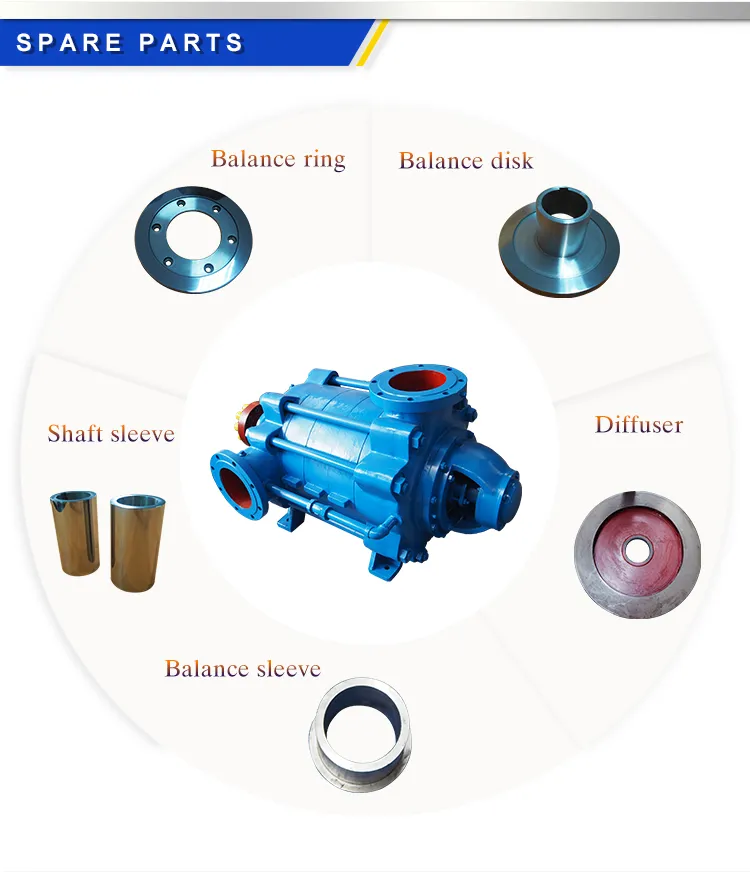

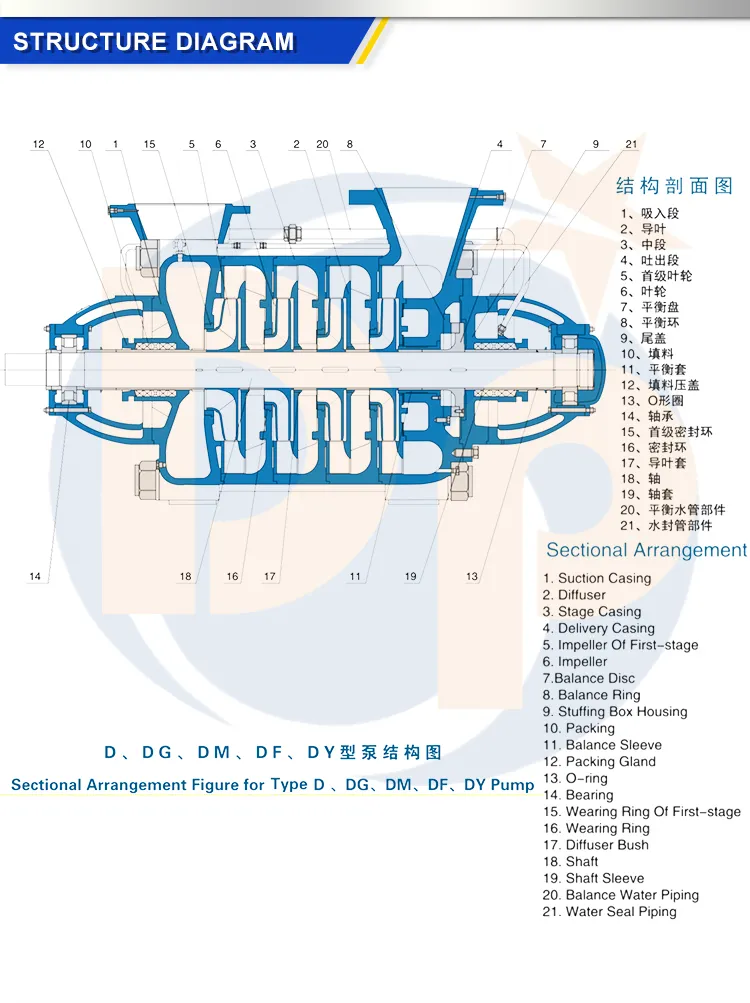

| No. | Part Name | No. | Part Name |
|---|---|---|---|
| 1 | Suction Casing | 12 | Packing Gland |
| 2 | Diffuser | 13 | O-ring |
| 3 | Stage Casing | 14 | Bearing |
| 4 | Delivery Casing | 15 | Wearing Ring (1st Stage) |
| 5 | Impeller (1st Stage) | 16 | Wearing Ring |
| 6 | Impeller | 17 | Diffuser Bush |
| 7 | Balance Disc | 18 | Shaft |
| 8 | Balance Ring | 19 | Shaft Sleeve |
| 9 | Stuffing Box Housing | 20 | Balance Water Piping |
| 10 | Packing | 21 | Water Seal Piping |
| 11 | Balance Sleeve | - | - |
| Model | Capacity (m3/h) | Head (m) | Speed (rpm) | Power (kw) |
|---|---|---|---|---|
| D/DG6-25*3 | 6.3 | 75 | 2950 | 5.5 |
| D/DG6-50*6 | 6.3 | 300 | 2950 | 30 |
| D/DG12-50*6 | 12.5 | 300 | 2950 | 30 |
| D/DG25-50*5 | 25 | 250 | 2950 | 37 |
| D/DG46-50-7 | 46 | 350 | 2950 | 90 |
| D/DG85-67*8 | 85 | 536 | 2950 | 220 |
| D/DG150-100*6 | 150 | 600 | 2950 | 400 |
| D/DG450-60*8 | 450 | 480 | 1480 | 900 |
| D/DG740-80*6 | 740 | 480 | 1480 | 1600 |
| Part | D Series | DM Series | DG/DY Series | DF Series |
|---|---|---|---|---|
| Casing | HT250 | ZGCr17Mo2-CuR | HT250 | Stainless Steel |
| Impeller | HT250 | KmTbCr15Mo3 | HT250 | Stainless Steel |
| Shaft | C45 | C45 | C45 | Stainless Steel |
