High Suction Flood Control Irrigation Mobile Trailer Diesel Engine Self-Priming Centrifugal Water Pump

1 / 6

High Suction Flood Control Irrigation Mobile Trailer Diesel Engine Self-Priming Centrifugal Water Pump

Customization:	Available
After-sales Service:	Offer Feedback Within 4 Hours
Warranty:	1 Years

Product Description

Overview
Product Introduction
Specification
Product Accessories
Product Application
Packaging & Shipping
Company Profile
FAQ
Certifications

Basic Info.

Model NO.

Max.Head

10-30m

Max.Capacity

380m3/H

Driving Type

Diesel Engine

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Booster Pump

Power

Diesel Engine

Start Up

Electric Pump

Type

Blade Pump

Application

Sewage Pump, Slurry Pump

Industry

Mechanical Pump

Media

Sewage Pumps

Performance

Automatic Pump

Theory

Centrifugal Pump

Engine Brand

Weichai Yuchai Cummins Beinei

Lead Time

30 Days

Impeller

SS304, SS316, Ductile Iron

Usage

Dewatering Pump, Sea Water Pump, Wellpoint Pump

Max Suction Lift

Transport Package

Wooden Box

Specification

according to machine size

Trademark

Tie'niu

Origin

Shanghai, China

Production Capacity

1000PCS/Year

Packaging & Delivery

Package Size

320.00cm * 200.00cm * 220.00cm

Package Gross Weight

2200.000kg

Product Description

Product Introduction

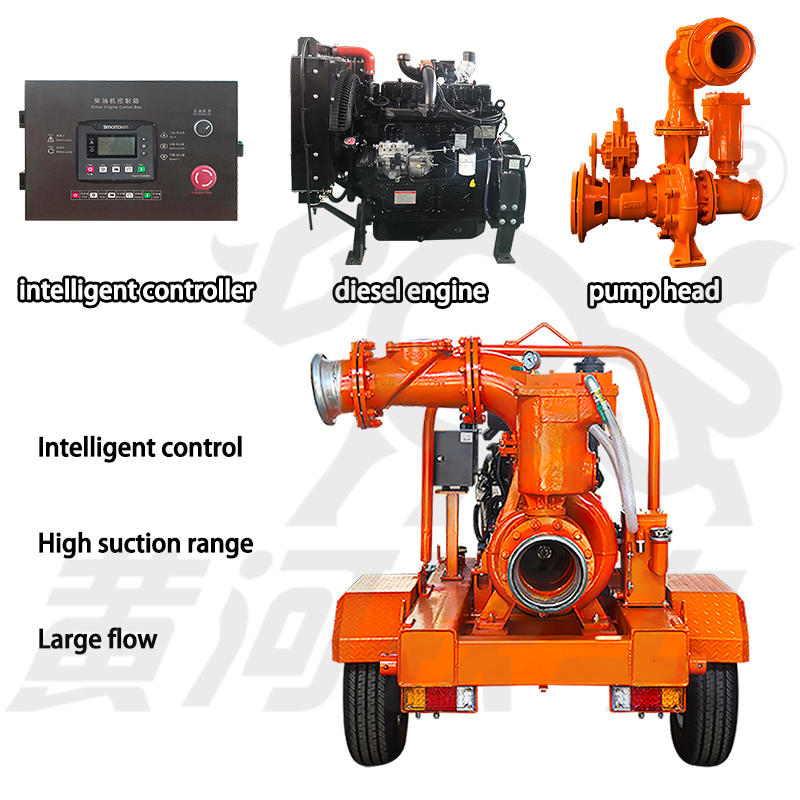

8 inch high vacuum diesel engine water pump

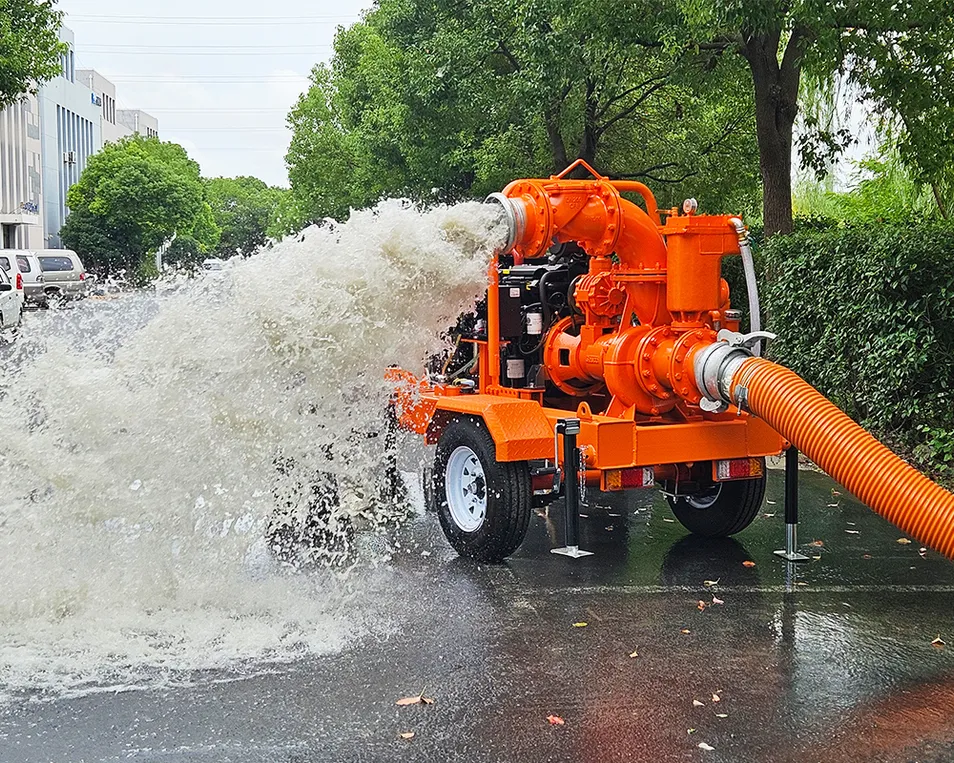

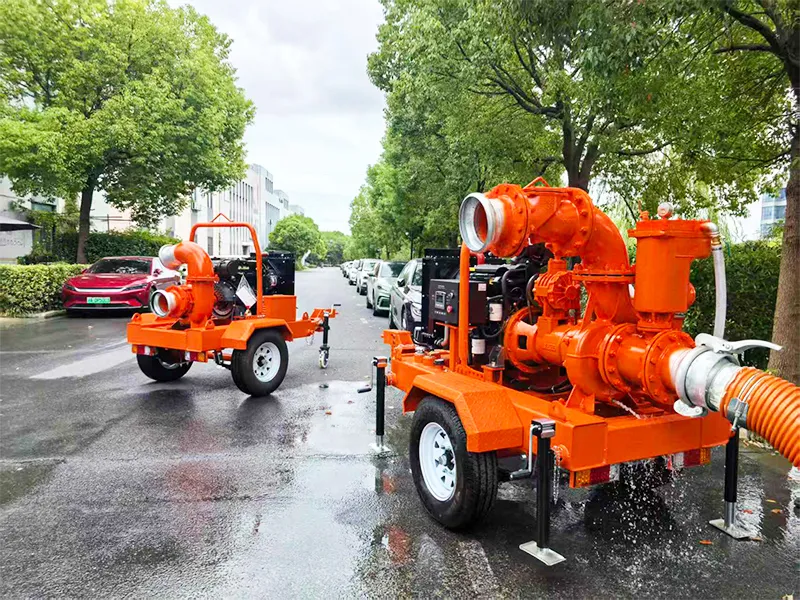

This trailer-mounted diesel engine pump truck is an efficient and portable emergency drainage device, featuring a compact design for easy towing and mobility, allowing single-person transportation and operation to significantly enhance flexibility.

Our high vacuum system has patent certification.High-performance Oil- circulated Vacuum System with a maximum vacuum of -0.099MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.

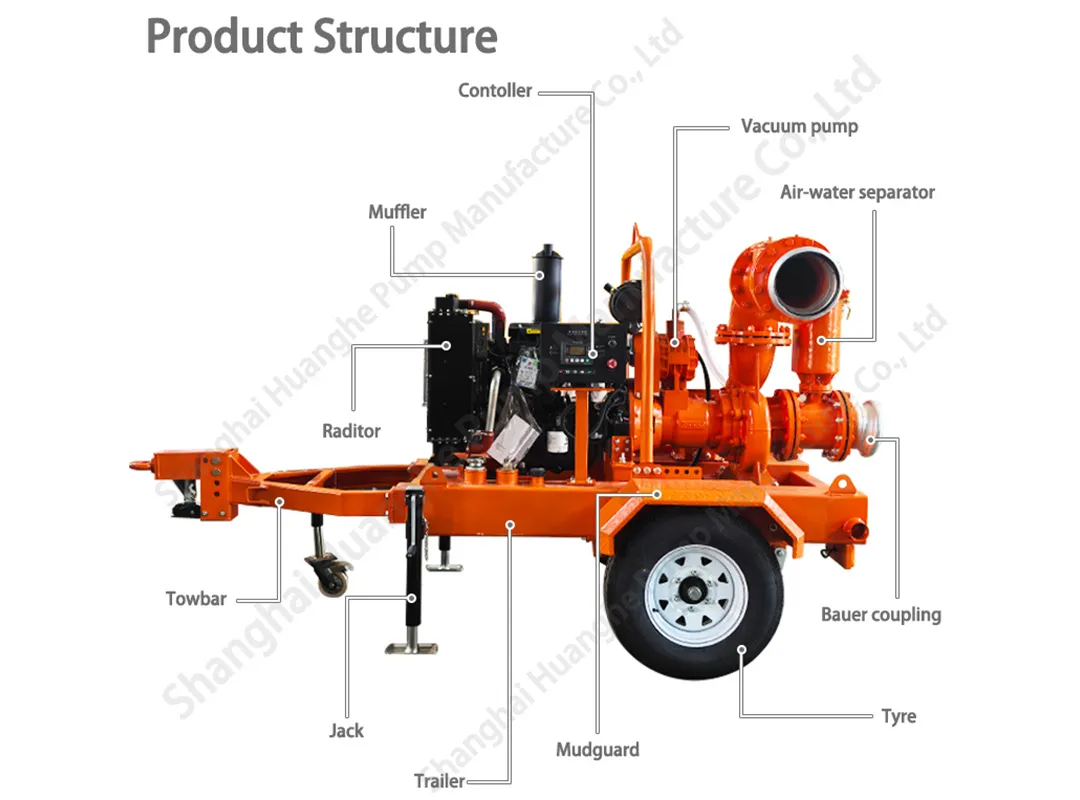

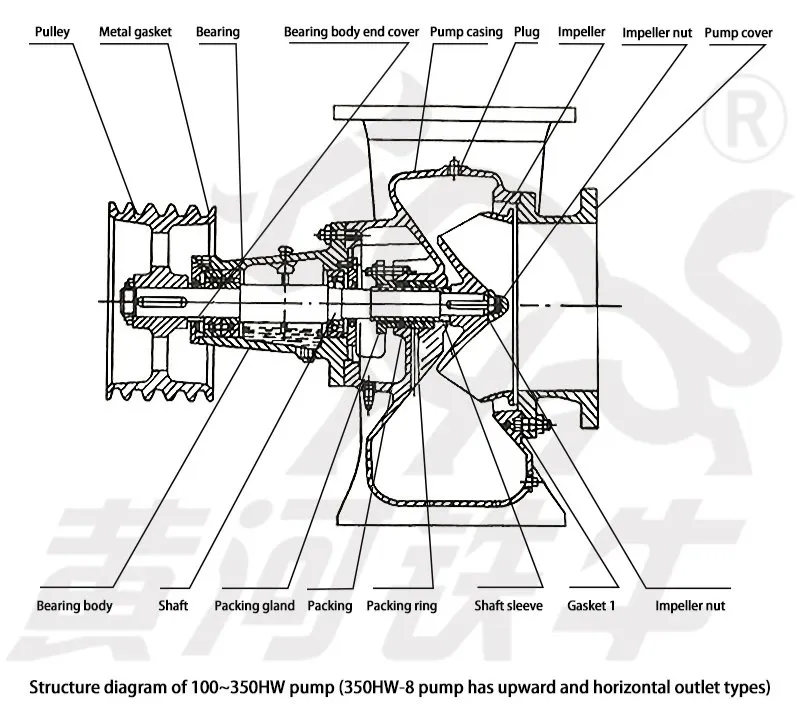

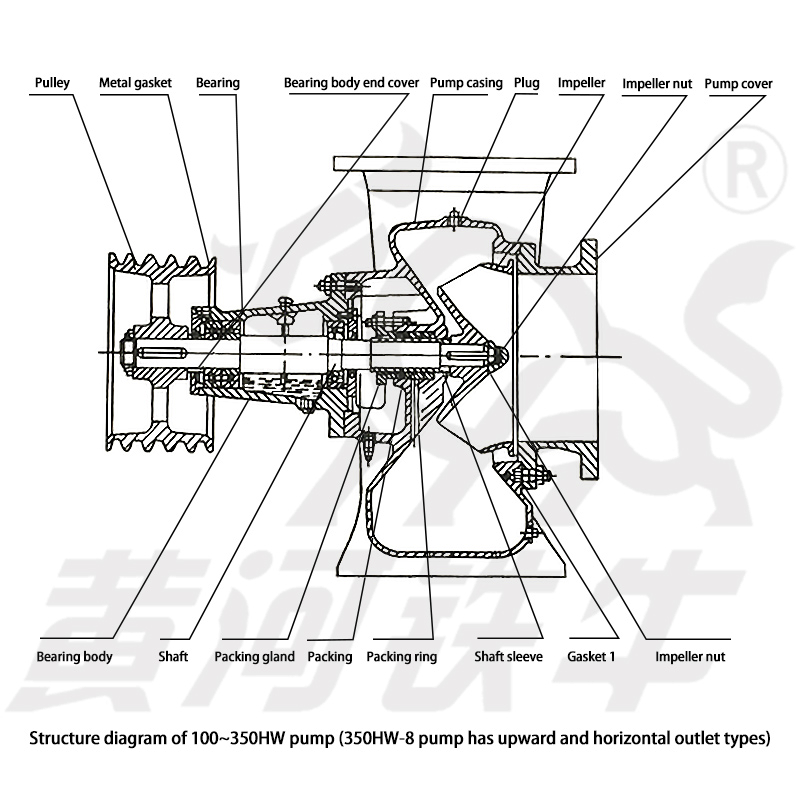

Structural diagram

Specification

Machine performance
Type	Trailor mounted,stationery,closed,open type
Maxflow	800 m3/h
Max head	45m
Suction height	>8.5m
Diesel engine parameters
Brandrecommended:	Cummins, Weichai, Yuchai
Power	>45kw
Speed	1500~2000rpm
Cooling method	Air cooled or watercooled
Pump parameters
Inlet	8inch
Outlet	8inch
Speed	1500~1800rpm
Pumpcase	Castiron
Impeller	Cast iron/stainlesssteel
Shaft	Carbon steel/stainlesssteel
Max particle size:	76mm
Accessories for option:
Suctionpipe,hose,quickconnections,strainers,claps

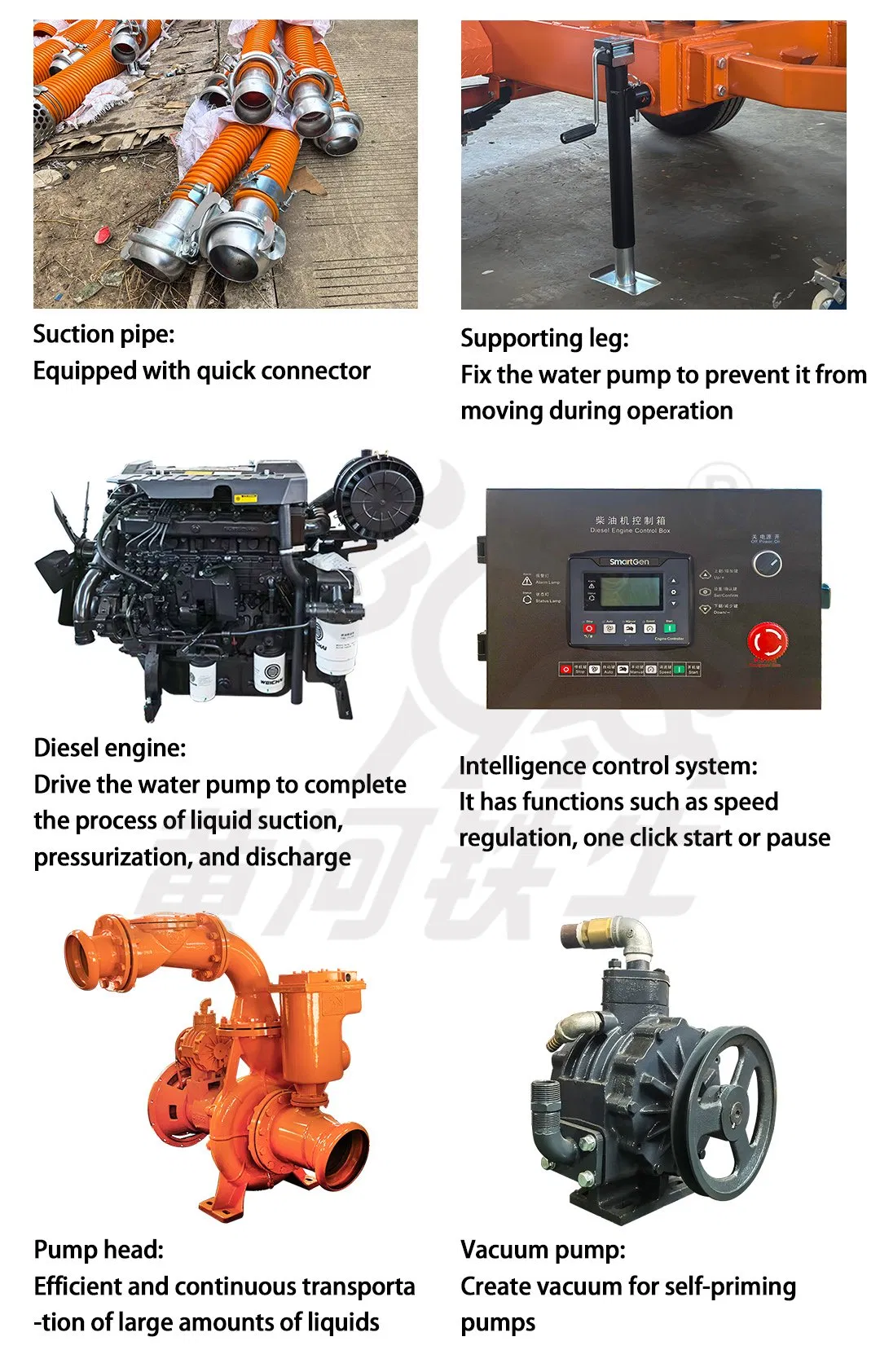

Product Accessories

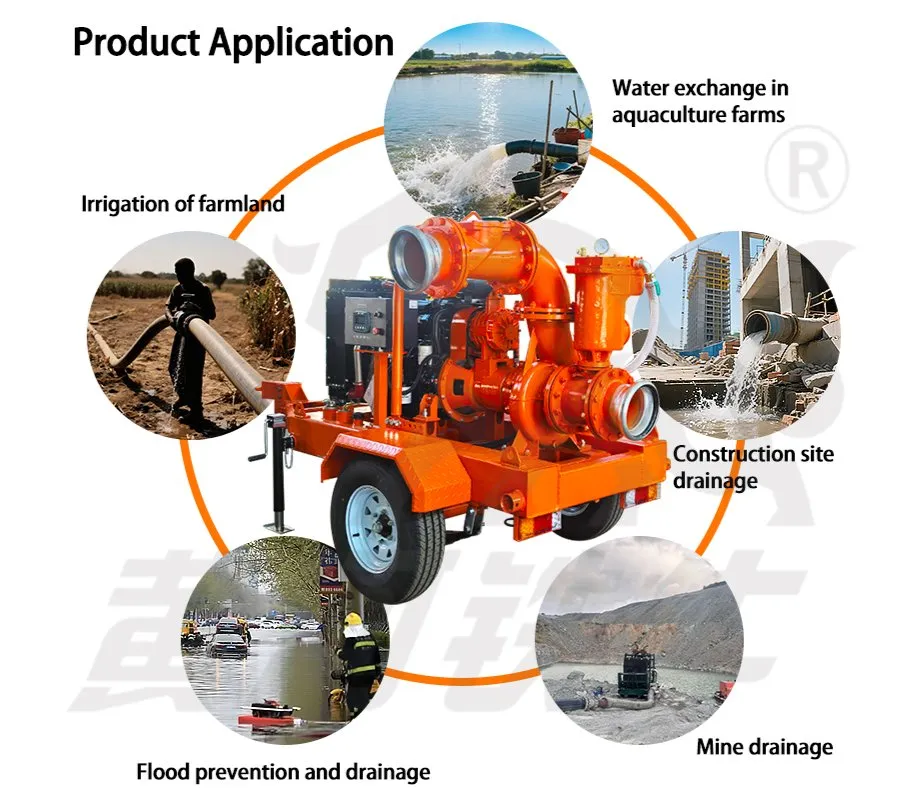

Product Application

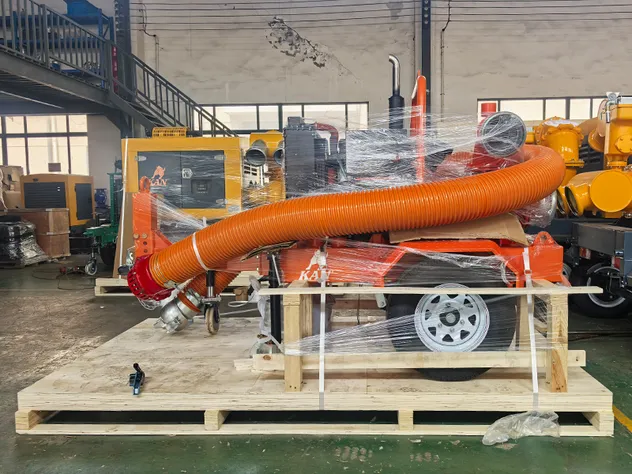

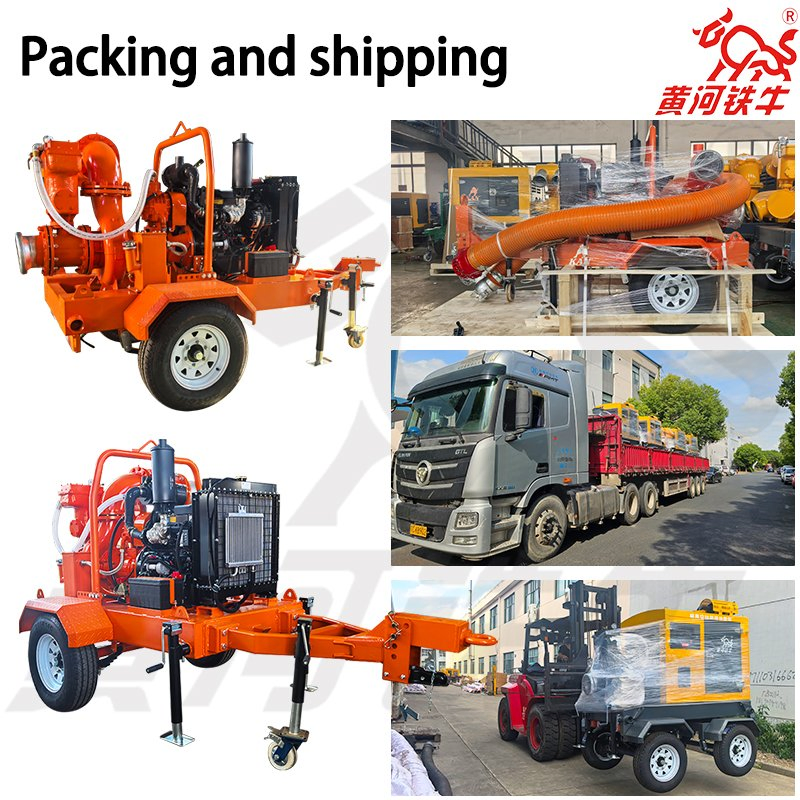

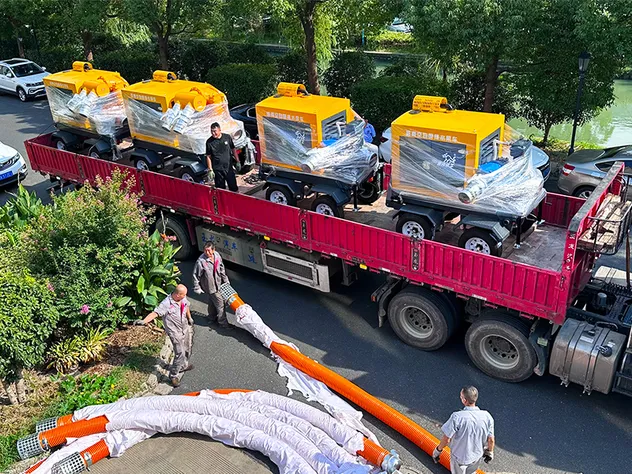

Packaging & Shipping

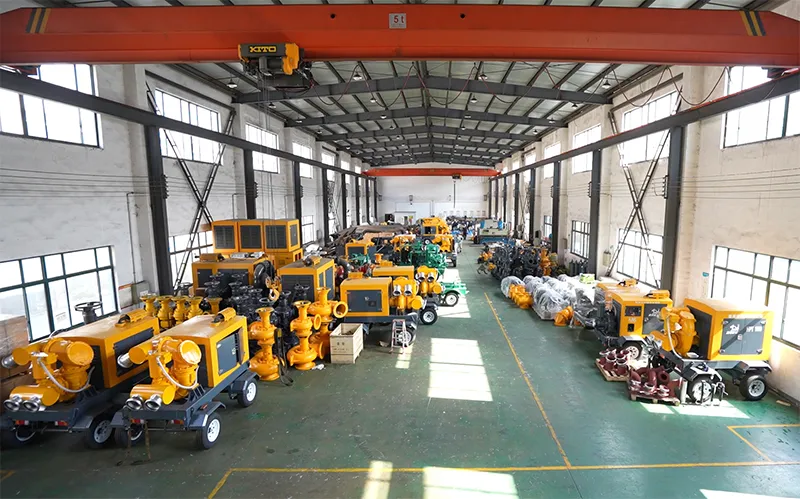

Company Profile

Our company has a history of 29 years. As a manufacturer, we have many years of sales experience and a good reputation in China, as well as many loyal partners. Our main products include flood control mobile pumps, marine seawater centrifugal pumps, farmland irrigation pumps, and mine flushing pumps. We have a complete team that can select, design, and provide high-quality products that meet your requirements. We not only want to serve Chinese customers, but also want to establish partnerships around the world.

FAQ

Q: How can I make order online?

A: Send email or message (whatsApp/ wechat) us.you can ask any questions ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, WesternUnion, Paypal, ****** Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 10-15 working days after confirm the money. Depends on your quantity.
Q: What guarantee do you have?
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
