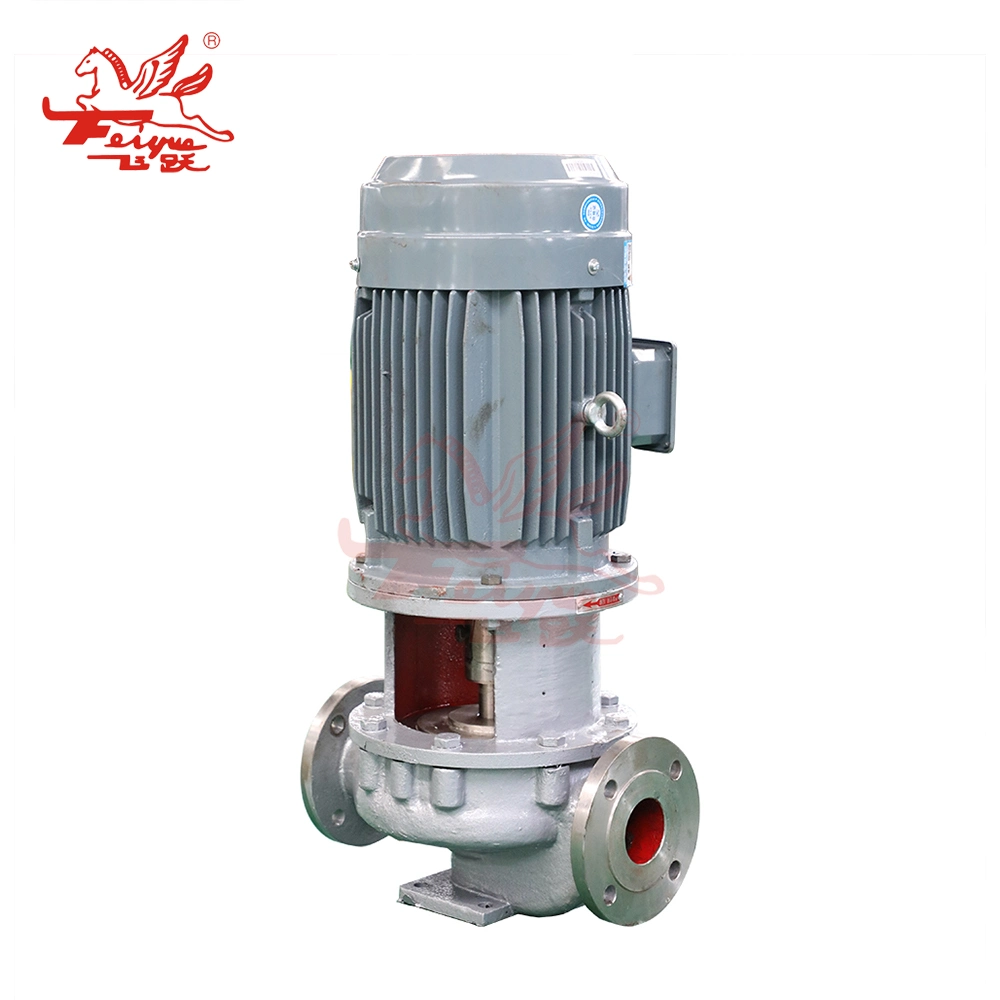

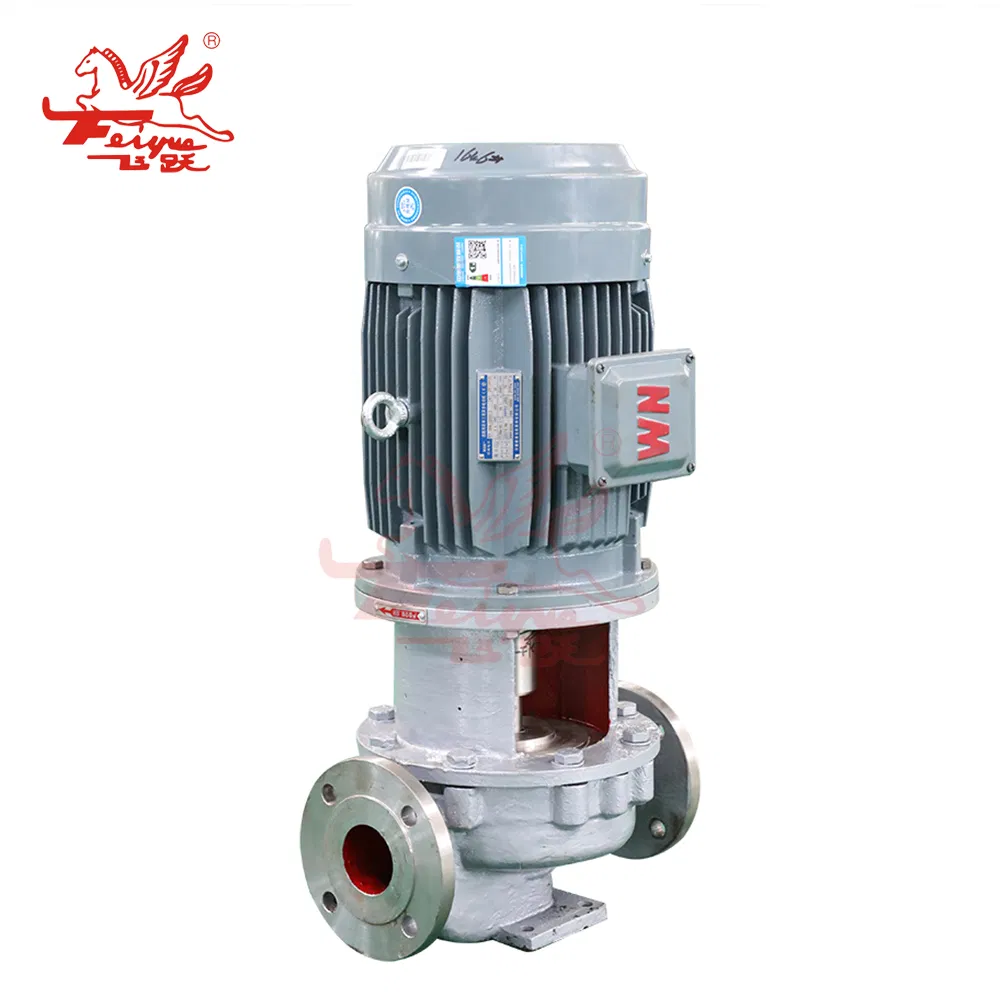

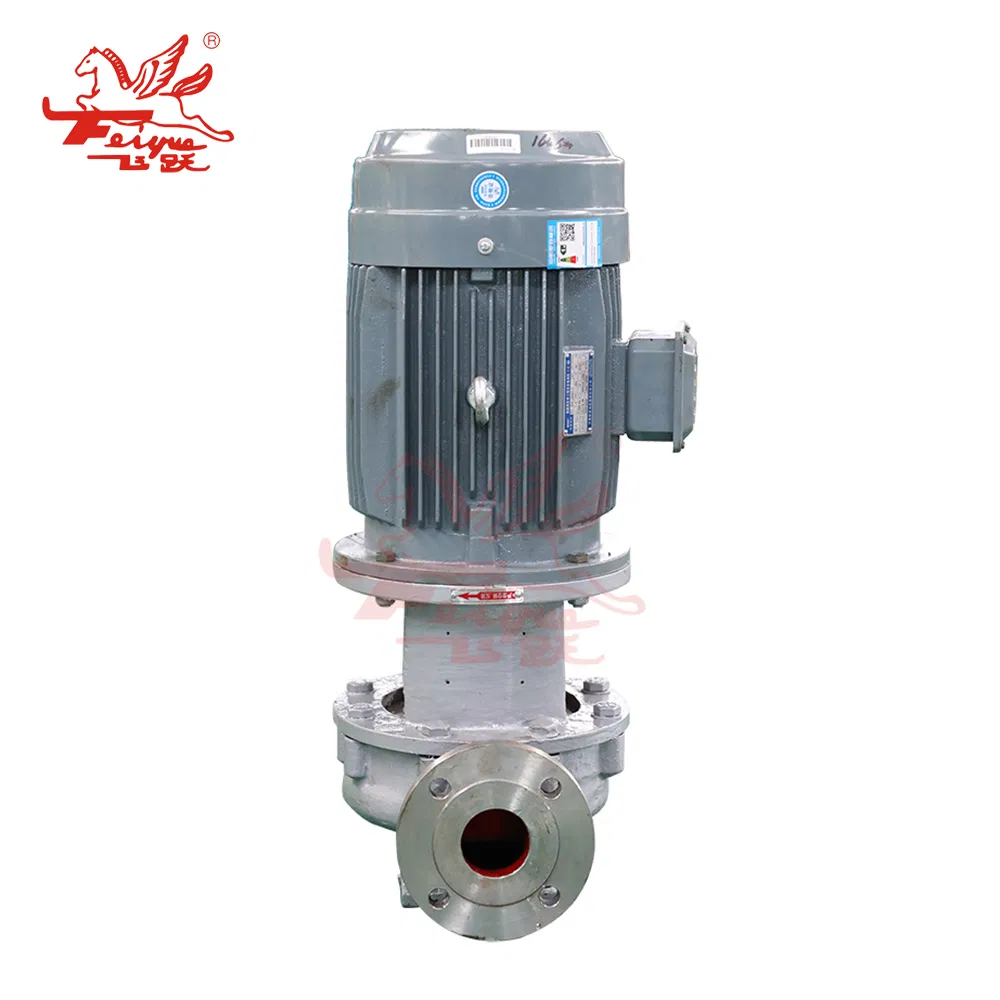

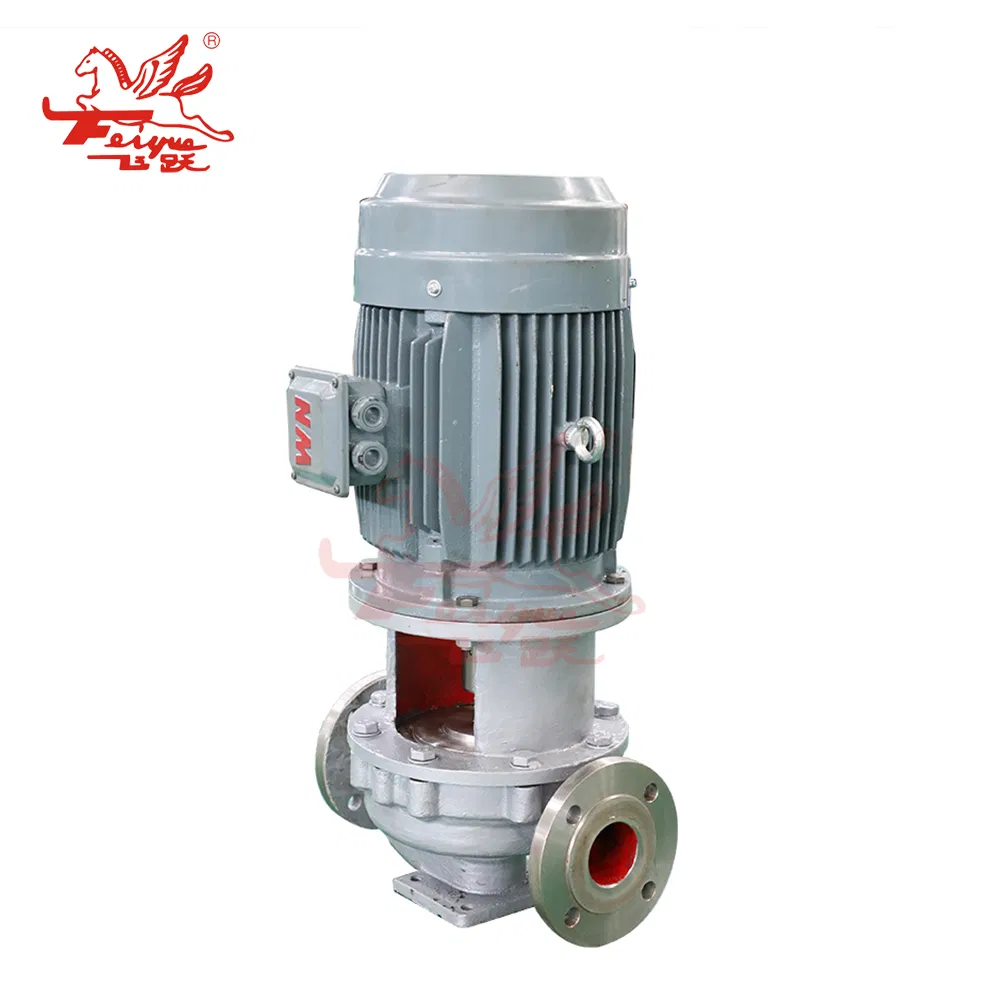

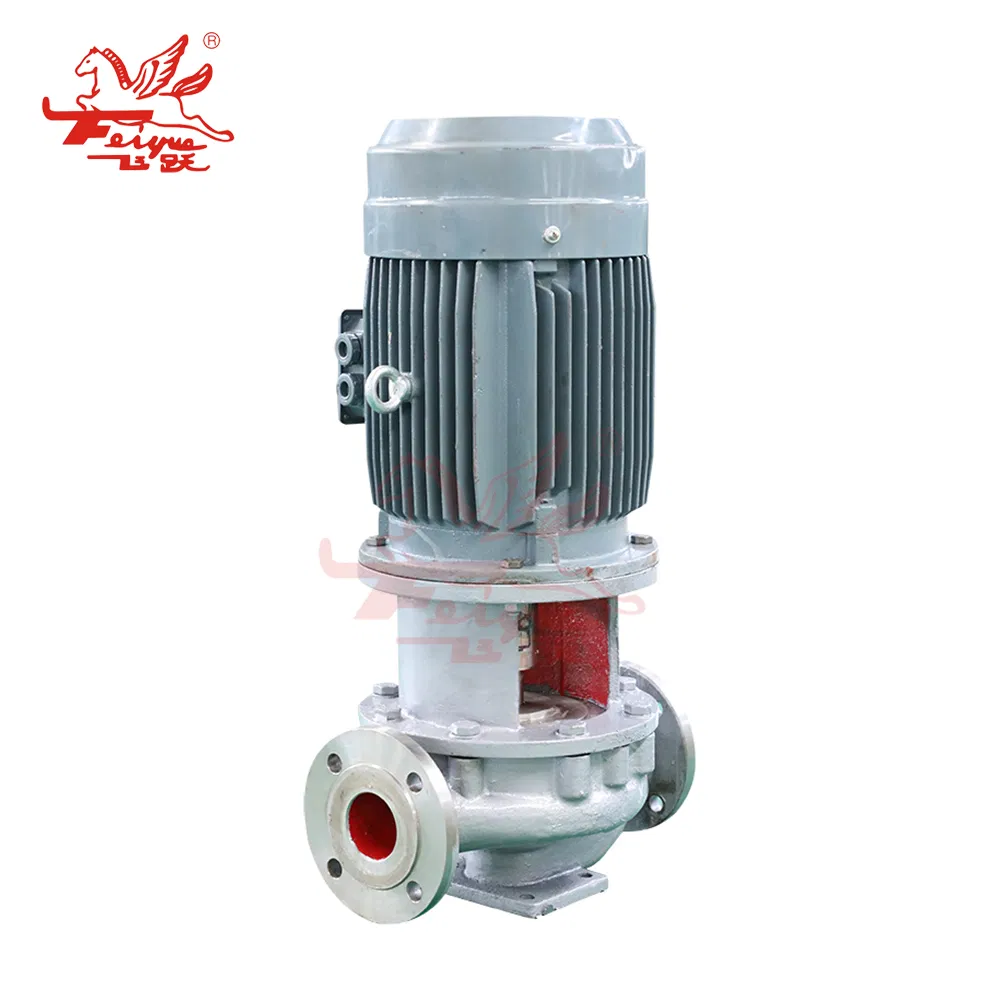

Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
1 / 5
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump
Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump

Sg High Quality Booster Pipeline Pump Vertical Inline Fire Fighting Jockey Pump

Max.Head: 110m-150m
Max.Capacity: >400 L/min
Driving Type: Motor
Send Inquiry

Product Description

Basic Information

Model NO.
SG
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type
Single Suction Pump
Pump Shaft
Vertical Pump
Usage
Pumps, Condensate Pump, Circulating Pump
Standard
ISO2858/GB/T5656
Rotation Speed
1450, 2900 RPM

Product Description

SG High Quality Booster Pipeline Pump

Vertical Inline Fire Fighting Jockey Pump designed to conform to ISO2858/GB/T5656 standards.

  • 💜 Flow range: 2~400m³/h
  • 💜 Lift range: ~150m
  • 💜 Design pressure: 1.6MPa (Max)
  • 💜 Temperature: -40~150ºC

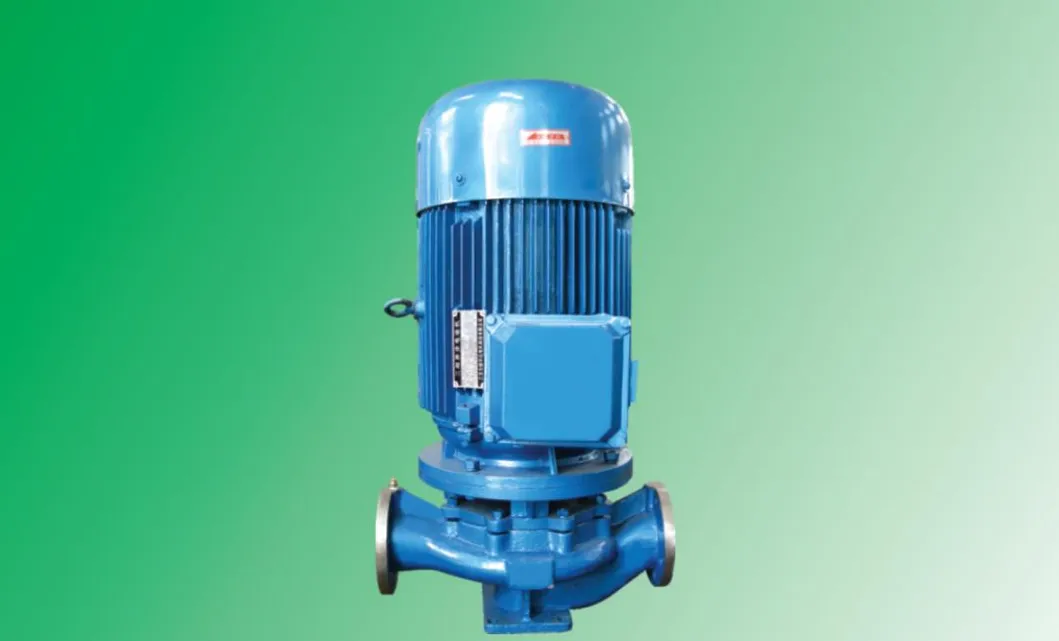

Booster Pipeline Pump

Summary: The SG type series piping pump is engineered for high-rise buildings and pipeline pressure optimization. This vertical centrifugal pump offers superior efficiency compared to traditional horizontal types. Featuring advanced mechanical seals and a tightly packed construction, it ensures minimal leakage, light weight, and space-saving installation.

Application Functions

SG Common Type: For water supply in high buildings, park irrigation, cooling towers, and bathroom circulation. (Temp < 80ºC)
SGR Hot Water Type: Ideal for hothouse boilers and hot water circulation. (Temp < 140ºC)
SGP/SGPB Types: Stainless steel construction for corrosive media, food, medicine, and chemical engineering.
SGB Flameproof: Designed for petroleum and chemical liquids that are flammable or explosive.

Model Meaning & Structure

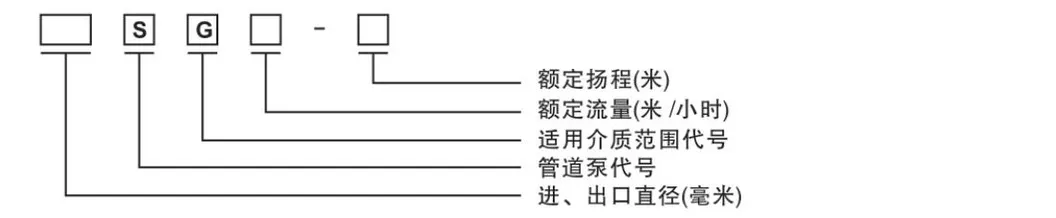

Model Code Meaning

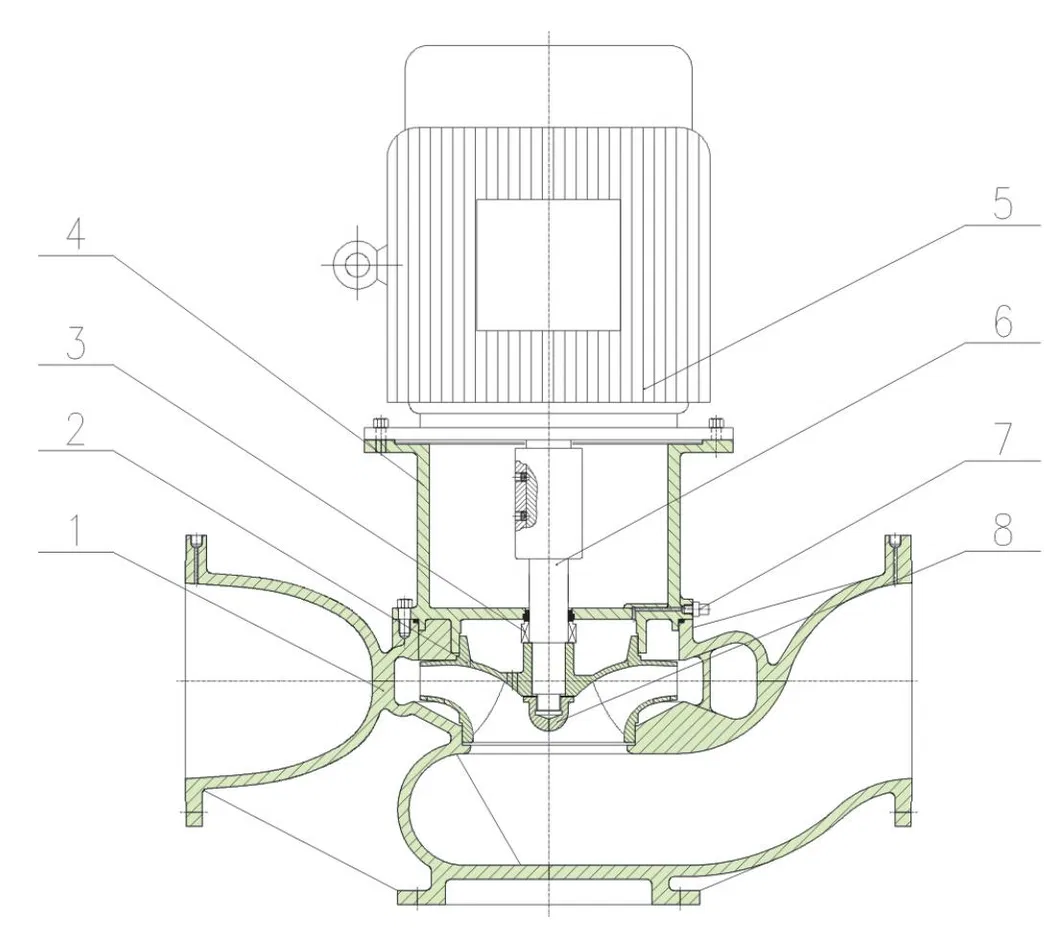

Structure Chart
1Pump body 2Impeller 3Mechanical seal 4Stents
5Motor 6Pump shaft 7Vent plug 8Impeller nut

Performance Parameters

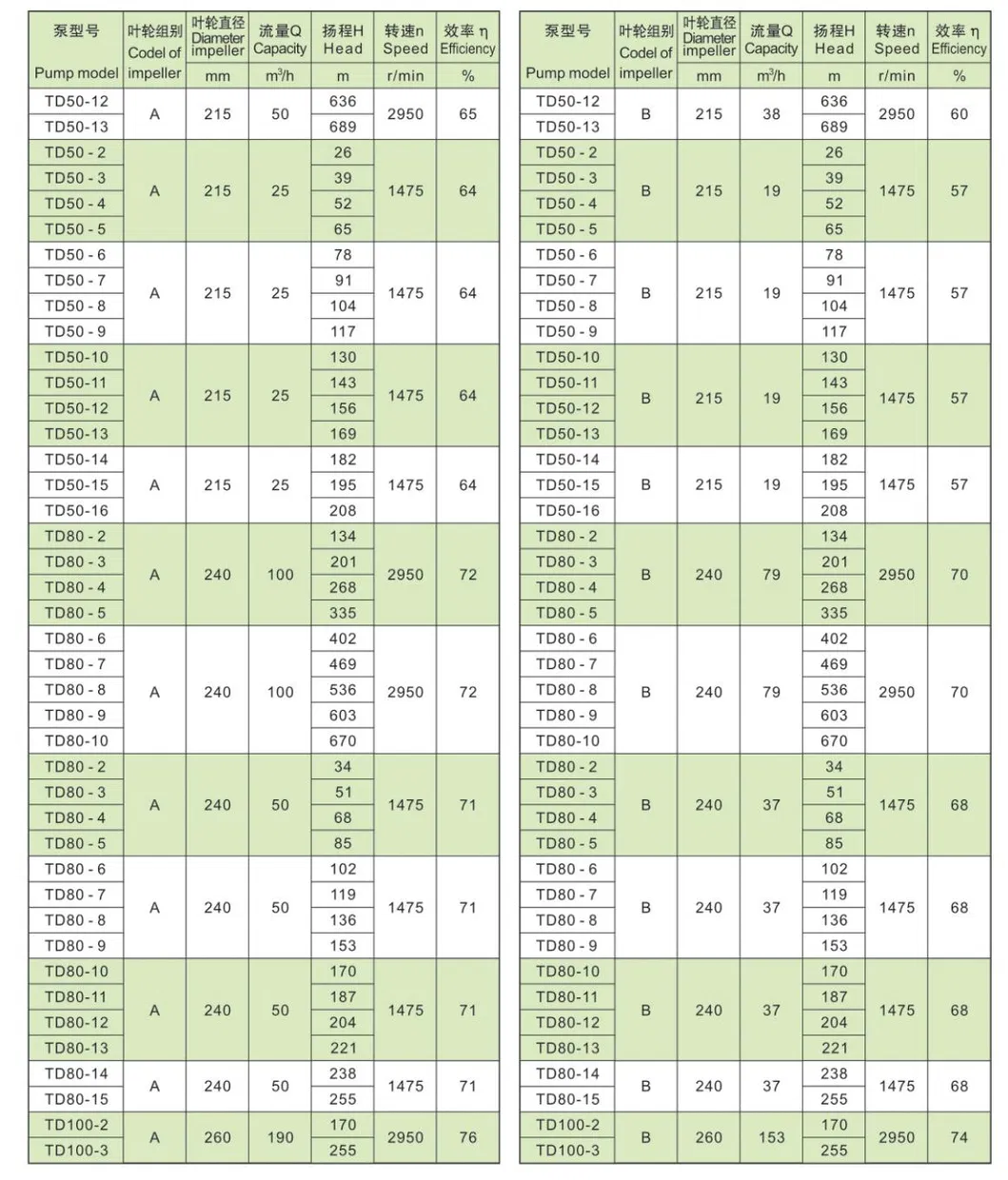

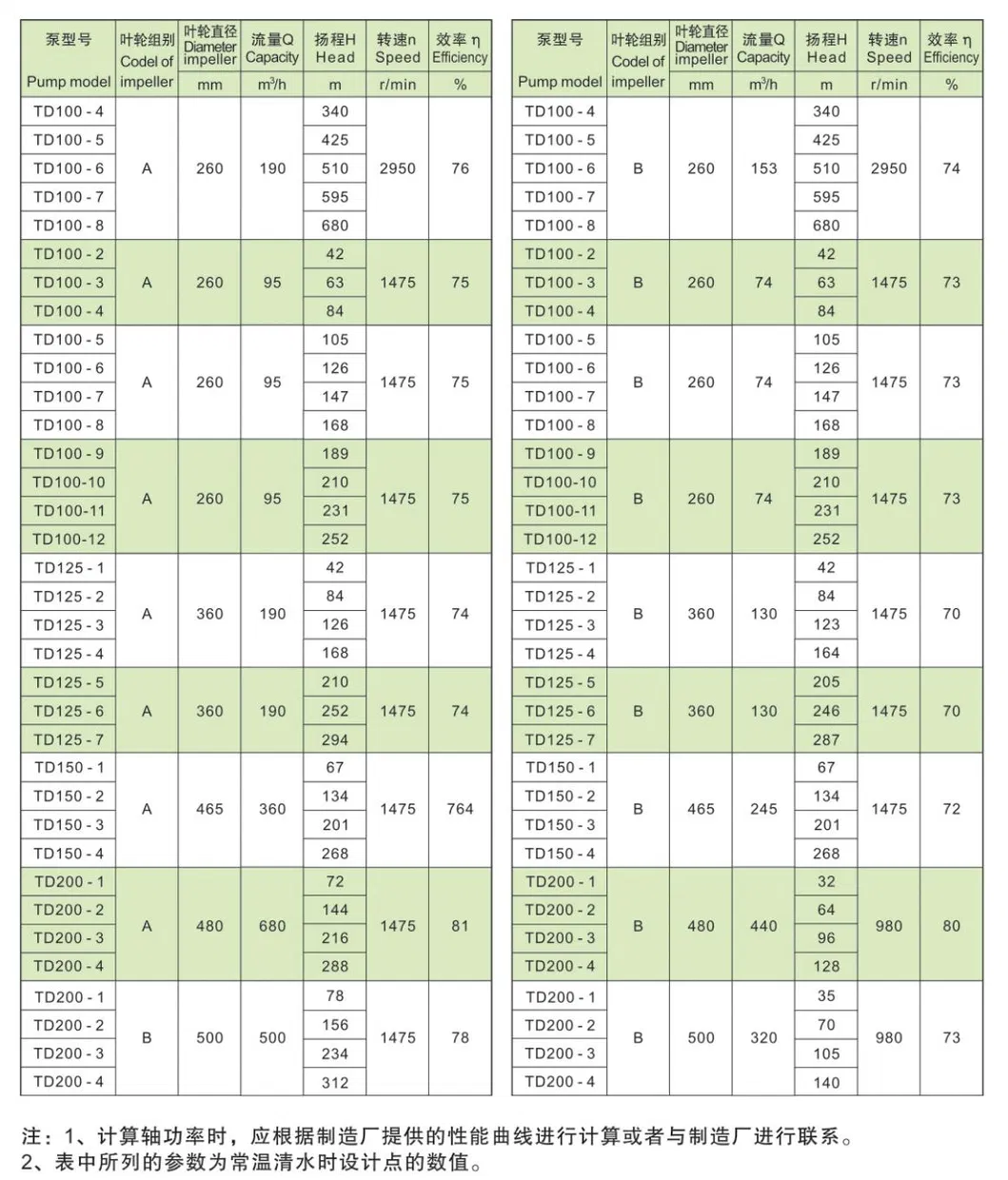

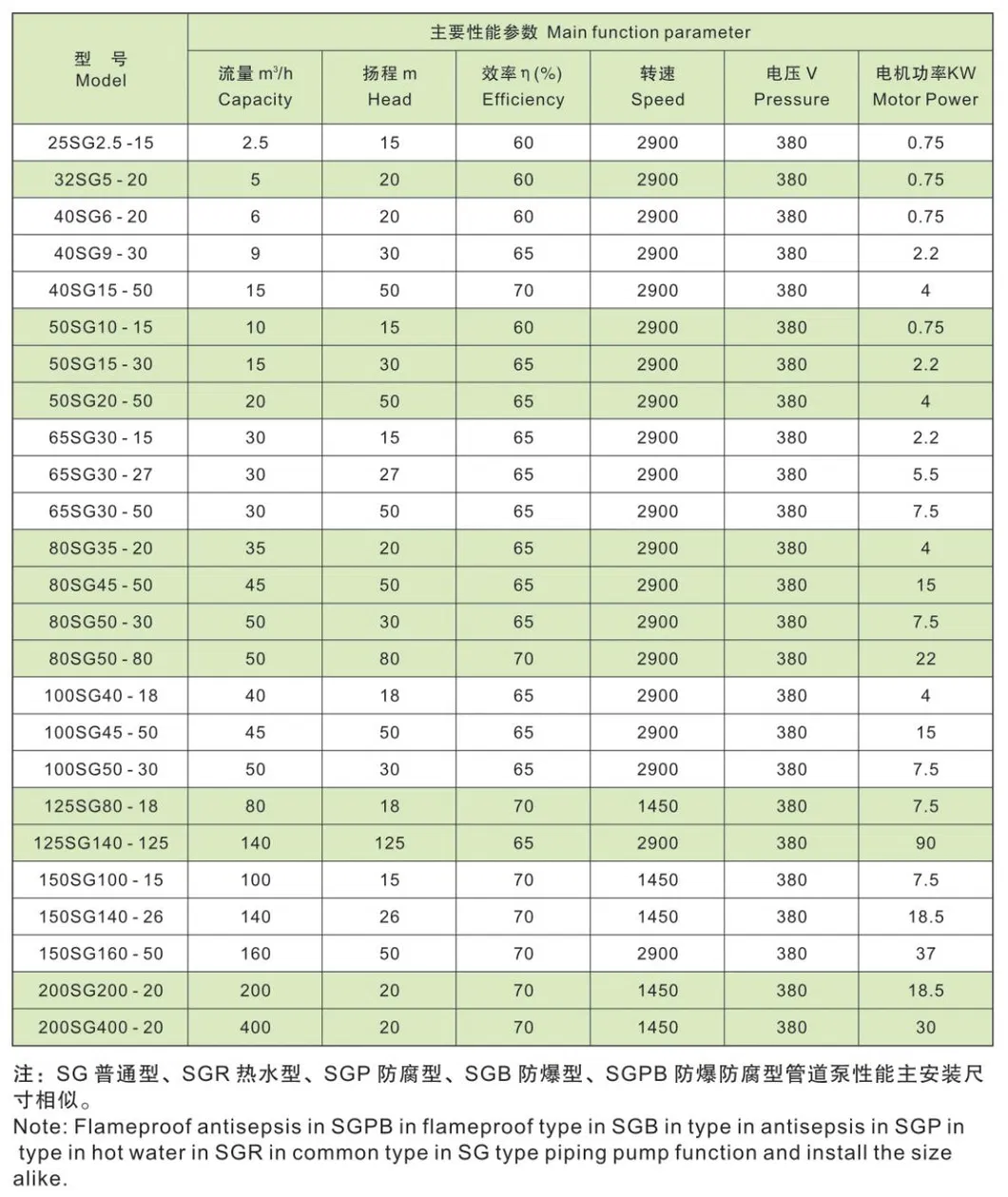

Parameter Table 1 Parameter Table 2 Parameter Table 3

Product Showcase

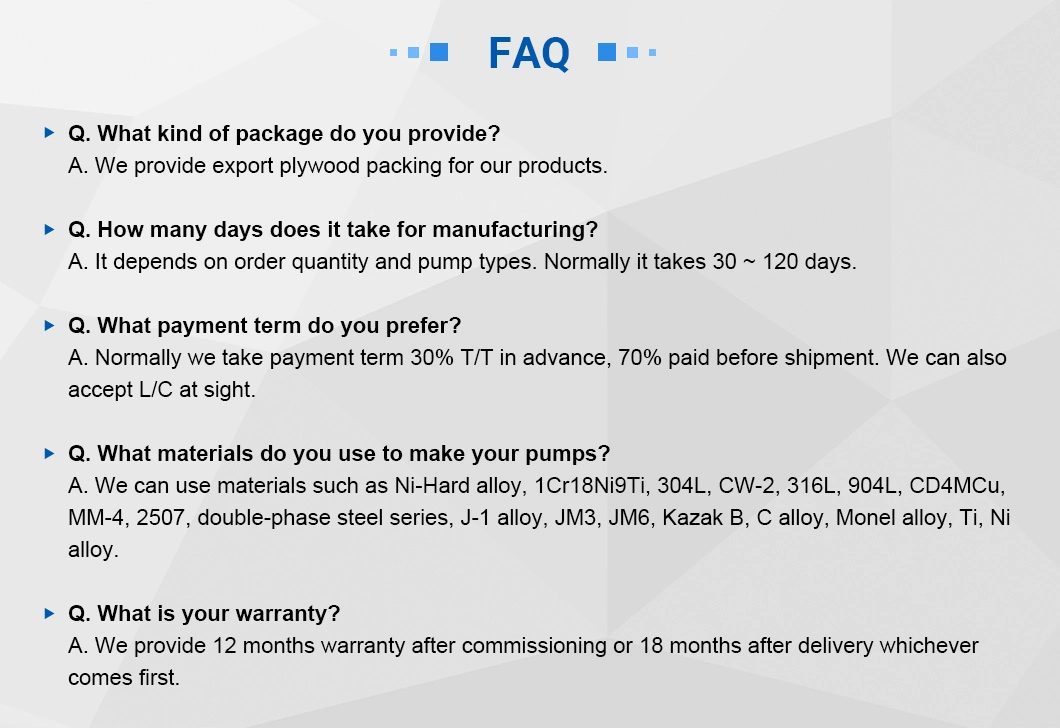

Production Display 1 Production Display 2 Production Display 3

Frequently Asked Questions

1. What is the maximum flow capacity of the SG pump?
The SG type series booster pump has a flow range from 2m³/h up to 400m³/h, depending on the specific model selected.
2. Can this pump handle high-temperature fluids?
Yes, while the common SG type handles up to 80ºC, the SGR hot water type and SGPB flameproof types are designed to handle temperatures up to 140ºC.
3. Is the SG pump suitable for corrosive chemical media?
Yes, the SGP and SGPB variants are constructed from stainless steel specifically to transport caustic and corrosive liquids used in the food, medicine, and chemical industries.
4. What design standards does the pump follow?
The pumps are engineered to strictly conform to the international ISO2858 and national GB/T5656 design standards.
5. What are the key advantages of this vertical inline design?
The vertical inline design is space-saving, offers high efficiency with low leakage due to advanced mechanical seals, and is significantly lighter and more compact than horizontal pump alternatives.
6. Can it be used for fire-fighting systems?
Absolutely, the SG pump is commonly used as a jockey pump for fire-fighting systems and for increasing water pressure in high-rise buildings.
