| Model NO. | XSWBG-112/14-ZY-JK |
| Alarm Valve Type | Dry Alarm Valve |
| Working Pressure | 10 Bar |
| Open Flow Coefficient | 0.5~2.5(K) |
| Rated Flow Rate of Pump Group | 5~25(L/Min) |
| Material | Mild Steel |
| Temperature Range | 57℃ |
| System Type | Manual and Automatic Dual Use |

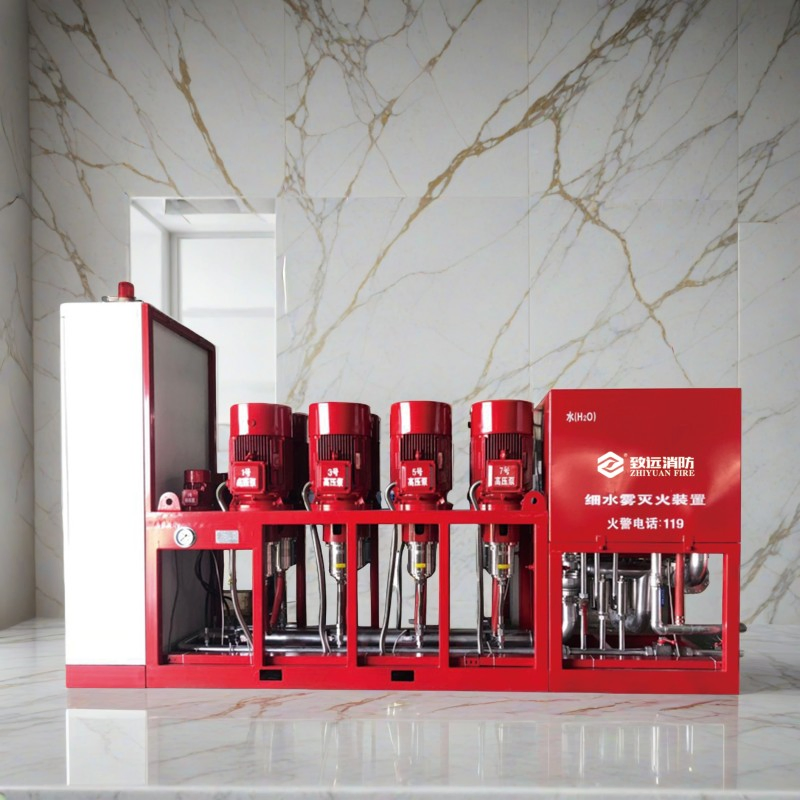

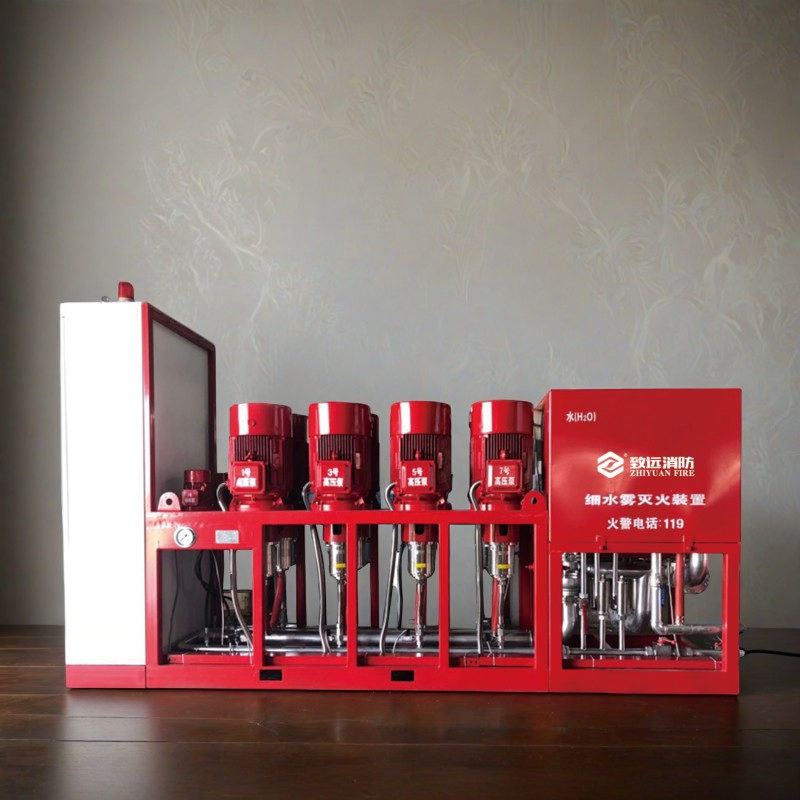

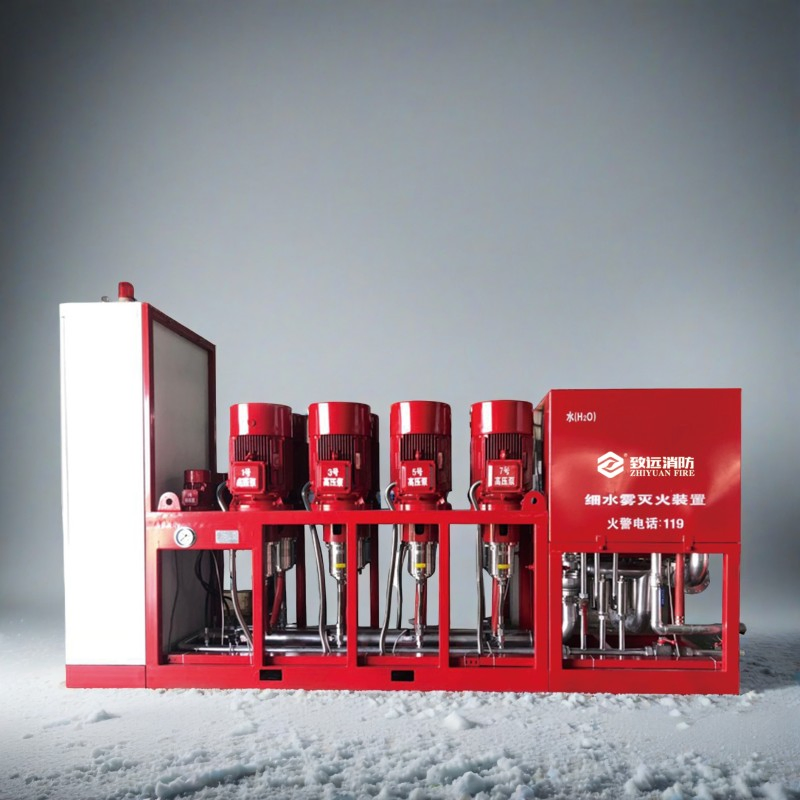

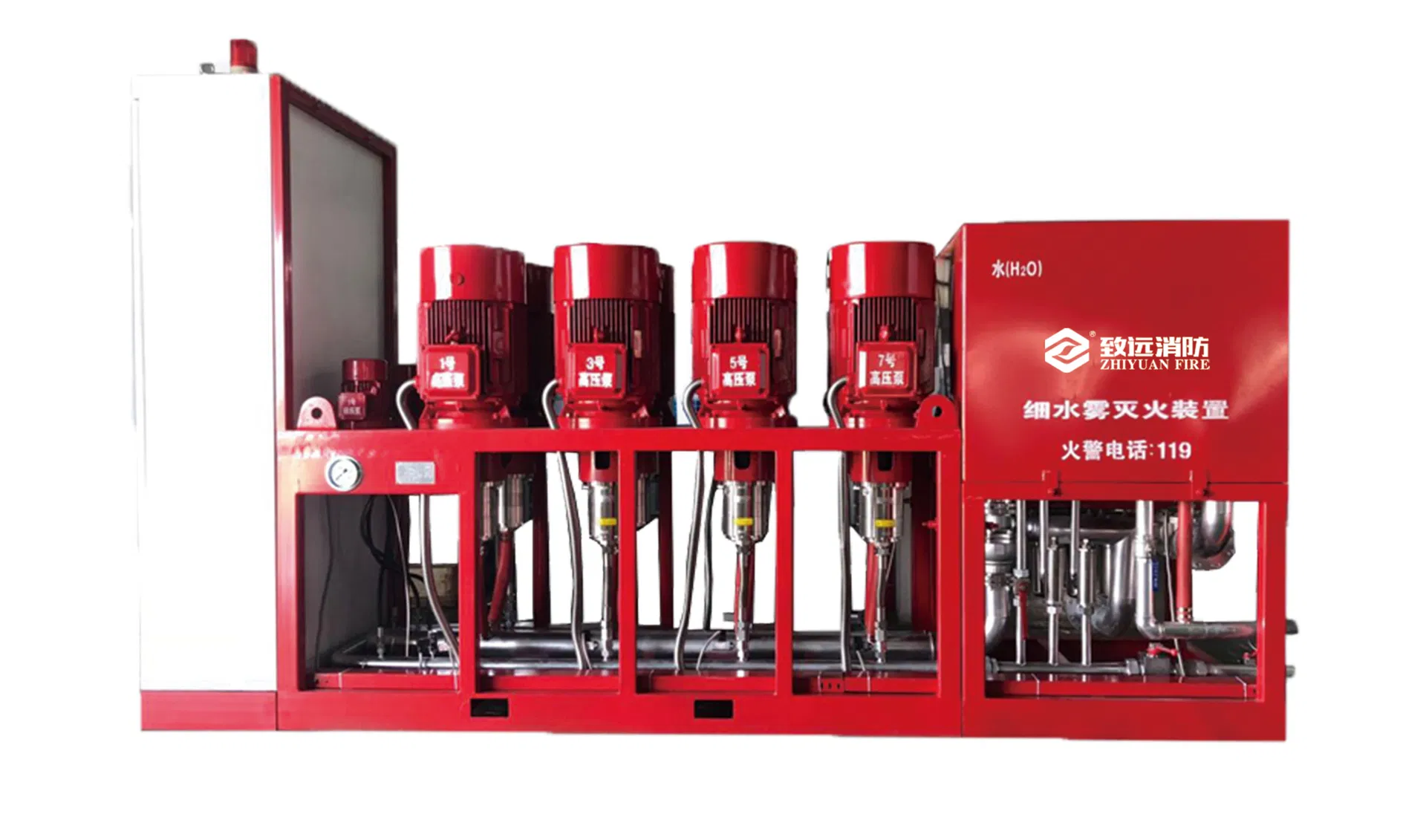

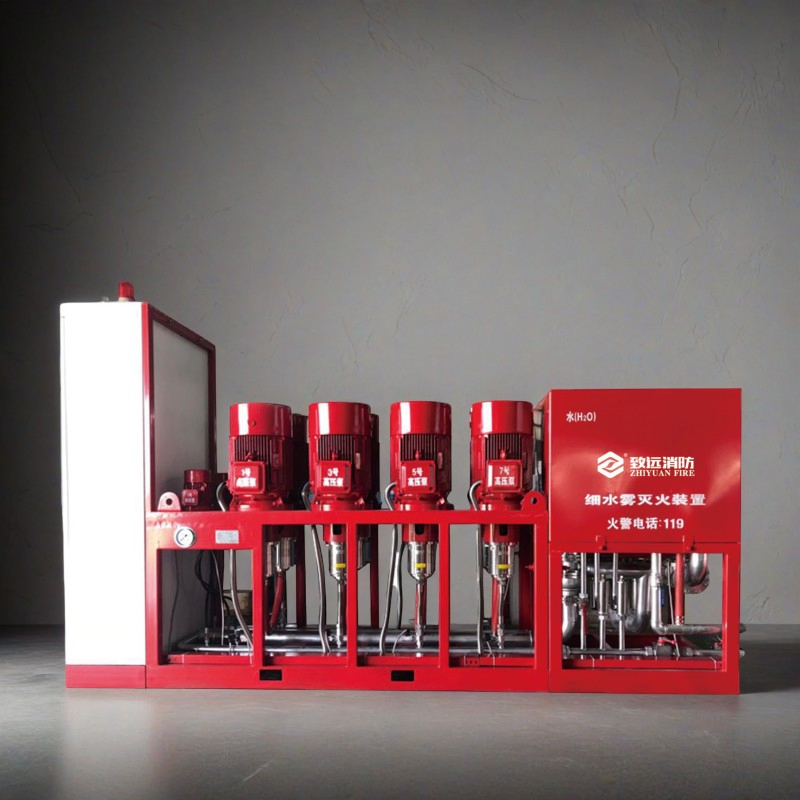

High Pressure Water Mist Fire Extinguishing System (Model XSWBG 115/14 ZY)
A water mist system is a fire protection system which uses very fine water sprays. The small water droplets allow the water mist to control, suppress or extinguish fires by:
The effectiveness of a water mist system depends on its spray characteristics, including droplet size distribution, spray density, and spray dynamics relative to the fire scenario.
Composition and Working Principle:

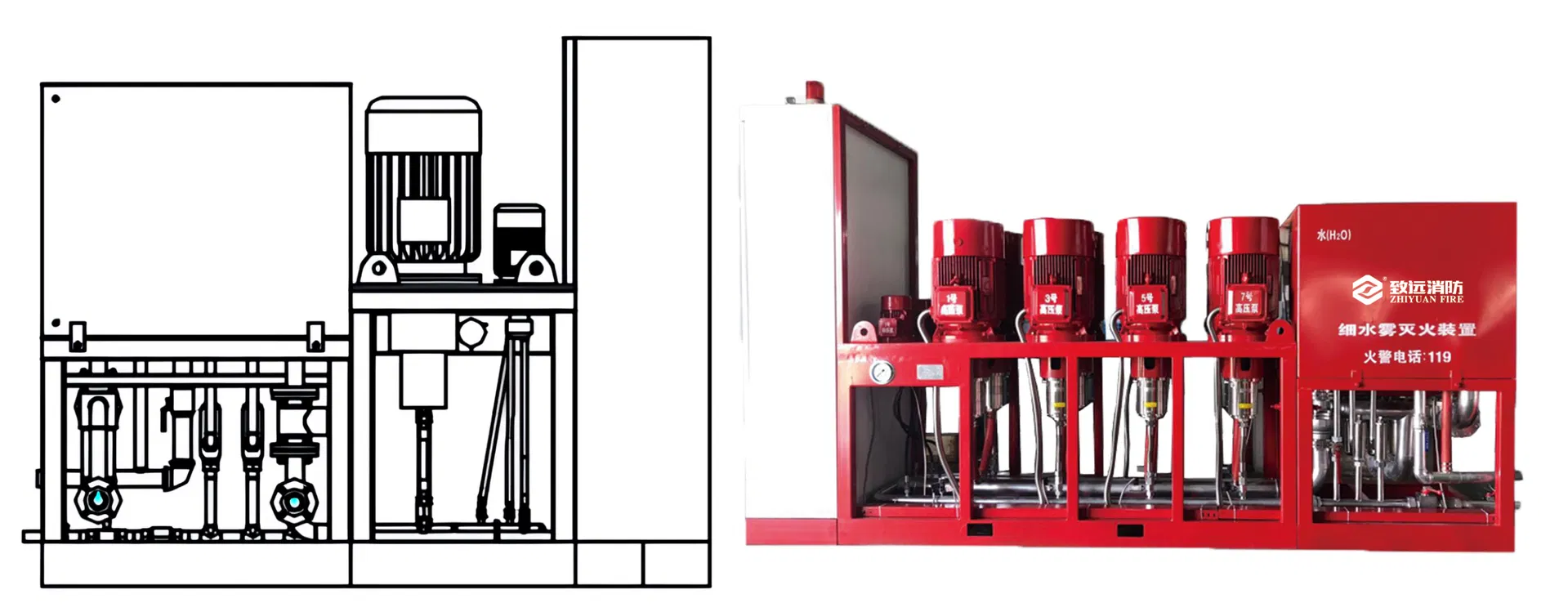

The pump type micro mist droplet extinguishing system consists of a water box, high-pressure pump group, control panel, pressure switch, nozzle, partition control valve, and fire detectors. Under monitoring, the system maintains 1.0~1.2 MPa in the pipe. When pressure drops below 1.0 MPa, the stabilizing pump starts.
| Item | Parameter |
|---|---|
| Standard | XF 1149-2014 |
| Medium | Water |
| Rated Flow | 115 L/min |
| Working Pressure | 14 MPa |
| Operating Temperature | 4℃ – 50℃ |
| Water Tank Volume | 1.0 m³ |
| Dimensions | 2.3 × 1.1 × 1.92 m |
Ideal for fire prevention in small sealed spaces:
