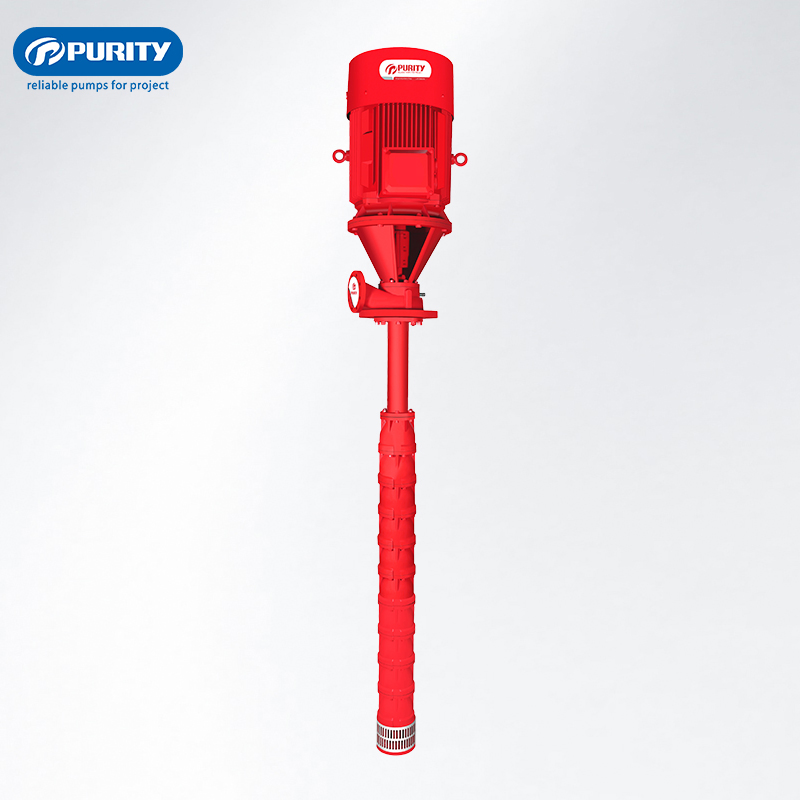

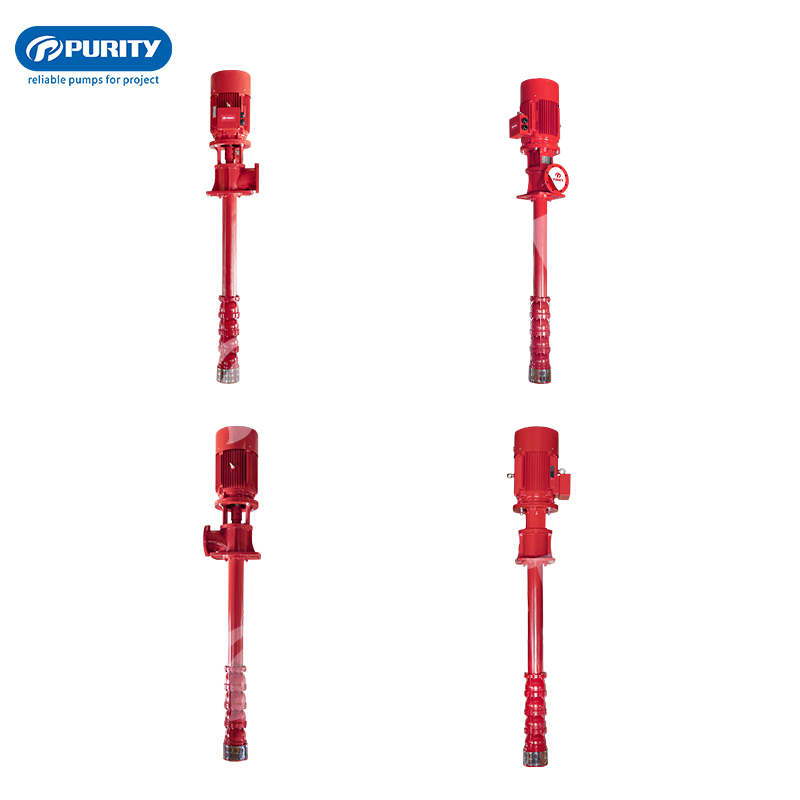

High Power Vertical Turbine Water Fire Pump for Engineering Construction

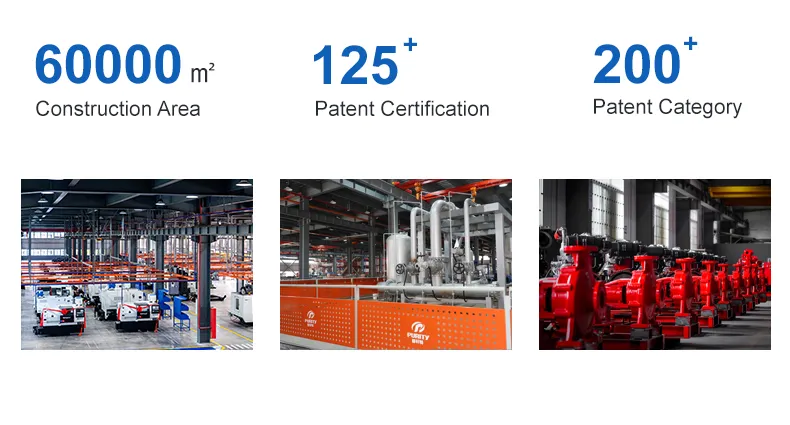

Our research and development team is committed to the production of reliable engineering pumps. With a factory area of 60,000 square meters, we produce major series including fire pump systems, centrifugal pumps, pipeline pumps, and water supply systems. These products are utilized in over 120 countries and regions worldwide.

Short Description:

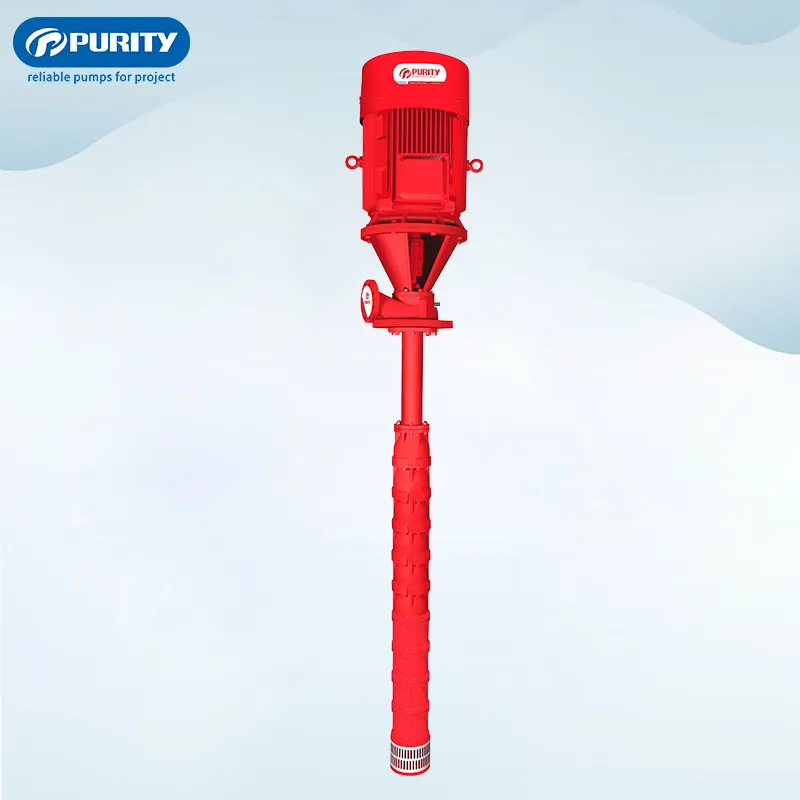

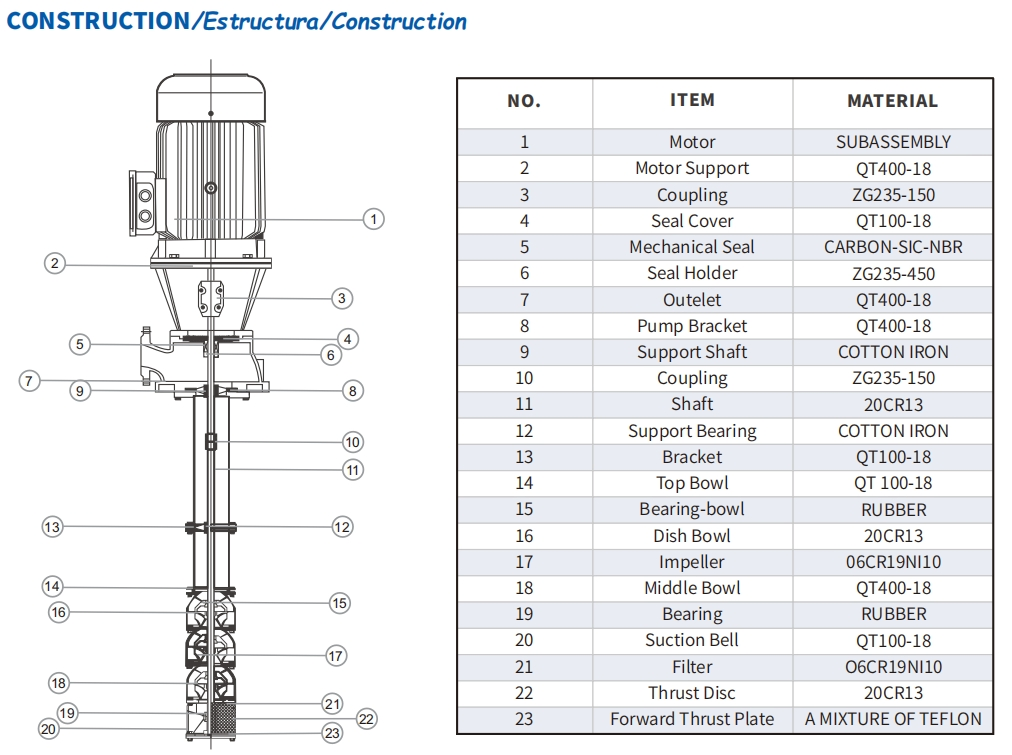

• The turbine fire pump consists of three main parts: the working portion, the water pipe portion, and the surface portion.
• The working components include a guide shell, impeller, conical sleeve, shell bearing, and impeller shaft. The impeller features a closed structure for maximum efficiency.
• Water pipes are connected by high-strength flanges, with transmission shaft material made of 2Cr13 or stainless steel for durability.
• Surface components consist of the pump base, motor, motor brackets, and couplings.

Application:

Mainly used for fire hydrant fire extinguishing, automatic sprinkler systems, and other fire extinguishing systems in industrial enterprises, engineering construction, high-rise buildings, municipal water supply, and drainage.

• Suitable for generally non-corrosive clean water.
• Solid content in water (by weight) should not exceed 0.01%.
• PH value must be within the range of 6.5-8.5.
• Hydrogen sulfide content should not exceed 1.5 mg/L.
• Water temperature should not be higher than 40°C.
