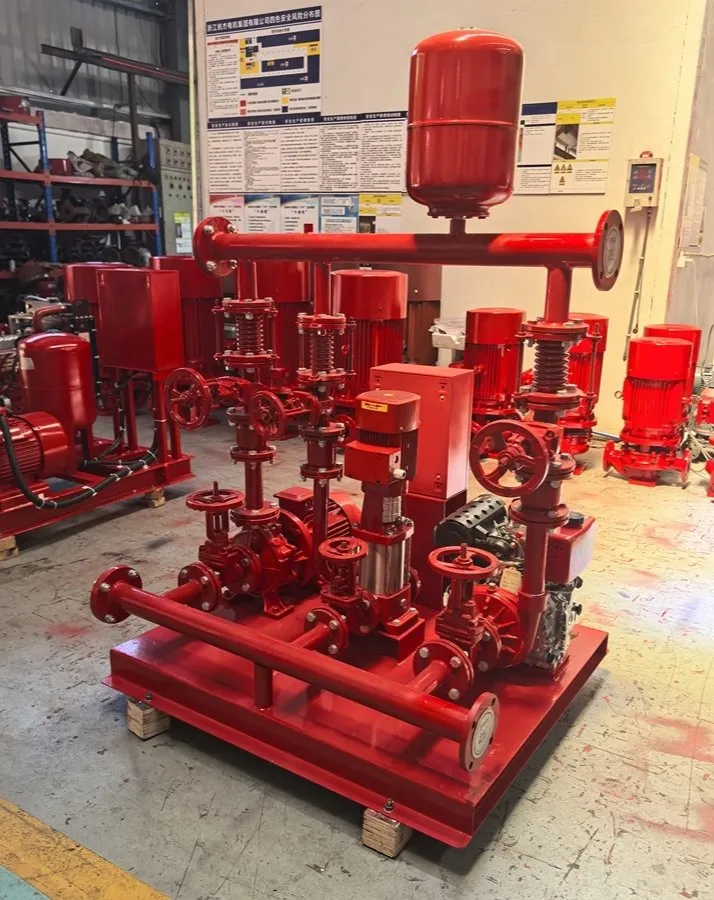

High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
1 / 6
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set

High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set

Customization: Available
After-sales Service: Technical Guidance
Warranty: for 1 Year

Product Description

Overview

Basic Info.

Model NO.
EDJ 100/9-17.5-27-3
Max.Head
Varies by Model
Max.Capacity
Varies by Model
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Open
Usage
Pump
Product Name
Centrifugal Pump Set
Keywords
Centrifugal Pump
Primary Function
Ready-to-Install Pumping Solution
Unit Weight
Depending on Size and Configuration
Customized Support
OEM, ODM
Color
Red
Transport
Carton
Transport Package
Standard Packaging or Customized
Specification
Standard Specifications or Customized
Trademark
TS PUMP
Origin
Zhejiang, China
Production Capacity
50000sets/Year

Packaging & Delivery

Package Size
1200.00cm * 1100.00cm * 1600.00cm
Package Gross Weight
200.000kg
Lead Time
15 days (1 - 10 Pieces)
To be negotiated ( > 10 Pieces)

Product Description

High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
Product Description
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set

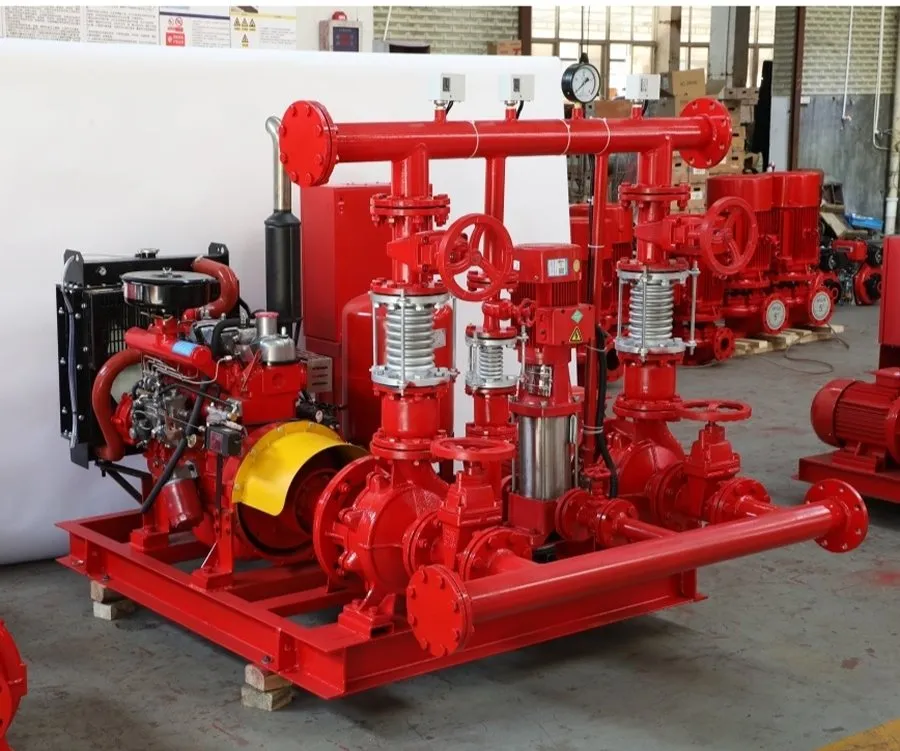

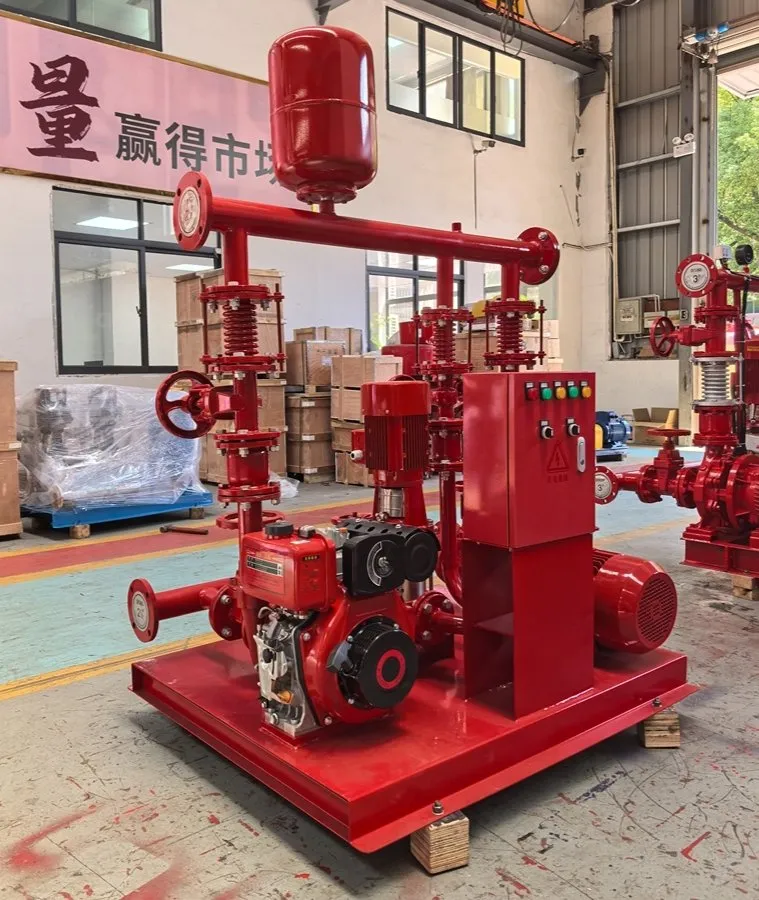

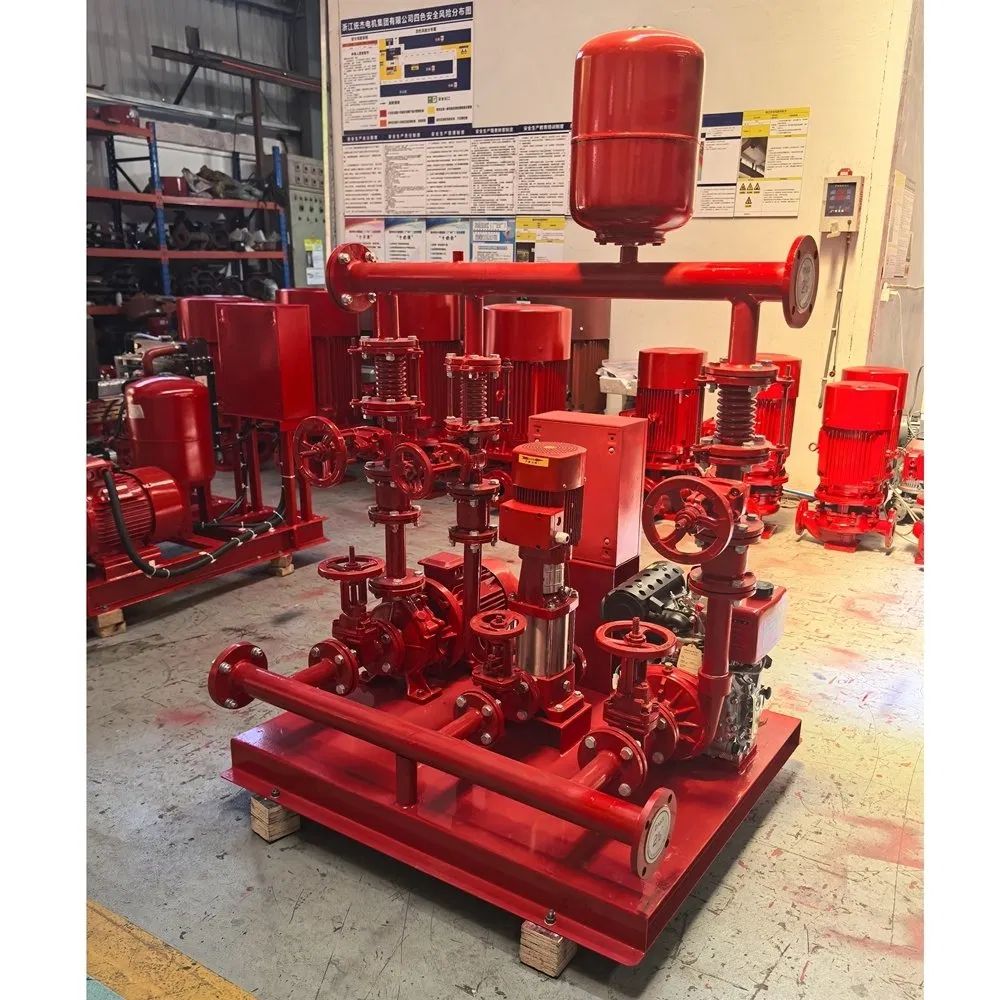

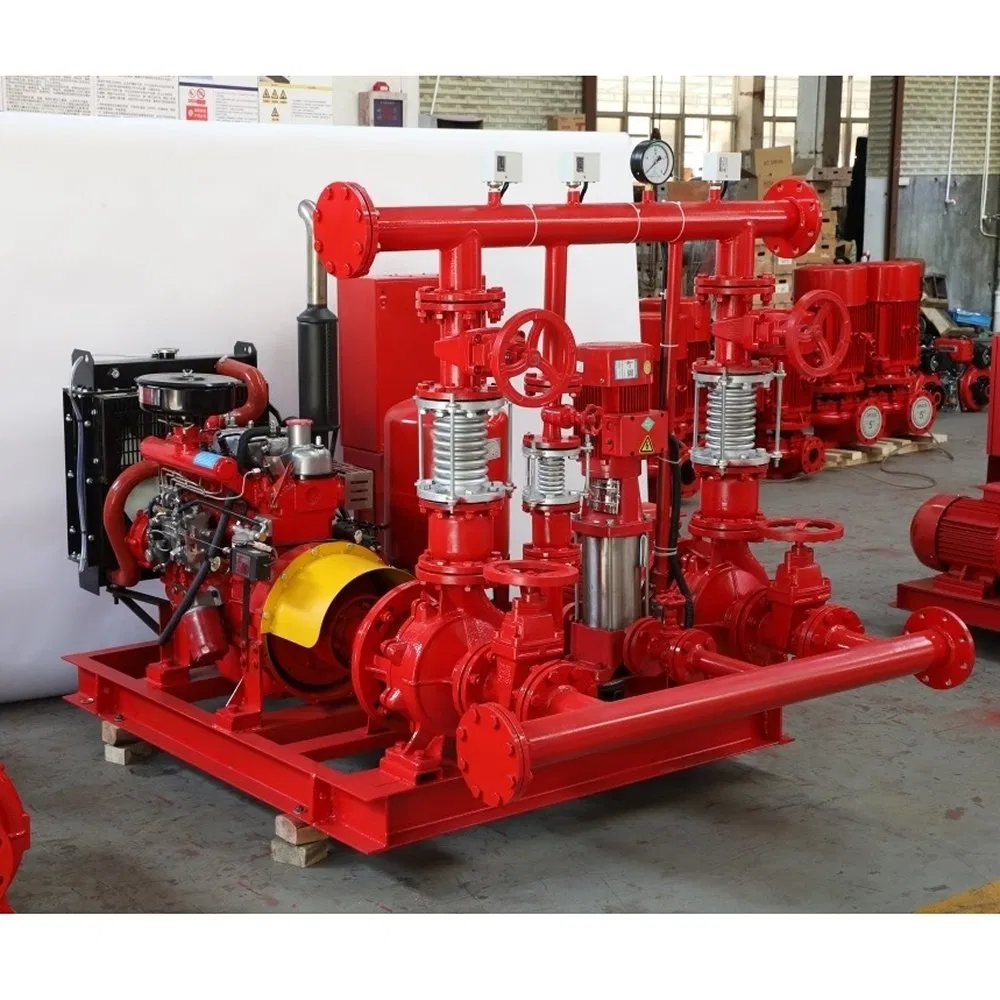

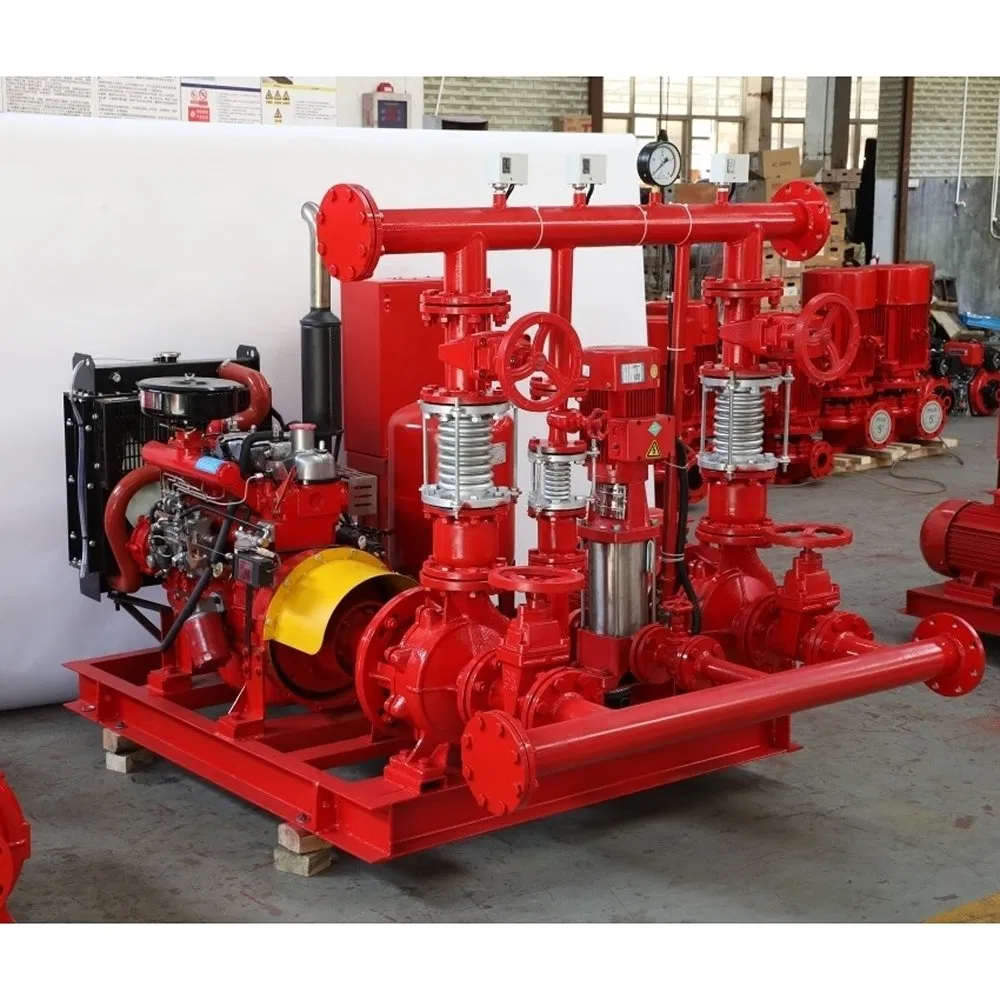

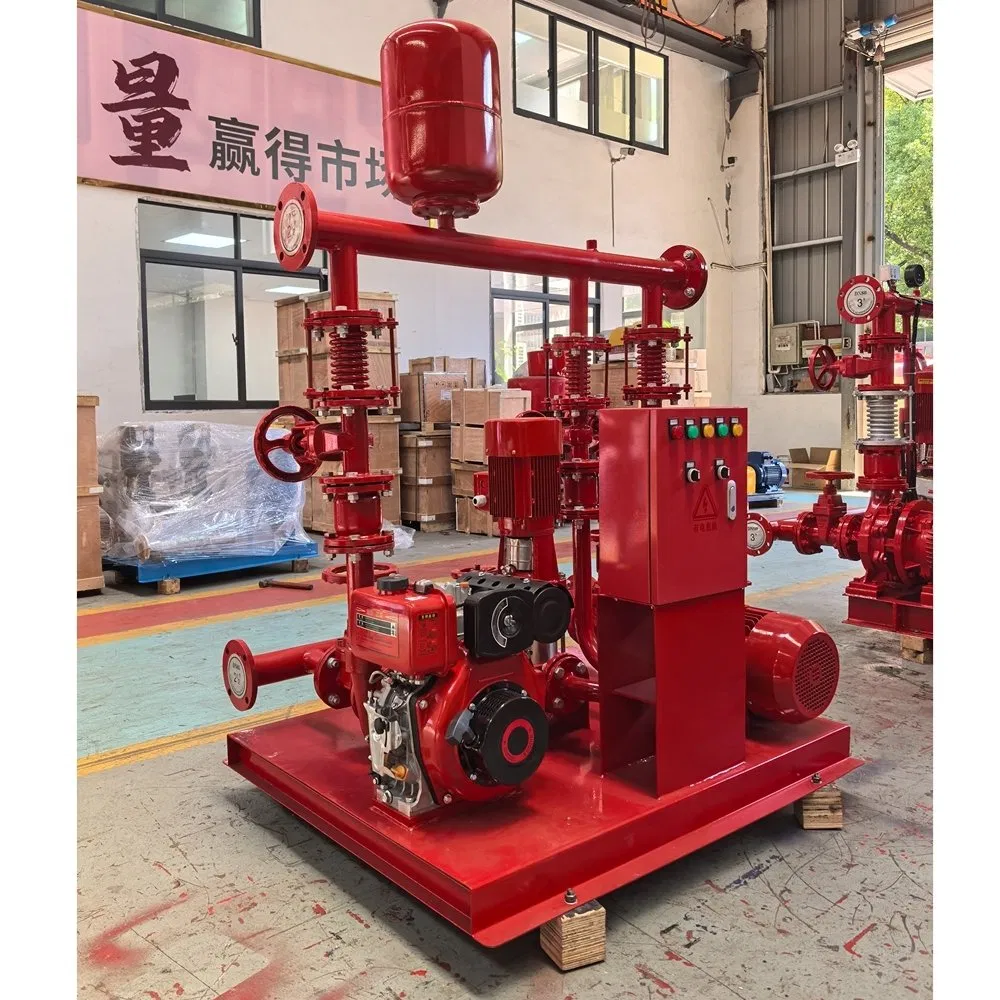

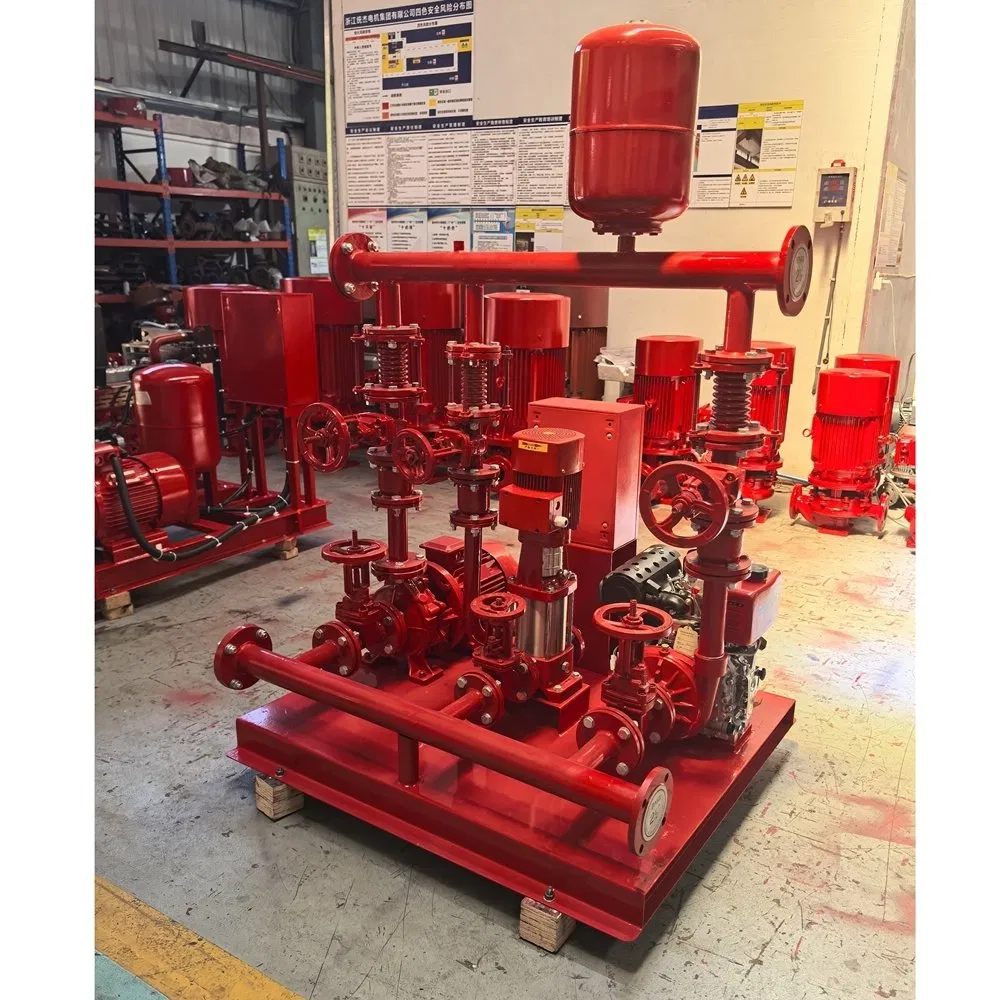

CENTRIFUGAL PUMP SET
Our centrifugal pump sets are engineered as complete, ready-to-install pumping systems that combine high-performance centrifugal pumps with electric motors, control panels, and mounting assemblies on a single skid.
These industrial pump sets deliver reliable, efficient fluid handling for demanding commercial and industrial applications.
REDUCED INSTALLATION COSTS
COMPACT SKID-MOUNTED DESIGN
SUPERIOR QUALITY ASSURANCE
Pre-mounted components on common base frames eliminate field alignment, coupling installation, and electrical panel mounting, reducing labor costs
Space-efficient layout maximizes performance while minimizing footprint, making units ideal for equipment rooms, basements, and confined installation spaces.
Complete system testing at the factory ensures all components work together perfectly, with performance curves and test certificates provided for each unit.
Product Parameters
EDJ Dual-Power Pump Set
Q
H
Electrie Fire Pump

Electrie Fire Pump
Diesel Engine Fire Pump
Electeic Jockey Pump

GPM
Bar

EDJ 50/6-5.5-8.6-2
50
6
ISW 32-200/40 5.5HP
XA 32-250/55 7.5HP
DISW32-250/55 8.6HP
CDL1-15 1HP
EDJ 50/7-7.5-10-2
50
7
ISW 40-210/55 7.5HP
XA 32-250/75 10HP
DISW2-250/75 10HP
CDL1-15 1HP
EDJ 50/8-10-12-3
50
8
ISW 40-210/75 10HP
XA 32-250/110 15HP
DISW32-250/110 12HP
CDL1-15 1HP
EDJ 50/9-10-27-3
50
9
ISW 40-210/75 10HP
XA 32-250/150 20HP
DISW 32-250/150 27HP
CDL1-17 15HP
EDJ 100/7-10-10-2
100
6-7
ISW 32-250/75 10HP
XA 32-250/75 10HP
DISW 32-250/75 10HP
CDL2-11 15HP
EDJ 100/8-15-27-3
100
8
ISW 40-200/110 15HP
XA 32-250/150 20HP
DISW 32-250/150 27HP
CDL2-3 2HP
EDJ 100/9-17.5-27-3
100
9
ISW 40-250/130 17.5HP
XA 40-250/185 25HP
DISW 40-250/185 27HP
CDL2-3 2HP
EDJ 120/7-10-12-3
120
7
ISW 32-250/75D 10HP
XA 32-250/75 10HP
DISW 32-250/75 12HP
CDL2-3 2HP
EDJ 150/7-15-12-3
150
7
ISW 40-250/110 15HP
XA 40-250/110 15HP
DISW40-250/110 12HP
CDL4-10 3HP
EDJ 120/7-10-12-3
120
7
ISW 32-250/75D 10HP
XA 32-250/75H 10HP
DISW32-250/75H 12HP
CDL2-13 2HP
EDJ 150/7-15-12-3
150
7
ISW 40-250/110 15HP
XA 40-250/110 15HP
DISW 40-250/110 12HP
CDL4-10 3HP
EDJ 200/6-20-27-3
200
6
ISW 50-250/150 20HP
XA 50-250/150 20HP
DISW 50-250/150 27HP
CDL4-10 3HP
EDJ 200/7-25-27-3
200
7
ISW 50-250/185 25HP
XA 50-250/185 25HP
DISW 50-250/185 27HP
CDL4-10 3HP
EDJ 200/8-30-32-3
200
8
ISW 50-250/220 30HP
XA 50-250/220 30HP
DISW 50-250/220 32HP
CDL4-12 3HP
EDJ 200/9-40-38-4
200
9

XA 50-250/300 40HP
DISW 50-250/300 38HP
CDL4-12 3HP
EDJ 200/10-50-58-4
200
10

XA 50-315/370 50HP
DISW 50-315/370 58HP
CDL4-14 4HP
EDJ 250/7-25-27-4
250
7
ISW 50-250/185 25HP
XA 50-250/185 25HP
DISW 50-250/185 27HP
CDL4-12 3HP
EDJ 300/6-25-27-4
300
6
ISW 50-250/185 25HP
XA 50-250/185 25HP
DISW 50-250/185 27HP
CDL8-6 3HP
EDJ 300/7-30-32-4
300
7
ISW 50-250/220 30HP
XA 50-250/220 30HP
DISW 50-250/220 32HP
CDL8-8 4HP
EDJ 300/8-40-38-4
300
8

XA 50-250/300 40HP
DISW 50-250/300 38HP
CDL8-8 4HP
EDJ 300/10-50-58-5.5
300
9-10

XA 50-315/370 50HP
DISW 50-315/370 58HP
CDL8-12 5.5HP
EDJ 350/7-30-32-4
350
7
ISW 50-250/220 30HP
XA 50-250/220 30HP
DISW 50-250/220 32HP
CDL8-8 4HP
EDJ 400/6-30-32-4
400
6
ISW 65-250/220 30HP
XA 65-250/220 30HP
DISW 65-250/220 32HP
CDL8-8 4HP
EDJ 400/7-40-38-5.5
400
7
ISW 65-250/300 40HP
XA 65-250/300 40HP
DISW 65-250/300 38HP
CDL8-8 4HP
EDJ 400/8-50-58-5.5
400
8
ISW 65-250/370 50HP
XA 65-250/370 50HP
DISW 65-250/370 58HP
CDL8-10 5.5HP
EDJ 400/9-60-61-7.5
400
9
ISW 65-315/450 60HP
XA 65-315/450 60HP
DISW 65-315/450 61HP
CDL8-12 5.5HP
EDJ 500/7-40-38-5.5
500
6-7
ISW 65-250/300 40HP
XA 65-250/300 40HP
DISW 65-250/300 38HP
CDL12-8 7.5HP
EDJ 500/8-50-58-7.5
500
8
ISW 65-250/370 50HP
XA 65-250/370 50HP
DISW 65-250/370 58HP
CDL12-8 7.5HP
EDJ 500/9-60-61-7.5
500
9
ISW 65-315/450 60HP
XA 65-315/450 60HP
DISW 65-315/450 61HP
CDL12-9 7.5HP
EDJ 500/11-75-75-7.5
500
10-11
ISW 65-315/550 75HP
XA 65-315/550 75HP
DISW 65-315/550 75HP
CDL12-12 10HP
Detailed Photos
SIMPLIFIED MAINTENANCE ACCESS
Strategically positioned components allow easy access for routine maintenance, with clear service points and removable panels for quick inspections and repairs.

REDUCED SPARE PARTS INVENTORY
Standardized components across the set reduce the variety of spare parts needed, simplifying inventory management and reducing overall maintenance costs.

FAST DELIVERY & COMMISSIONING
Standardized designs enable faster manufacturing and delivery, while pre-commissioning reduces on-site startup time and accelerates project completion schedules.

FACTORY-OPTIMIZED PERFORMANCE
Pump and motor combinations are precisely matched and tested at the factory to ensure optimal efficiency, eliminating guesswork and performance issues common with field-assembled systems.
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
High Insulation Class Dry Running Protection Edj 100/9-17.5-27-3 Electric Fire Pump Set
FAQ
Q1: Are you a factory or a trader?
A: We are a manufacturer integrating industry and trade. Welcome to visit our company.

Q2: Can I add my logo to the product?
A: We support on-demand customization, including logo customization, color customization, appearance size customization, etc.

Q3: What payment methods do you support?
A: We support T/T, Western Union, PayPal, cash, etc. The details can be negotiated.

Q4: What are your modes of transportation?
A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.

Q5: How can I get an accurate quotation?
A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.
