High Efficiency Fire Fighting Set with High Pressure Electric Diesel Multistage Pump

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Product Description

Overview
Hot Products

Basic Info.

Model NO.

PEDJ

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Influent Type of Impeller

Single Suction Pump

Position of Pump Shaft

Horizontal Pump

Pump Casing Combined

Horizontal End Suction Pumps

Mounting Height

Suction Centrifugal

Impeller

Closed

Material

Cast Iron

Structure

Single-Stage Pump

Assembly

Booster Pump

Theory

Centrifugal Pump

Power

Electric, Diesel Engine

Start up

Electric Pump, Engine Pump, Control Panel

Type

Fire Pump

Application

Fire Fighting

Industry

Fire Pump

Media

Clean Water

Model No

Edj

Horsepower

5.5-220HP

Voltage

220V/380V

Transport Package

Standard Export Wooden Box

Trademark

Yeschamp

Origin

Zhejiang, China

HS Code

8413709990

Production Capacity

3000PCS/Year

Packaging & Delivery

Package Size

203.00cm * 131.00cm * 116.00cm

Package Gross Weight

1080.000kg

Product Description

High Efficiency Fire Fighting Set With High Pressure Electric Diesel Multistage Pump

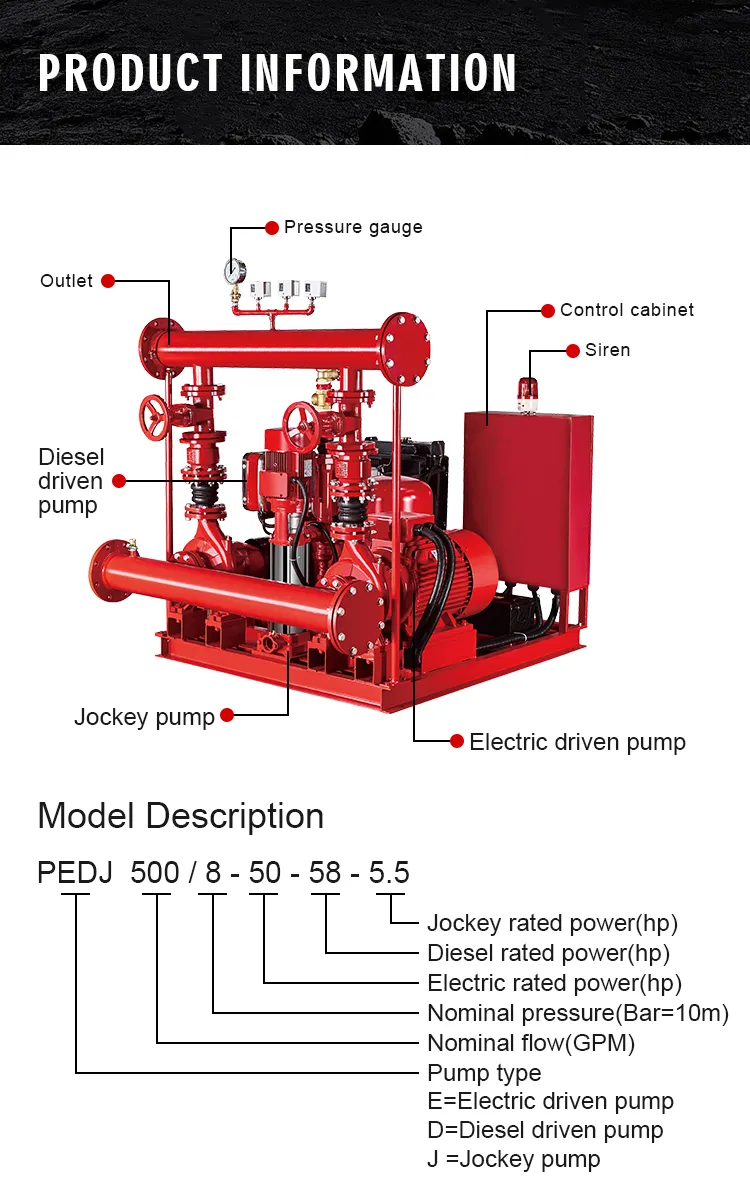

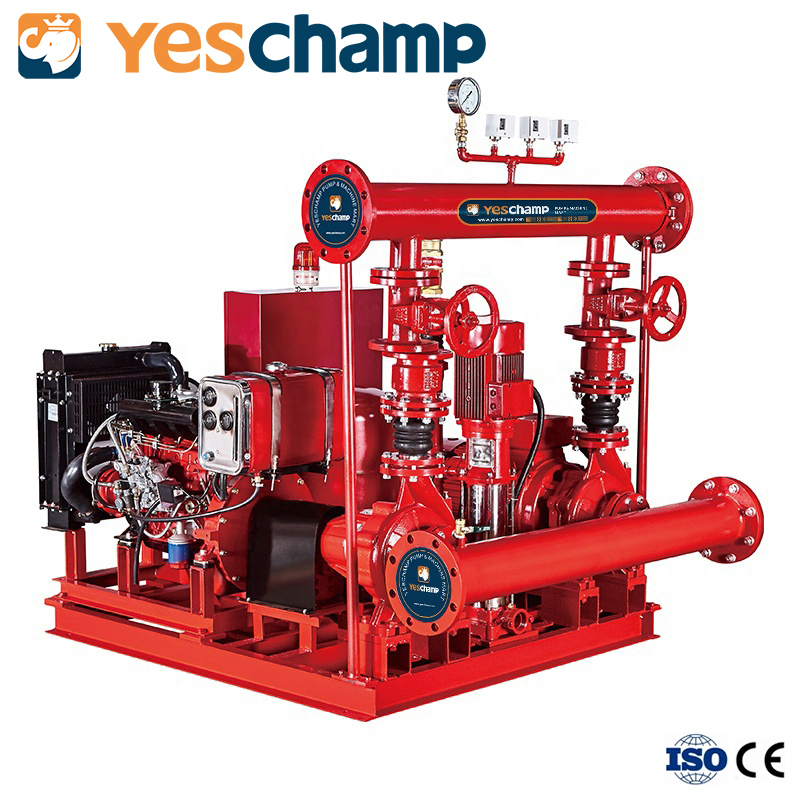

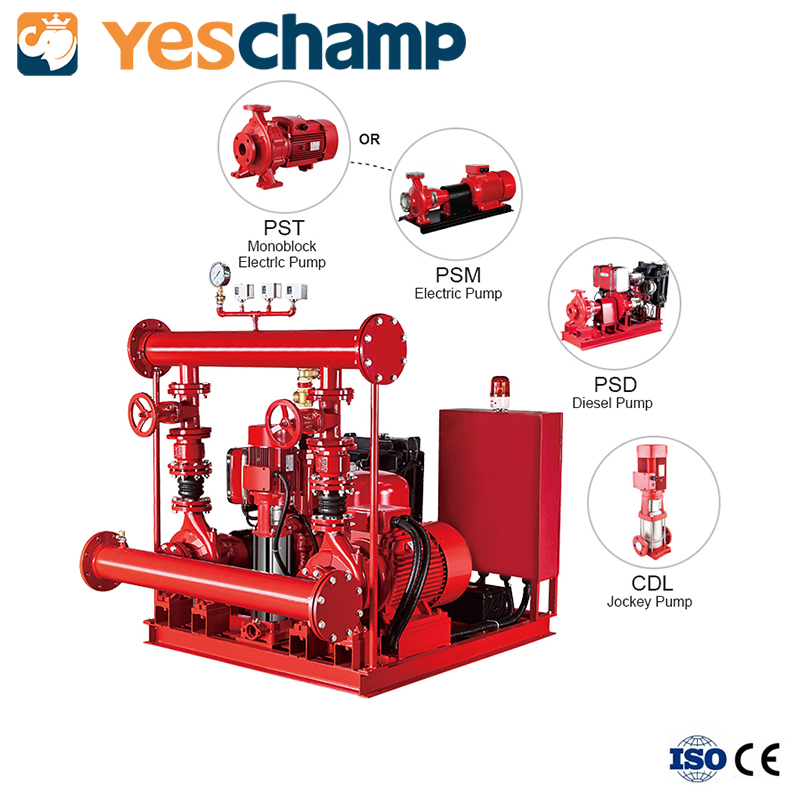

EDJ Fire pump set consists of a main electric pump(driven by an electric motor), a standby diesel pump
(driven by a diesel engine), and a multistage jockey pump. Pumps are assembled with the discharge pipe
and suction pipe as well as Control Panel. And this fire pump system can be customized for different
purposes such as high-rise buildings, warehouses, facilities, hospitals, supermarkets, shopping malls,
villas, apartments, etc.

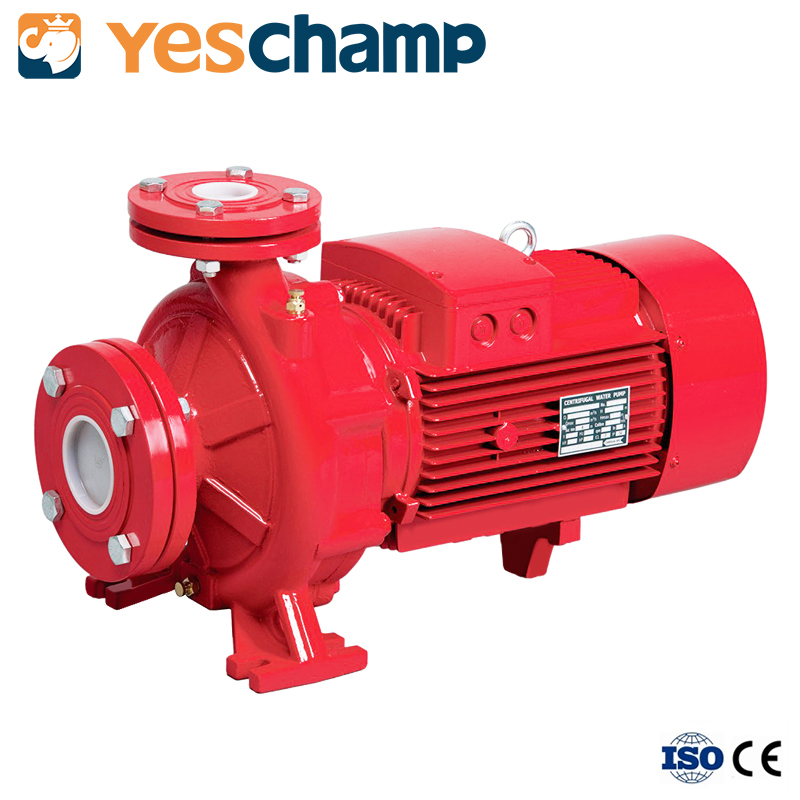

The main pump can be an end suction pump, multistage pump, split case pump, or vertical turbine pump
with stainless steel, cast iron, and bronze material in standard configurations.

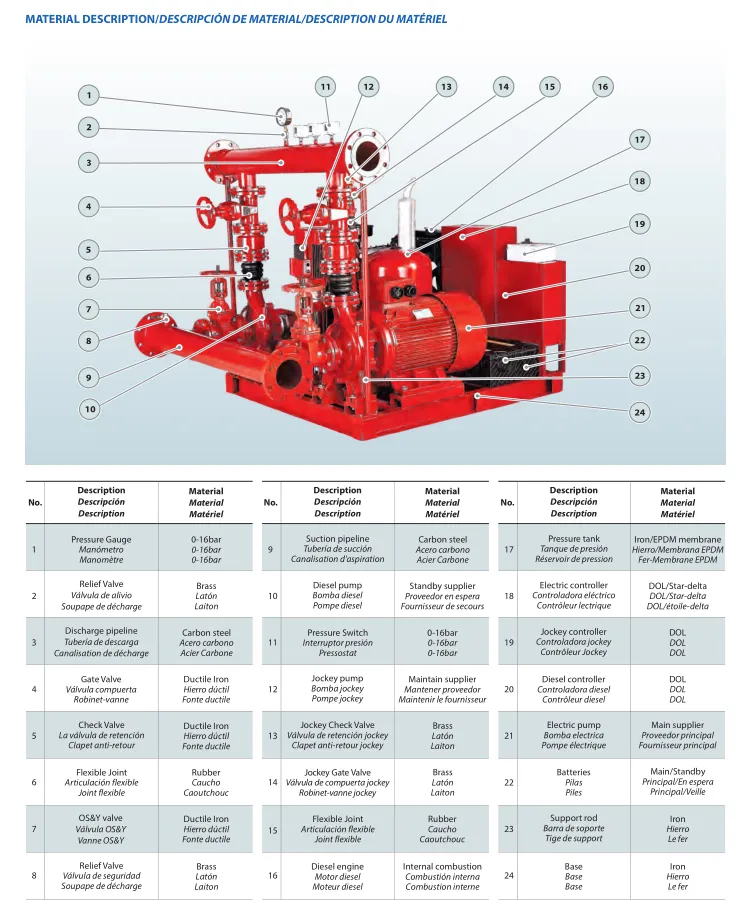

Every package is mounted on a steel fabricated base with a motor, engine, and pump coupled and wired to
the controller. The automatic air relief valve, gate valves, check valves, flexible joints, pressure switches,
and pressure gauges are mounted on their respective pipes. If required, additional piping, pressure tank,
valves, and sensing lines are available as well.

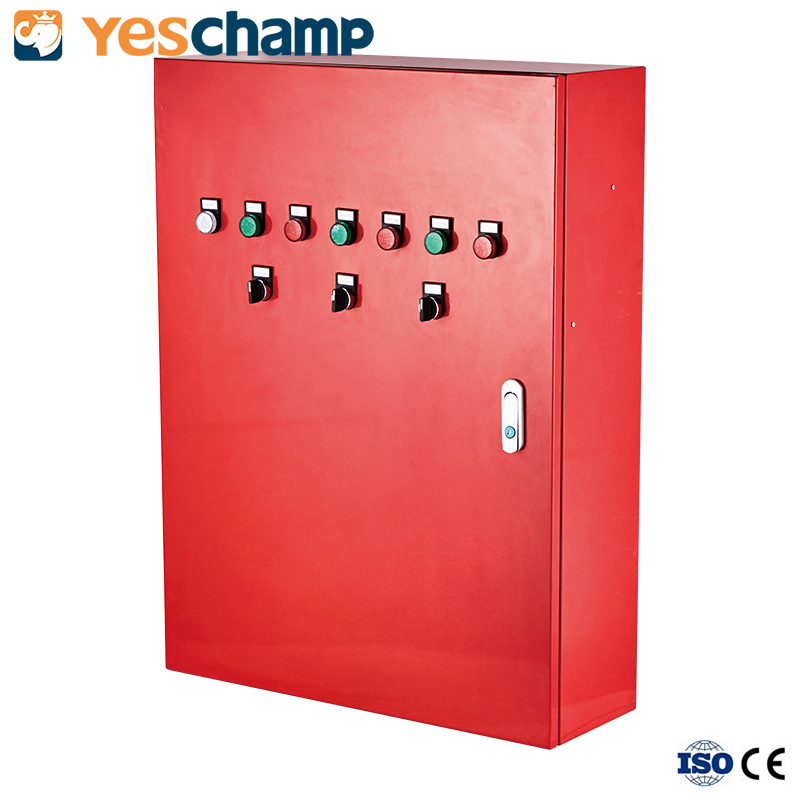

Fire Pumps Series Controllers are pre-wired, tested before delivery, and made ready for immediate usage.

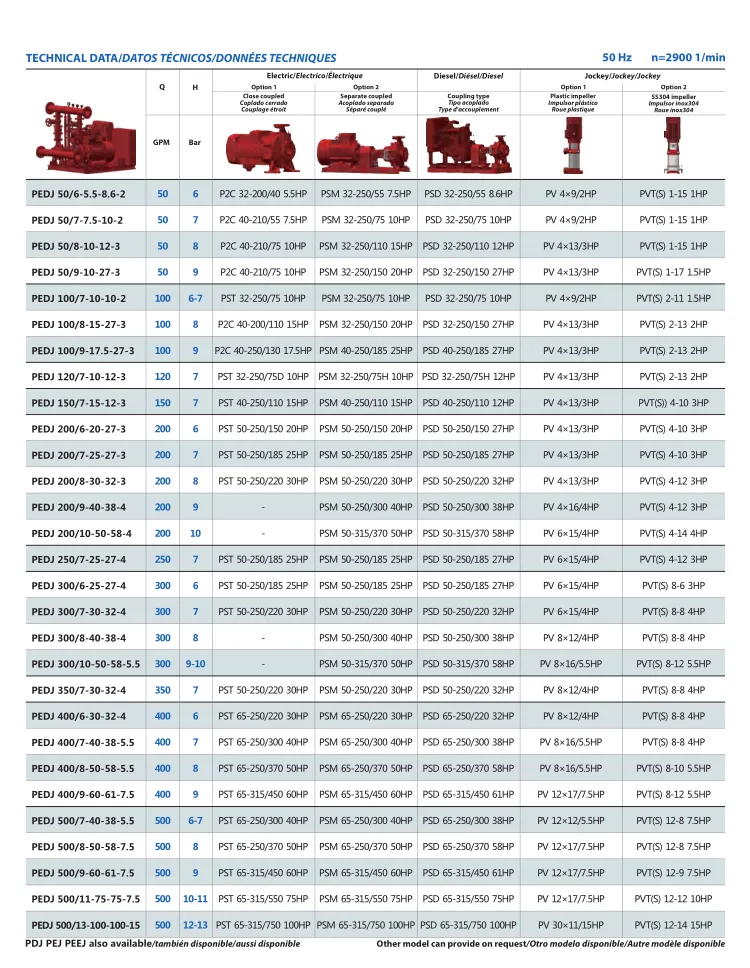

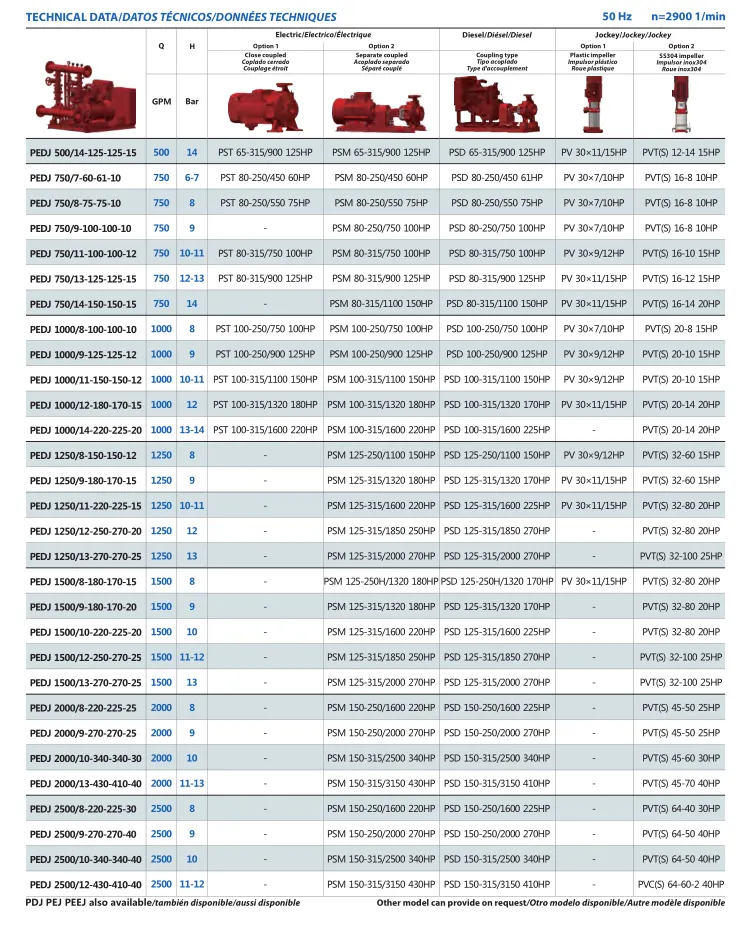

DN Range of Suction Pipe	50-400 mm (2"-16")
DN Range of Discharge Pipe	2-350 mm (1.5"-14")
Flow Capacity Range	50-5000 GPM
Head/Pressure Range	4-14 Bar
Power Range	4-325 Kw

Application
This fire pump set can be used for fire hose and fire hose reel systems, fire sprinkler systems,
fire water monitor system, fire alarm system, and fire hydrant system.
High Efficiency Fire Fighting Set with High Pressure Electric Diesel Multistage Pump

Hot Sale

Professional Water Pump Manufacturer and supplier

YesChamp is a professional manufacturer and supplier of quality pumps and engines, exported to
more than 60 countries with competitive prices.
Our main products are centrifugal pumps, fire pumps and systems, industrial pumps, domestic pumps,
sewage pumps, solar pumps, irrigation pumps, motors, and engines for pumps. We also designed and
customer-built a wide range of fire pump sets.

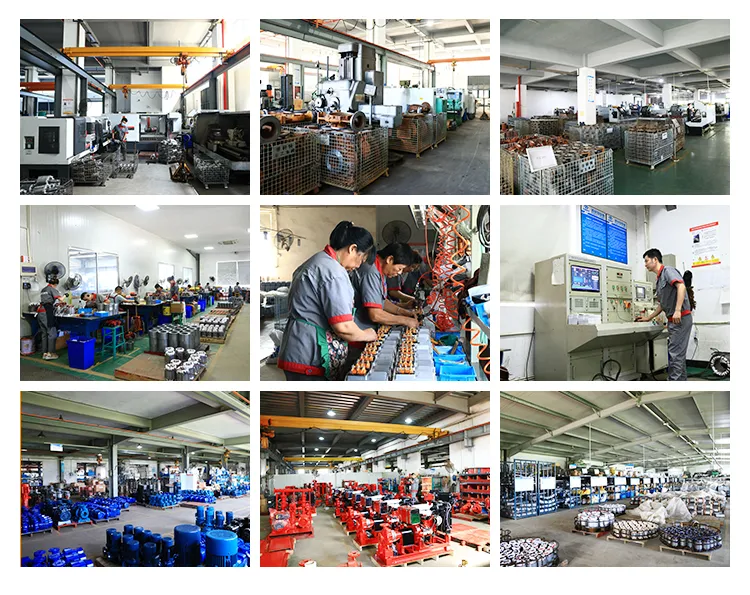

Yeschamp has its own factory 'Purity Pump' which has more than 10 years of pumps and motors production
