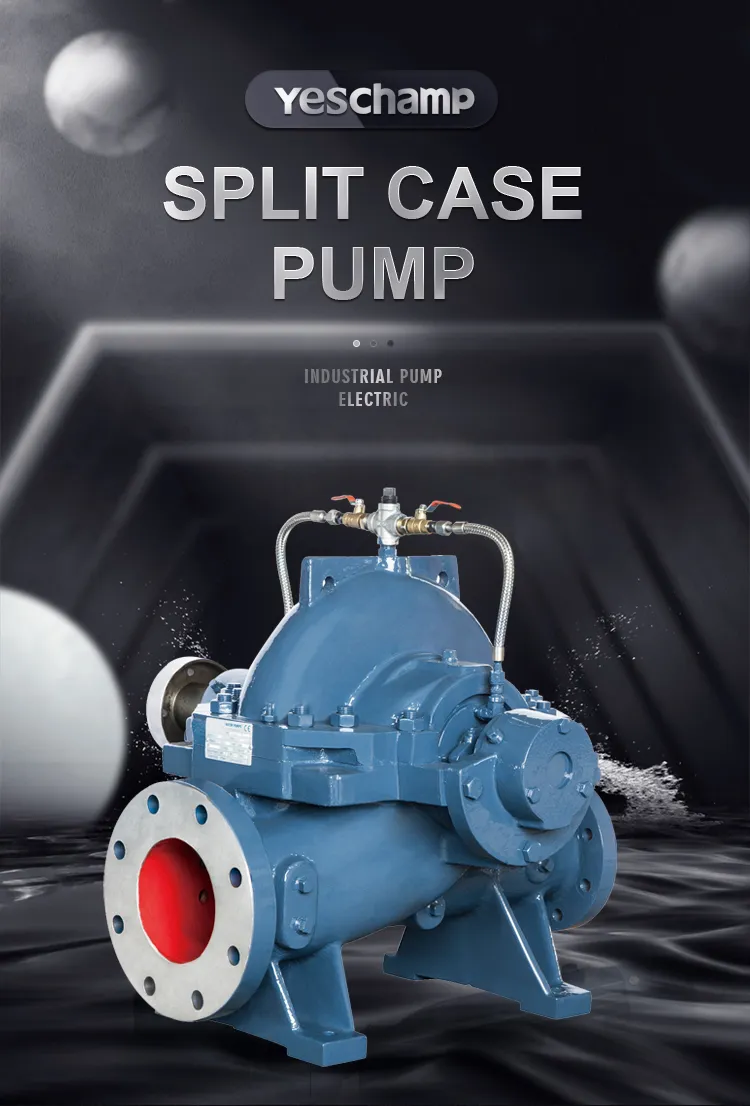

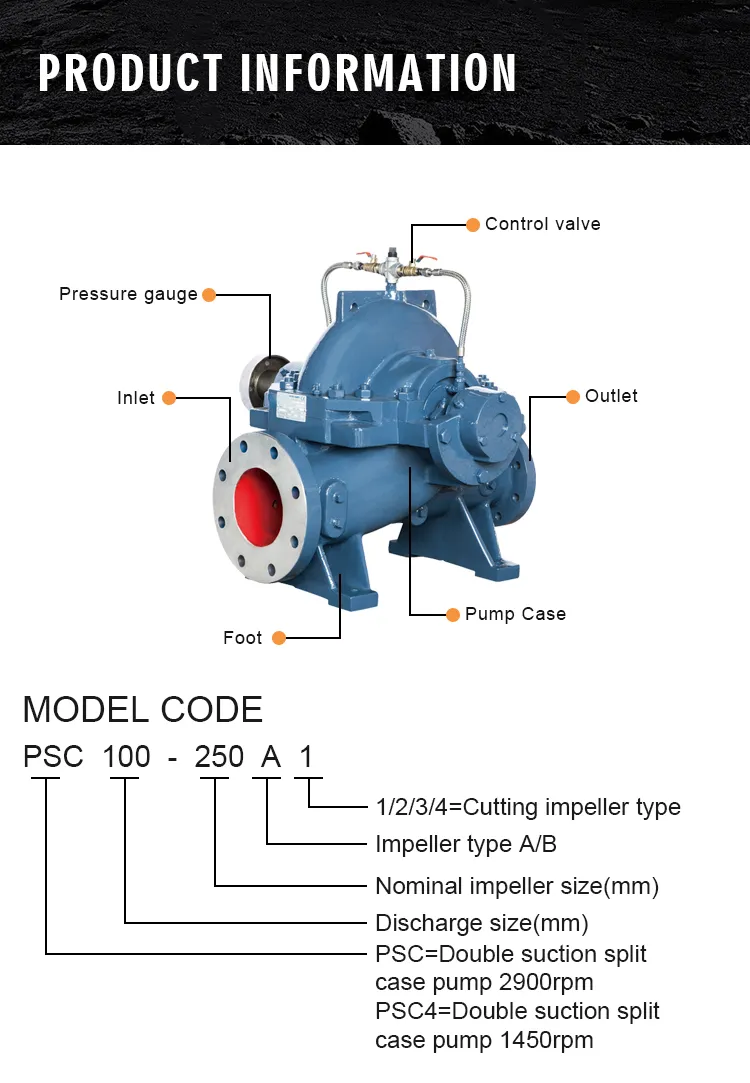

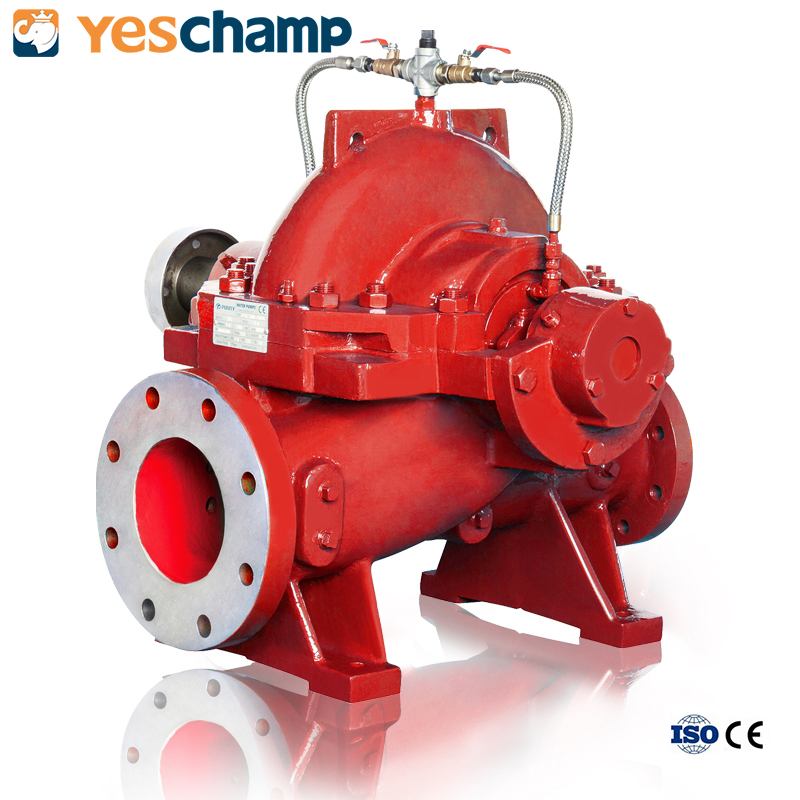

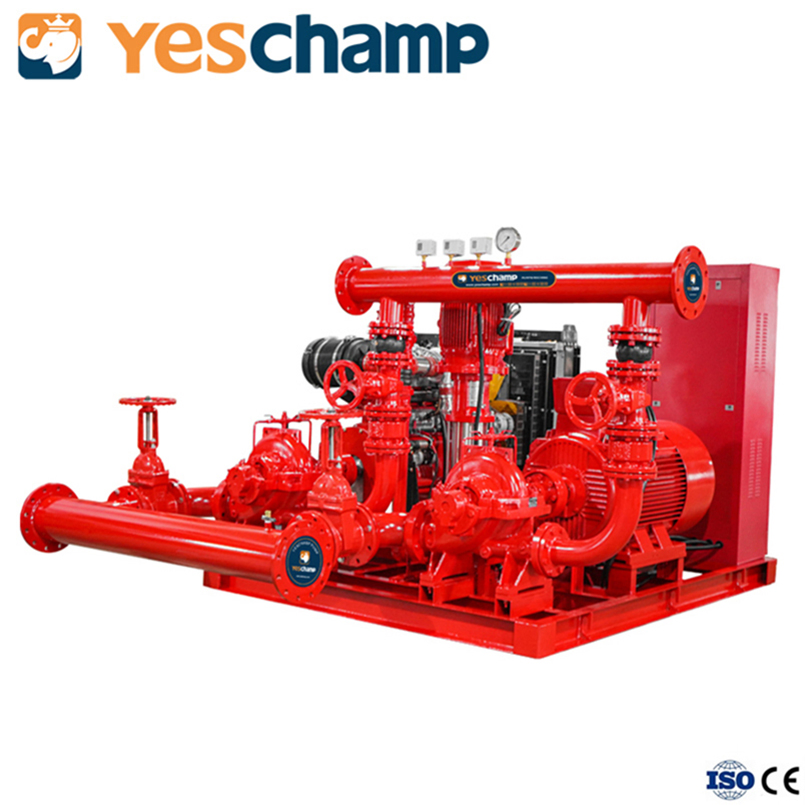

The PSC pump is a horizontal, single-stage, double-volute, axially split case centrifugal pump designed specifically for reliable and efficient operation at high capacities. Its symmetrical design ensures minimal shaft deviation, providing excellent stability even when subjected to high torques and speeds.

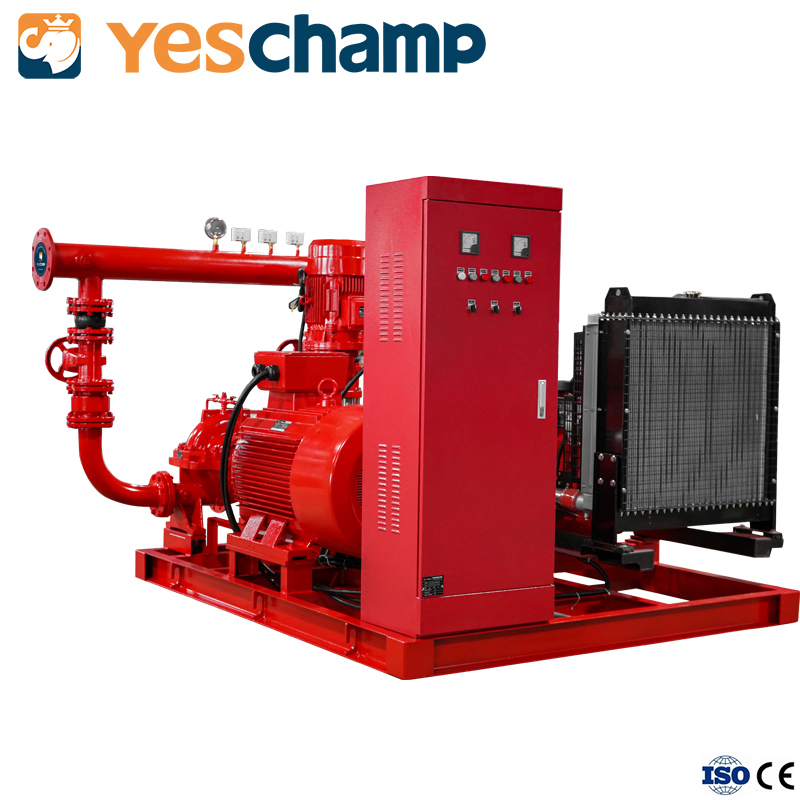

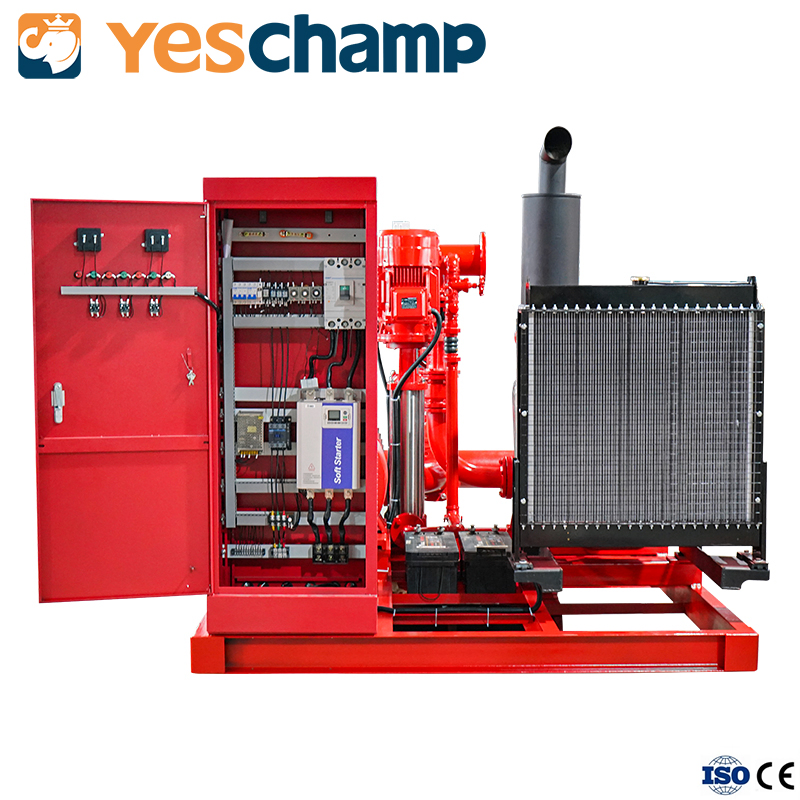

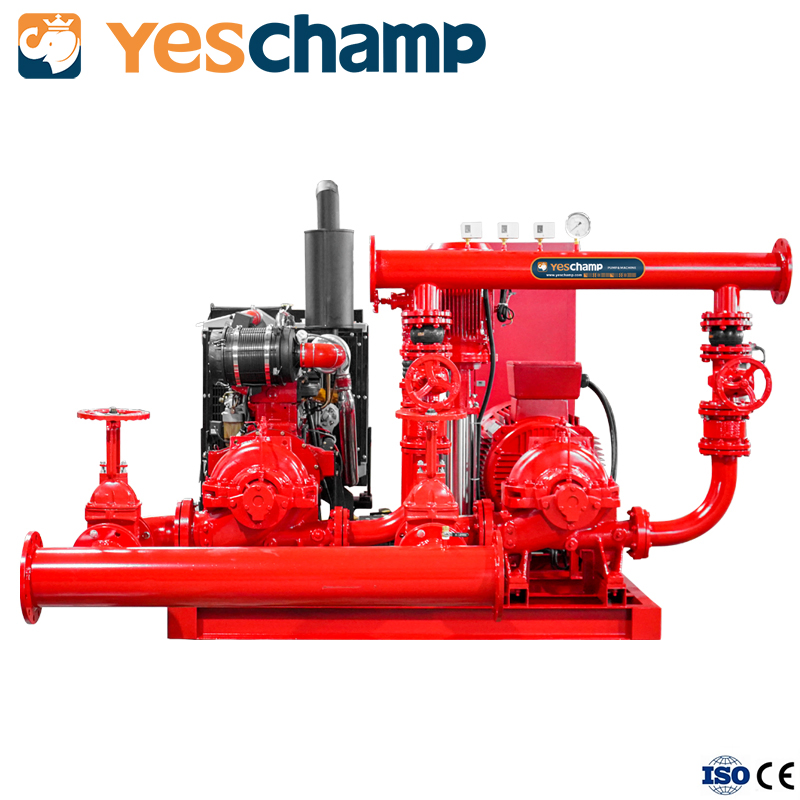

Common applications include potable water distribution, fire pumps, cooling water systems, pipelines, and various industrial process flows involving thin fluids. The pump's baseplates are fabricated from steel and include a drip pan for cleanliness and safety.

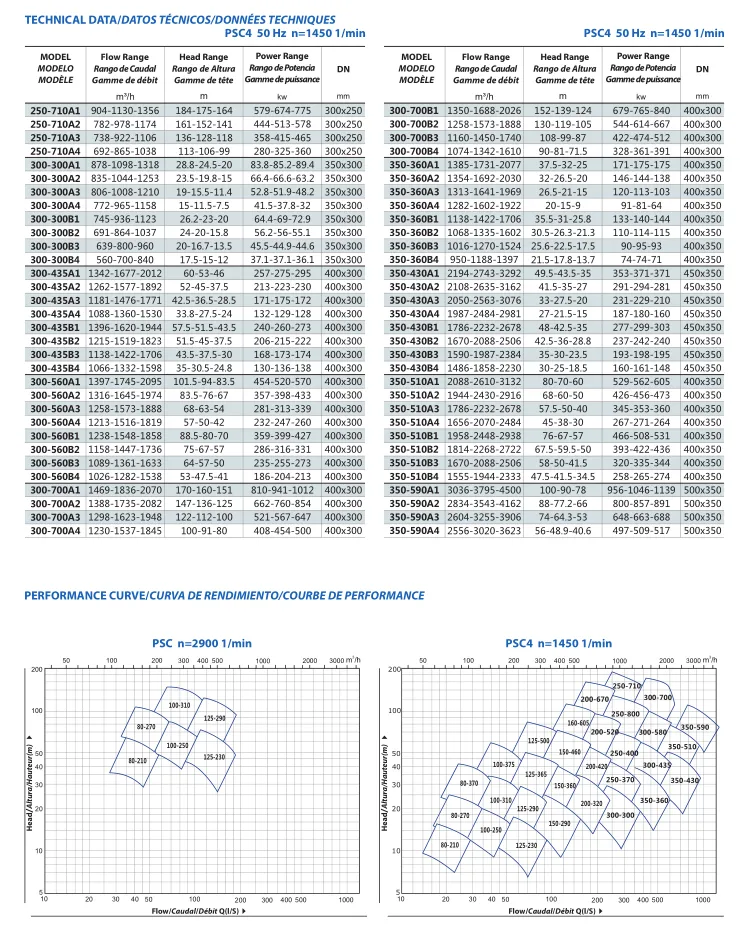

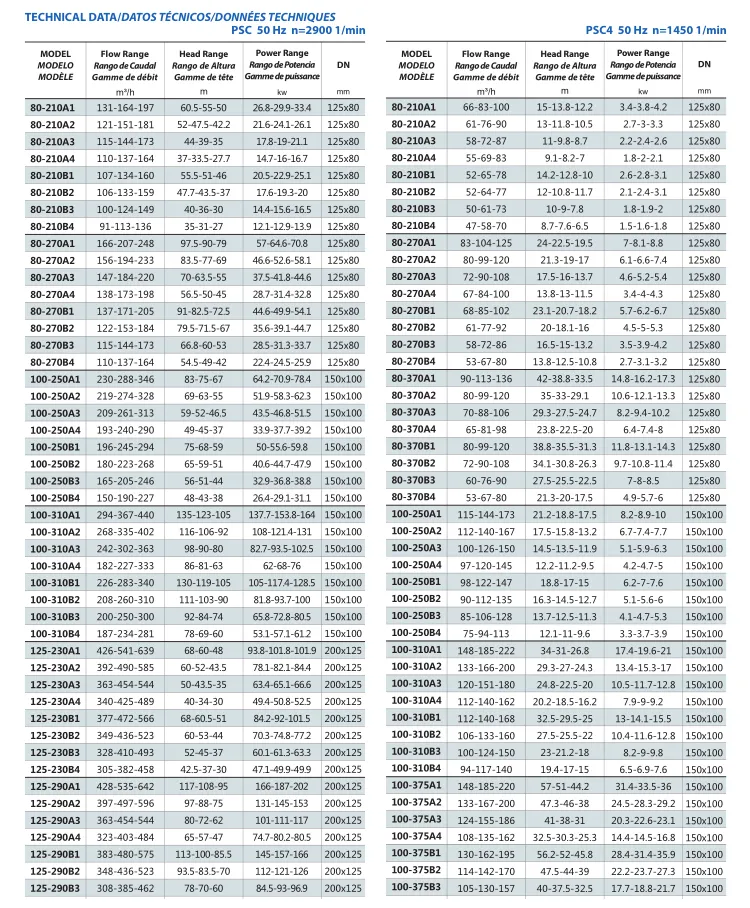

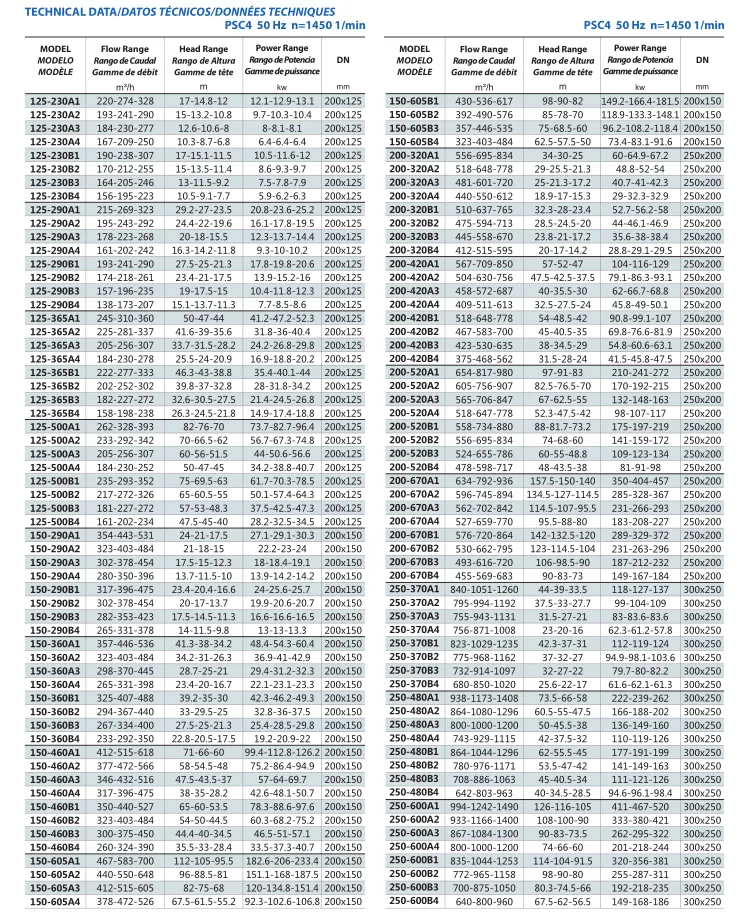

| Technical Parameters | Range |
|---|---|
| DN Range of Suction Pipe | 125-700 mm (5"-28") |
| DN Range of Discharging Pipe | 80-600 mm (3"-24") |
| Flow Capacity Range | 0-4500 m3/h |
| Head/Pressure Range | 0-184 m |
| Power Range | 1.8- 1780 Kw |

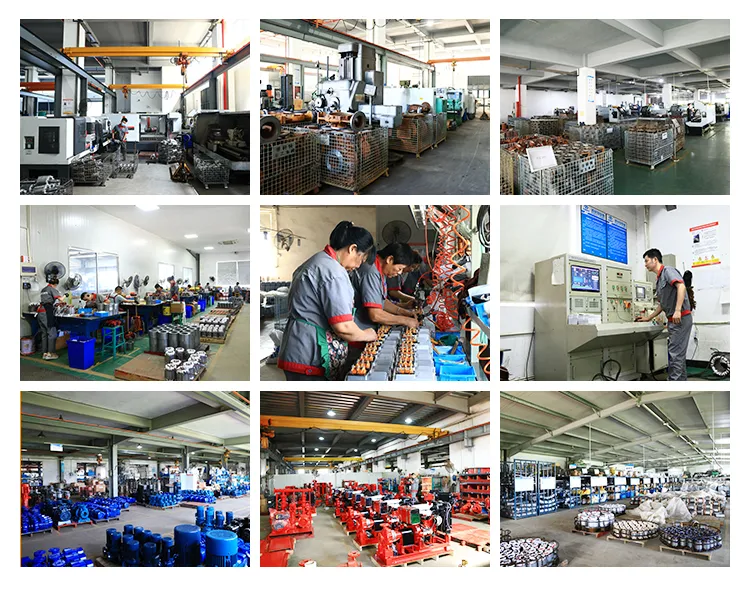

We are a dedicated manufacturer and supplier of quality pumps and engines, exporting to more than 60 countries. Our expertise includes centrifugal pumps, fire systems, solar pumps, and irrigation sets. With over 10 years of production experience and a team of professional engineers and technicians, we provide comprehensive technical support and quality control.
