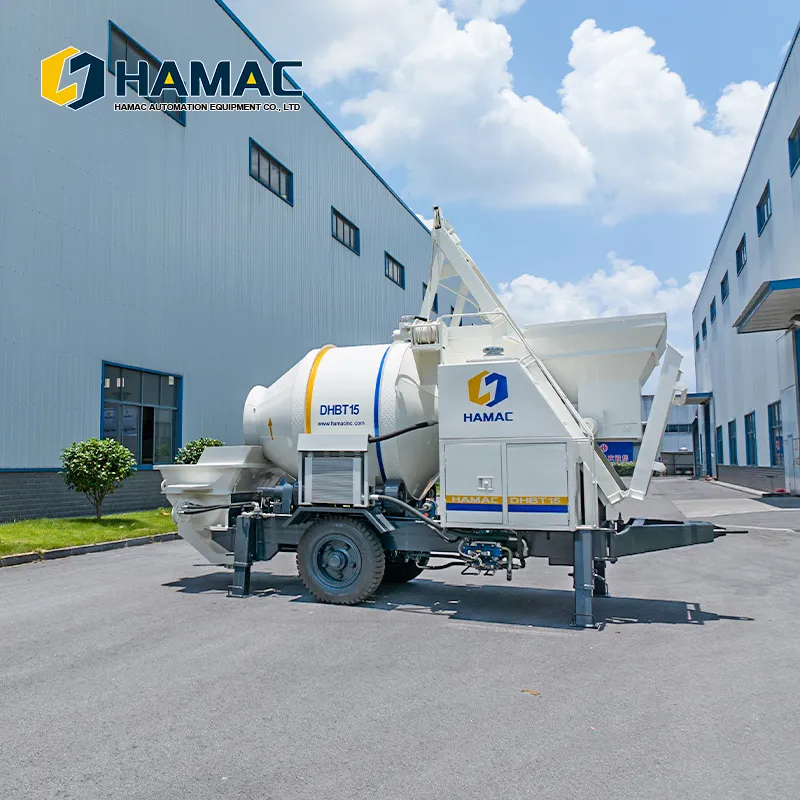

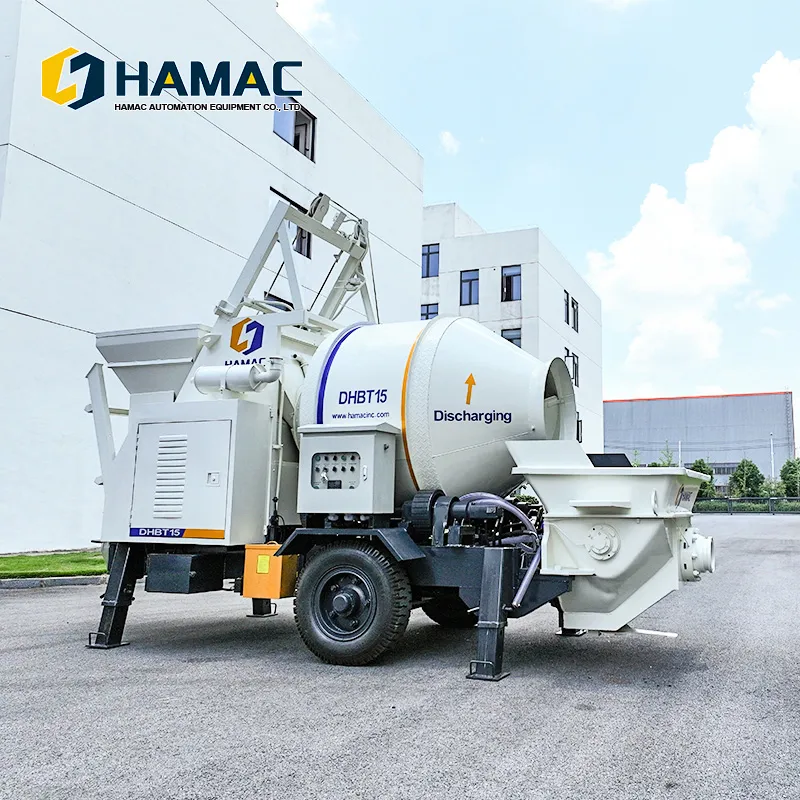

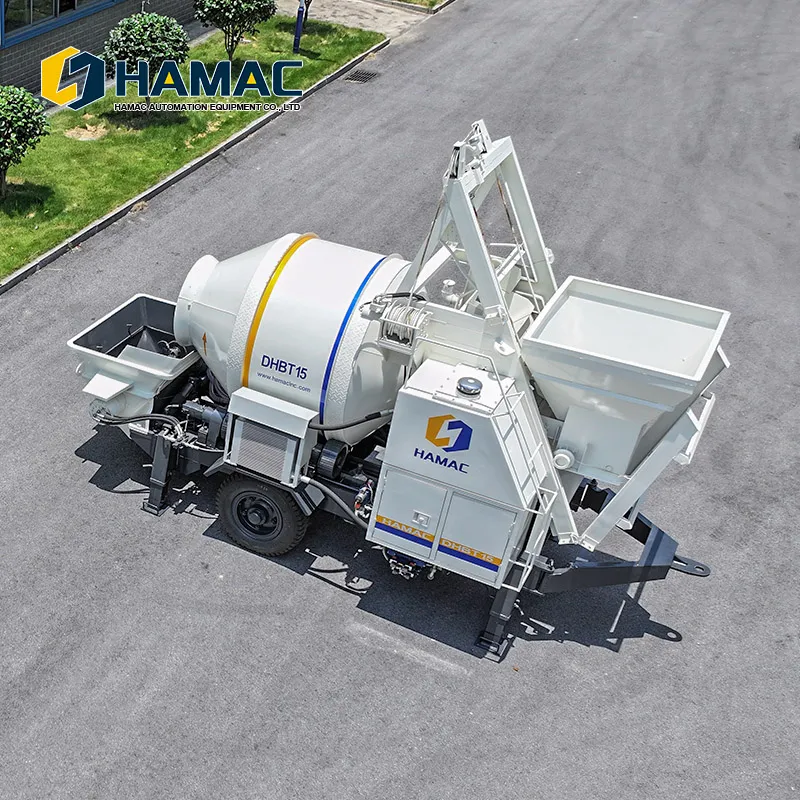

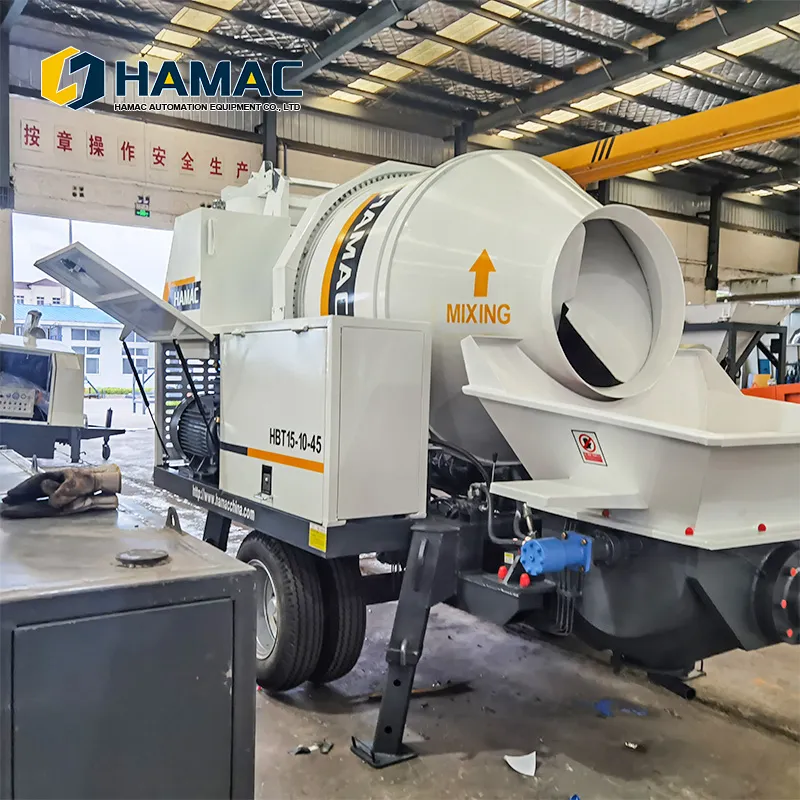

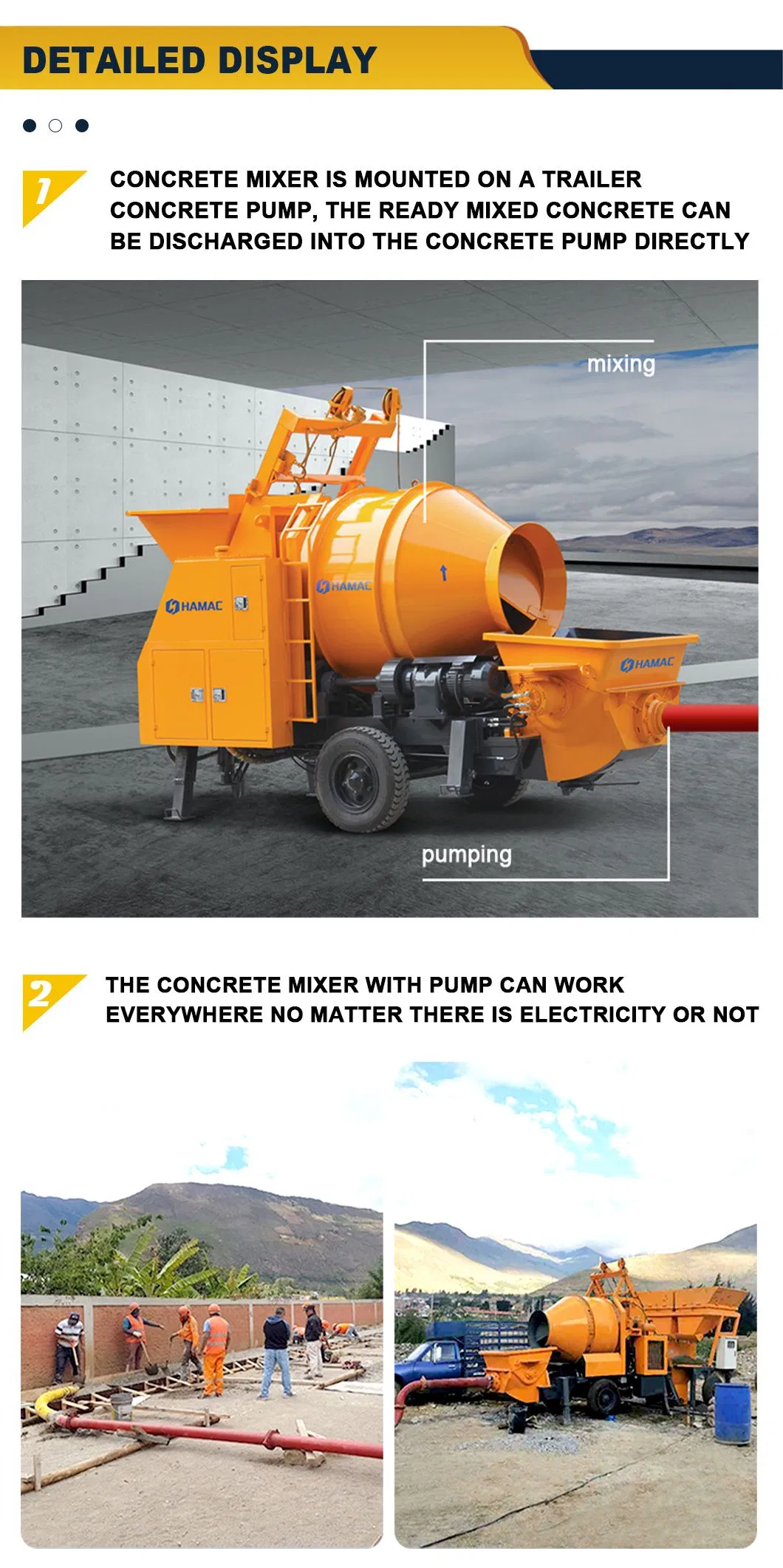

In the past, clients needed to buy a concrete mixer to produce concrete first, and then a separate pumping machine to deliver it to building sites. This required two machines and more manpower. This series portable diesel concrete mixer with pump is a versatile machine, offering a one-stop solution for concrete mixing and pumping.
| Parts Name/Parameters | HBT15 | DHBT15E | DHBT15 | DHBT15 PRO | |
|---|---|---|---|---|---|
| Power | Supply Model | Electric Motor | Diesel engine | Diesel engine | Diesel engine |
| Component | Siemens/Schneider/Omron | ||||

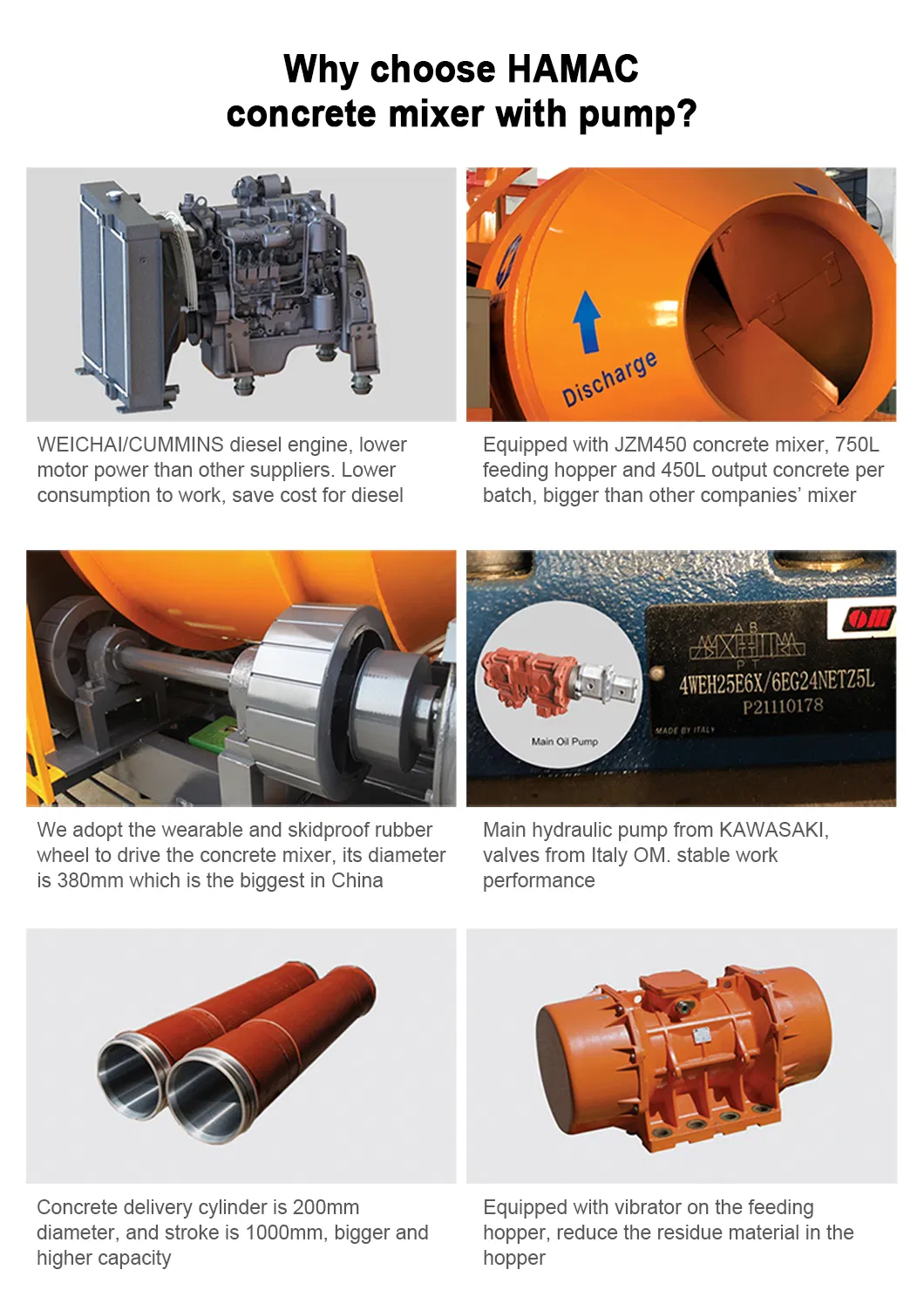

| Mixing | Mixer Type | JZM450 drum mixer, 750L hopper, 450L output/batch | |||
| Theoretical Output | 18-22m³/h | ||||
| Pumping | Main Motor/Engine | 45kW Electric | 52kW Diesel | 62kW Diesel | 92kW Diesel |
| Hydraulic Oil Pump | KAWASAKI K3V112 | Domestic K3V80 | KAWASAKI K3V112 | KAWASAKI K3V140 | |
| Max. Output | 40m³/h | ||||
| Outlet Pressure | 10Mpa | 6Mpa | 8Mpa | 10Mpa | |
| Max. Aggregate Size | Pebble: 40mm | Aggregate: 30mm | ||||
