Flow: 560m3/H, Head 160m Nfpa20 Standard Diesel Engine Driven Vertical Turbine Fire Pump

1 / 5

Flow: 560m3/H, Head 160m Nfpa20 Standard Diesel Engine Driven Vertical Turbine Fire Pump

After-sales Service:	Provide Technical Support
Warranty:	12months
Max.Head:	>150m

Send Inquiry

Product Description

🛈 Basic Info.

Model NO.

200VCP550-32G

Max.Capacity

560m3/H

Driving Type

Diesel Engine

Impeller Number

Multistage Pump

Working Pressure

Low Pressure Pump

Influent Type

Single Suction Pump

Shaft Position

Vertical Pump

Pump Casing

Verticaljoint Surface

Mounting Height

Irrigation Centrifugal

Impeller Type

Open

Flow Rate

560m3/H

Head

160m

Submersible Depth

3.5m

Transport Package

Woodcase

Origin

China

⚙ Product Description

Flow: 560m3/h, Head 160m NFPA20 Standard Diesel Engine Driven vertical turbine Fire Pump with FM/UL Certificates

Applicable Standards

The requirements of the latest editions of the following codes and standards must be met:

Standard	Description
NFPA 20	Installation of fixed pumps for fire protection
NFPA 70	National Electrical Code
NFPA 72	National Fire Alarm Code
FM 1370	Centrifugal Fire Pumps (Vertical Shaft, Turbine Type, Barrel)
UL 448	Standard for Safety Centrifugal Stationary Pumps for Fire-Protection Service
ISO 9906	Rotodynamic Pumps - Operational Tests hydraulics for reception
ISO Std 3046	Specification for reciprocating internal combustion engines

🌍 Site Climate Data

Marine Environment Application: This Diesel Motor Pump is specifically designed for marine environments and seawater applications.

Climate Type	Warm subtropical Mediterranean
Altitude	At sea level
Max Ambient Air Temp	+50°C
Min Ambient Air Temp	-10°C
Relative Humidity	+/- 90%
Seismic Classification	Zone II (medium seismicity)

📋 Technical Data Specifications

PUMP TYPE: CENTRIFUGAL / VERTICAL
Fluid	Sea water
Pumping Temperature	Ambient --- 25°C
Suction Flange	Immersed with strainer (NFPA 20)
Discharge Pressure	16 bars +/- 10%
Total Head Height	140 to 160 m
Flow Rate	560 +/- 10% m3/h
Operation Type	Discontinuous (Fire Fighting)

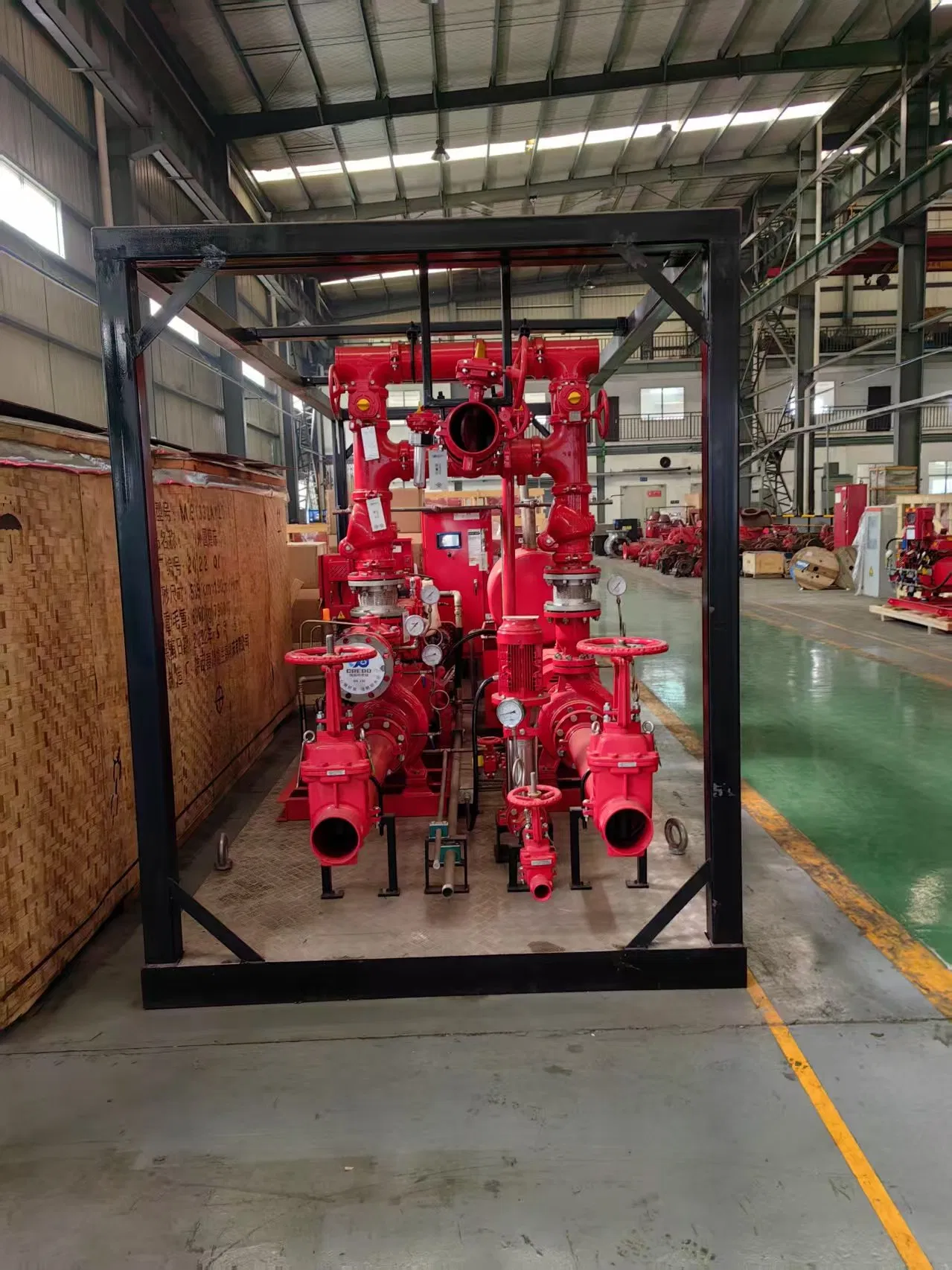

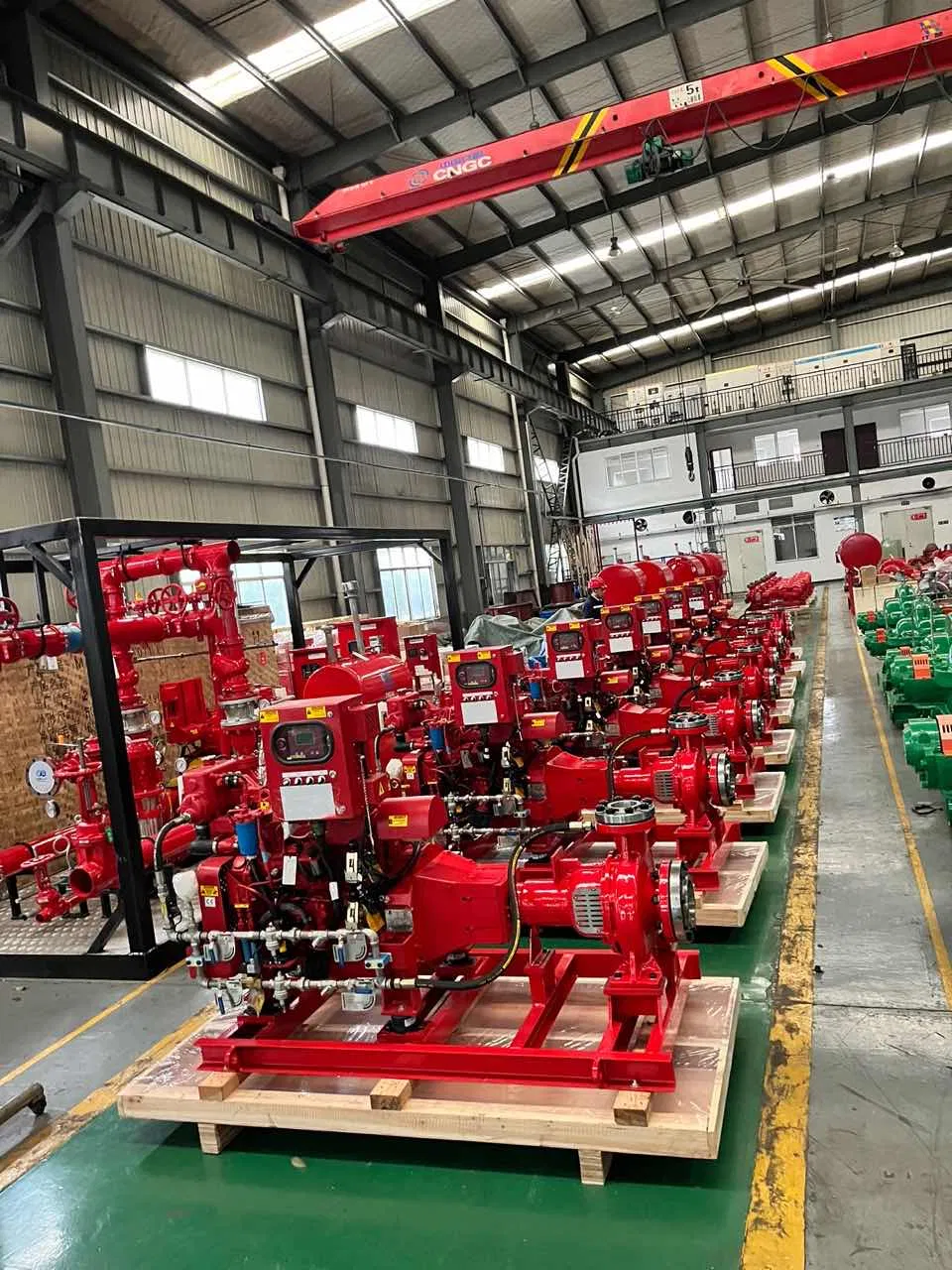

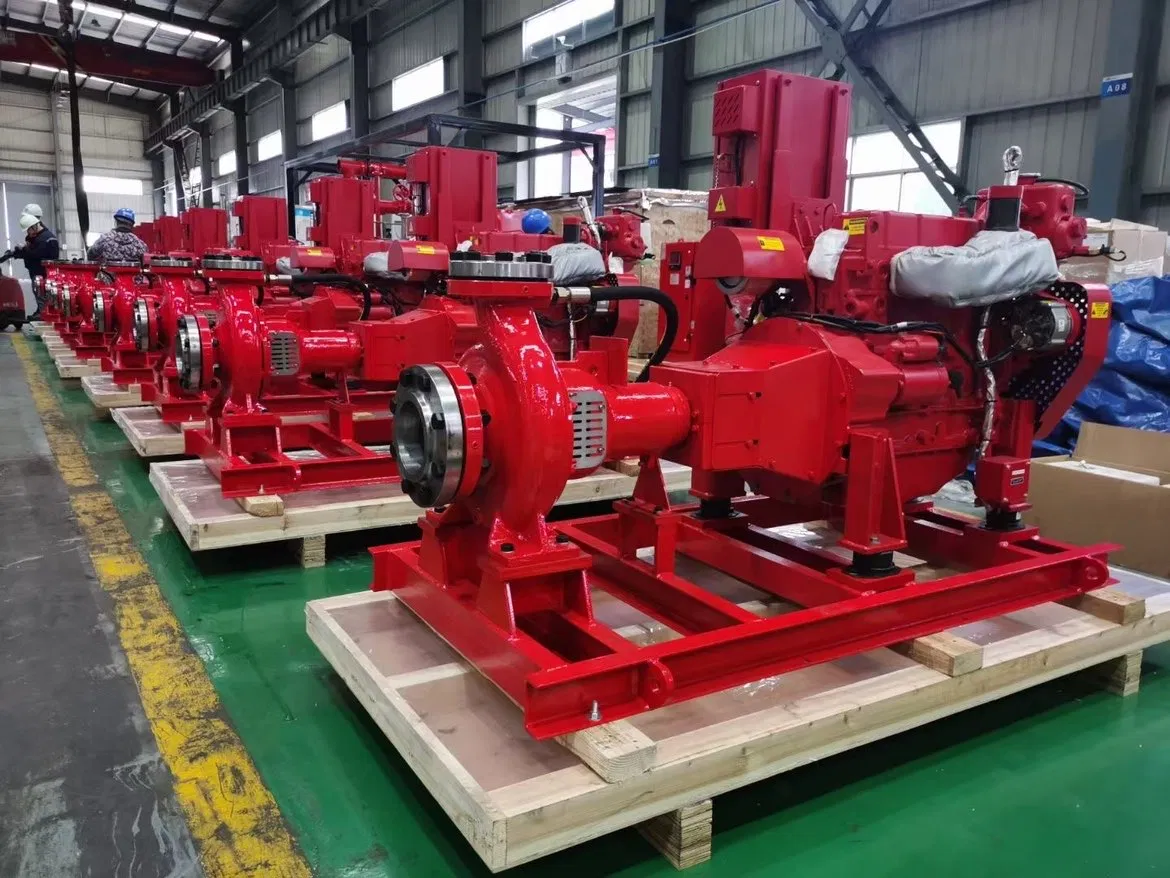

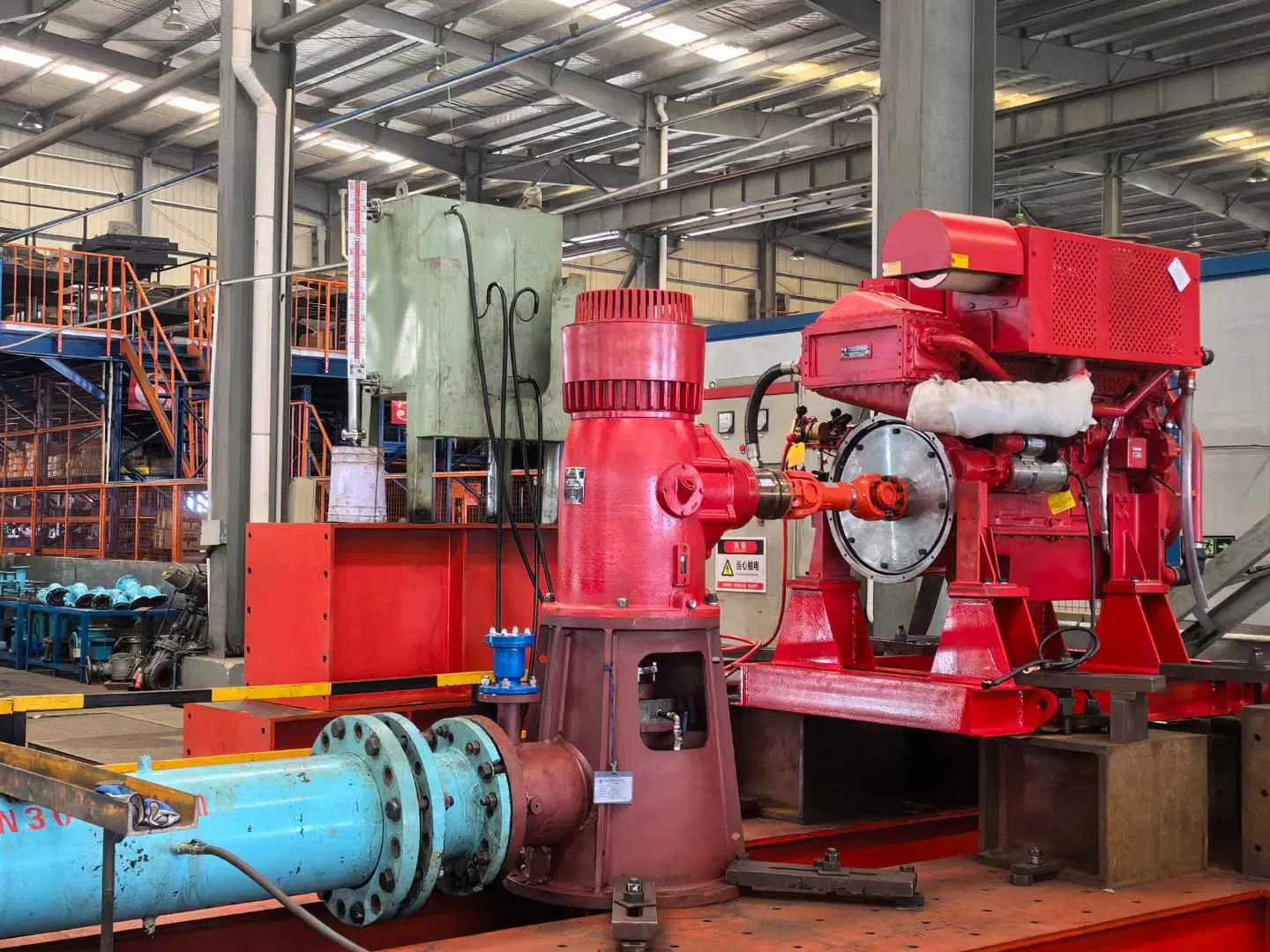

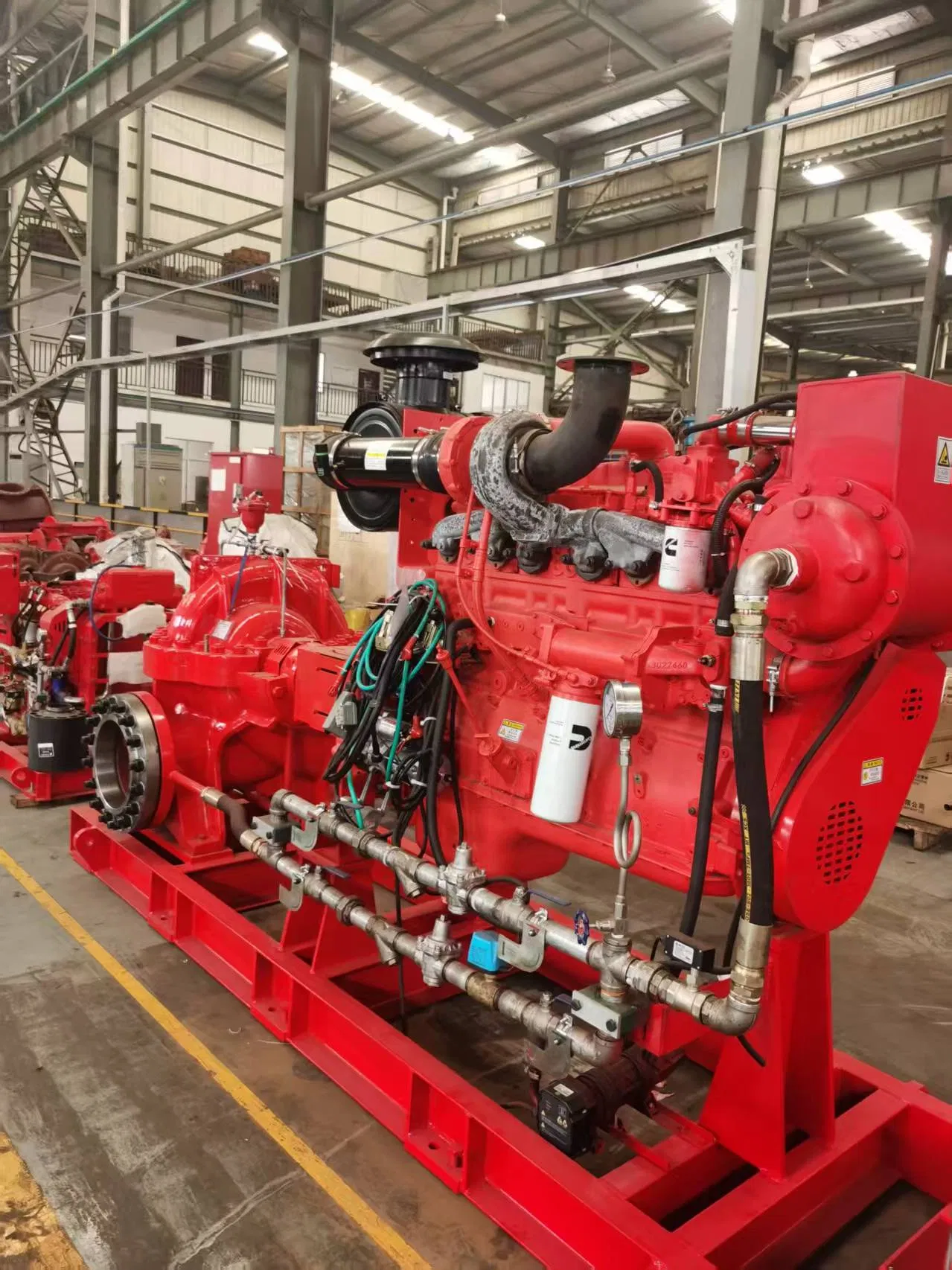

🖼 Product Gallery

❓ Frequently Asked Questions

Q1: What standards does this fire pump comply with? A1: This fire pump fully complies with the NFPA 20 standard for the installation of fixed pumps for fire protection, as well as FM 1370 and UL 448 standards.

Q2: Is this pump suitable for seawater applications? A2: Yes, the materials of the motor pump are of high quality and specifically selected for operation in sea water and highly saline marine environments.

Q3: What is the maximum performance of the 200VCP550-32G model? A3: The pump features a flow rate of approximately 560 m3/h and a total head of 160 meters.

Q4: What are the environmental operating limits? A4: The unit is designed to operate in ambient temperatures ranging from -10°C to +50°C and can handle relative humidity up to 90%.

Q5: Does the pump come with certificates? A5: Yes, this vertical turbine fire pump is available with FM (Factory Mutual) and UL (Underwriters Laboratories) certificates.

Q6: What is the driving type for this fire pump system? A6: This specific model is driven by a high-performance diesel engine, suitable for emergency fire-fighting scenarios where electric power may be unavailable.
