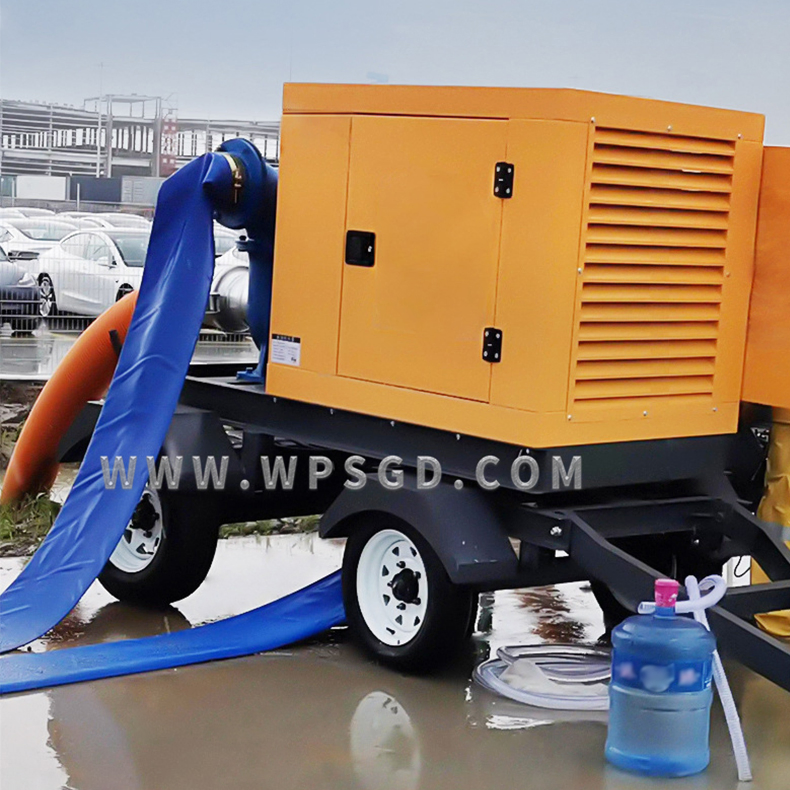

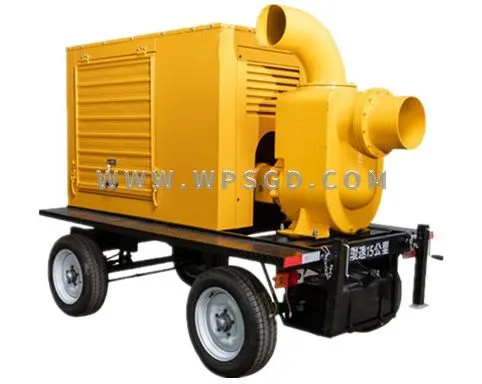

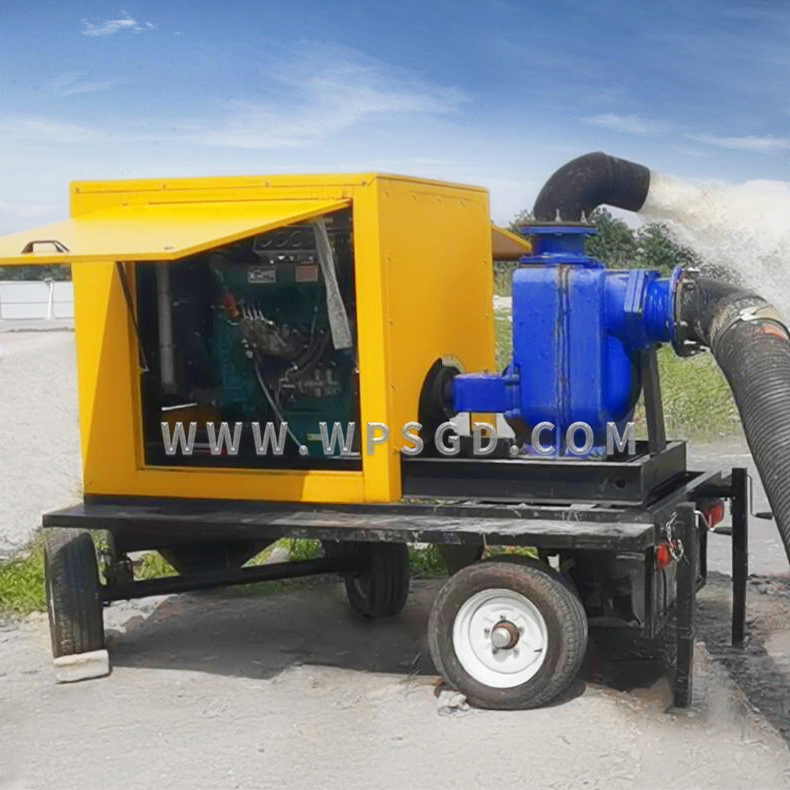

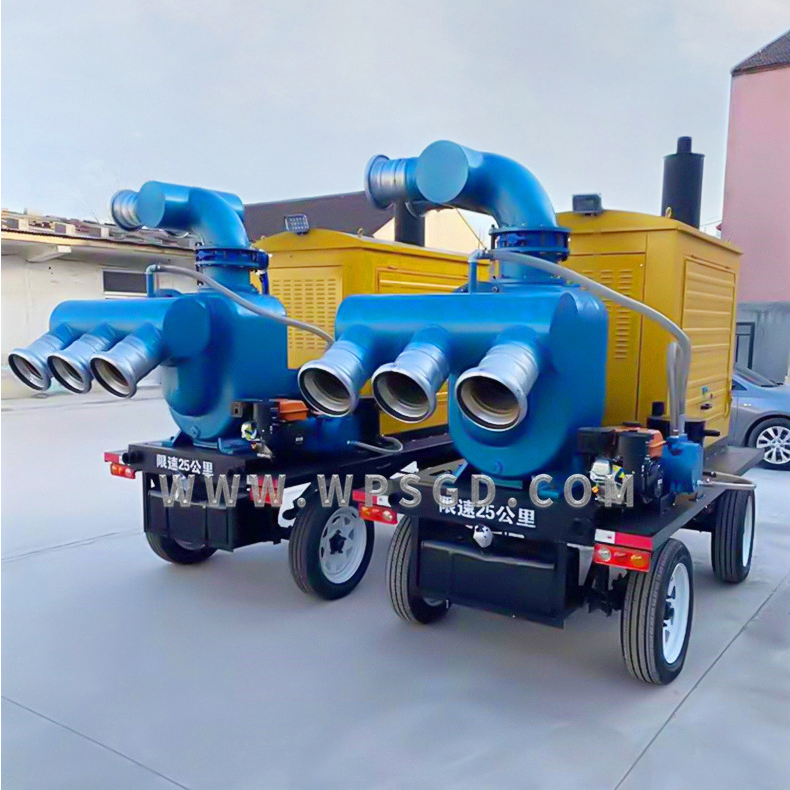

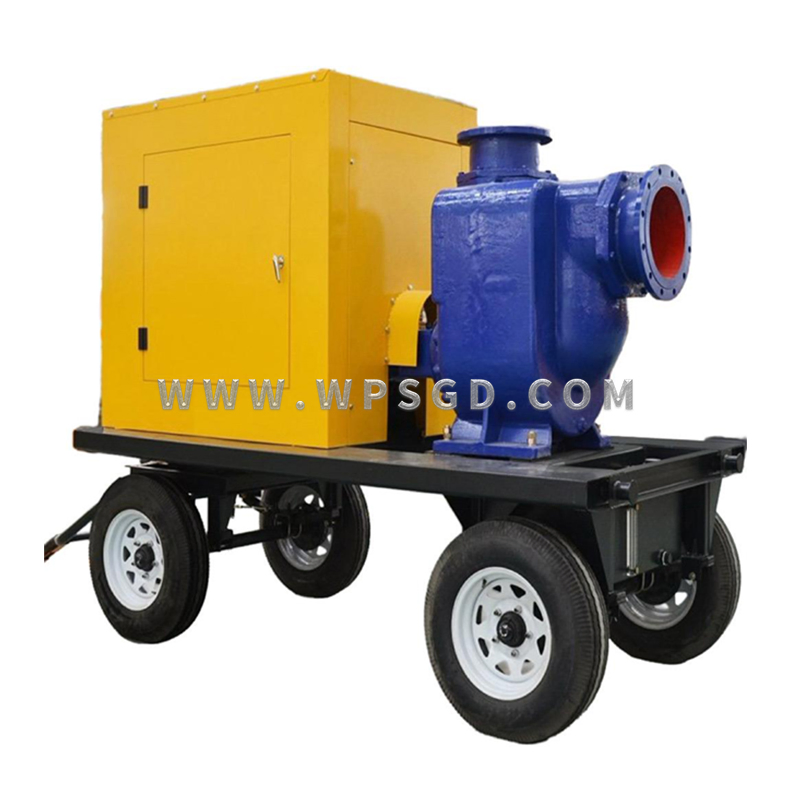

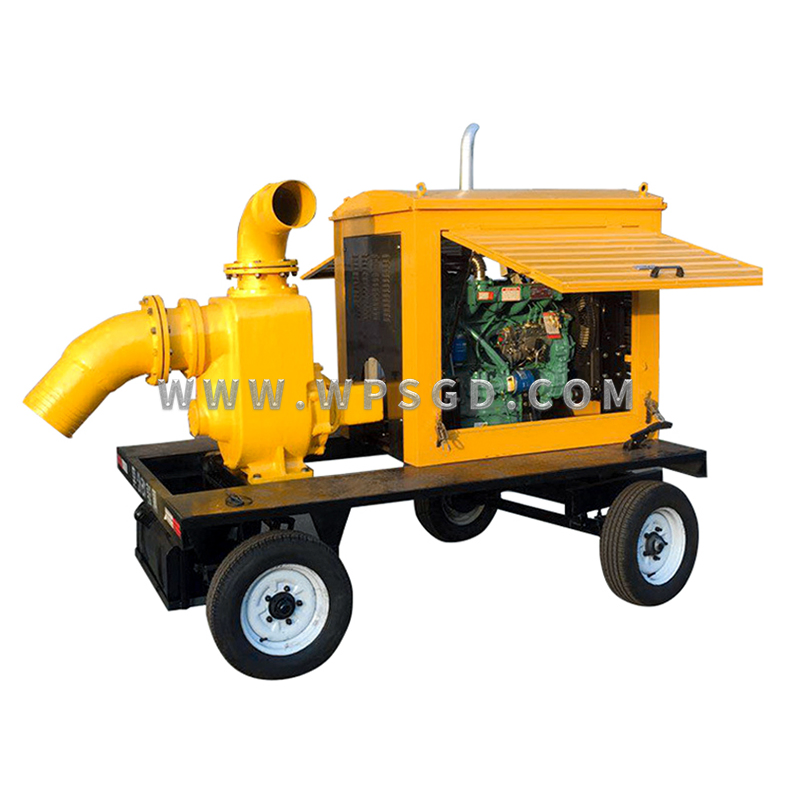

Diesel trailer water pump: If you need high flow and simple diesel engine water pump for farm irrigation or flood water drainage water pump, our machine will be the right choose. We have 12 inch to 16 inch high vacuum assisted engine water pump, all of them are able to dry start and dry run for 24 hours a day, the suction lift is more than 8 meters, flow rate is up to 2000 cubic meters per hour. Everything you need to do is connecting pipes and pressing the button to start the machine, really easy to operate.
| High Vacuum Assisted Self-Priming Diesel Driven Water Pump | |||
|---|---|---|---|
| Model | M12 | Flow rate | 1000m3/h |
| Suction/Discharge | 12 inch / 12 inch | Max. Head | 22m |
| Solids handling | 75mm | Engine Power | 58kw |
| Rated Speed | 1500rpm | Suction Lift | 8m |
Can be widely used in municipal sewage and flood control projects, agricultural irrigation, industrial drainage, etc.
| Type | Inlet/Outlet (mm) | Flow Rate (m³/h) | Head Lift (m) | Power (kw) | Speed (r/min) | Suction (m) |
|---|---|---|---|---|---|---|
| 8-15-5.0 | DN25/DN25 | 8 | 15 | 6.6 | 2900 | 5 |
| 10-20-6.6 | DN32/DN25 | 10 | 20 | 6.6 | 2900 | 5 |
| 20-15-6.6 | DN40/DN32 | 20 | 15 | 6.6 | 2900 | 5 |
| 30-18-9.6 | DN65/DN50 | 30 | 18 | 9.6 | 2900 | 5 |
| 80-35-22 | DN80/DN65 | 80 | 35 | 22 | 2900 | 5 |
| 180-30-41 | DN150/DN125 | 180 | 30 | 41 | 1450 | 5 |
| 420-20-84 | DN250/DN200 | 420 | 20 | 84 | 1450 | 5 |
| 1000-15-110 | DN300/DN250 | 1000 | 15 | 110 | 1450 | 5 |

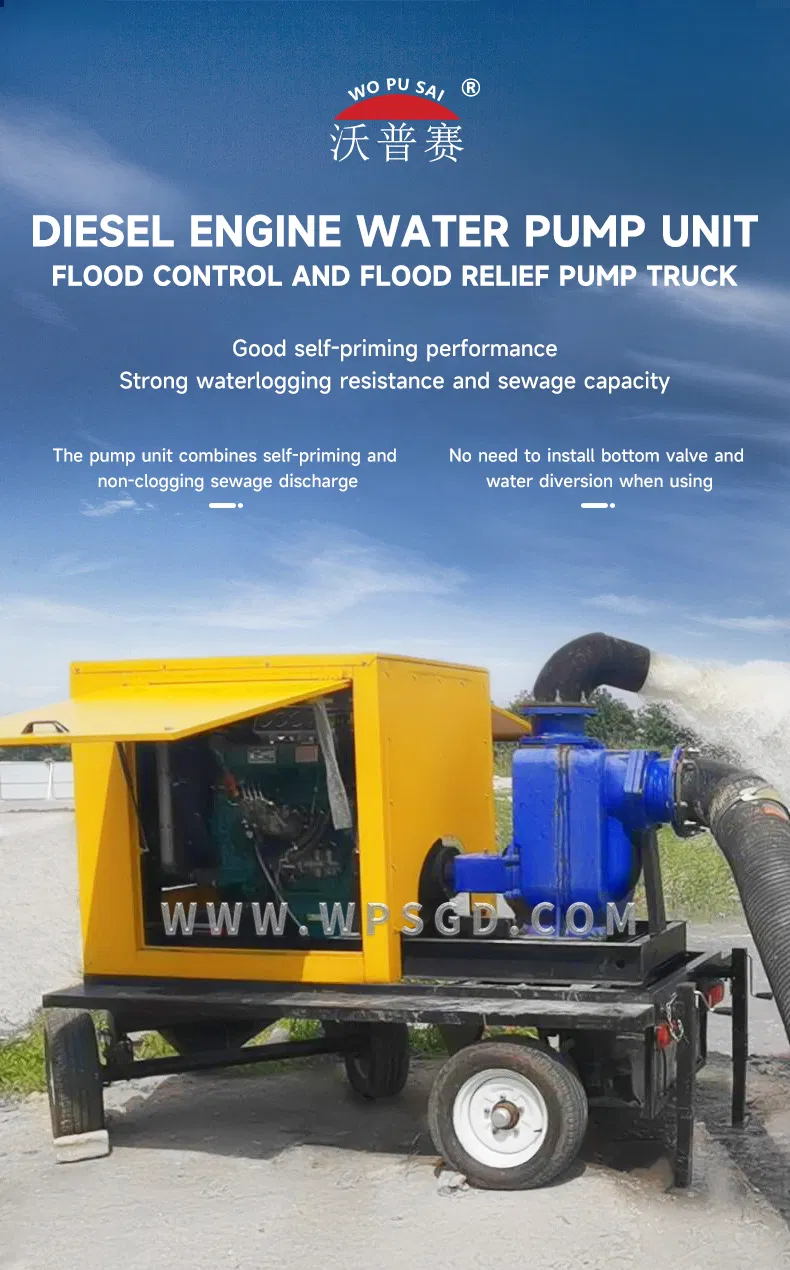

GOOD SELF-PRIMING PERFORMANCE: Strong waterlogging resistance and sewage capacity. No need to install a bottom valve or fill water. Long fiber dirt and sediment containing large particles and solid blocks can be sucked out.
