Basic Information
| Model NO. | CMP-4SP |
| Max. Head | 80-110m |
| Max. Capacity | 200-300 L/min |
| Driving Type | Motor |
| Material | Cast Steel |
| Structure | Single-stage Pump |
| Assembly | Booster Pump |
| Application | Clarified Water Pump |
| Industry | Mechanical Pump |
| Media | Sewage Pumps |
| Transport Package | Carton Packing |
| HS Code | 8413701090 |
| Production Capacity | 5000 Sets/Year |
Packaging & Delivery
| Package Size | 500.00cm * 500.00cm * 500.00cm |
| Package Gross Weight | 500.000kg |
Product Description
| Model |
Flow |
Lift |
Efficiency |
Power |
Rotating Speed |
Cavitation Allowance |
Self-priming Height |
Self-priming Time |
| m3/h |
m |
% |
kw |
r/min |
m |
m |
s/5m |
| CMP-4SP | 100 | 20 | 66.1 | 11 | 1500 | 2.5 | 8.5 | 60 |
| 100 | 25 | 60.6 | 15 | 1500 | 2.5 | 8.5 | 60 |
| 100 | 30 | 58.9 | 18.5 | 1500 | 2.5 | 8.5 | 60 |
| 100 | 40 | 68.1 | 22 | 1500 | 2.5 | 8.5 | 60 |
| 100 | 50 | 69 | 30 | 1500 | 2.5 | 8.5 | 60 |
| 100 | 60 | 69.7 | 37 | 1500 | 2.5 | 8.5 | 60 |
| 100 | 80 | 63.6 | 45 | 1500 | 2.5 | 8.5 | 60 |
| CMP-6SP | 200 | 18 | 66.3 | 18.5 | 1500 | 2.5 | 8.5 | 60 |
| 200 | 32 | 68.1 | 37 | 1500 | 2.5 | 8.5 | 60 |
| 200 | 50 | 65.4 | 55 | 1500 | 2.5 | 8.5 | 60 |
| 200 | 80 | 62.8 | 90 | 1500 | 2.5 | 8.5 | 60 |

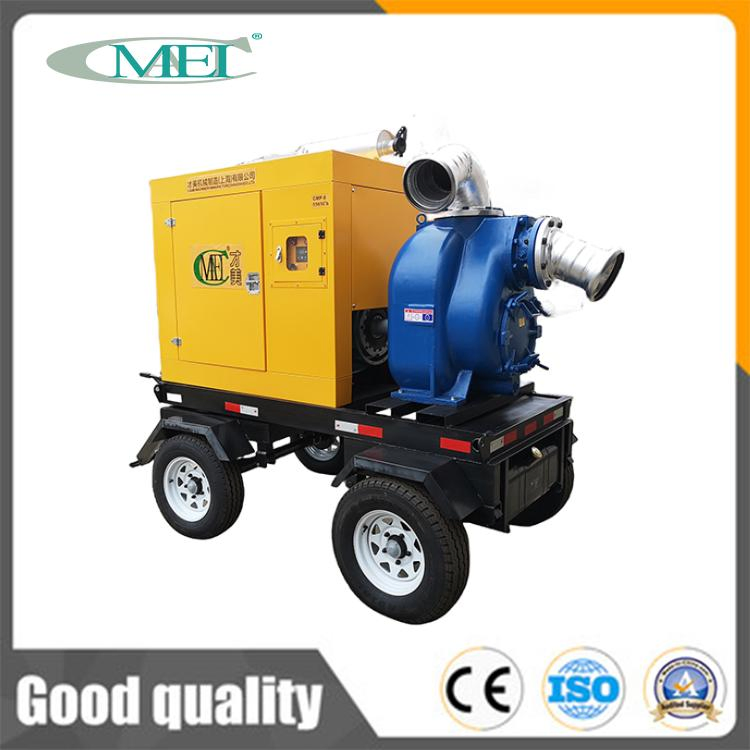

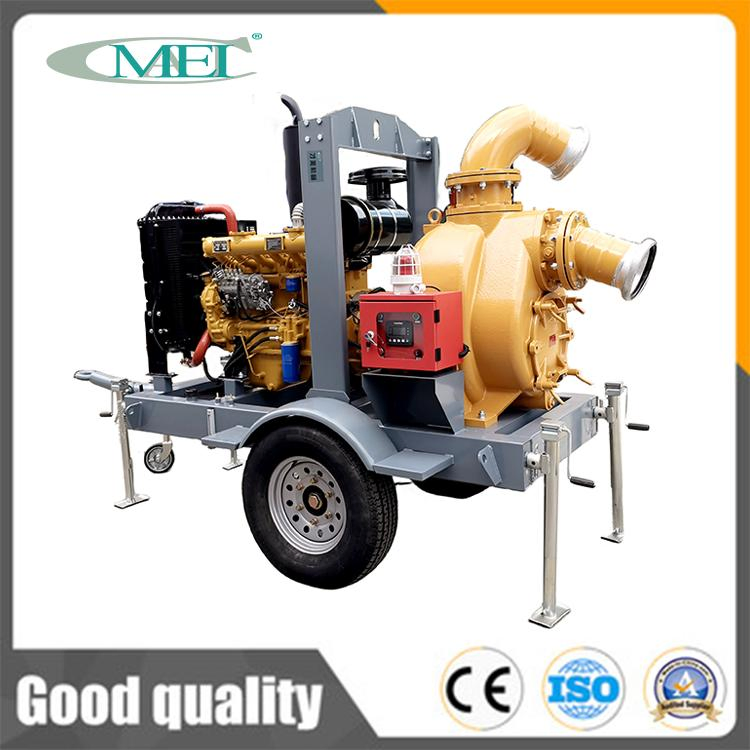

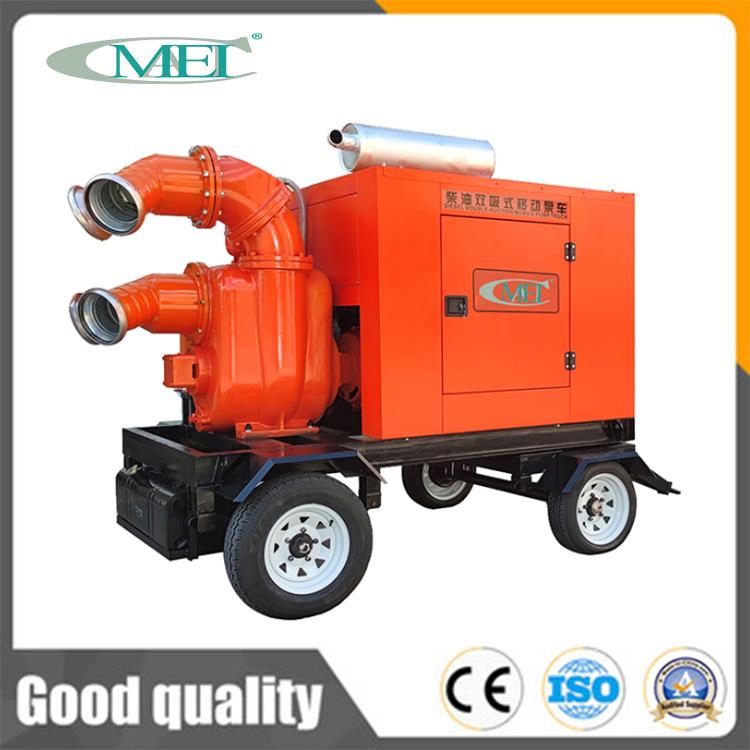

Advantages of Diesel Water Pump Unit
1
Adopt excellent hydraulic model and advanced manufacturing technology to greatly improve the performance and service life of the pump.
2
Shaft seal uses mechanical seals made of cemented carbide and fluororubber, improving operation reliability and media transmission.
3
Flow-passing parts are stamped and welded by stainless steel plates, making it suitable for mildly corrosive media.
4
Compact structure, small size, light weight, low noise, significant energy saving, and easy maintenance.
5
Water inlet and outlet are located on the same horizontal line as the base for direct pipeline integration.
6
Standard motor configuration allows users to easily equip the motor according to specific needs.
7
Optional intelligent protectors available to protect against dry running, phase loss, and overload.
Frequently Asked Questions
1. Q: Are you a factory or a trading company?
A: We are a professional manufacturing factory.
2. Q: What applications is this pump unit suitable for?

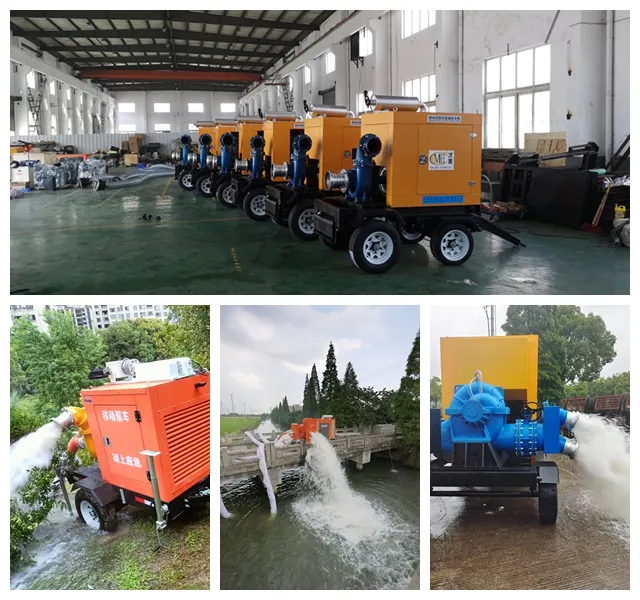

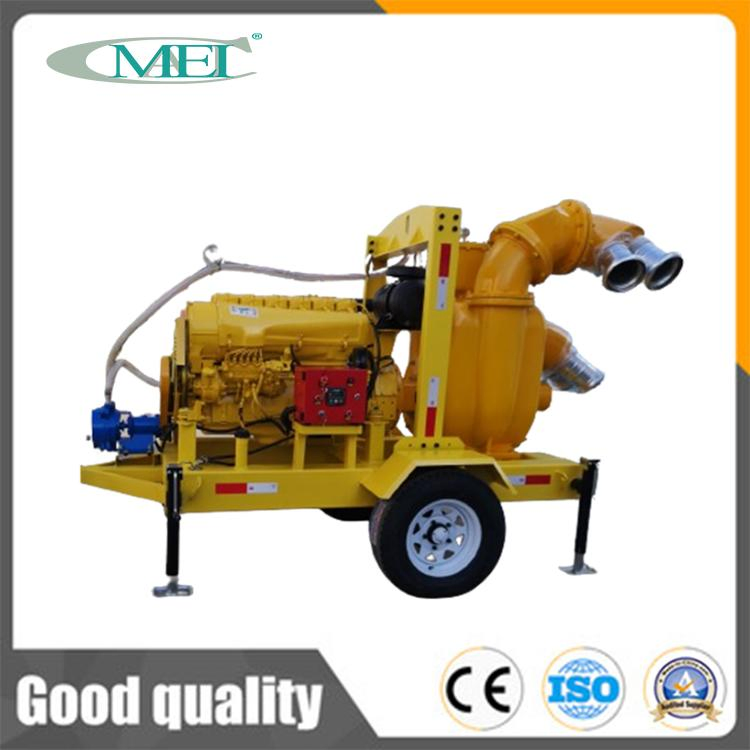

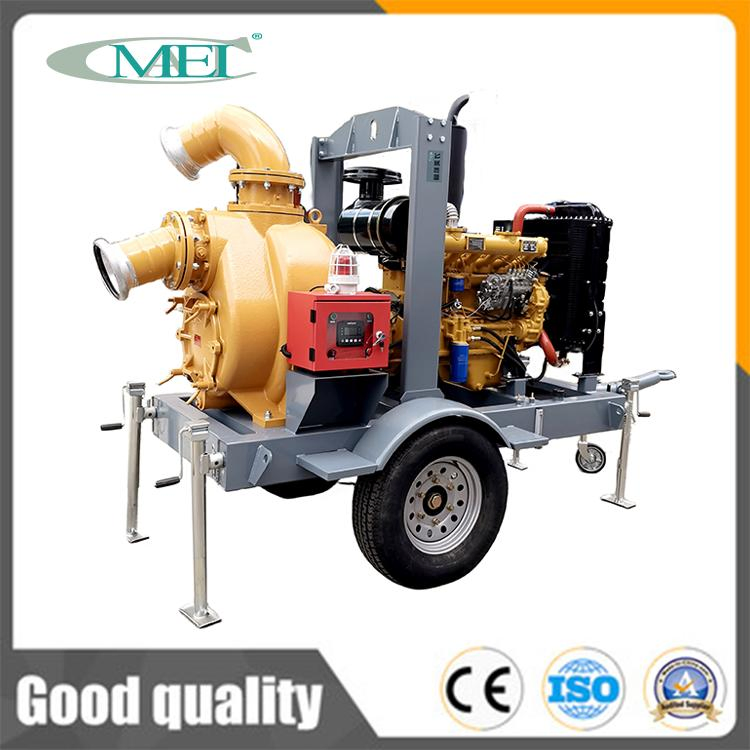

A: It is ideal for flood control, emergency irrigation, trailer fire control, and industrial water management.
3. Q: What materials are available for the pump construction?
A: The products are primarily constructed from high-grade aluminum, cast steel, and stainless steel depending on the model.
4. Q: How is the quality control managed in your facility?
A: We attach great importance to quality control throughout the entire manufacturing process, from start to finish.
5. Q: What is the warranty period for the products?
A: The guarantee is provided for 1 year after the goods have been discharged at the destination.
6. Q: Can the pump handle corrosive media?
A: Yes, since the flow-passing parts are stamped and welded with stainless steel, the pump is suitable for mildly corrosive media.
