Feature: Equipped with a fully enclosed sound-attenuated canopy featuring high-density acoustic foam and scientific airflow design.
Advantage: Reduces operating noise to 68dBA at 7 meters, much lower than open-frame units.
Benefit: Eco-friendly night operation in residential areas or near hospitals without noise complaints.
Feature: Large 6-inch inlet/outlet design with a specialized open impeller structure.
Advantage: Easily passes solids up to 76mm (3 inches) and long fibrous debris, preventing clogging.
Benefit: Minimize downtime even with floodwater containing mud and stones.
Driven by high-performance 4-stroke diesel engines (options: Cummins, Deutz, or premium brands). Designed for heavy-duty continuous operation, featuring high combustion efficiency, high torque, and low fuel consumption. The large-capacity fuel tank supports 8-10 hours of continuous running.
The pump body is cast from high-strength iron, with the impeller and volute specially hardened for wear and corrosion resistance. Unique self-priming design requires only one-time filling; afterwards, it primes automatically without a foot valve.
Integrated digital gauges monitor oil pressure, water temperature, RPM, and running hours. Features automatic protection systems that shut down the unit in case of low oil pressure or high temperatures.
| Parameter Item | Details / Specifications |
|---|---|
| Machine Performance | |

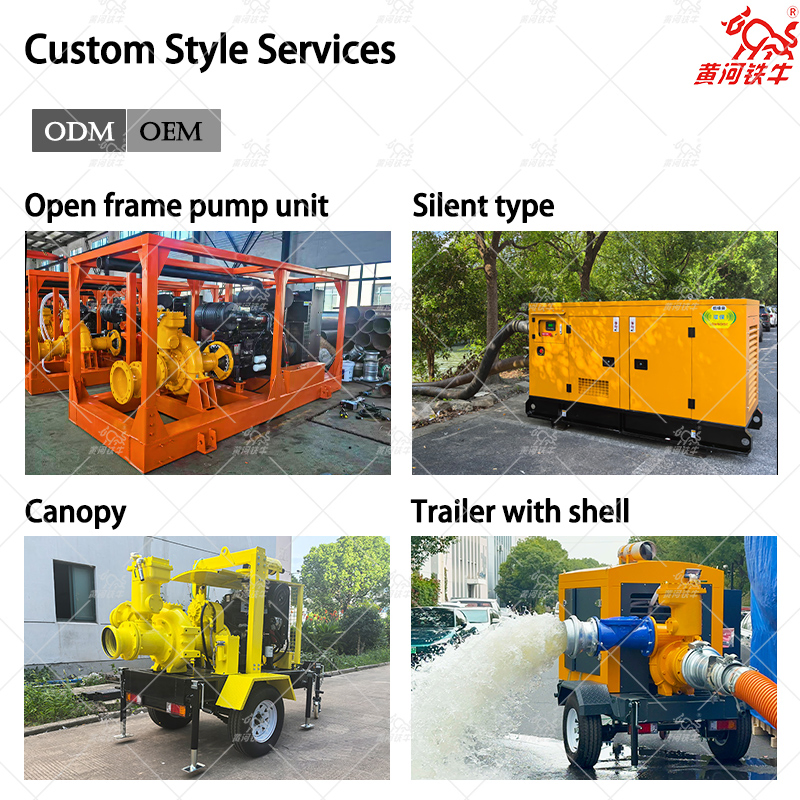

| Type | Trailer mounted, stationary, closed, or open type |
| Max Flow | 500 m3/h |
| Max Head | 44m |
| Suction Height | 9m |
| Diesel Engine Parameters | |
| Recommended Brand | Cummins, Weichai, Yuchai |
| Power | >36kw |
| Speed | 1500~2000rpm |
| Cooling Method | Air cooled or Water cooled |
| Pump Parameters | |
| Inlet / Outlet | 6 inch / 6 inch |
| Pump Case Material | Cast Iron |
| Impeller Material | Cast Iron / Stainless Steel |
| Max Particle Size | 76mm |
| Optional Accessories | |

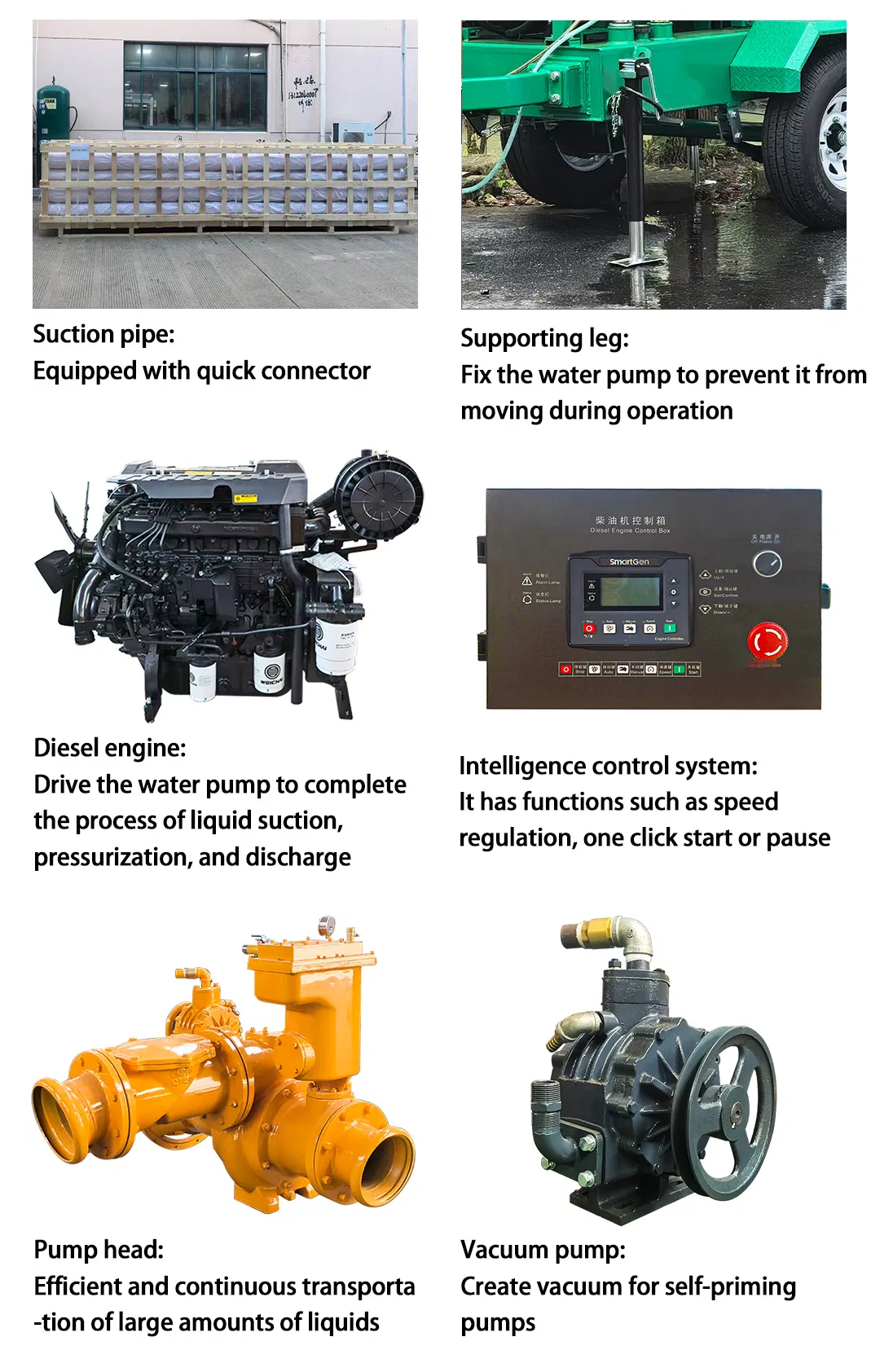

| Parts | Suction pipe, hose, quick connections, strainers, clamps |

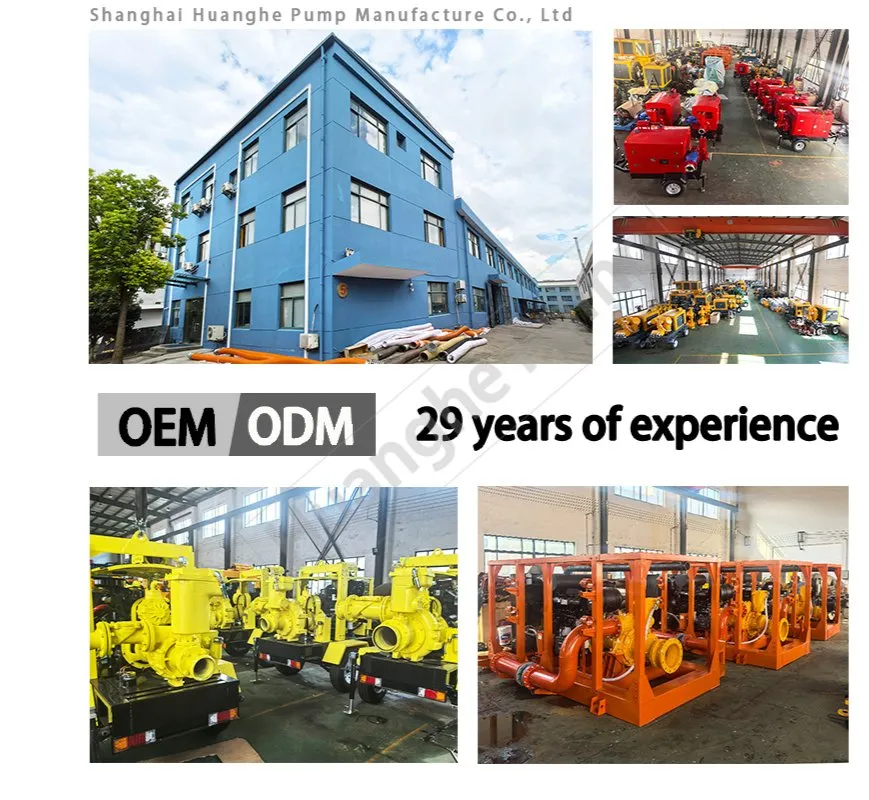

With a history of 29 years, we are a manufacturer with extensive sales experience and a strong reputation. Our main products include flood control mobile pumps, marine seawater centrifugal pumps, farmland irrigation pumps, and mine flushing pumps. We provide high-quality products designed to meet specific global requirements.
