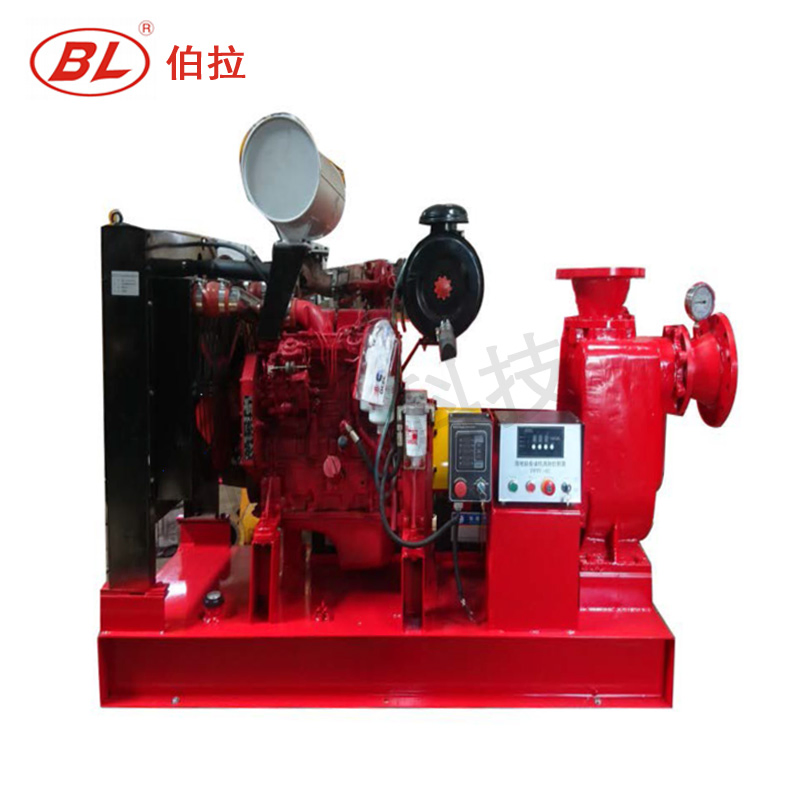

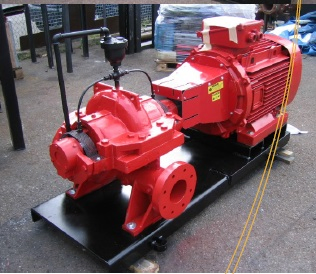

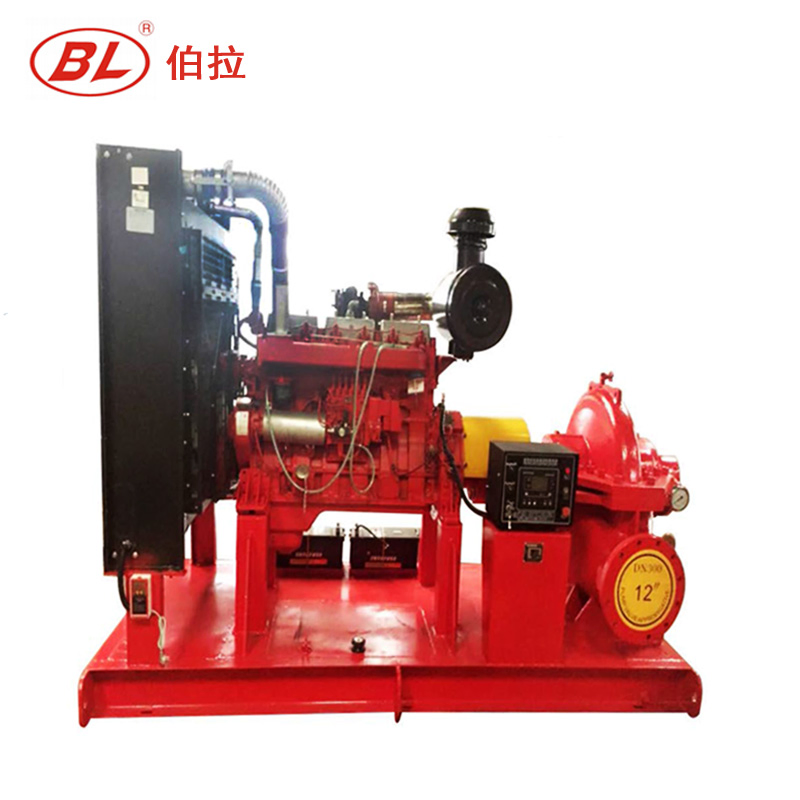

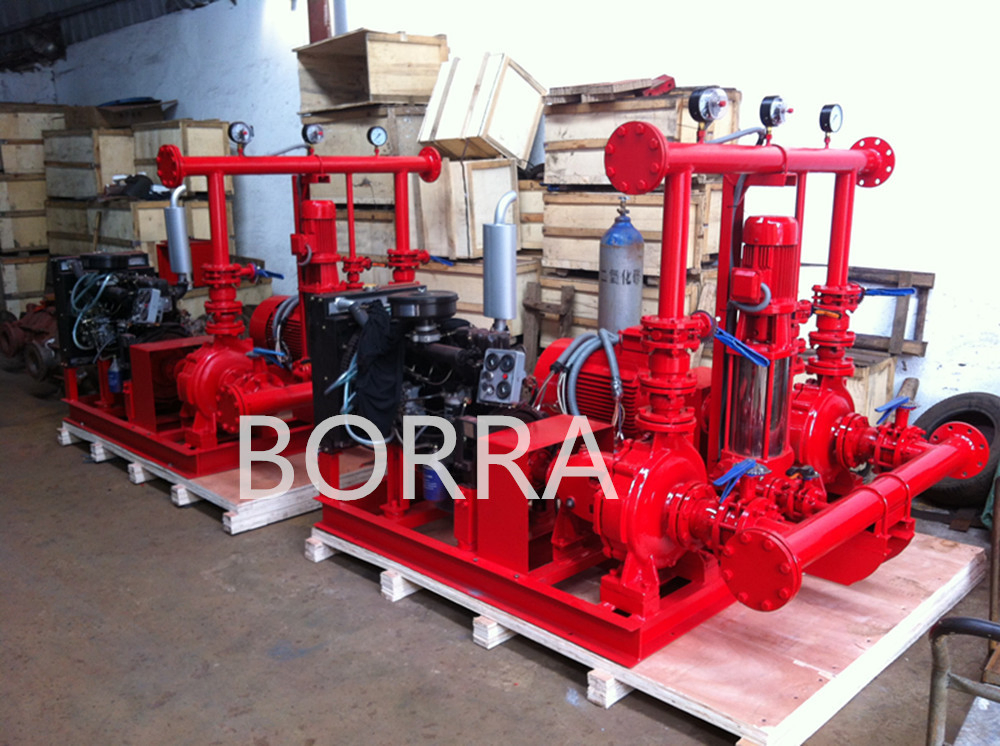

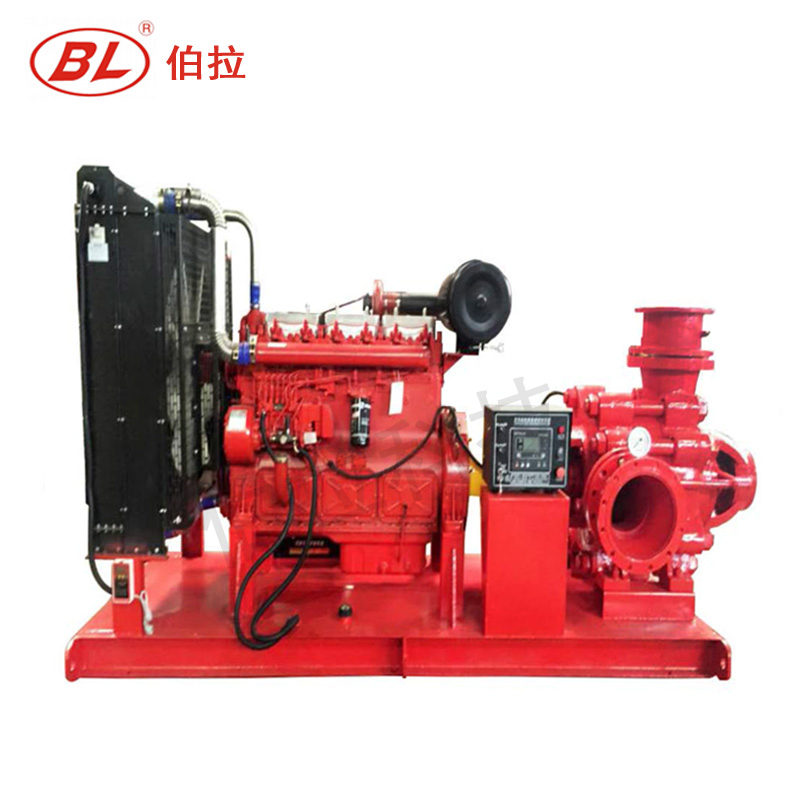

Fire Water Supply Unit with Diesel Pump and Electric Pump

Basic Specifications

Fire Water Supply Unit

The diesel engine fire pump unit features IS series single-stage, S, SOW series of new single-stage & dual-stage, TSWA, and D series. These units are designed with a compact structure, making them easy to maintain and use, while providing automatic control and reliable operation.

Technical Parameters

Key Characteristics

• Three Start Modes: Manual, Automatic interlink, and Emergency manual direct start.
• Automatic Run: System automatically switches to diesel pump if electric power fails or phase loss occurs.
• Automatic Stop: Delayed stop sequence once the fire signal is deactivated.
• Self-Charging Battery: Storage batteries charge automatically via the engine charging motor.
• Perfect Indication System: Monitors start status, speed, oil pressure, and water temperature.
• Comprehensive Warning System: 3-fail start warning, over-speed, low oil level, and temperature alerts.
• Direct Coupling: Engine and pump connected via coupler for low vibration and easy installation.
• Flow & Pressure Regulation: Mechanical or electronic regulators allow for rotation speed adjustment.
• Water Preheat Unit: AC220V unit ensures operation even in environments below 5°C.

System Configuration
