Fire Safety Equipment Library Fire Fighting High Pressure Water Mist Automatic Fire Extinguishing Device

1 / 6

Fire Safety Equipment Library Fire Fighting High Pressure Water Mist Automatic Fire Extinguishing Device

Customization:	Available
Type:	Smoke Sensor Probe
Anti-theft Alarm System Approach:	Passive

Product Description

Overview
Product Description
Why Choose This System
Technical Specifications
Typical Applications
Company Profile
Certifications
Exhibitions
FAQ

Basic Info.

Anti-Theft Alarm System Type

Sound and Light Alarm

Anti-Theft Alarm System-Wide

Surface Control Alarm Detectors

Anti-Theft Alarm System Distance

Common Detectors

Types of Smoke Detectors

Photoelectric Smoke Style

Infrared Sensor Probe Type

Infrared Temperature Sensor

Infrared Sensor Installation

Embedded Wall

Combustible Gas Detector Model

QT-400

Place of Origin

Jiangxi, China

Color

Black+Red

Surface Temperature

≤ 150 ° C

Product

Hot Air Aerosol Fire Extinguishing Device

Material

Spray Painted Shell

Discharge Time

15-30s

Brand Name

Zhiyuan Fire

Fire Extinguishing Concentration

100G/M ³

Spray Time

≤ 10s

Humidity

≤ 95%

Extinguisher Style

Portable

Extinguisher Class

Class D

Item Weight

10g

Operating Temperature

-50 ° C~+110 ° C

Trademark

ZHIYUAN FIRE

Origin

China

HS Code

7307210000

Production Capacity

10000pieces/Year

Packaging & Delivery

Package Size

2300.00cm * 1100.00cm * 1920.00cm

Package Gross Weight

100.000kg

Product Description

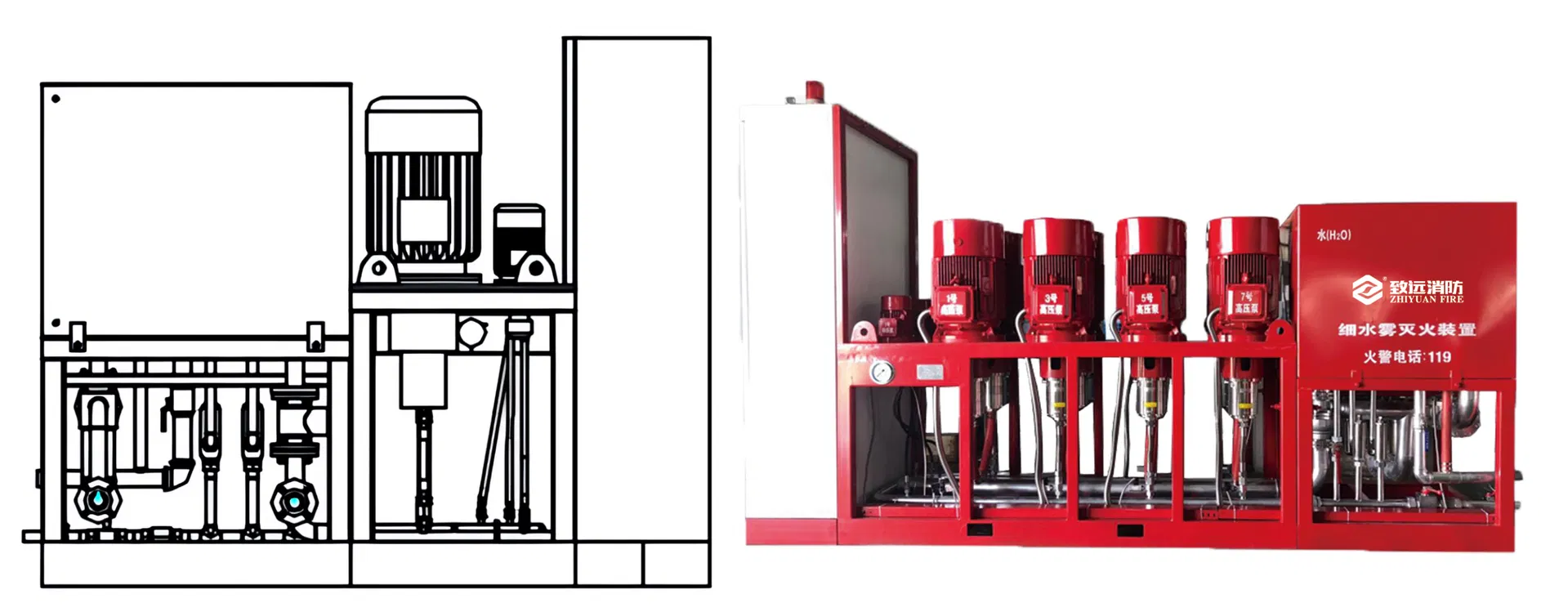

High Pressure Water Mist Fire Extinguishing System (Model XSWBG 115/14 ZY)

A water mist system is a fire protection system which uses very fine water sprays (i.e. water mist). The small water droplets allow the water mist to control, suppress or extinguish fires by: Cooling both the flame and surrounding gases by evaporation---Absorb Heat&Cooling Displacing oxygen by evaporation-—-Isolate Oxygen Attenuating radiant heat by the small droplets themselves---Isolate Heat
The effectiveness of a water mist system in fire suppression depends on its spray characteristics, which include the droplet size distribution, spray density and spray dynamics, with respect to the fire scenario, such as the shielding of the fuel, fire size and ventilation conditions.

So really high pressure system, specialized tubing or piping that's used for that. Now, there are differences between water mist systems and the droplet sizes that they produce, so typically the smaller the water droplet size the better it is at extinguishing a hot fire. Larger droplets can work faster on lower temperature fires, but they all work for the systems that they're approved for or listed for.

Composition and working principle:
System composition:
The pump type micro mist droplet extinguishing system mainly consists of components such as a water box,a high-
prssugopstabizinop,trlalrolpanelpirsurswitch, a nozzle,a partition control valve,a fire alarm extinguishing controller, a fire
detector, a remote communication module, and a remote control terminal.
System working principle:

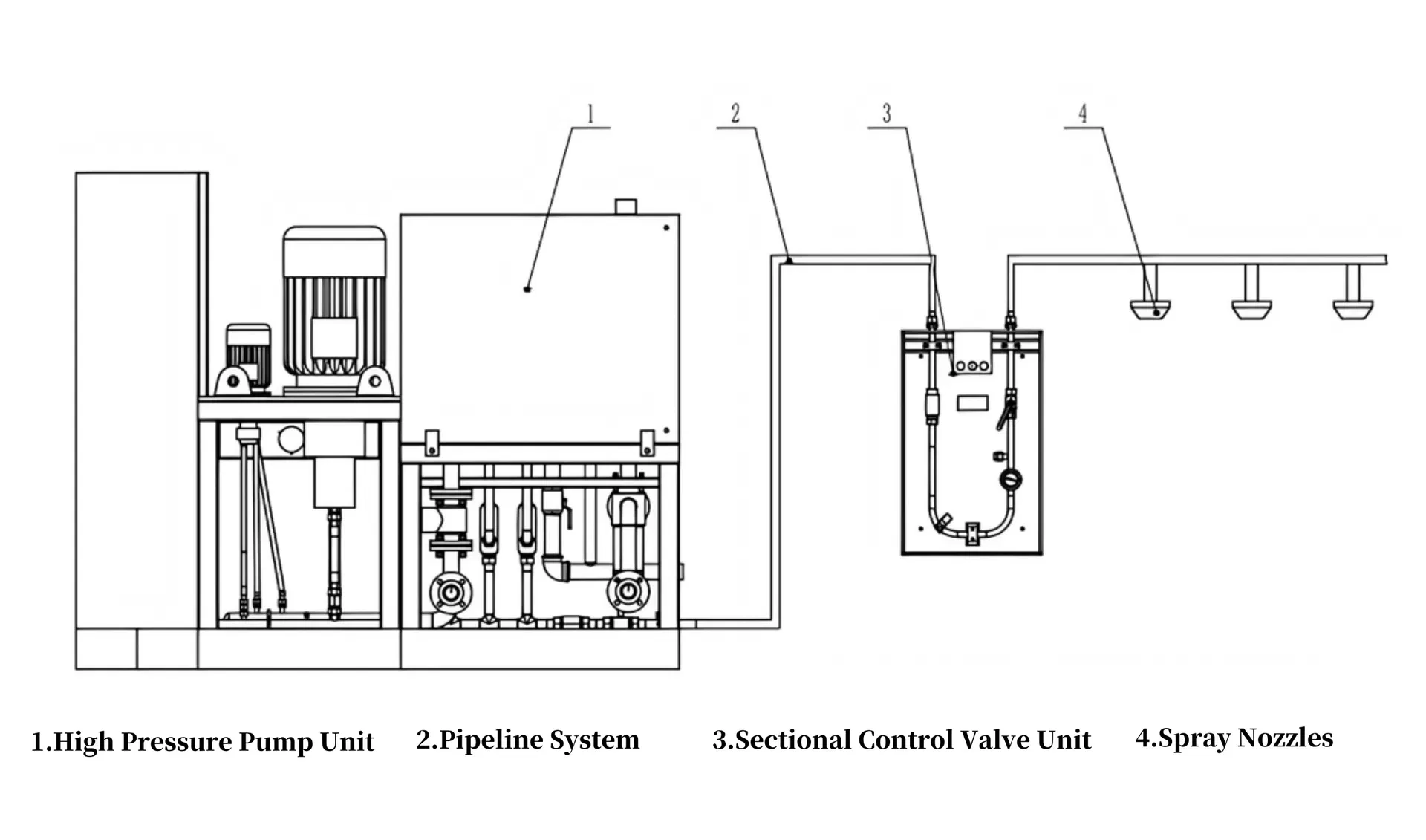

Figure 2 is the working principle diagram of the high-pressure fine mist extinguishing system: under monitoring, the high-pressure fine mist system is maintained at 1.0~1.2 MPa in the pipe (closed nozzle pipe) from the one-way valve of the pumpgroup to the pipe in front of thepartition control valve.
When the pressure inside the pipe isbelow 1.0MPa,the stabilizing pump starts, causing the pressure inside the pipe to reach 1.2 MPa. When the stabilizing pump has been running for more than 10 seconds and thepressure hasnot yet reached 1.2 MPa, the main pump starts and the stabilizing pump stops.
The main pump can be indirectly started through seven methods: fire alarmcontroler, on-site manual button, on-site mechanical emergencyhandle, manual alarm button, control center, pump group control panel, and remote control terminal.

Why Choose This System

Key Features & Advantages

Eco-friendly extinguishing – water-based, no pollution or residue.
High efficiency – rapid cooling, oxygen dilution, and flame blocking.
Wide adaptability – effective for A, B, C, and electrical fires.
Safe operation – non-toxic, suitable for occupied spaces.
Multiple nozzle options – open type and closed type, with flow coefficients ranging from 0.5 to 2.5.
Reliable quality – designed, manufactured, and tested under XF1149-2014 standards.

Technical Specifications

ltem	Parameter
Standard	XF 1149-2014
Medium	Water
Rated Flow	115 L/min
Working Pressure	14 MPa
Operating Temperature	4℃ – 50℃
Water Tank Volume	1.0 m³
Dimensions	2.3 × 1.1 × 1.92 m
Models Available	115/14, 230/14, 345/14, 460/14, 575/14, 690/14, 805/14 ZY

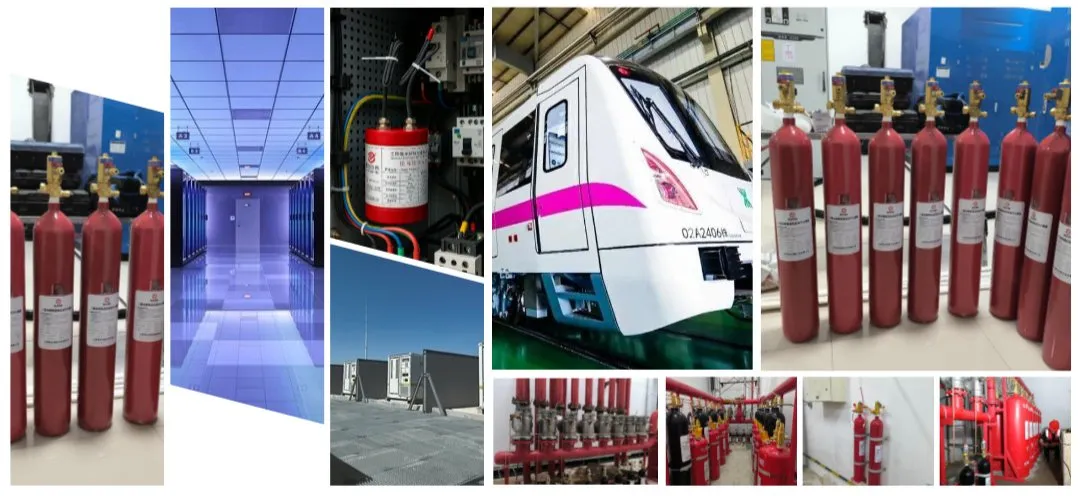

Typical Applications

This device is ideal for preventing and extinguishing fires in small sealed spaces such as:

Transformer rooms and power stations
Cable tunnels and subways
Industrial plants and workshops
Engine rooms and machinery spaces
Archives, museums, and libraries
Public buildings and commercial facilities

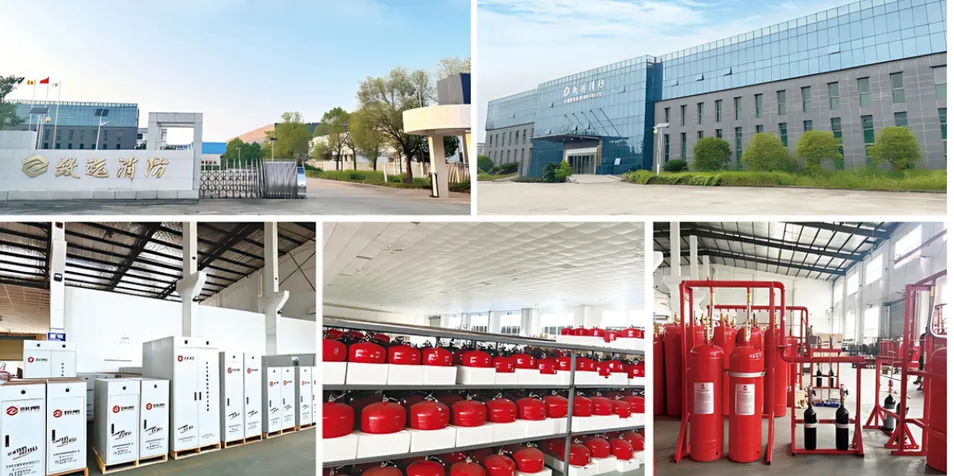

Company Profile

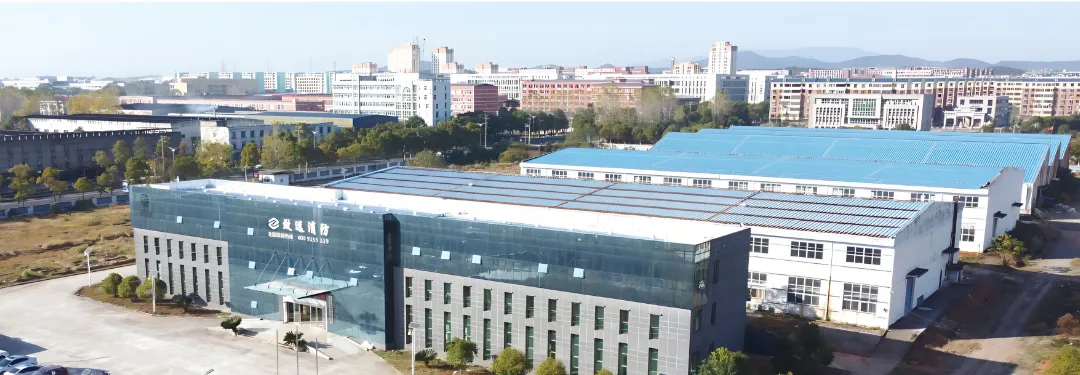

Jiangxi Zhi yuan Fire Technology Co., Ltd

Jiangxi Zhi yuan Fire Technology Co., Ltd. -- is located in X in yu National High-tech Industry Development Zone, Jiangxi Province, from the elite of 20 years of experience in fire industry. Is a based on the "high starting point, high standard, high quality" set research and development, design, manufacturing, sales, eng ineering, service as one of the high-tech fire enterprises, with fire facilities eng ineering professional contracting grade I cap ital Quality, fire protection technical service qualification, with special equipment inspection and testing institution approval certificate (specializing in the inspection and testing of seamless cy linders, welding cy linders and fiber winding cy linders). It is a key fire fighting enterprise in X in yu city, a backbone enterprise of fire fighting industry in J iangxi Province, a well-known AAA credit enterprise in the industry, a national high-tech enterprise, and a TOP enterprise in fire fighting equipment segment in domestic fire fighting field. Company has a scale, modern, standardized workshop and laboratory, equipped with the standardization of testing equipment, experimental equipment, etc., actively introduce talents, new equipment and new technology, with fire field expert research and development team and elite marketing team, strong technology, rich experience, unique fire extinguishing device agent canning technology and group core independent technology to reach the industry leading water P ing, and established a set of strict and standardized enterprise management system and quality management system, can provide safe and reliable fire products and quality and perfect technical services for all walks of life. The company has a modular, rigorous, refined, refined, efficient modern enterprise operation mechanism, and has established the "1234" corporate culture: - -1 B ig V ision: To become a leading enterprise in the fire protection segmentation field: - -2 Major missions: Internally, to build a p latform for emp loyees to realize their life value; Externally, to be professional, refined, characteristic and novel; - -Three core values: Credit, technology and technology, win-win cooperation; -four codes

Certifications

Exhibitions

FAQ

Q: Are you a factory or a trading company?
A We are a factory and can offer you the best quality products with reasonable price.
Q: Can you accept sample orders?
A: Yes, we accept samples at a small reasonable charge, but customers are required to pay for the sample fee and shipping cost.
Q: What is your order quantity?
A: 300 rolls
Q: What is the waiting time for your delivery?
A Can we deliver in 7 days or less?
A: Bulk production takes 3-30 days (depending on quantity).
Q: What are your payment terms?
A: T/T, L/C, Western Union!
Q: How do I receive my order
A: We will ship to you via UPS, DHL, Fedex, Oversea Shipment or other freight forwarder and all shipments have tracking numbers.
Q: How do you build a long term good business relationship with us?
A: We maintain good quality and competitive prices to ensure our customers' interests. We respect every customer as our friend and do business and make friends with them sincerely.
