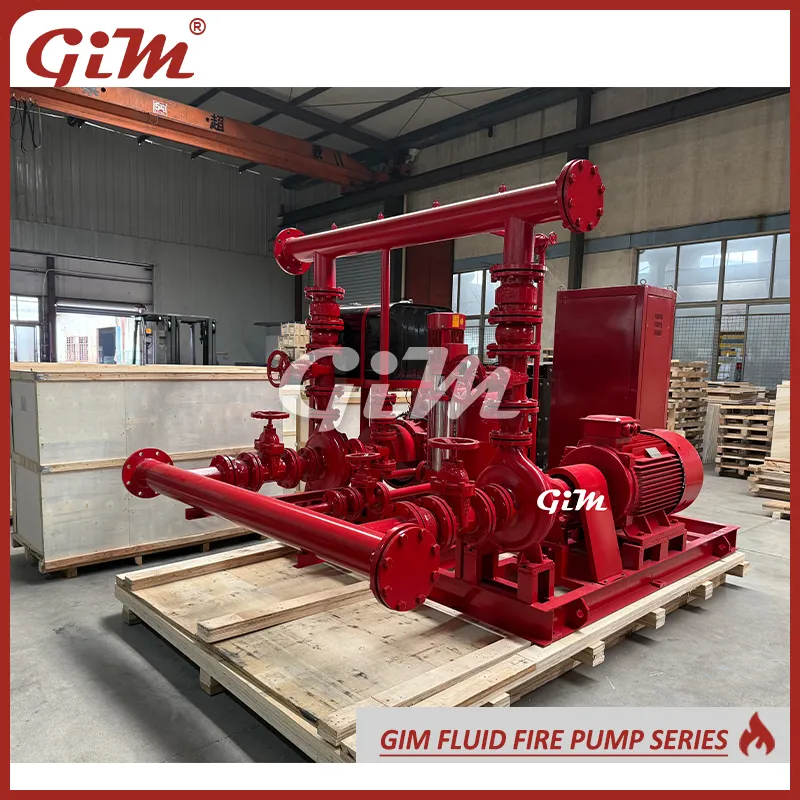

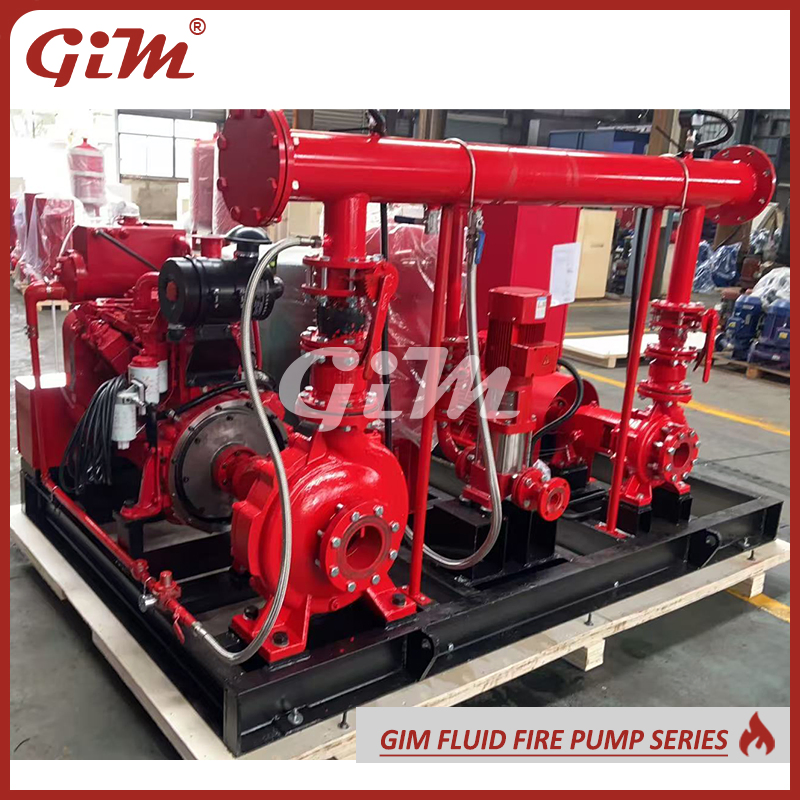

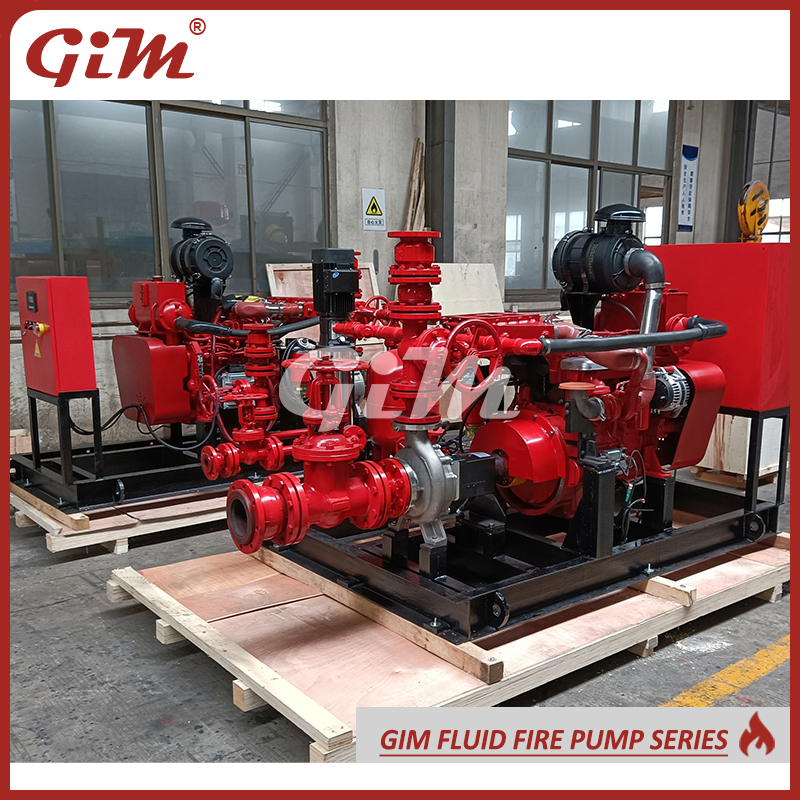

Fire Pump System Diesel Engine Drive Fire Fighting Pump Set

1 / 6

Fire Pump System Diesel Engine Drive Fire Fighting Pump Set

Customization:	Available
After-sales Service:	2 Yrs
Warranty:	2 Yrs

Product Description

Basic Info.

Model NO.: EDJ Series
Max.Head: >150m
Max.Capacity: >400 L/min
Driving Type: Diesel Engine &Electric Motor
Impeller Number: Single-Stage Pump
Working Pressure: High Pressure Pump
Influent Type of Impeller: Single Suction Pump
Position of Pump Shaft: Horizontal Pump
Pump Casing Combined: Horizontal Split Pumps
Mounting Height: Suction Centrifugal
Impeller: Closed
Usage: Pump, Pumps
Voltage: 220V/380V/400V/415V/440V
Standard: UL, FM, Nfpa20, CE, ISO
Seal: Packing Seal/ Mechanical Seal
Working Temperature: Normal
Application: Building Fire Fighting, etc
Casing Material: Ductile Iron
Impeller Material: Bronze
Color: Red
Delivery Time: 40 Days
Brand: Gim Fluid
Transport Package: Export Wooden Case Package
Trademark: GIM FLUID
Origin: China
HS Code: 8413709990
Production Capacity: 50 Sets Per Month

Product Description

*Technical Parameter*

Flow Range: 75-5000gpm;
Head Range: 3-25 bar;
Working Pressure: 0.2 to 2.5 MPa;
Power Supply: Diesel Engine Power& Electric Motor;

Transported Media: Ordinary clean water and firefighting foam liquid

Function

-Automatic Start and Stop: Capable of starting and stopping automatically.
-Automatic Speed Regulation: Adjusts speed automatically.
-Automatic Charging: Includes automatic charging functions.
-Parameter Monitoring: Monitors and detects parameters.
-Automatic Alarming: Provides automatic alarms.
-Automatic Inspection: Conducts automatic inspections.
-Remote Control: Allows for remote control operations.

-Support customization.

-etc.

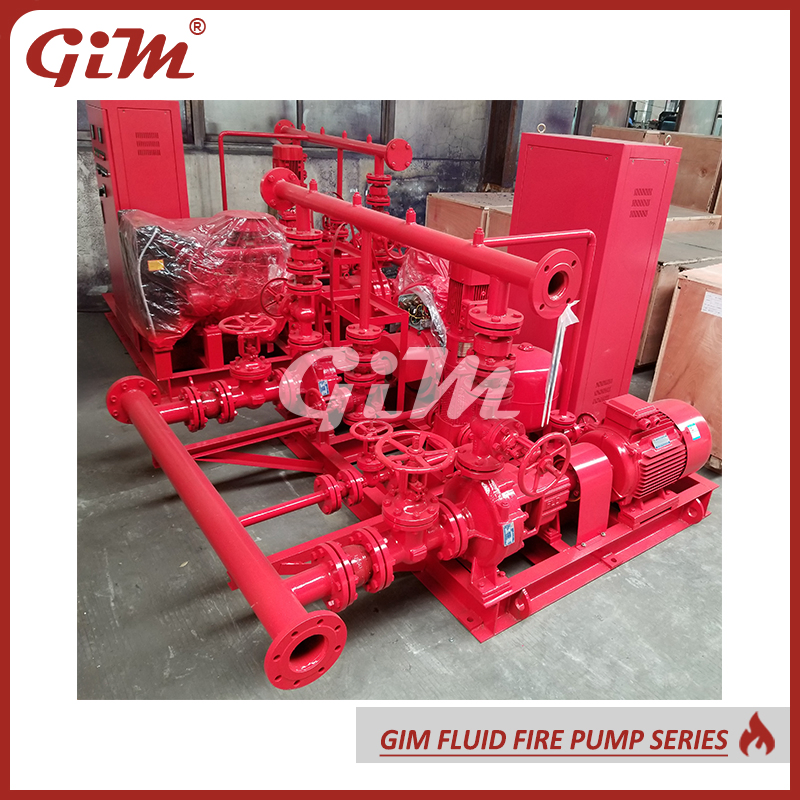

Product Description

*Product Description*

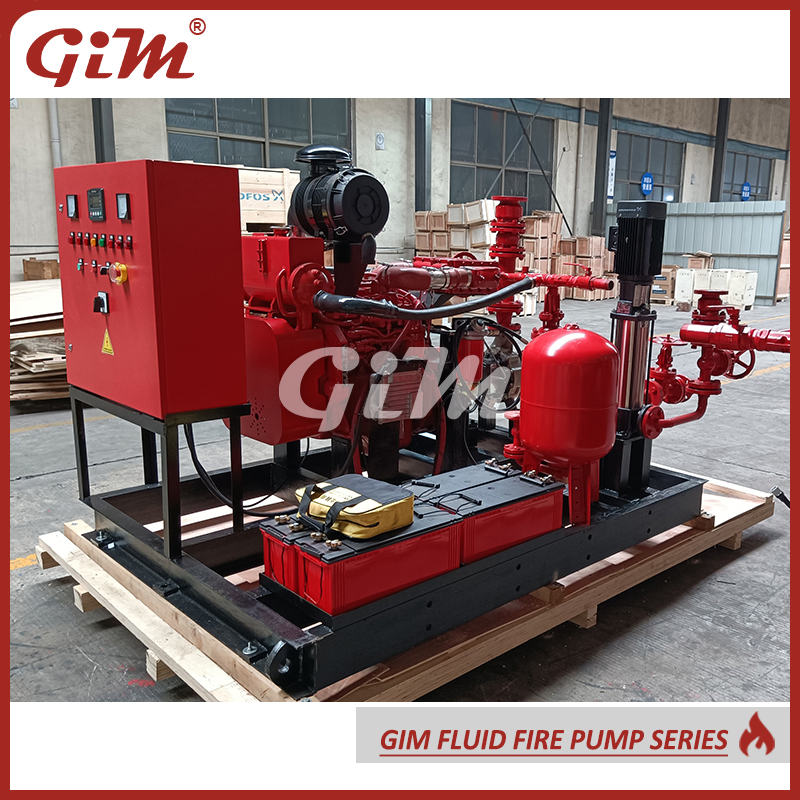

Our Diesel Engine Driven Firefighting Pump Package is a fully integrated, high-performance fire protection solution designed to meet the most stringent safety standards. Engineered for reliability and efficiency, this pre-assembled package ensures an uninterrupted water supply in emergency situations, making it ideal for commercial, industrial, and municipal applications.

*Application*

-High-rise buildings
-Industrial facilities
-Warehouses & storage plants
-Hospitals & data centers
-Municipal water supply systems

-Fire Protection Systems:
-Fire Hydrant Systems
-Sprinkler Systems
-Water Spray Cooling Systems
-Foam Systems
-Water Cannon Systems
-Hospital Fire Protection
-Emergency Fire Water Supply
-Fire Systems for Industrial and Civil Buildings

*Key Features*

UL & FM Approved – Certified to meet rigorous safety and performance standards for fire protection systems.

Powerful Diesel Engine – Equipped with a high-efficiency diesel engine for dependable operation, even during power outages.
Robust Construction – Corrosion-resistant components and durable materials ensure long-term performance in harsh environments.
Automatic & Manual Operation – Features automatic start upon pressure drop, with optional manual control for flexibility.
Pre-Packaged System – Factory-tested and pre-assembled for quick installation, reducing on-site labor and downtime.
Advanced Monitoring – Integrated alarms and controls for real-time performance tracking and diagnostics.

End Suction Type Fire Pump

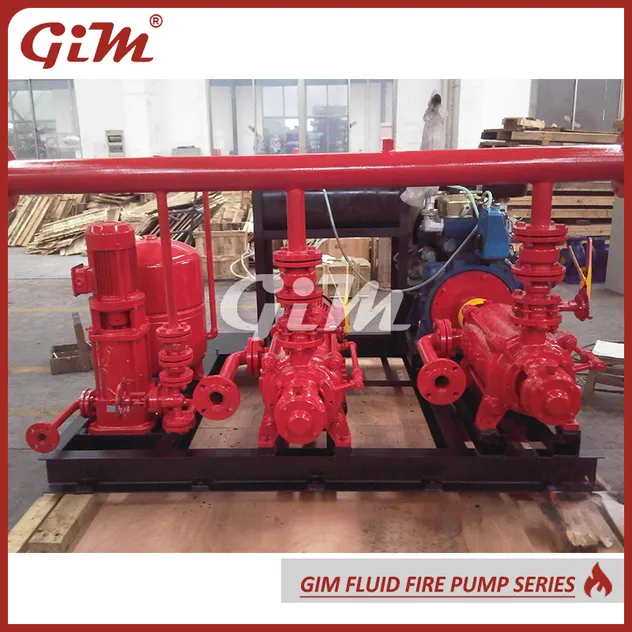

Multistage Type Fire Pump

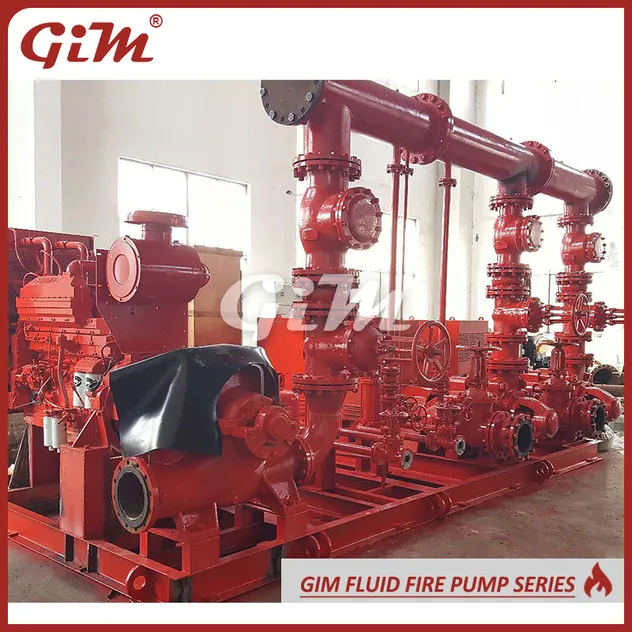

Split Case Double Suction Type Fire Pump

Support customization

*Specifications Choosing(More Information pls feel free to contact us)*

Generally the pipeline network's pressure is between the low pressure P1 and the high pressure P2.When the above pressure is lower than P1,the pressure maintaining pump will start automatically and not stop until the pressure rises gradually to P2.Due to the pipeline network's leakage,its pressure will drop to P1 gradually,and then the pressure maintaining pump will start automatically again.with such a repeated process,the pipeline network's pressure is maintained between P1 and P2 all the time.when the pipeline network's pressure can't be maintained between P1 and P2 (for instance,when the water consumption increases a lot) and drops to the minimum pressure P3,the electric pump will start automatically and the pressure will rise to Pw and meet the need for fire water supply,if the mains supply is power-off or the electric pump fails,the pressure will continue to drop from P3 to the ultimate pressure P4.then the diesel pump set will start automatically,and the pressure will rise to Pw and meet the need for fire water supply.the electric or diesel pump shall be stopped manually after human judgment (except automatic switching ).

*Our Services*

1. Delivery: Delivery time will be on time as the contract. Usually, our company need 35 working days for diesel engine pump, and for bare shaft pump, it takes 25 working days,

2. Warranty: 12 month for the pump body, 3 month for the main working parts.

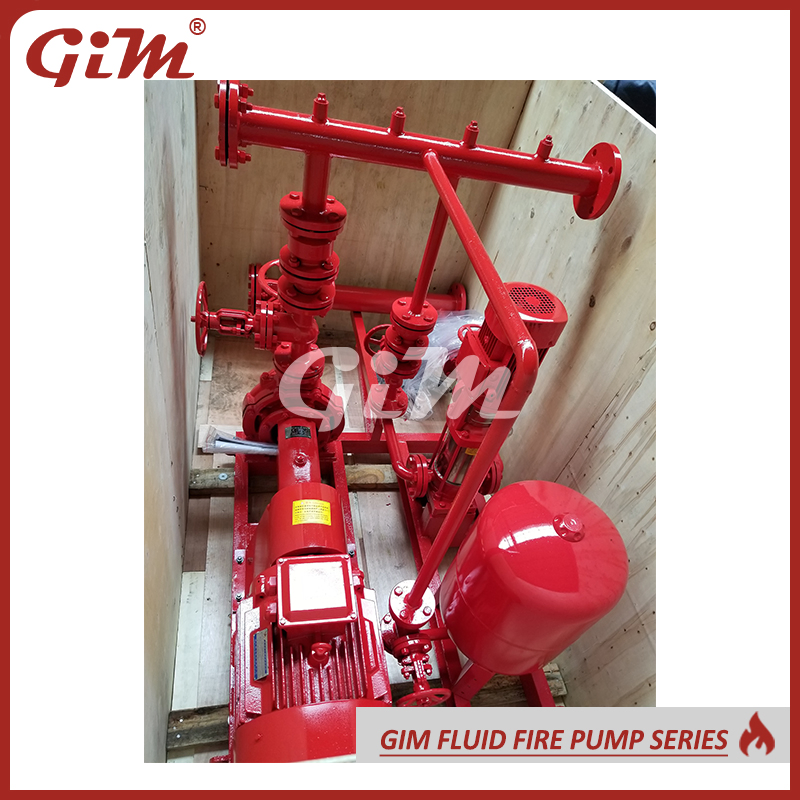

3. Package: We use plywood case to pack our pump, which is durable for ocean transport.

4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.

5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.

Why Us

Company Profile

GIM Fluid Equipment (Shanghai) Co., Ltd.

GIM Fluid Equipment (Shanghai) Co., Ltd., is a high-tech enterprise specialized in producing various industrial pumps and pump systems. We strive to provide a full package of industrial pump solutions, focusing on industrial valve manufacture, development, sales, and services.

PROFESSIONAL·EFFICIENT·PERSISTENCE

Make the flow easier

Our Factory

Packaging & Shipping

FAQ

Q: Are you a manufacturer or trading company ?

A:We are a manufacturer that specializes in industrial pumps for 30 years.

Q: What payment term do you prefer?

A:Normally we take payment terms 30% T/ in advance, 70% paid before shipment,we can also accept L/c at sight.

Q: What about the package?

A: Standard export plywood case.

Q: How long is the warranty?
A: Eighteen (18) months after delivery, twelve (12) Months from the date of commissioning, whichever comes earlier.

Q: Is it acceptable to make a customer's own brand?
A: Sure. we can do OEM & ODM.

Q: How many days does it take for manufacturing?
A: It depends on order quantity and pump types. Normally it takes 20-120 days
