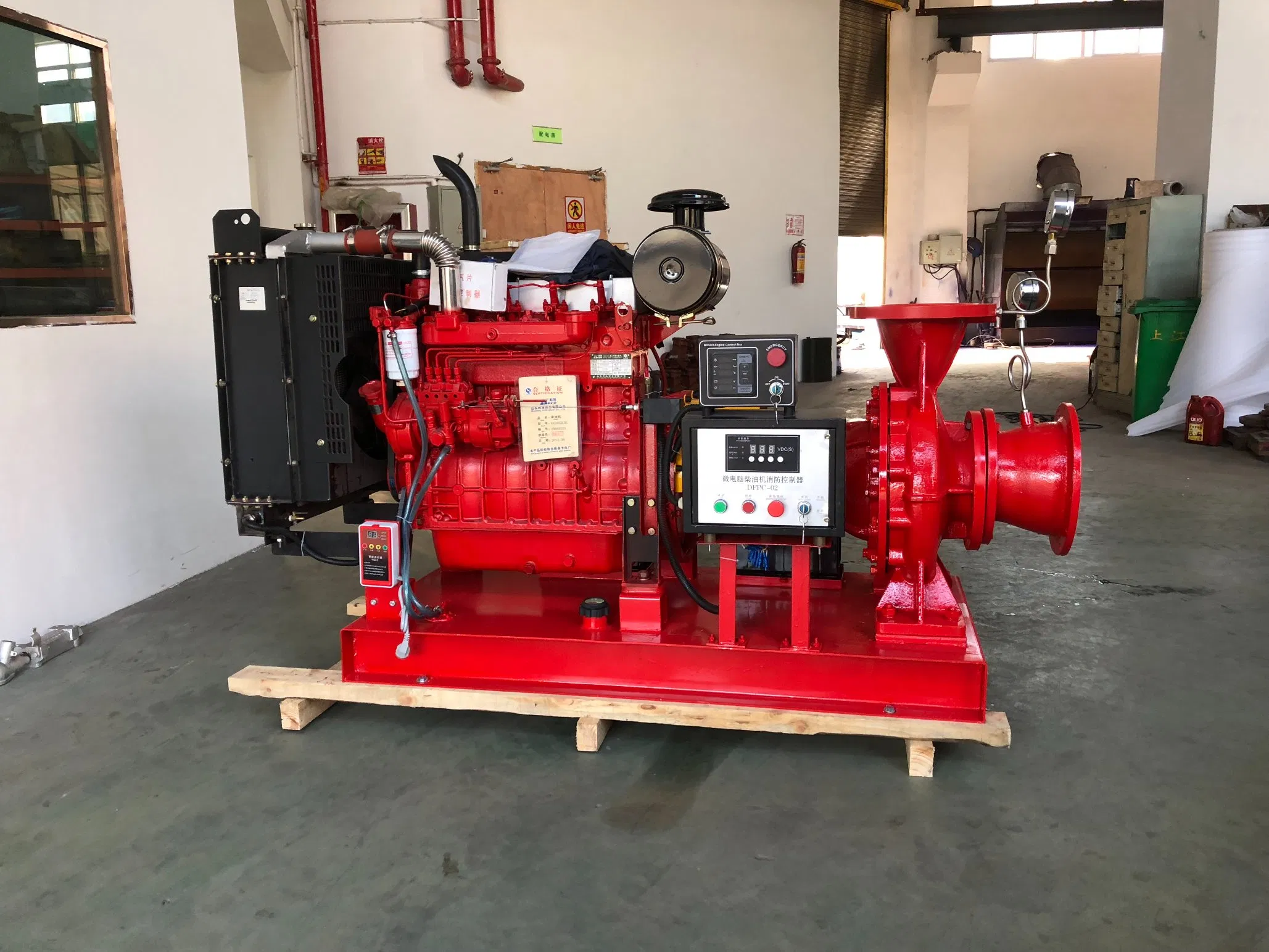

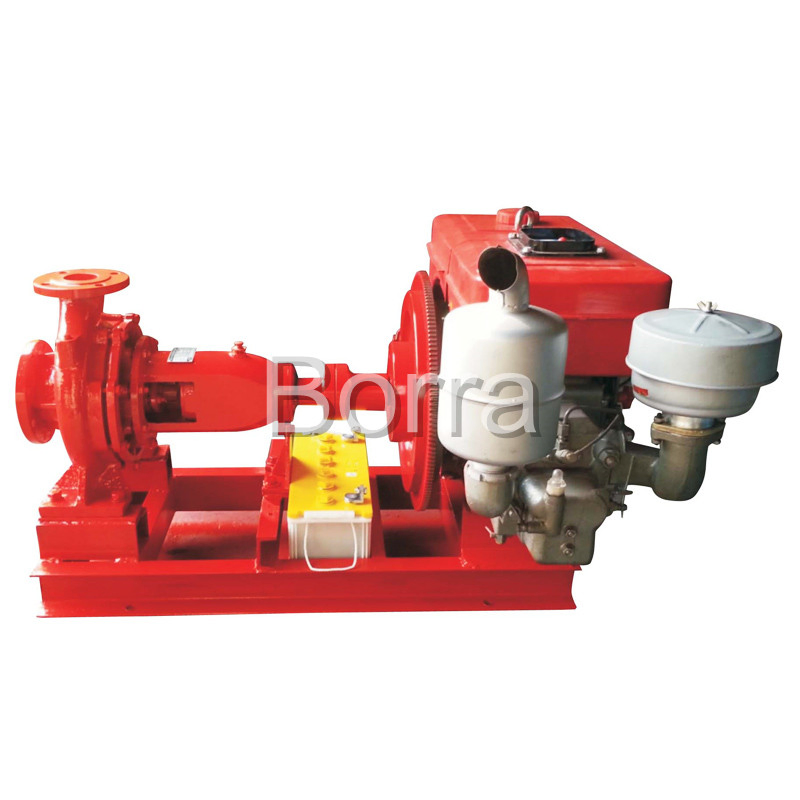

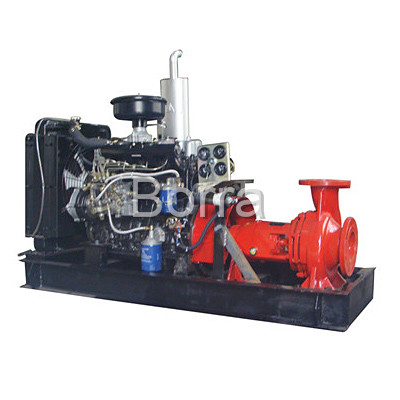

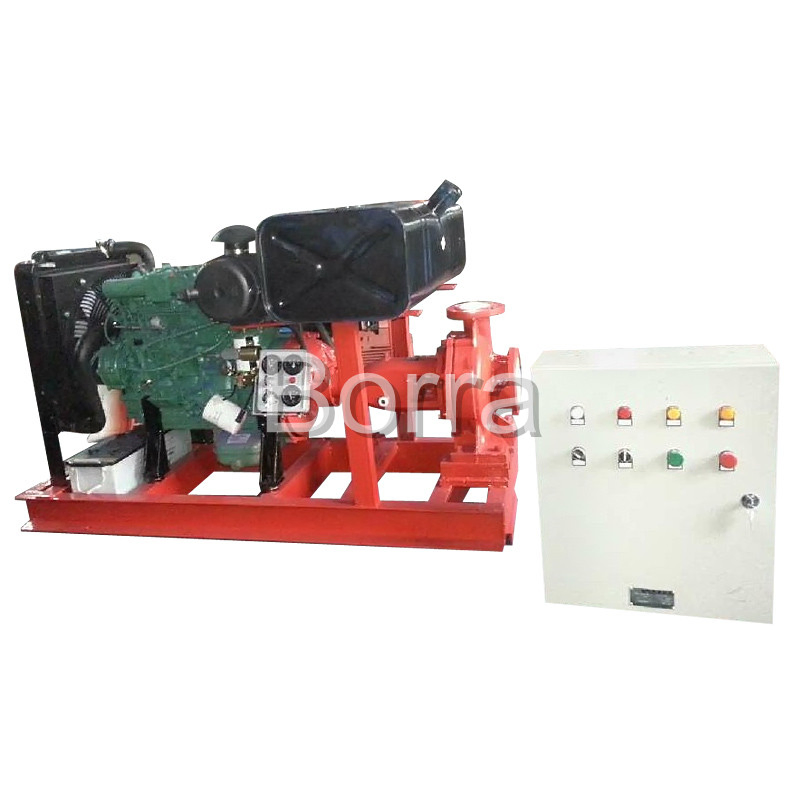

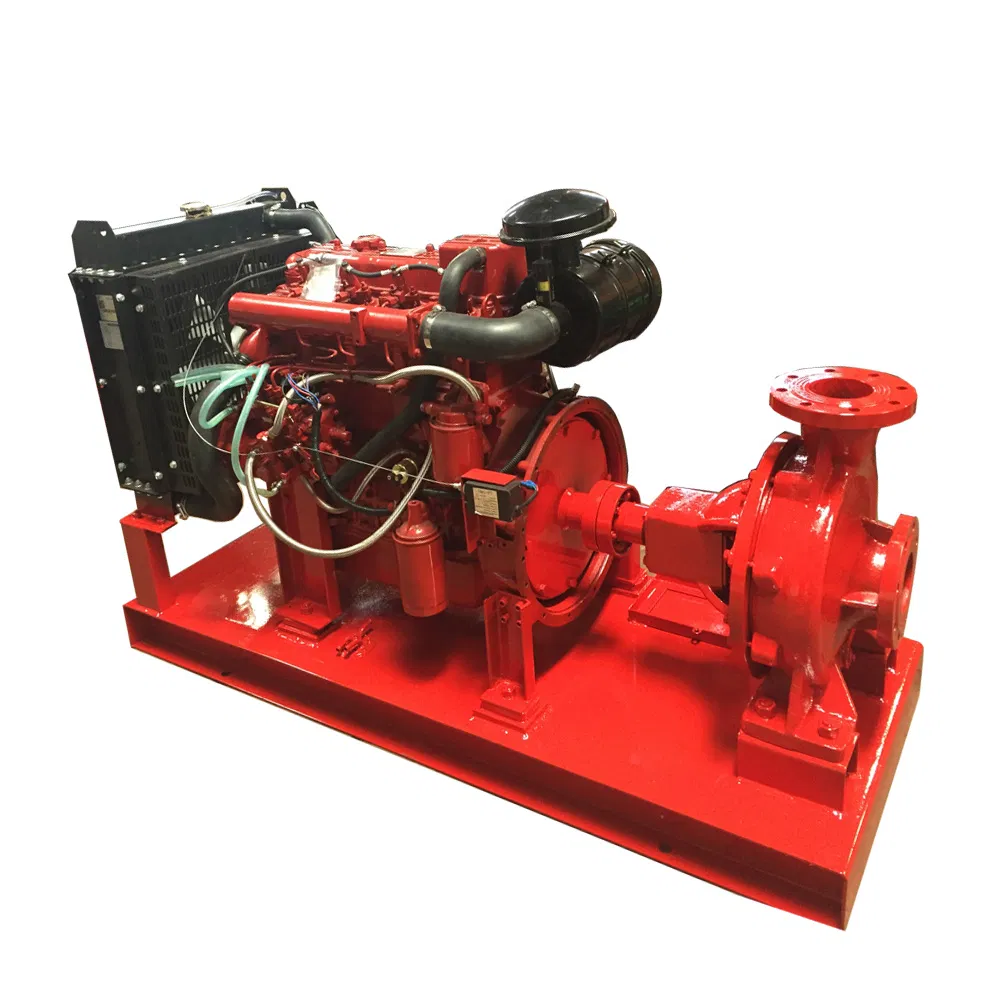

Fire Protection Diesel Engine End Section Pump Set

1 / 5

Fire Protection Diesel Engine End Section Pump Set

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.:XBC

Type:Fire Pump

Air Engine Type:Diesel Engine

Theory:Gas-hydraulic Hybrid Type

Transmission:Direct Connection

Speed:485~2200rpm

Caliber:150~650mm

Production Capacity:500 Sets

★

Diesel Engine Fire Fighting Pump Set

Global reputation: 180~5500 Cubic Meter Flow Capacity

The Diesel Engine Fire Pump features a simple structure, convenient operation, and high cost-performance. It is designed to start automatically when the power supply system fails, ensuring that firefighting work proceeds normally when electric pumps cannot operate.

Main Parameters

Parameter	Range
Flow range	10-800L/S
Pressure range	0.2-2.2MPA
Rotation speed	1500r/min, 1800 r/min, 2400 r/min, 3000 r/min
Power	≤300kw
Caliber	DN50-DN350

⚙

Technical Data Sheet

Diesel Engine Pump	Rate flow (m3/h)	Rate head (m)	Speed (r/min)	Pump Type
XBC8.0/13.9	30-50-60	84-80-75	2900	IS80-50-250
XBC7.0/13.0	47	70	2900	IS80-50-250A
XBC12.5/13.9	30-50-60	128-125-123	2900	IS80-50-315
XBC8.0/27.8	60-100-120	87-80-75	2900	IS100-65-250
XBC5.0/55.6	120-200-240	58-50-45	2900	IS125-100-200
XBC5.0/111	240-400-460	55-50-45	1450	IS200-150-400
XBC6.5/134	360-485-612	71-65-56	1450	250S65
XBC12.5/351	850-1260-1660	140-125-100	1450	350S125

✔

Product Characteristics

Three Start Modes: Manual start, Automatic mode (5-15s delay), and Emergency manual direct start.
Automatic Run: Automatically starts during power failure or phase loss of electric pumps.
Smart Indications: Monitors lubricant oil pressure, speed, charging current, and cooling water temperature.
Safeguard System: Features 3-fail start warning, ultra-speed warning, and low fuel oil level protection.
Direct Coupling: Pump is connected to the engine via coupler for compact structure and low vibration.

⚒

Installation & Service

Warranty: 1 year for the pump body, 3 months for main working parts.

Delivery: Strictly as per contract (usually within 30 working days).

On-Sales Service: Photo/video updates of the production situation.

🏭

Workshop & Packing

Frequently Asked Questions

Q1: What are the main applications for these pumps? These pumps are primarily used in fire protection systems, drainage, sewage solutions, and other industrial liquid transport applications where emergency backup is required.

Q2: How is the Diesel Engine Fire Pump delivered? Equipment is typically delivered via standard containers or bulk shipping to ensure safety during international transport.

Q3: Does the pump support automatic starting? Yes, it features an automatic start mode that triggers when the main electric power supply fails or phase loss occurs, ensuring continuous fire protection.

Q4: What is the typical lead time for an order? The delivery time usually falls within 30 working days for end suction diesel fire pumps, depending on the specific configuration and contract terms.

Q5: Can you customize the pump according to specific flow and pressure requirements? Yes, our experienced engineers can design and configure fire pump sets based on specific client requirements for flow, head, and installation conditions.

Q6: What kind of after-sales service is provided? We offer a 1-year warranty on the pump body, guide installation by experienced engineers, and provide free spare parts within the first year of operation.
