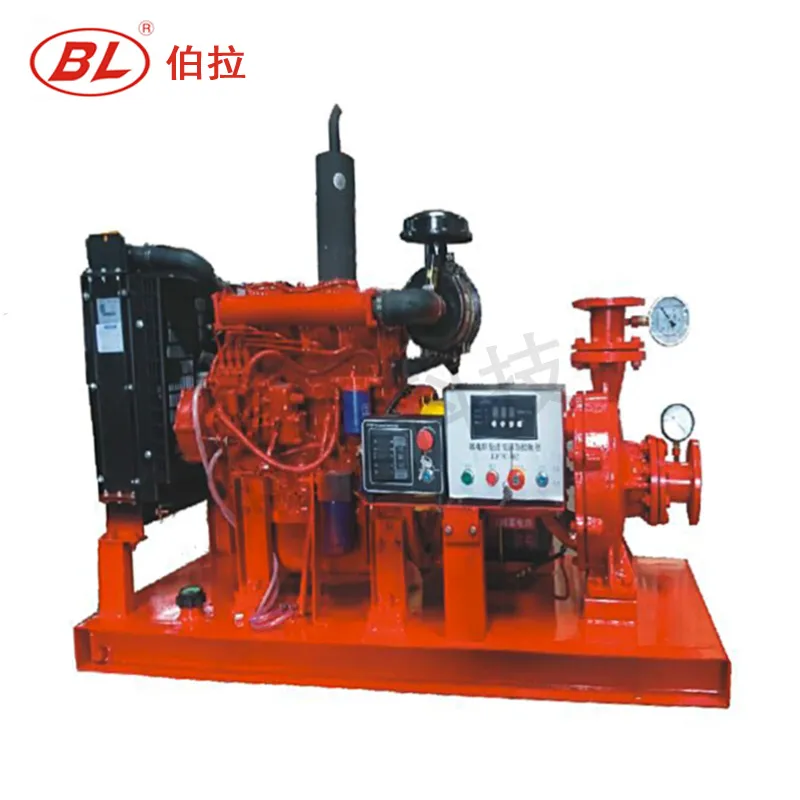

Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit
1 / 5
Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit
Fire Diesel Engine Electric Water Pump Unit

Fire Diesel Engine Electric Water Pump Unit

Customization: Available
After-sales Service: Standard
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
XBC
Max. Head
>150m
Max. Capacity
100-200 L/min
Driving Type
Motor
Material
Cast Iron
Structure
Multistage Pump
Power
Pneumatic
Start Up
Diesel Engine
Performance
Fire Pump
Application
Clarified Water Pump
Fire Pump System Overview

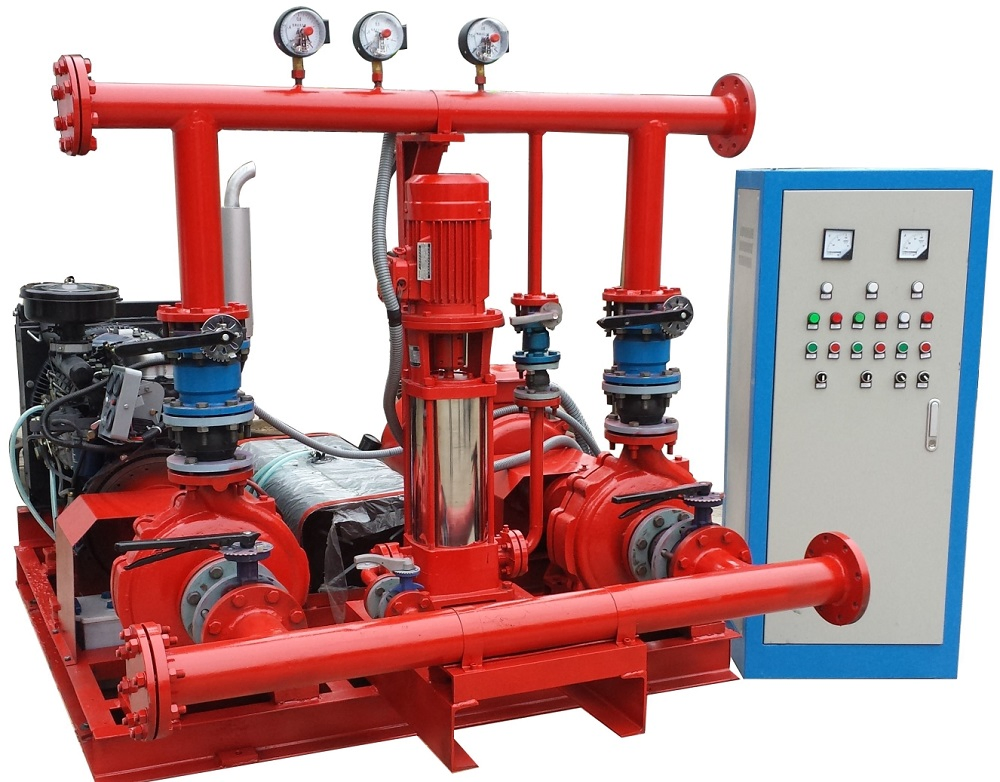

Fire Fighting Diesel Engine & Electric Water Pump Unit

This dual-power water supply unit features IS series single-stage, S/SOW series new single-stage & dual-stage, and TSWA/D series pumps. These systems are designed with a compact structure, ease of maintenance, and reliable automatic control functionality.

Fire Diesel Engine Electric Water Pump Unit

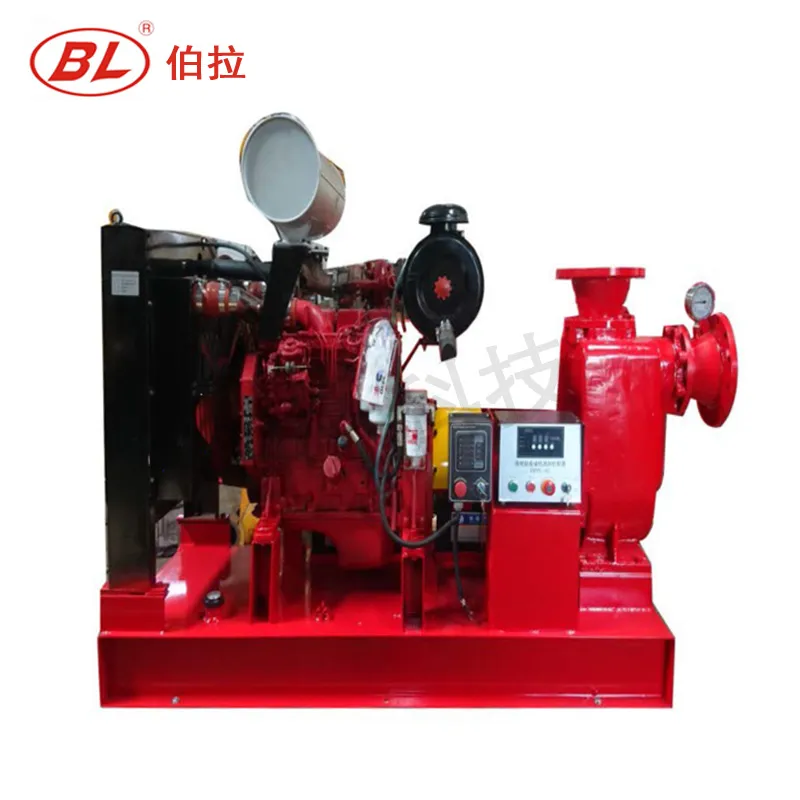

Technical Layout

Technical Parameters:

  • Flow range: 10-800L/S
  • Pressure range: 0.2-2.2MPA
  • Rotation speed: 1500r/min - 3000r/min
Key Characteristics

Start Modes:

  • Manual start: Manual/automatic interlink switching.
  • Automatic mode: Start failure warning intervals (5-10-15S).
  • Emergency manual direct start: For critical failure situations.

Smart Features:

  • Automatic Run: Switches to diesel if electric pump fails or loses phase.
  • Automatic Stop: Delayed shutdown when fire signal is deactivated.
  • Self-charging: Battery charged via charging motor.

Safety & Monitoring:

Includes a perfect indication and warning system for ultra-speed, low oil pressure, temperature fluctuations, battery voltage, and fuel levels. Direct coupling between engine and pump ensures minimal vibration and easy installation.

Technical Specifications Table
Model Flow (m3/h) Head (m) Speed (r/min) Pump Type
XBC8.0/13.930-50-6084-80-752900IS80-50-250
XBC7.0/13.047702900IS80-50-250A
XBC8.5/11.742852900IS80-50-315B
XBC12.5/13.930-50-60128-125-1232900IS80-50-315
XBC8.0/27.860-100-12087-80-752900IS100-65-250
XBC5.0/55.6120-200-24058-50-452900IS125-100-200
XBC12.5/55.6120-200-240133-125-1202900IS125-100-315
XBC5.0/111240-400-46055-50-451450IS200-150-400
System Configuration
  • Pumps: Single-stage single-suction, dual-suction, and multi-stage options.
  • Engines: Available in 1 to 12-cylinder diesel configurations.
  • Accessories: Filter muter, cooling system, fuel tank, heat-exhaust water tank, and maintenance-free batteries.
  • Control: PLC-based microcomputer automatic control cabinets.

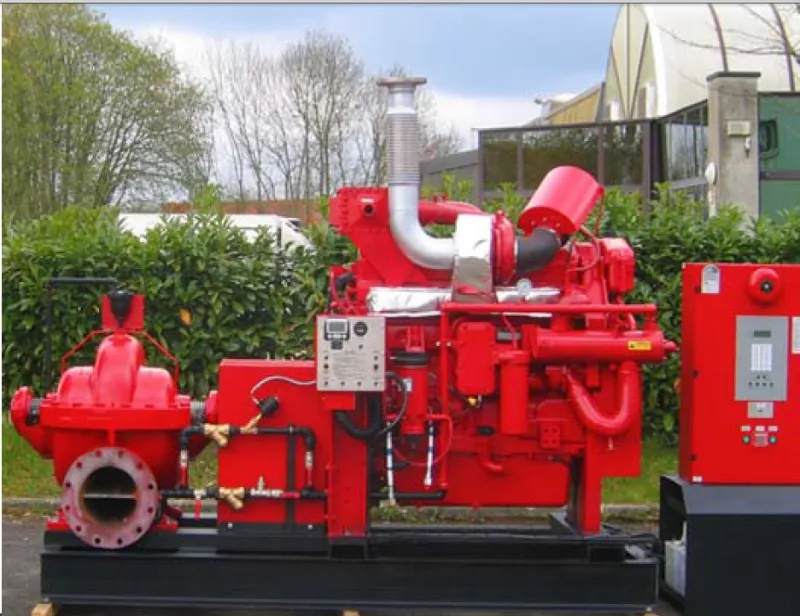

Pump Configuration
Diesel Unit
Pump Unit Detail
Service & Support
  • One year or 1000 working hours guarantee (excluding wear parts).
  • Full-day technical support via email.
  • Calling service and comprehensive user manuals.
  • Global installation guidance and maintenance services.
Frequently Asked Questions
What start modes are available for the fire pump?
The system supports three modes: Manual start, Automatic/Manual mode with failure warnings, and Emergency manual direct start for critical situations.
How does the automatic switch function work?
If the electric pump fails or loses power, the diesel engine fire pump will automatically start. It restores to the electric pump once normal power is recovered.
Can the pump flow and pressure be regulated?
Yes, using a mechanical or electronic regulator, the diesel engine rotation speed can be adjusted to calibrate the pump flow and head.
What is included in the standard accessories?
The unit includes a filter muter, cooling system, fuel tank, storage battery with charger, and an automatic control cabinet.
How are the units delivered?
The equipment can be delivered via standard containers or bulk shipping depending on the size and requirement.
What kind of maintenance is required for the batteries?
We provide maintenance-free storage batteries, which eliminate the need for frequent liquid refilling.
