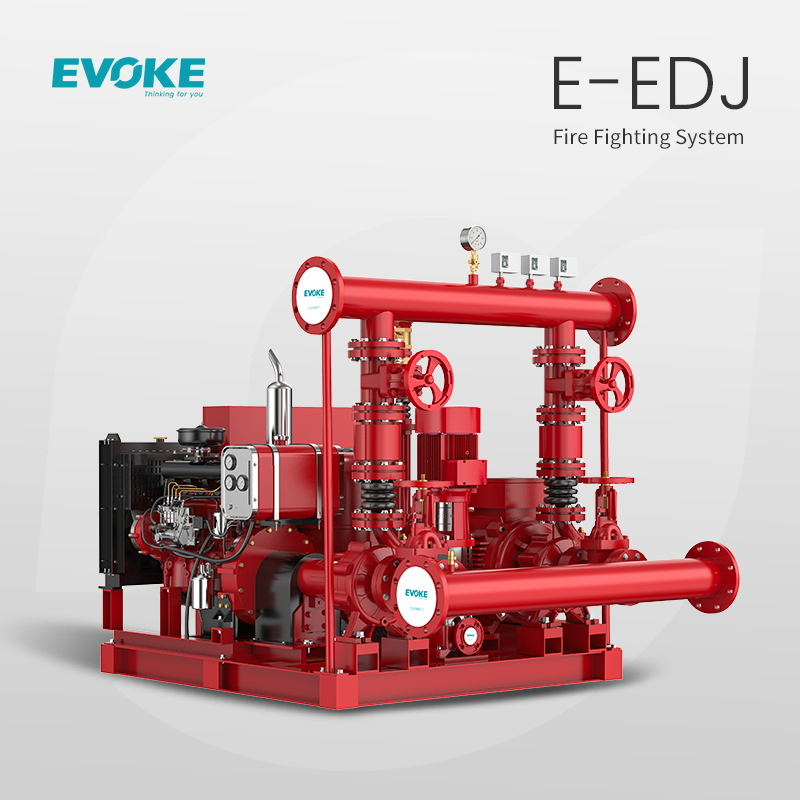

Evoke E-Edj Electric Diesel Jockey Fire Fighting System Fire Protection Nfpa20 Pump

1 / 5

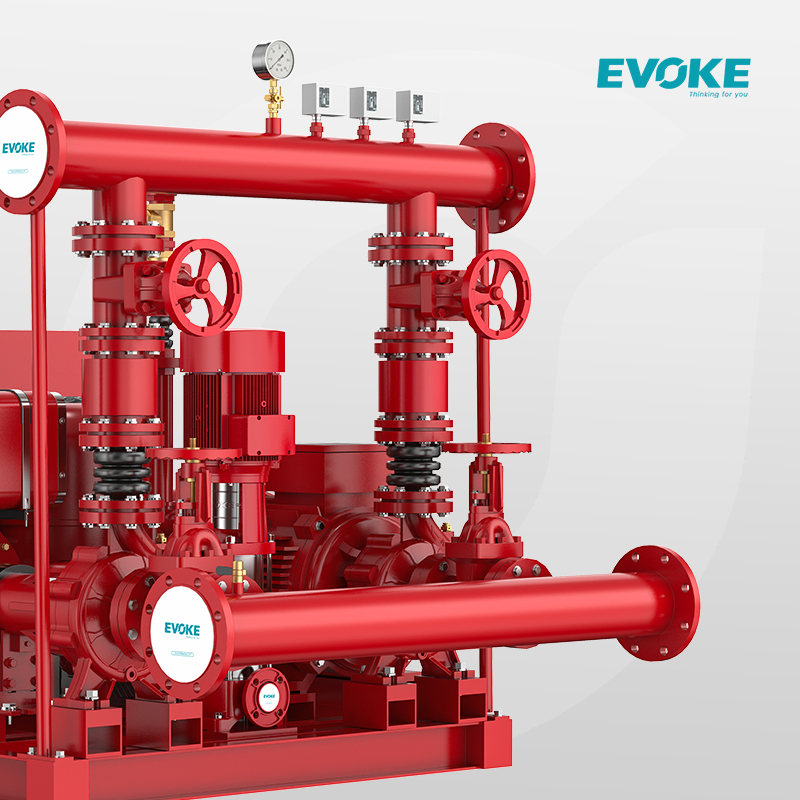

Evoke E-Edj Electric Diesel Jockey Fire Fighting System Fire Protection Nfpa20 Pump

Customization:	Available
After-sales Service:	Warranty Free Accessories (Not Man-Made)
Warranty:	18 Months

Send Inquiry

Product Description

⚙️ Basic Info.

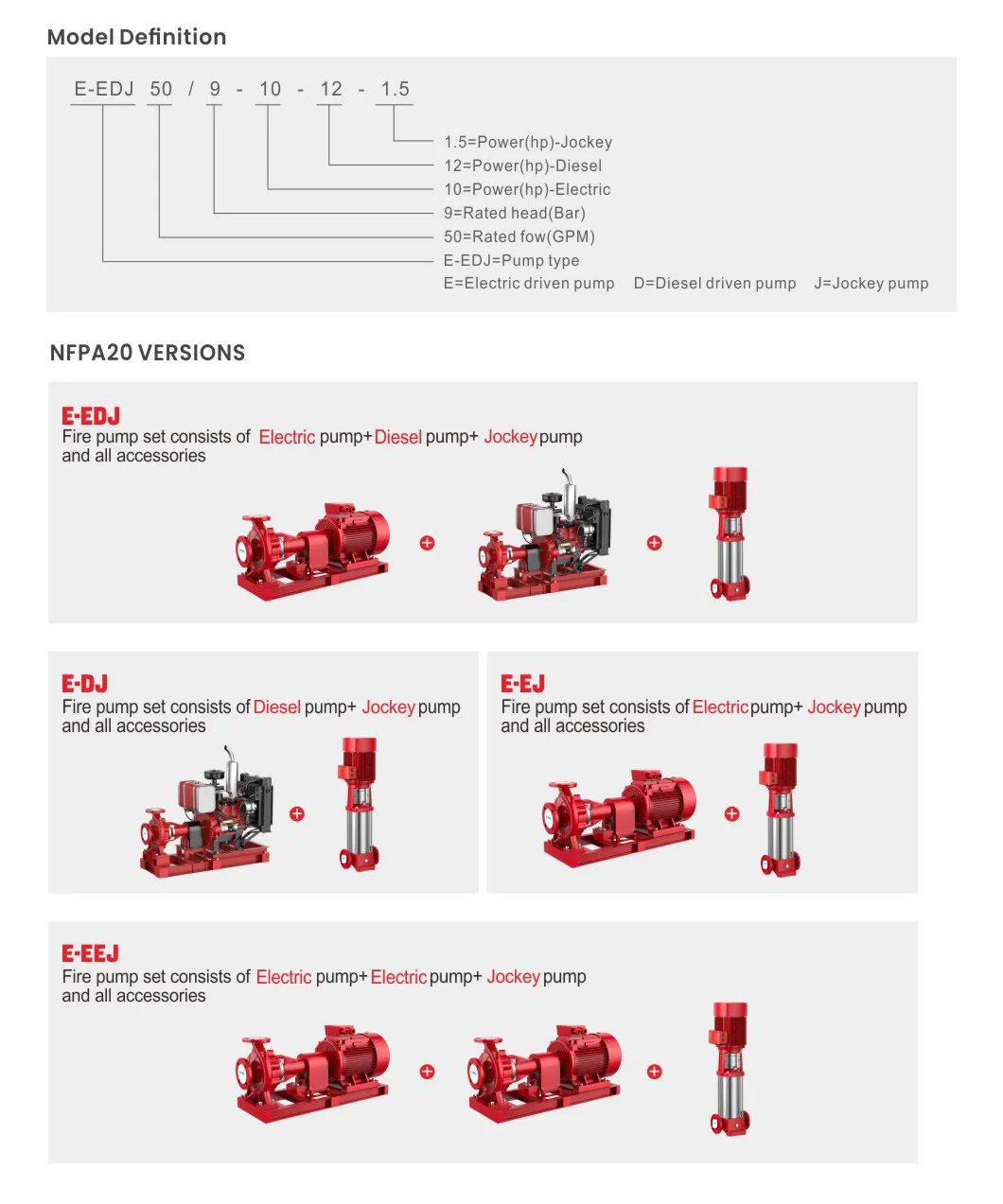

Model NO.

E-EDJ

Max.Head

110m-150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Booster Pump

Power

Electric

Start Up

Electric Pump

Type

Fire Pump

Application

Industrial Pump

Industry

Industrial Pump

Media

Clean Water

Performance

Centrifugal Pump

Theory

Centrifugal Pump

Transport Package

Wooden Box

Specification

Cast iron pump body with motor

Origin

China

HS Code

841370

Production Capacity

2000/Month

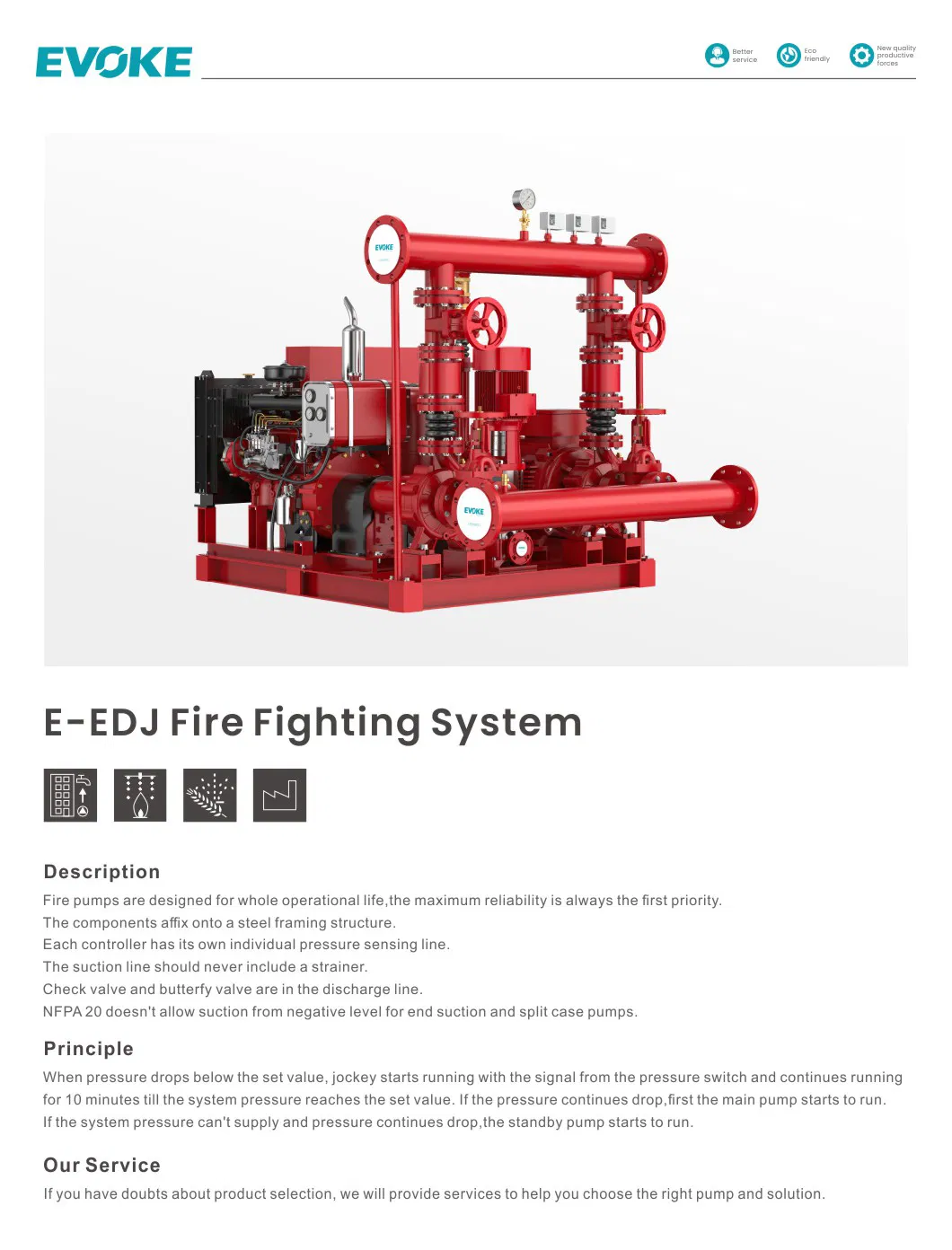

📋 Product Overview

When pressure drops below the set value, jockey starts running with the signal from the pressure switch and continues running for 10 minutes till the system pressure reaches the set value. If the pressure continues to drop, first the main pump starts to run. If the system pressure can't supply and pressure continues to drop, the standby pump starts to run.

Product Feature:
A wide range of fire pumps and fire units are available, including vertical pipeline pumps, vertical multistage pumps, horizontal end suction pumps, horizontal double suction pumps, fire booster units, fire stabilization units, fire control cabinets, etc. It can be used in fire hydrants, fire hoses, fire sprinklers and other fire fighting systems that need to pressurize water supply.

Fire pump and fire unit products meet GB 6245-2006 fire pump national standard.
Fire pump and fire unit products comply with CCCF.

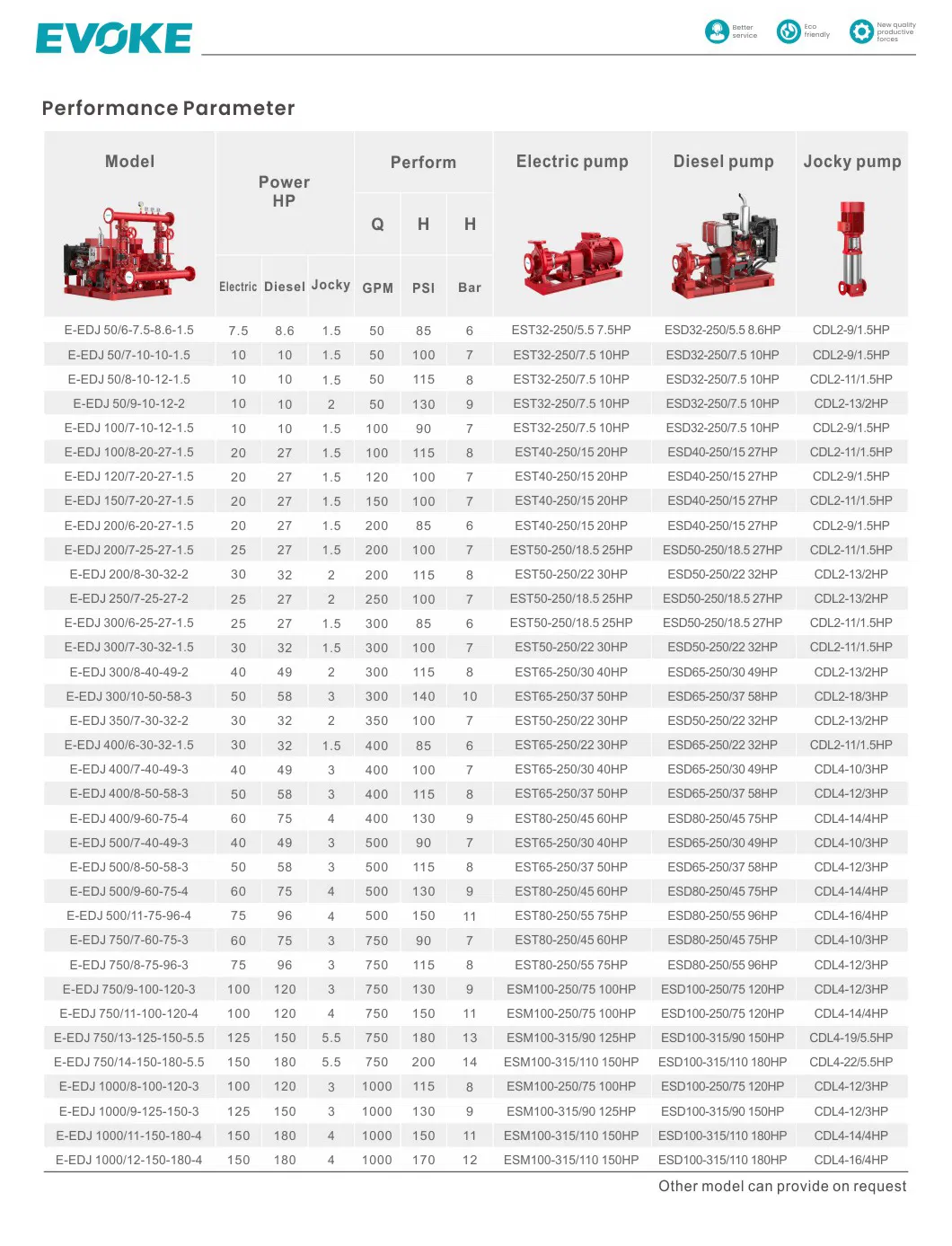

Technical Parameters:
Max flow: 200L/s
Max head: 300m

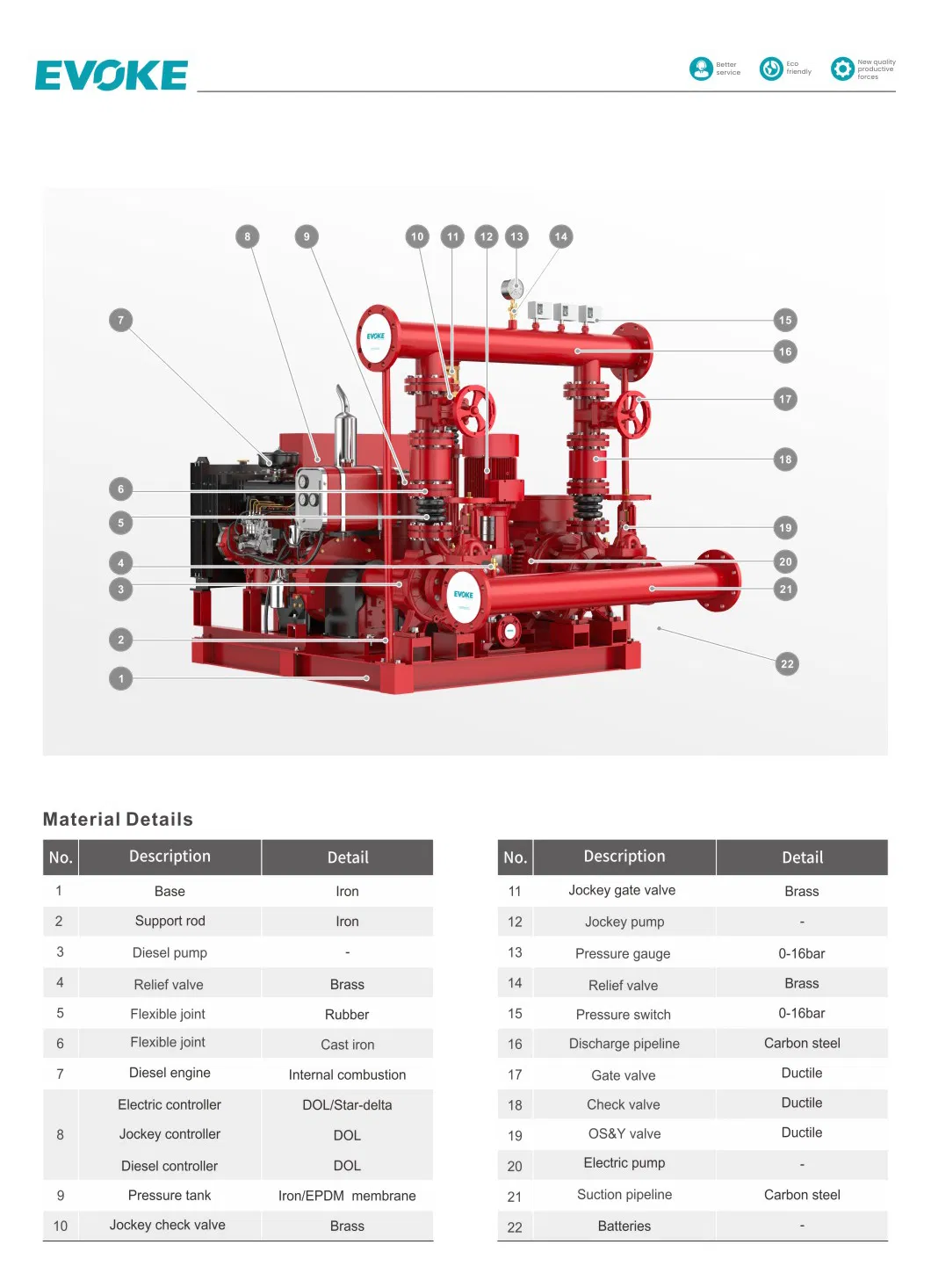

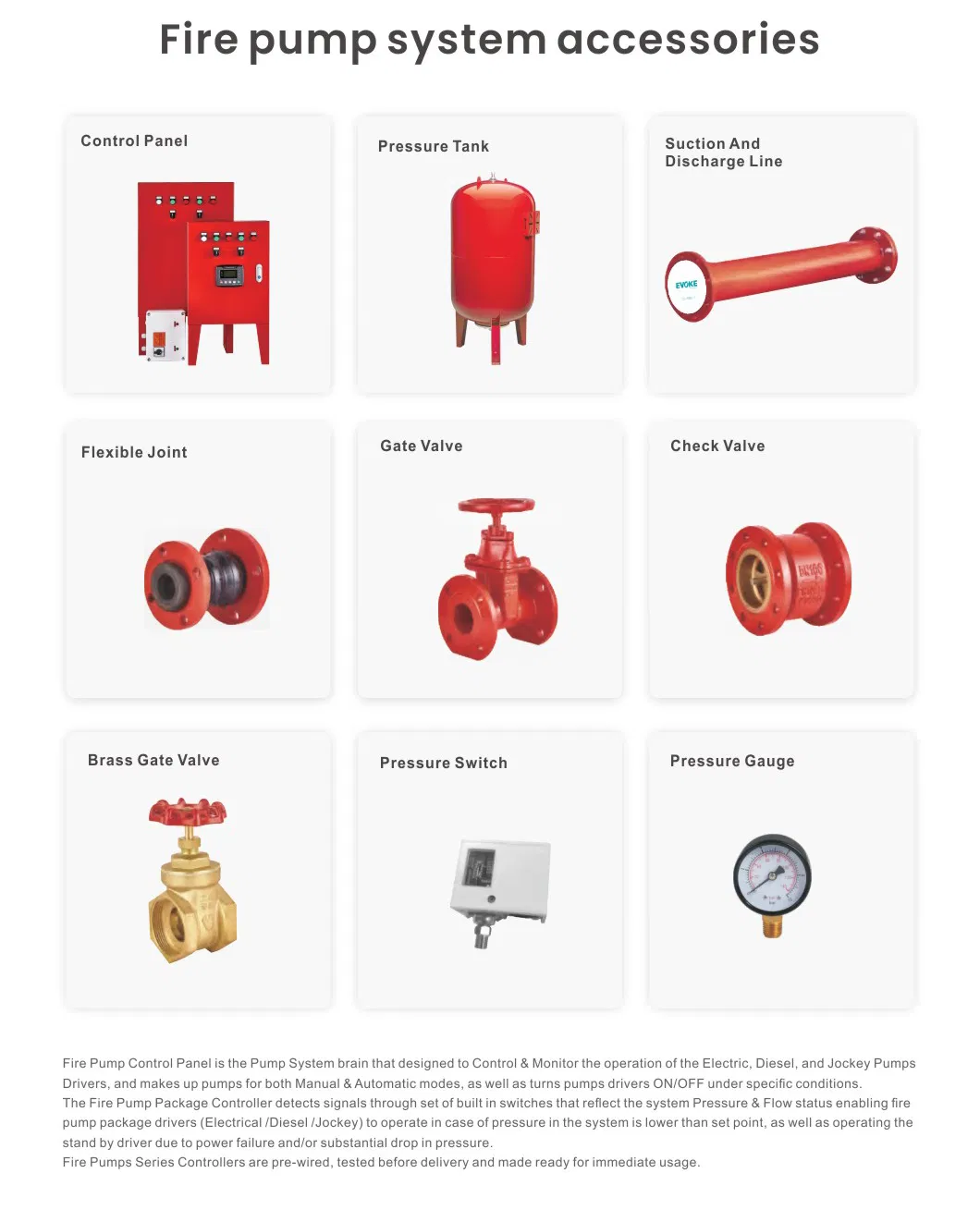

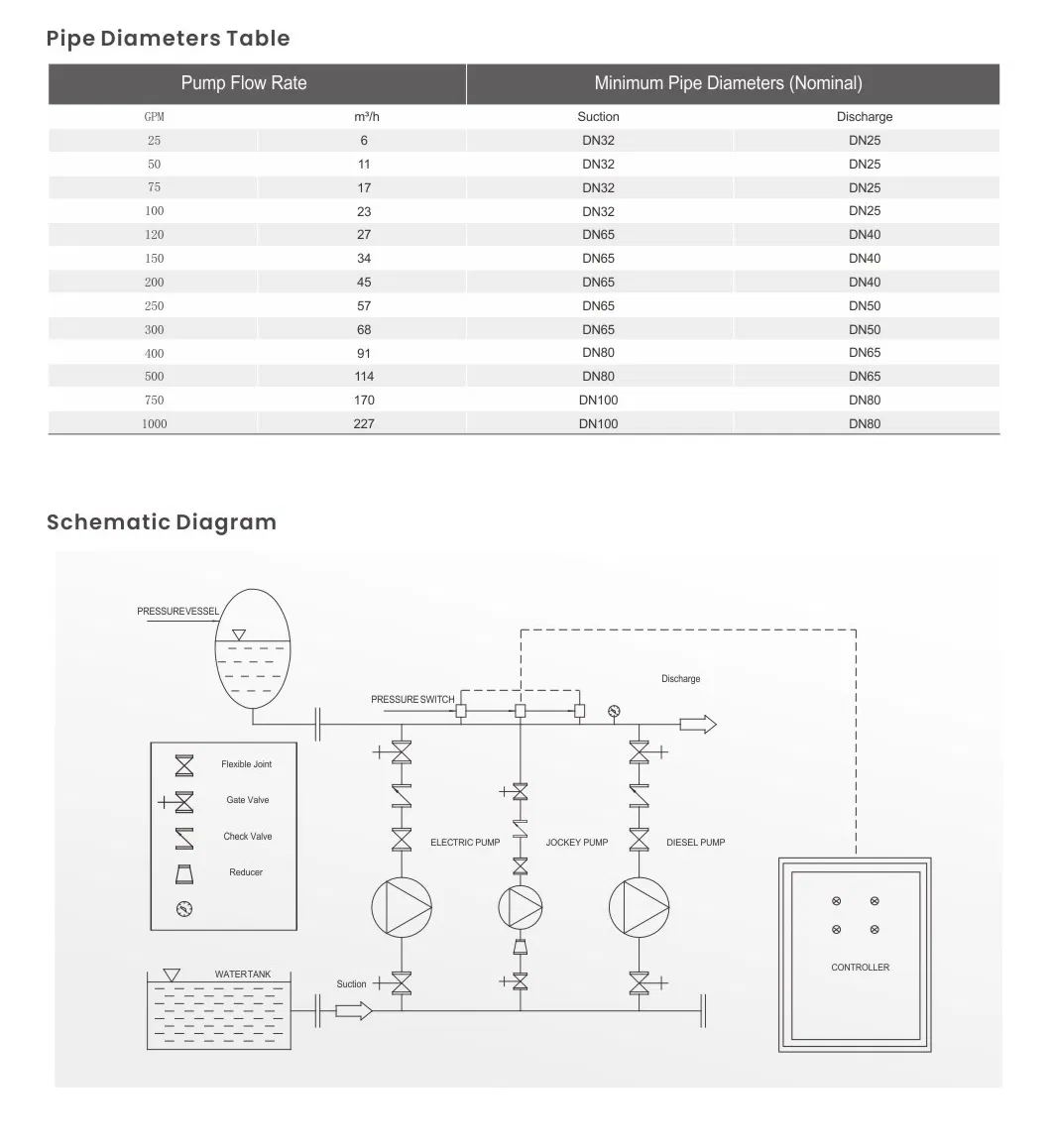

📦 Bill Of Materials

ℹ️ About System Details

❓ Frequently Asked Questions

How does the jockey pump in the E-EDJ system operate?

The jockey pump starts automatically when the system pressure drops below a set value. It continues to run for 10 minutes until the pressure reaches the target value.

What happens if the pressure continues to drop after the jockey pump starts?

If the pressure continues to fall, the main pump will trigger. If the system still cannot meet the demand, the standby pump will then activate.

What standards do these fire pump units comply with?

All units meet the GB 6245-2006 national standard for fire pumps and are fully compliant with CCCF regulations.

What are the maximum technical specifications for this series?

The system supports a maximum flow rate of 200L/s and a maximum head of up to 300m.

What types of pumps are included in the fire unit range?

The range includes vertical pipeline pumps, vertical multistage pumps, horizontal end suction pumps, horizontal double suction pumps, and specialized fire control cabinets.

What materials are used for the pump construction?

The pump body is typically constructed from high-quality cast iron, designed for industrial-grade durability in clean water media.
