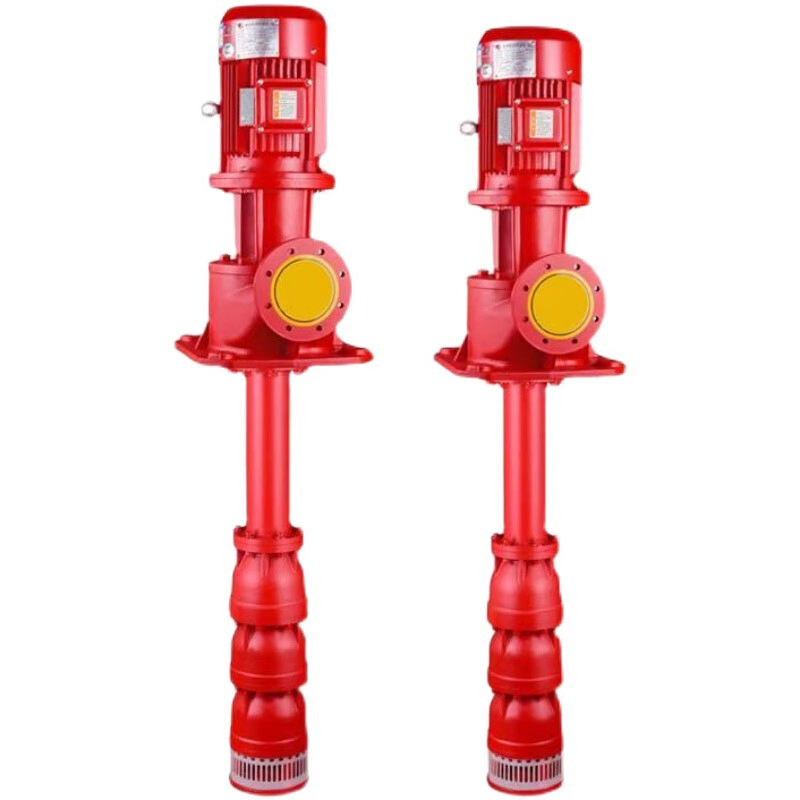

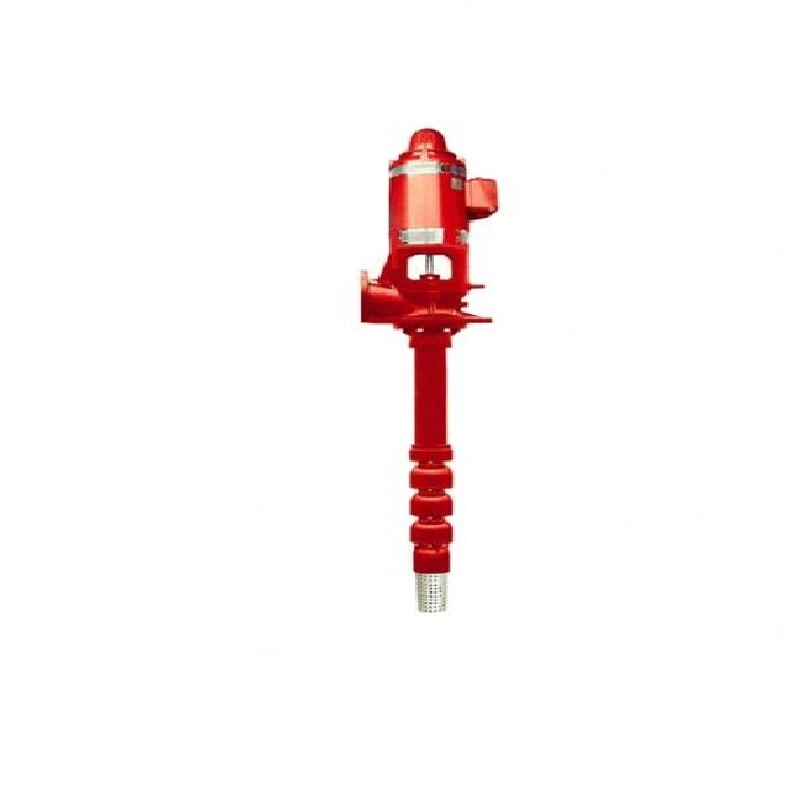

LP/LC Type XBC/XBD vertical long shaft fire fighting pumps are series of single stage, multistage diffusers pumps. These products are ideally suited for substations, oil depots, piers, and oil drilling platforms. They are essential units for firefighting where running water supply is limited, featuring a compact design that occupies minimal area. Developed from leading domestic and international hydraulic models, they are designed to transfer clear water or sea water with temperatures below 55°C.

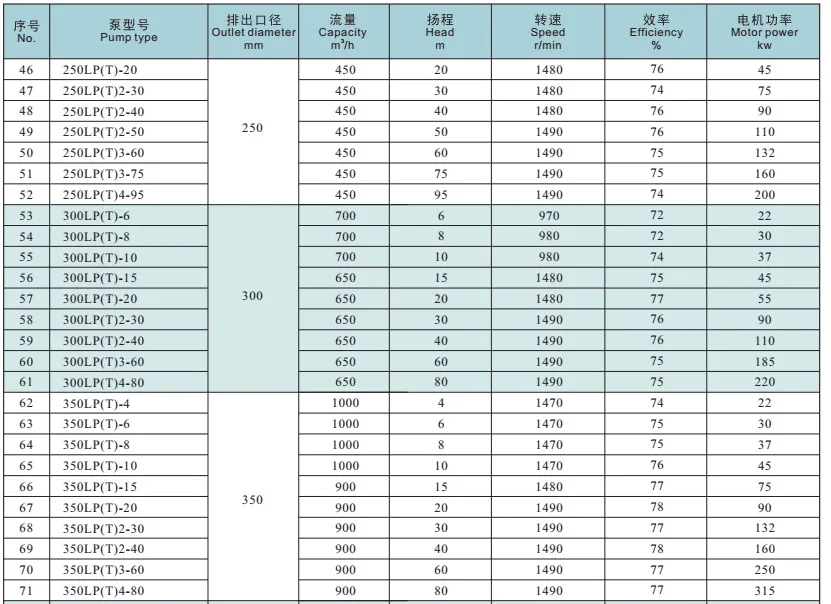

Technical Parameters (50Hz / 60Hz)
Capacity: Up to 400L/s
Lift Head: Up to 172m
Rotary Speed: 590r/min up to 3600r/min
Drive Power: Up to 2000kw

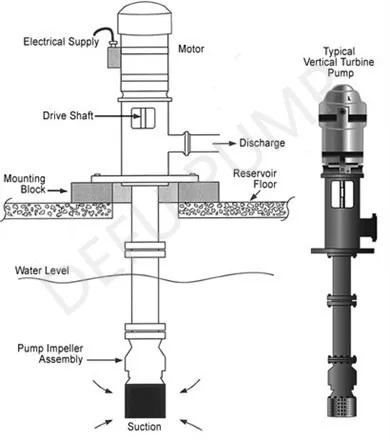

Pump Structure & Key Features
Conforms to standard JB/T8096-1998 for vertical submerged centrifugal pumps.
Double bearing support system to improve reliability and operational stability.
Optimized hydraulic model to better adapt to various industrial applications.
Adjustable immersion depths; suction pipes can be added for depths exceeding 1.5m.
Low linear speed design specifically for heavy slurry to extend pump lifecycle.
Available in different anti-abrasive materials for specialized environments.
Applications & Service
Service Commitments:

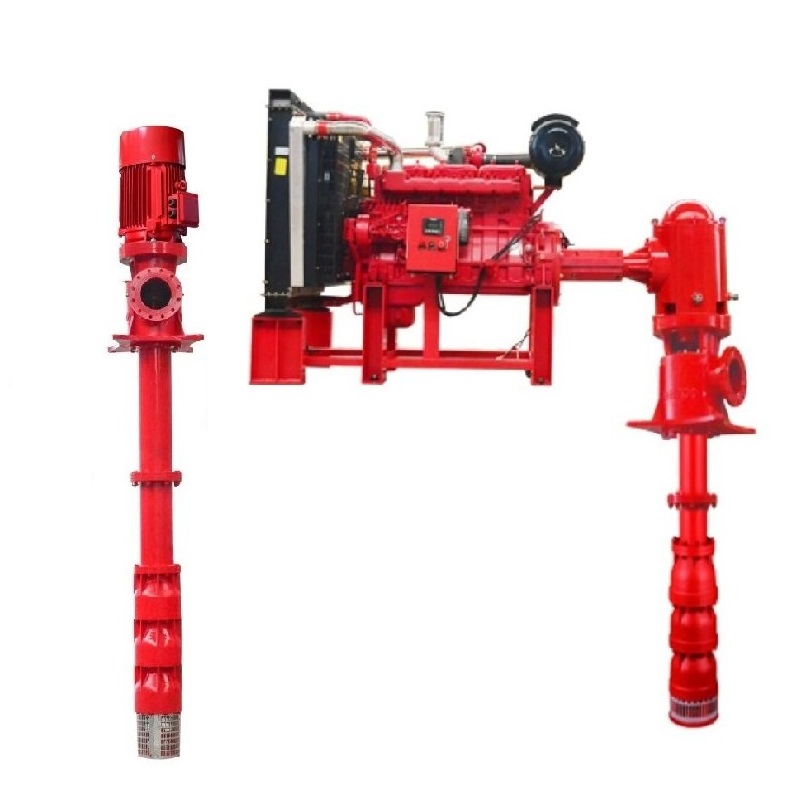

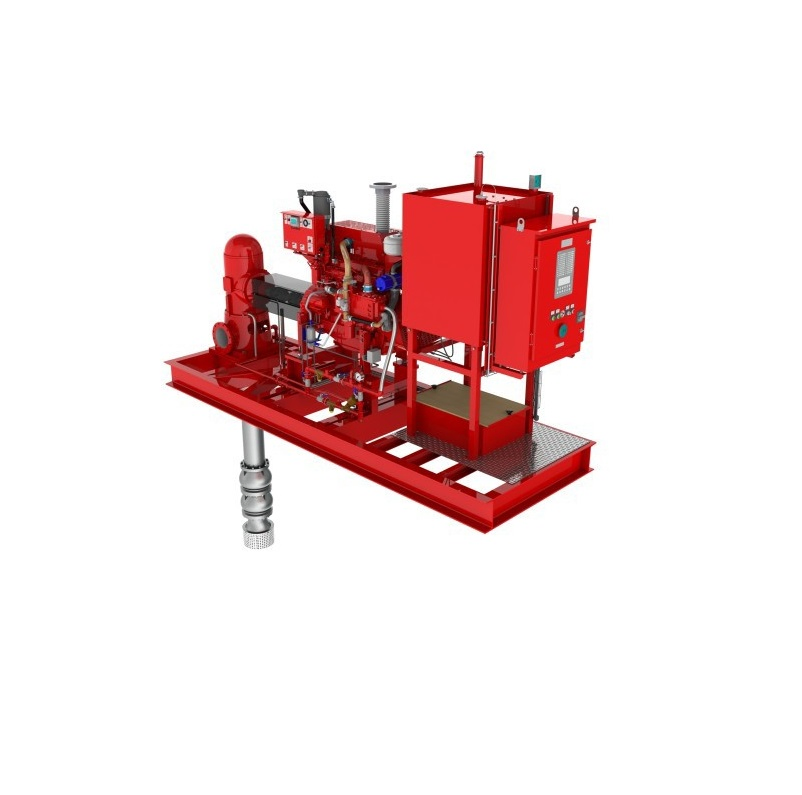

• Delivery: Timely delivery as per contract. Electric pumps approx. 20 working days; Diesel pumps approx. 35 working days.
• Warranty: 12 months for the pump body, 3 months for main working parts.
• Packaging: Durable plywood cases suitable for ocean transport.
• Quality Assurance: Full testing before delivery and performance follow-ups every three months post-installation.
Frequently Asked Questions
What types of liquids can the LP/LC fire fighting pump handle?
The pump is designed to transfer clear water and sea water with temperatures below 55°C.
What is the standard delivery time for these pumps?
Standard electric vertical turbine pumps typically take 20 working days, while diesel engine driven pumps take approximately 35 working days.
Are these pumps suitable for offshore platforms?
Yes, they are specifically designed for applications like oil drilling platforms, piers, and oil depots where space is limited and reliability is critical.
What materials are available for the pump construction?
We offer multiple material options including Cast Iron, SS304, and SS316 to suit different environmental requirements.
What is the maximum capacity and head of this series?
The series can reach a capacity of up to 400L/s and a lift head of up to 172 meters.
How is the pump packaged for international shipping?
All pumps are packed in durable export-grade plywood cases to ensure safety during ocean transport.
