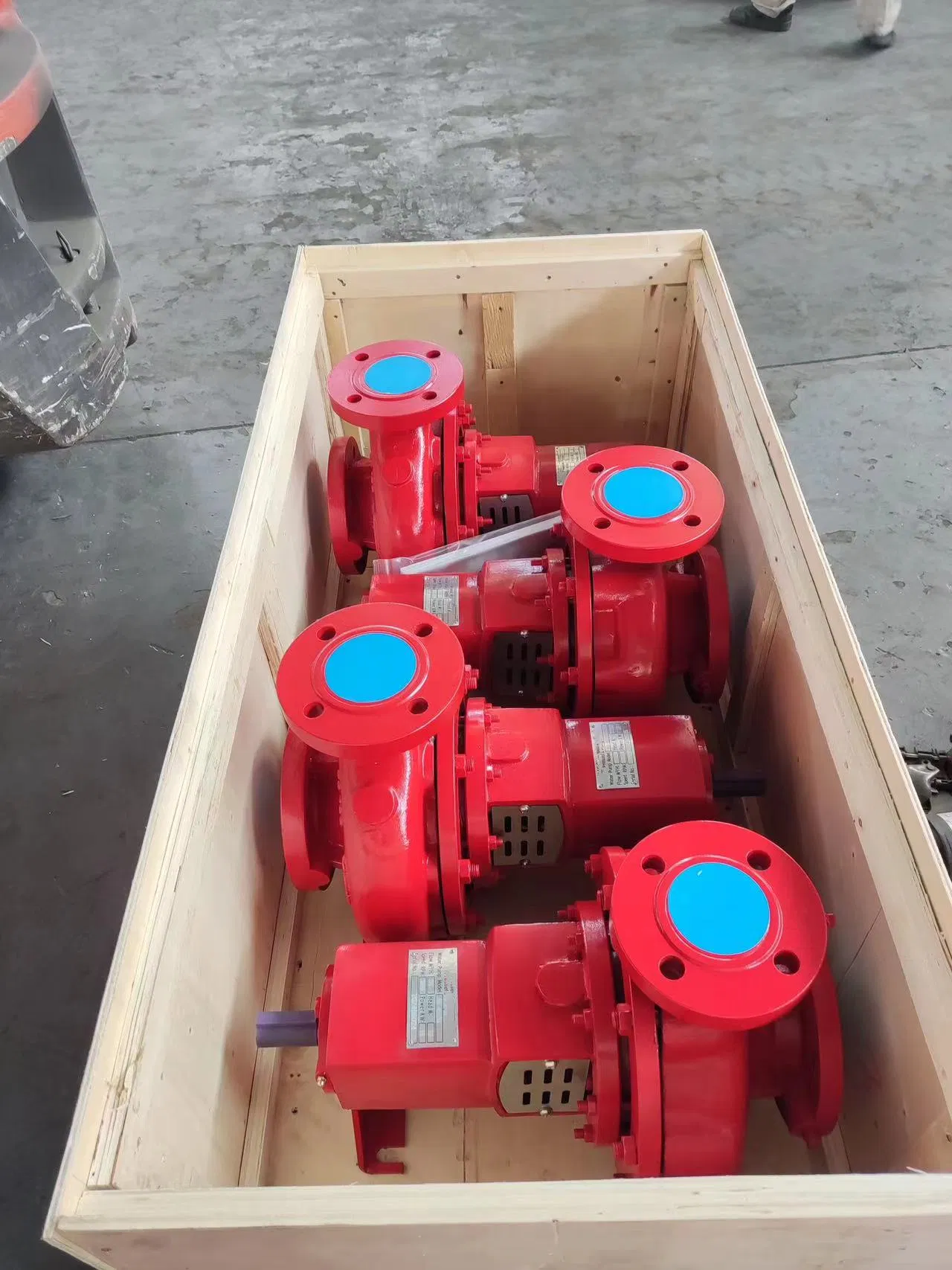

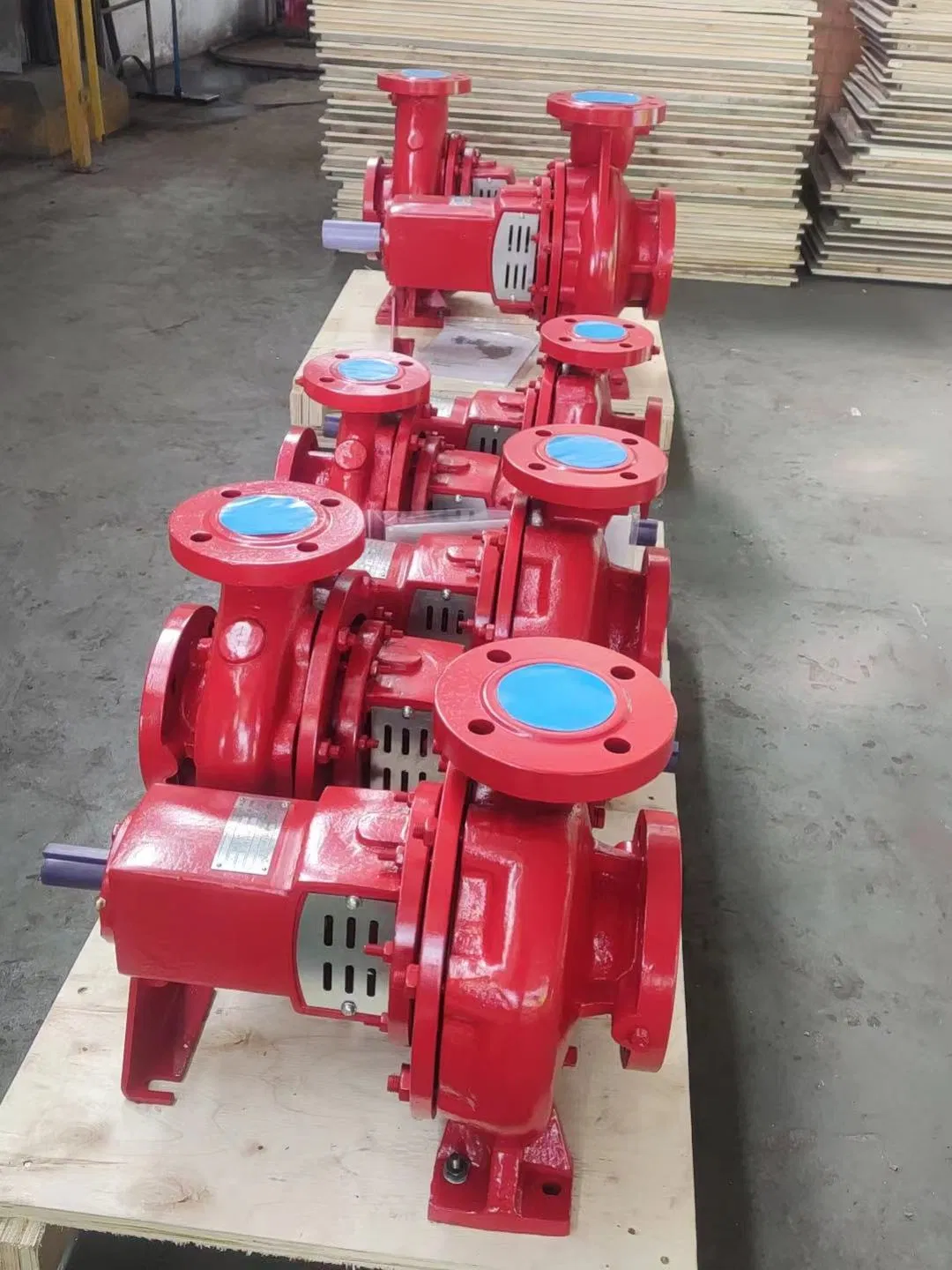

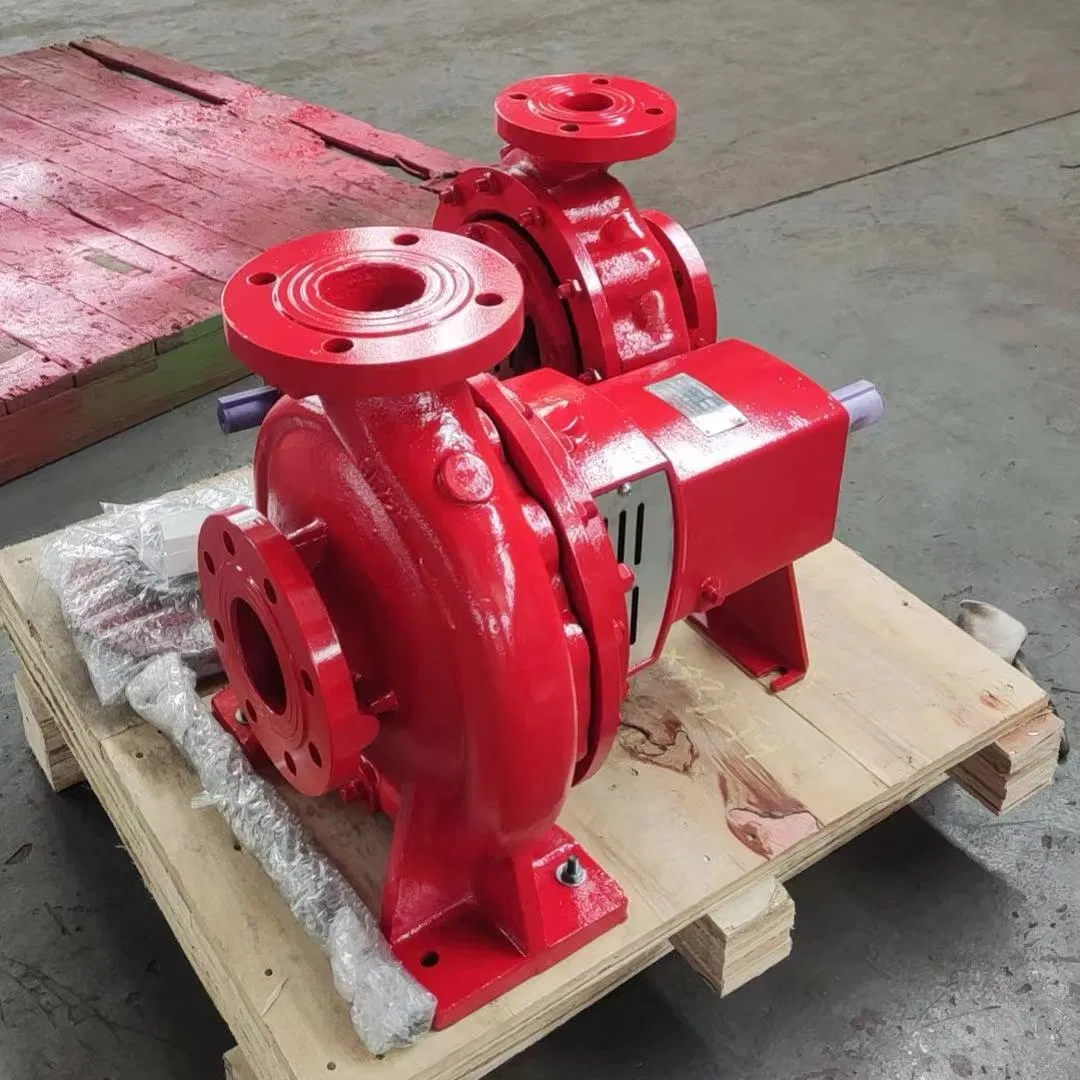

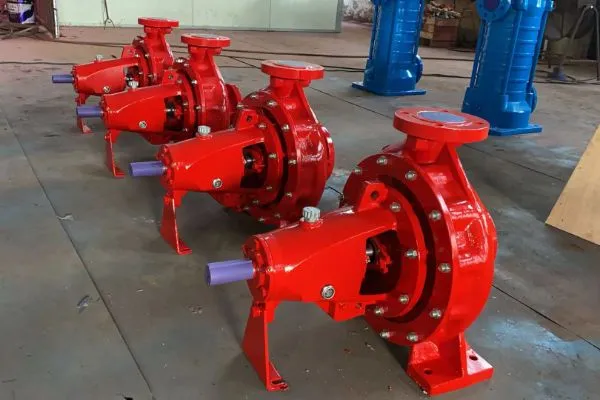

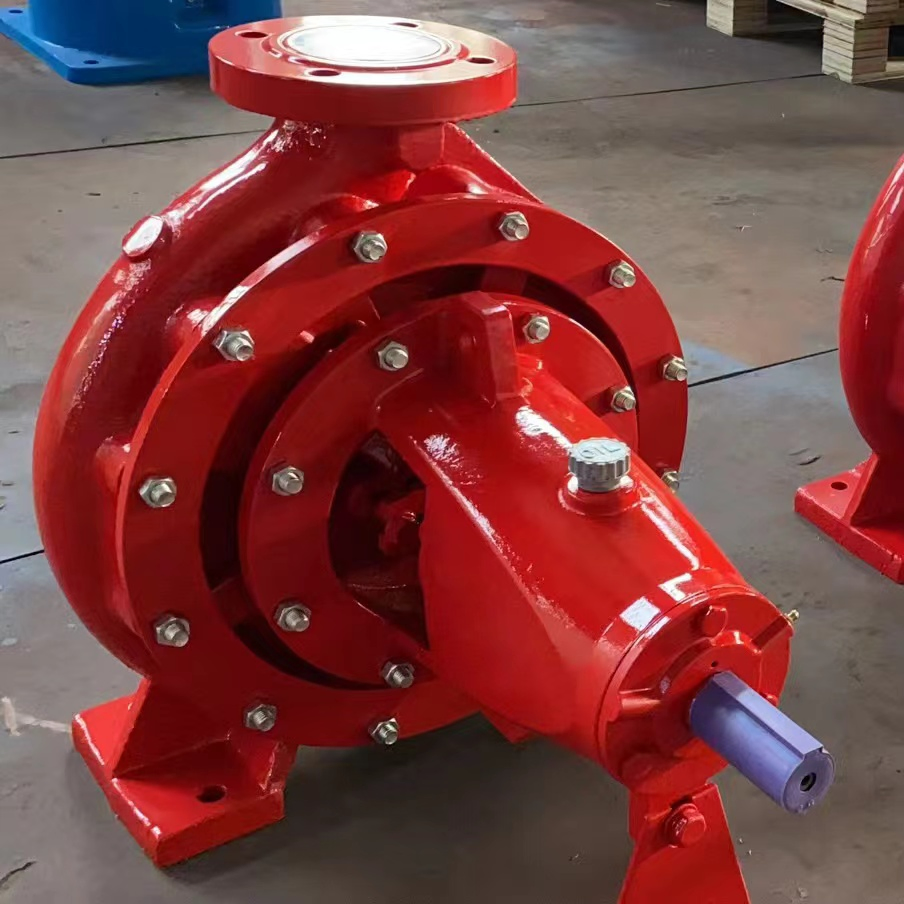

End Suction Centrifugal Fire Fighting Water Pump 32/26 (Normal or NFPA20 Standard)

1 / 5

End Suction Centrifugal Fire Fighting Water Pump 32/26 (Normal or NFPA20 Standard)

Customization:	Available
After-sales Service:	After Sales
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO.

32/26

Max.Head

110m-150m

Max.Capacity

200-300 L/min

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

Middle Pressure Pump

Influent Type of Impeller

Single Suction Pump

Position of Pump Shaft

Horizontal Pump

Pump Casing Combined

Verticaljoint Surface Pump

Mounting Height

Suction Centrifugal

Impeller

Open

Usage

Pump, Fire Figting

Transport Package

Wooden Case

Specification

1.3x0.97x0.76

Origin

China

HS Code

8413709990

Production Capacity

30000 PCS Year

Product Description

XA pump introduced the technology from Germany and made under DIN standard. The pump has the following characteristics:

1) Speed: 1450rpm, 1800rpm or 2900rpm
2) Capacity: From 15-1000m3/h
3) Head: From 15-150m
4) Pump Inlet Diameter: From 50mm-350mm (2"-14")
5) Pump Outlet Diameter: From 32mm-300mm (1-1/2"-12")
6) Max Water Temperature: 105 degree celsius
7) Shaft Seal: Packing or mechanical seal
8) Working Pressure: 1.6mpa
9) We have different material impeller, shaft.
10) The pump has more than 70 models.

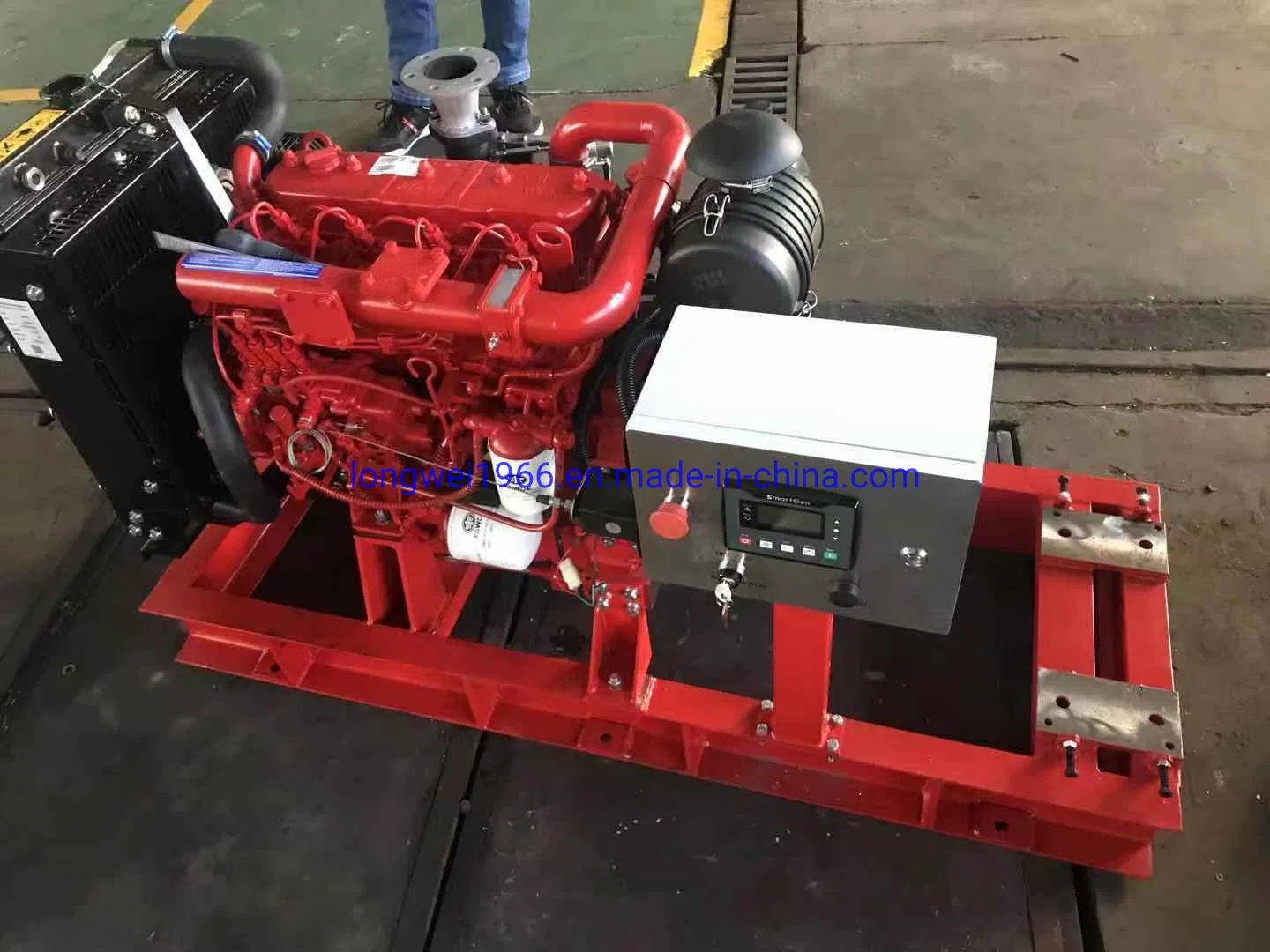

We can also supply power for these water pumps. You can see our diesel engines in our homepage.

Model	Capacity(m3/h)	Head(m)	Speed(r/min)	Motor Power(kW)	Intake Dia. (mm)	Exhaust Dia. (mm)	Weight(kg)
XA32/13	15	21	2900	2.2	50	32	29
XA32/13A	14	18	2900	1.5	50	32	29
XA32/13B	13	15	2900	1.5	50	32	29
XA32/16	17	35	2900	4	50	32	37
XA32/16A	17	31	2900	4	50	32	37
XA32/16B	16	27	2900	3	50	32	37
XA32/20	18	56	2900	7.5	50	32	42
XA32/20A	17	52	2900	7.5	50	32	42
XA32/20B	16.5	46	2900	5.5	50	32	42
XA32/26	22	90	2900	15	50	32	62
XA32/26A	21	84	2900	15	50	32	62
XA32/26B	20.5	77	2900	15	50	32	62
XA40/13	30	22	2900	4	65	40	32
XA40/13A	28	19	2900	3	65	40	32
XA40/13B	26	16	2900	2.2	65	40	32
XA40/16	30	33	2900	5.5	65	40	37
XA40/16A	28.5	28.5	2900	5.5	65	40	37
XA40/16B	26.5	25.1	2900	4	65	40	37
XA40/20	30	55	2900	11	65	40	46
XA40/26	33	90	2900	18.5	65	40	64
XA50/13	60	21.5	2900	5.5	65	50	37
XA50/16	65	37	2900	11	65	50	40
XA50/20	60	54.5	2900	15	65	50	49
XA50/26	65	89	2900	30	65	50	67
XA65/13	100	21	2900	11	80	65	40
XA65/20	110	55	2900	30	80	65	72
XA80/16	162	33	2900	22	100	80	56
XA100/20	285	50	2900	75	125	100	87
XA125/20	360	46	2900	75	150	125	108

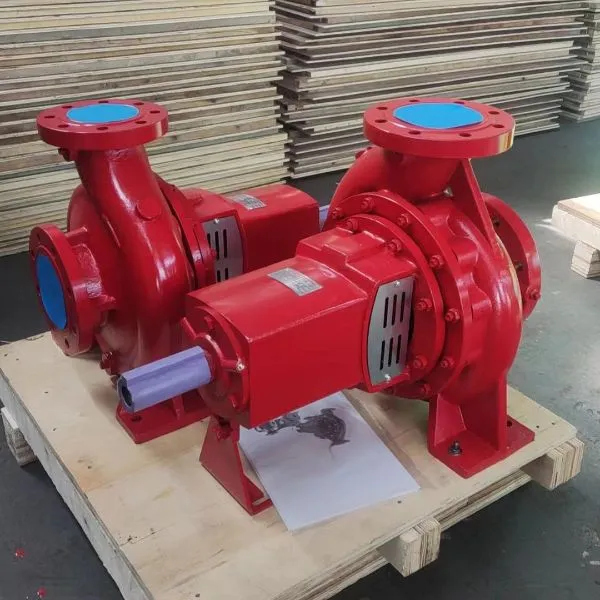

End Suction Centrifugal Fire Fighting Water Pump

Frequently Asked Questions

What standard is the XA centrifugal pump manufactured under?

The XA series pumps are introduced using German technology and are manufactured according to the DIN standard.

What is the maximum water temperature these pumps can handle?

The maximum allowable water temperature for the XA pump series is 105 degrees Celsius.

What types of shaft seals are available?

Depending on your requirements, the pumps can be equipped with either a soft packing seal or a mechanical seal.

What is the range of capacity and head for the XA series?

The capacity ranges from 15 to 1000m3/h, and the head ranges from 15 to 150 meters.

Are there different speed options available for these pumps?

Yes, the pumps support multiple speeds including 1450rpm, 1800rpm, and 2900rpm.

What materials are used for the internal components?

We offer various material options for the impeller and shaft to suit different liquid properties and working conditions.
