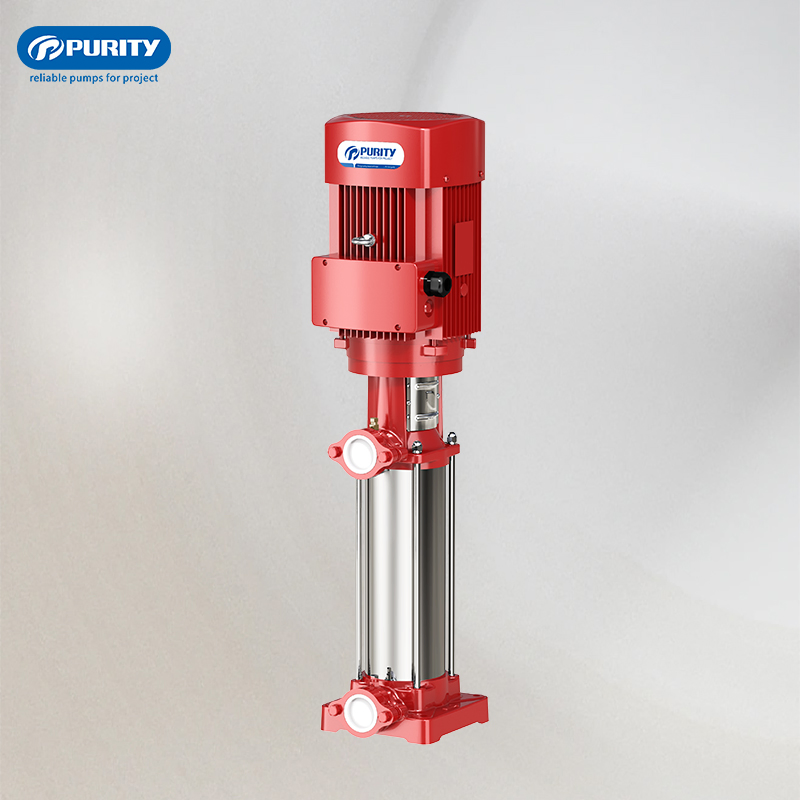

7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
1 / 5
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting
7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting

7.5HP 15HP Electric Vertical Multistage Centrifugal Water Pump for Fire Fighting

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

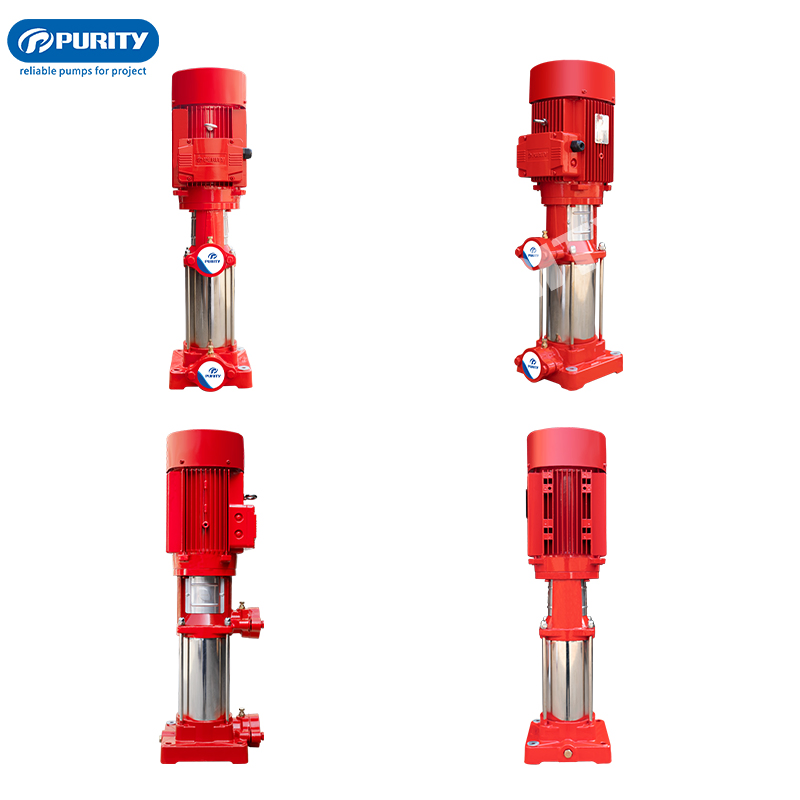

Electric Vertical Multistage Centrifugal Water Pump
Vertical Multistage Pump Detail
Fire Fighting Water Pump
Technical Specifications
Model NO.
PV
Max. Head
>150m
Max. Capacity
300-400 L/min
Driving Type
Motor
Impeller
Multistage / Closed
Working Pressure
High Pressure
Position
Vertical Pump
Frequency
50Hz or 60Hz
Voltage
220V/380V/400V/440V
HS Code
8413709990
Product Features

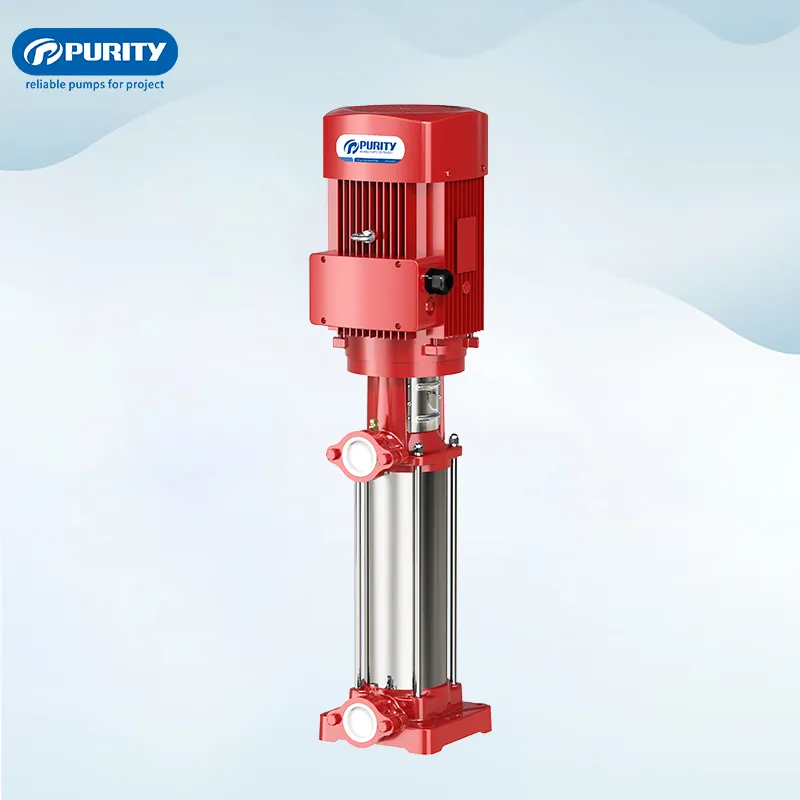

Main Pump Design

Our research and development team focuses on producing reliable engineering pumps. Our production line includes fire pump systems, centrifugal pumps, pipeline pumps, and advanced water supply systems, serving over 120 countries with international certifications including UL, CE, ISO, and SASO.

✓
Efficient Motor: YE3 high efficient motor with IP55 protection Class F.
✓
Noiseless Operation: New design for energy-saving and quiet performance.
✓
Quality Components: Premium NSK bearings and wear-resistance mechanical seals.
✓
Robust Build: Suction and discharge ports in cast iron G20 thread.
Primary Applications:

Perfectly suited for households, irrigation, car washes, fire protection systems, air conditioning, and lifting installations for water pressure in networks.

Operating Limits
Liquid Temperature-10ºC to +120ºC
Ambient Temperature-10ºC to +50°C
Max. Working Pressure25 bar
Service DutyContinuous S1
CustomizationOEM / ODM Support

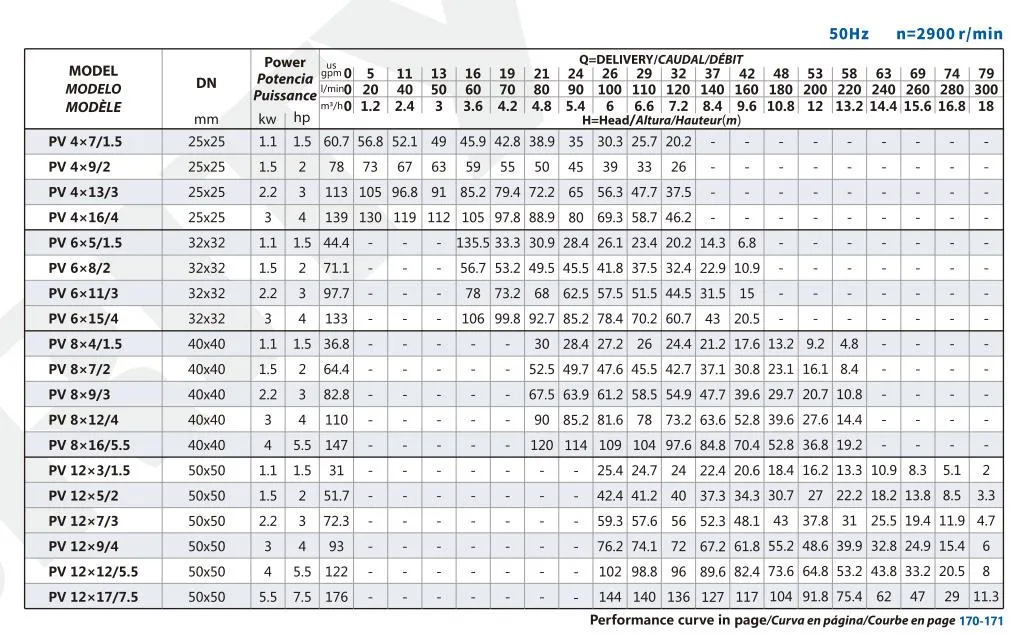

Pump Curve Chart
Pump Specifications Table
Dimensions
Performance Data
Technical Drawing
Part List
Application Visual
Product Range
Certification Info

Frequently Asked Questions

What are the primary applications for this vertical multistage pump?
This pump is highly versatile, commonly used in high-pressure fire protection systems, household water supply, irrigation, car washes, and HVAC air conditioning systems.
What is the liquid temperature range?
The pump is designed to handle liquid temperatures ranging from -10ºC to +120ºC, making it suitable for both cold and hot water applications.
What makes the YE3 motor special?
The YE3 motor is a high-efficiency motor with IP55 protection and Class F insulation, ensuring energy savings, durability, and reliable performance under high-pressure conditions.
Can this pump handle high-pressure requirements?
Yes, with a maximum working pressure of up to 25 bar and a head capacity exceeding 150m, it is categorized as a high-pressure pump.
What quality bearings are used in the pump?
We use premium NSK bearings and wear-resistant mechanical seals to ensure a long service life and noiseless operation.
What voltages are supported?
The pump supports multiple voltage options including 220V, 380V, 400V, and 440V, compatible with both 50Hz and 60Hz frequencies.
