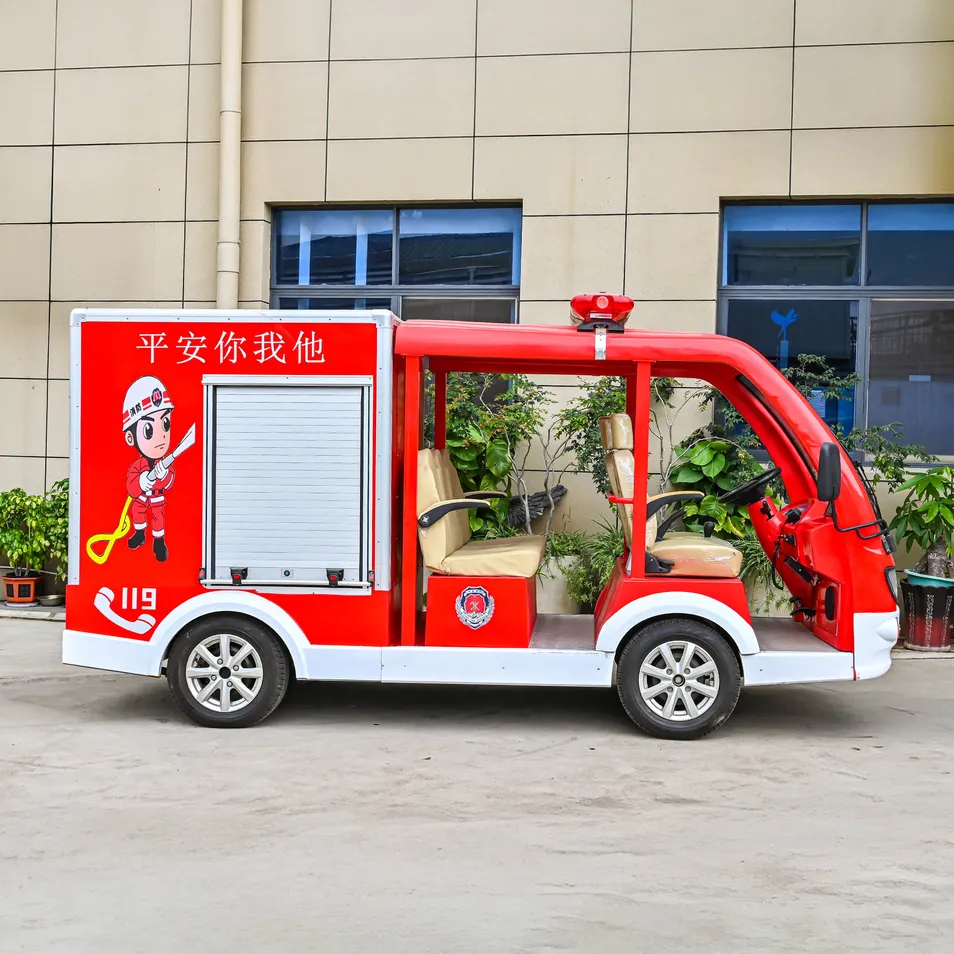

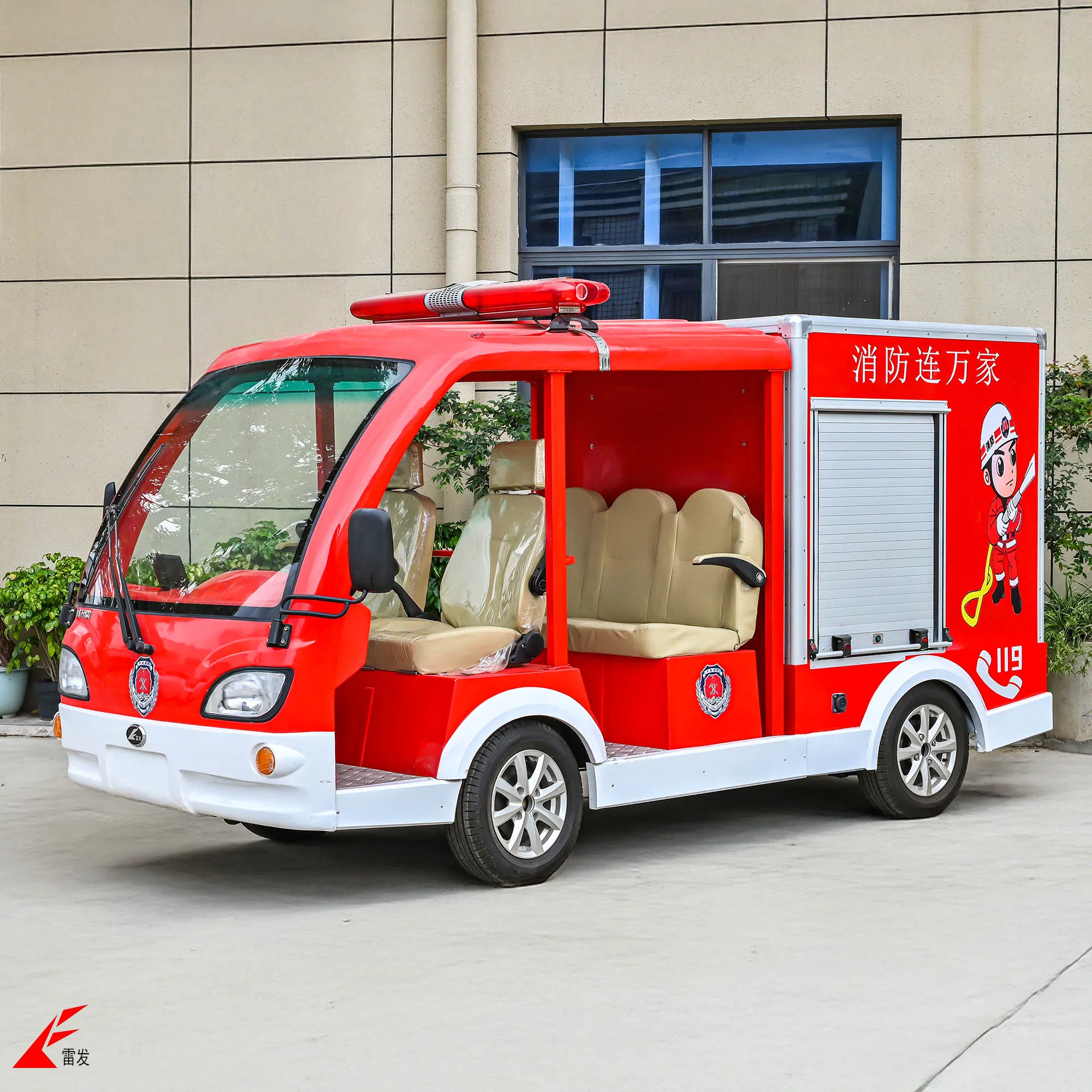

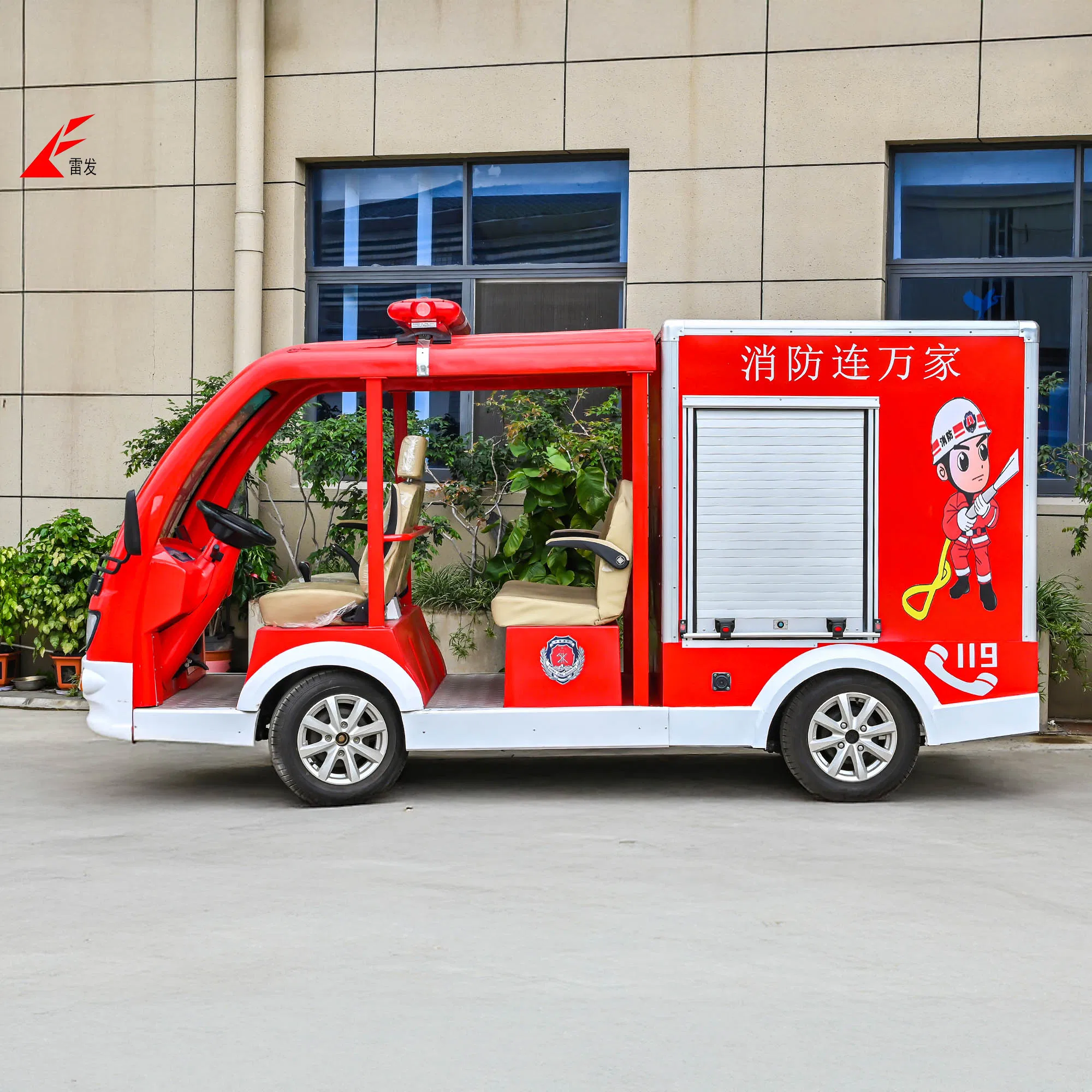

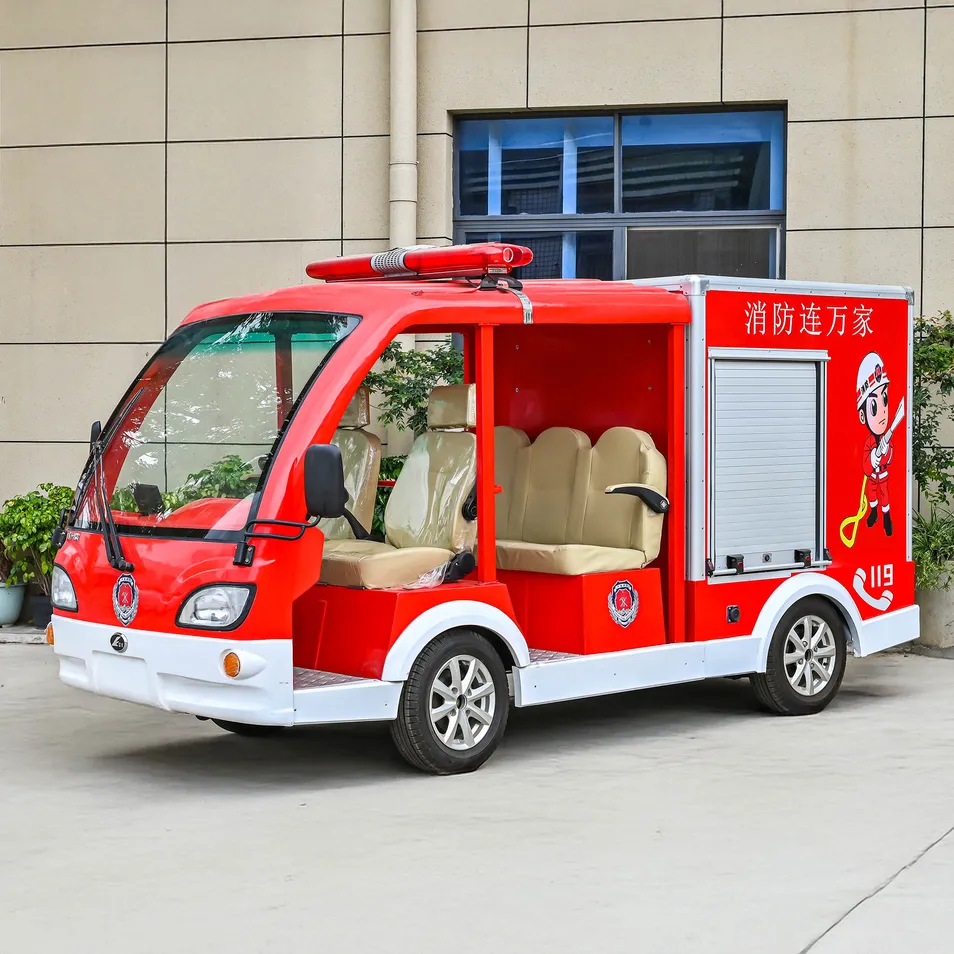

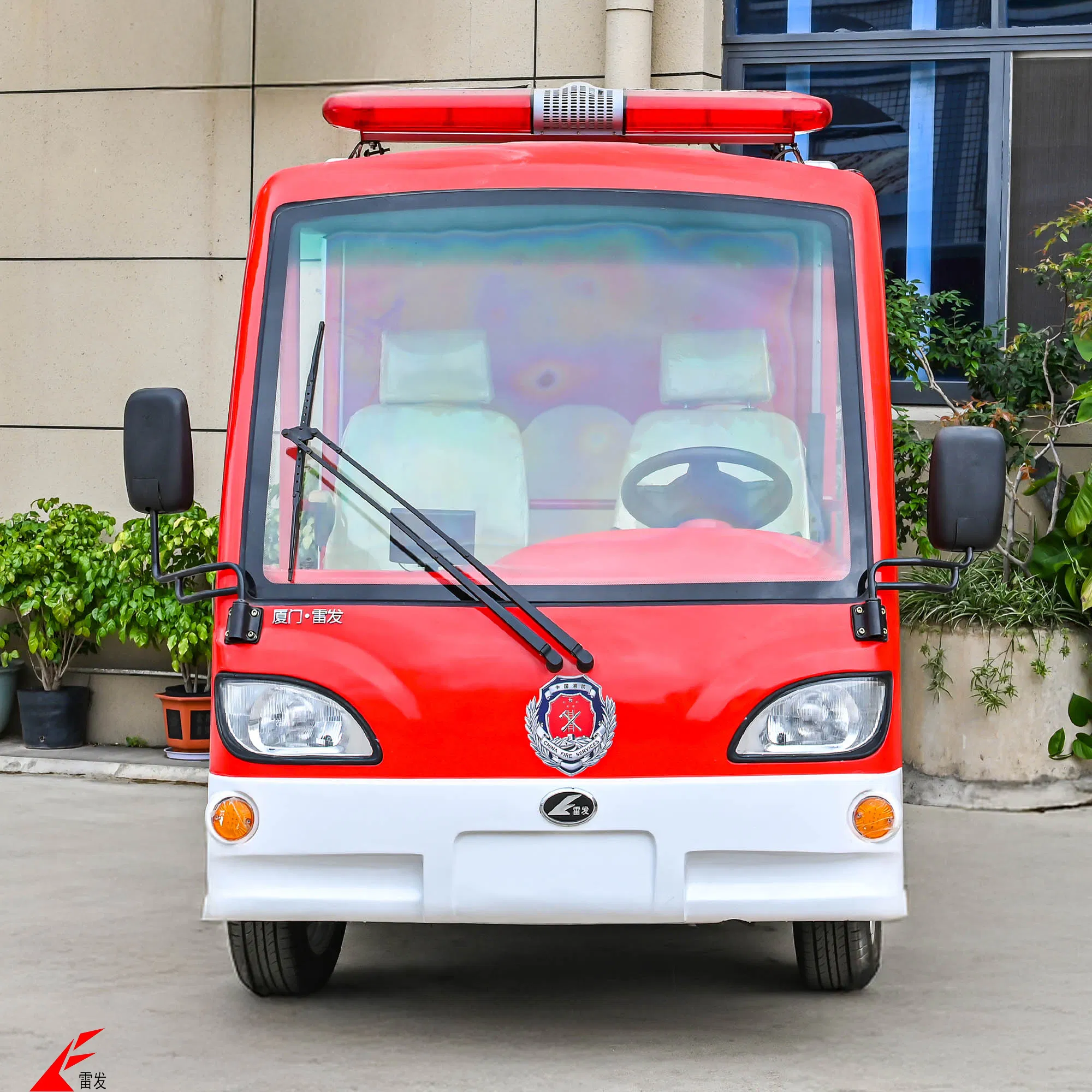

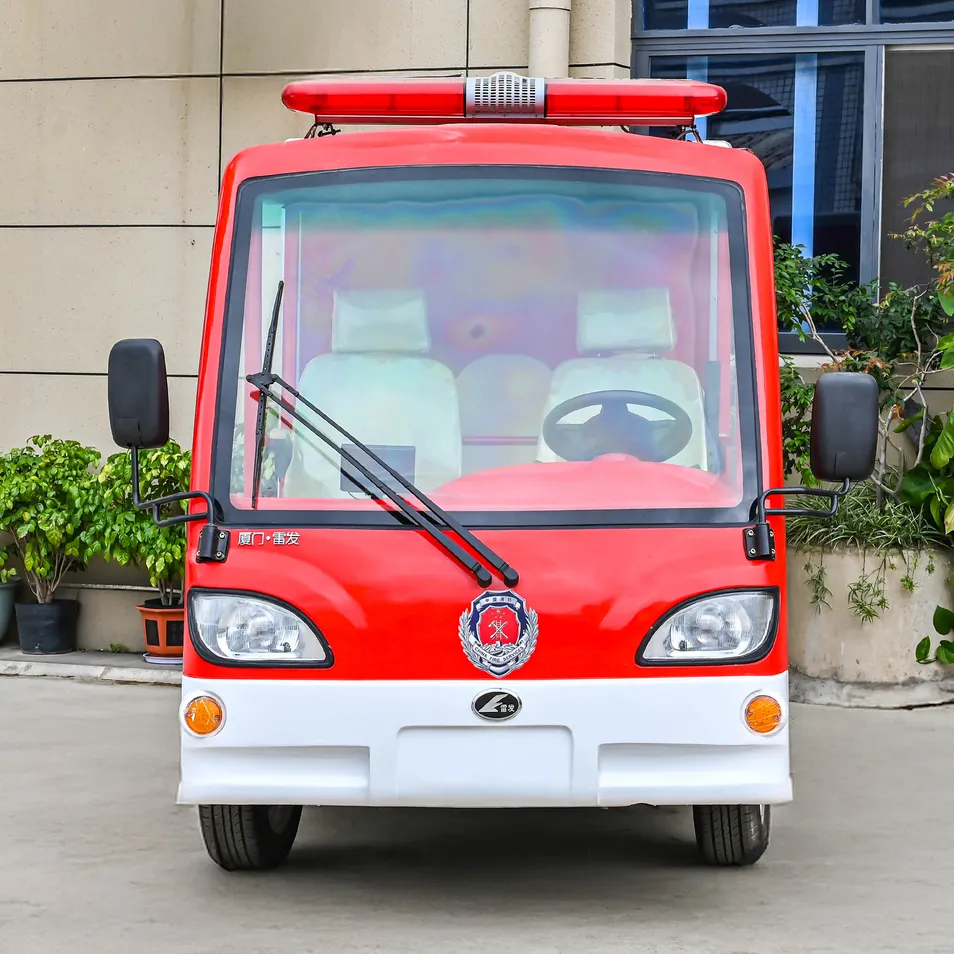

Electric Fire Engine Toy - Fire Fighting Essentials Equipment for Children

Customization: Available
After-sales Service: Provide After-Sales
Warranty: 2

Product Description

Basic Information
Model NO.
LF-XD408A
Certification
ISO9000, CE
Volume
<3000L
Emission Standard
Zero Emission
Transmission Type
Manual
Payload
20T
Fuel
Electric
Drive Wheel
4×2
Horsepower
<150hp
Condition
New
Trademark
XINLEIFA
Product Overview

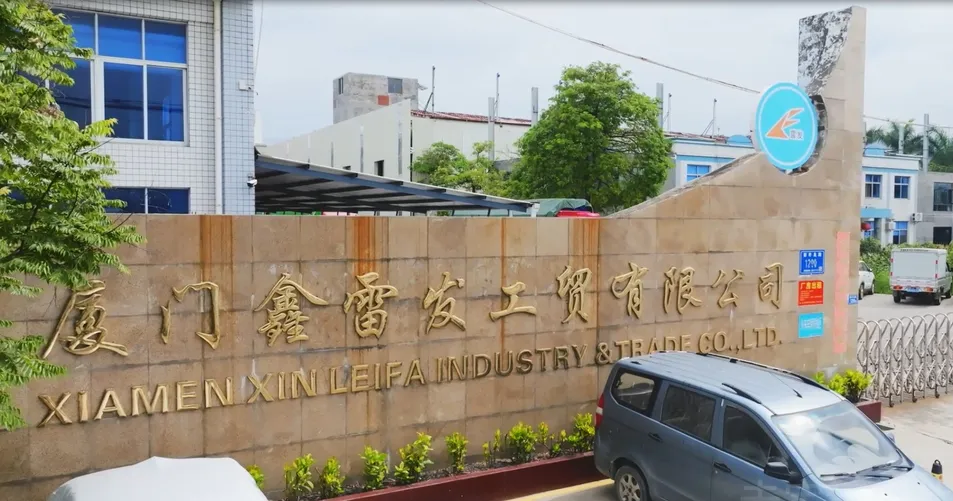

Professional engaged in intelligent cleaning and washing machine series, environmental sanitation equipment development and sales high-tech enterprise. We focus on research, production, and sales of road sweeper series, garbage collection series, high-pressure washing series, and garden maintenance equipment. Always adhering to the "pursuit of market, create perfect" development concept, with "low carbon, energy saving, environmental protection, science and technology" as strategic goals.

Technical Specifications - LF-XD408A
Electrical System
Electronic Control
72V/400A Programmable AC Controller
Battery
72V 200Ah Maintenance-free
Motor
72V/5KW AC Asynchronous
Charger
72V/30A Intelligent Dedicated Pulsed
Charging Time
8-10 hours
Body & Chassis System
Seats
Two front seats + one integrated rear seat
Vehicle Body
Steel frame + Fiberglass reinforced plastic (FRP)
Steering System
Rack and pinion + EPS (Electronic Power Steering)
Braking System
Four-wheel hydraulic brakes + Vacuum booster
Windshield
Automotive-grade double-layer laminated glass
Firefighting Components

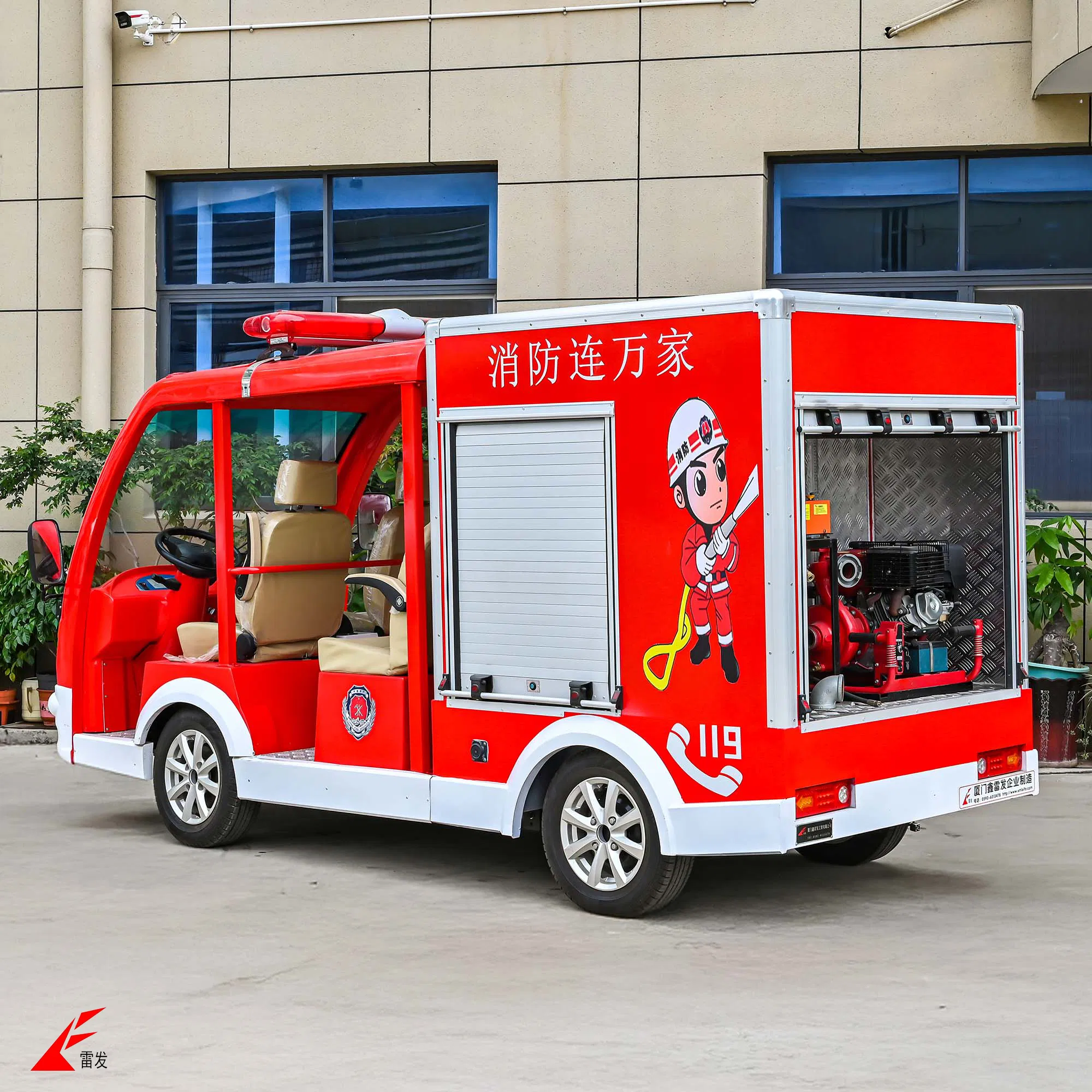

Fire hammer, fire shovel, fire hose, fire gloves, fire rubber boots, dry powder fire extinguisher, fire axe, fire tongs, fire hydrant wrench, high-intensity flashlight, safety belt, fire helmet, fire suit, and LCM3000 high-pressure fine mist pump system.

Technical Parameters
Parameter Details Parameter Details
Overall Dimensions 3960×1470×2050mm Rated Passengers 4-5 people
Cargo Box Dimensions 1518×1370×1300mm Water Tank Capacity 800L
Vehicle Curb Weight 1000kg Maximum Speed 30km/h
Vehicle Load 800kg Max Distance (Unloaded) 60km
Wheelbase 2075mm Maximum Gradient 20%
Braking Distance ≤4m (at 20km/h) Ground Clearance 150mm
Packaging & Delivery
Package Size
4060.00cm * 1570.00cm * 2150.00cm
Gross Weight
1100.000kg
FAQ
What is the battery range for this electric fire engine?
The LF-XD408A provides a maximum continuous driving distance of up to 60km on a full charge under unloaded conditions.
How long does it take to fully charge the vehicle?
The charging time is approximately 8-10 hours when the discharge rate is at 80%, using the 72V/30A intelligent pulsed charger.
What is the water tank capacity for firefighting?
The vehicle is equipped with a high-capacity 800L water tank specifically designed for fire fighting essentials.
Is the steering manual or power-assisted?
It features an EPS (Electronic Power Steering) system combined with a rack and pinion steering gear for effortless maneuvering.
What is the maximum passenger capacity?
The vehicle is designed to carry 4 to 5 people, with two single front seats and one integrated rear seat.
Can this vehicle handle steep slopes?
Yes, the LF-XD408A has a maximum gradient capability of 20%, making it suitable for various urban and site environments.
