Skid Mounted Electric Drive Fire Pump Set

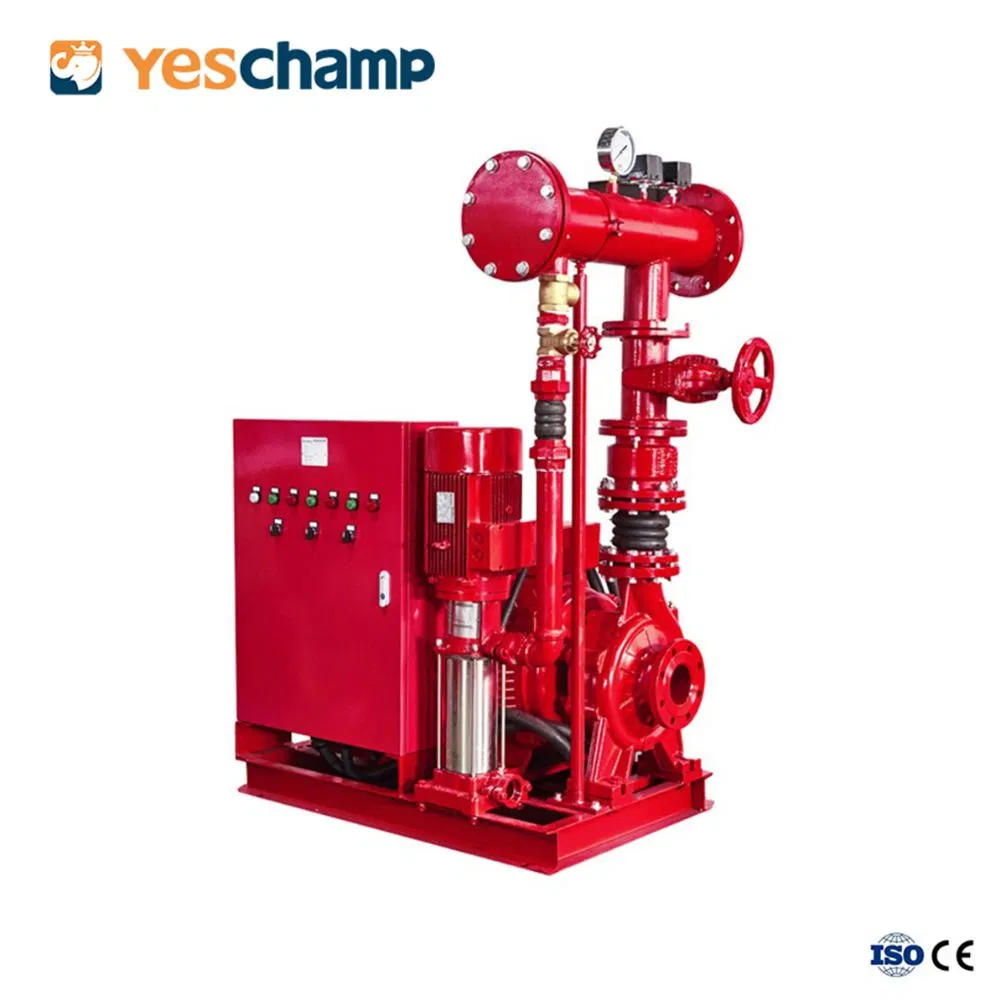

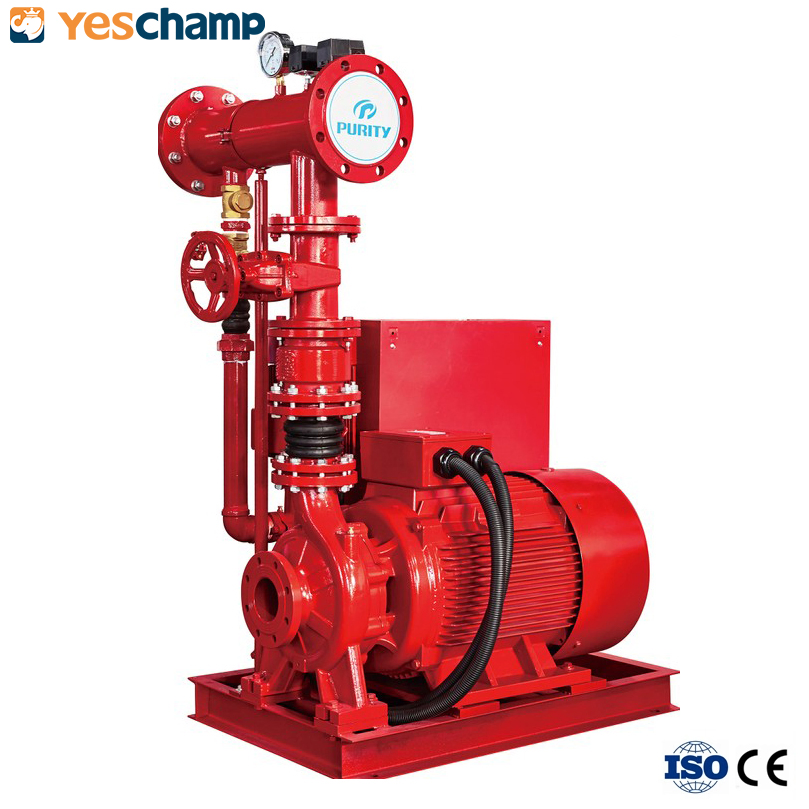

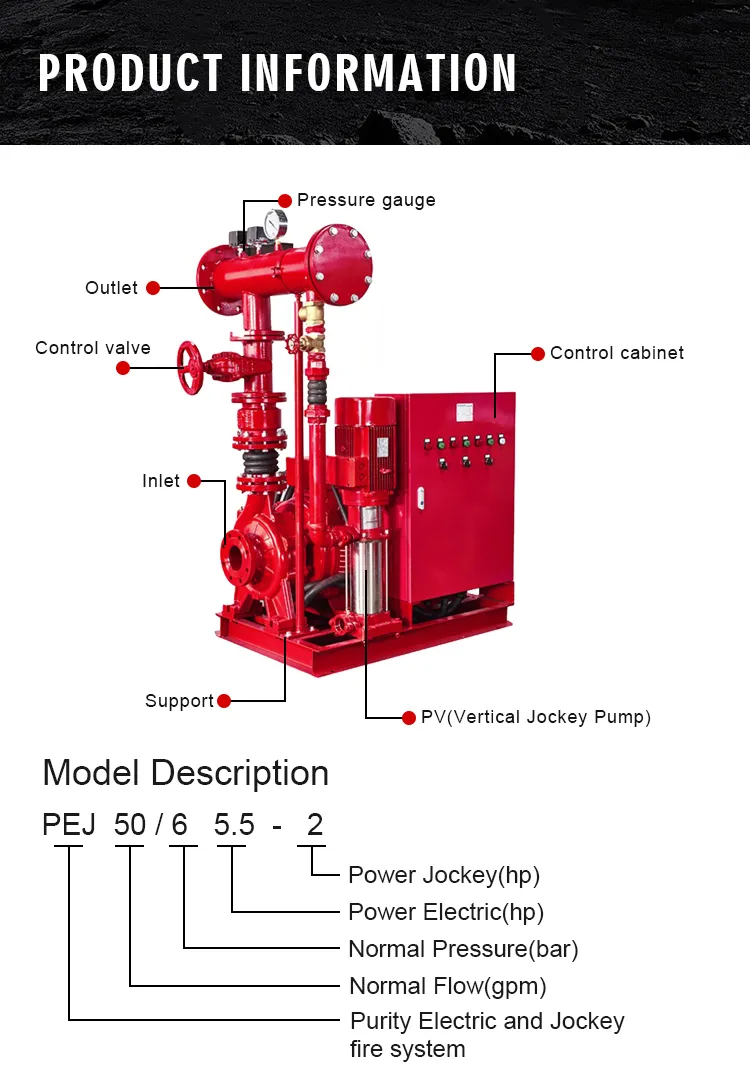

The PEJ fire pump set consists of one main pump coupled to an electric motor, one jockey pump and pressure vessel, a controller for manual or automatic operation of the system, and standard accessories mounted on the base frame. This fire pump set can be used for fire hose and fire hose reel systems, fire sprinkler systems, fire water monitor systems, fire alarm systems, and fire hydrant systems.

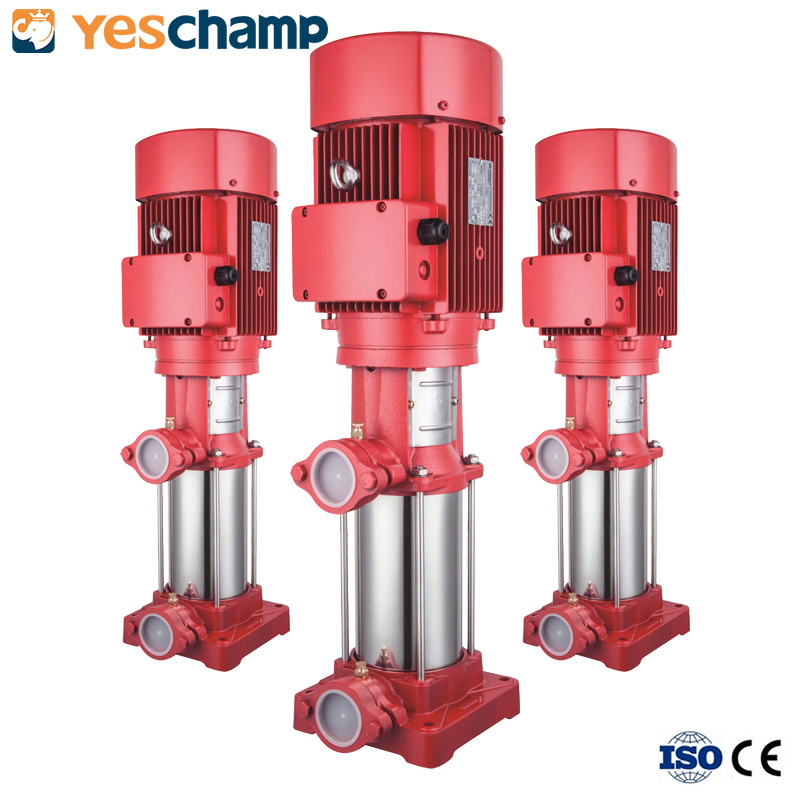

Electric pumps can use end-suction pumps, multi-stage pumps, and double-suction split case pumps. The material is usually cast iron or stainless steel. The EJ series fire pump set is mainly installed in fire trucks, fire extinguishing systems, or other fire control facilities, used to convey liquids such as water or foam solution agents.

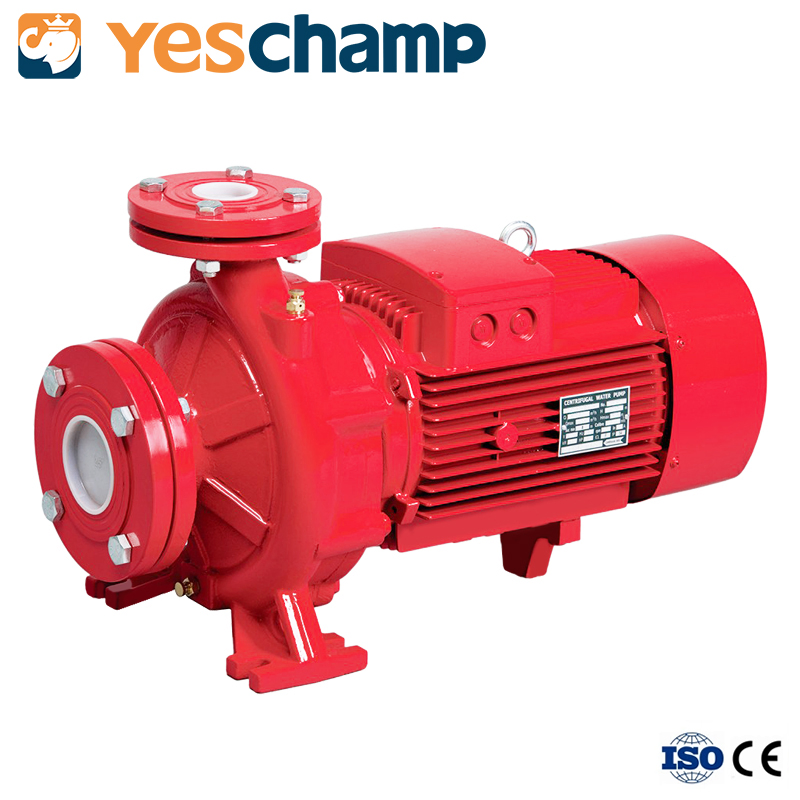

The electric pump is a closed-coupled centrifugal pump; the pump casing is made from cast iron, and the impeller can be cast iron, stainless steel, or brass. The shaft material is stainless steel, and the mechanical seal is carbon/ceramic.

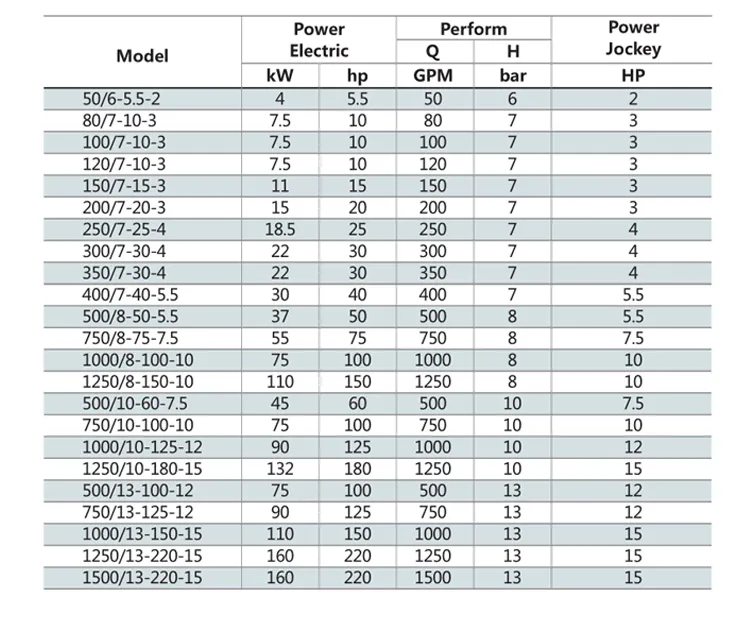

| Specification Item | Range / Value |
|---|---|
| DN Range of Suction Pipe | 50-400 mm (2"-16") |
| DN Range of Discharge Pipe | 32-350 mm (1.5"-14") |
| Flow Capacity Range | 50-5000 GPM |
| Head/Pressure Range | 4-14 Bar |
| Power Range | 4-325 Kw |

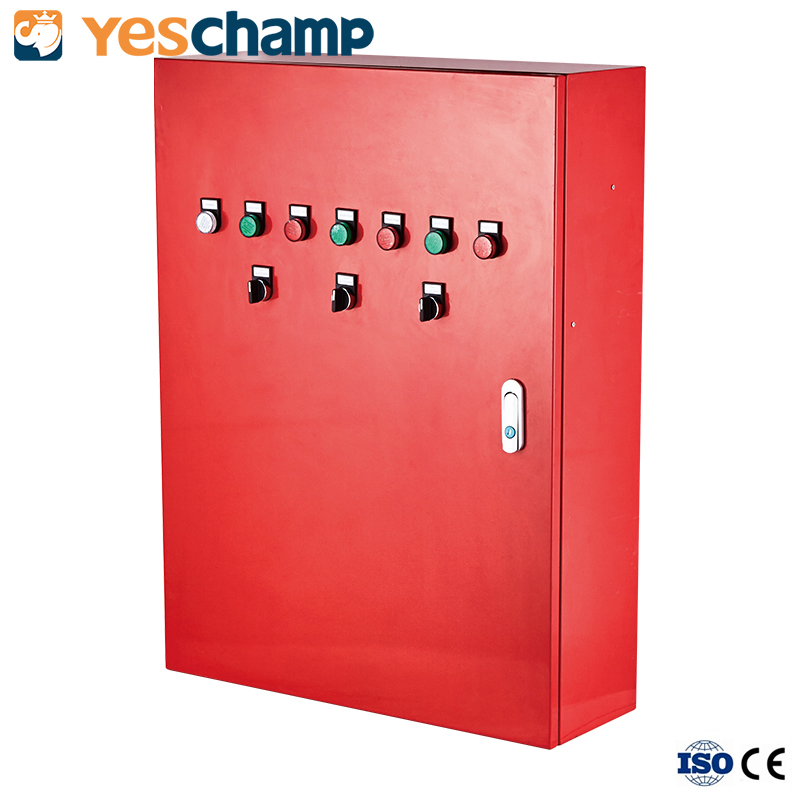

This pump set refers to the electric pump combinations, the control cabinet, control instrumentation, and related accessories. It provides a continuous water supply to the fire control network through a pre-programmed method.
We are a professional manufacturer and supplier of quality pumps and engines exported to more than 60 countries. Our main products include centrifugal pumps, fire pumps and systems, industrial pumps, domestic pumps, sewage pumps, solar pumps, irrigation pumps, and motors.

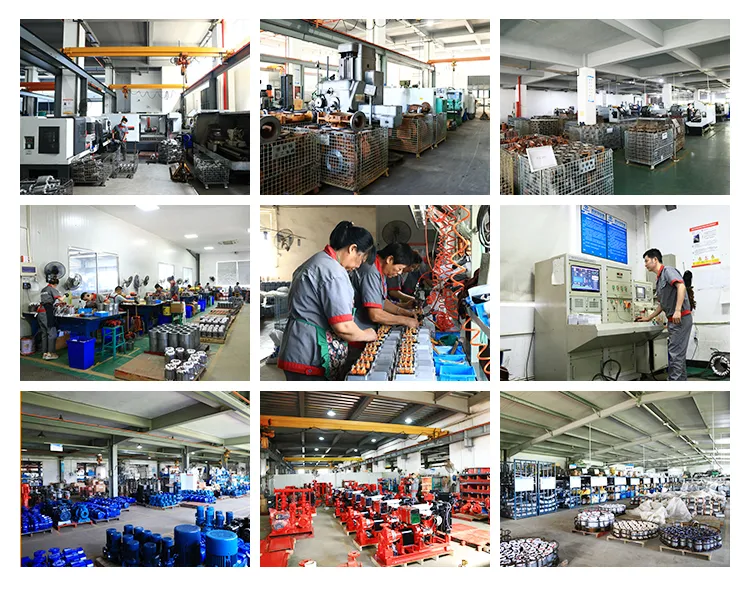

With over 10 years of production experience, we have a large team of engineers and technicians dedicated to providing full service. Our facilities include hundreds of cooperative workshops ensuring strict quality control and inspection. We focus on customer feedback to ensure that all equipment is running efficiently and meeting safety standards.
