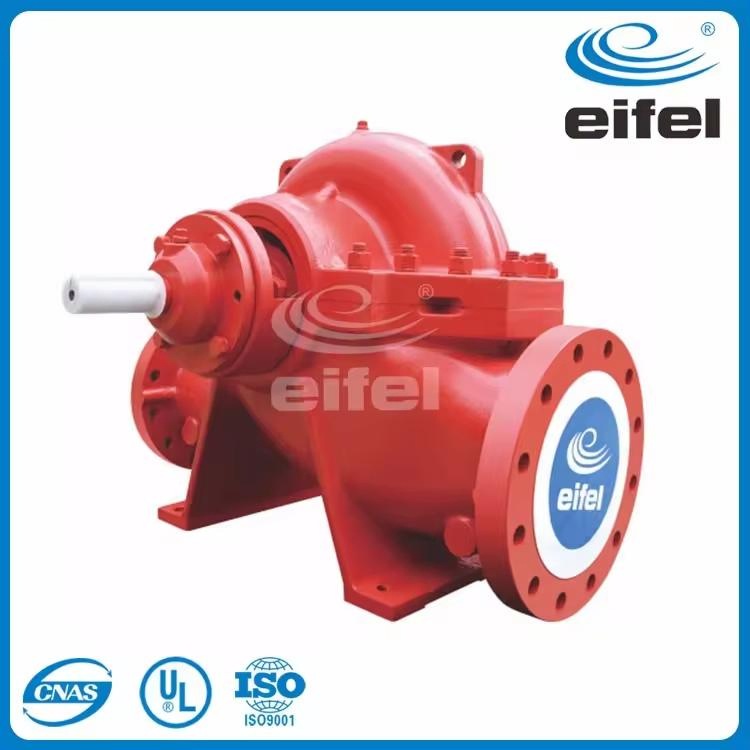

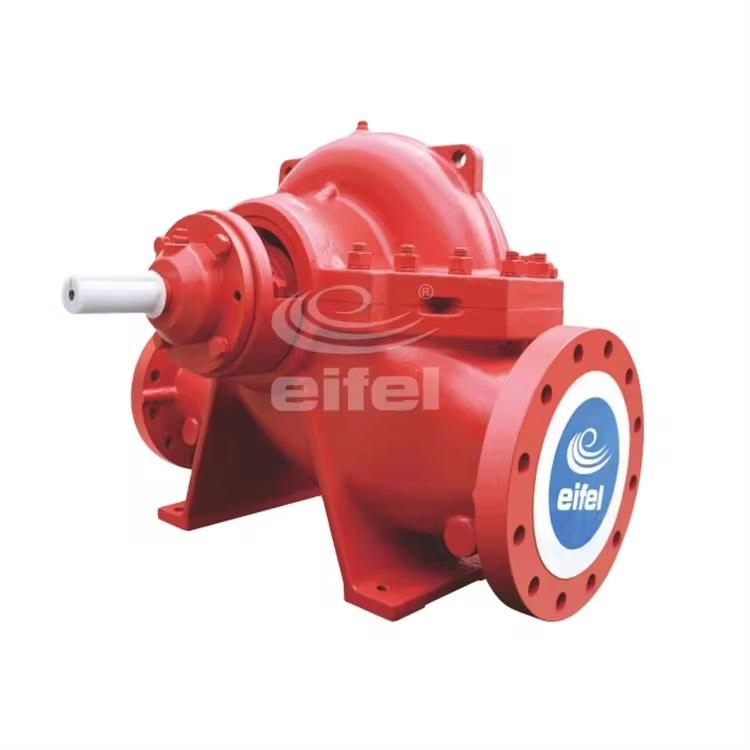

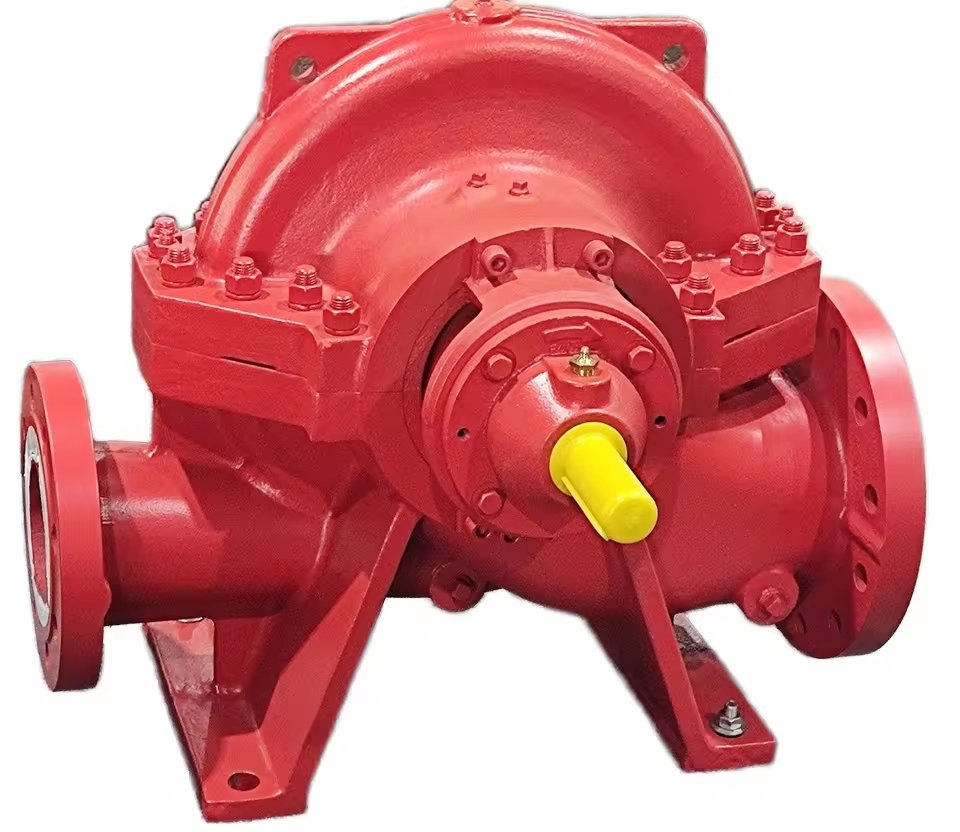

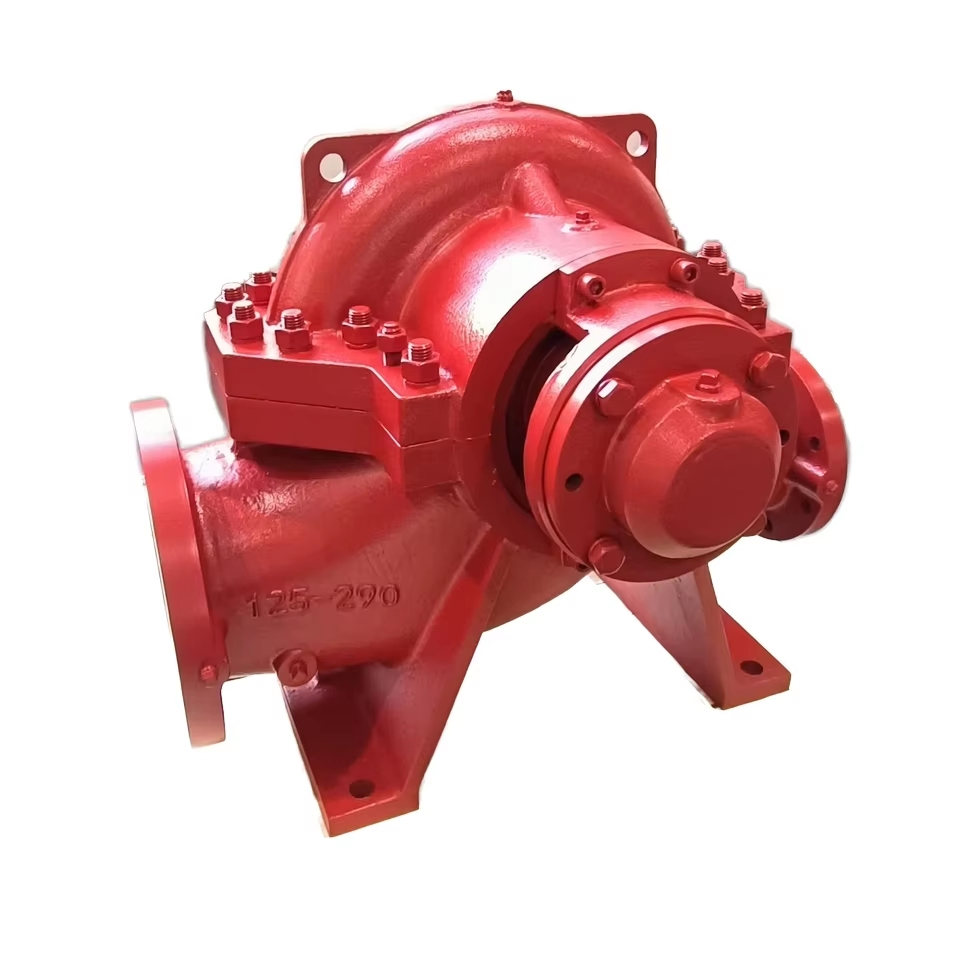

Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
1 / 5
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System
Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System

Eifel Pump UL Listed Fire Pump High Quality Double Suction Centrifugal Water Pump for Fire Fighting System

Customization: Available
After-sales Service: 1 Year Warranty
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
ESF125-290
Max. Head
50-80m
Max. Capacity
303m3/H
Driving Type
Motor
Working Pressure
High Pressure Pump
Impeller Type
Double-Suction / Closed
Pump Shaft Position
Horizontal Pump
Material
Cast Iron / Ductile Iron
Speed
2900rpm
Application
Fire Fighting System
Standard
UL Listed (UL448)
Weight
179kg
Product Description
UL Listed Fire Pump
Suction Diameter 150~200 mm
Discharge Diameter 100~150 mm
Flowrate (Q) 450~2000 usgpm
Head (H) 82~304 psi
Speed 2900 rpm
Working Pressure 230~400 psi
Fire Fighting Pump Detail
Centrifugal Pump Component
Water Pump System

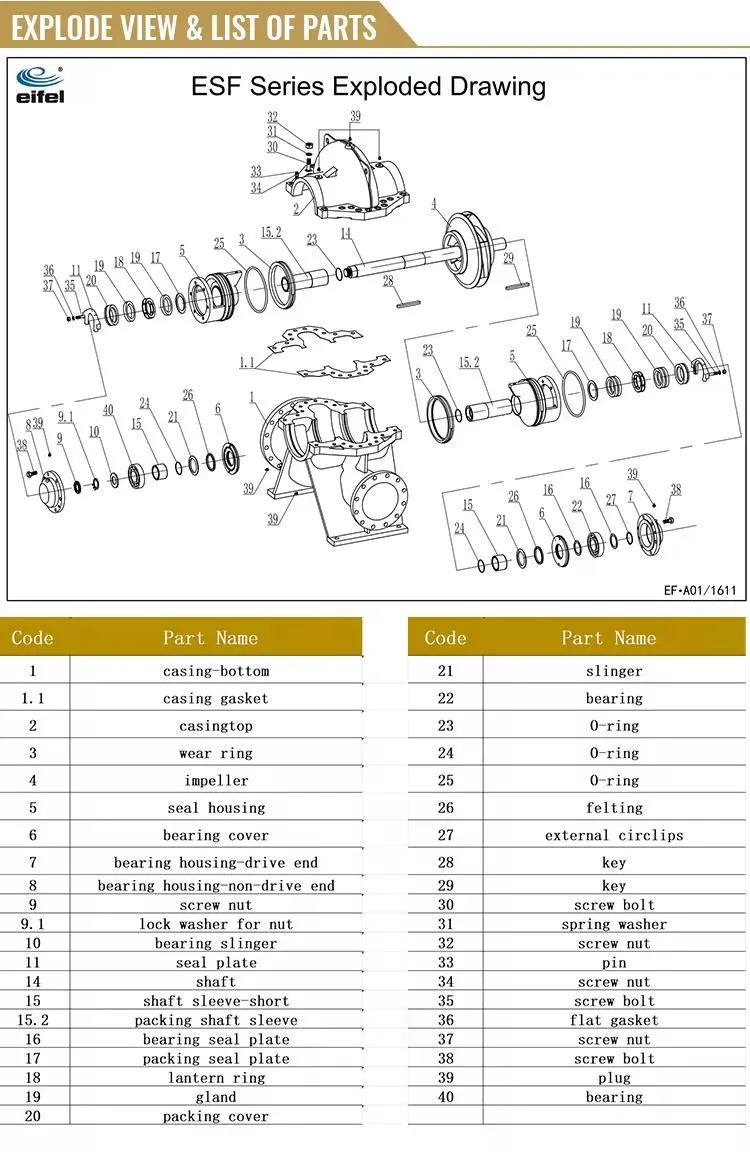

Technical Specifications Diagram

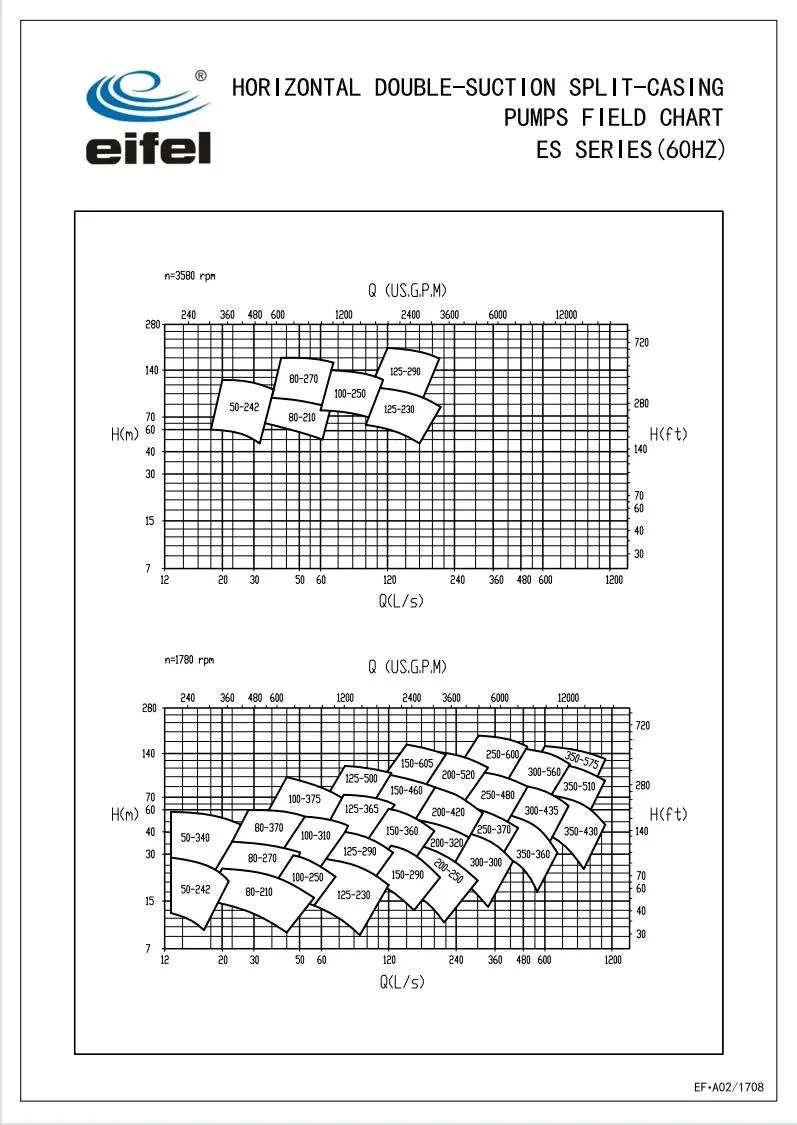

Performance Chart
Engineering Drawing
Installation Dimensions

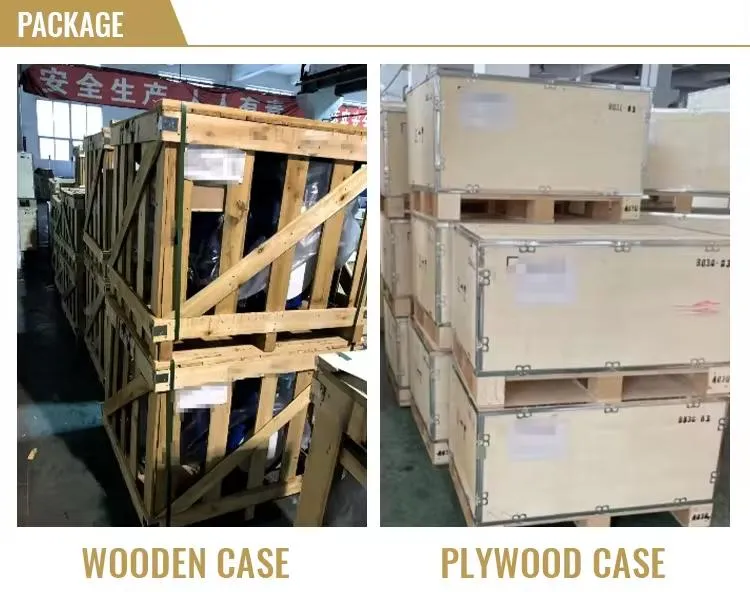

Packaging & Delivery
Package Size
42.00cm * 42.00cm * 16.00cm
Gross Weight
179.000kg
Packing Type
Wooden Case / Plywood Case

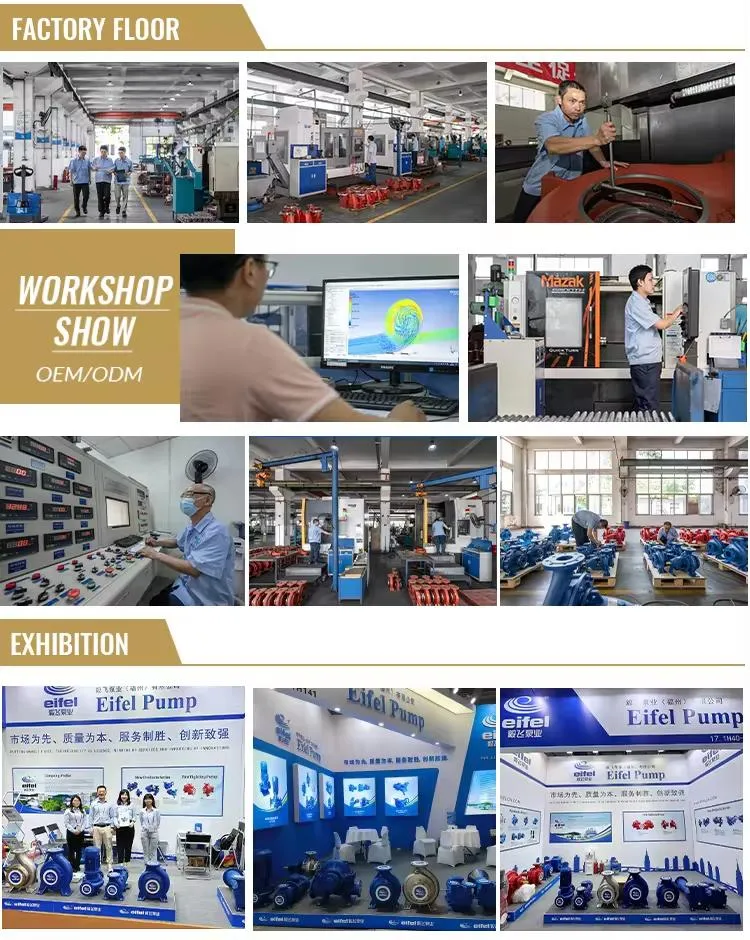

Production and Testing
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional pump manufacturer with our own dedicated trading team to ensure professional service and quality control.
How can I get an accurate quotation for the pump?
Please provide the required pump flow rate, head, working frequency, power, voltage, and quantity. This information allows us to provide a precise quote.
Do you test the pumps before delivery?
Yes, we perform 100% pressure testing on all pumps before they leave our facility to ensure reliability and performance.
What are your standard delivery terms?
We support various delivery terms including EXW, FOB, CNF, and CIF to accommodate different shipping requirements.
What is the typical lead time for an order?
Generally, it takes about 4 weeks after receiving your advance payment. The specific timeframe depends on the specific items and order quantity.
What kind of warranty do you provide?
We offer a 1-year warranty on our pumps. In case of issues, we provide online support or can arrange for parts replacement as per the warranty terms.
