Edj Water Fire/ Submersible /Centrifugal/Oil/Pressure/Fuel Pump (SLFP)

Operation Logic

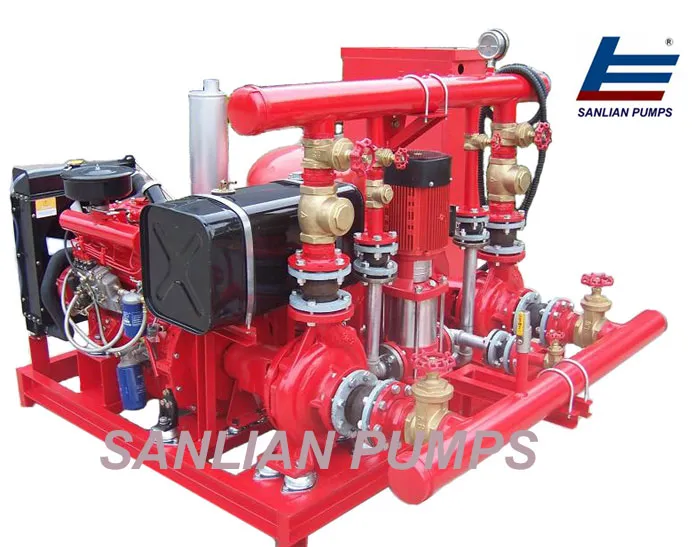

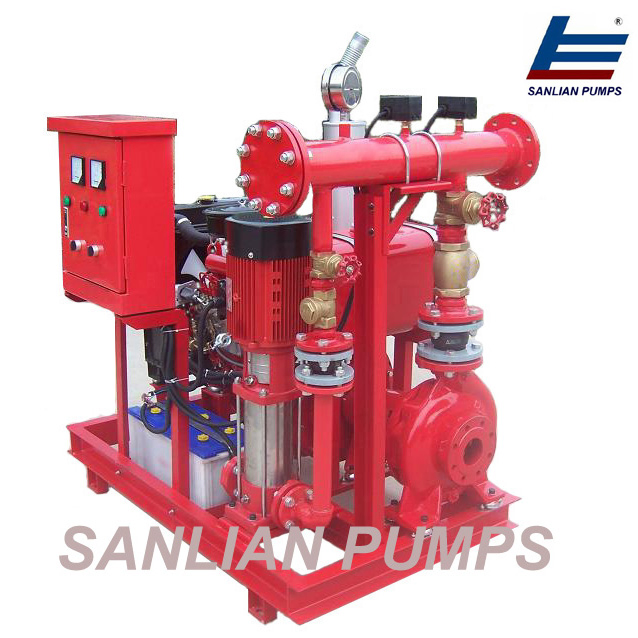

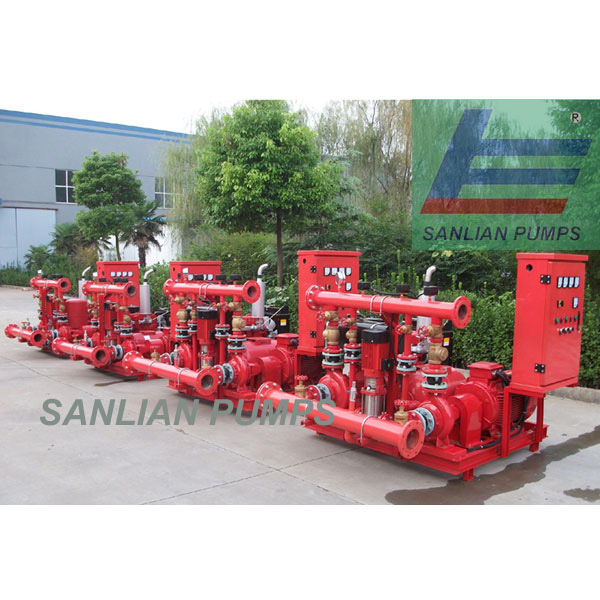

1 Duty (Electric Pump) + 1 Standby (Diesel Engine Pump) + 1 Jockey Pump

System Capacity

Flow Rate: 100, 150, 200, 300, 400, 500, 750, 1000, 1250... GPM

Pressure Range: 4, 5, 6, 10, 15... Bar

Key Components

1. Electric Pump: Closed coupled centrifugal horizontal design. Features a cast iron casing, brass impeller, stainless steel shaft, and carbon/ceramic mechanical seal.

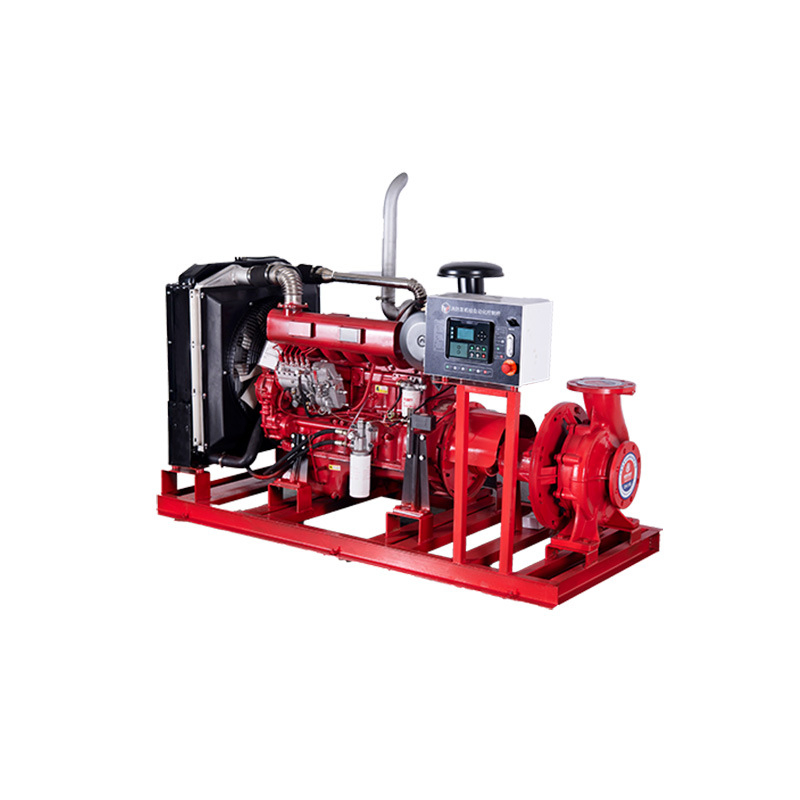

2. Diesel Engine Pump: Capacity matched to the electric pump, equipped with a dedicated fuel tank.

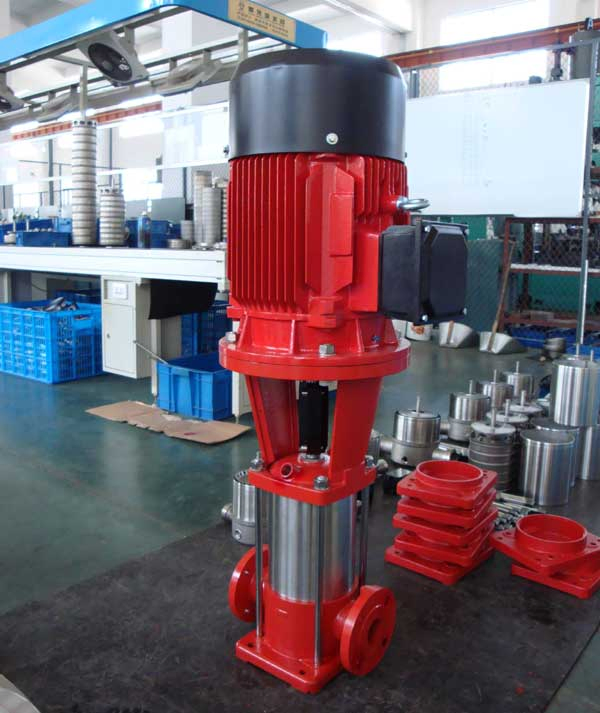

3. Jockey Pump: Available in horizontal or vertical configurations; capacity ranges from 10 to 125 GPM.
4. Pressure Vessel: Capacities of 25 to 150 liters, supporting 4 to 15 Bar pressure.
5. Control Panel: Features MCB for each pump, DOL starter with thermal overload protection, hand-off-auto selector switches, status indication lamps, pressure switch for automated operation, and a battery charger with a 12-volt starting battery.

Product Range

• End-suction pump
• Close coupled end-suction pump
• Split case pump
• Multistage pump
• Self-priming pump
• Submersible axial pump
• Submersible sewage pump
• Dredge and slurry pump
• Chemical pump
• Vacuum pump
• Fire fighting pump set

We manufacture and market a broad range of OEM and brand labeled pumps for diverse markets such as Oil & Gas, Mining, Chemical, Power, Hydrocarbon and Water resources. Established in 1965, our history is deeply rooted in technology and continuous improvement.

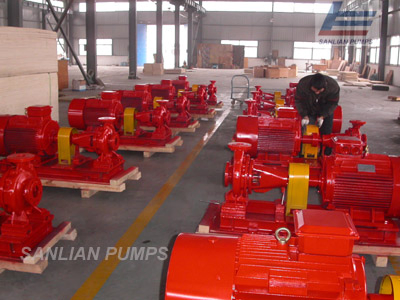

Our facilities include in-house cast iron and cast steel foundry lines, a modern machine shop with CNC equipment, and an engineering department utilizing the latest 3D CAD and simulation software. All manufacturing standards conform to ISO 9001.

Our R&D and production facilities are constantly improved to remain among the most modern in China. Every pump is subjected to stringent inspection at all stages of production, ensuring a fusion of computer-aided design and high-performance manufacturing.

With decades of experience in providing custom engineered pumps, we have built a solid reputation as an accredited source for international OEM partners, delivering products that comply with appropriate international quality and inspection standards.
