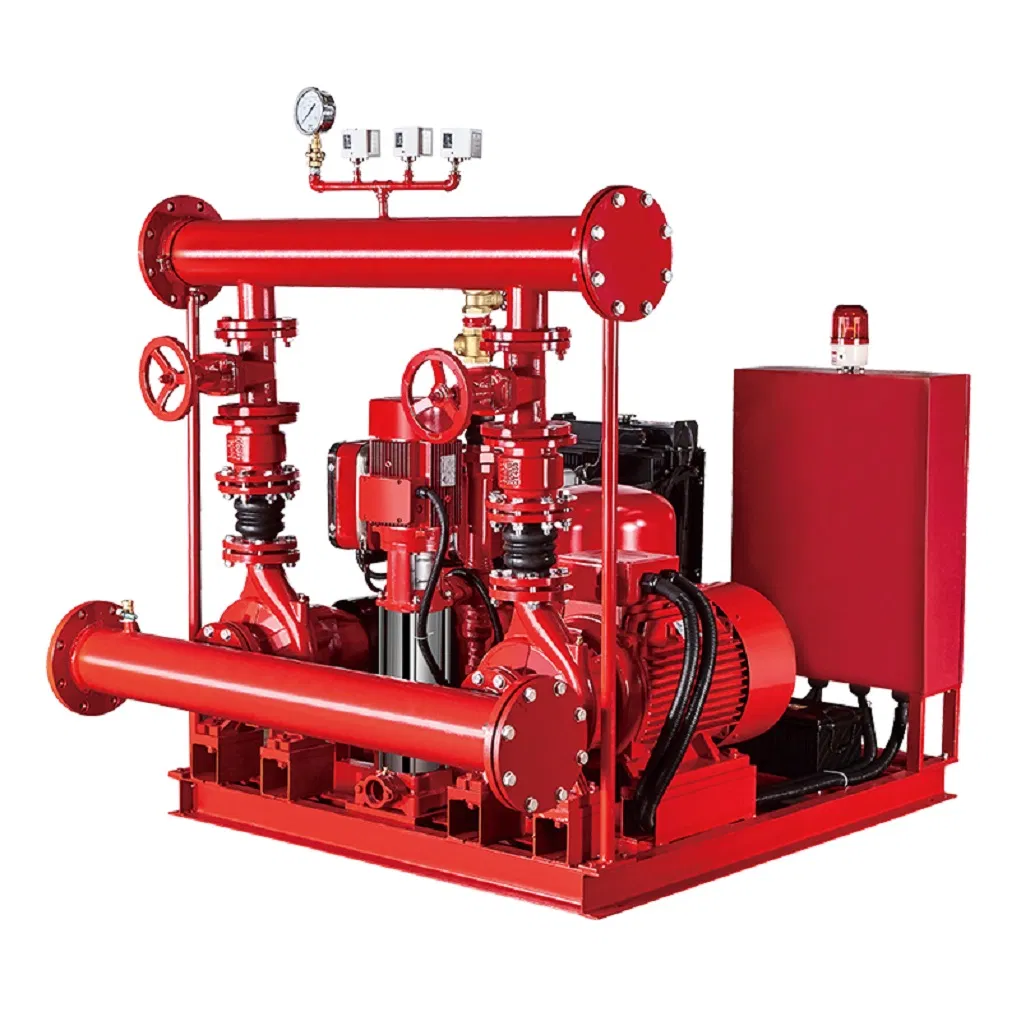

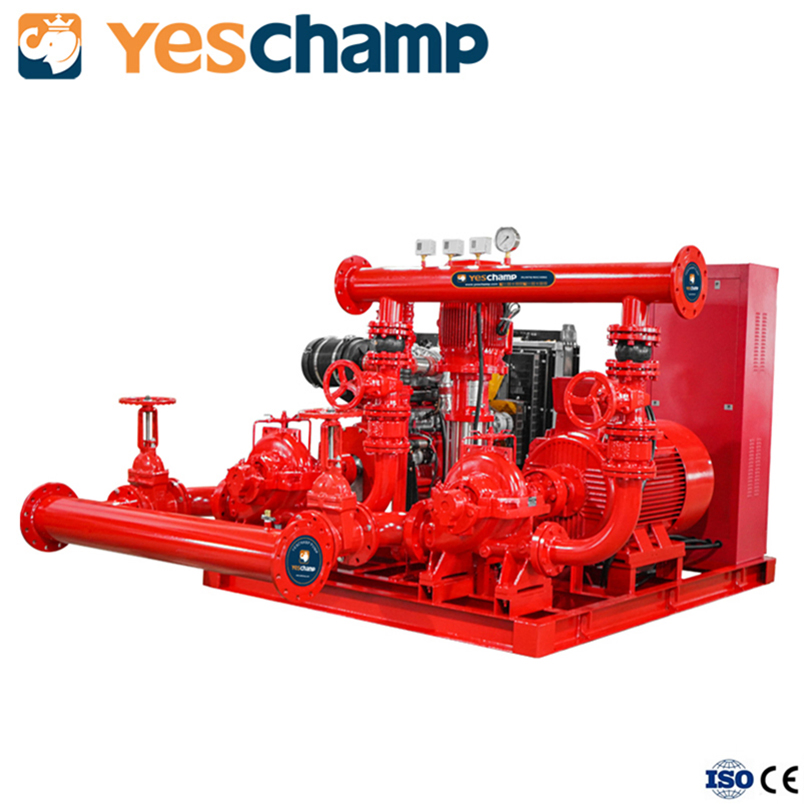

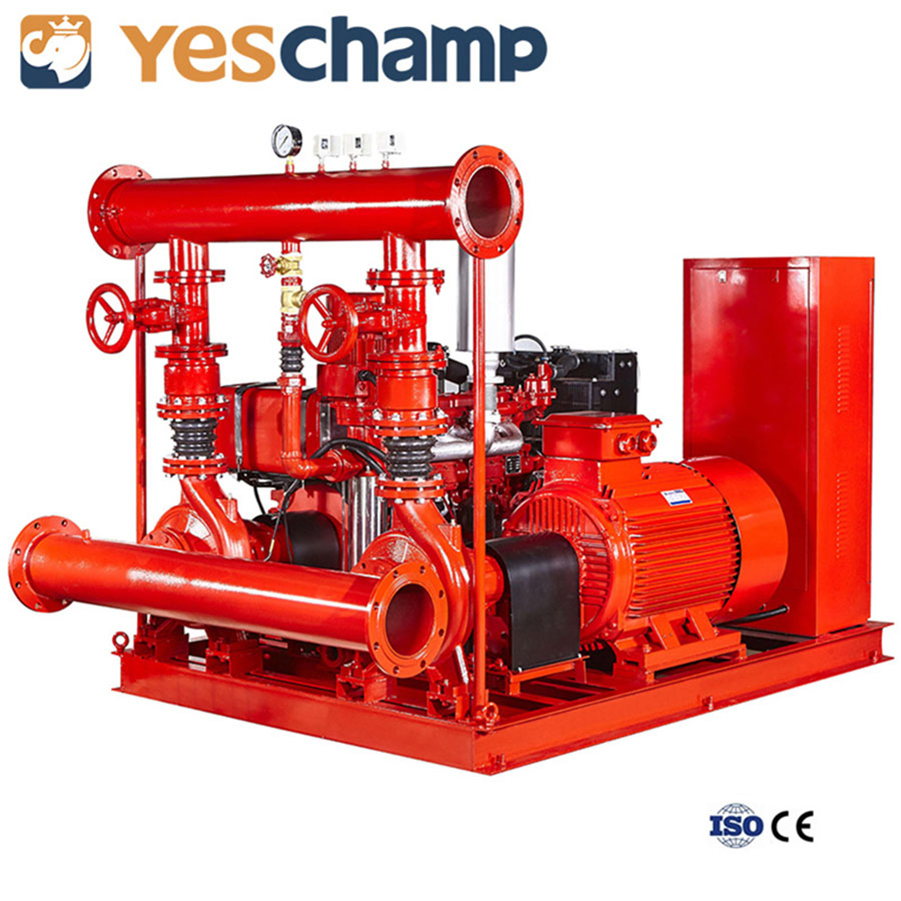

This fire pump system can be customized for different purposes such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

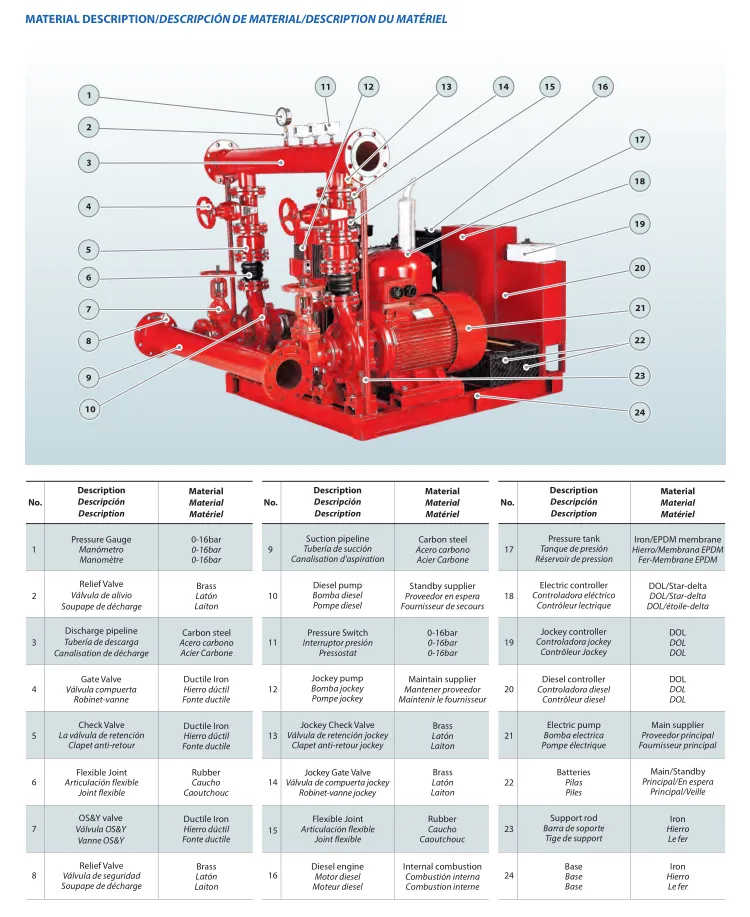

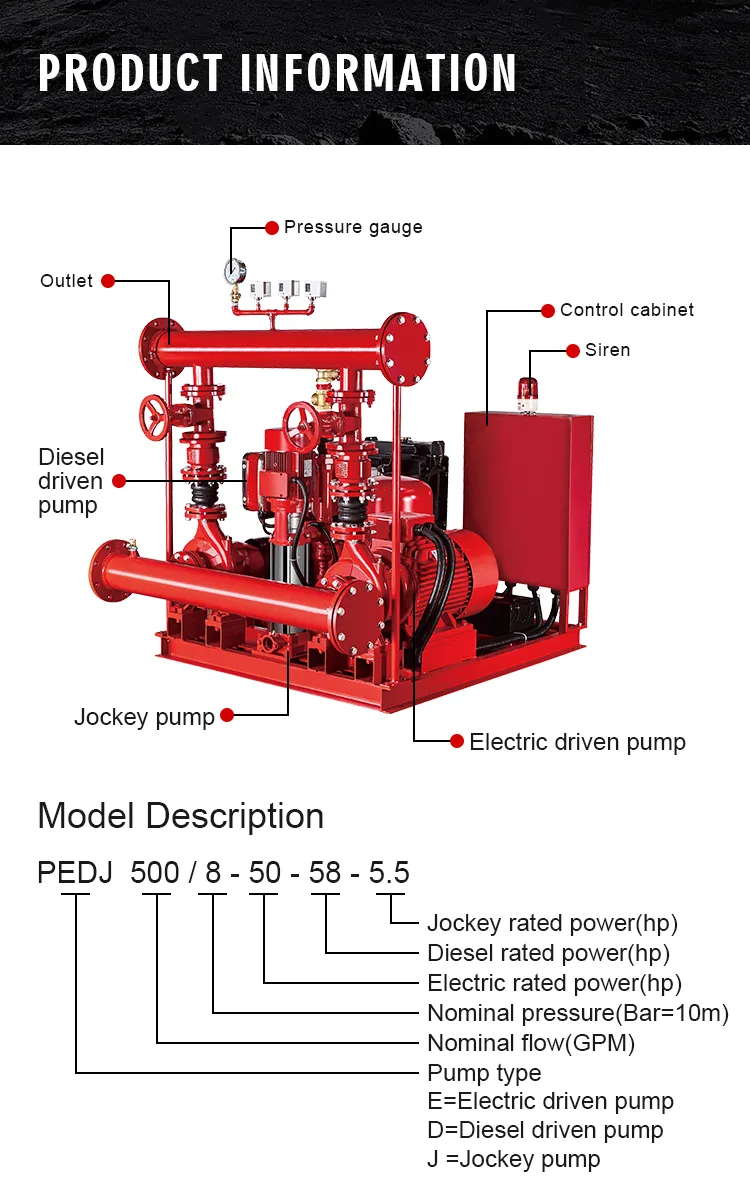

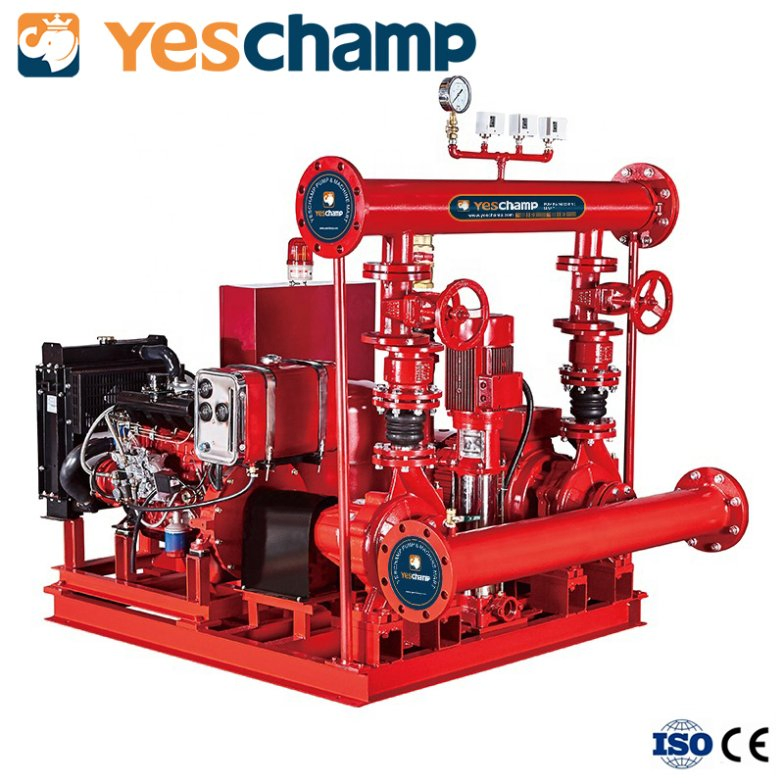

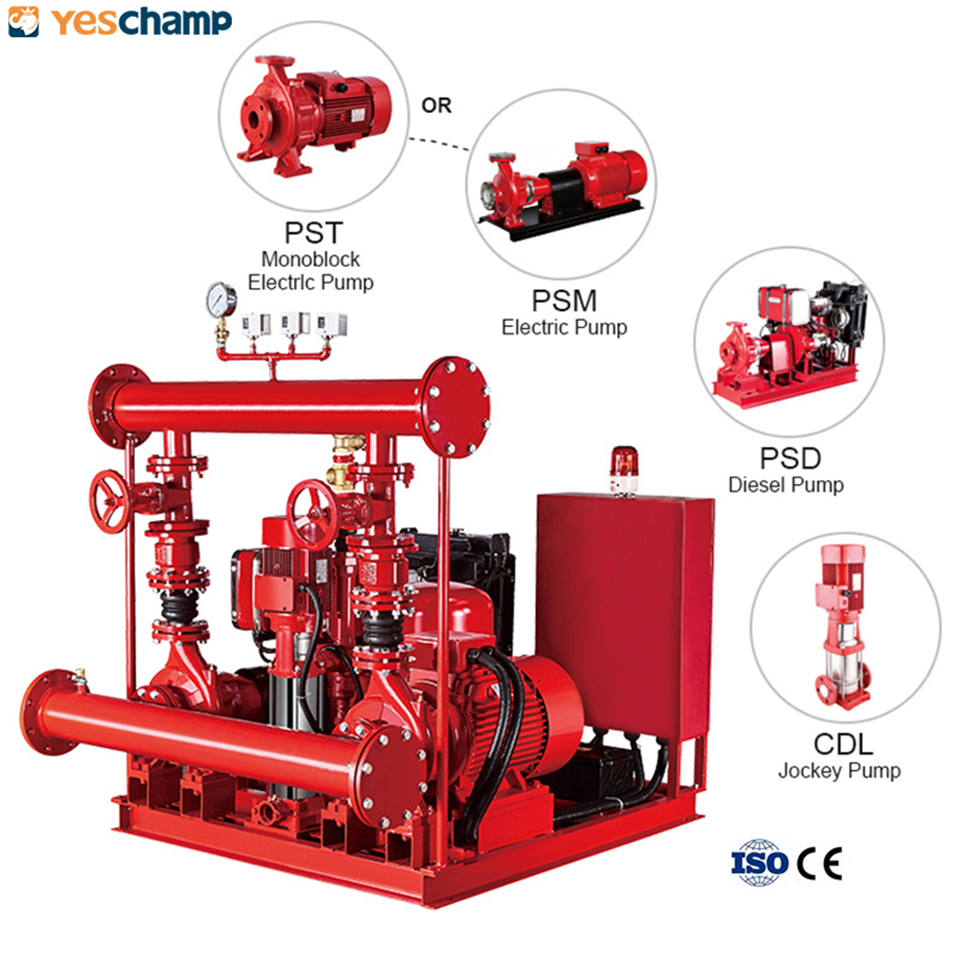

The main pump can be an end suction pump, split case pump, or multistage pump with stainless steel, cast iron, and bronze material in standard configurations. Automatic diesel pump unit includes: diesel water pump, jockey pump, steel structure base, battery, connecting wires, gate valve, check valve, flexible joints, and automatic control panel.
When pressure drops below the set value, the jockey starts running with the signal from the pressure switch and continues running for 10 minutes till the system pressure reaches the set value.

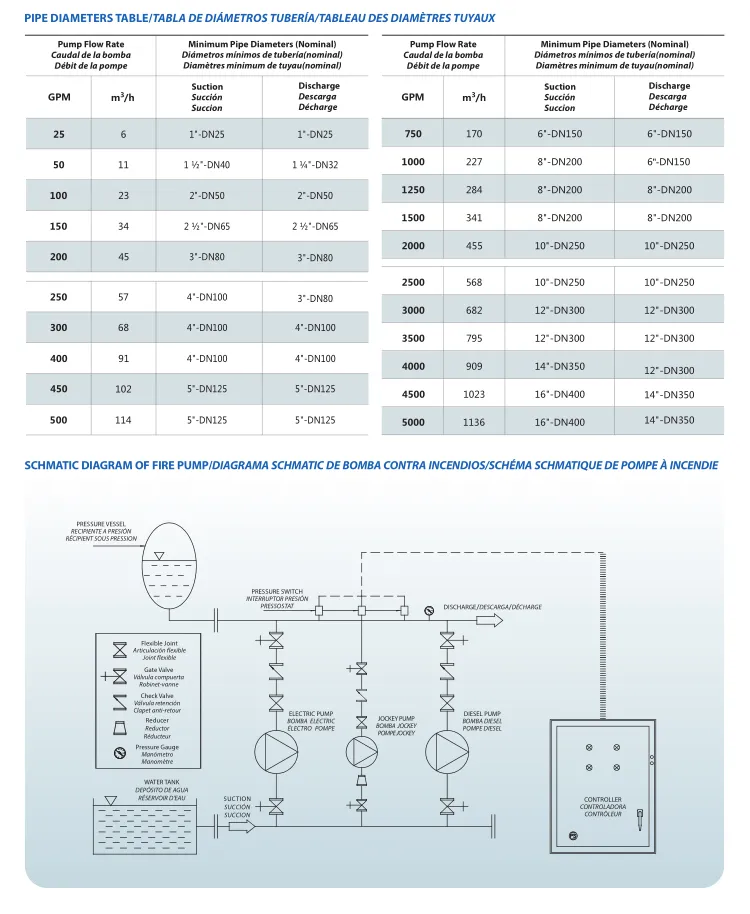

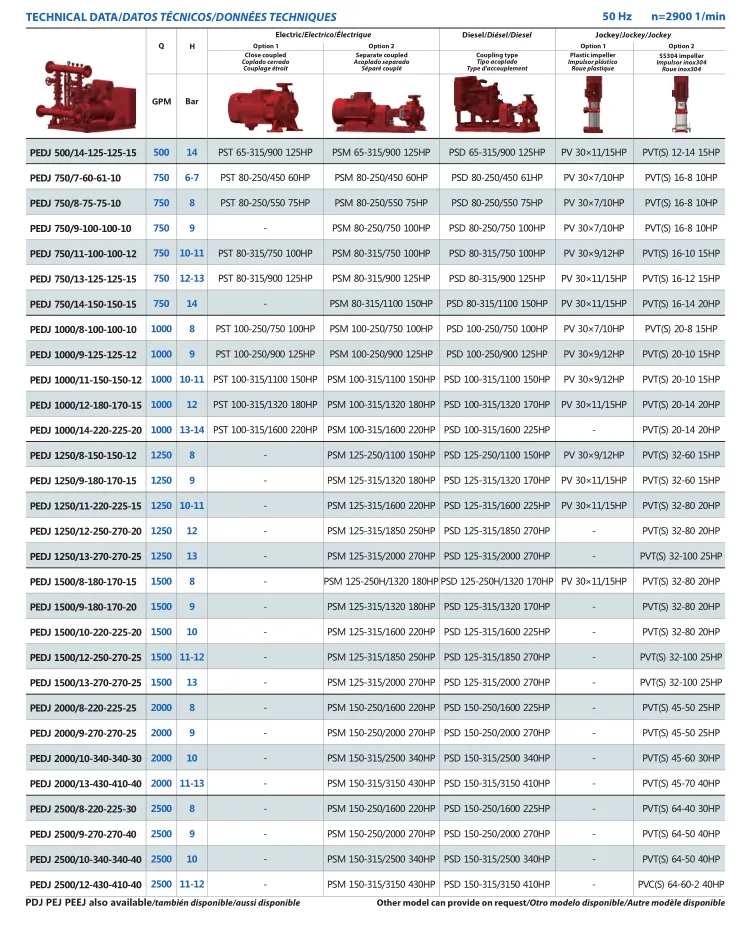

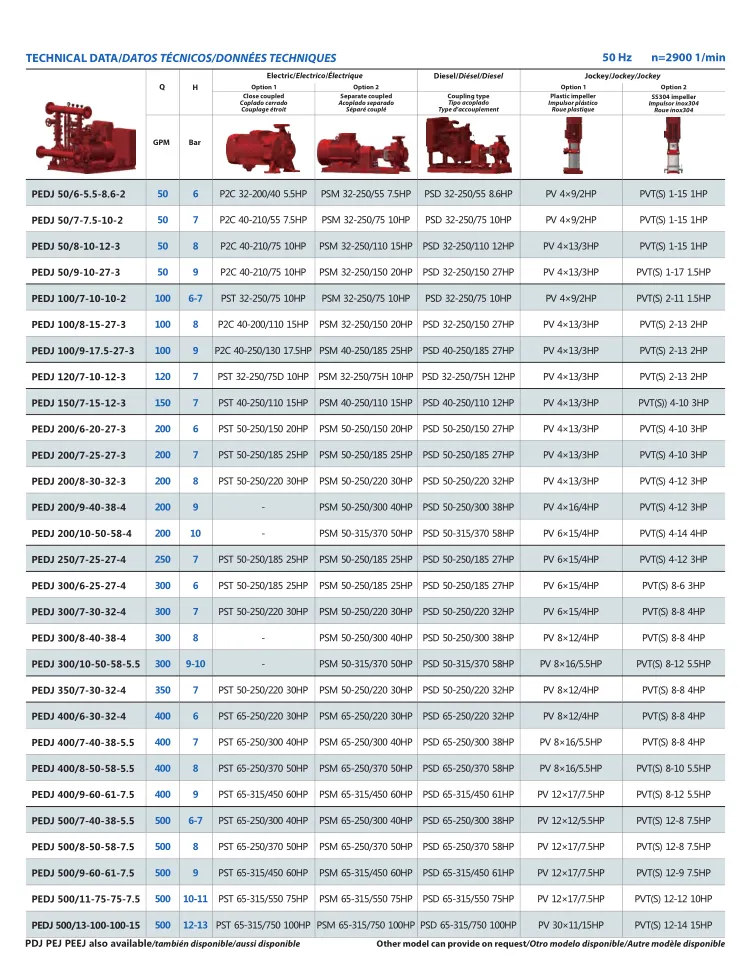

| DN Range of Suction Pipe | 125-700 mm (5"-28") |
| DN Range of Discharging Pipe | 80-600 mm (3"-24") |
| Flow Capacity Range | 0-4500 m3/h |
| Head/Pressure Range | 0-184 Bar |
| Power Range | 1.8- 1780Kw |

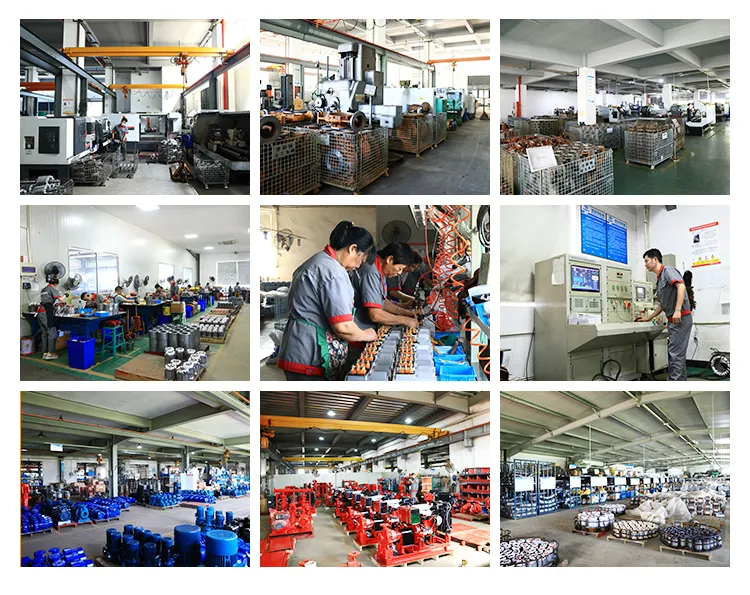

We are a professional manufacturer and supplier of quality pumps and engines export to more than 60 countries. Main products include centrifugal pumps, fire pumps and systems, industrial pumps, domestic pumps, sewage pumps, solar pumps, and irrigation pumps.
