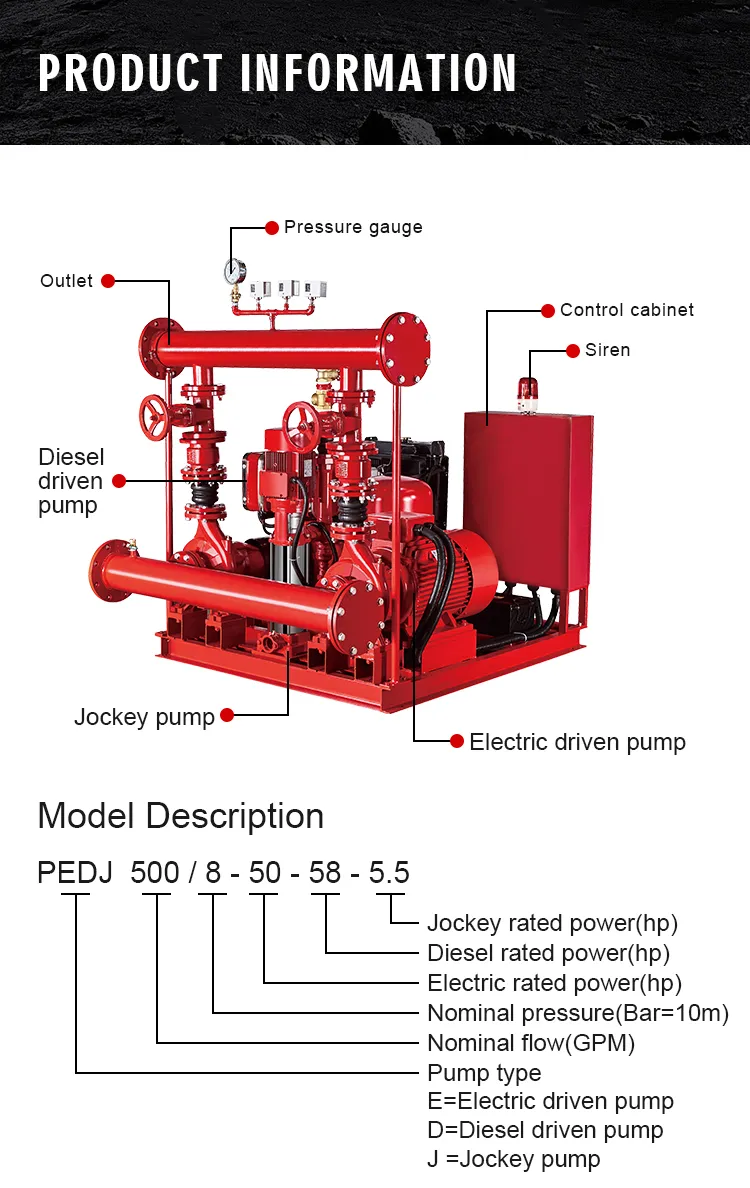

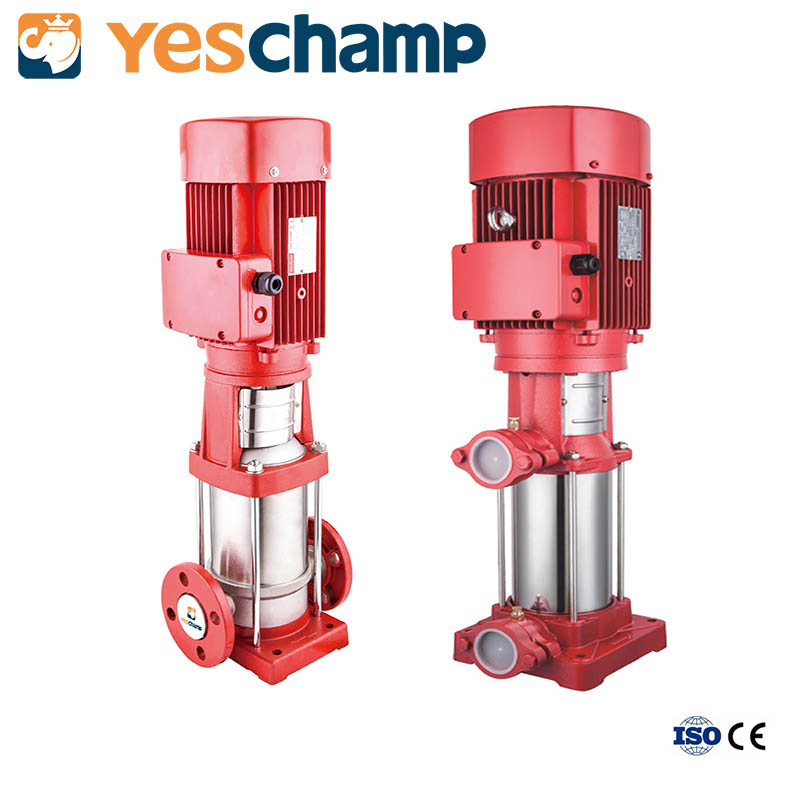

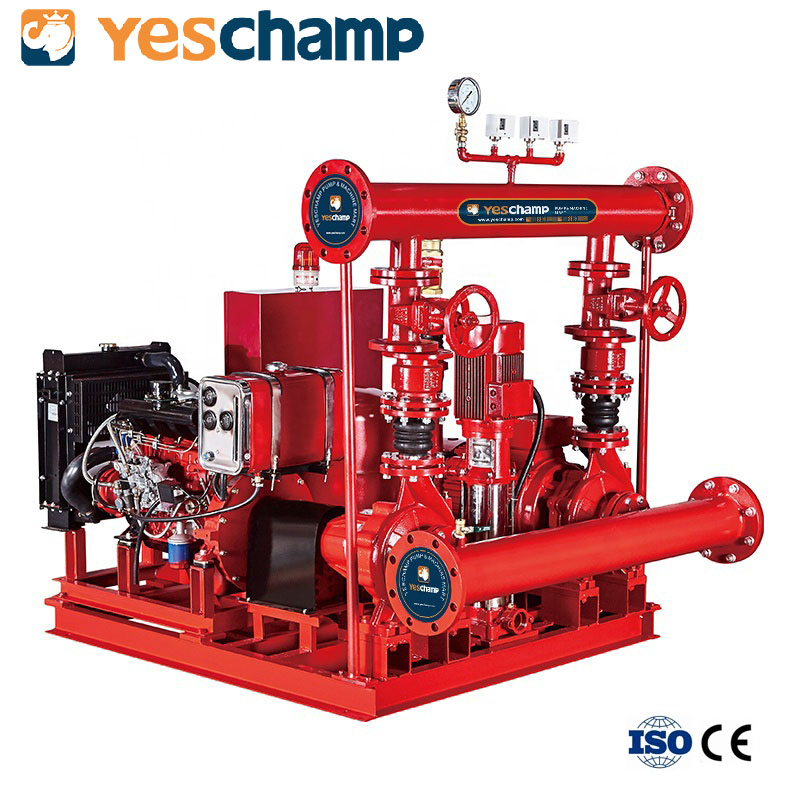

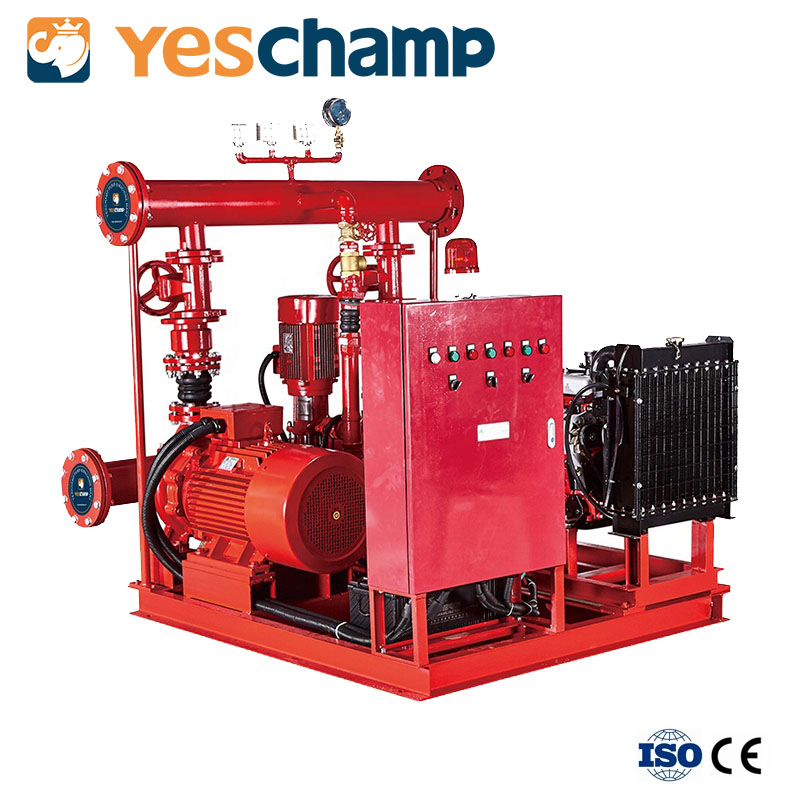

The EDJ Fire Pump Set is a comprehensive fire safety solution consisting of a main electric motor pump, a standby diesel engine pump, and a vertical multistage jockey pump. This system is engineered for reliability, ensuring consistent water pressure for critical fire suppression needs.
Perfectly suited for high-rise buildings, industrial warehouses, hospitals, supermarkets, and residential complexes. It supports fire hose reels, sprinkler systems, hydrants, and fire alarm monitors.

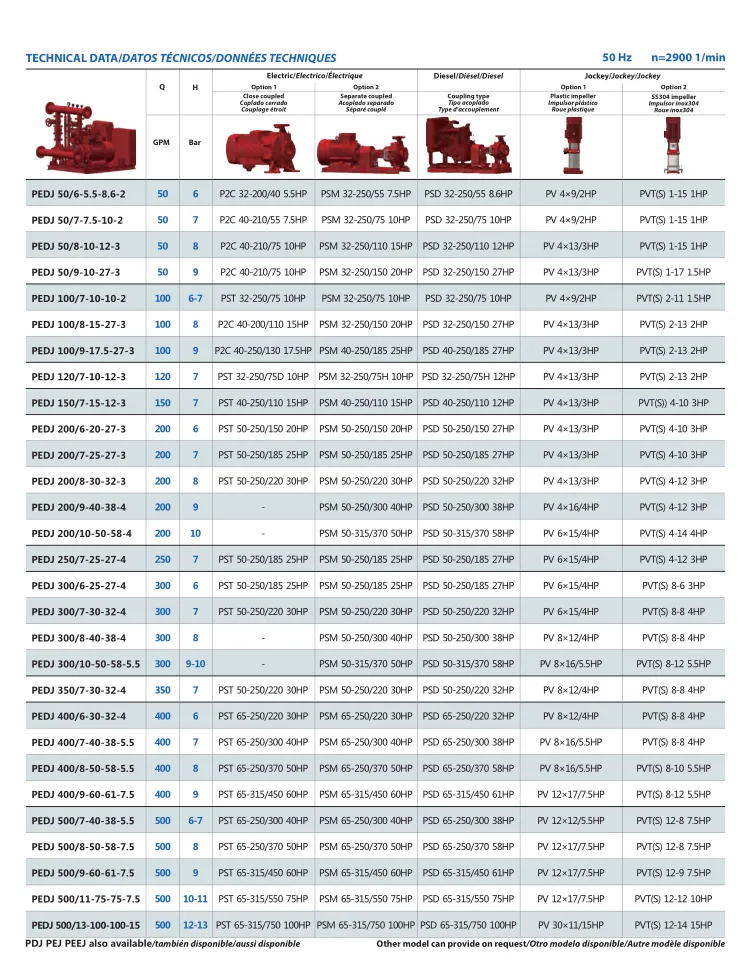

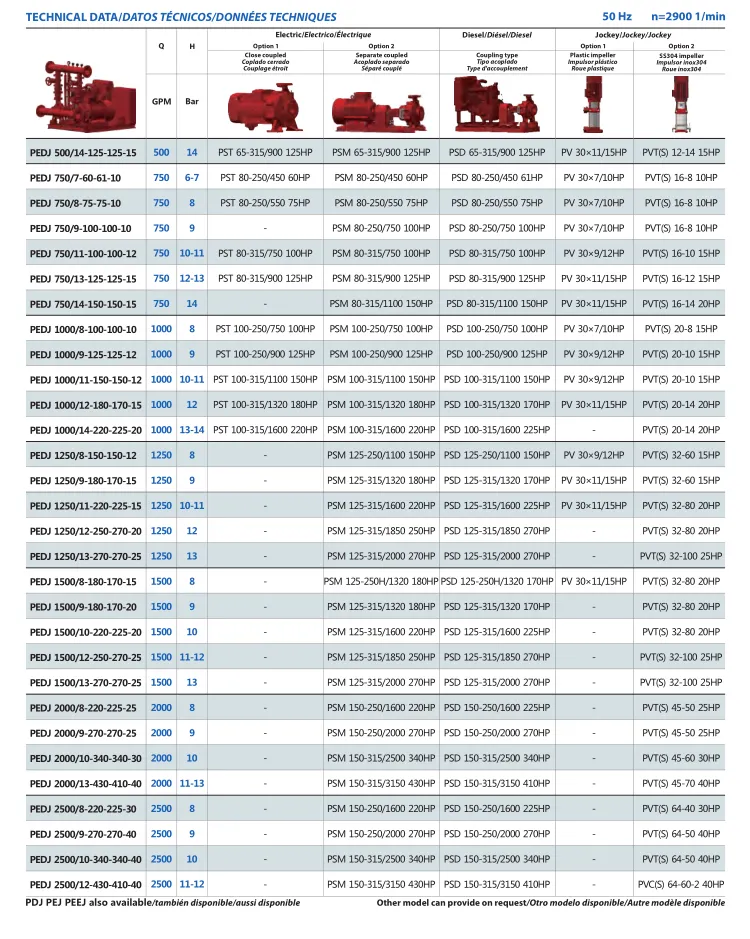

| DN Range of Suction Pipe | 50-400 mm (2"-16") |
| DN Range of Discharging Pipe | 2-350 mm (1.5"-14") |
| Flow Capacity Range | 50-5000 GPM |
| Head/Pressure Range | 4-14 Bar |
| Power Range | 4-325 Kw |

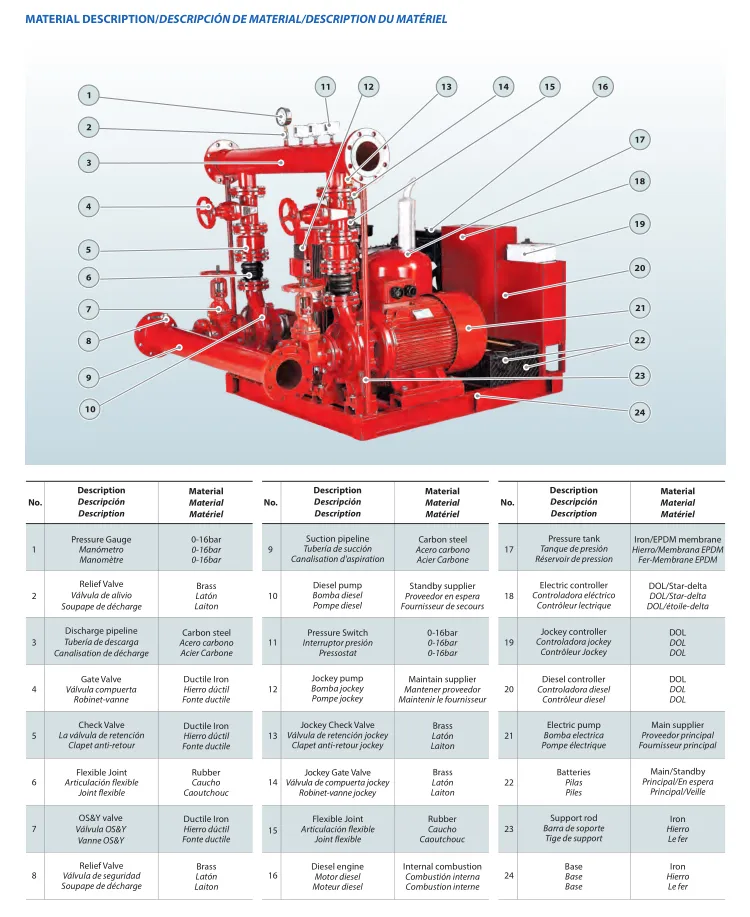

Every package is mounted on a heavy-duty steel base. The system includes automatic air relief valves, gate valves, check valves, pressure switches, and a centralized control panel for immediate operation.
