Edj Diesel Electric Jockey Pump with Control Panel for Fire Protection Solutions

Customization:	Available
After-sales Service:	After-Sales Department
Warranty:	1year for The Pump

i

Basic Specifications

Model NO.

TPOW80-220(I)

Max. Head

80-110m

Max. Capacity

>400 L/min

Driving Type

Diesel Engine/Electric Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Position of Shaft

Horizontal Pump

Pump Material

Cast Iron or Stainless Steel

Rotation Speed

1480/2950rpm

Application

Fire Fighting System

★

Product Description

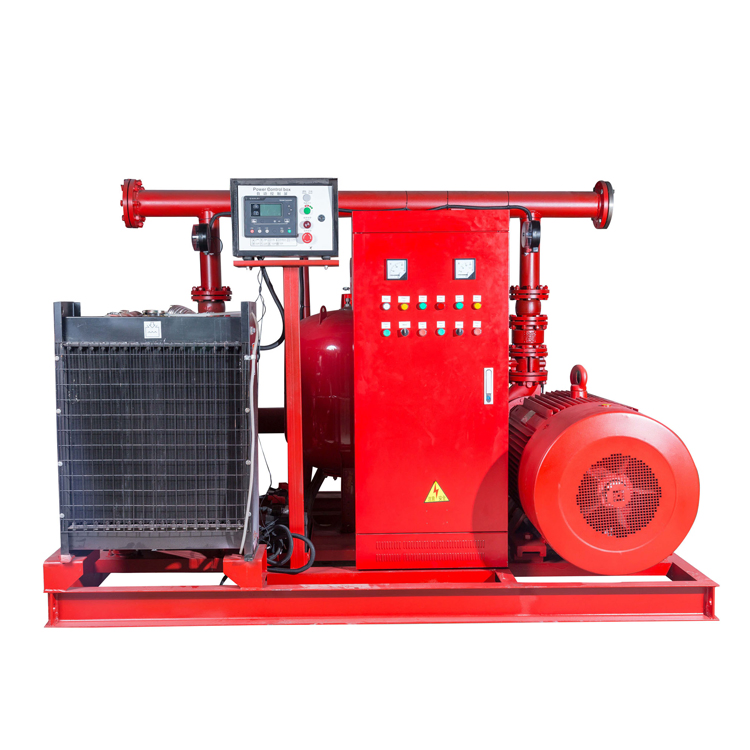

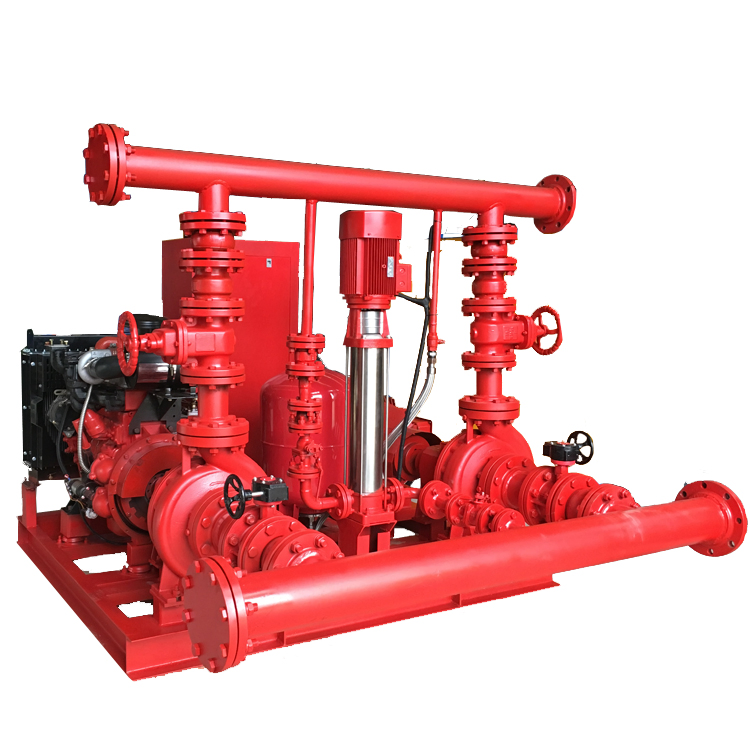

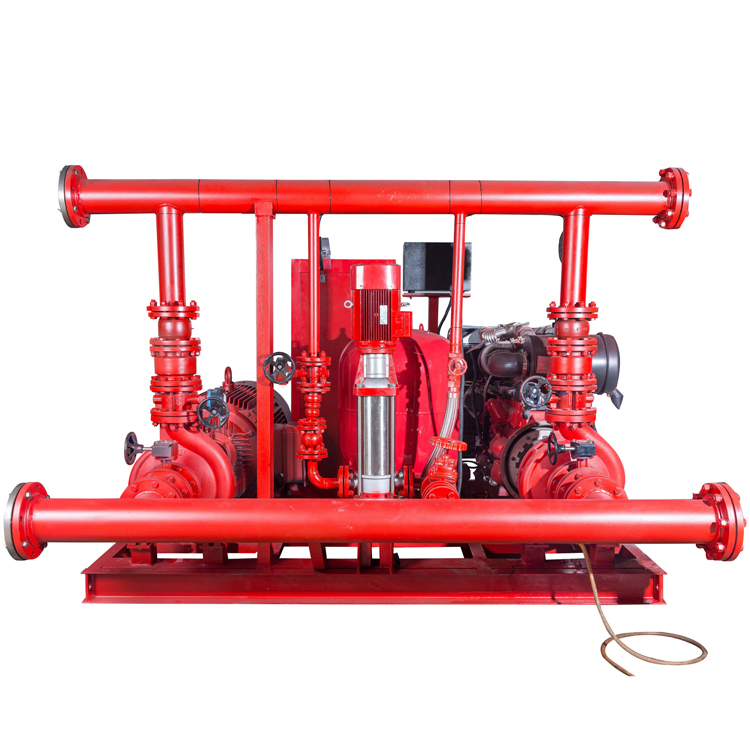

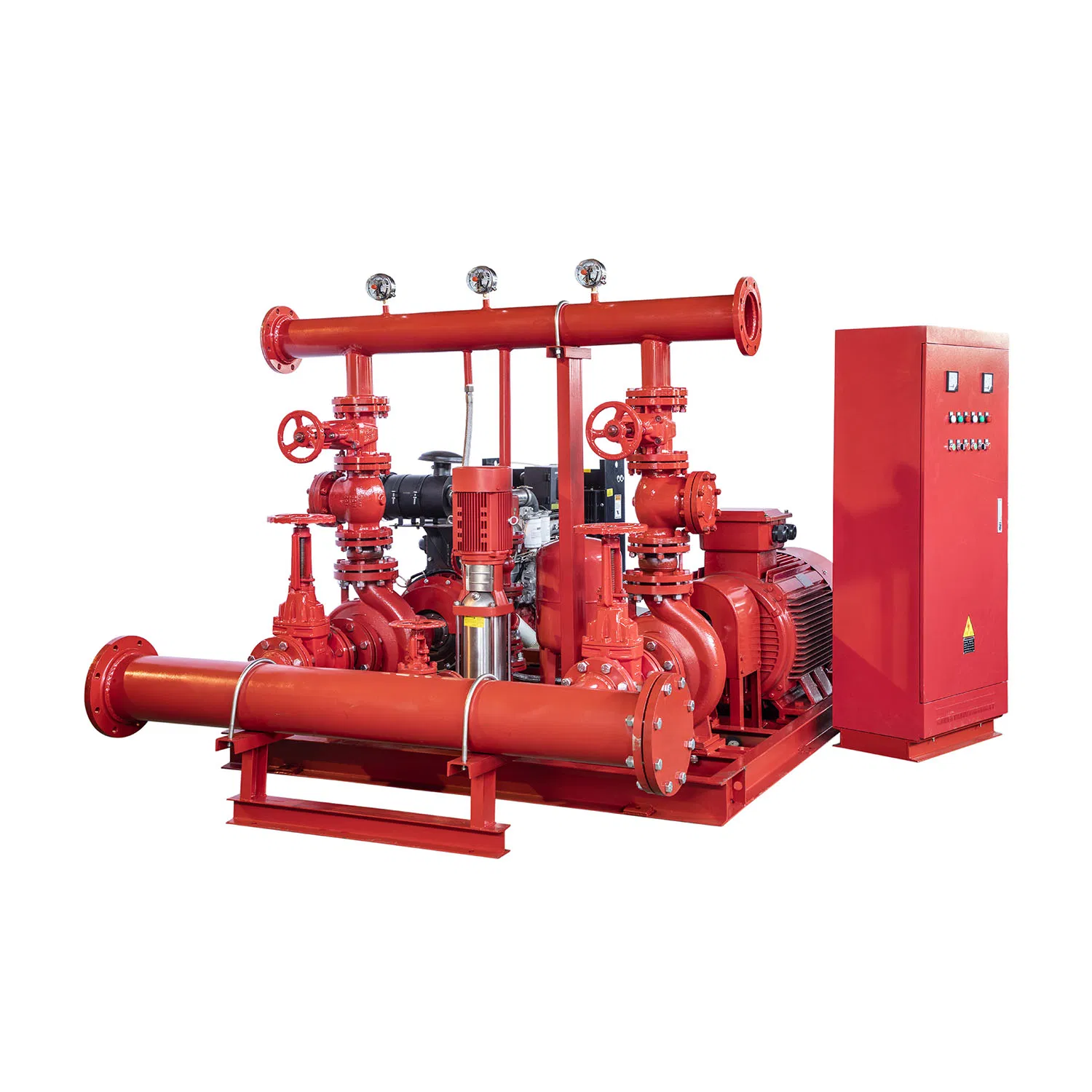

EDJ Diesel Electric Fire Pump Jockey Pump with Control Panel

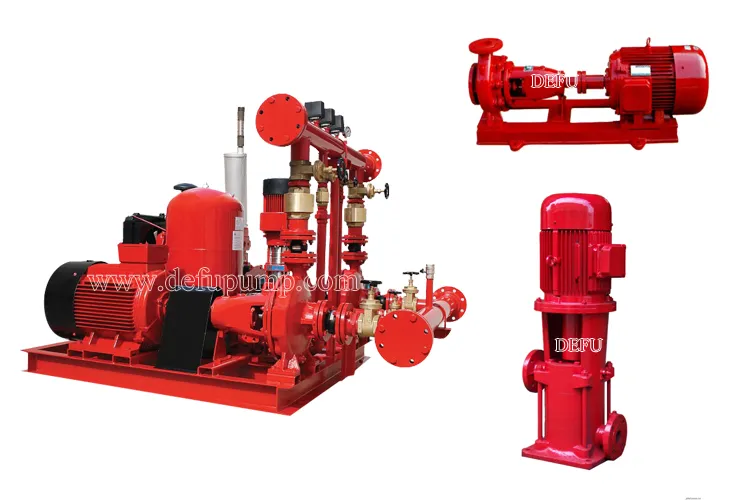

The Fire pump system is composed of an Electric Pump, a Diesel Engine Pump, a Jockey Pump, and essential accessories. Standard operation follows a 1 Duty (electric) + 1 Standby (diesel) + 1 Jockey configuration.

Key Features	Safe and reliable operation Easy installation and maintenance Compliant with international standards Advanced foreign technology integration
Working Conditions	Altitude ≤ 1000m; Ambient temperature: +5 °C ~ +40 °C; Relative humidity: ≤ 90%.
Applications	Warehouses, docks, airports, petrochemical plants, power stations, liquefied gas facilities, textiles, and ships.

⚙

System Components

Component	Technical Details
Diesel Engine Pump	Complies with NFPA20 standards. Features strong overload capacity, compact structure, and high automation.
Electric Fire Pump	Flow: 1~300L/s; Pressure: ≤1.6MPa. Suitable for high-rise buildings, industrial water supply, and cooling systems.
Jockey Pump	Vertical multistage centrifugal design. High efficiency, energy-saving, and equipped with standard vertical motors.
Control Panel	Includes frequency conversion constant pressure control, fault handling, and automatic sewage/air conditioning pump management.

📷

Configurations & Detailed Photos

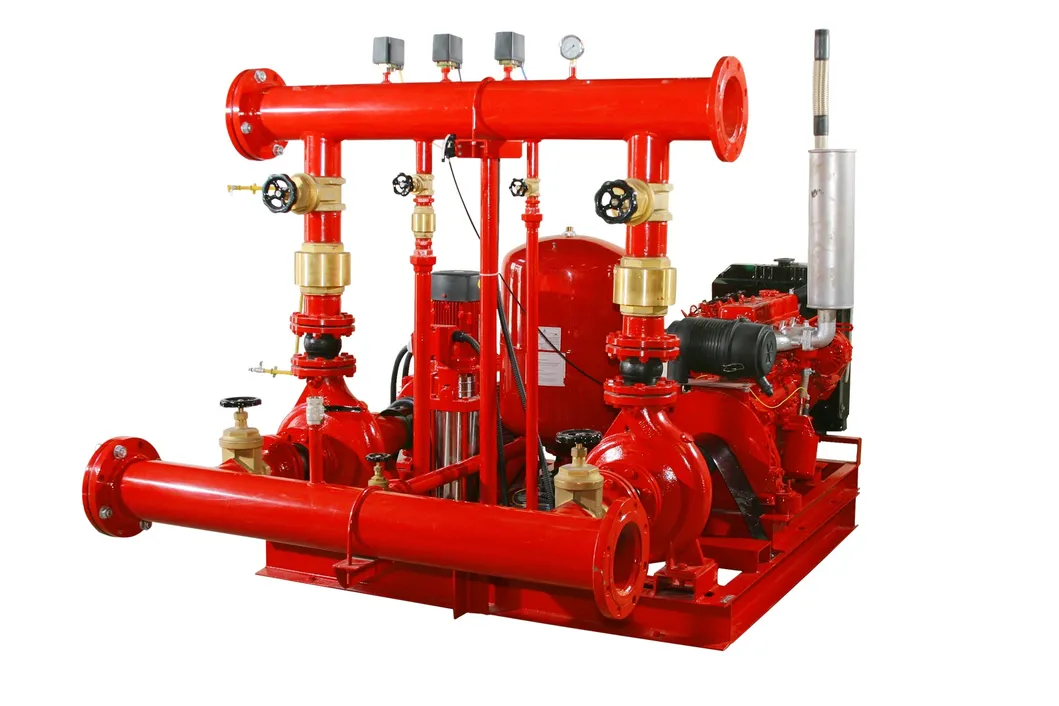

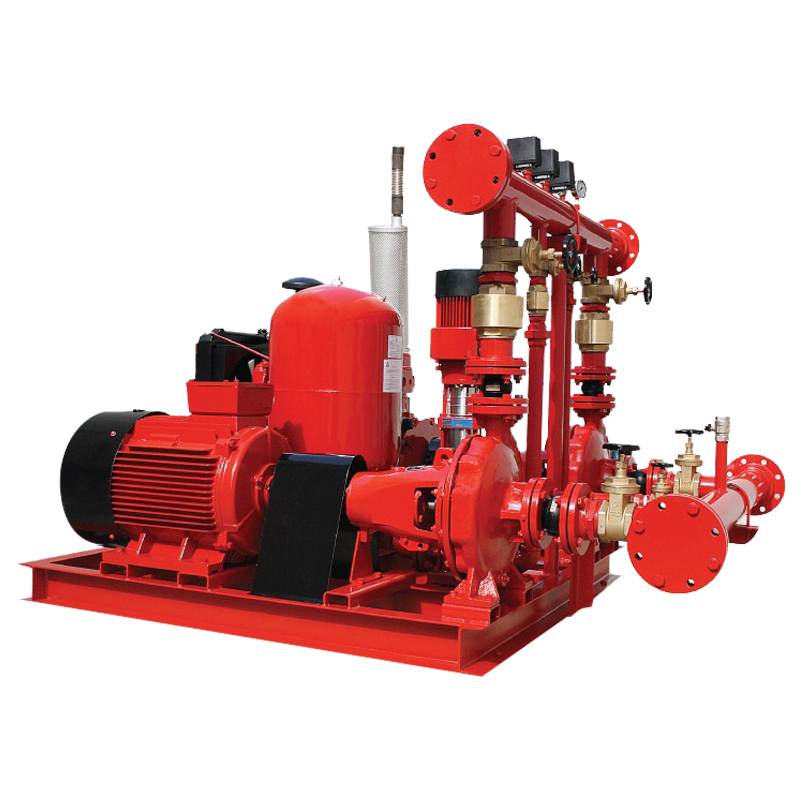

EDJ Type (Electric+Diesel+Jockey)

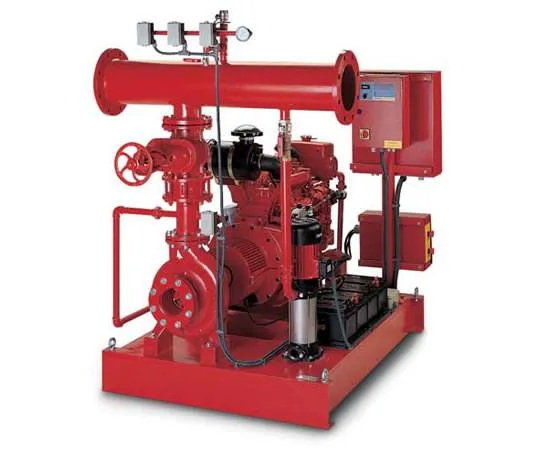

DJ Type (Diesel+Jockey)

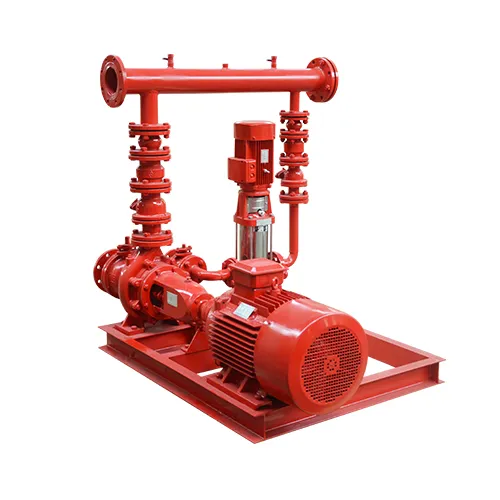

EJ Type (Electric+Jockey)

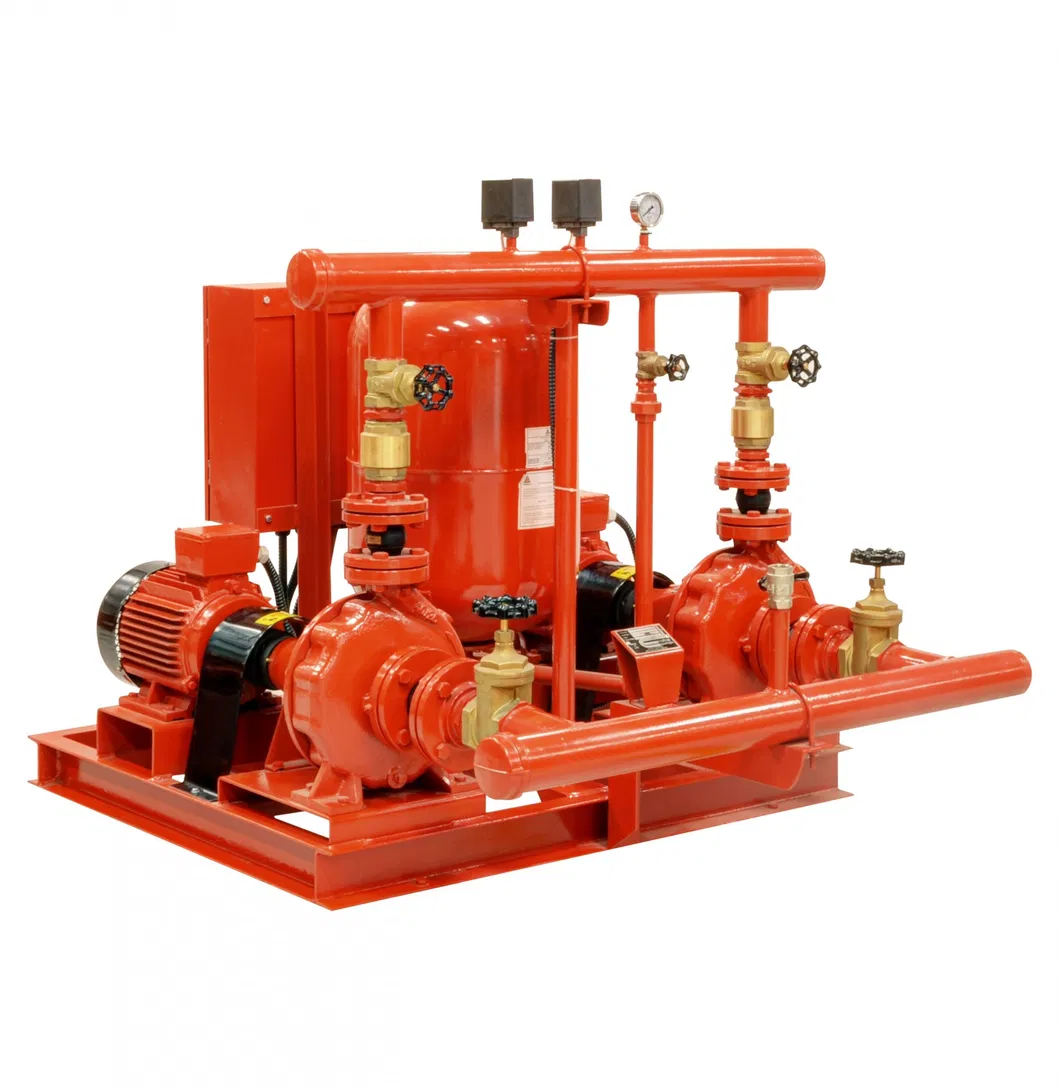

EEJ Type (Double Electric+Jockey)

➔

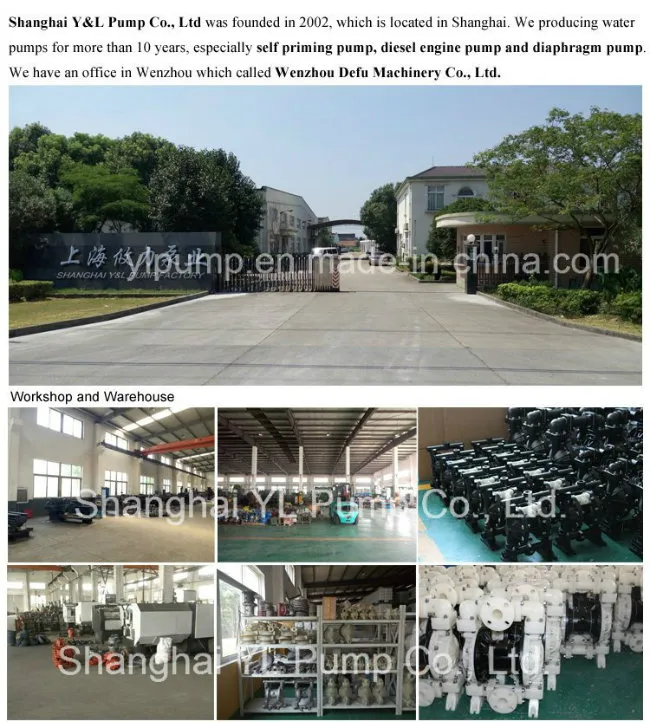

Production Excellence

?

Frequently Asked Questions

1. What is the standard delivery time for the fire pump sets?

For items in stock, delivery is immediate upon payment. For out-of-stock orders, the production time is approximately 35 days for fire fighting pump sets.

2. What kind of packaging is used for international shipping?

All pump sets are packed using a standard Plywood Case to ensure safety during transit.

3. How are the pumps delivered to international customers?

Small orders are sent via international express (DHL, TNT, FEDEX, UPS). Large orders are delivered by air, sea, or multi-modal transport depending on your requirements.

4. What is the warranty period for the equipment?

According to international standards, the pump has a 1-year warranty for standard operation and 3 months for spare parts.

5. What are the typical applications for this EDJ fire pump system?

It is widely used in warehouses, docks, airports, petrochemical plants, power stations, and on ships or oil tankers for fire protection services.

6. What components are included in a standard EDJ fire pump set?

A standard set typically includes an Electric Pump, a Diesel Engine Pump, a Jockey Pump, and a specialized Control Panel with relative sensors and wiring.
