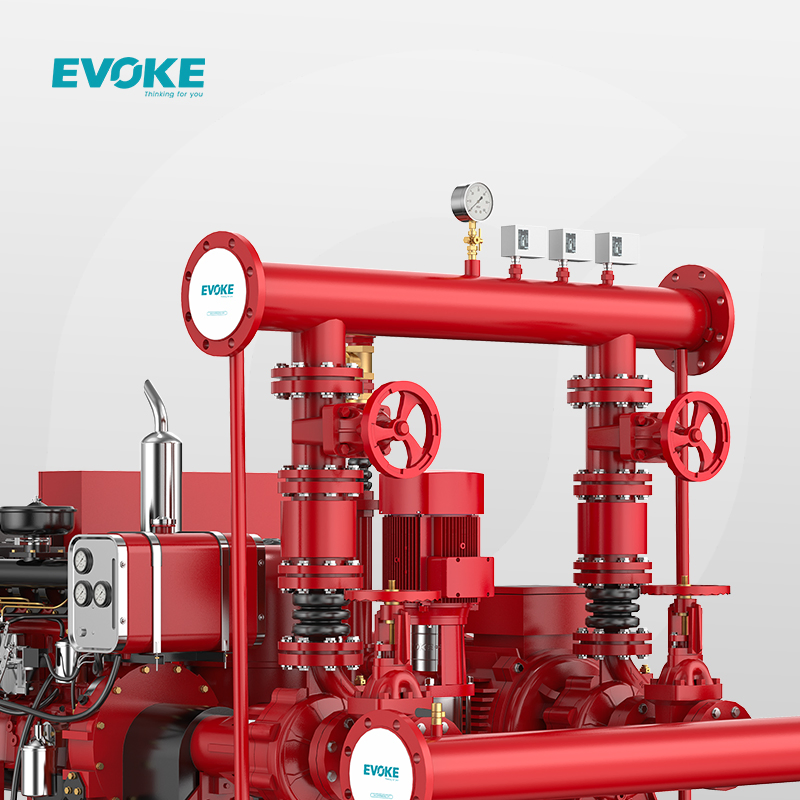

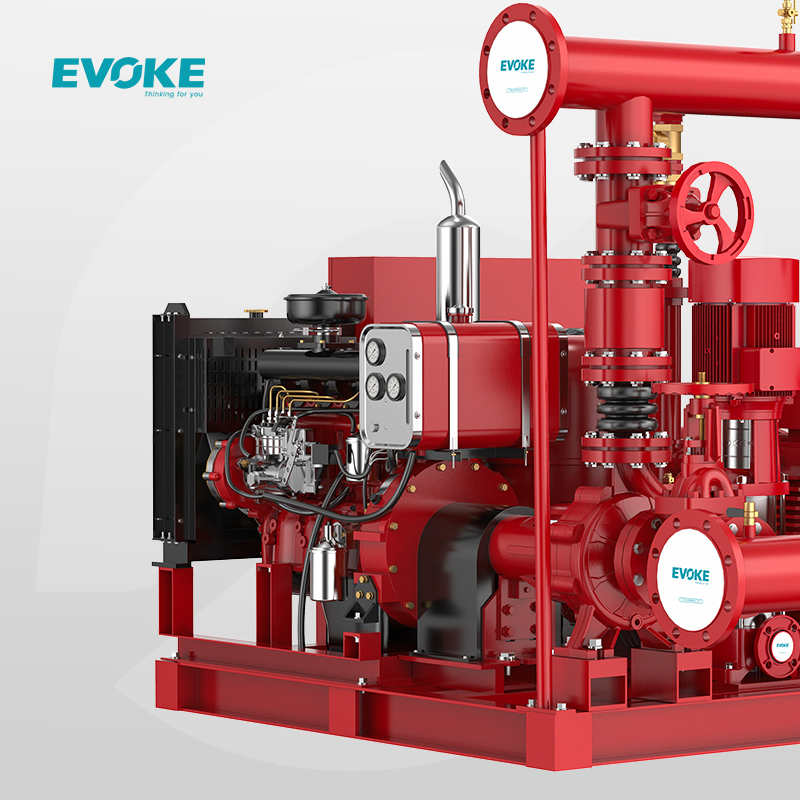

E-Edj Vertical Turbine Fire Pump Made in China Evoke

Customization:	Available
After-sales Service:	Warranty Free Accessories (Not Man-Made)
Warranty:	18 Months

Send Inquiry

Product Description

Basic Information

Model NO.

E-EDJ

Max.Head

110m-150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Booster Pump

Power

Electric

Start Up

Electric Pump

Type

Fire Pump

Application

Industrial Pump

Industry

Industrial Pump

Media

Clean Water

Performance

Centrifugal Pump

Theory

Centrifugal Pump

Transport Package

Wooden Box

Origin

China

HS Code

841370

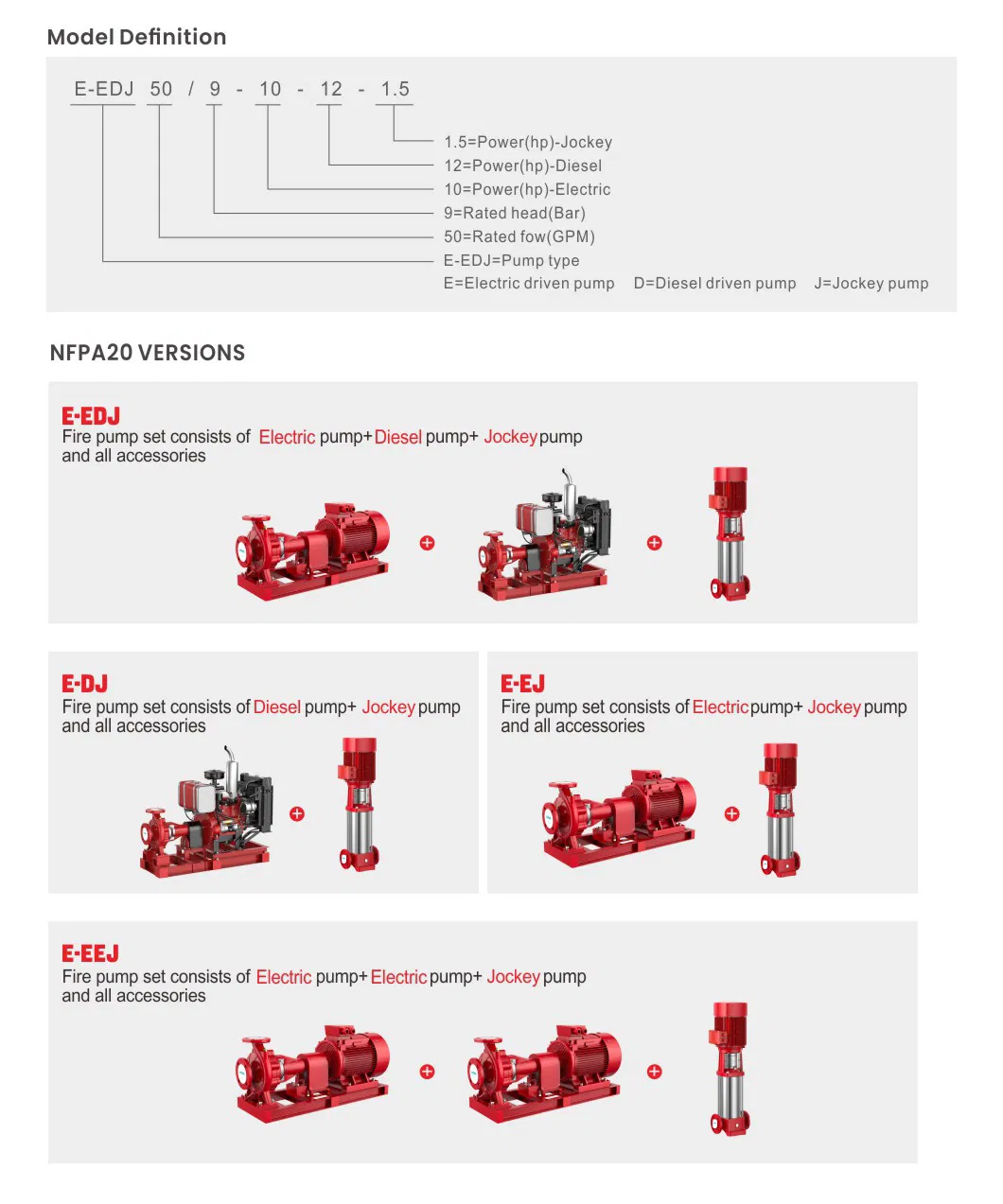

Product Overview

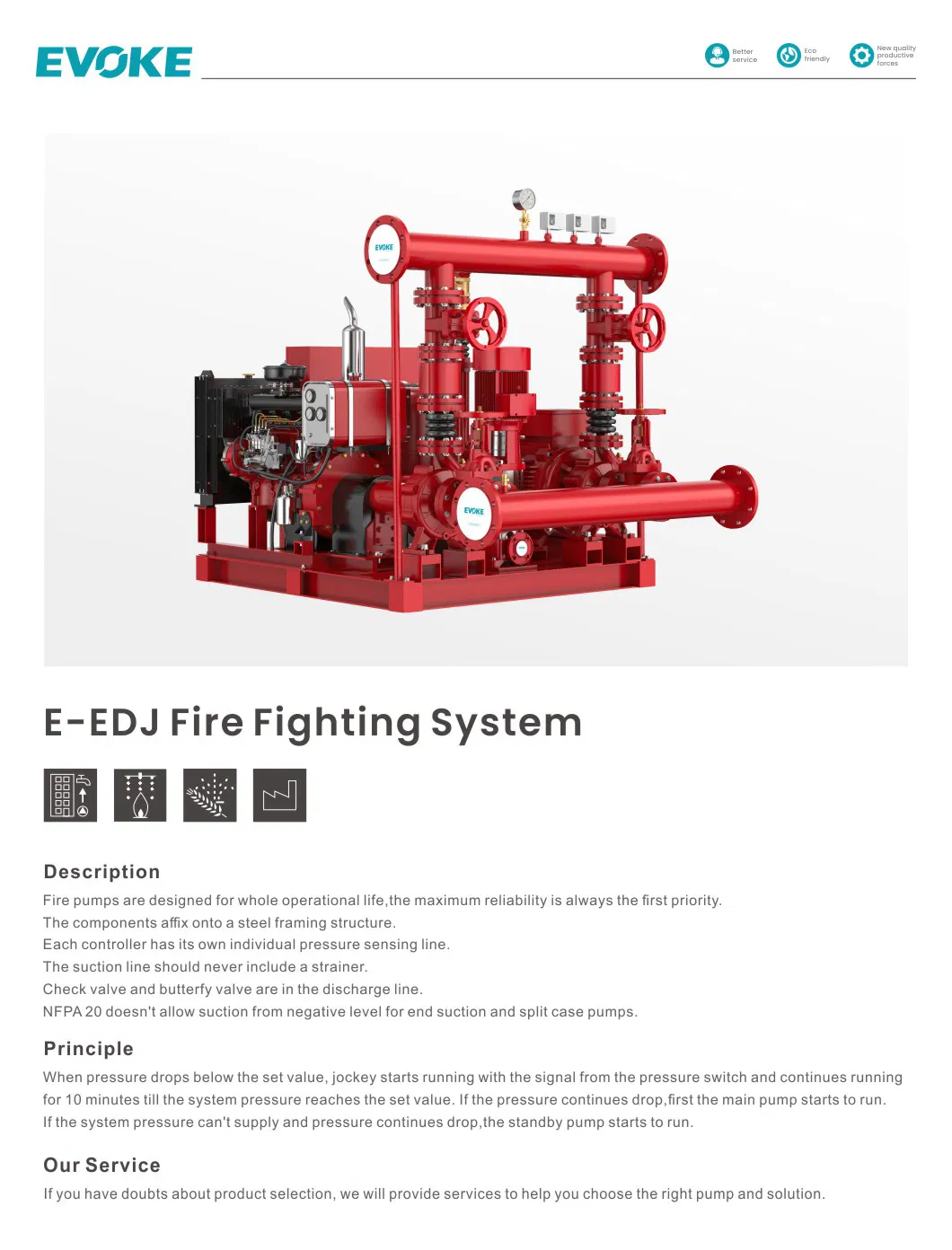

When pressure drops below the set value, jockey starts running with the signal from the pressure switch and continues running for 10 minutes till the system pressure reaches the set value. If the pressure continues drop, first the main pump starts to run. If the system pressure can't supply and pressure continues drop, the standby pump starts to run.

Product Scope

Includes vertical pipeline pumps, vertical multistage pumps, horizontal end suction pumps, horizontal double suction pumps, fire booster units, and stabilization units.

Applications

Suitable for fire hydrants, fire hoses, fire sprinklers, and other fire fighting systems requiring pressurized water supply.

Standards & Compliance

Complies with GB 6245-2006 national standards and CCCF certification requirements.

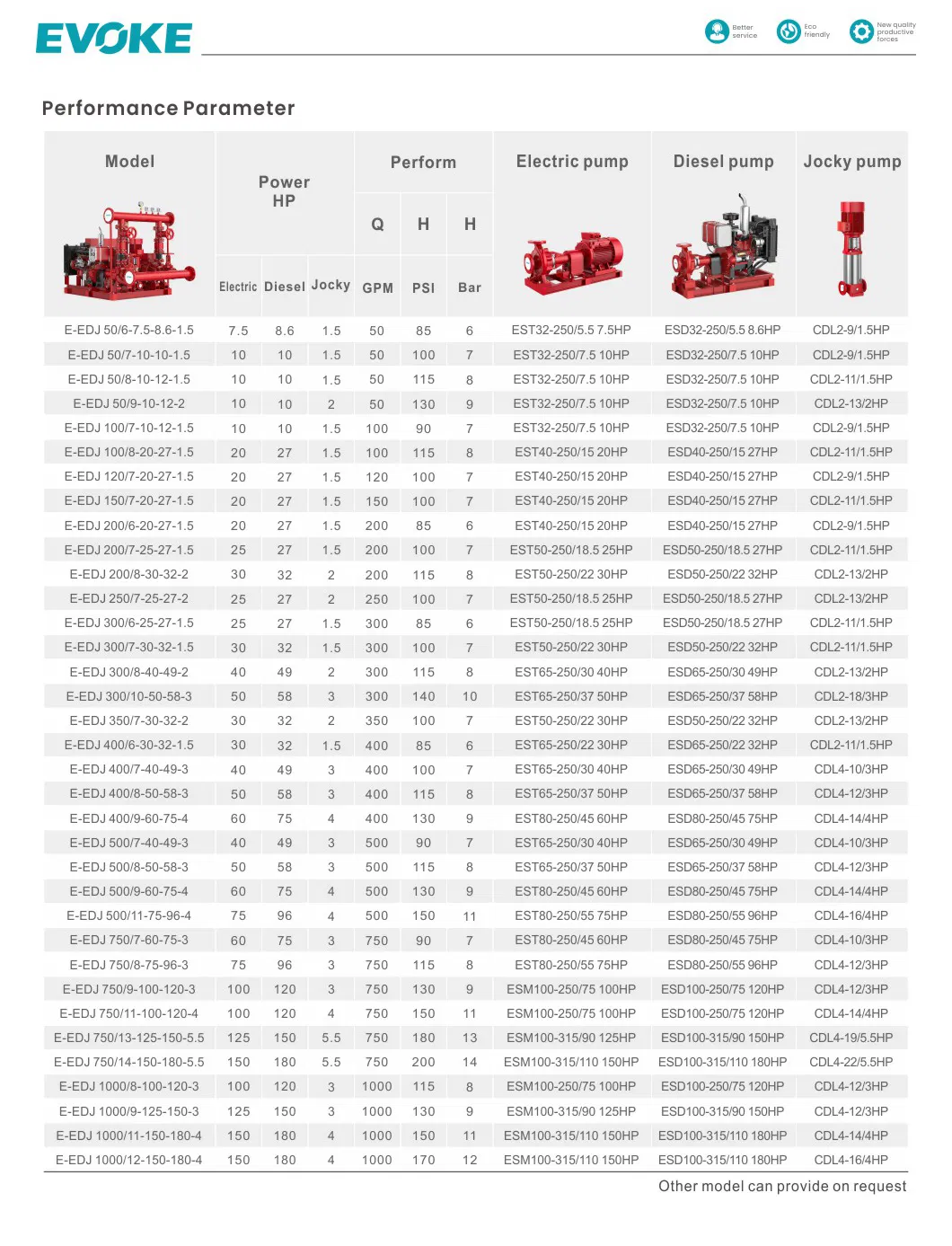

Technical Parameters

Max Flow: 200L/s Max Head: 300m

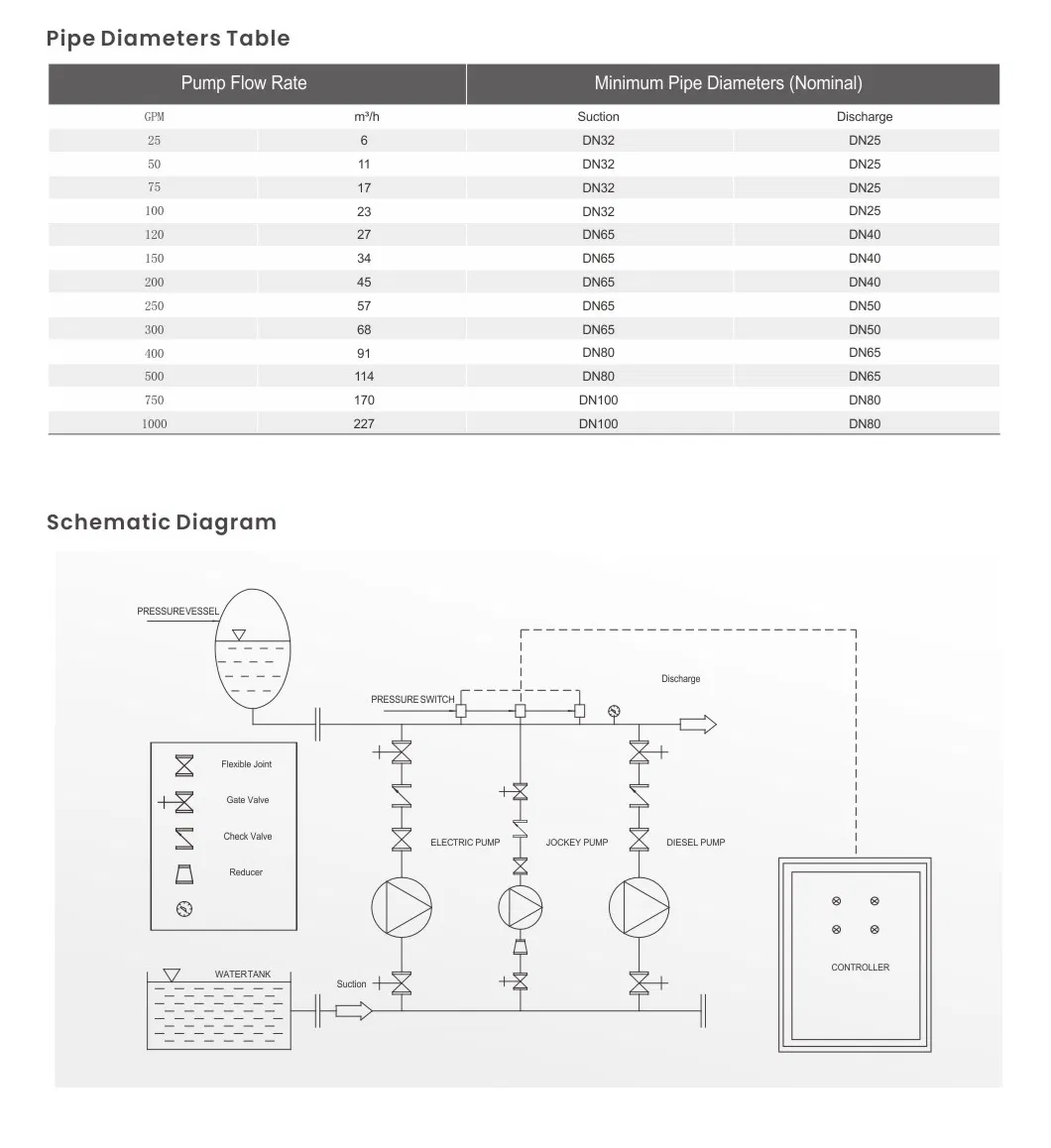

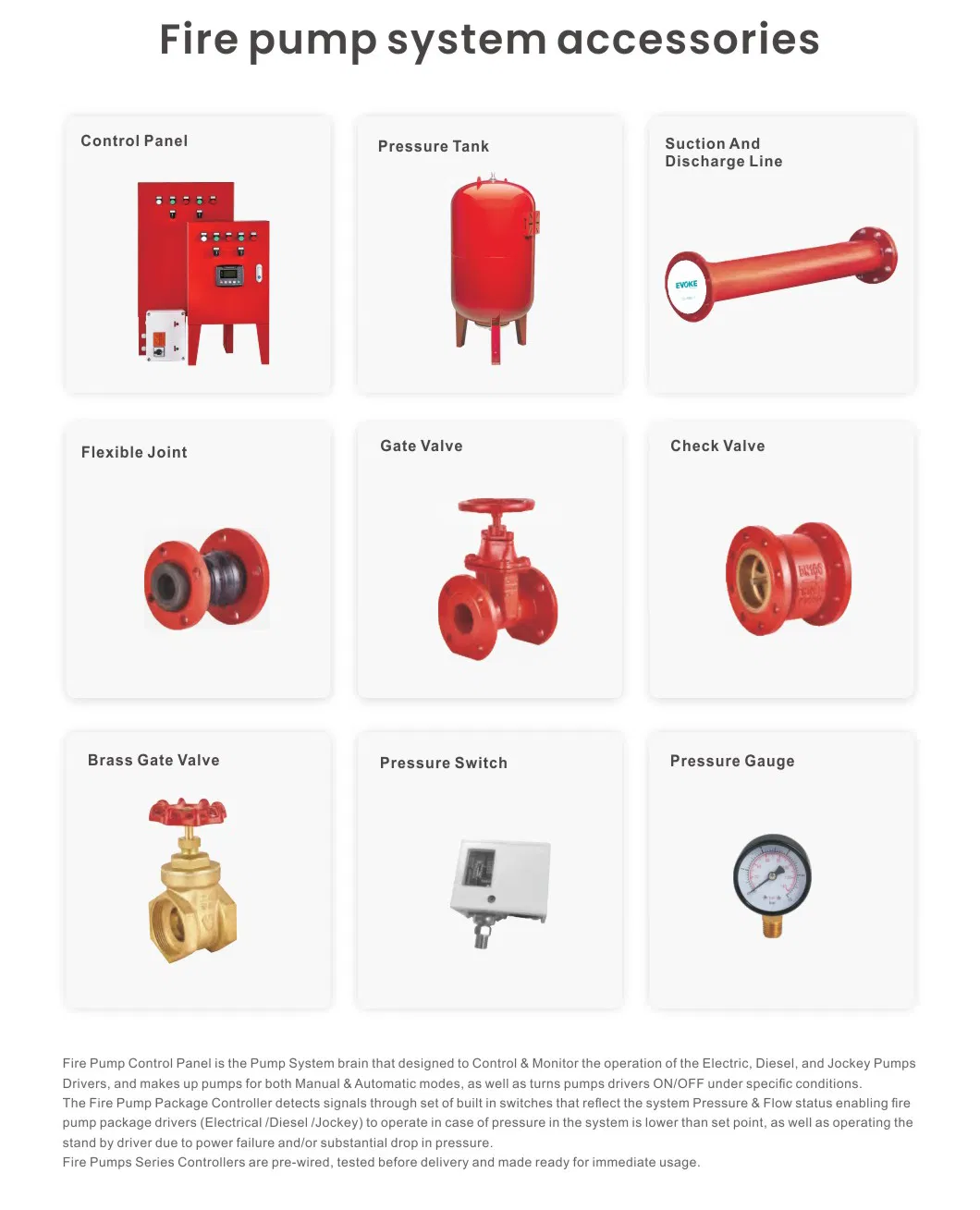

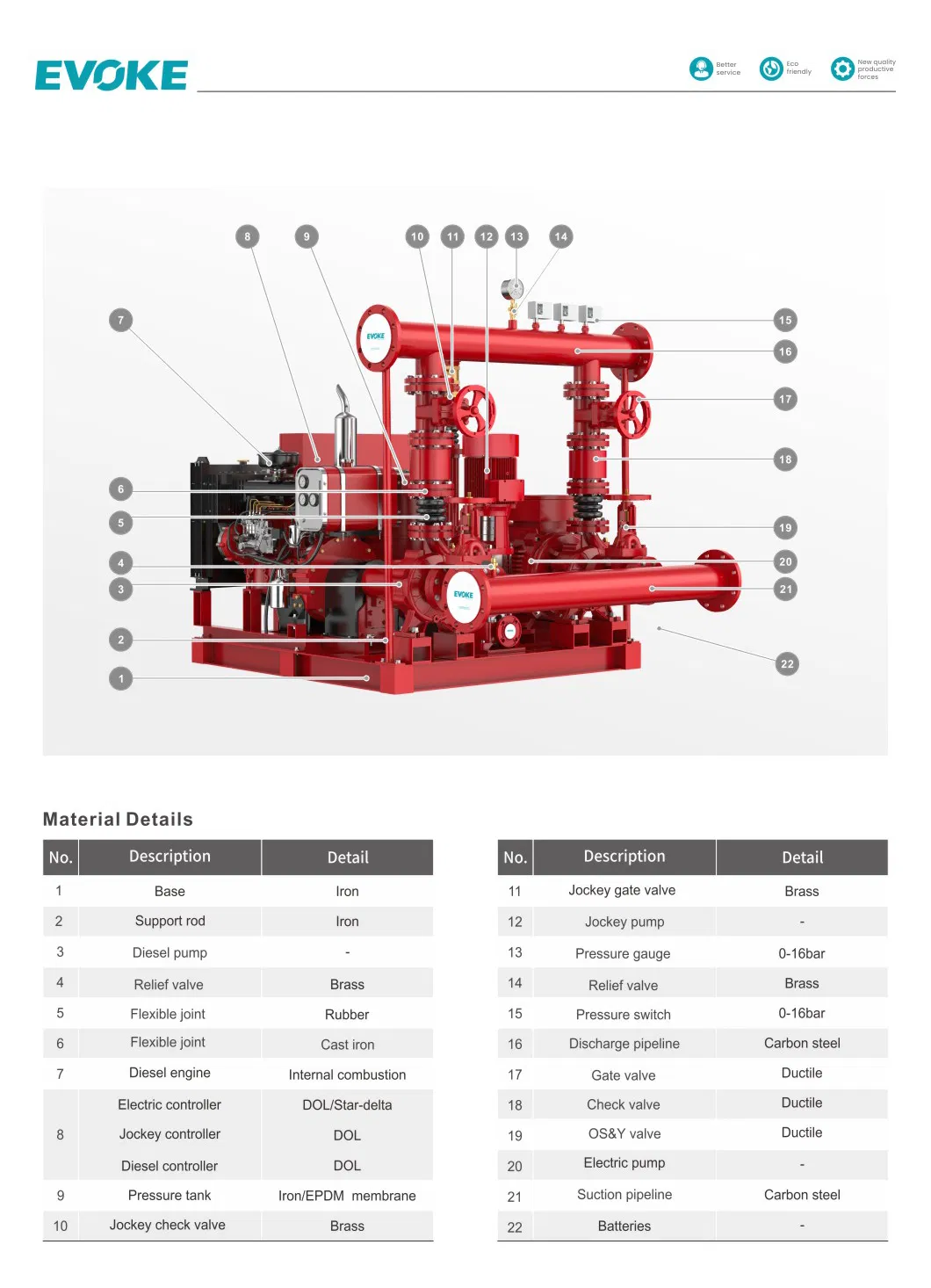

Bill Of Materials

Detailed Visuals

Frequently Asked Questions

How does the jockey pump function within the system?

The jockey pump automatically starts when system pressure falls below a set point. It runs for 10 minutes to restore pressure. If pressure continues to drop, the main pump is triggered.

What are the main applications for these fire pumps?

These units are designed for industrial fire fighting systems, including fire hydrants, hose stations, and sprinkler systems that require high-pressure water supply.

What materials are used in the construction of the E-EDJ model?

The standard construction features a robust cast iron pump body, ensuring durability and reliability for industrial fire protection environments.

What certifications do these fire units hold?

The fire pump products meet the GB 6245-2006 national fire pump standards and are compliant with CCCF certification requirements.

What is the performance range for these pumps?

Depending on the configuration, the system can achieve a maximum flow rate of 200 L/s and a maximum head of up to 300 meters.

What type of media is suitable for this pump?

These pumps are specifically designed to handle clean water for fire fighting and industrial water supply applications.
