Product Description

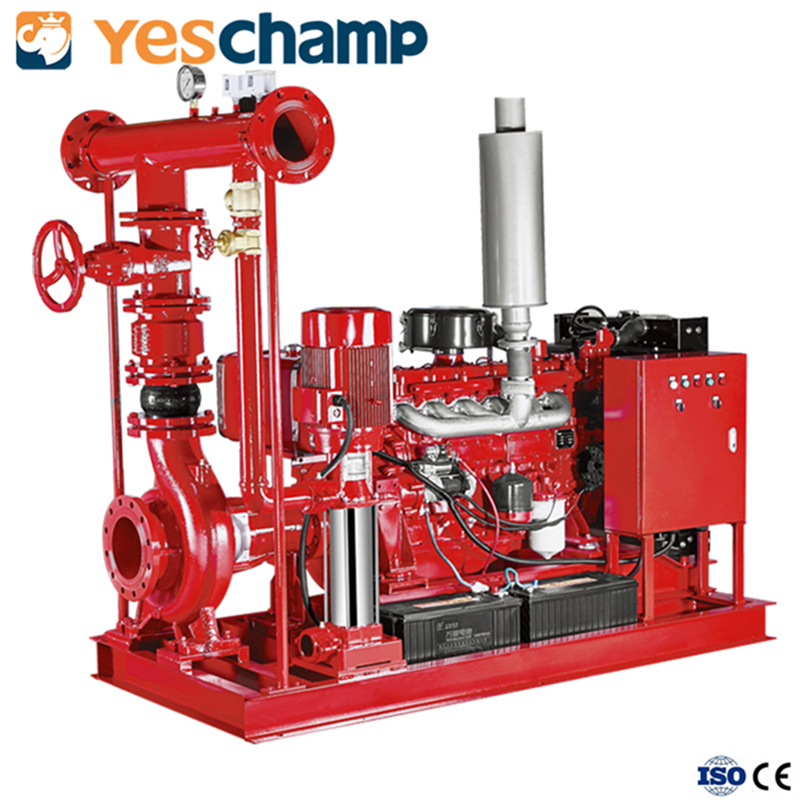

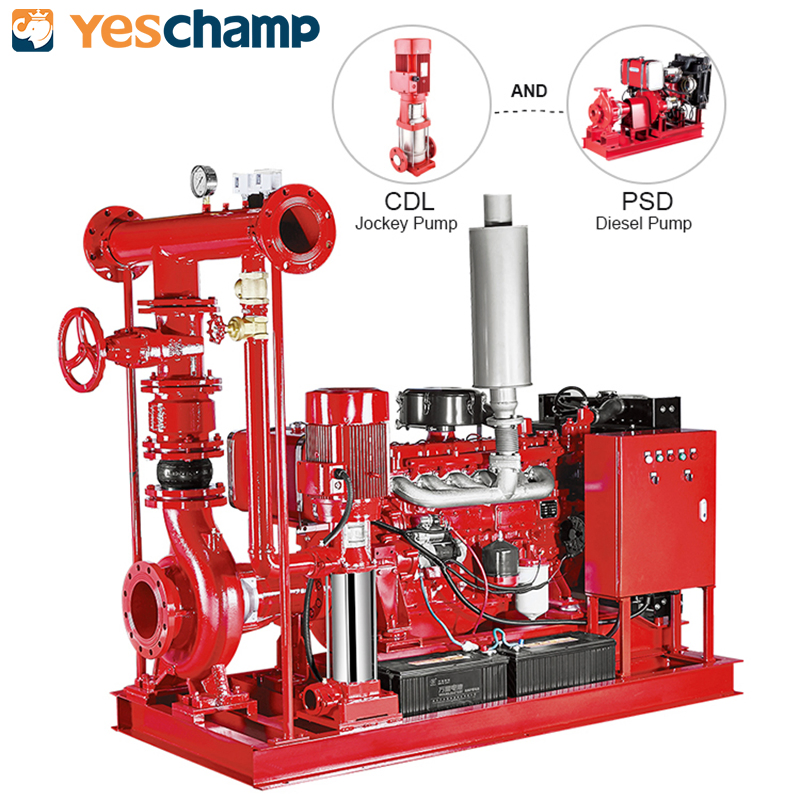

DJ Series Skid Mounted Fire Fighting Pump Set

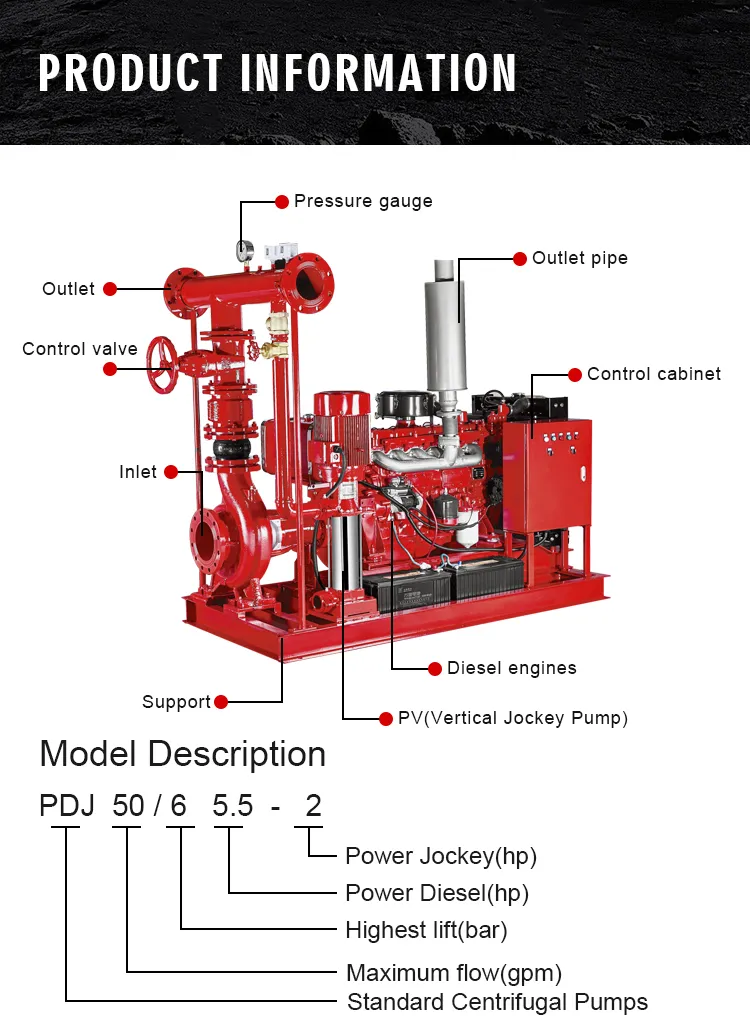

PDJ Fire pump set consists of one pump coupled to a diesel engine, a jockey pump, a pressure vessel, a controller for manual or automatic operation of the system, and standard accessories mounted on a base frame. This fire pump system can be customized for different purposes such as high-rise buildings, hospitals, supermarkets, shopping malls, and apartments.

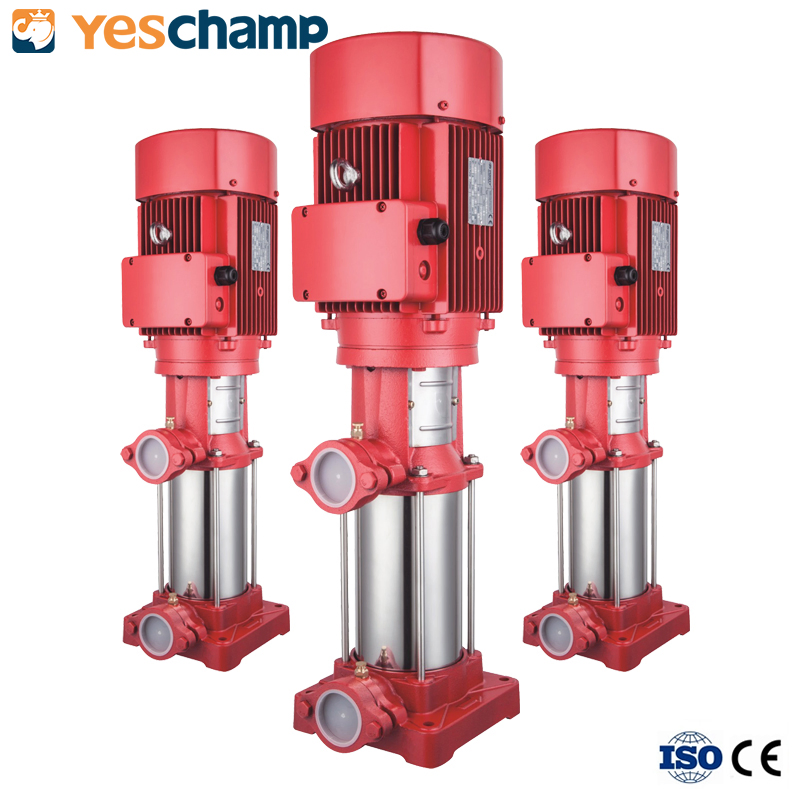

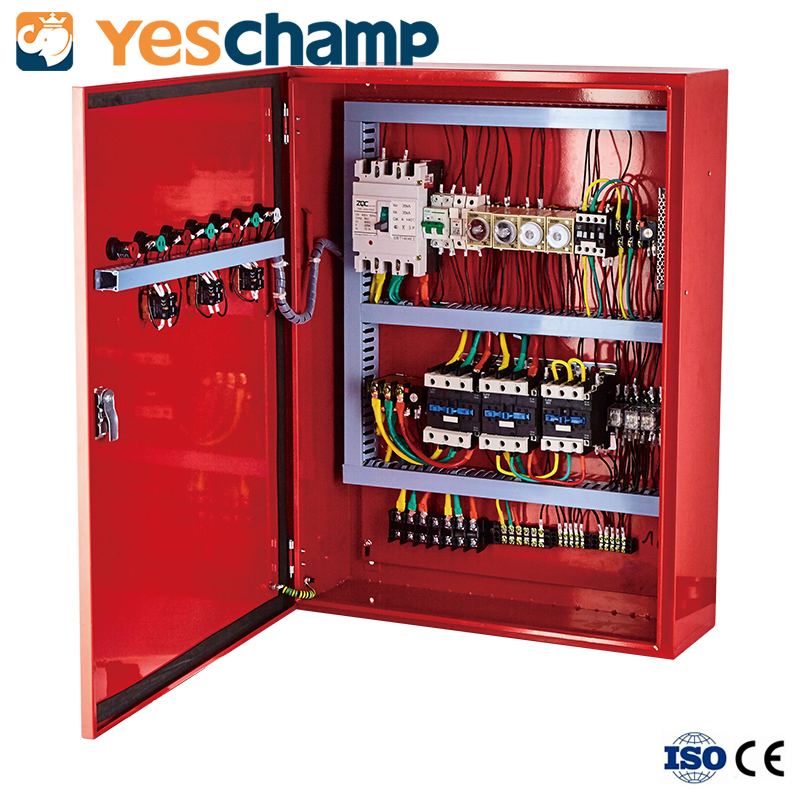

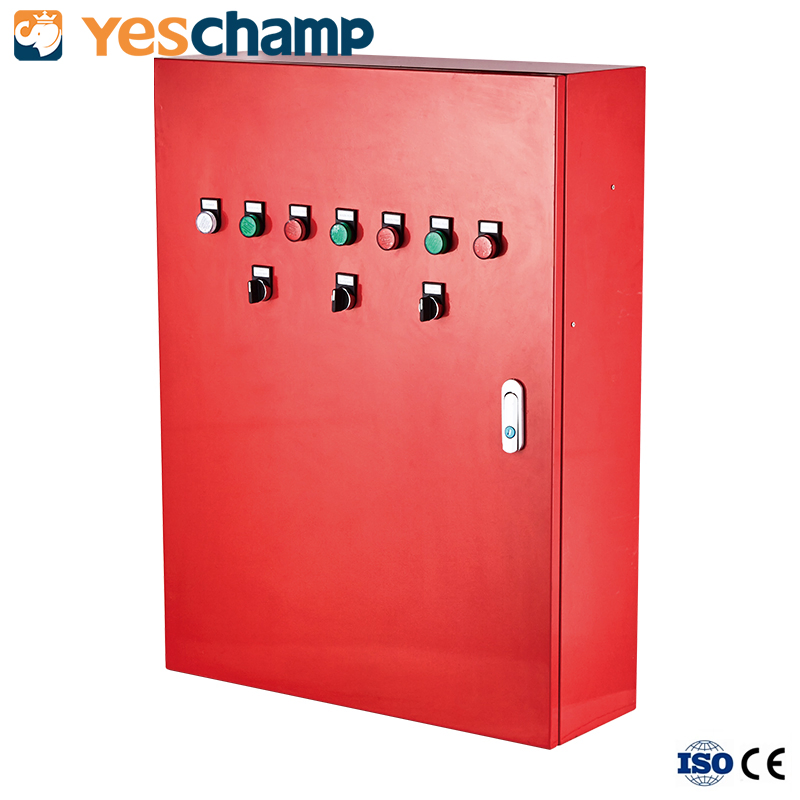

The main pump can be an end suction pump, split case pump, or multistage pump with stainless steel, cast iron, and bronze material configurations. The control panel acts as the system brain, monitoring the operation of the Diesel and Jockey Pumps, managing both Manual and Automatic modes.

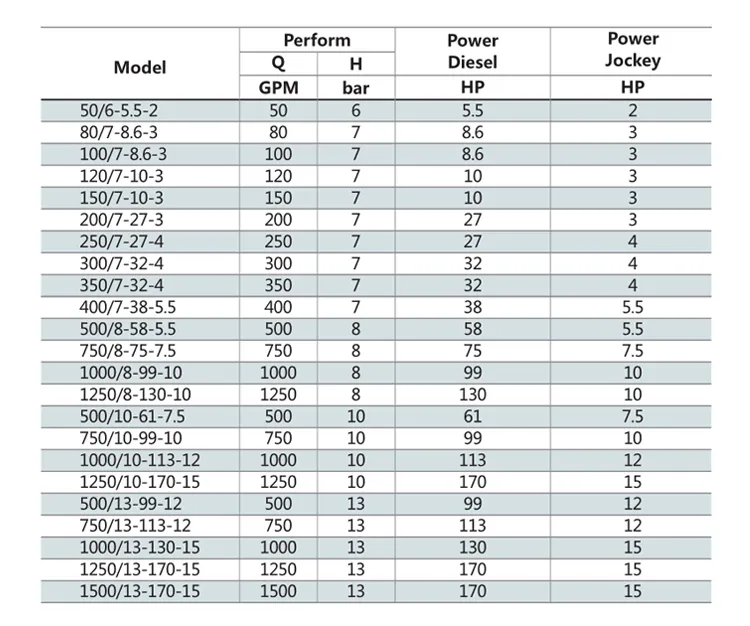

| Parameter |
Range |
| DN Range of Suction Pipe |
50-400 mm (2"-16") |
| DN Range of Discharging Pipe |
32-350 mm (1.5"-14") |
| Flow Capacity Range |
50-5000 GPM |
| Head/Pressure Range |
4-14 Bar |
| Power Range |
4-325 Kw |
🏗️
Application
This fire pump set is designed for fire hose and fire hose reel systems, fire sprinkler systems, fire water monitor systems, fire alarm systems, and fire hydrant systems.
🏭
Professional Capabilities
Our manufacturing expertise spans over 10 years, exporting quality pumps and engines to more than 60 countries. We maintain a robust team of engineers, technicians, and service staff to provide a comprehensive one-stop service from quotation to fulfillment.
Focusing on innovation and high quality, our product range includes centrifugal pumps, fire pump systems, industrial and domestic pumps, sewage pumps, and solar pumps. We ensure strict quality control and use the latest technology to meet global standards.
❓
Frequently Asked Questions
What components are included in the PDJ Fire Pump set?
The set includes a main pump (diesel engine coupled), a jockey pump, a pressure vessel, an automatic/manual controller, and standard accessories mounted on a base frame.
How does the jockey pump operate within the system?
When the system pressure drops below a set value, the jockey pump starts automatically via a signal from the pressure switch and runs until the set pressure is restored.
What are the available materials for the main pumps?
Standard configurations offer main pumps made from stainless steel, cast iron, or bronze depending on specific requirements.
Is the fire pump control panel ready for immediate use?
Yes, the controllers are pre-wired and fully tested before delivery to ensure they are ready for immediate installation and usage.
What applications are suitable for this fire pump system?
It is ideal for high-rise buildings, hospitals, supermarkets, shopping malls, fire hydrant systems, and fire sprinkler installations.
Can the pump system be customized?
Yes, the system can be customer-built for a wide range of purposes and specific site configurations.
