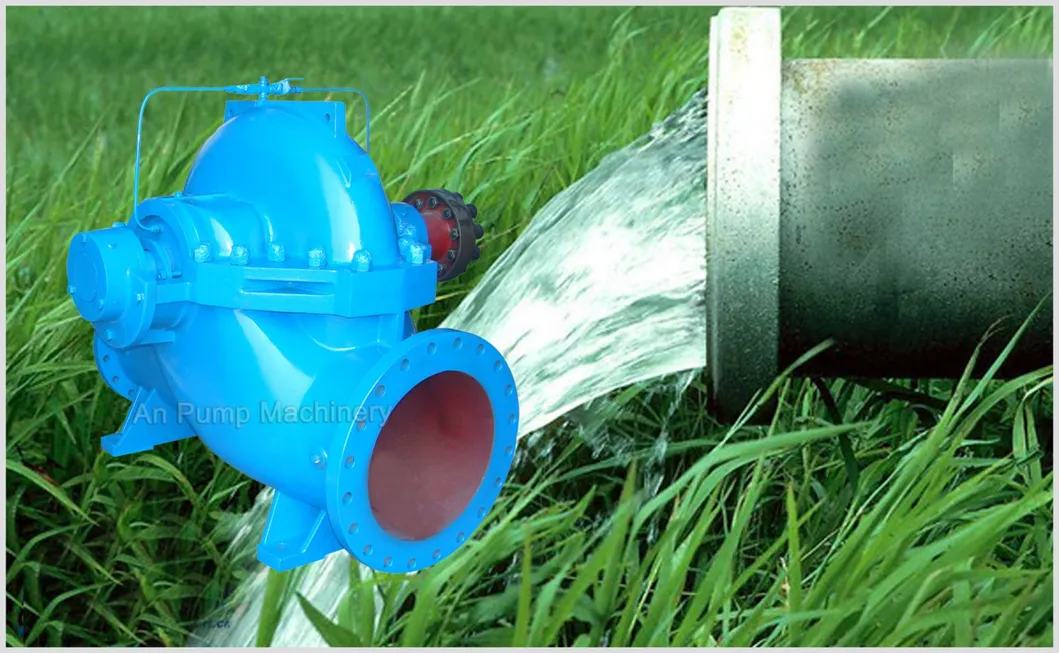

High Quality Cantilever Clear Water Irrigation Pump

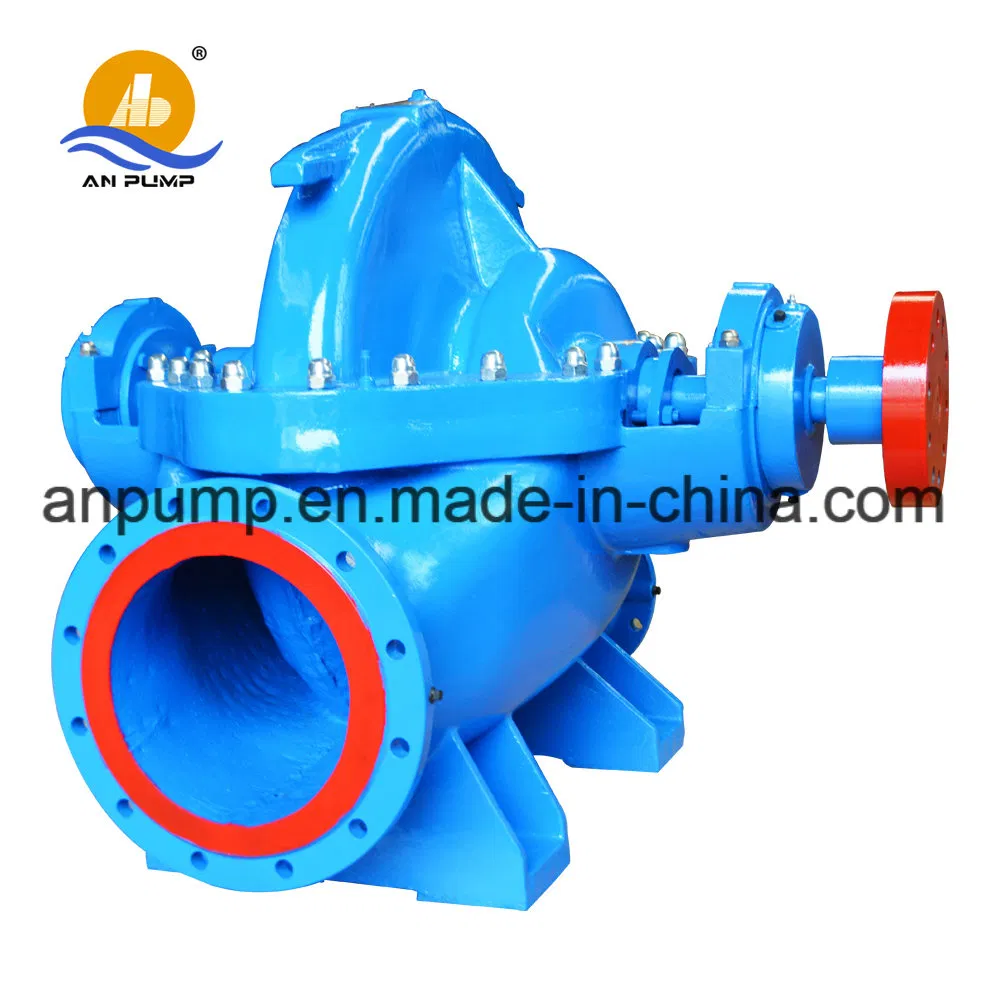

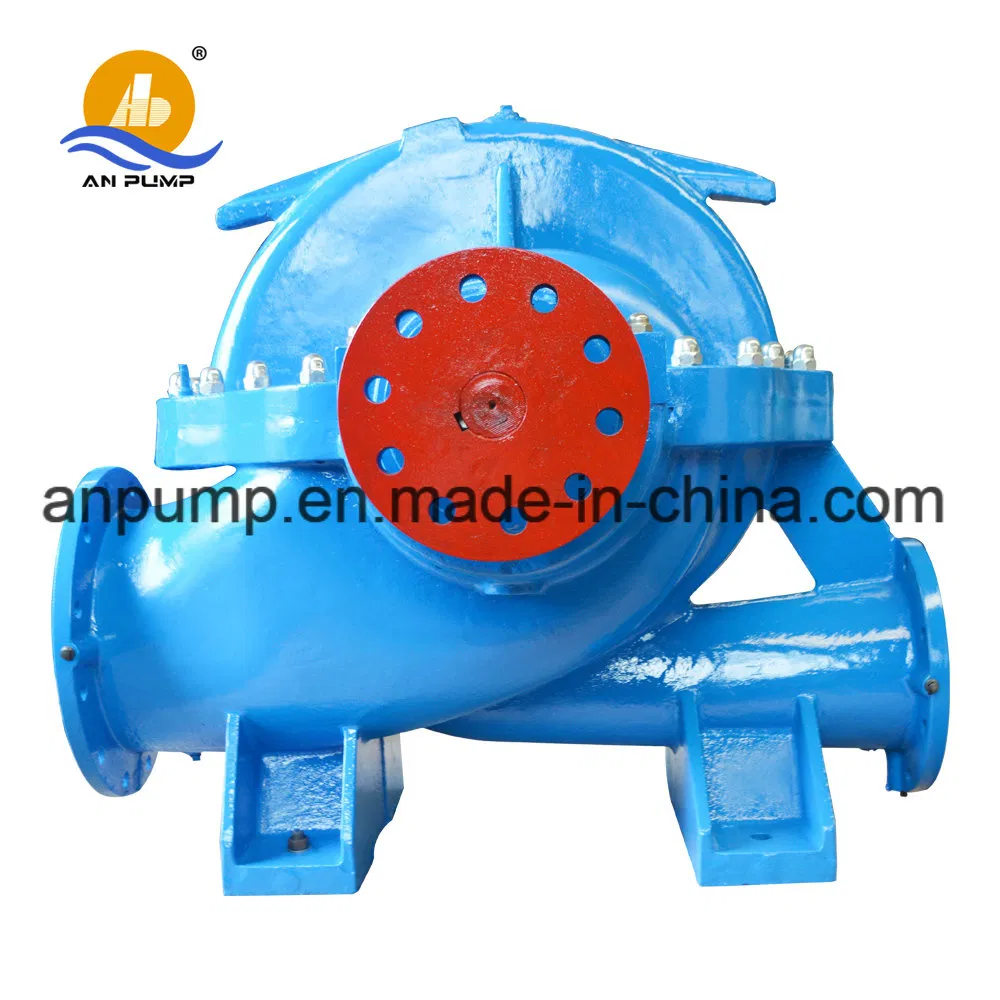

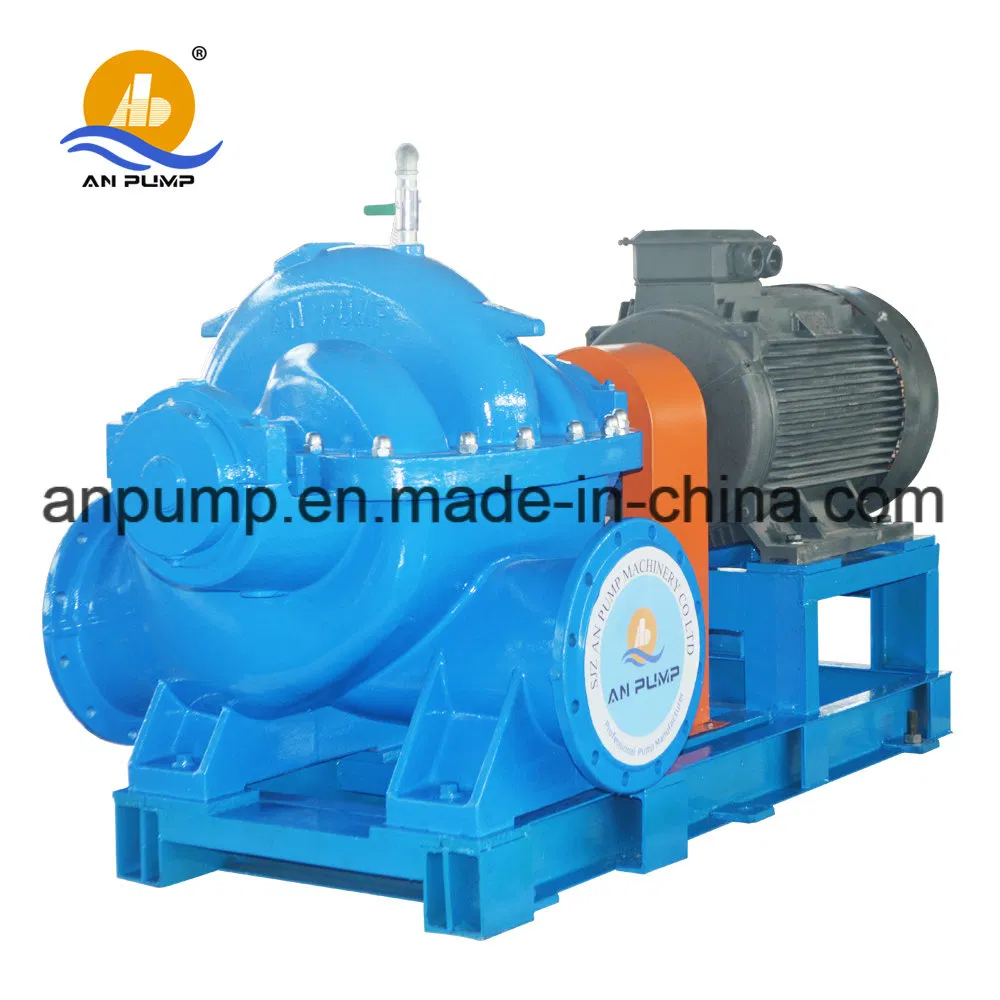

1. QS Split Case Water Pump Features
- Available in QS and QSH types. The QSH pump rotates anti-clockwise (suction left, discharge right), while the QS pump rotates clockwise (suction right, discharge left). Rotating directions can be customized.
- Supplied as a full set including split-casing centrifugal pump, motor, and coupling. Inlet diameters under 200mm include a common base.
- Axial split casing construction for easy maintenance and inspection.
- High capacity design suitable for large-scale water transfer.
2. QS Split Case Water Pump Application
| Industry |
Applications |
| Industry | Plumbing Applications |
| General Water Supply | Circulation of HVAC building systems, water booster service, boiler feed, general circulation service and more. |
| Agriculture / Food | Irrigation, water supply, food processing, beverage processing, fertilizers. |
| Manufacturing | Pulp and paper, plastic & rubber, metal & steel, pharmaceutical, air wash, marine ballast service. |
| Fire / Disaster Relief | Fire pumps, fire protection, flood control, disaster relief. |
| Utilities | Power Generation stations, dewatering, desalination, energy recovery turbines. |
| Chemical / Mining | Chemical plants, refineries, petroleum distribution, coal sites, ethylene glycol pumping. |
3. Performance Data Sheet
| Model QS |
Flowrate (m3/h) |
Head (m) |
Speed (rpm) |
Power (KW) |
| QS150 | 110~220 | 35~84 | 2900 | 30~55 |
| QS200 | 160~351 | 31~100 | 2900 | 37~110 |
| QS250 | 324~612 | 8.6~71 | 1450 | 22~132 |
| QS300 | 504~972 | 8~98 | 1450 | 30~300 |
| QS350 | 745~1663 | 10~140 | 1450 | 55~680 |
| QS400 | 900~1620 | 32~98 | 980~1480 | 155~500 |
| QS500 | 1150~2450 | 10.6~108 | 740~970 | 110~800 |
| QS600 | 2304~4000 | 13~80 | 730~970 | 185~900 |
| QS700 | 2111~4896 | 39.5~99.5 | 740~980 | 560~1250 |
| QS800 | 3960~7200 | 23.5~84 | 600~740 | 450~1600 |
| QS1000 | 6000~9900 | 32~52 | 600~990 | 1250 |
| QS1200 | 5832~14400 | 6~95.7 | 500~745 | 710~3450 |

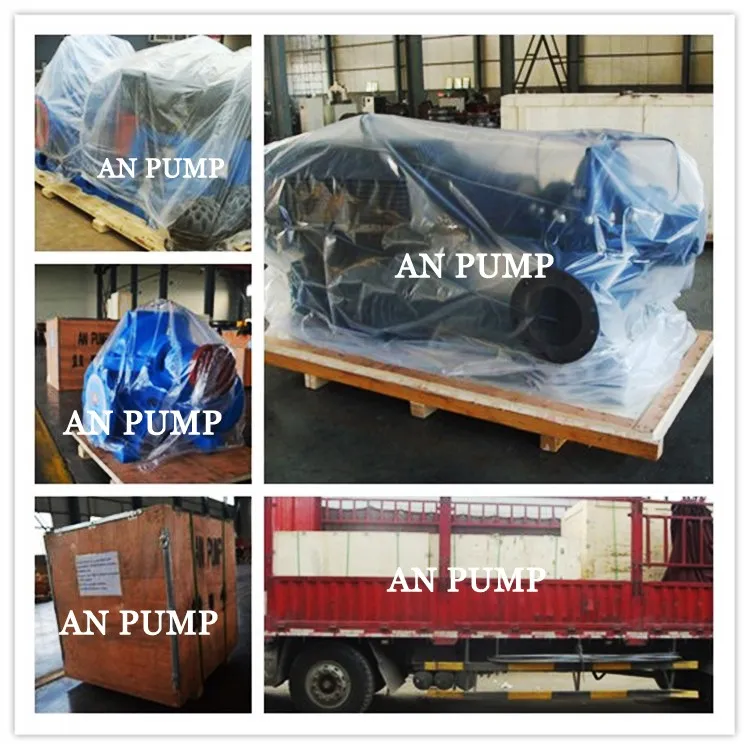

Packing and Shipping
