📊Basic Information
Air Engine Type
Diesel Engine
Theory
Gas-hydraulic Hybrid Type
Transmission
Direct Connection Transmission
Water Pump
Fire Fighting Pump
Transport Package
Wood Case
⚙️Product Description
Made in China, a global reputation

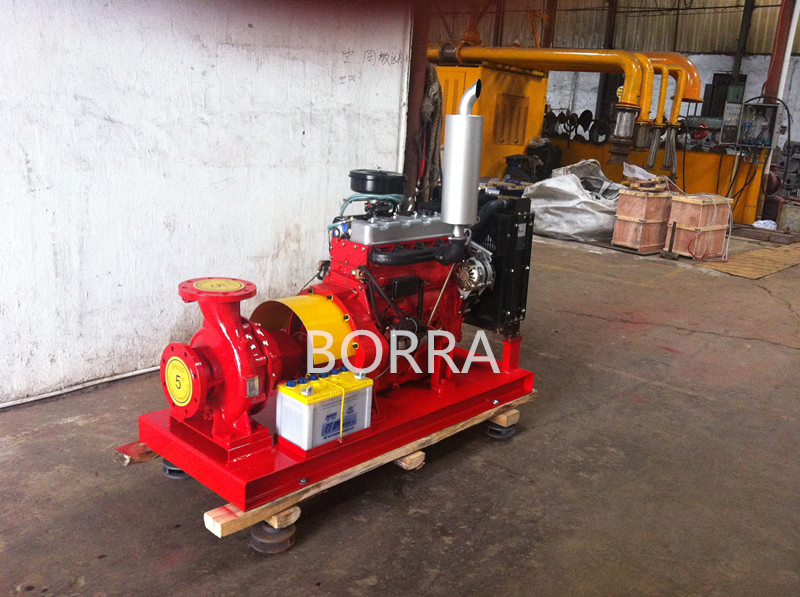

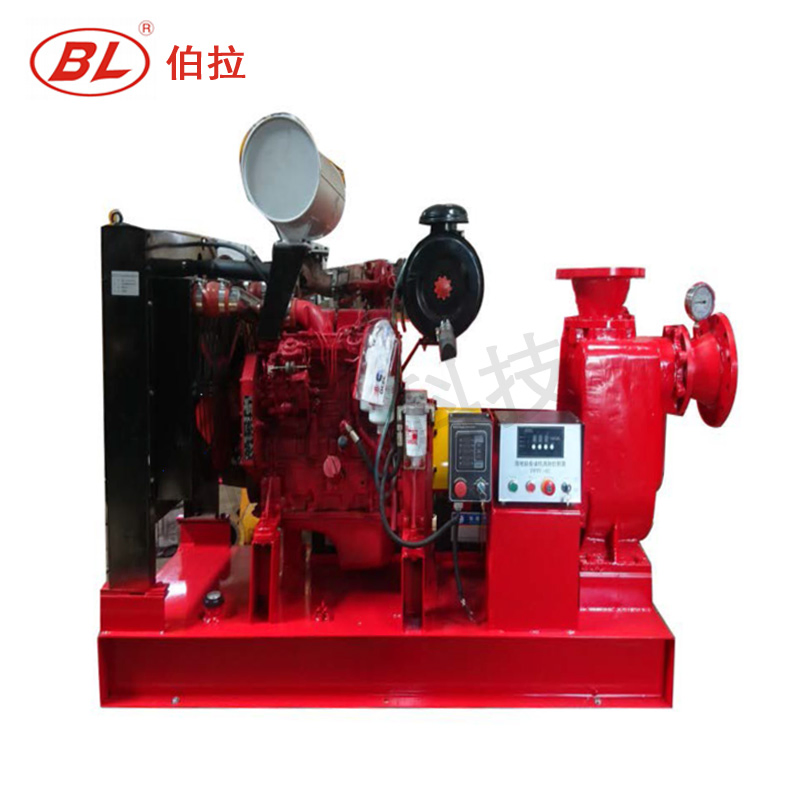

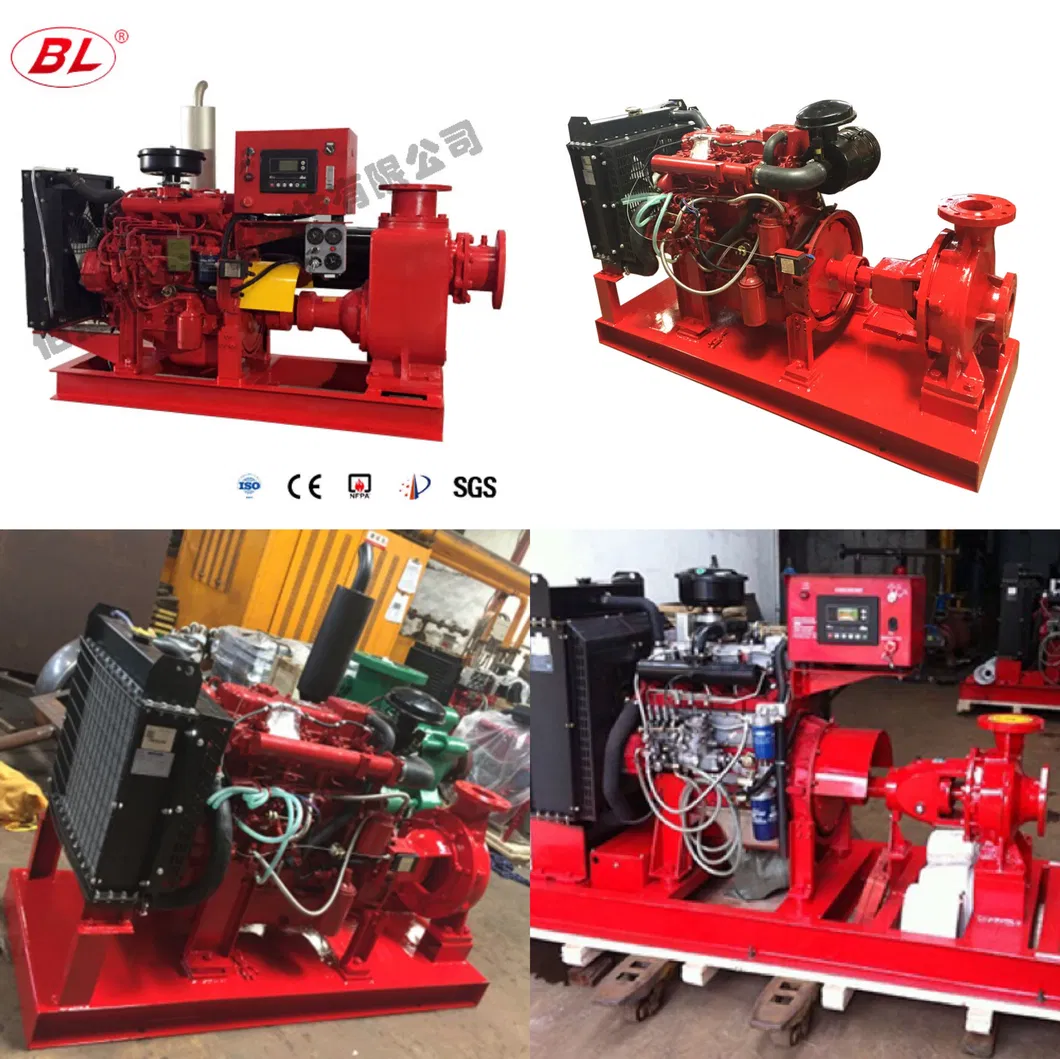

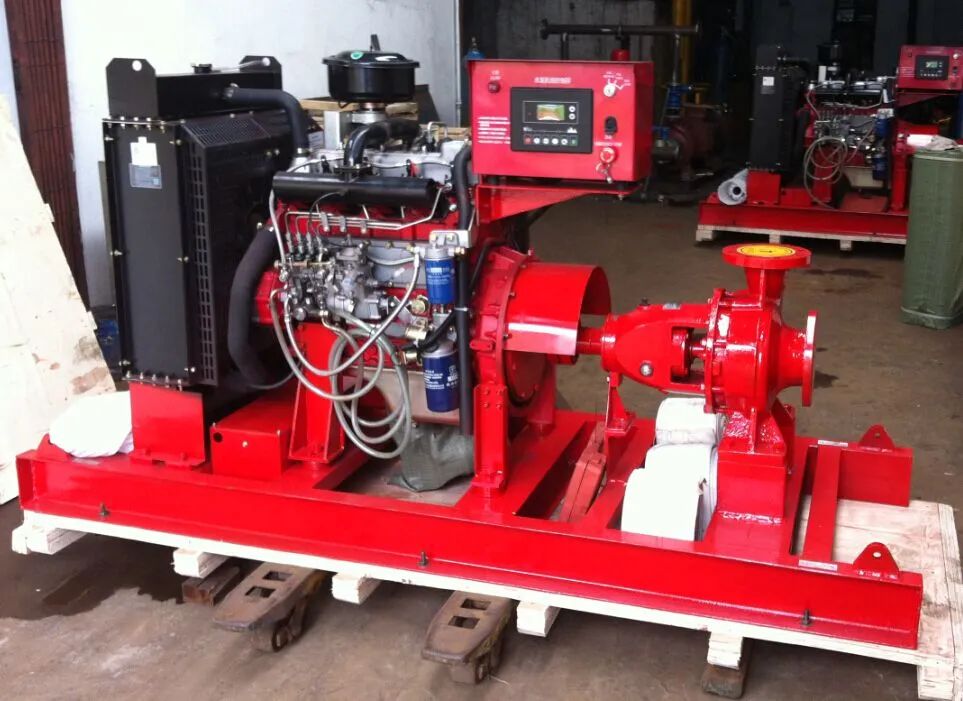

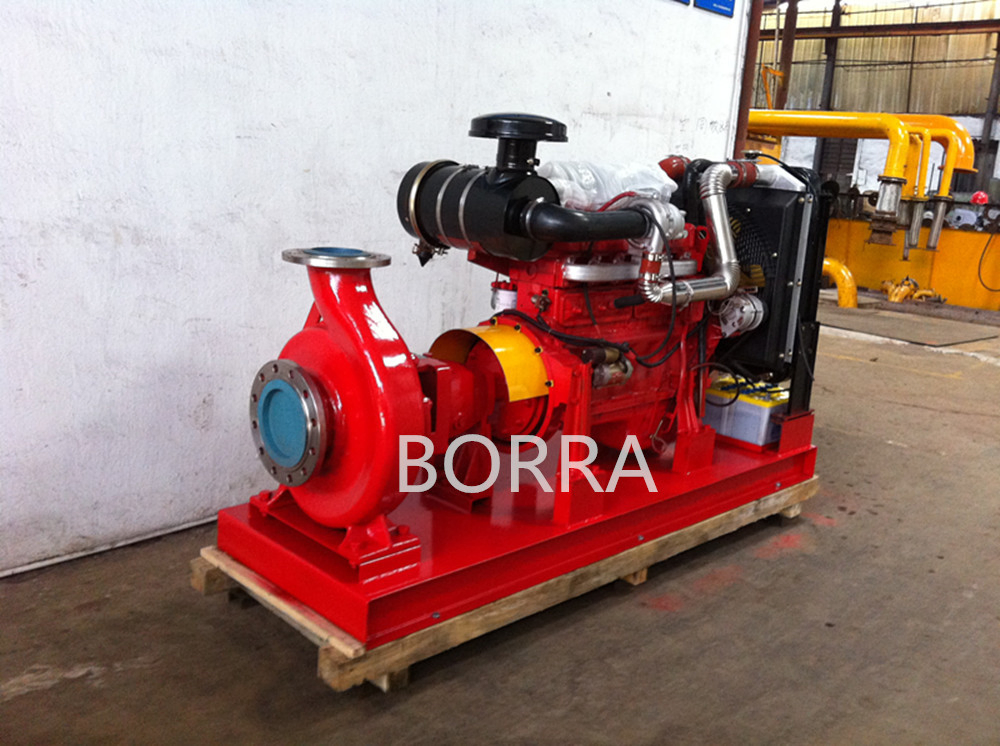

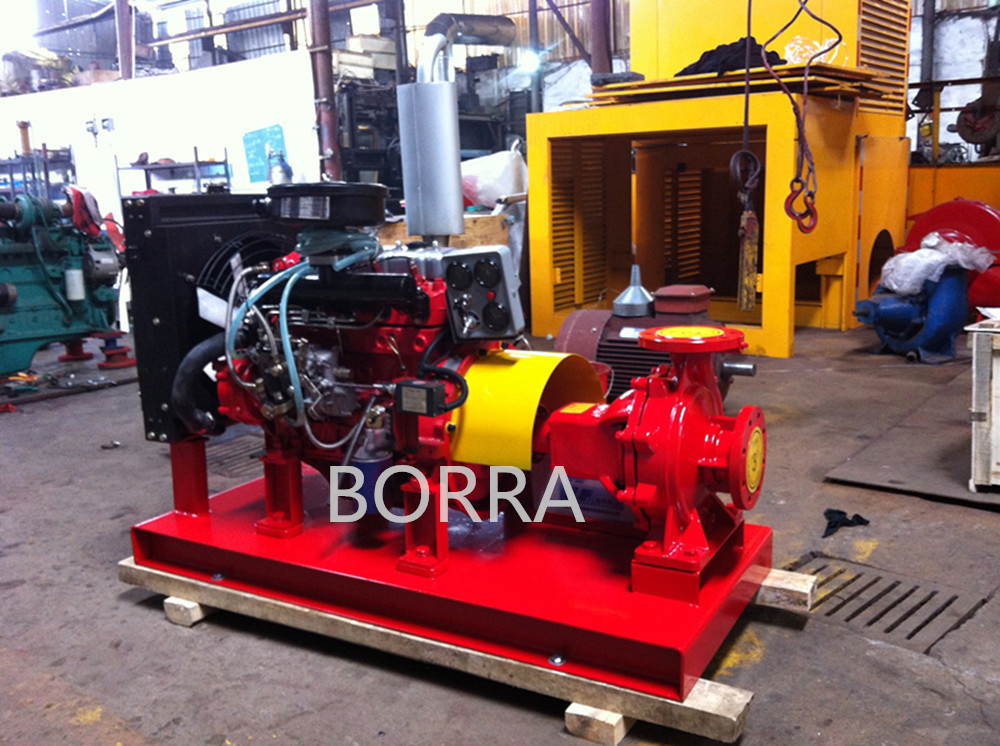

Skid Mounted Diesel Fire Fighting Water Pump
Developed by our company, driven directly by diesel engine without any additional electric motors, the emergency / fire-fighting diesel water pump sets XBC series are able to start within a very short time, achieving water supply, automatic monitoring, fault alarm protection, and three 'remote functions' (remote control, remote measurement, remote signaling). They are convenient, reliable, economical, efficient, safe, and environmentally friendly.
They are widely used in the field of ship water supply, the metal smelting furnace water cooling system, fire-fighting, irrigation and drainage system, etc. Used for emergency water supply in high buildings, tap water, steel factories, wine plants, chemical factories, and hotels.
Diesel engine pump (water pump / trailer pump / irrigation pump) Features:
- Stable performance, reliable operation
- Rapid self-priming, high suction head
- Back-pull-out construction: convenient for maintenance and troubleshooting. Daily maintenance can be performed rapidly by common tools, saving time and labor.
- Semi-open impeller structure and non-clogging design. Strong passing capacity.
- Convenient usage: the pump can be mounted high and dry at floor level, with only the suction line down in the liquid.
📋Technical Parameters
Run conditions:
1. Altitude: ≤2500m
2. Ambient temperature: -25~55ºC
3. Ambient relative humidity: 9~95%
4. Anti-earthquake degree: degree 7
5. Flow range: 50-700(L/S) | Head range: 32-600m | Power: 18-1100KW
| Diesel engine pump |
Rate flow (m3/h) |
Rate head (m) |
Rated speed (r/min) |
Pump type |
| XBC8.0/13.9 | 30-50-60 | 84-80-75 | 2900 | IS80-50-250 |
| XBC7.0/13.0 | 47 | 70 | 2900 | IS80-50-250A |
| XBC6.0/12.2 | 44 | 60 | 2900 | IS80-50-250B |
| XBC8.5/11.7 | 42 | 85 | 2900 | IS80-50-315B |
| XBC11.0/13. | 47 | 110 | 2900 | IS80-50-315A |
| XBC12.5/13.9 | 30-50-60 | 128-125-123 | 2900 | IS80-50-315 |
| XBC5.0/27.8 | 60-100-120 | 54-50-47 | 2900 | IS100-65-200 |
| XBC6.0/23.9 | 86 | 60 | 2900 | IS100-65-250B |
| XBC7.0/25.8 | 93 | 70 | 2900 | IS100-65-250A |
| XBC8.0/27.8 | 60-100-120 | 87-80-75 | 2900 | IS100-65-250 |
⚡Automatic Control System
1. Manual and automatic controls, push-button start, stop, failure safeguard, and process control.
2. Automatic monitor on engine speed changes: start, idle, speed-up, full-speed, and high/low-speed emergency stop.
3. Status indication via indicator lights: idle, start oil supply, self-start, rotation speed, normal run, cooled stop, and emergency stop.
🛠️Our Service
1. Warranty: 1 year for the pump body, 3 months for the main working parts.
2. Delivery: On-time delivery as per contract. Portable diesel pumps usually take 25 working days; bare shaft pumps take 20 working days.
3. On-sales Service: We provide photo/video updates of the production situation regularly.
4. Quality: Every pump is tested before delivery. We follow up on working conditions every three months after installation and provide free spare parts.
❓Frequently Asked Questions
Is your company a professional manufacturer?
Yes, we are a professional manufacturer with years of experience. We operate an independent factory and trade office, allowing us to supply various fire protection solutions and high-quality pump products.
Can I request a sample for quality testing?
Yes, sample orders are available for quality checks and market tests. Please note that sample and express costs are covered by the customer.
How are the portable diesel pumps delivered?
We offer flexible shipping options, delivering our equipment via standard containers or bulk shipping depending on the order size and requirement.
Do you accept customized or OEM orders?
Yes, we welcome both ODM and OEM orders. We can design and manufacture portable generators and water pumps according to specific client requirements.
What are your standard payment terms?
Typically, we accept T/T with a 30% down payment once the PI is confirmed. The remaining balance is paid after inspection and before shipment. L/C at sight is also accepted.
Why should I choose your pump products?
Our products stand out due to our factory-direct pricing, 100% original parts produced in our own workshop, strict quality control management, and our commitment to on-time delivery and 24-hour inquiry response.
