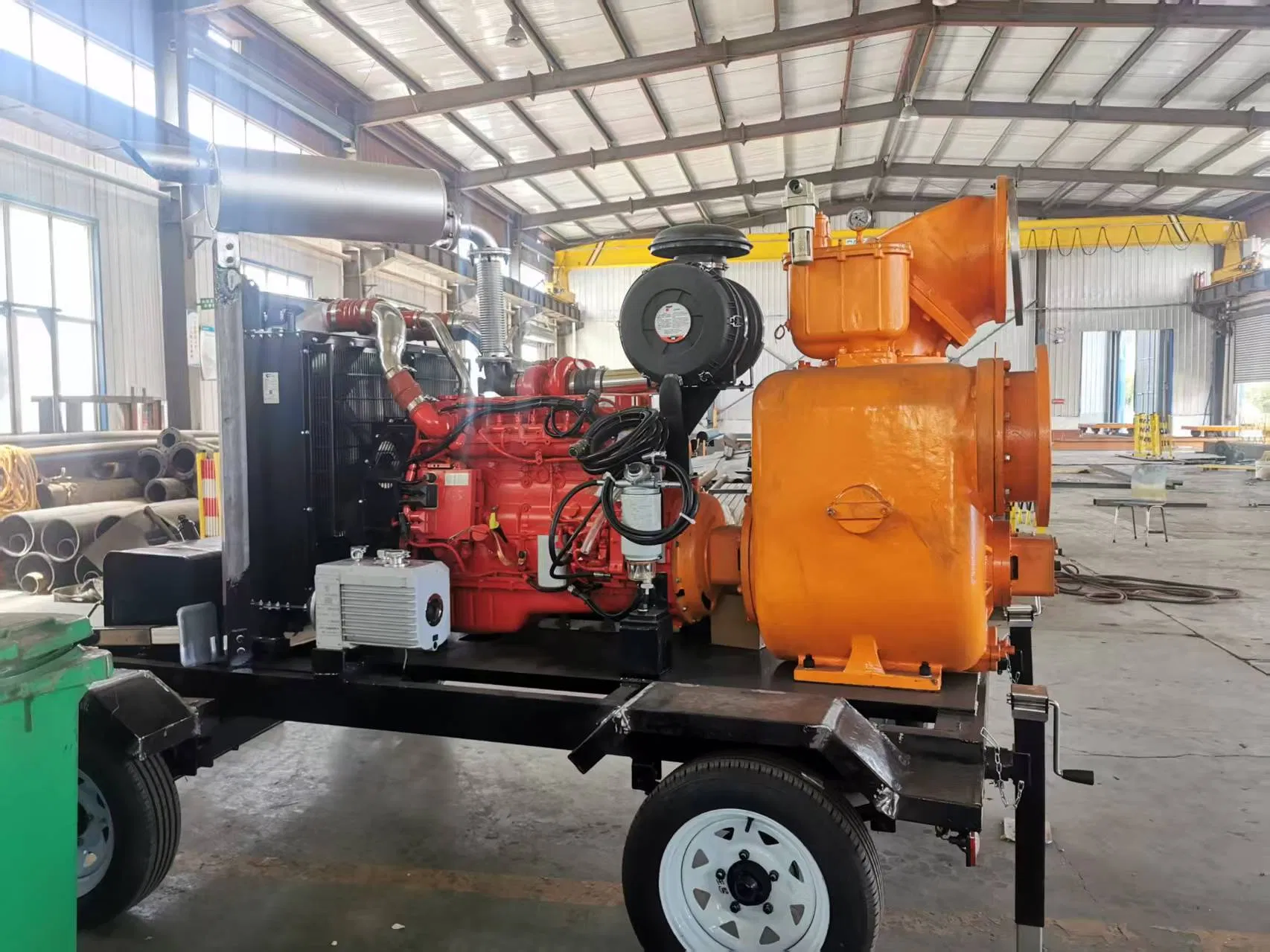

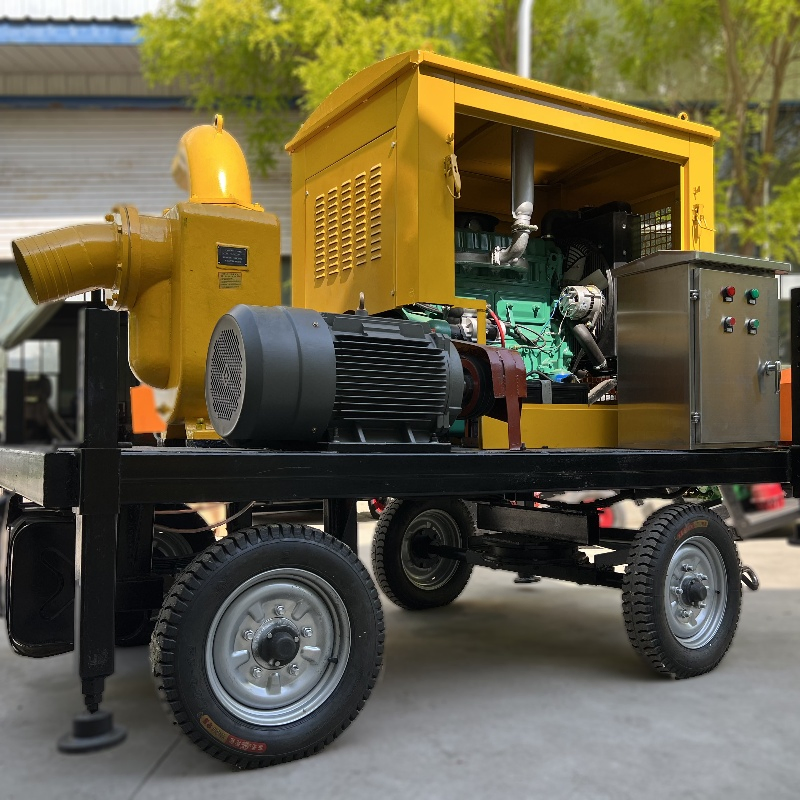

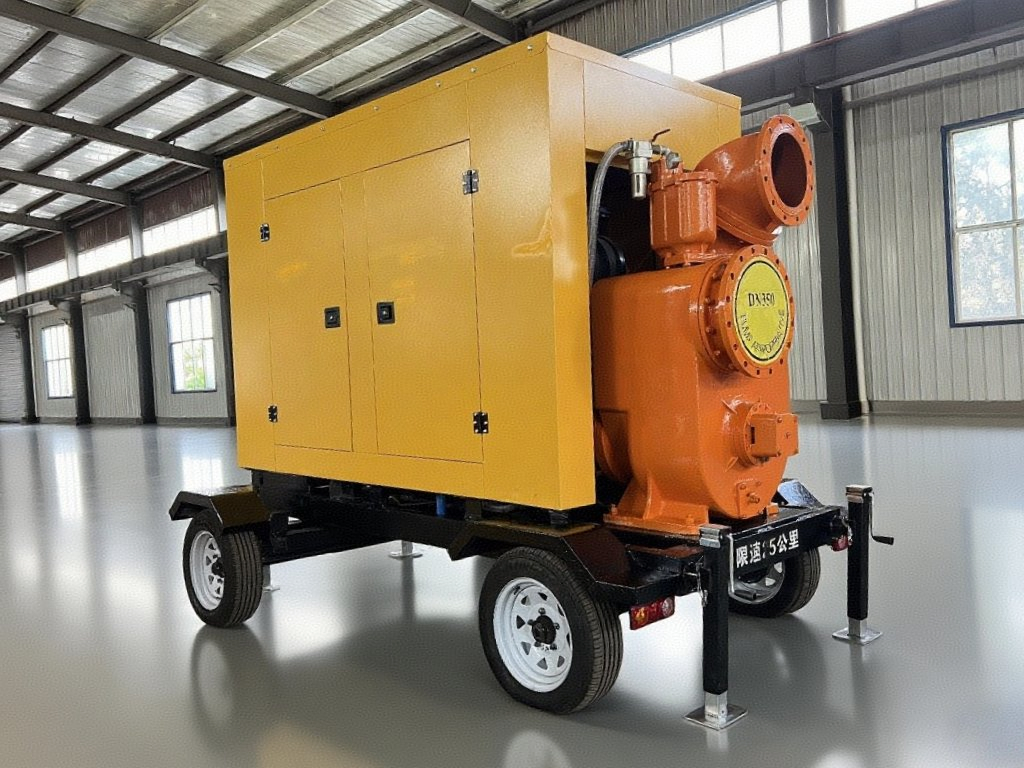

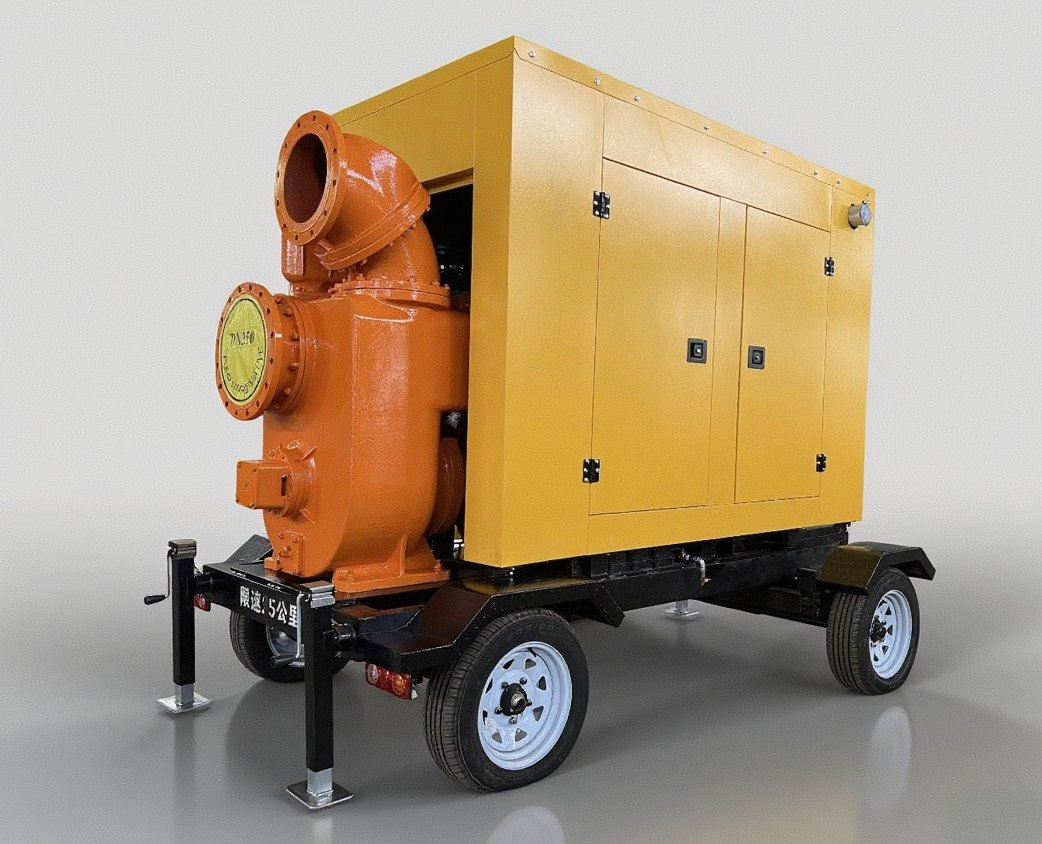

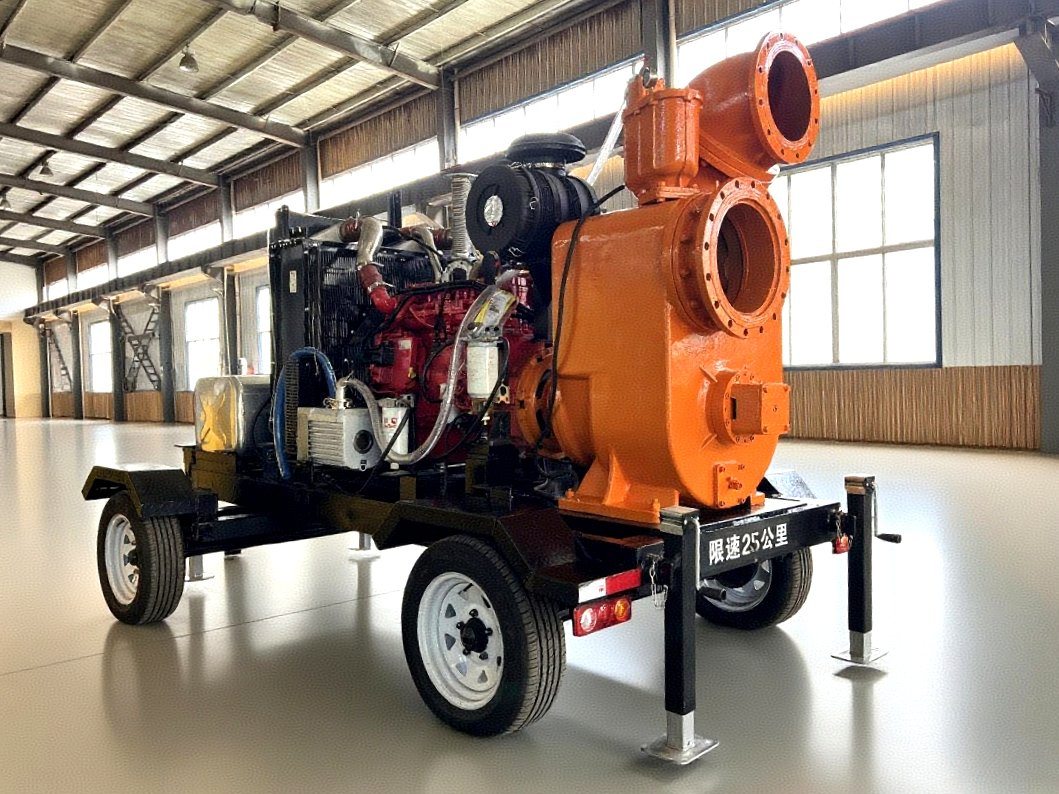

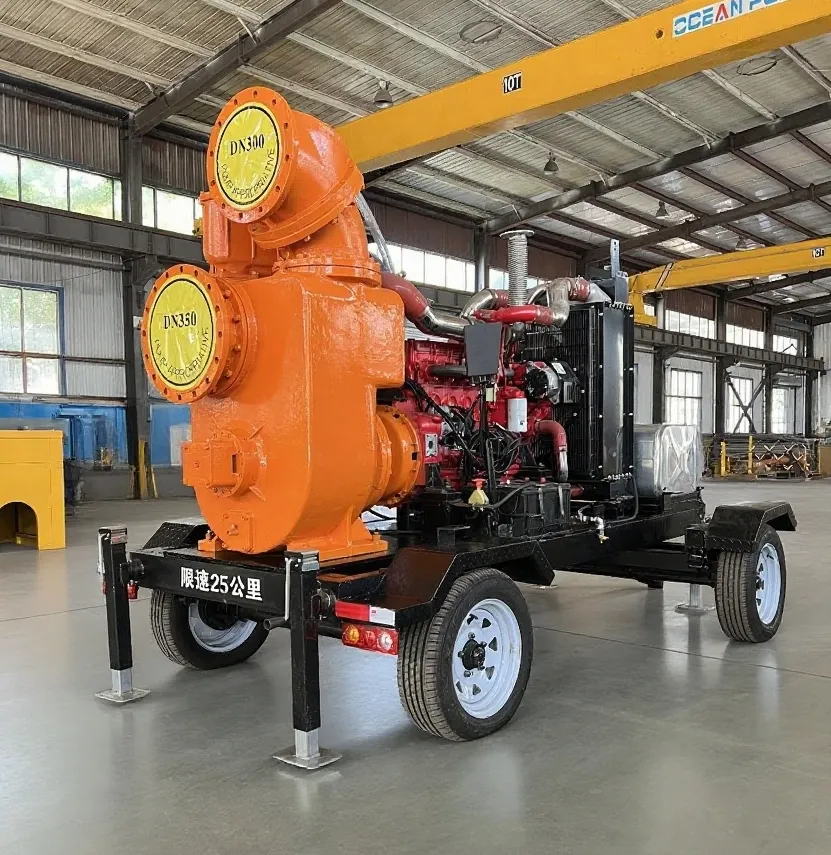

Large-Flow Diesel Fire Emergency Self-Suction Sewage Pumps Flood Prevention Mobile Pump Units Pump Trucks for Drainage Pumping Self Priming Centrifugal Pump

1 / 5

Large-Flow Diesel Fire Emergency Self-Suction Sewage Pumps Flood Prevention Mobile Pump Units Pump Trucks for Drainage Pumping Self Priming Centrifugal Pump

Customization:	Available
After-sales Service:	Provide
Warranty:	Provide

Send Inquiry

Product Description

📌 Basic Info & Overview

The high-performance Self-priming non-clogging sewage pump is a cutting-edge solution integrating self-priming and sewage handling capabilities. It eliminates the need for bottom valves or manual water priming, efficiently handling soil, sediment, and solids up to 60% diameter of the outlet. This system significantly reduces labor intensity and is designed for urban emergency rescue, engineering sewage, and industrial fluid transfer.

Model NO.ZX

Max. Head10-30m

Max. Capacity>400 L/min

Driving TypeDiesel Engine / Motor

MaterialHigh Chromium Alloy

StructureSingle-stage Pump

Power Range80-400 Kw

Self Priming Height≥7 M

Efficiency≥80%

Rated Flow Rate500-3,000 M³/H

🚀 Main Applications

Urban flood emergency rescue: Rapid drainage of subways, underpasses, and underground shopping malls.
River and embankment rescue: Temporary pumping, leak plugging, and cofferdam dewatering.
Farmland drainage: Clearing large areas of farmland and greenhouses after heavy rain.
Reservoir spillway auxiliary: Pre-draining water levels before flood peaks.
Chemical accident emergency: Rapid transfer and discharge of hazardous liquids.
Construction flooding: Continuous drainage of deep foundation pits during rainy seasons.
Airport runway drainage: Restoring navigation within 1 hour after typhoons or heavy rain.
Port tidal backflow: Rapid pumping of seawater backflow.
Drought relief: Reverse operation for river-to-irrigation pumping.
Remote firefighting: High-pressure water supply up to 800 meters from the scene.

⚙️ Key Configurations

1. Pump: Single stage, double suction centrifugal type with vacuum assisted self-priming system (dry priming, water discharge in ≤ 120 seconds).

2. Powertrain: Water-cooled diesel engine, rated power 110–360 kW.

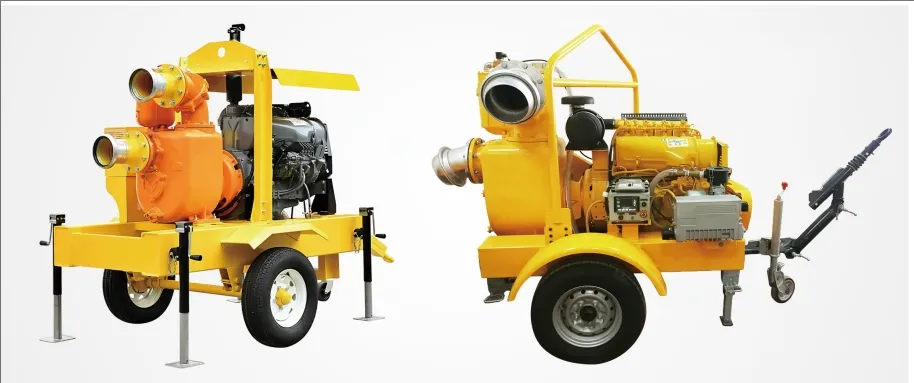

3. Chassis: Two/three axle road trailer, high strength torsion bar suspension, 60 km/h range, hydraulic outriggers.

4. Impeller: Non-clogging three-blade or vortex type, wear-resistant alloy cast iron with epoxy ceramic coating.

5. Connectors: Quick release Camlock connectors, DN300/DN400 available.

6. Control: Weatherproof control box with intuitive interface.

📊 Technical Specifications

Parameter	Details
Product Name	Self Priming Pump
Model	ZX
Warranty	1 year (except for wear parts)
Power Supply	Electric / Diesel Engine
Working Principle	Centrifugal
Inlet/Outlet Size	100 - 500 mm
Flow Rate	100 - 3000 m³/h
Head	5 - 30 m
Material	Cast Iron / Stainless Steel / Alloy
Rotate Speed	1450 rpm

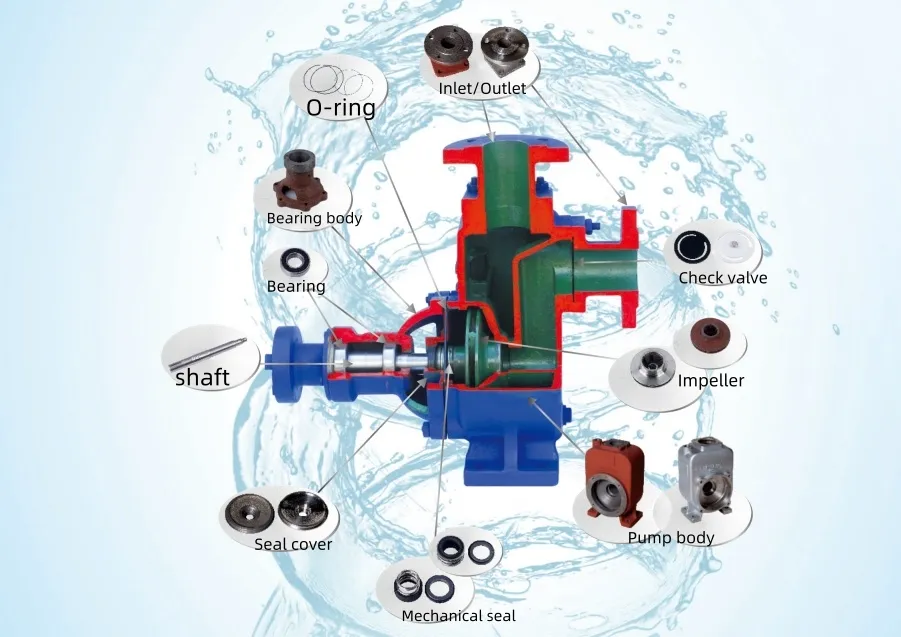

📐 Drawings & Dimensions

🏆 Why Work With Us?

OEM/ODM capabilities tailored to project needs.
Competitive pricing and significant bulk discounts.
Fast global shipping and customs clearance support.
Comprehensive turnkey project solutions for flood control.

❓ Frequently Asked Questions

How long does it take to start pumping water on-site?

The standard configuration includes a built-in vacuum assist system, allowing the pump to be unloaded and operational in 3 minutes or less. It can reach a 7-meter self-priming height in 120 seconds.

What size solid particles can the pump handle?

The non-clogging impeller handles solids up to 50-60 mm, such as branches and gravel. An 8 mm stainless steel filter provides secondary interception.

Can the pump be used on narrow urban roads?

Yes, the unit is mounted on a short-axle trailer with a turning radius of ≤ 6 meters and a width of 2.3 meters, making it suitable for narrow streets.

What maintenance is required after long-term storage?

Simply check engine oil/antifreeze, open the fuel valve, and use the "One-touch Start." Maintenance costs are low, typically involving once-a-year filter replacements.

Is the material resistant to corrosive sewage?

Yes, we use high chromium alloy or stainless steel options with epoxy ceramic coatings to ensure durability against wear and corrosion.

Can the system operate continuously for long durations?

Absolutely. The unit is designed for continuous operating times of ≥72 hours with a large-capacity fuel tank (≥300 L) and high-performance cooling systems.
