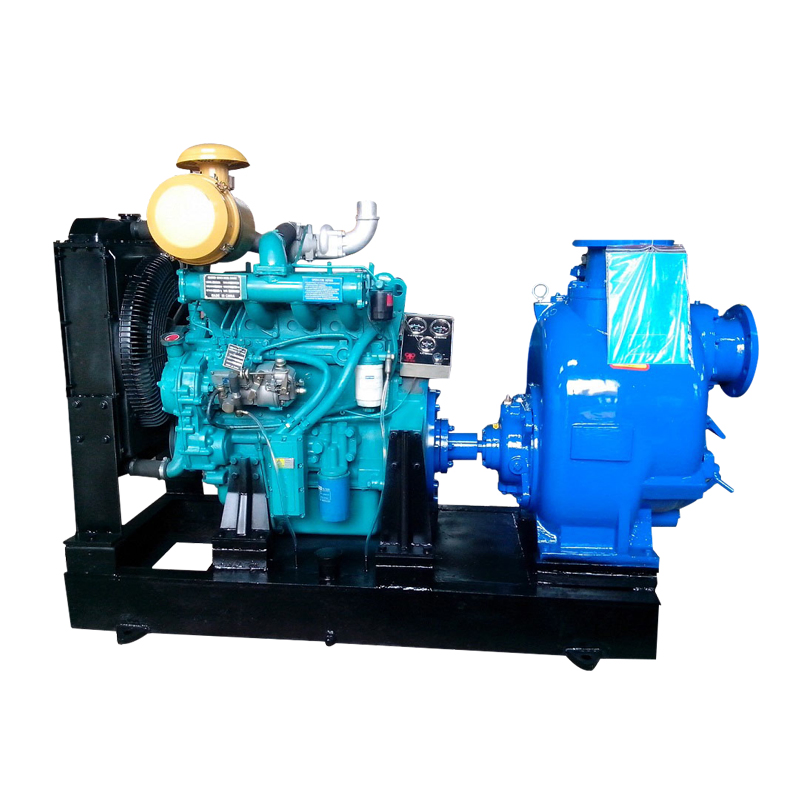

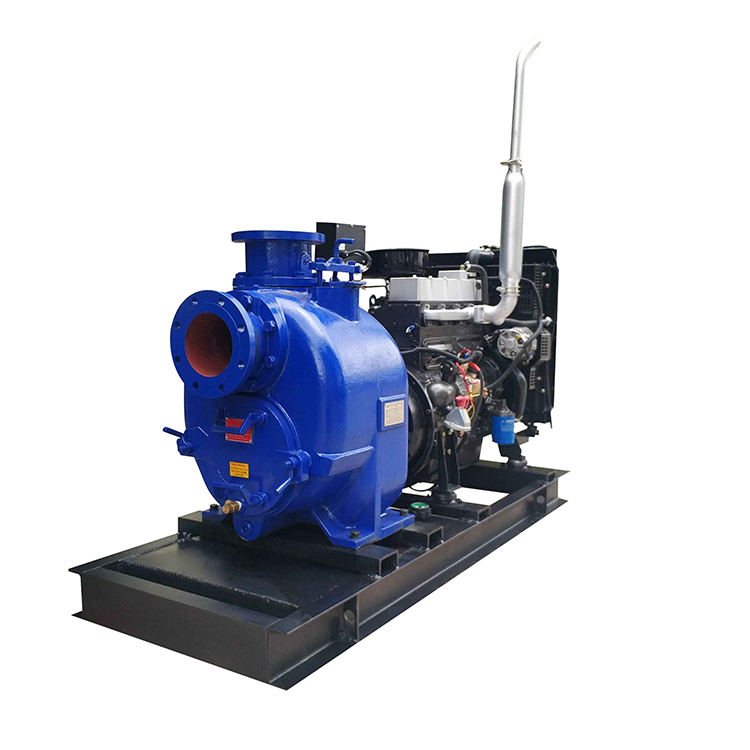

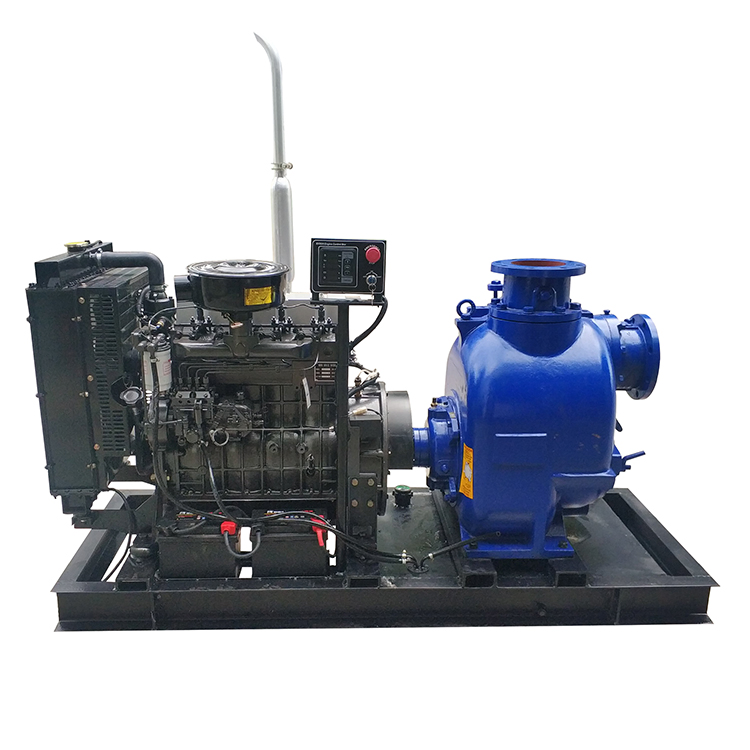

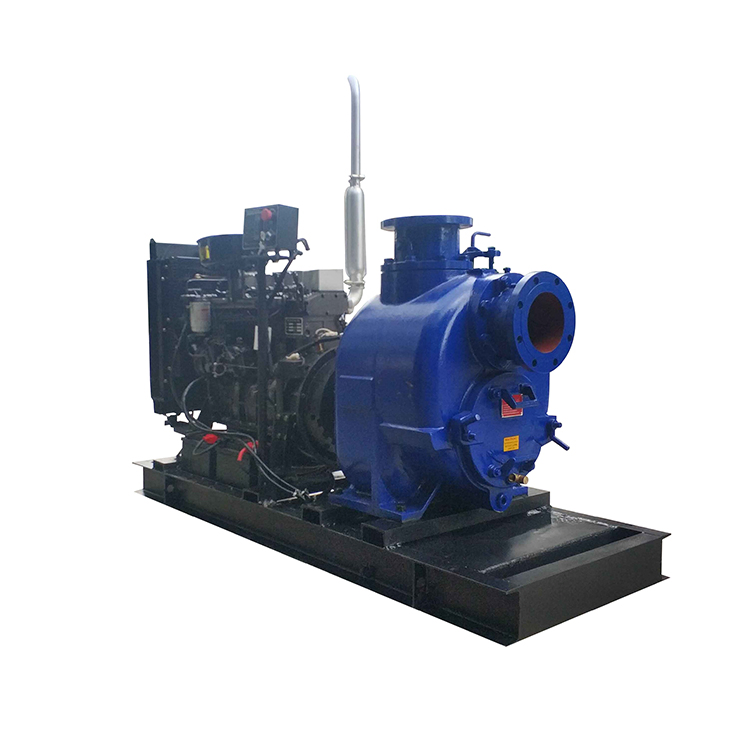

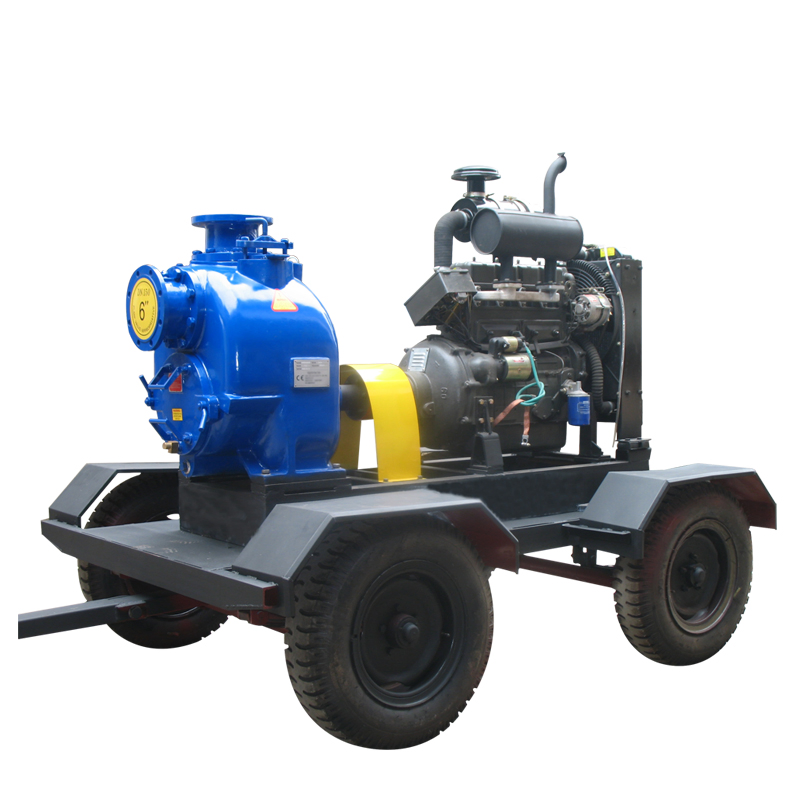

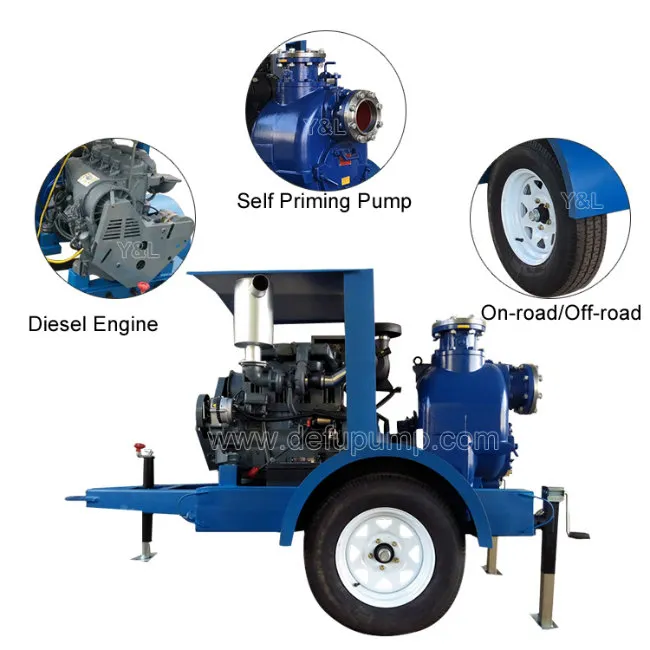

Driven By Diesel Engine Self Priming Centrifugal Fire Pump
Basic Specifications
Driving Type
Diesel Engine
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type
Single Suction Pump
Pump Shaft Position
Horizontal Pump
Pump Material
Cast Iron or Stainless Steel
Rotation Speed
650-1450rpm
Production Capacity
500 Sets Per Month
Application Areas
🔥1. Fire fighting system
🚒2. Fire fighting equipment
Technical Parameters (JT-8)
| Model |
Rotation Speed |
Capacity |
Head |
Inlet/Outlet Dia |
Max Solid Dia |
Max Suction Lift |
| rpm |
m³/h |
l/s |
m |
mm |
mm |
m |
| JT-8 |
650 - 1450 |
200 - 500 |
55.6 - 138.9 |
4 - 20 |
200 (8") |
76 |
2.7 - 7.0 |
Performance & Structure Visuals

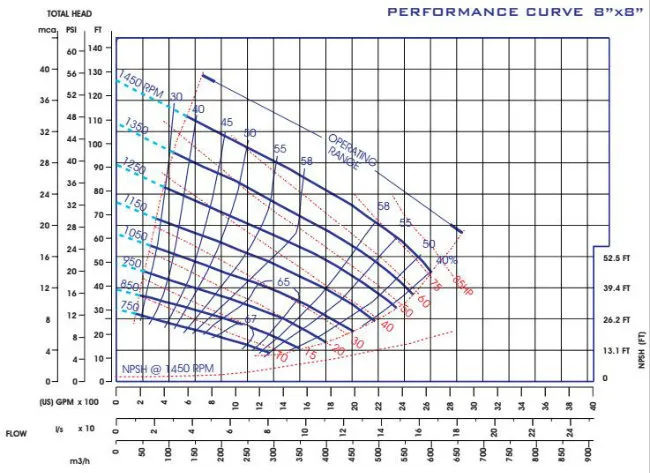

Performance Curve

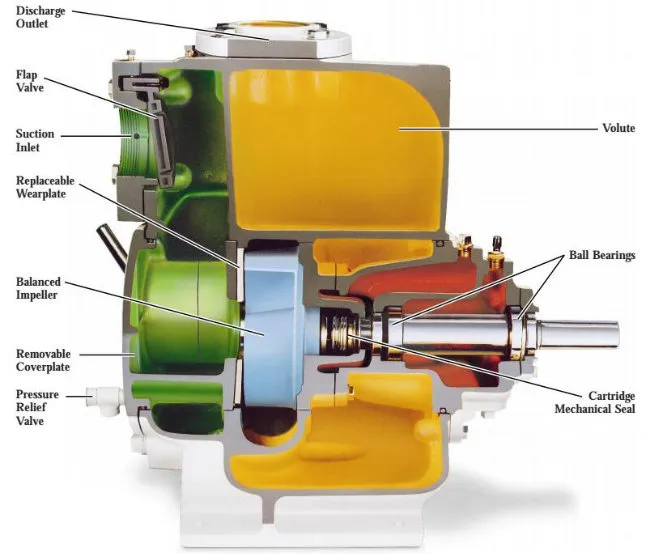

Structure Diagram
Our Services
📦 Delivery & Package:
On-time delivery within 15-25 working days. Durable plywood cases are used for ocean transport.
🛡️ Warranty:
1 year for the pump body, 3 months for the main working parts.
🛠️ After-Sales Service:
Production progress reports and working condition follow-ups every three months. Spare parts delivery within one week if needed.
💳 Payment & Shipping:
Accept T/T, L/C, West Union. Shipping available by Sea and by Air.
Frequently Asked Questions
What is the maximum solid diameter the JT-8 pump can pass?
The JT-8 model is designed to handle solids with a maximum diameter of up to 76mm, making it ideal for various fire fighting and water transport applications.
What is the delivery time for this centrifugal pump?
Usually, the standard delivery time for our centrifugal pumps is between 15 to 25 working days, ensuring timely arrival as per contract terms.
What materials are used for the pump and impeller?
We offer both Cast Iron and Stainless Steel options for both the pump casing and the impeller to suit different environmental requirements.
What is the maximum suction lift of the JT-8 model?
The maximum suction lift reaches up to 7.0 meters, which is supported by its efficient self-priming centrifugal design.
What kind of engine drives this pump?
This pump is driven by a Diesel Engine, with options available for both Water Cooler and Air Cooler engine types depending on your needs.
What are the main applications for this equipment?
This system is primarily used in professional fire fighting systems and as specialized fire fighting equipment, as well as circulating and fire fighting pumps.
