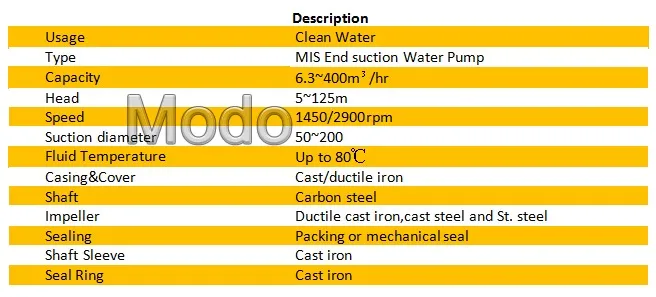

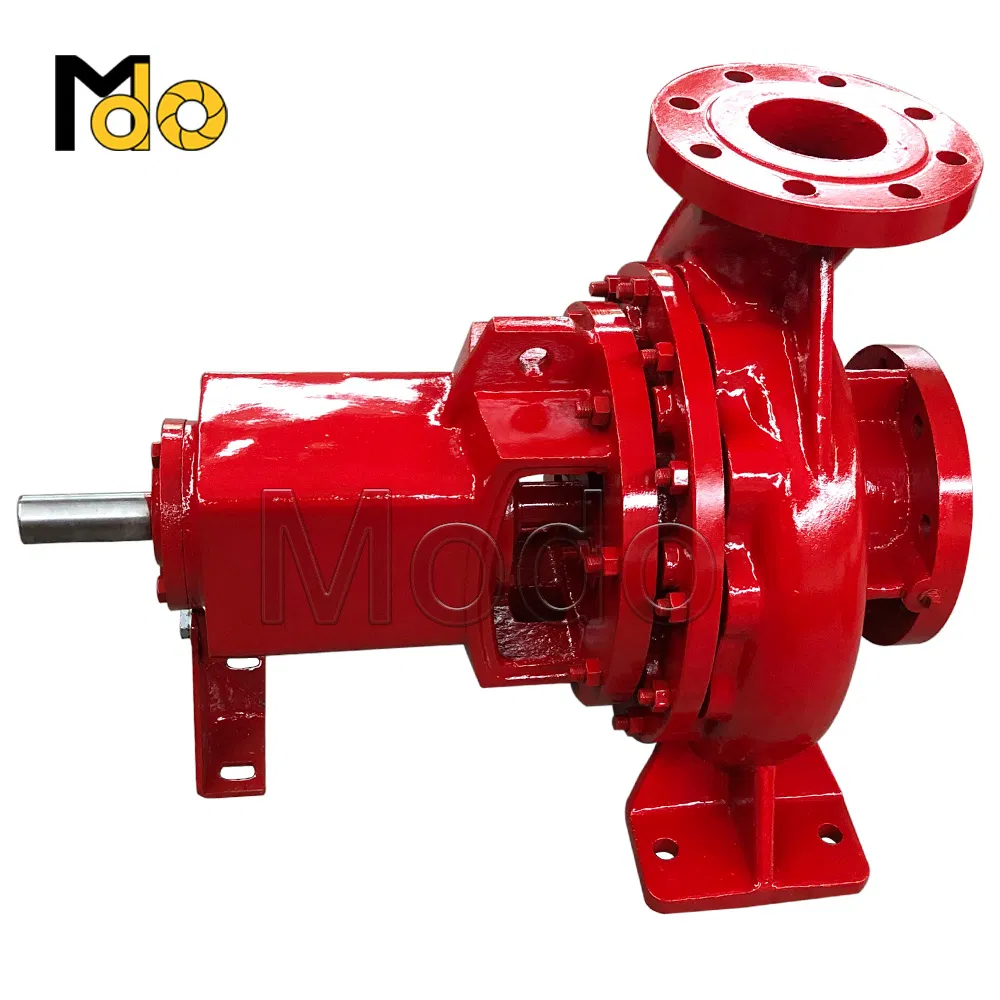

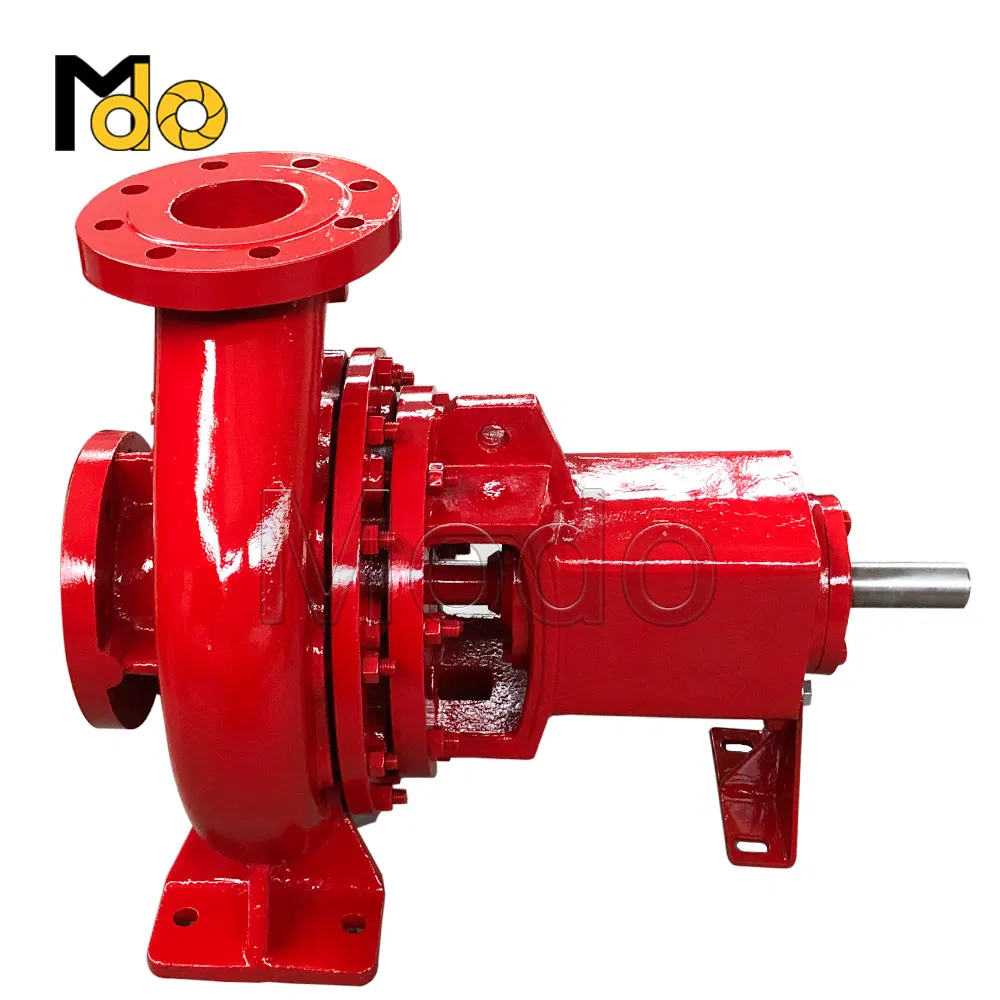

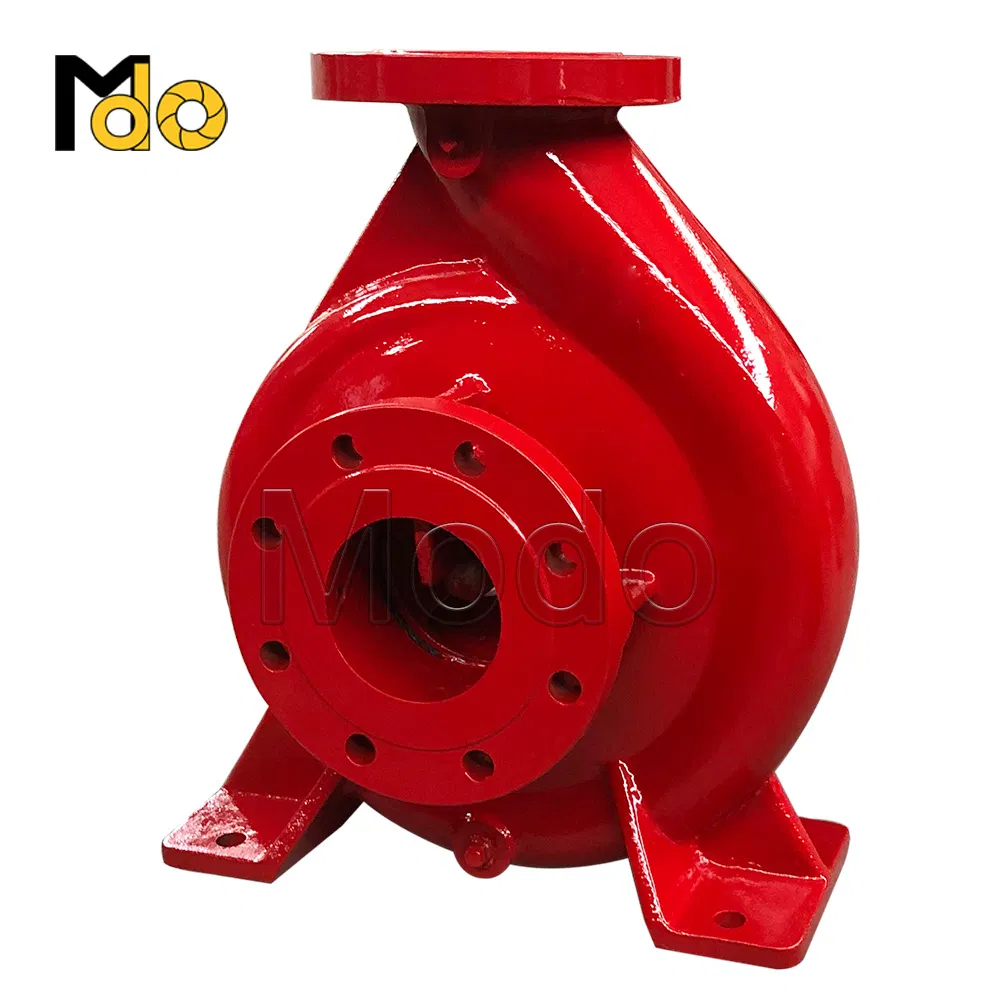

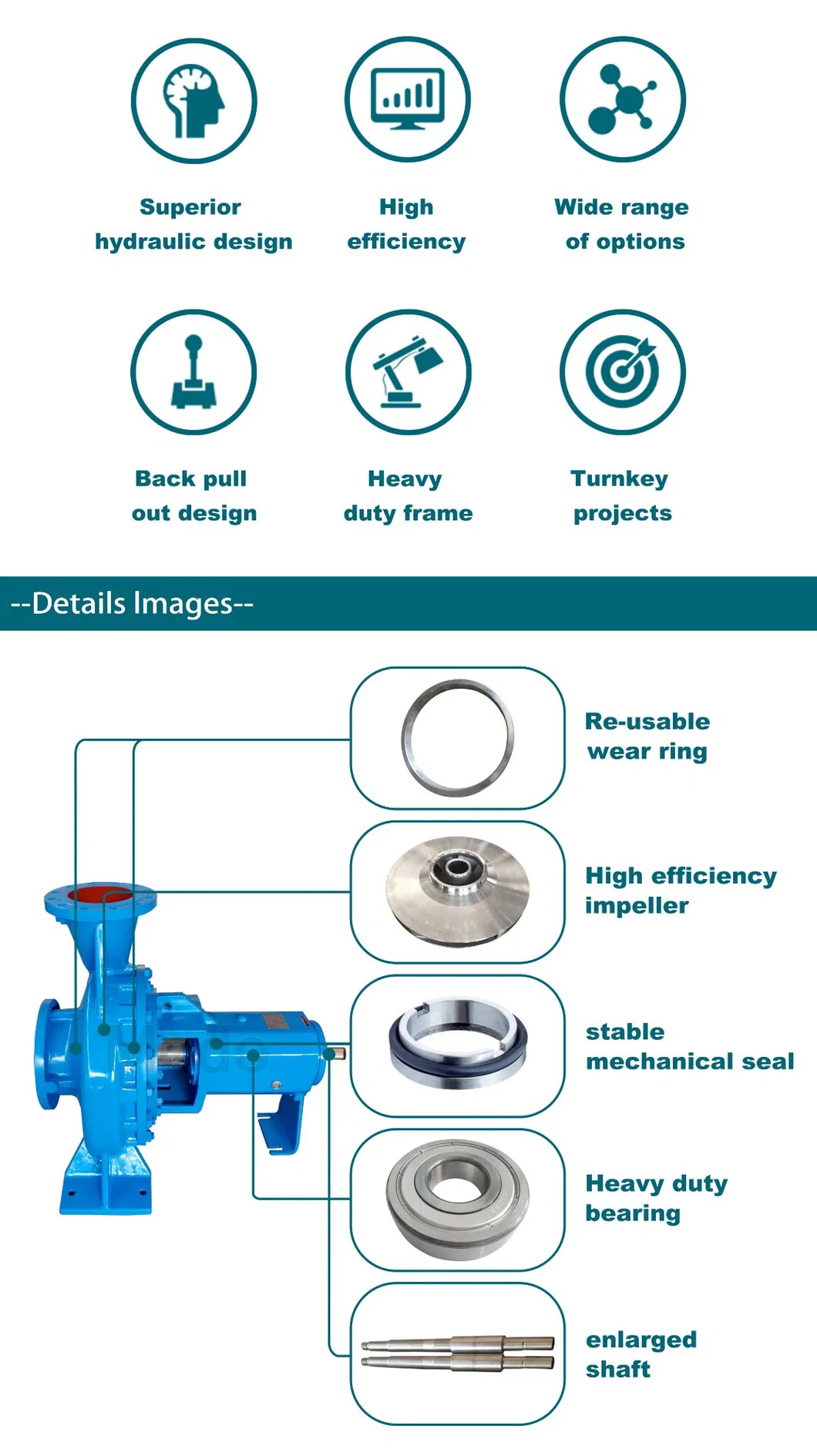

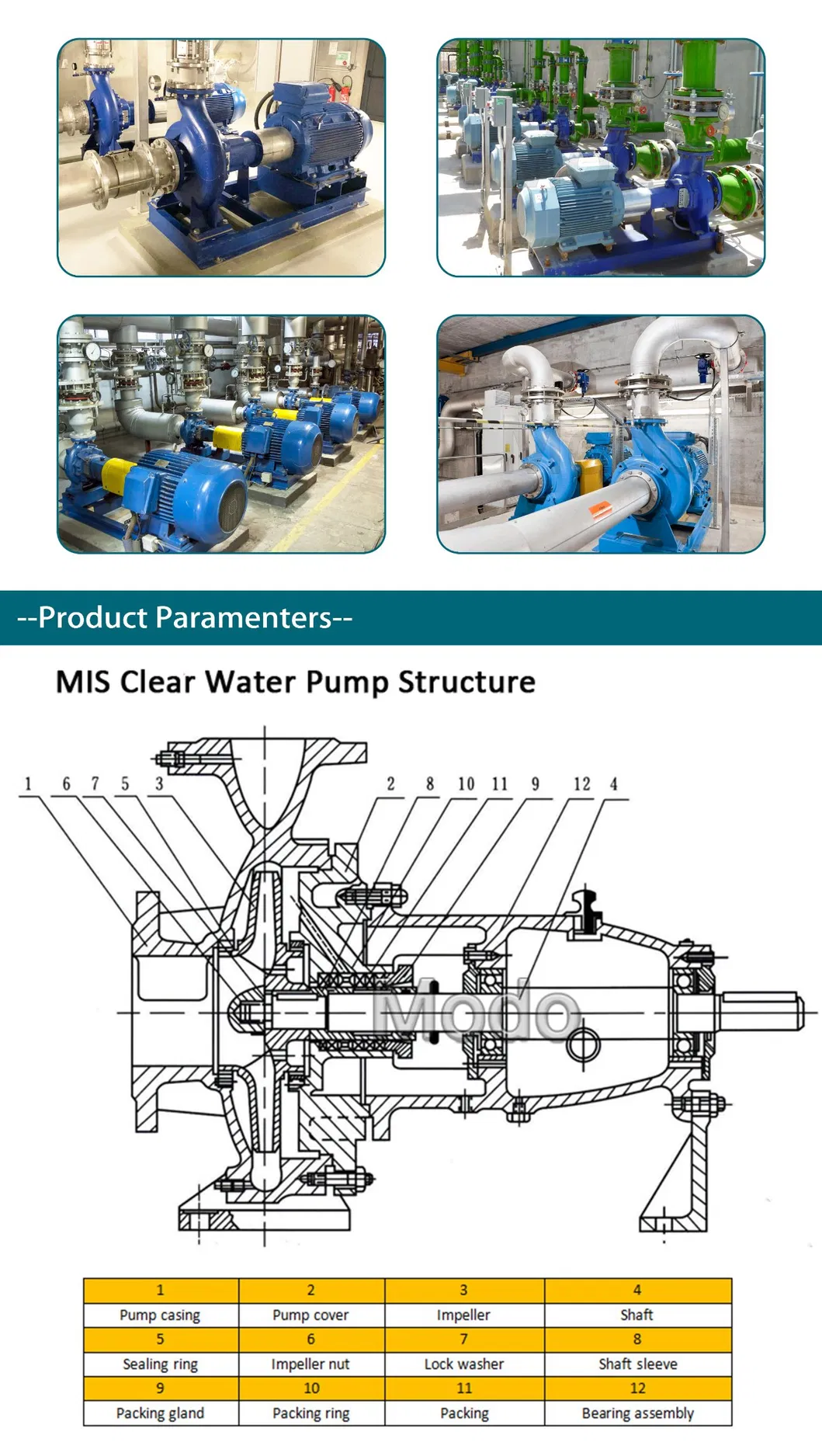

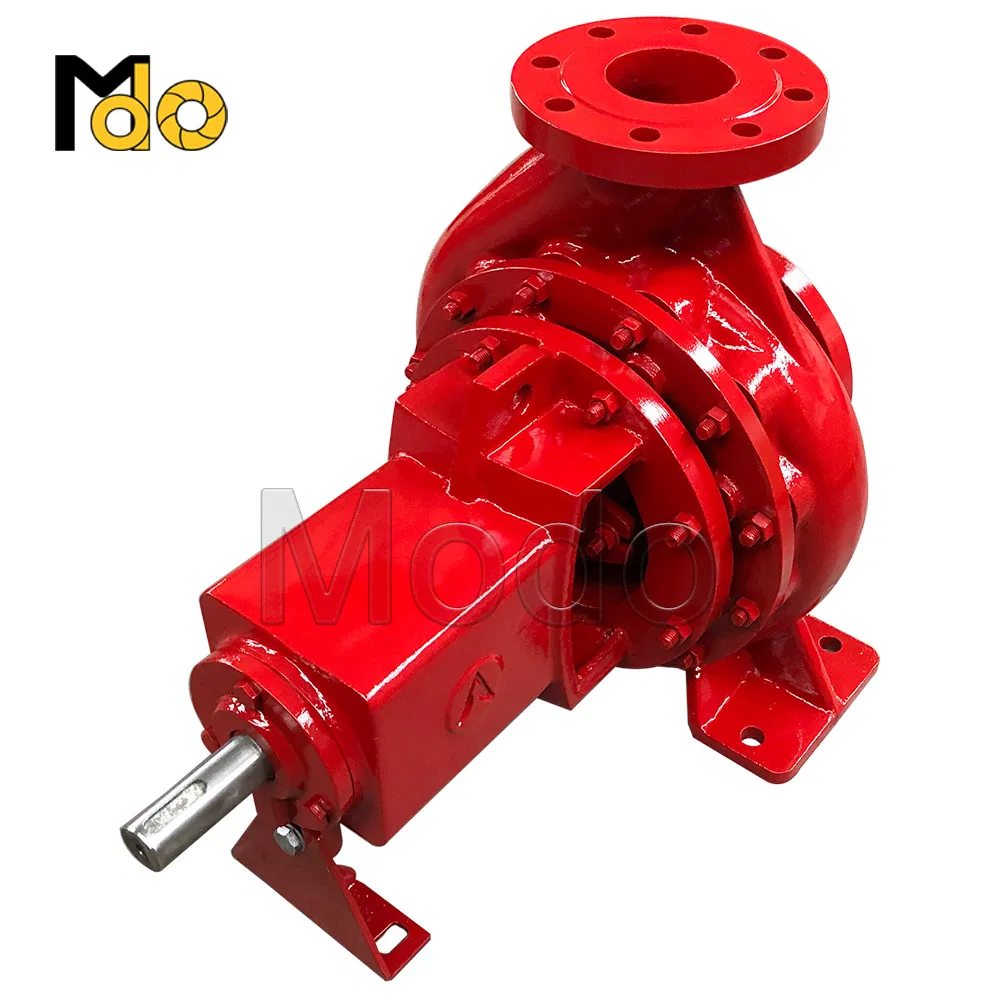

MIS series single stage end suction centrifugal water pump is designed according to the capability and size stipulated in the international Standard ISO2858. It is composed of a pump body, pump cover, impeller, shaft, ring seal, sleeve, and suspended bearing units.
This pump is ideal for water or liquids similar to water. Equipped with high-temperature mechanical seals, it can also be used to transfer hot water. The design is simple, reliable, compact, and lightweight, featuring excellent anti-cavitation performance, low power consumption, and easy maintenance.
| Model | Speed (r/min) | Capacity (m³/h) | Head (m) | Efficiency (%) | Shaft Power (kW) | Motor Power (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| IS50-32-125 | 2900 | 7.5 - 15 | 18.5 - 22 | 47 - 60 | 0.96 - 1.26 | 1.5 | 32.5 |
| 1450 | 3.75 - 7.5 | 4.6 - 5.4 | 43 - 55 | 0.13 - 0.17 | 0.55 | 32.5 | |
| IS100-80-160 | 2900 | 60 - 120 | 28 - 36 | 70 - 78 | 8.42 - 12.2 | 15 | 63 |
| 1450 | 30 - 60 | 6.8 - 9.2 | 67 - 75 | 1.12 - 1.57 | 2.2 | 63 | |
| IS200-150-250 | 1450 | 240 - 460 | 17.5 - 21.5 | 71 - 82 | 19.8 - 27.4 | 37 | 180 |

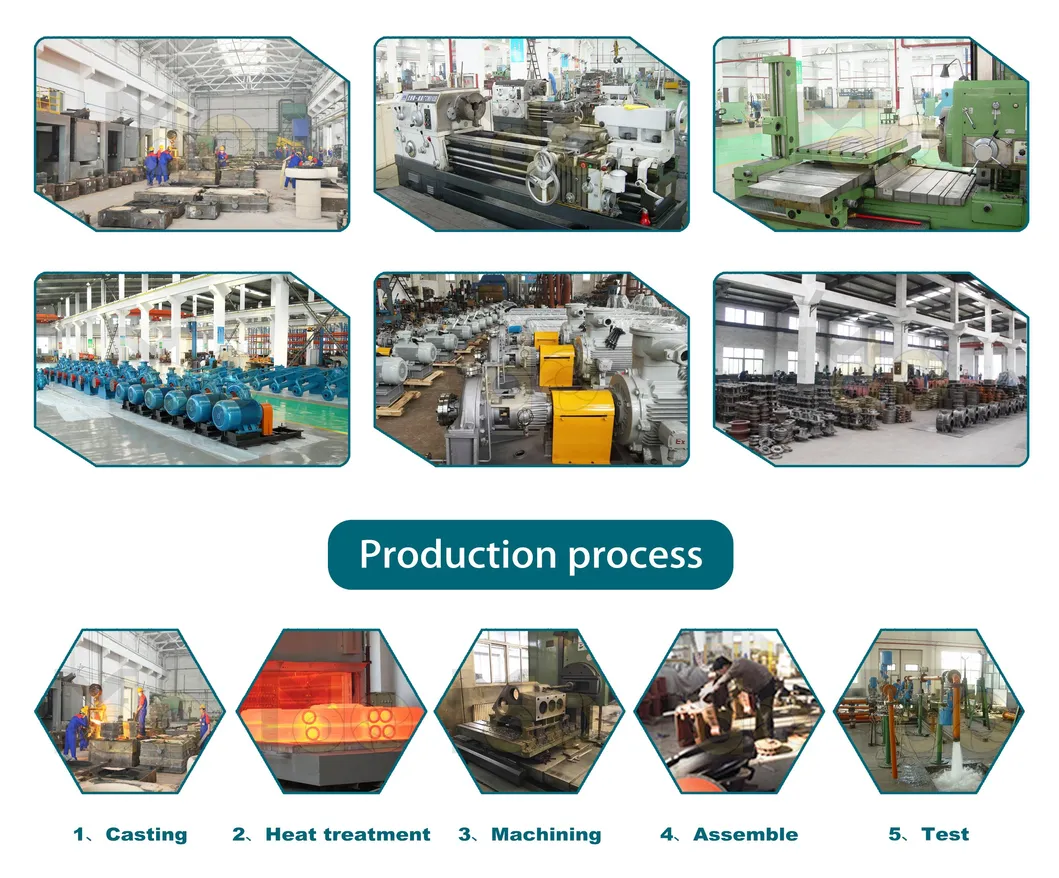

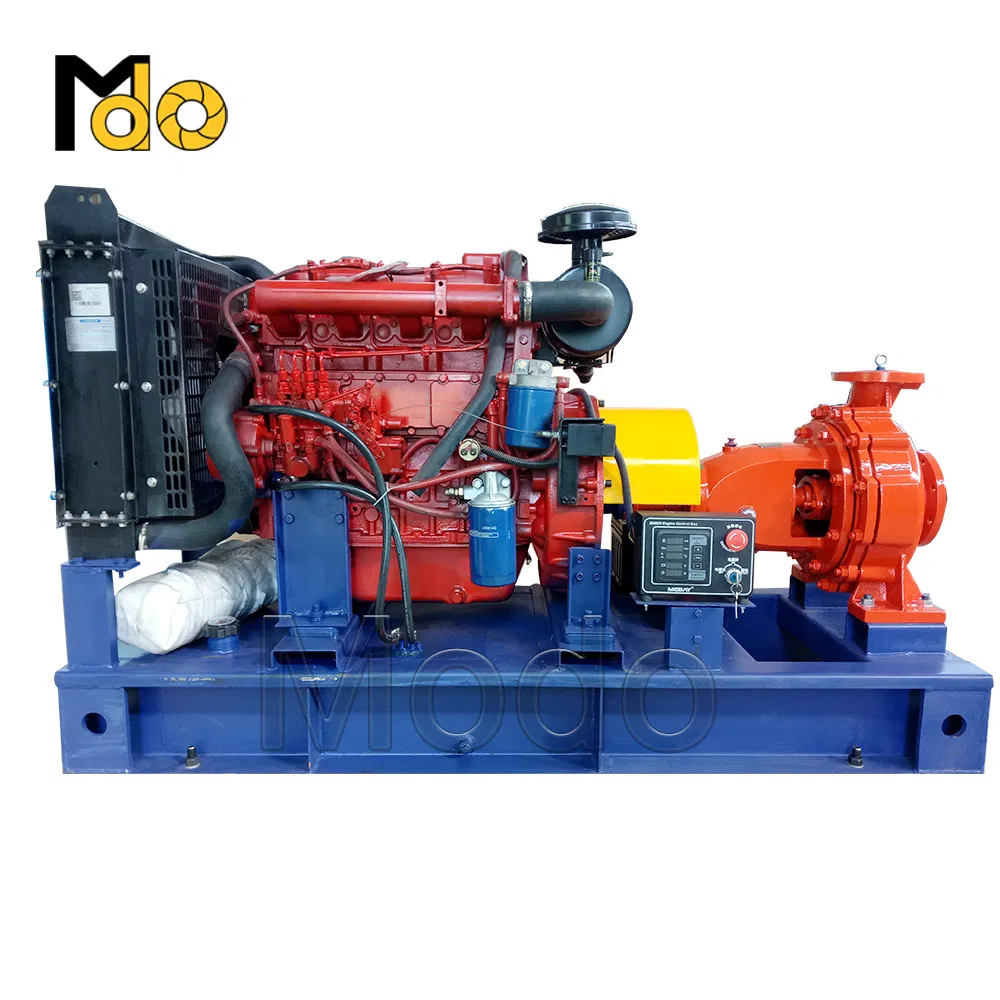

With over 30 years of manufacturing experience, our products are widely used in mining, mineral processing, power plants, irrigation, chemical industries, and sea water transfer. We offer energy-saving solutions including slurry pumps, diesel water pumps, and fire pumps, exported to over 90 countries worldwide.
