500HW-7 20inch HW mixed flow water pump for farming irrigation. Mixed-flow pumps are widely used in conveying clean and polluted media, chemically neutral or erosive media and agricultural irrigation.
1. Check mixed flow pumps and motor before starting to see if fastening bolts are complete. Check pressure gauge and lubricating oil levels.
2. Open inlet/outlet valves; ensure no leakage in static seals (packing seal leakage rate < 20 drops/min).
3. Verify clockwise rotation direction. Monitor for abnormal sound, heating, or pressure gauge anomalies.
4. Under load, ensure leakage is within 60 drops/min. Adjust valves to reach required head and flow.
| Model | Inlet | Outlet | Flow rate | Head | Power | Speed |
|---|---|---|---|---|---|---|
| 200HW-8 | 200mm | 200mm | 360m³/h | 18m | 11kw | 1450r/min |
| 250HW-8 | 250mm | 250mm | 760m3/h | 12m | 18.5kw | 1450r/min |
| 300hw-7 | 300mm | 300mm | 950m3/h | 10m | 22kw | 970r/min |

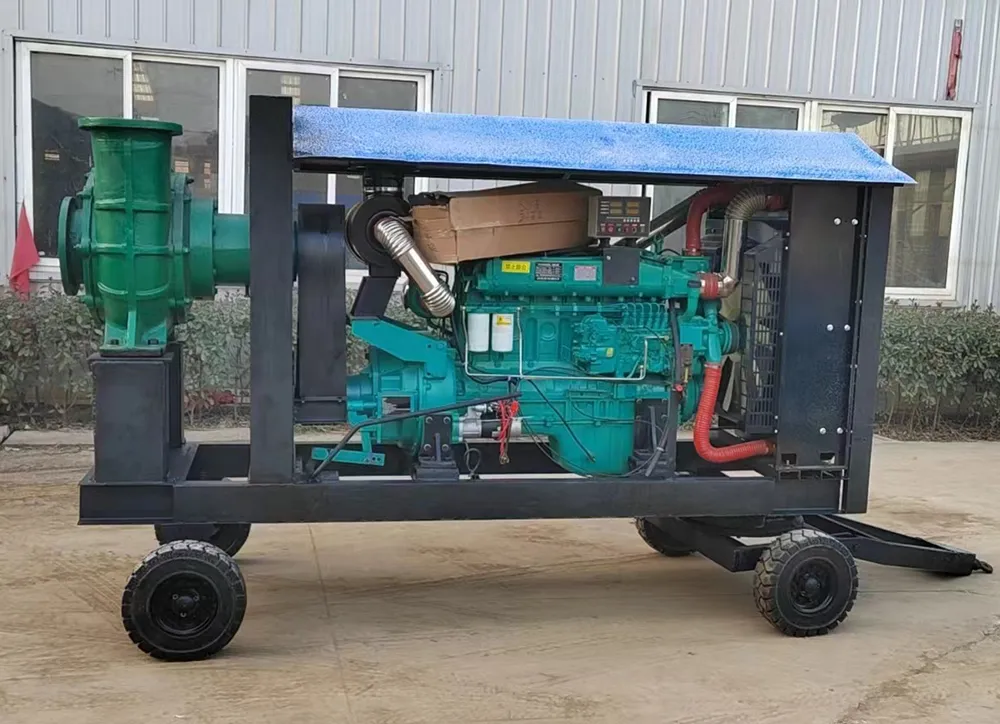

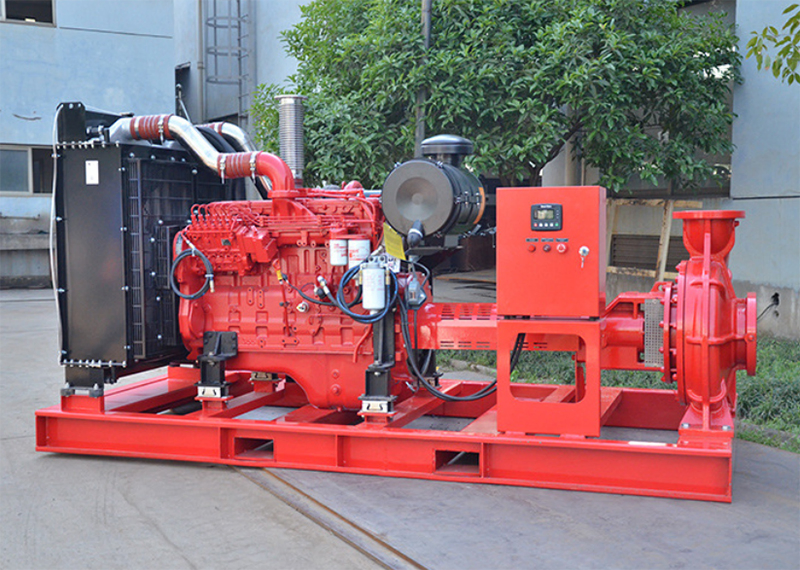

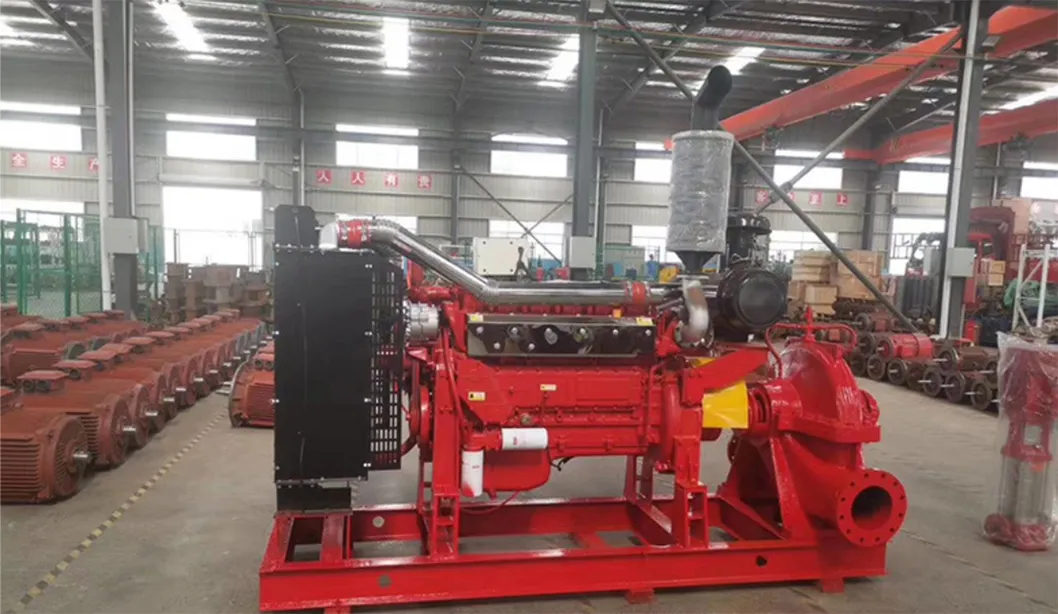

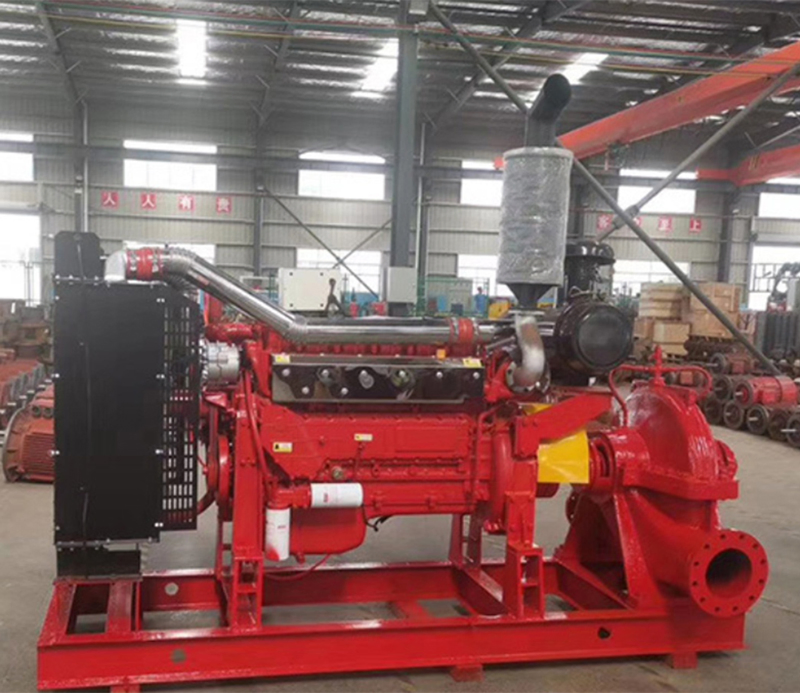

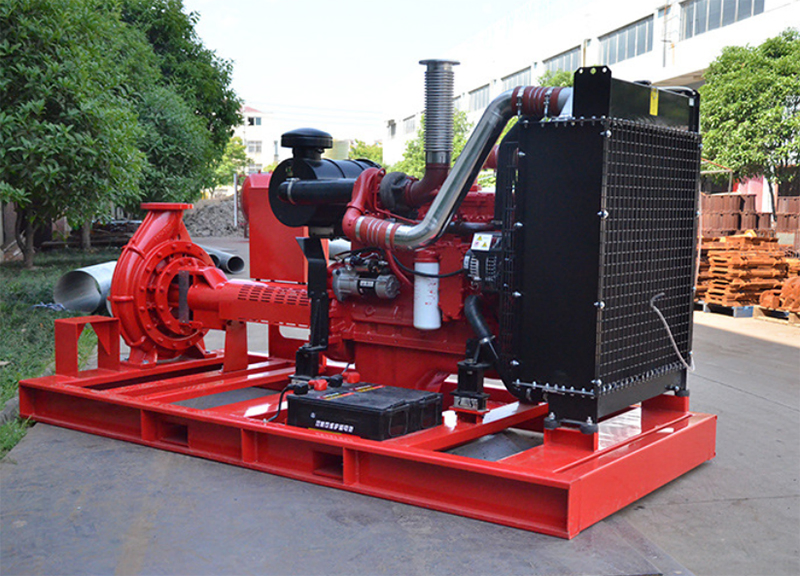

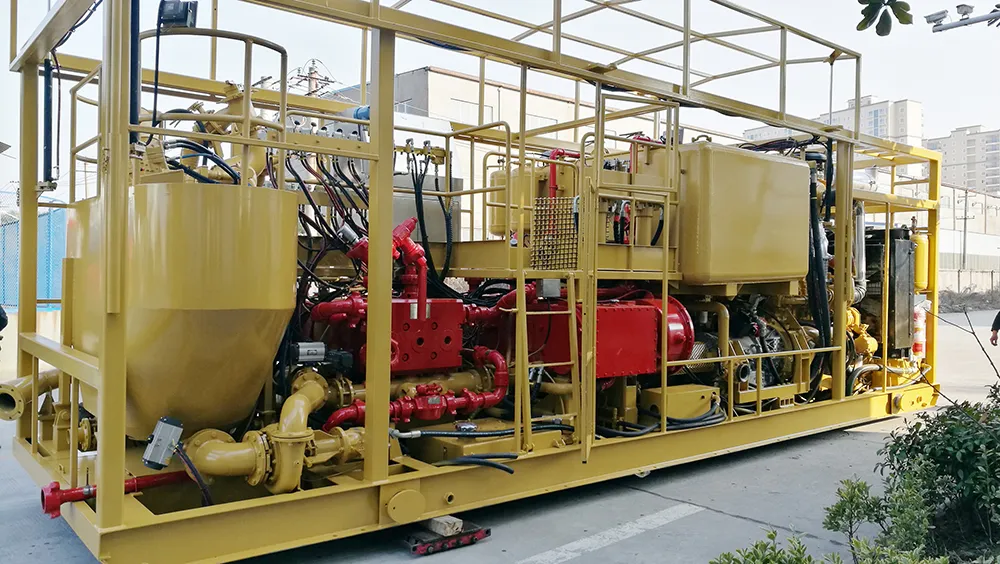

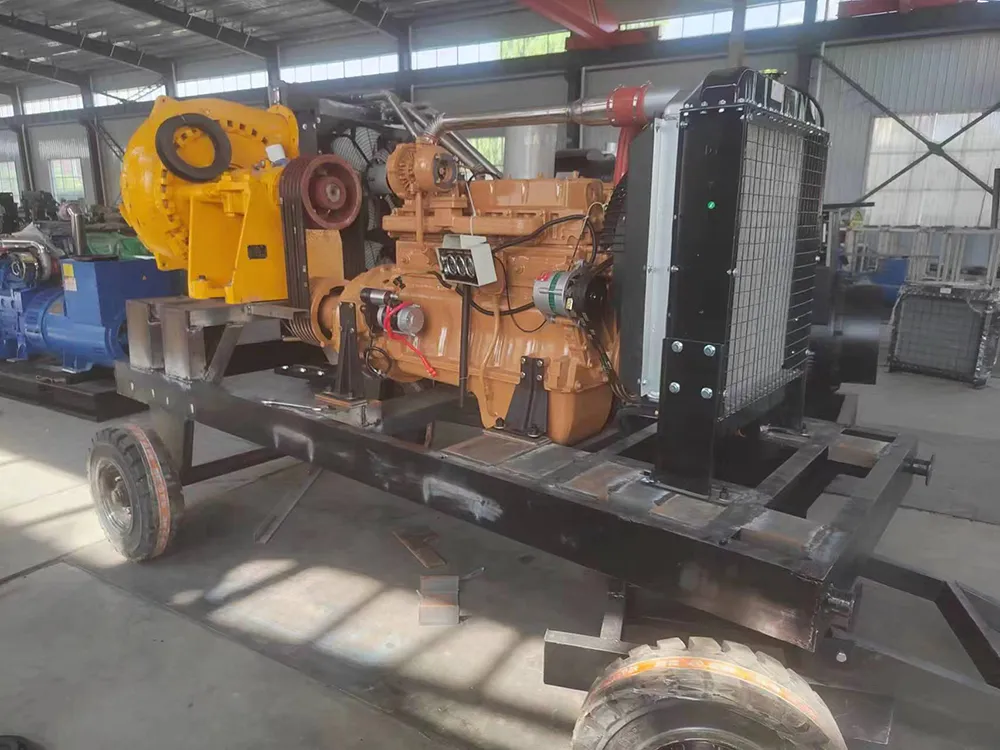

Diesel engine high-flow high-lift water pumps are widely used in flood control, drought relief, fire water supply, industrial emergency, garden agriculture, mine drainage, urban drainage, and river pond breeding. We professionally customize the most suitable pump set based on your needs.

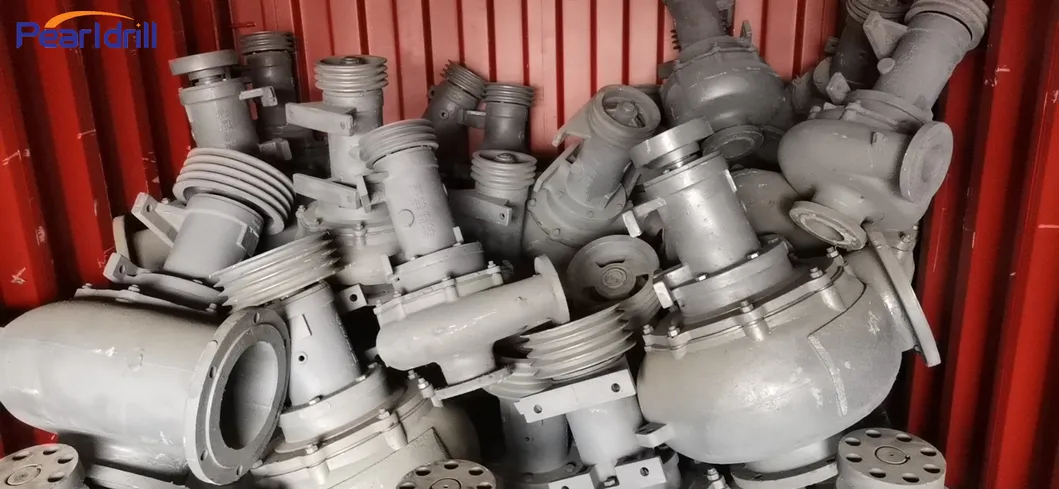

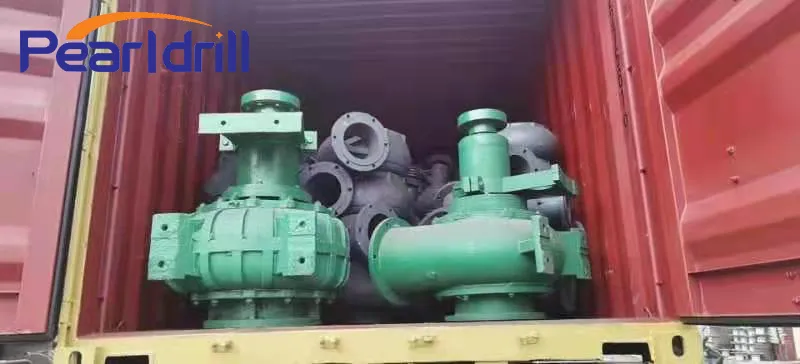

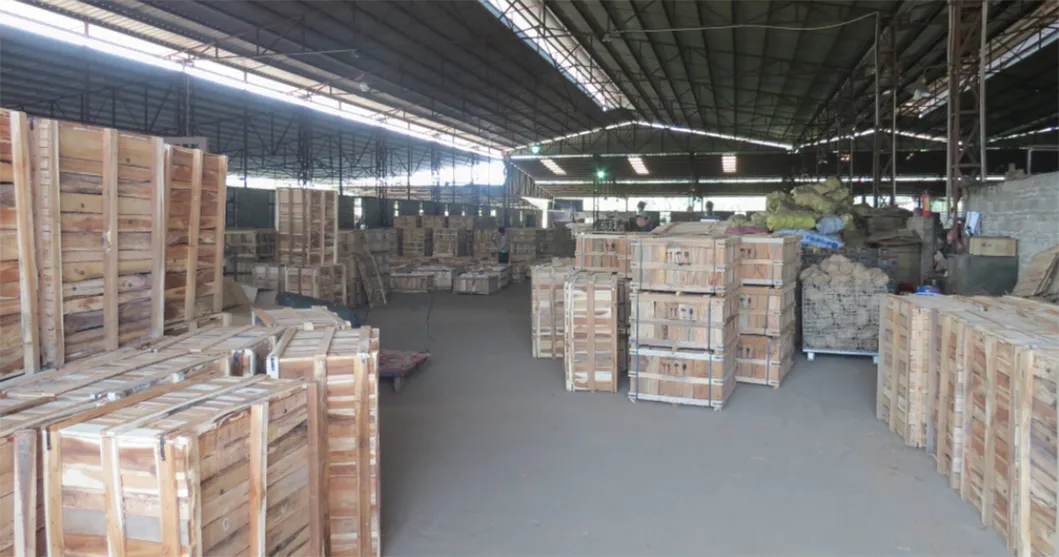

Packing Details: One pump in one plywood case.

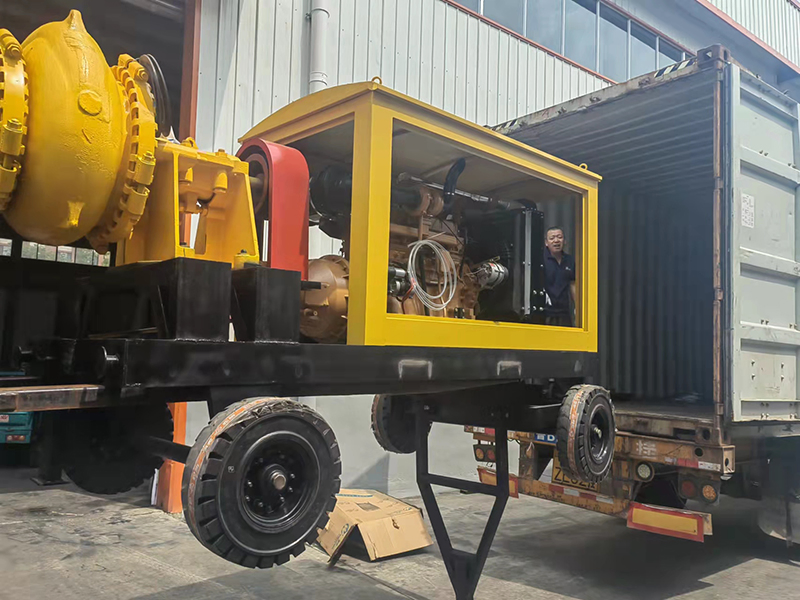

Delivery Details: 7-15 days after order confirmation. Standard Export Plywood Case without original wood, no fumigation needed.

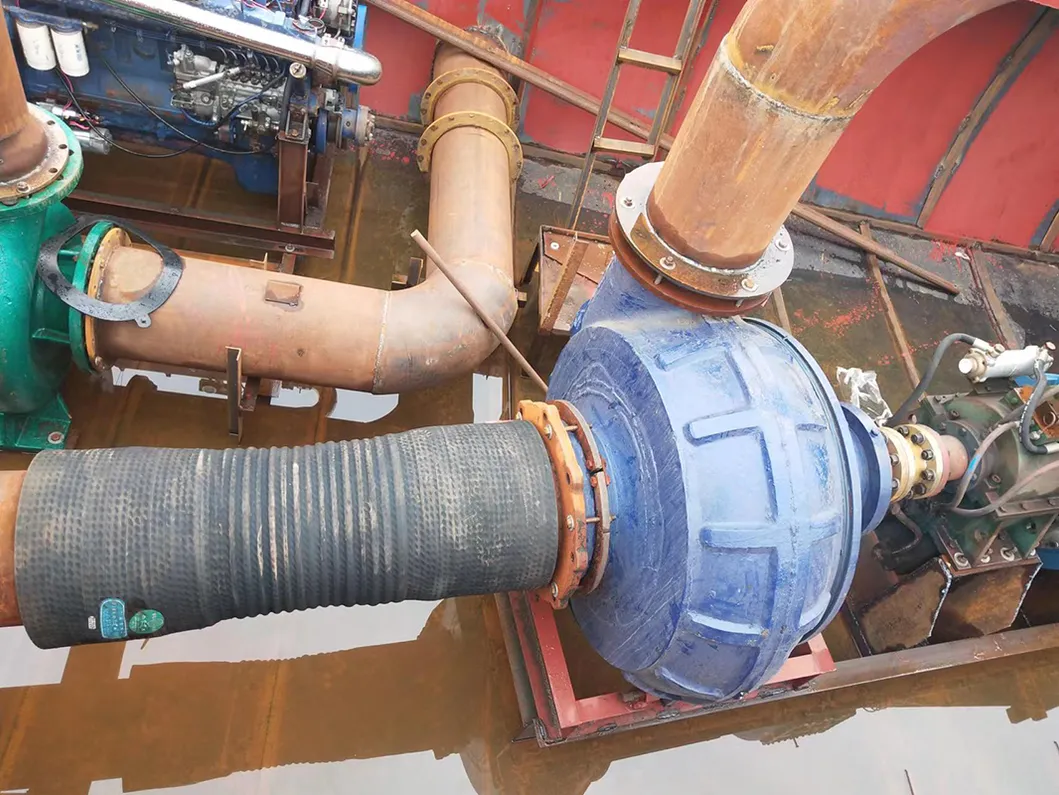

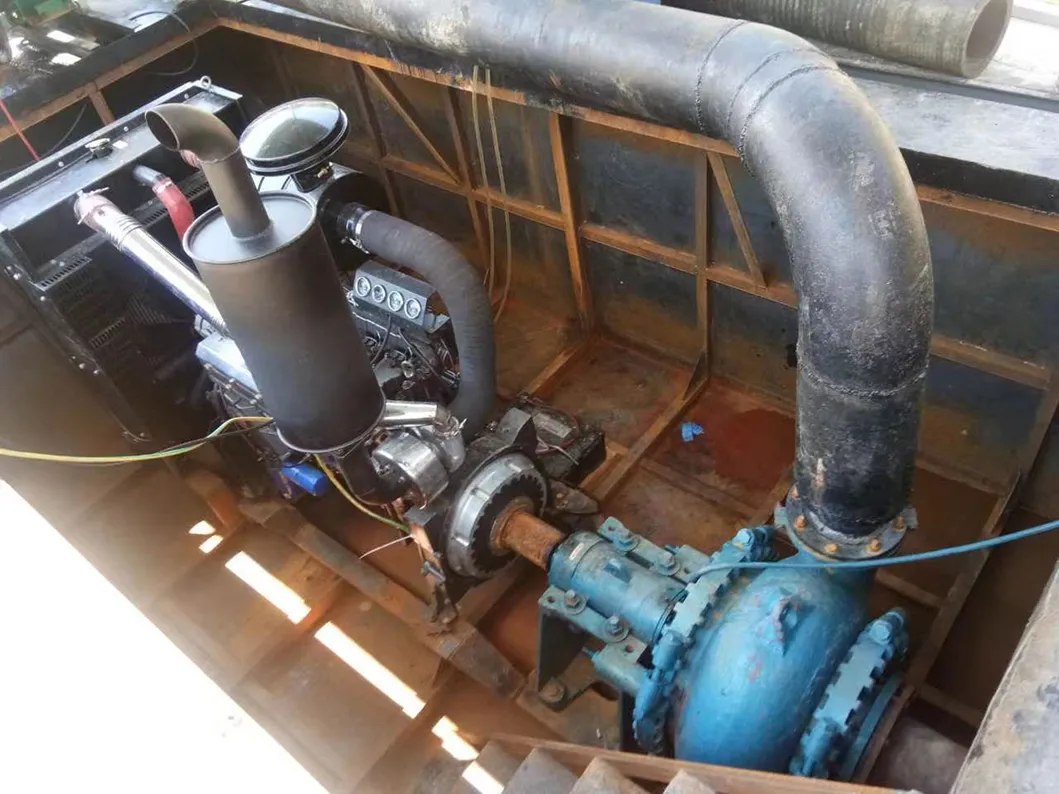

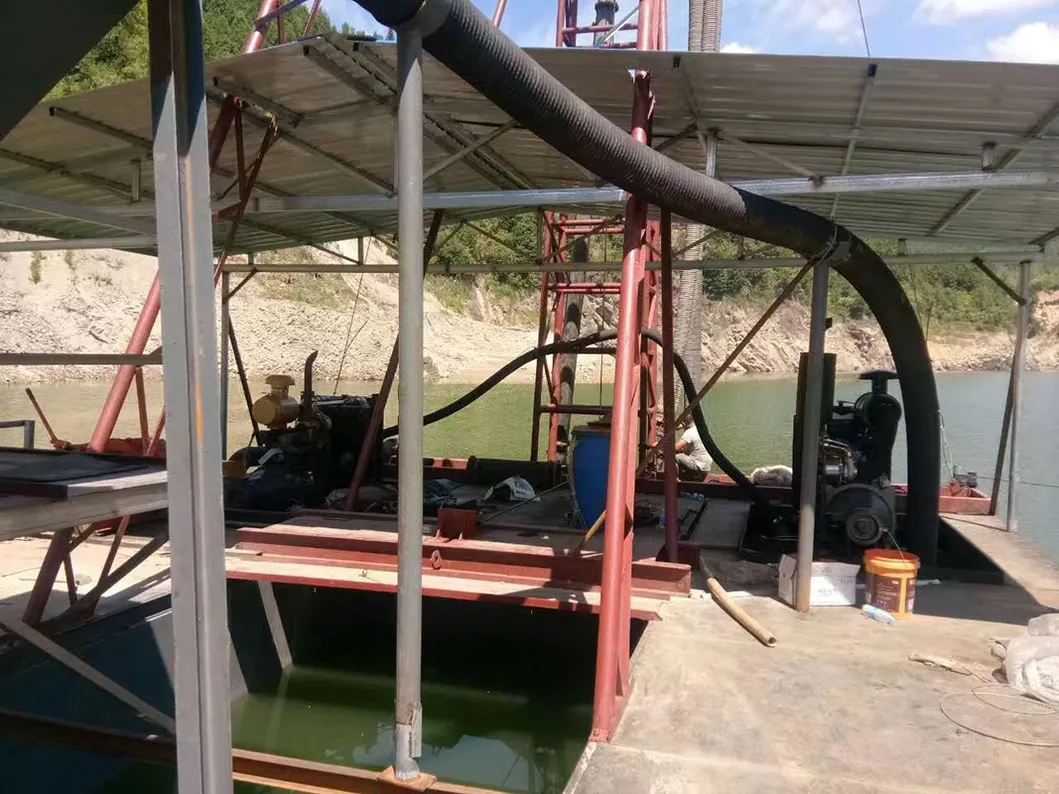

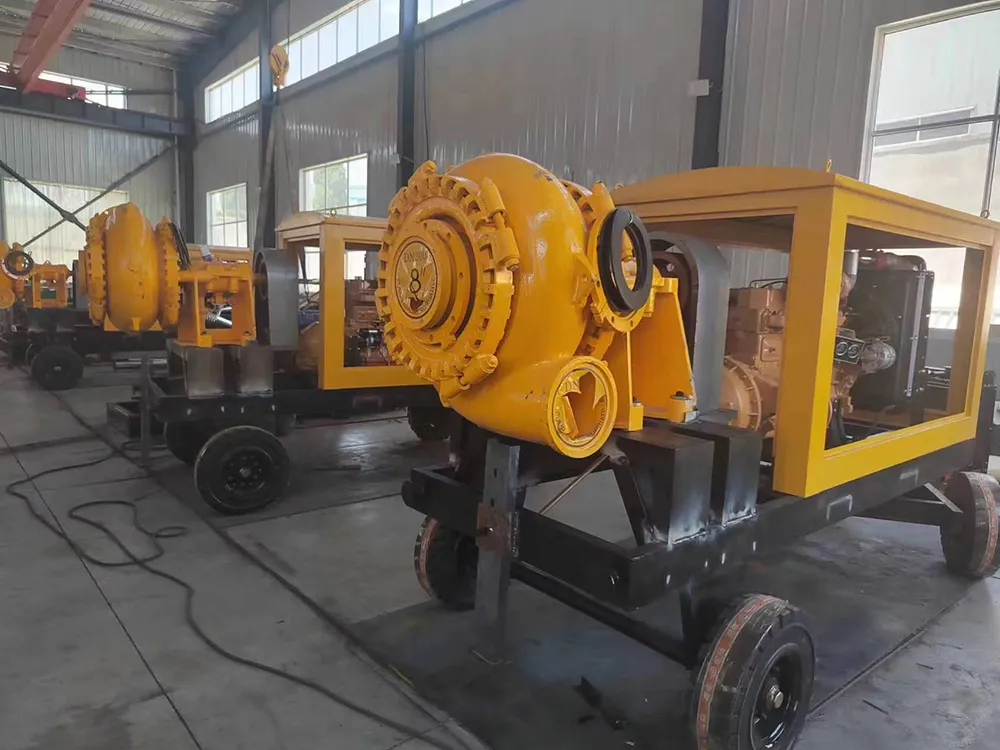

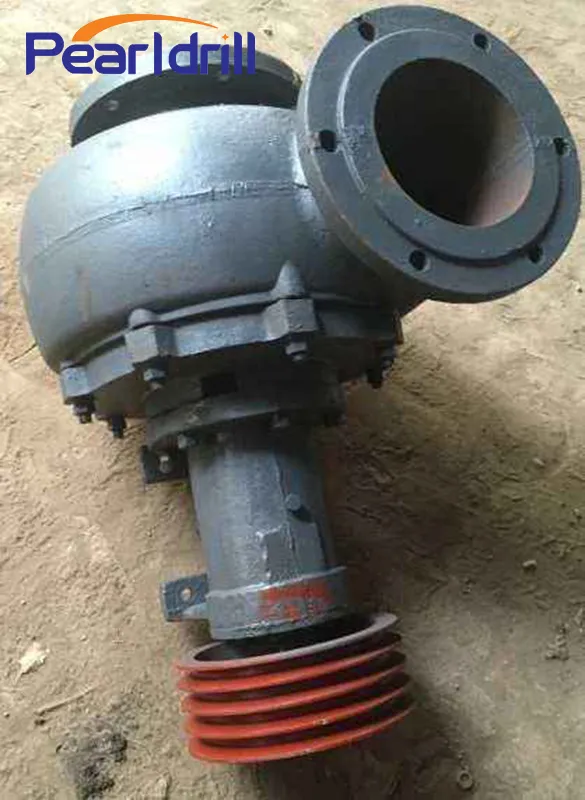

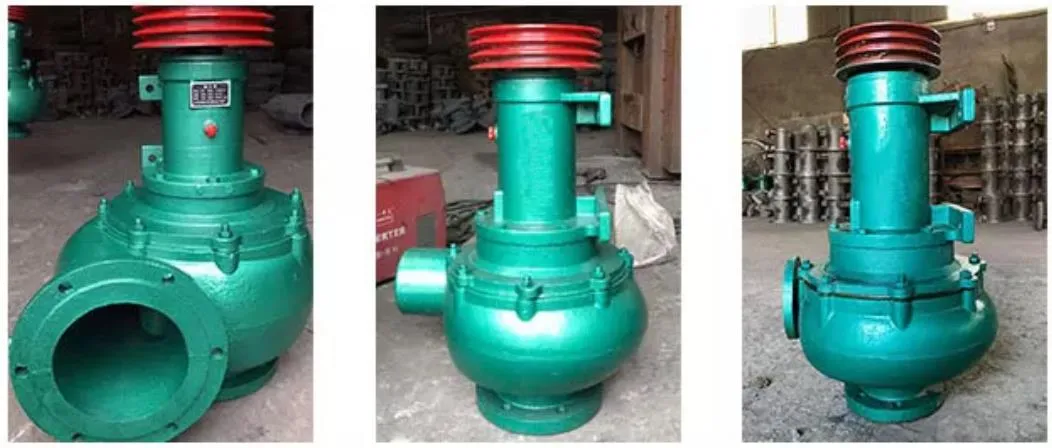

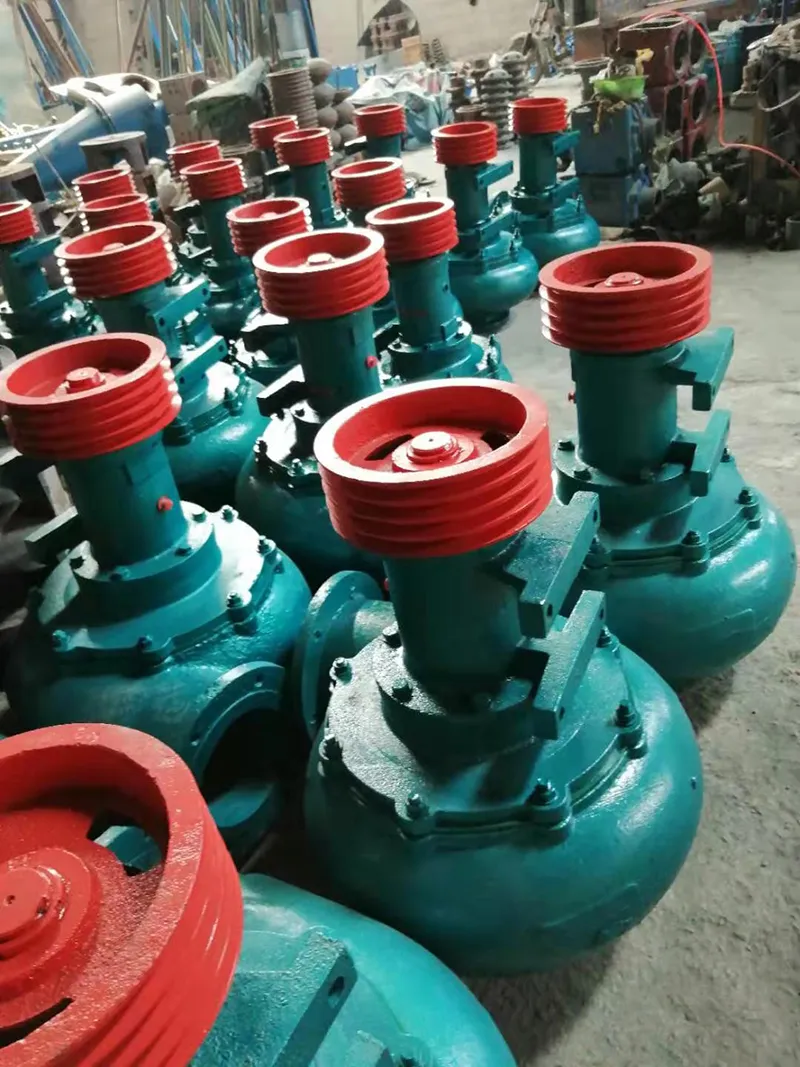

Designed with two-phase flow theory, this impurity pump features high hydraulic efficiency and excellent wear resistance. It is ideal for sand pumping, iron ore mining, and slurry transportation in rivers, lakes, and industrial environments. Concentration of solid-liquid mixed media can reach 60%.
| Spec | Power | Flux (m³/h) | Lift | Rev | Voltage | Material | Weight |
|---|---|---|---|---|---|---|---|
| 4" | 15kw | 120 | 32m | 1400r/min | 380V | Cast iron | 115kg |
| 6" | 25kw | 200 | 30m | 1400r/min | 380V | Cast iron | 146kg |
| 8" | 45kw | 400 | 28m | 1200r/min | 380V | Cast iron | 287kg |
| 10" | 90kw | 800 | 26m | 1200r/min | 380V | Cast iron | 446kg |
| 12" | 170kw | 1200 | 24m | 1000r/min | 380V | Cast iron | 1050kg |
| 14" | 400kw | 2500 | 25m | 1000r/min | 380V | Cast iron | 1500kg |

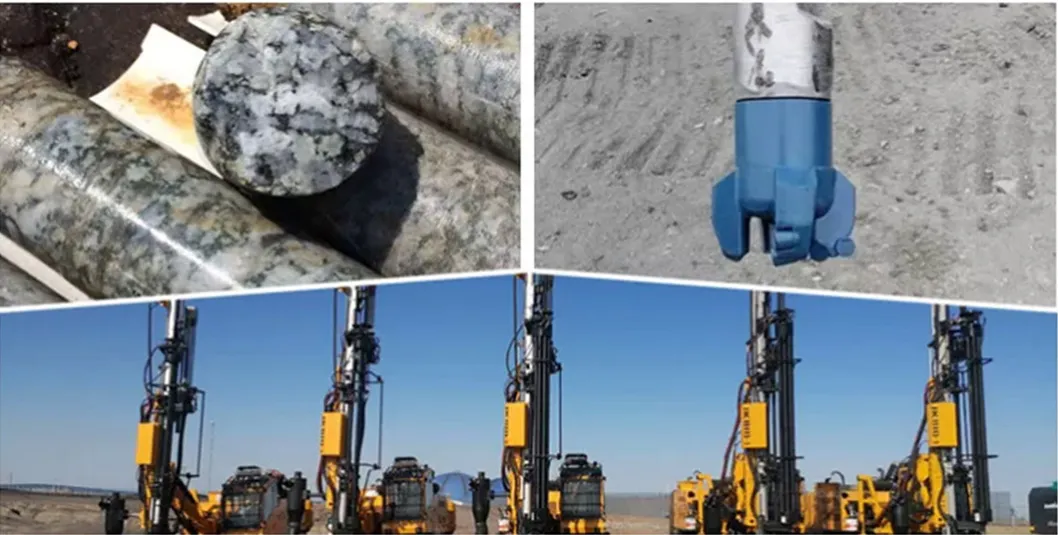

We provide drilling rigs, drilling tools, and mud pumps used for water wells, irrigation, geological exploration, and mining. Our products are chosen by engineers globally for precise design and efficient drilling.
