Diesel and Electric Circulation End Suction Fire Fighting Centrifugal Water Pump

1 / 5

Diesel and Electric Circulation End Suction Fire Fighting Centrifugal Water Pump

Customization:	Available
Max.Head:	>150m
Max.Capacity:	>400 L/min

Send Inquiry

Product Description

Basic Specifications

Model NO.

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Influent Type

Double-Suction Pump

Shaft Position

Horizontal Pump

Pump Casing

Horizontal Split Pumps

Impeller Type

Closed

Material

Cast Iron, Cast Steel, Stainless Steel

Power Source

Diesel Engine and Electric Motor

Seal Type

Gland Packing Seal

Application

Mine, Urban Water Supply, Electric Power, etc

Head Range

5-150m

Flow Rate

100m3/H- 13000m3/H

HS Code

8413709990

Capacity

100000PCS/Year

Product Overview

We are a professional manufacturer for Horizontal Split Case Pumps and Double Suction Pumps with high and stable quality, providing robust water pump solutions for various industrial needs.

General Description: Type SH, XS Split Case Pump/Double suction pump is a new type of single-stage double-suction split case centrifugal pump with high performance. They are widely used in water plants, circulation water systems of air conditioners, pipe net systems for heated water, construction, and drainage pumping stations.

Technical Parameters

Speed: 990, 1480 and 2960 r/min
Voltage: 380V, 6K/10KV
Inlet/Outlet: 150 ~ 600mm
Flow Range: 68 ~ 3975m3/h
Head Range: 6 ~ 180m
Liquid Temperature: Standard ≤ 100°C, Special configuration up to 150°C
Max Working Pressure: 1.0MPa to 2.5MPa based on configuration

Key Advantages

Technical Benefits

Stable Operation: Low noise and vibration due to short support design at both sides.
Simple Installation: Pipeline arrangement is straightforward with inlet and outlet on the same center line.
Reversible Operation: The rotor can operate in reverse to avoid water hammer damage.
High-Temperature Resistance: Unique middle support design and cooling seals make it suitable for 200°C applications.
Flexible Mounting: Can be vertically or horizontally mounted with mechanical or packing seals.

Cost & Maintenance Efficiency

High Efficiency: 2%~3% higher efficiency than similar types, minimizing operating costs.
Low Foundation Cost: NPSH is 1-3 meters lower, reducing construction expenses.
Easy Maintenance: Container-type mechanical seals allow for rapid and simple replacement.
Premium Components: Utilizes SKF/NSK bearings to minimize maintenance frequency.

Performance Data Table

Model	Capacity (m3/H)	Head (M)	Power (KW)	Speed (rpm)	Efficiency %
6-6/150-78	198	84	55	2900	74
6-6A/150-78A	180	67	45	2900	72
6-9/150-50A	220	52	37	2900	80
12-6/300-90	936	82	300	1450	75
14-6/300-125	1663	100	680	1470	73
32-9/800-76	6600	68	1500	740	88

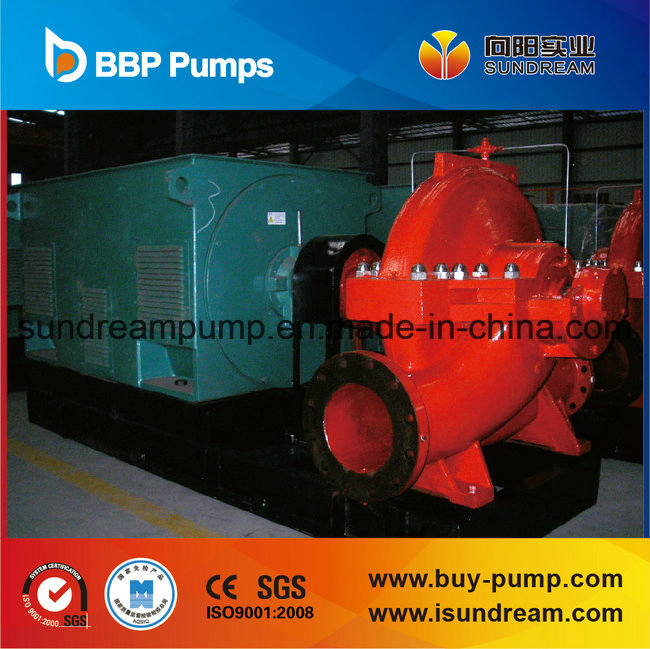

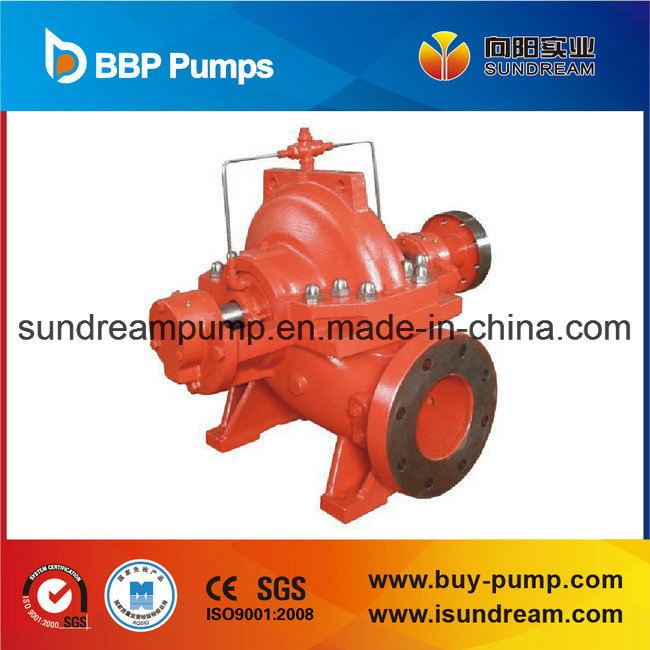

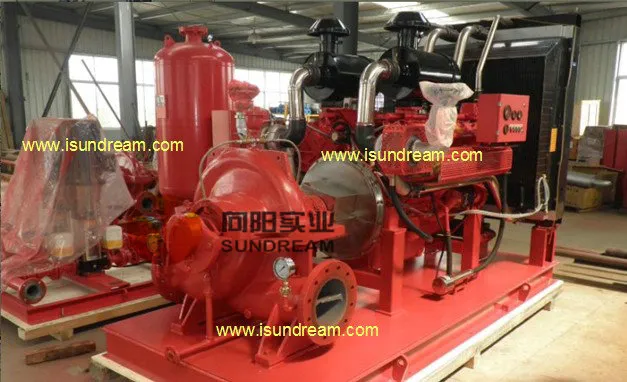

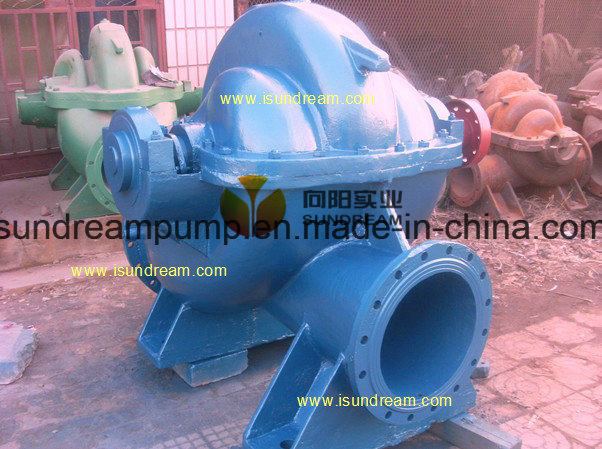

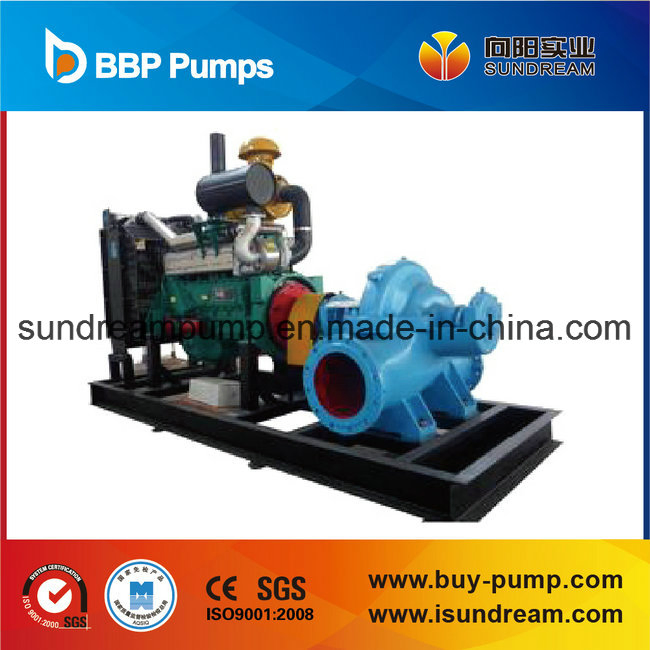

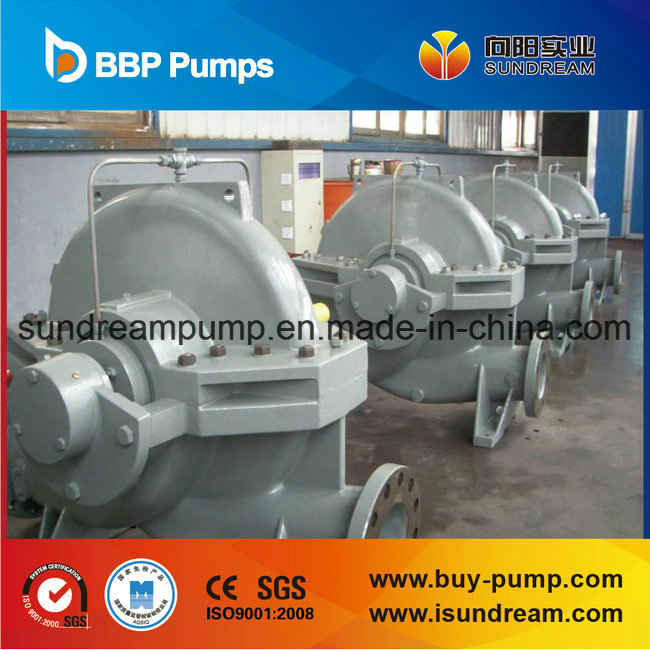

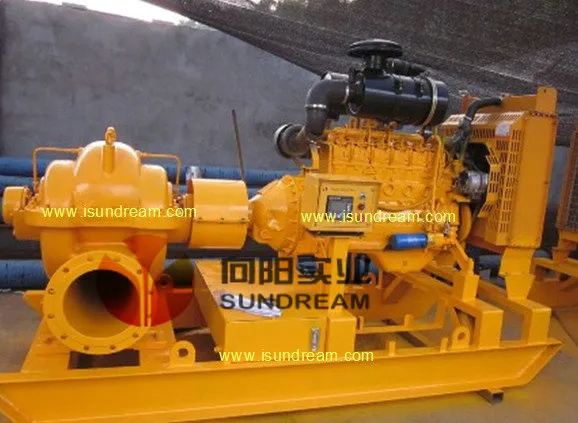

Product Visuals

Frequently Asked Questions

Q1: What are the main applications of the XS series Split Case Pump? A: It is widely used in water plants, irrigation, drainage stations, power stations, industrial water supply systems, fire-fighting systems, and the oil refining industry.

Q2: How does the double suction design benefit the operation? A: The design provides high performance, stable work with less noise and vibration, and allows for high lifting speeds due to the short support structure.

Q3: Can these pumps handle liquids other than clean water? A: Yes, they are suitable for Clearwater or other liquids with physicochemical properties similar to water.

Q4: What is the maximum temperature the XS pump can handle? A: The standard maximum temperature is ≤ 100°C, but with special configurations, it can handle up to 150°C or even 200°C with cooling seals.

Q5: Why is the maintenance of these pumps considered easy? A: The use of container-type mechanical seals and elastic assembly for rotor parts makes disassembly and replacement rapid and simple.

Q6: What power sources can be used with these pumps? A: These pumps are compatible with both Diesel Engines (such as DEUTZ or Cummins) and Electric Motors.
