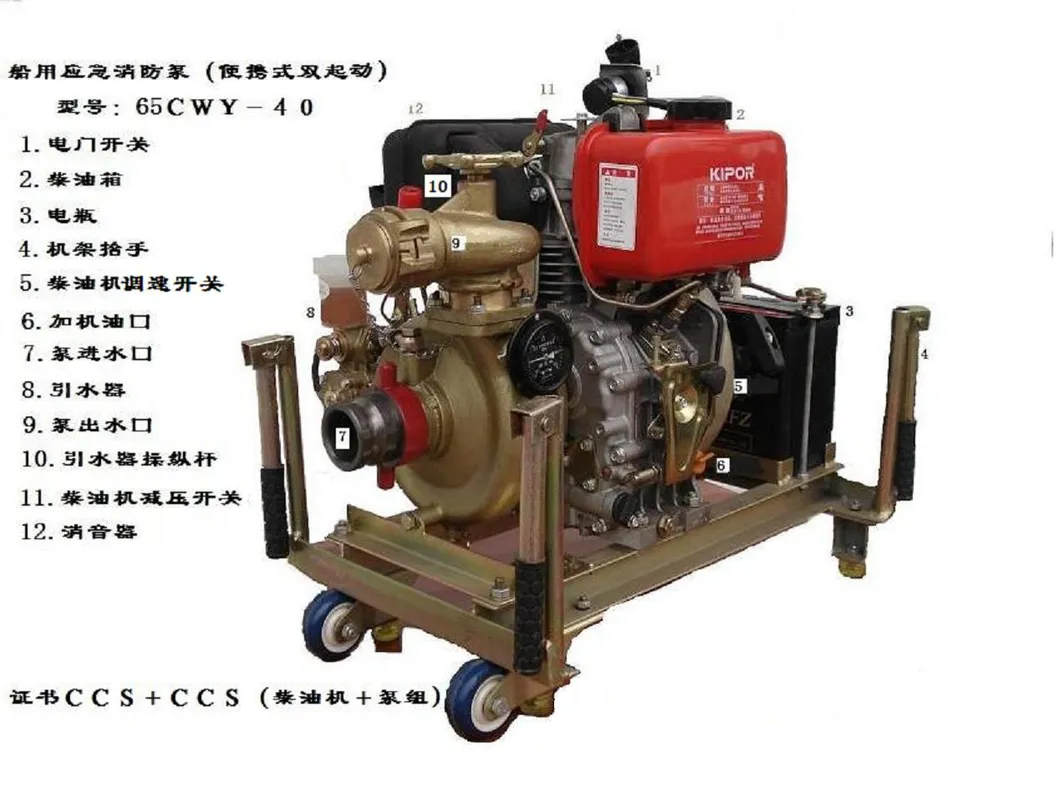

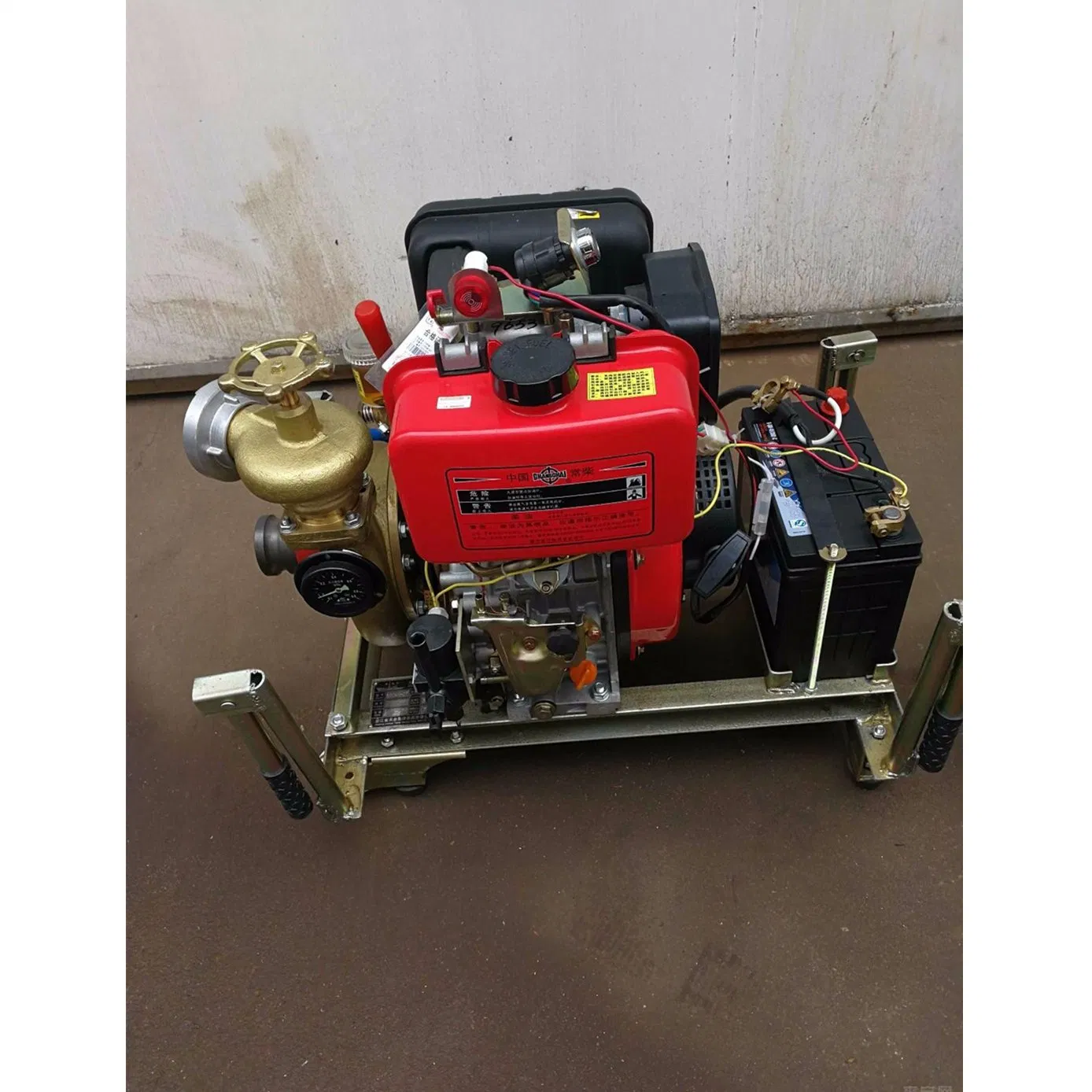

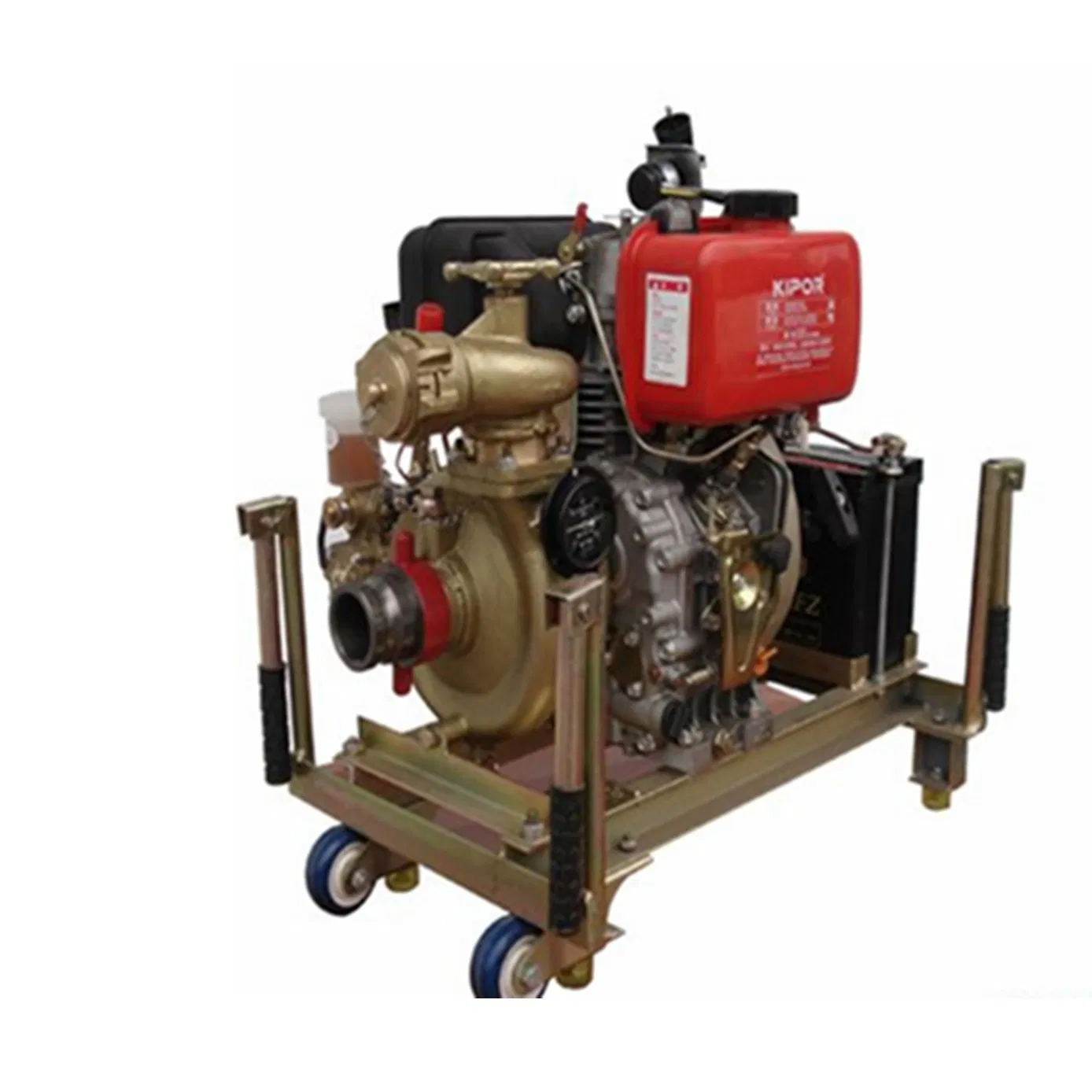

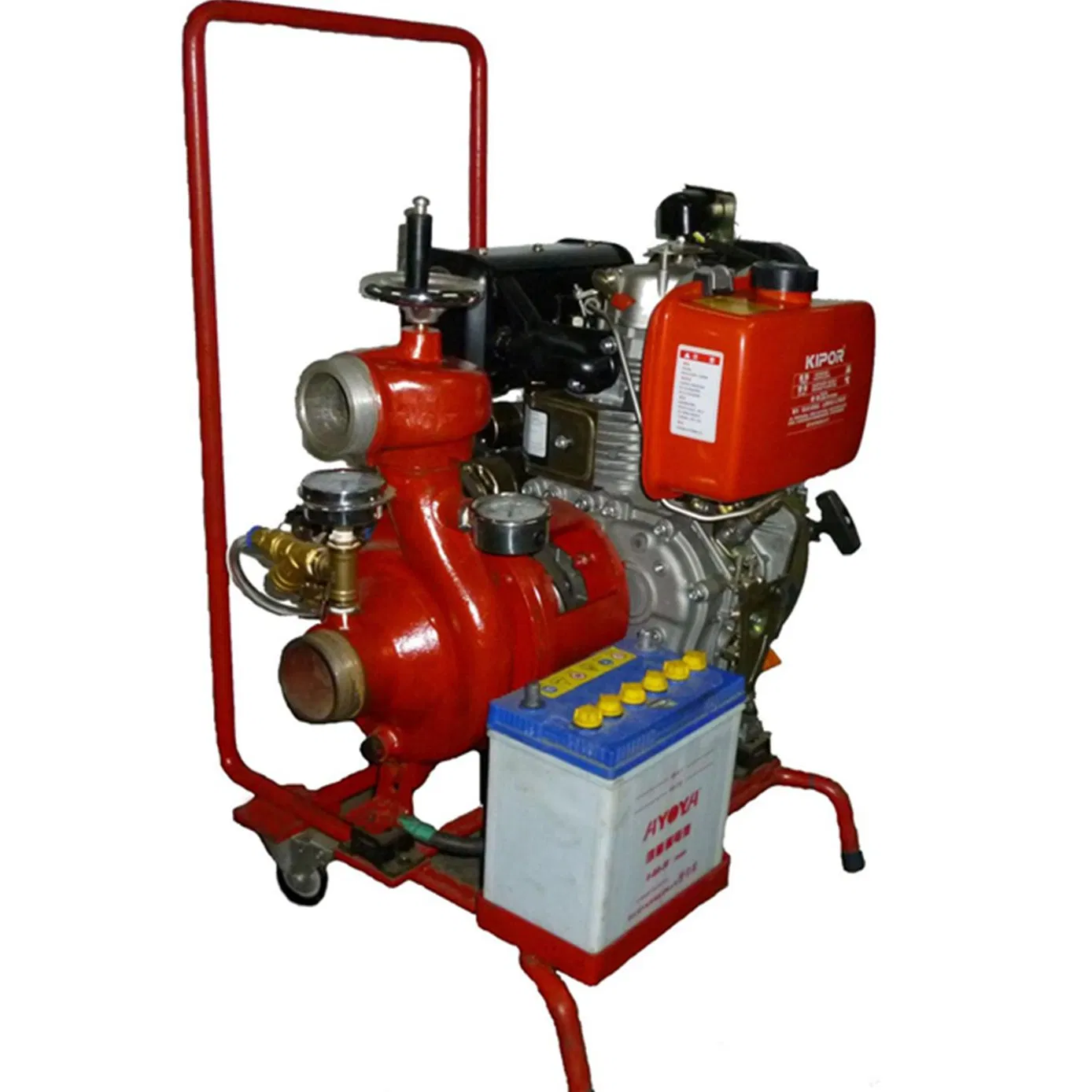

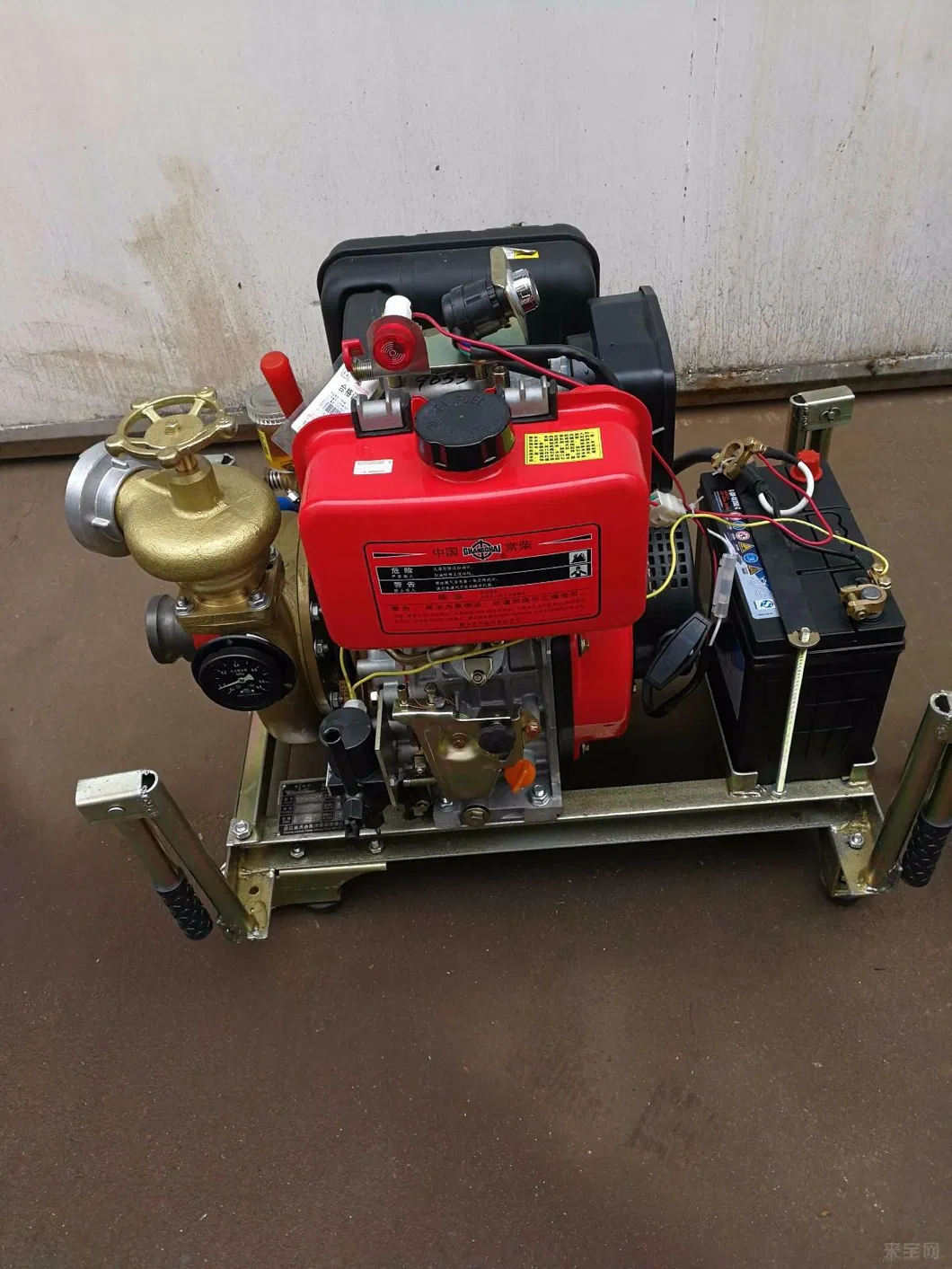

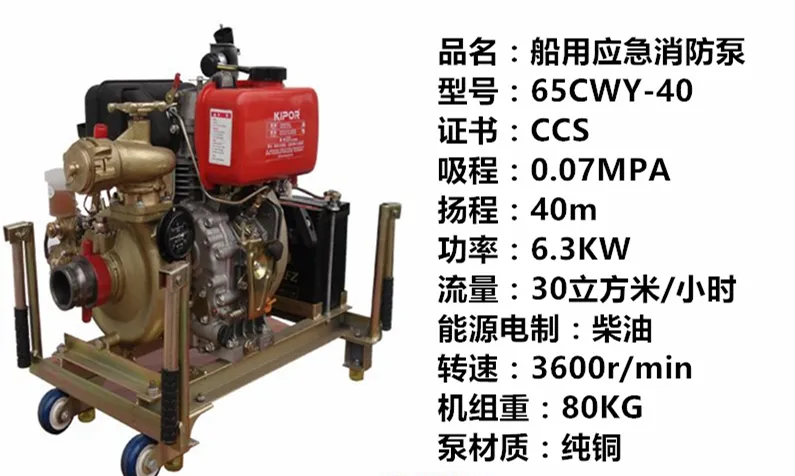

CWY Marine Diesel Engine Drived Emergency Fire Pump
This series of emergency fire pumps are designed for marine applications, providing reliable performance in critical situations. Driven by robust diesel engines, they ensure functionality even when primary power systems fail.
| Model Specification | 65CWY-25 | 65CWY-30 | 65CWY-40 | |
| Flow (m3/h) | 20 | 25 | 30 | |
| Head (m) | 25 | 30 | 40 | |
| Rotating Speed (r/min) | 3500 | |||
| Suction Height (m) | 6-7 | |||
| Time of water draining (s) | ≤35 | |||
| Weight (electric start) kg | 70(80) | 75(85) | 95(105) | |
| Power of diesel engine (kW) | 2.5 | 4 | 6 | |
| Dia. of inlet and outlet (mm) | 65/50 | |||
| Unit Type | Movable/Fixed | |||
| Matched Diesel Engine | 168F | 178F | 186F | |
| Fuel consumption (g/kW.h) | 290 | 285 | 280 | |
| Independent continuous operation time (h) | 4 | 3.7 | 3.5 | |
| Cooled type | Air Cooled | |||
| Start type | Hand start/Electric start | |||
| Size of Hand start (electric start) mm | 540×600×440 (540×600×480) |
580×620×480 (580×620×520) |
600×740×560 (600×740×600) |
|
All pumps can be customized according to your specific requirements. Please provide the following details for an accurate quote:
Head | Capacity | RPM | Material | Voltage
