Concrete Mixer Construction Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Conveying Pumping Mortar Spray Machine Cement Transfer Concrete Pump

1 / 5

Concrete Mixer Construction Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Conveying Pumping Mortar Spray Machine Cement Transfer Concrete Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview Hot Sales Product Description Parameters Certifications

Basic Information

Model NO.

Concrete Pump

Type

Concrete Pump

Shotcrete Type

Wet

Machining Process

Hydraulic

Productivity

40m3/H

Feeding Height

1400mm

Certification

ISO9001, CE, EPA

Color

Yellow

Max Theory Delivery

40 Diesel Concrete Pump

Motor Power

55 Kw

Max Particles

30mm

Origin

China

Hot Sales

Product Description

The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel backfill grouting anchor support in subway and mine construction.

This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building applications. It features large displacement, high pressure, labor saving, and flexible movement. It is an ideal mortar conveying equipment for urban construction projects, anchorage grouting, and consolidation works.

Technical Parameters

Project	Unit	HBTS25	HBTS40	HBTS60	HBTS80
Max theoretical delivery	m³/h	23	40	60	80
Max outlet pressure	Mpa	8	13	13	13-16
Max transport distance	m	100/300	200/800	240/1100	240/1100
Motor Power	kw	30	55	90	90-110
Feeding height	mm	1200	1200	1350	1350
Max particle size	mm	≤50	≤40	≤40	≤40
Host weight	Kg	1900	3400	5000	5600

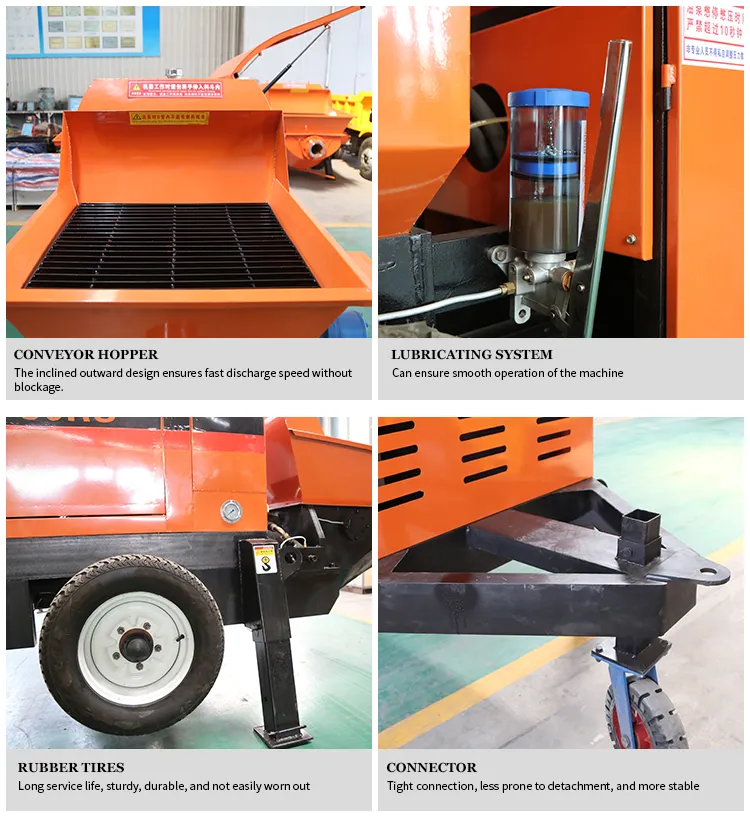

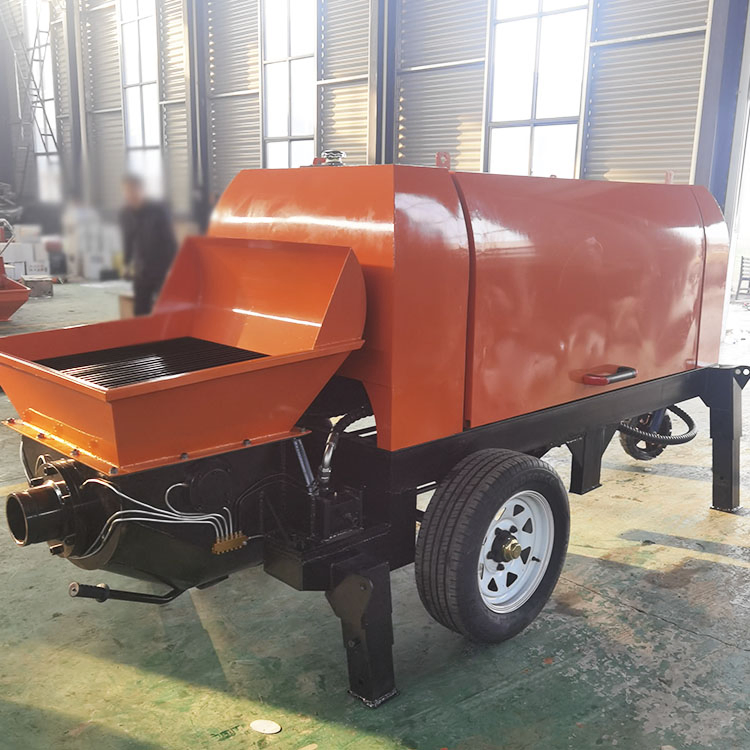

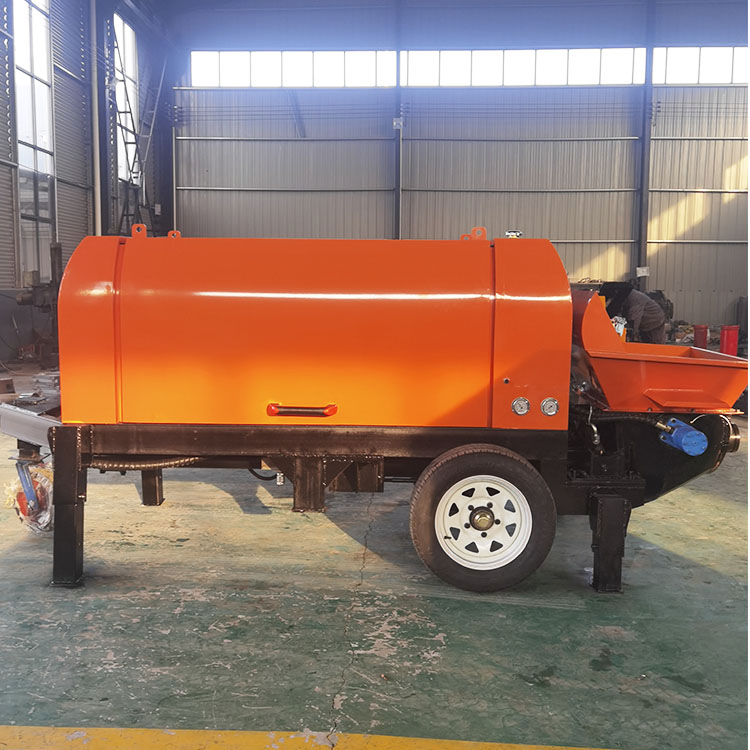

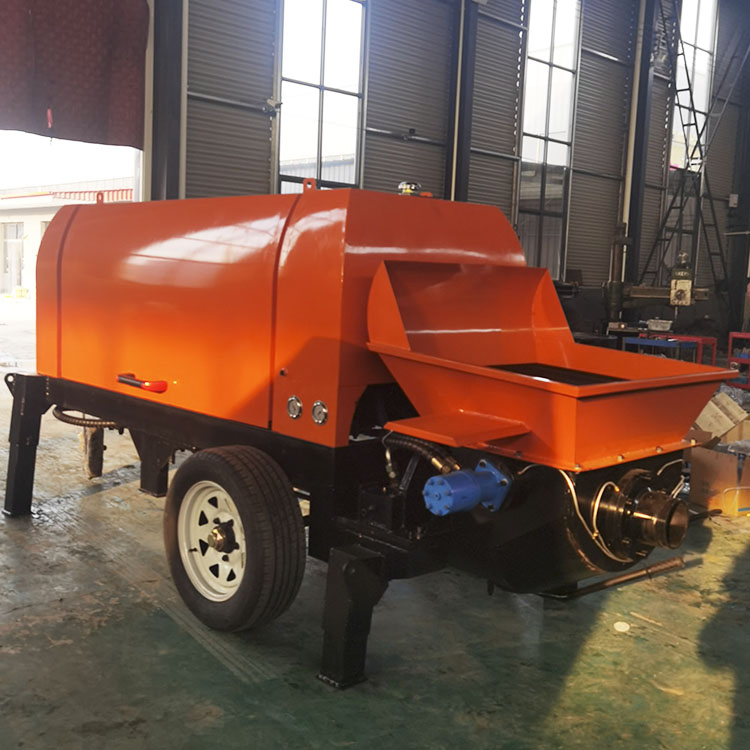

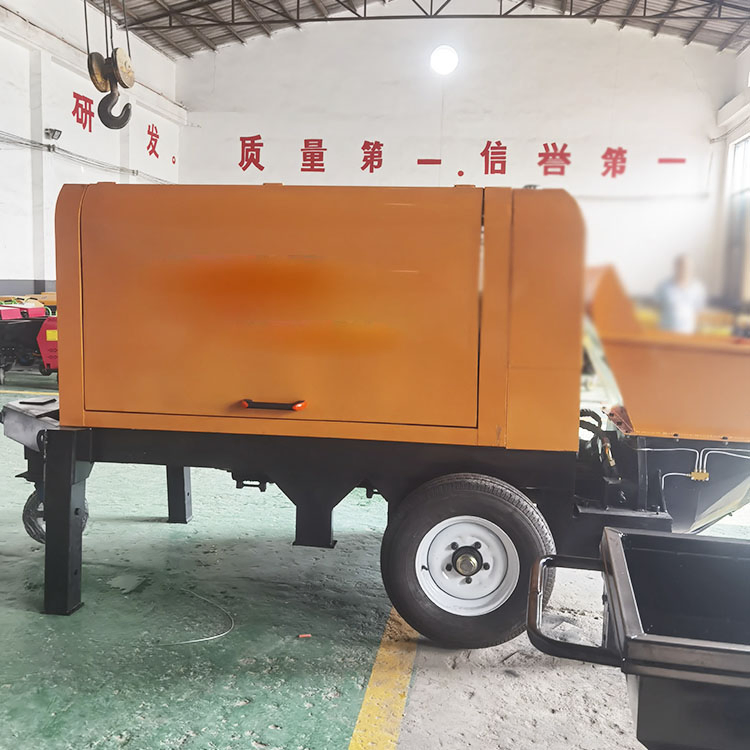

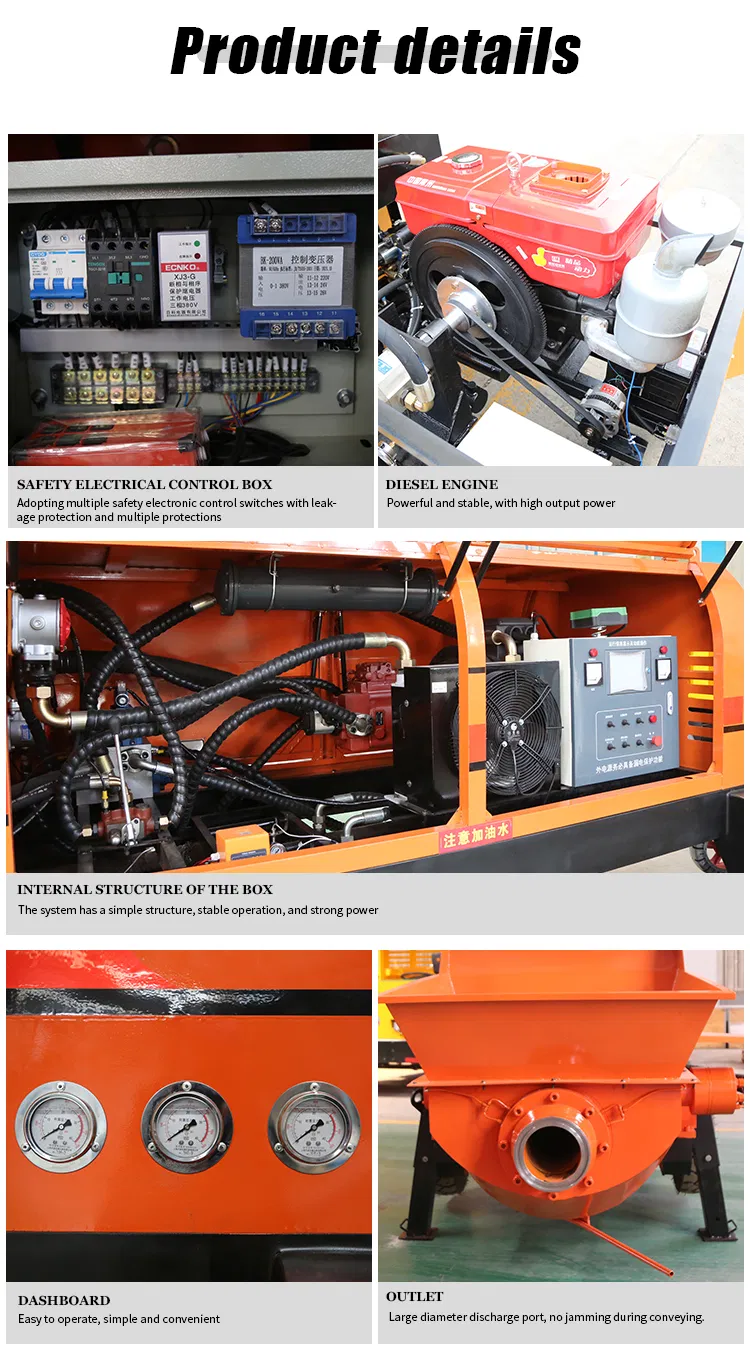

Detailed Photos

Certifications & Exhibition

Frequently Asked Questions

What are the primary applications for this concrete pump?

The pump is ideal for high-rise building mortar transportation, secondary structure column grouting, tunnels, subways, and hydropower station construction projects.

What is the maximum productivity of the equipment?

Depending on the specific model, the maximum theoretical delivery ranges from 23m³/h to 80m³/h.

Does the machine support both diesel and electric power?

Yes, we offer portable mobile diesel and electric trailer-mounted options to suit different job site power requirements.

What is the maximum particle size allowed for pumping?

The machine can handle maximum particle sizes ranging from 30mm to 50mm, depending on the chosen model.

Is the equipment easy to transport between construction sites?

Absolutely. The trailer-mounted design and flexible movement features make it highly portable and efficient for urban construction projects.

How does the hydraulic feeding system benefit operation?

The double-cylinder reciprocating hydraulic system ensures smooth material flow, high displacement pressure, and reduced manual labor.
