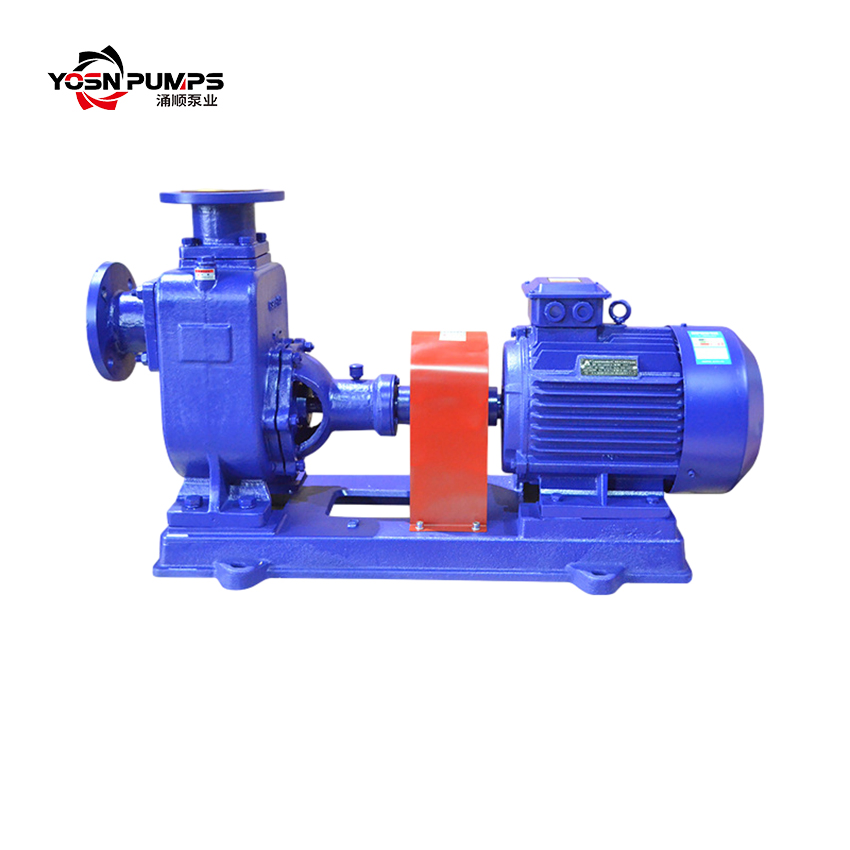

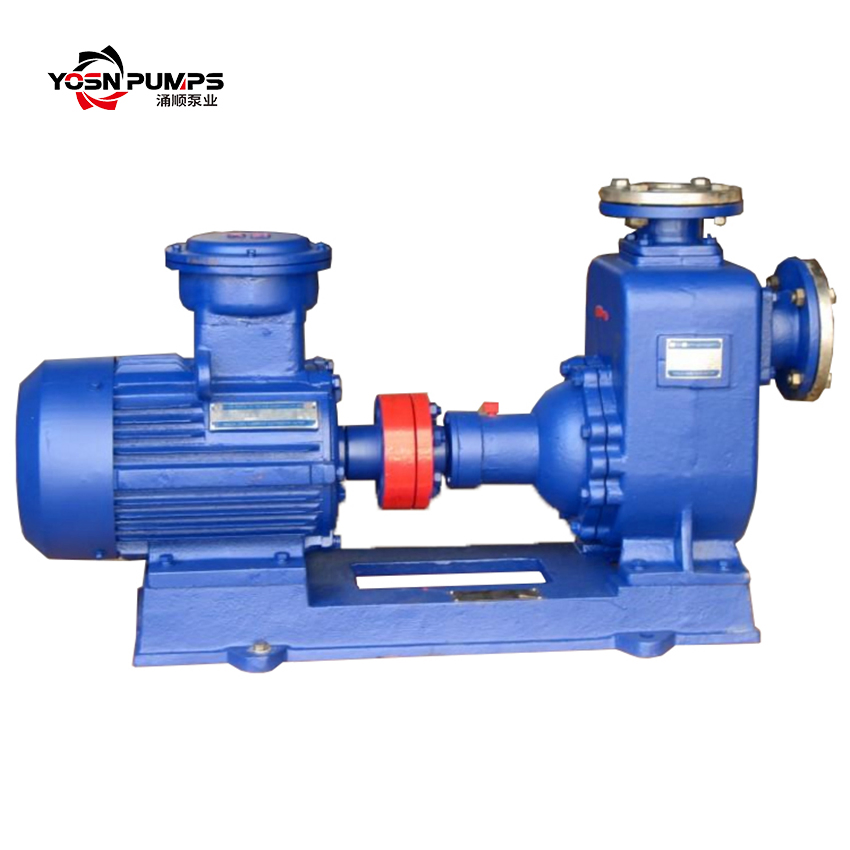

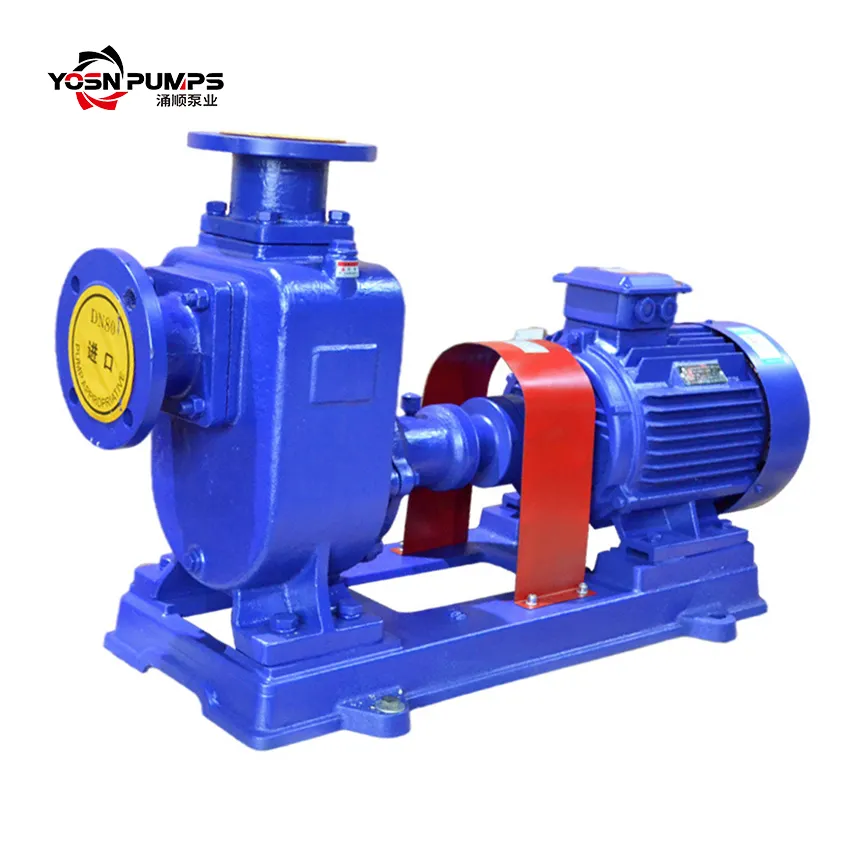

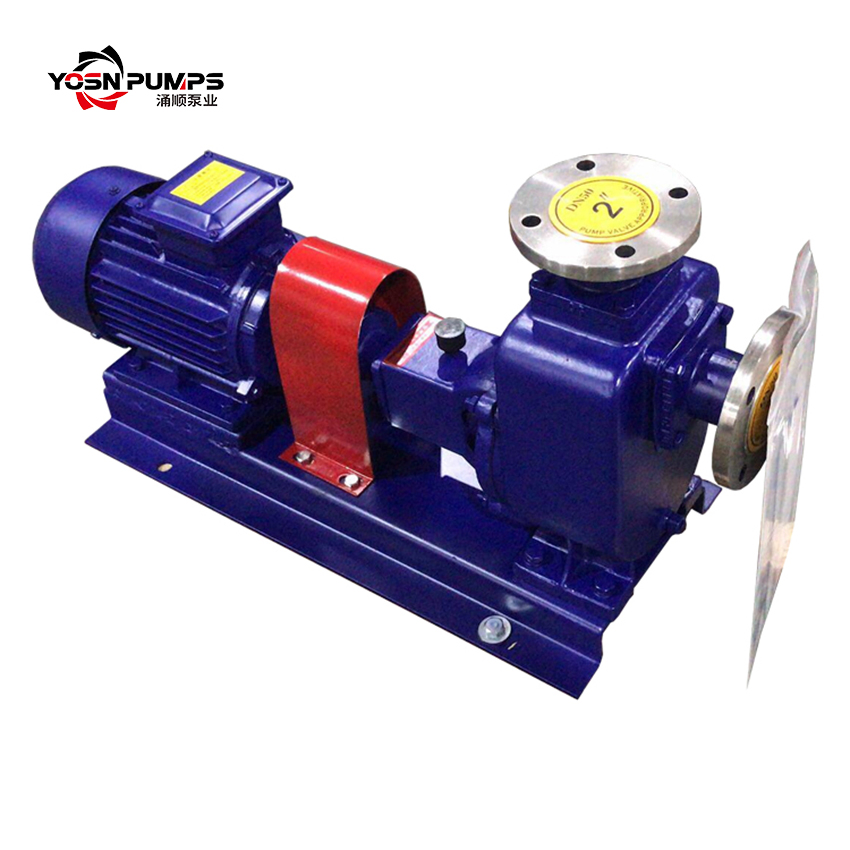

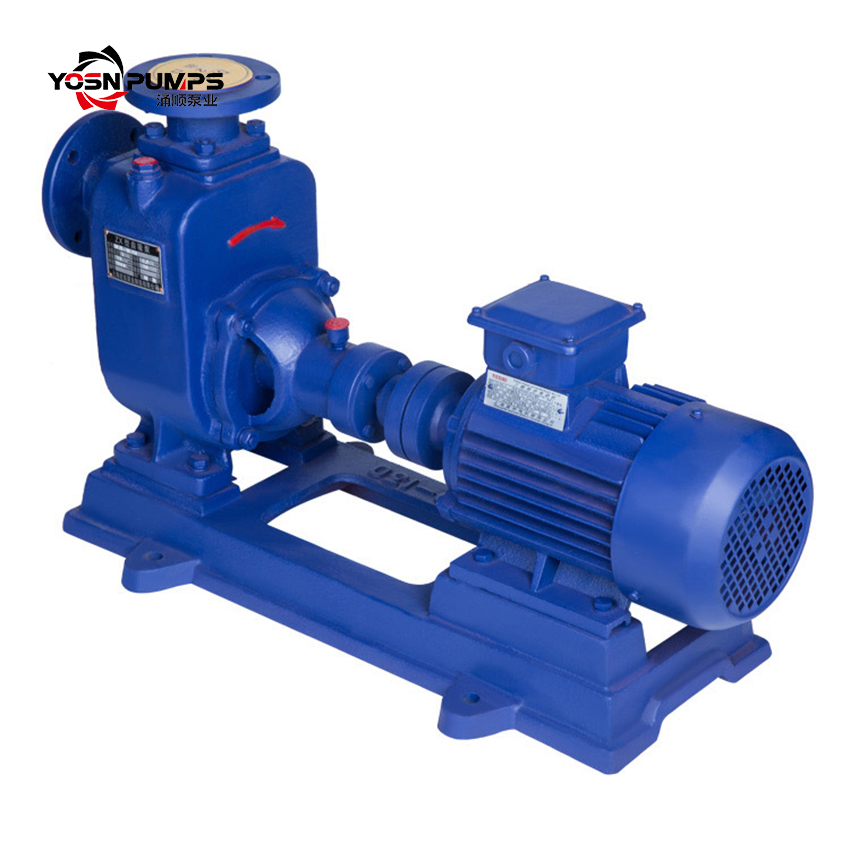

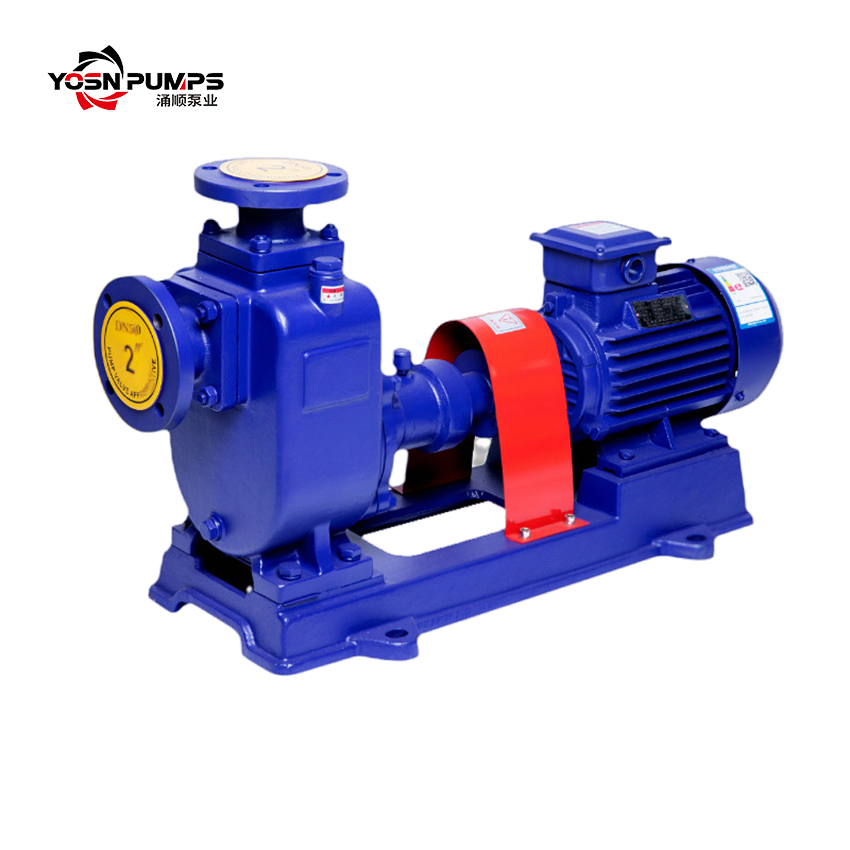

ZX series pumps are horizontal single-stage single-suction self-priming centrifugal pumps. They are highly efficient, energy-saving products designed for versatility in various industrial and municipal applications.
| Model | Power (kw) | Capacity | Head (m) | Speed (r/min) | Self Priming Height (m) | Inlet/Outlet (mm) | |
|---|---|---|---|---|---|---|---|
| m³/h | L/S | ||||||
| 25ZX | 0.75-1.1 | 3.2 | 0.9 | 20-32 | 2900 | 6.5 | 25/25 |
| 40ZX | 1.1-4 | 6.3-10 | 1.8-2.8 | 20-40 | 2900 | 6.5 | 40-50/32-40 |
| 50ZX | 1.5-11 | 10-20 | 2.8-5.6 | 12-75 | 2900 | 6.5 | 50/50 |
| 80ZX | 3-22 | 35-60 | 9.7-16.7 | 13-70 | 2900 | 6.0 | 80/80 |
| 100ZX | 11-30 | 70-100 | 19.4-27.8 | 20-75 | 2900 | 6.0 | 100/100 |
| 150ZX | 45-55 | 160-170 | 44.4-47.2 | 55-80 | 2900 | 5.0 | 150/150 |
| 300ZX | 90-132 | 500-600 | 138.9-166.7 | 32-55 | 1450 | 5.0 | 300/300 |
Products are professionally packaged in ply wooden cases to ensure safe arrival. We support multiple transportation methods including sea freight, air freight, and express delivery to meet global requirements.
