Cdl (F) Light Stainless Steel Vertical Multi-Stage Centrifugal Pump

Customization:	Available
After-sales Service:	Video Conversation Guidance
Warranty:	18 Months From Production

Product Description

Basic Info.

Model NO.

CDL(F)

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Material

Stainless Steel

Structure

Multistage Pump

Assembly

Booster Pump

Power

Electric

Start Up

Electric Pump

Type

Blade Pump

Application

Clarified Water Pump

Industry

Water Supply, Pressure Boosting, Liquid Transfer

Media

Clear Water Pump

Performance

Explosion-Proof Pumps

Theory

Centrifugal Pump

Influent Type of Impeller

Single Suction Pump

Pump Casing Combined

Verticaljoint Surface Pump

Impeller

Closed

Working Pressure

High Pressure Pump

Position of Pump Shaft

Vertical Pump

Mounting Height

Since Irrigation Centrifugal Pumps

Parameter Difference

Less Than 7%

Transport Package

Plywood Box

Trademark

AMLT

Origin

China

HS Code

8413709990

Production Capacity

5000/Month

Product Description

Pump

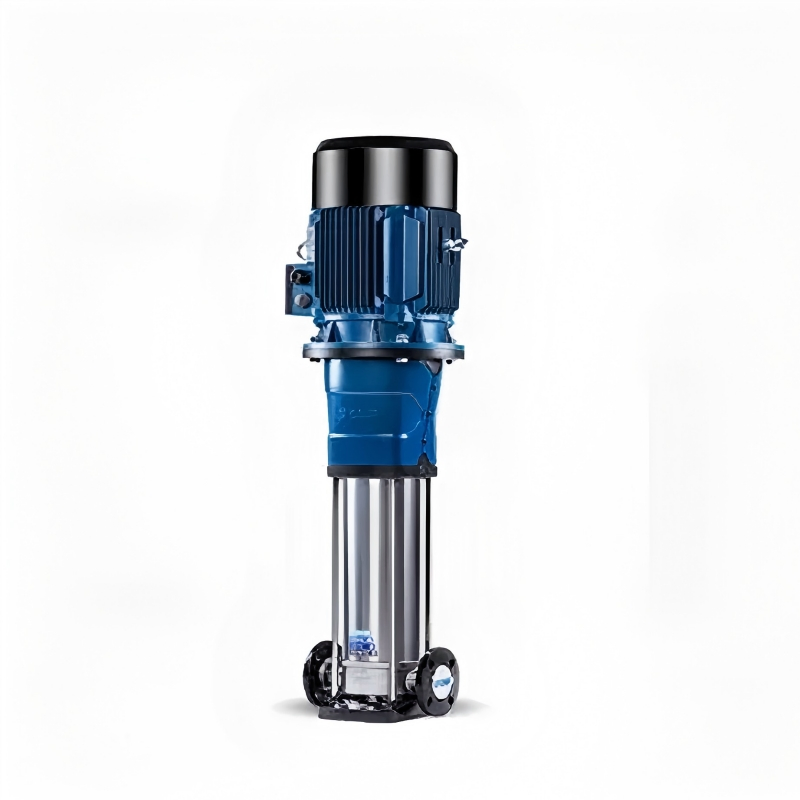

The CDL/CDLF is an innovative vertical, non-self-priming multistage centrifugal pump.
This pump is powered by a standard electric motor, with the motor's output shaft seamlessly connecting to the pump shaft via a reliable coupling. The robust pressure-resistant cylinder and fluid flow components are securely positioned between the pump head and the inlet & outlet sections, all held together with stay bolts. The inlet and outlet are conveniently situated at the pump's base, on the same plane. This versatile pump can be equipped with an intelligent protector, providing safeguards against dry-running, out-of-phase, and overload scenarios.

Application
The CDL/CDLF pumps are a marvel of multifunctionality.
They efficiently convey a range of liquids-from tap water to industrial liquids-accommodating diverse temperatures, flow rates, and pressures. CDL models are ideal for non-corrosive liquids, while CDLF models handle slightly corrosive liquids with ease.
1.Water supply: Perfect for water filtration and transport in waterworks, and boosting the main pipeline pressure, as well as enhancing water flow in high-rise buildings.

2. Industrial boosting: Ideal for process flow water systems, cleaning systems, high-pressure washing applications, and fire fighting systems.

3. Industrial liquid conveying: Supports cooling and air-conditioning systems, boiler water supply and condensing systems, machine-related tasks, and even the handling of acids and alkali.

4. Water treatment: Essential for ultrafiltration systems, reverse osmosis systems, distillation systems, separators, and swimming pools.

5. Irrigation: Perfect for a variety of irrigation needs including farmland irrigation, spray irrigation, and precise drip irrigation.

Motor
1. Features a fully enclosed, air-blast, two-pole standard motor for optimum performance.
2. Offers a robust protection class of IP55,
3. Efficient insulation class of F.
4. Standard voltage at 50Hz is available as:
1x220-230/240V, ensuring versatility,
3x200-220/346-380V,
3x220-240/380-415V, or
3x380-415V.
5. Standard voltage at 60Hz includes:
3x200-230/346-400V,
3x220-255/380-440V, and
3x220-277/380-480V

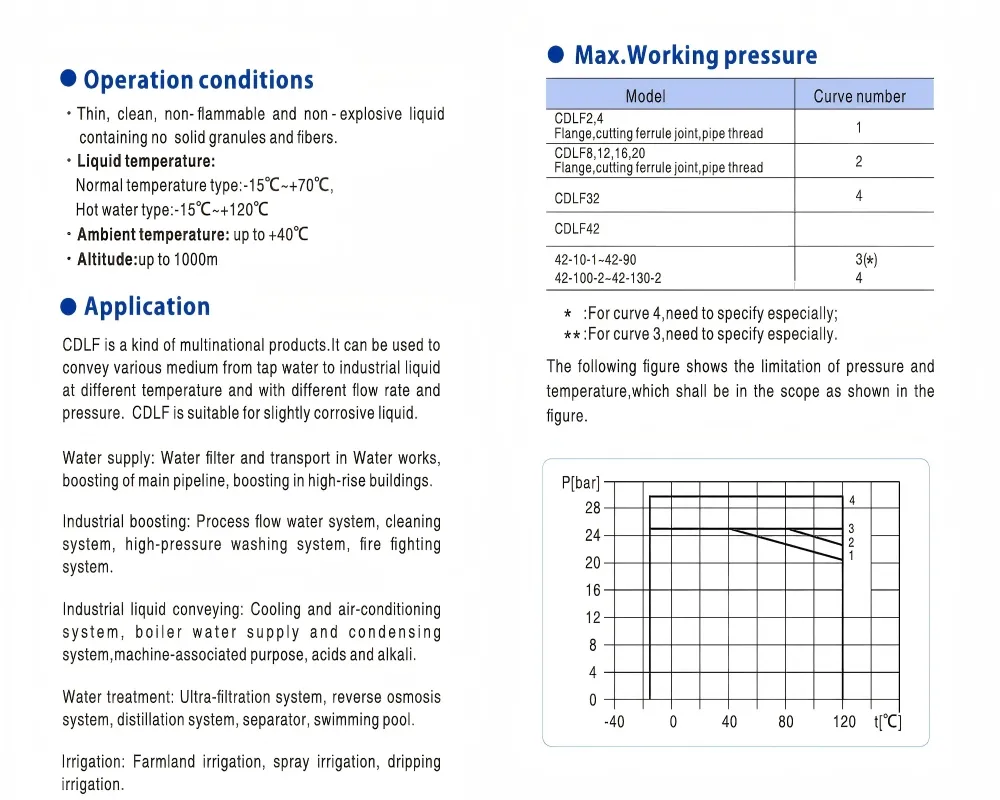

Operation Conditions
1. Designed for thin, clean, non-flammable, and non-explosive liquids,
Pristine and particle-free, our product excels with liquid containing no solid granules and fibers, ensuring peak performance.
2. Liquid temperature:
Normal temperature type: Ranging from a crisp -15ºC to a warm +70ºC, adaptable to diverse conditions.
Hot water type: Resilient and reliable, functional between -15ºC and a scorching +120ºC, ideal for high-temperature applications.

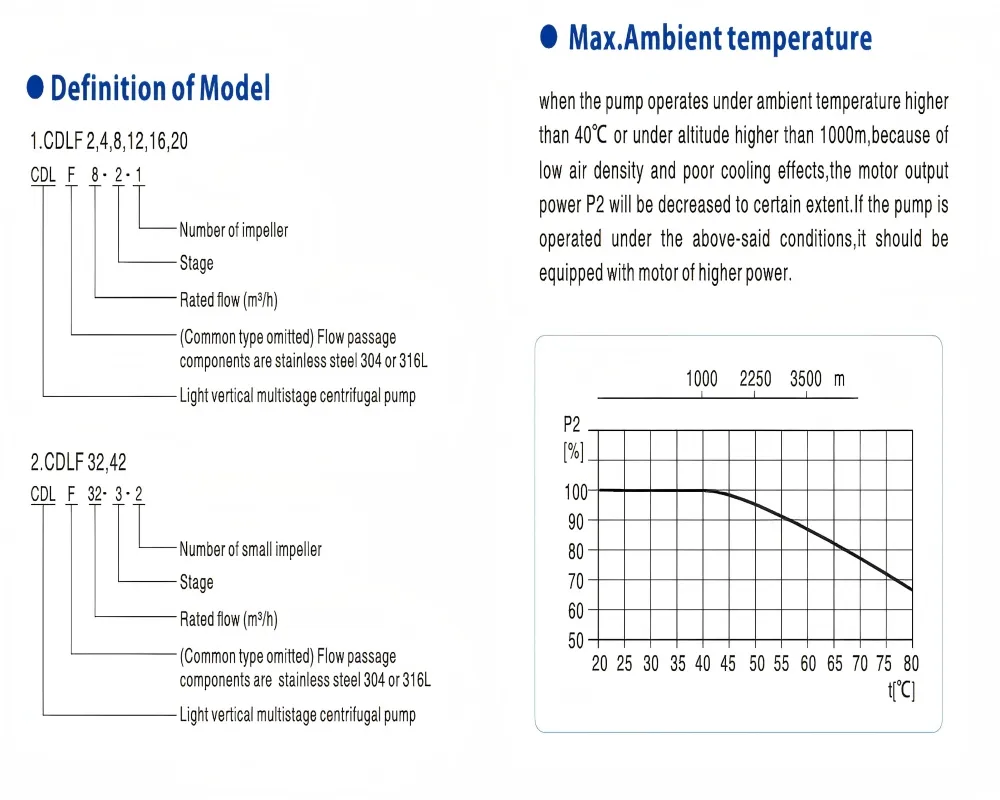

3. Ambient temperature: Designed to thrive in environments up to +40ºC, providing consistent performance even in warm settings.
4. Altitude: Operational efficiency maintained up to an altitude of 1000 meters, perfect for elevated installations.

Cdl (F) Light Stainless Steel Vertical Multi-Stage Centrifugal Pump

FAQ
Q: What is the delivery time?
A:The sample can be sent to customer within 7-10 days.
The batch order can be shipped within 20 days after receiving deposit payment
Q:Where is your loading port?
A: Ningbo port, China
Q: Is it all right to make customer's own brand name?
A: Can make OEM if Customer need.
Q: What is your payment term?
A: 50% in advance, 50% balance the B/L or T/T
Q: What Hz are the parameters given in the picture and text for?
A: 50HZ, if 60GZ is required, we will provide new parameters or send the requirements via email, and we will send the 60HZ parameter data to your location.
Q: What is the warranty of the product?
A: We offer 1 year product life guarantee and a generous 1 year warranty on all purchases that begin with the BL
Q: What information shall I provide you when I need your offer?
A: Normally, we need customer to supply the pump flow, total head, pump material (copper wire or aluminum wire? Stator length), voltage, frequency, etc, so we can quote exactly what customer need
Q: Can you accept customized products?
A: Yes we accept your specific order if you could provide us with your requirements.
Q: Is there any leakage problem of this pump?
A: We test 100% and long time for the pump, to make sure there is no leakage problem.
Q: Do you supply sample?
A: We can supply sample, but customer have to pay for the sample fee
Q: What is the delivery time?
A:7-10 after we receiving your deposit.
Q: Can you recommend some pumps according to the working conditions?
A: We have been working as sales engineers for more than 15 years. It can be provided according to some data we need.
Q: Can you provide guidance on after-sales issues and installation problems?
A: Our after-sales engineers are professionals who have been working for more than 10 years, and we will provide free video guidance to customers who purchase our products.
