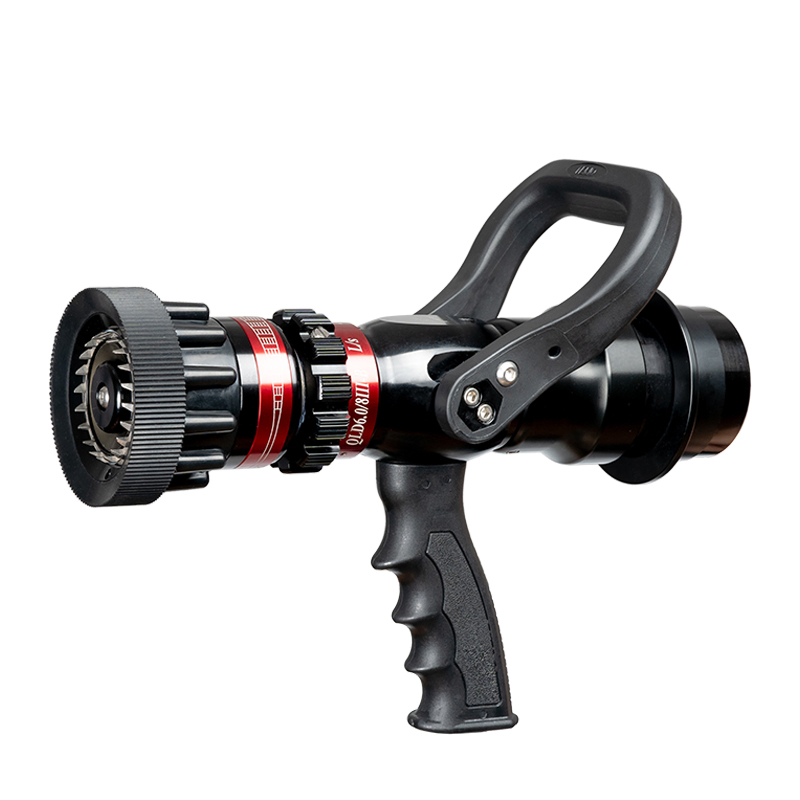

Ca-Fire Water Monitor Foam Nozzles with Adjustable Flow Rate

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
QLD6.0/8III-B
Pressure Range
Medium-Pressure
Jet Type
Dispersed Jet
Functional Level
Ⅲ, Ⅳ
DC Gun Type
Switching DC Gun
Water Cannon Type
Spray Mist Jets
Working Pressure
0.7MPa (7 Bar)
Flow Rate
115-230-360-475L/M
Flow Distance
Above 34 M
Medium
Water, Foam Mixture
Certificate
CCC and ISO
Specification
1.5" / 2" / 2.5"
🛠️ Product Description

This adjustable flow rate nozzle is equipped with a versatile retractable foam sleeve designed for professional fire protection applications.

Operation Modes:

  • Retracted Position: The nozzle operates as a standard adjustable flow rate nozzle for water delivery.
  • Extended Position: The nozzle functions as a foam nozzle, delivering high-quality foam expansion for specialized fire suppression.
📋 Technical Parameters & Images
Model Working Pressure Flow Rate (L/M) Range (M) Coupling Size
QLD6.0/8III 7 Bar 115-230-360-475 34M 1.5"/2.5"
QLD6.0/8III-B 7 Bar 115-230-360-475 34M 1.5"/2.5"
QLD6.0/10III-BF 7 Bar 115-240-360-475-600 34M 1.5"/2.5"
QLD6.0/13III-BF 7 Bar 350-450-580-780-950 37M 1.5"/2.5"

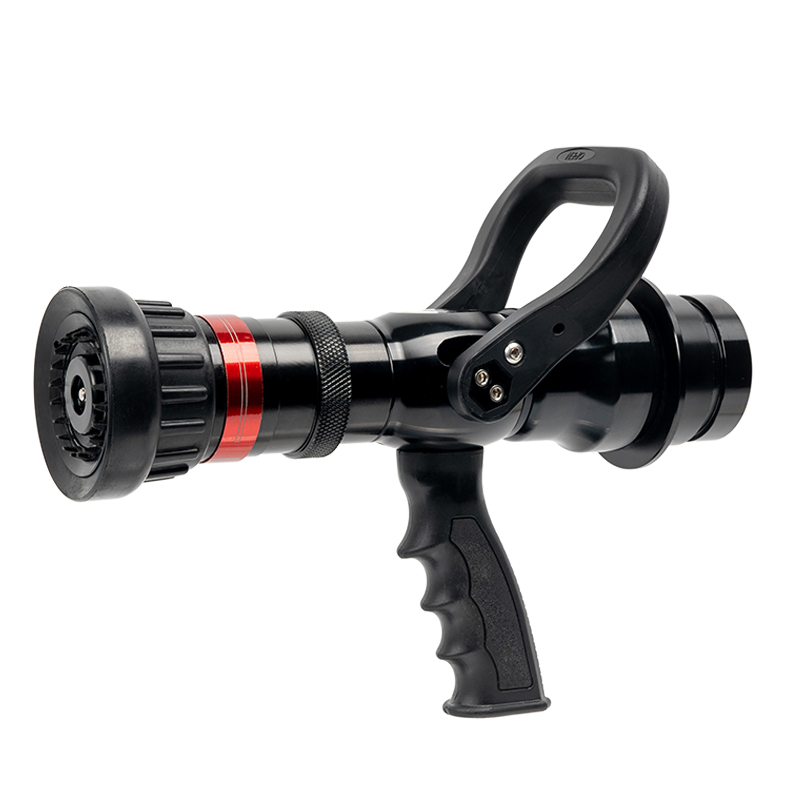

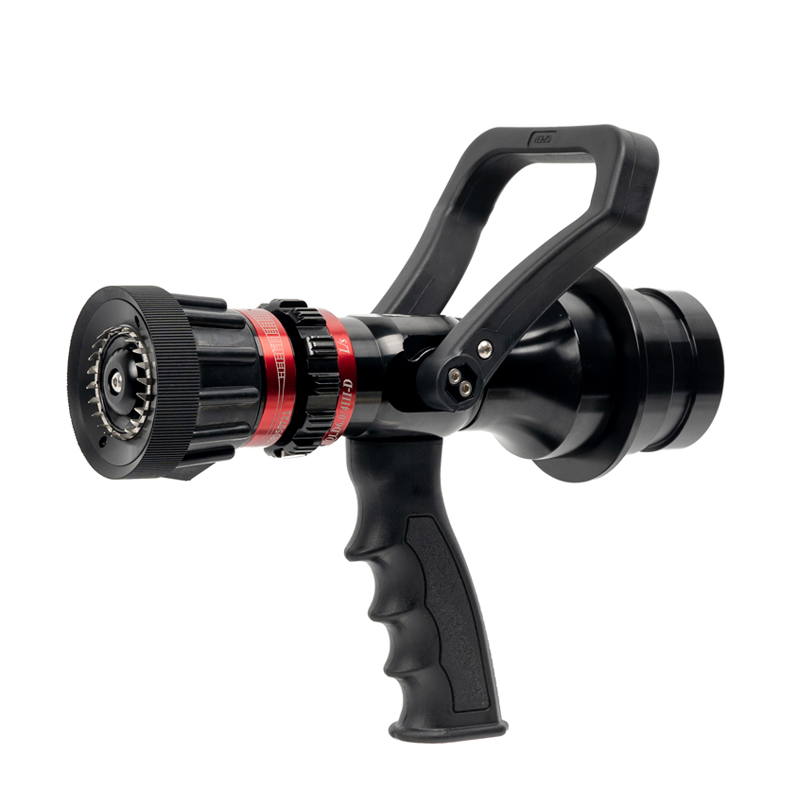

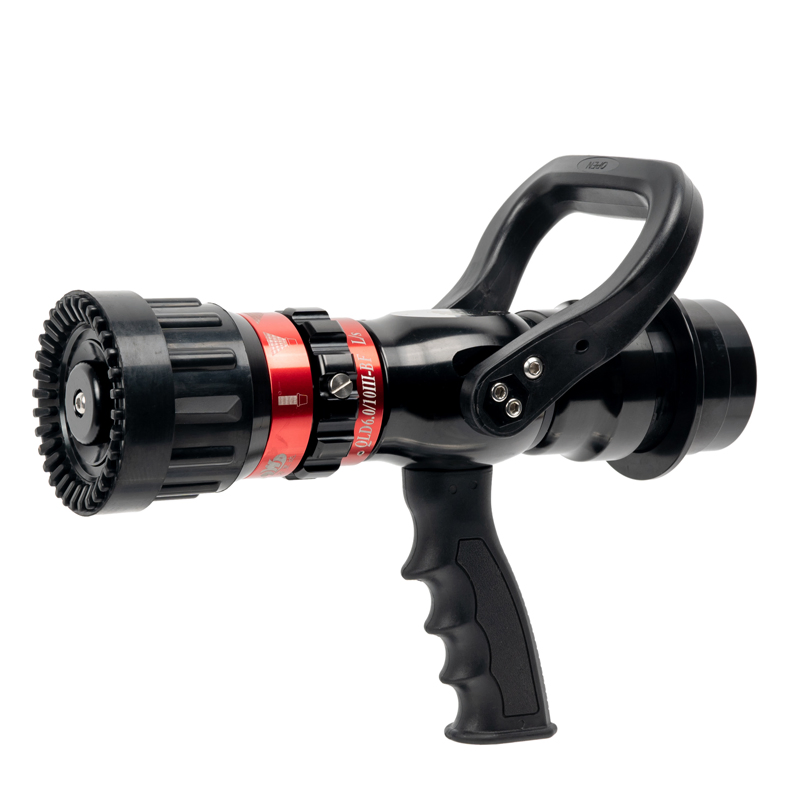

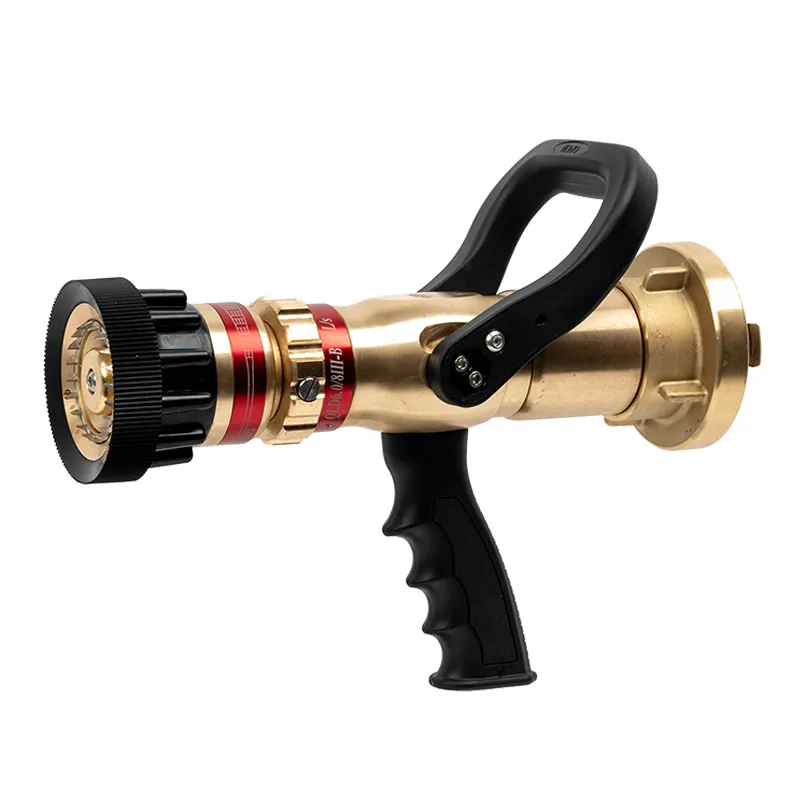

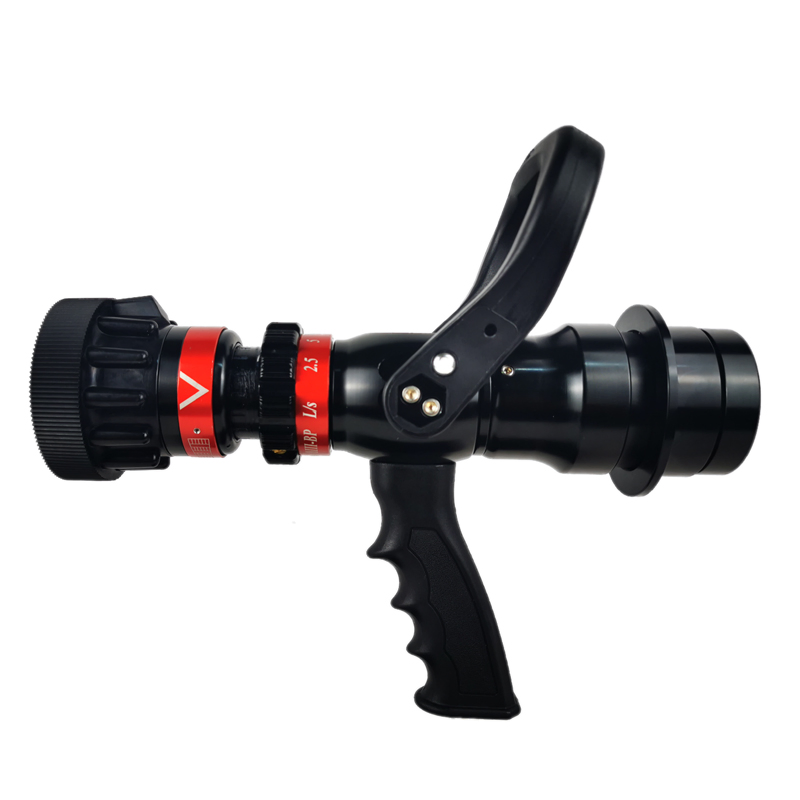

Water Monitor Foam Nozzle Detail 1
Water Monitor Foam Nozzle Detail 2

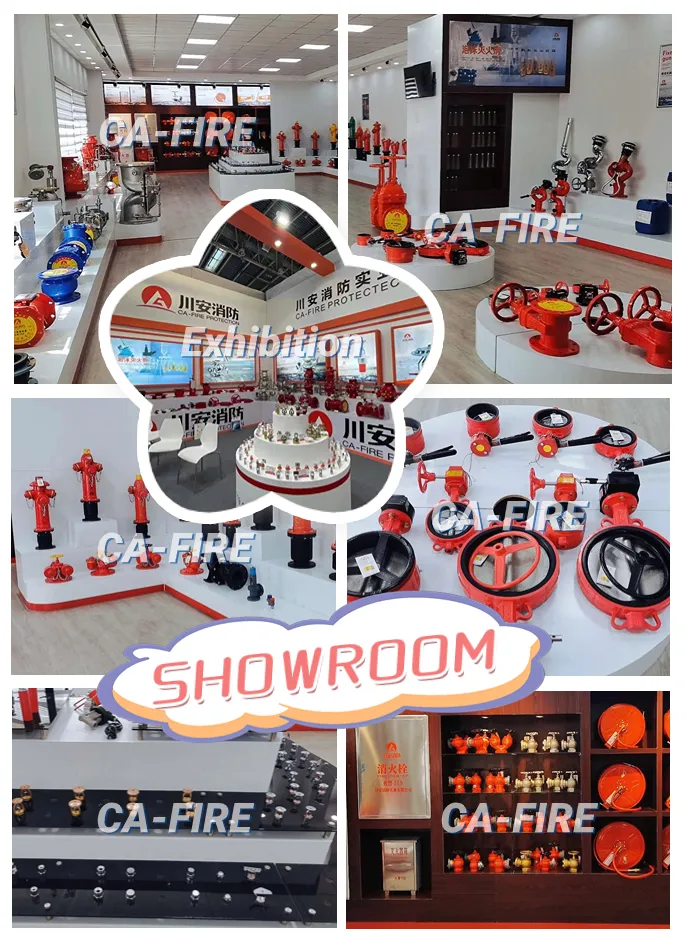

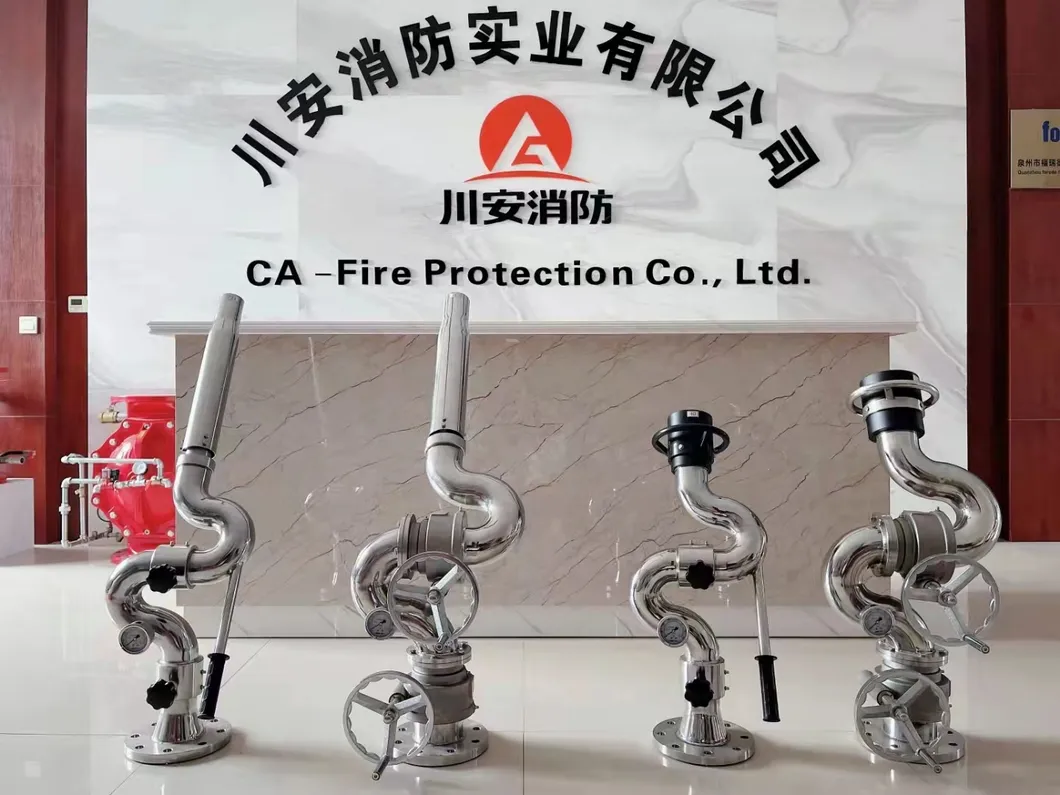

Product Display
🏢 Industry Profile

Established in 2012, our enterprise is a professional entity specializing in the R&D, production, and service of fire-fighting equipment. By integrating advanced manufacturing and inspection technologies, we provide superior fire protection solutions.

Our extensive product range includes over 100 specifications, including pressure proportioning tanks, foam generators, portable fire extinguishing installations, deluge valves, sprinkler nozzles, and indoor/outdoor fire hydrants. All products are rigorously inspected to meet national quality standards and have obtained mandatory certifications for fire safety products.

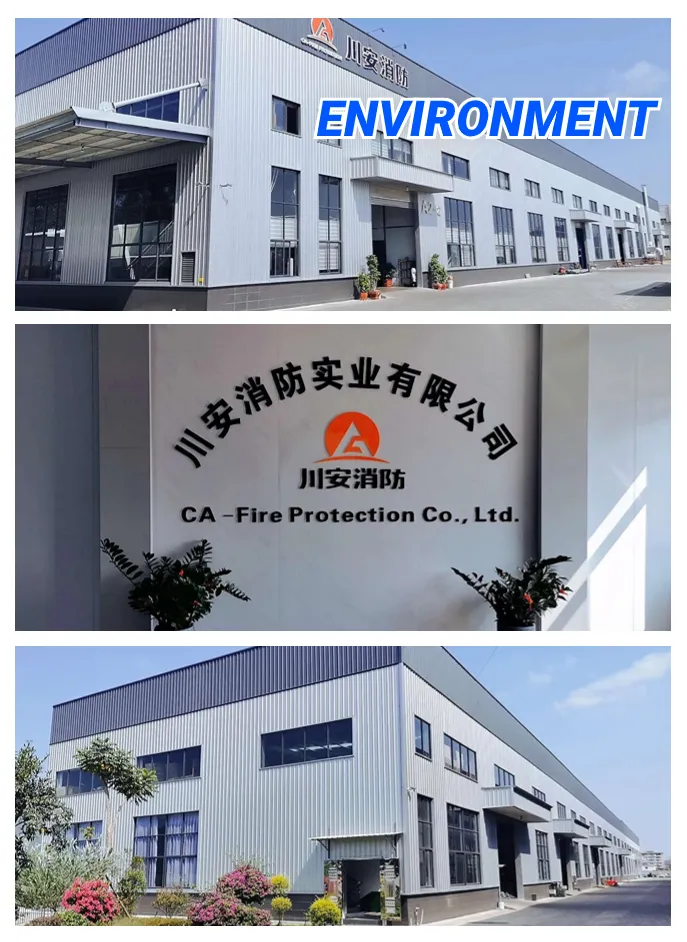

Production Capability
Quality Certification
❓ Frequently Asked Questions
What is the main advantage of the retractable foam sleeve?
The retractable sleeve allows a single nozzle to switch between standard water delivery (retracted) and high-quality foam delivery (extended), providing versatile firefighting options.
What is the standard working pressure for these nozzles?
The rated working pressure is 0.7MPa (7 Bar), which ensures optimal spray distance and flow accuracy.
Can the flow rate be adjusted during operation?
Yes, the nozzle features adjustable flow rate settings, such as 115-230-360-475 L/M, allowing operators to control the output based on the fire's requirements.
What type of firefighting mediums can be used?
The nozzle is compatible with both clean water and foam-water mixtures, making it suitable for Class A and Class B fires.
What coupling sizes are supported?
The standard models support 1.5 inch and 2.5 inch coupling sizes to fit most common fire hose connections.
Does the product hold any quality certifications?
Yes, the products are CCC and ISO certified, ensuring they meet strict safety and performance standards for fire fighting equipment.
